product name

Amana KFC2 (BOM: P1326306M)

Model: KFC2 (BOM: P1326306M)

Save Part Not Listed?
product name

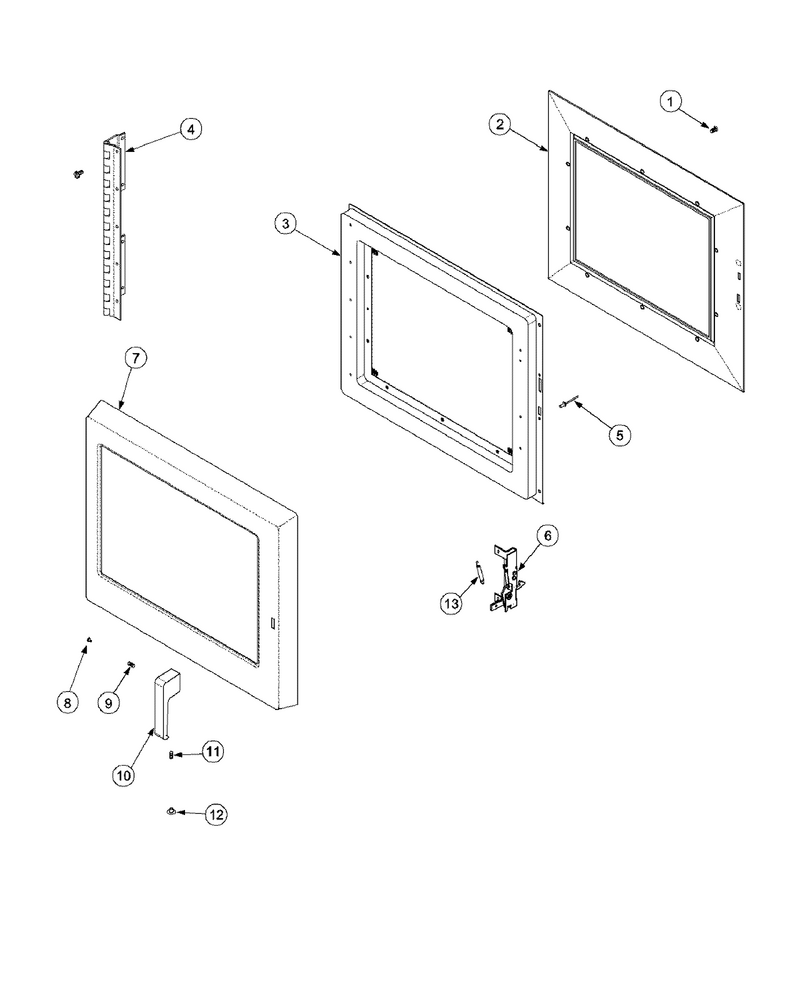

04 - Door

...
...
1
Magnetic Y-Drive Bit WPL-R0193574
...
2
Inner Door/glass Assy WPL-D7784901
...
3
Kit-Door R WPL-R0131710
...
4
Hinge-Door WPL-C8961811
...
5
Rivet-Pop WPL-59002054
...
6
Latch Kit WPL-R0000282
...
7
Outer Door/lens Retainer Assy WPL-R0156918
...
8
Plug, Button (Wht) WPL-M0310305
...
9
Screw WPL-WP8533976
...
10
Handle, Door WPL-12490901
...
11
Screw WPL-WP8533976
...
12
Plug, Button (Blk) WPL-12360703
...
13
Spring, Door Latch WPL-C8893502

...
...
1
Manual, Part Com Microwaves WPL-16022097
...
2
Mnl,svc-Comm`l Micro WPL-RS2240003
...
3
Use & Care -Rc17s/22s3/25s/30s WPL-12392758
...
4
Manual,product Safety WPL-12636701
...
5
Manual-Prod Safety WPL-16021751
...
6
Instr,quick Start(Comm`l Micro WPL-12598402
...
7
Menu Label WPL-12155701
...
8
Magnetic Y-Drive Bit WPL-R0193574
...
9
Harness-Interlock WPL-13018201
...
10
Harness-Pc Board WPL-12543202
...
11
Harness-Oven Light WPL-12543401
...
12
Harness, Lower Antenna Motor WPL-12598201
...
13
Harness,hi Volt WPL-12598101
...
14
Harness, Oven WPL-R0130266
...
15
Kit-Cav- 3 Tube ``s`` Chassis WPL-12002484

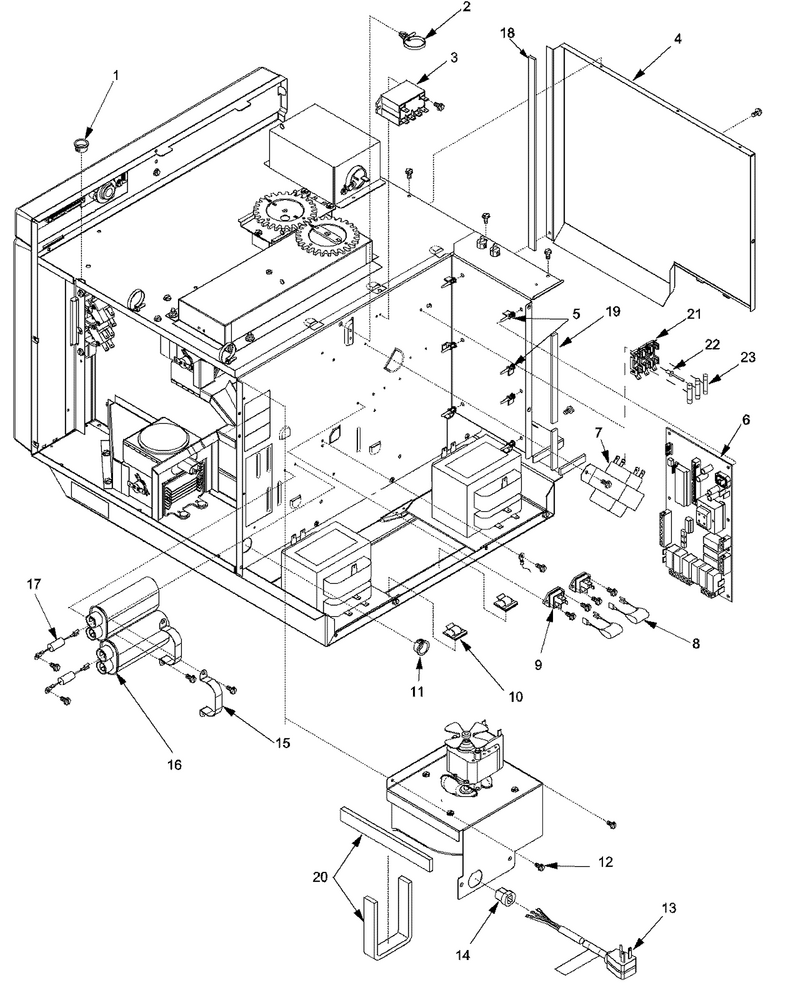

05 - Electrical Components

...
...
1
Bushing-Snap WPL-A3293505
...
2
Tie Wire WPL-WPM0322202
...
4
Duct, Exhaust WPL-10781901
...
5
Support P-C Bd A WPL-M0590602
...
6
Net-Board,hv Amana Prog-Kfc2 WPL-59001121
...
7
Screw WPL-WP489349
...
8
Snubber Assembly WPL-59002017
...
9
Screw WPL-WP489349
...
10
Clip WPL-WPM0104106
...
11
Bushing, Snap WPL-A3293504
...
12
Screw WPL-WP489349
...
13
Power Cord WPL-10098906
...
14
Relief-Strain WPL-M0370011
...
15
Screw WPL-WP489349
...
16
Capacitor-.69 WPL-59001160
...
17
Screw WPL-WP489349
...
18
Gasket (Inch) WPL-A3030301
...
19
Gasket (Inch) WPL-A3030301
...
20
Gasket (Per Foot) WPL-A3030303

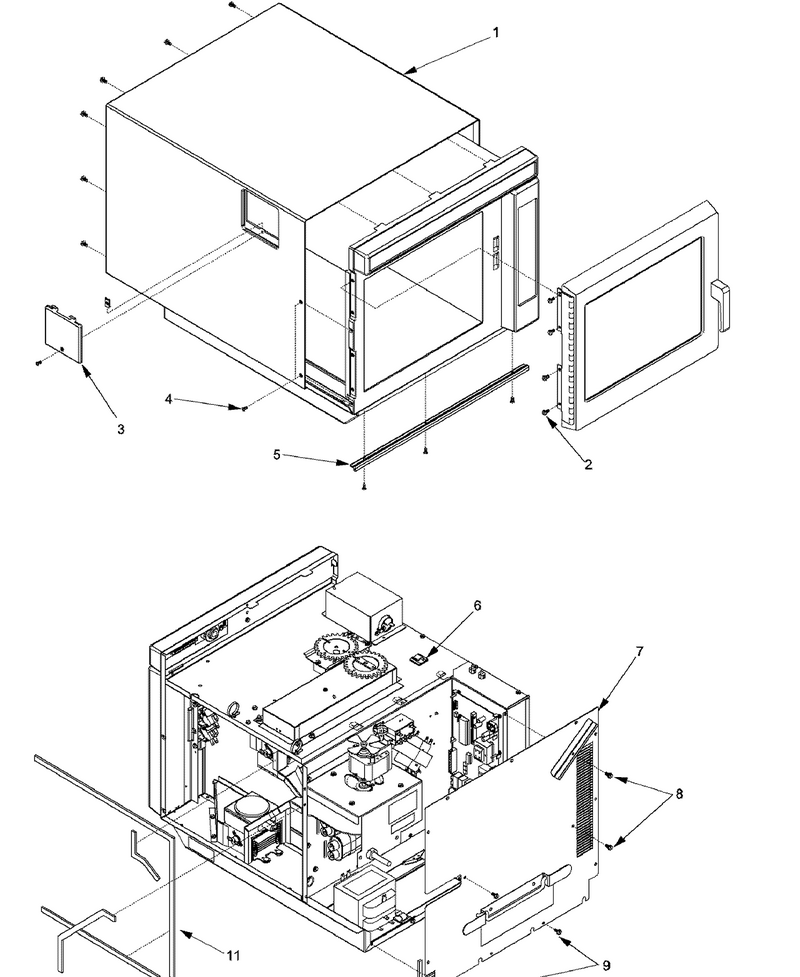

06 - Outercase

...
...
1
Screw WPL-WP3388228
...
2
Screw,tf WPL-M0231617
...
3
Clip WPL-M0288213
...
4
Screw-Tf/oval WPL-13042002
...
5
Screw-Tf/oval WPL-13042002
...
6
Clip WPL-WPM0104106
...
7
Assy, Access Panel (Rear) WPL-R0156970
...
8
Screw WPL-WP3388228
...
9
Screw WPL-WP90767
...
10
Gasket (Inch) WPL-A3030301
...
11
Gasket,per Ft WPL-A30303-30

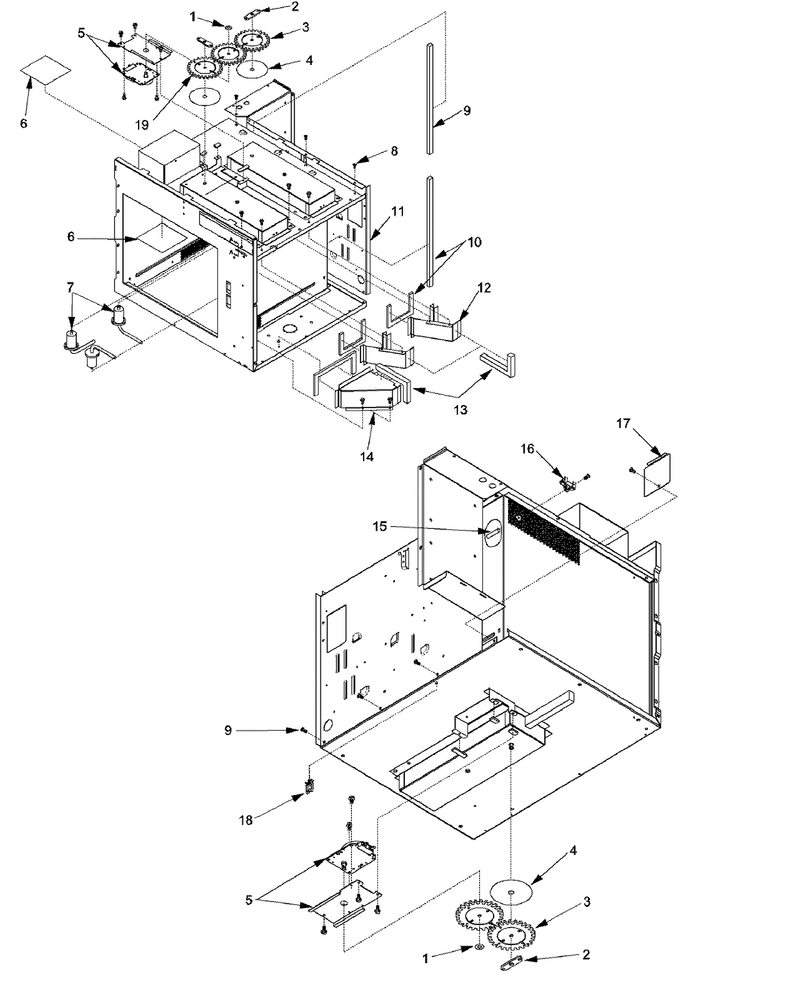

01 - Antennas & Ducts

...
...
2
Retainer,gear Shaft WPL-12570201
...
3
Gear,spur WPL-12570101
...
4
Washer, Spur Gear WPL-10903002
...
5
Screw, Tf WPL-M0231704
...
6
Window, Oven Light WPL-B8367701
...
7
Antenna (Stirrer) WPL-R0130262
...
8
Screw WPL-WPW10001160
...
9
Gasket, Neoprene WPL-10966601
...
10
Gasket,per Ft WPL-A30303-30
...
11
Panel,partition WPL-12567801
...
12
Duct-Top Exhaust WPL-10989201
...
13
Gasket (Per Foot) WPL-A3030303
...
14
Bottom Exhaust Duct-W/gasket WPL-10989301
...
15
Cap, Protective-Threaded (Red) WPL-M0308801
...
16
Thermal Cutout WPL-B5795306
...
17
Plate, Partition WPL-10847601
...
18
Wire Clip WPL-B5667304
...
19
Gear,spur (Gray) WPL-12570102

03 - Control

...
...
1
Shield, Grease WPL-10766601
...
2
Screw, Tf WPL-M0231704
...
3
Board,display WPL-12502404
...
4
Tie Wire WPL-WPM0322202
...
5
Rear Divider Duct-W/gasket WPL-R0156986
...
6
Divider-Bot Flow WPL-10989401
...
7
Switch, Interlock Kit WPL-12002636
...
8
Screw T.c WPL-M0229916
...
9
Screw-Thumb WPL-13042901
...
10
Support-Tray WPL-3010003001
...
11
Cap, Protective-Threaded (Red) WPL-M0308801
...
12
Adhesive WPL-W10841140
...
13
Label, Kfc2 WPL-59001237
...
14
Tray-Ceramic Floor W/sealer WPL-R0156942
...
15
Gasket,per Ft WPL-A30303-30
...
16
Gasket (Per Foot) WPL-A3030303
...
17
Tie-Wire WPL-WPW10339879
...
18
Divider, Top Flow WPL-10989601

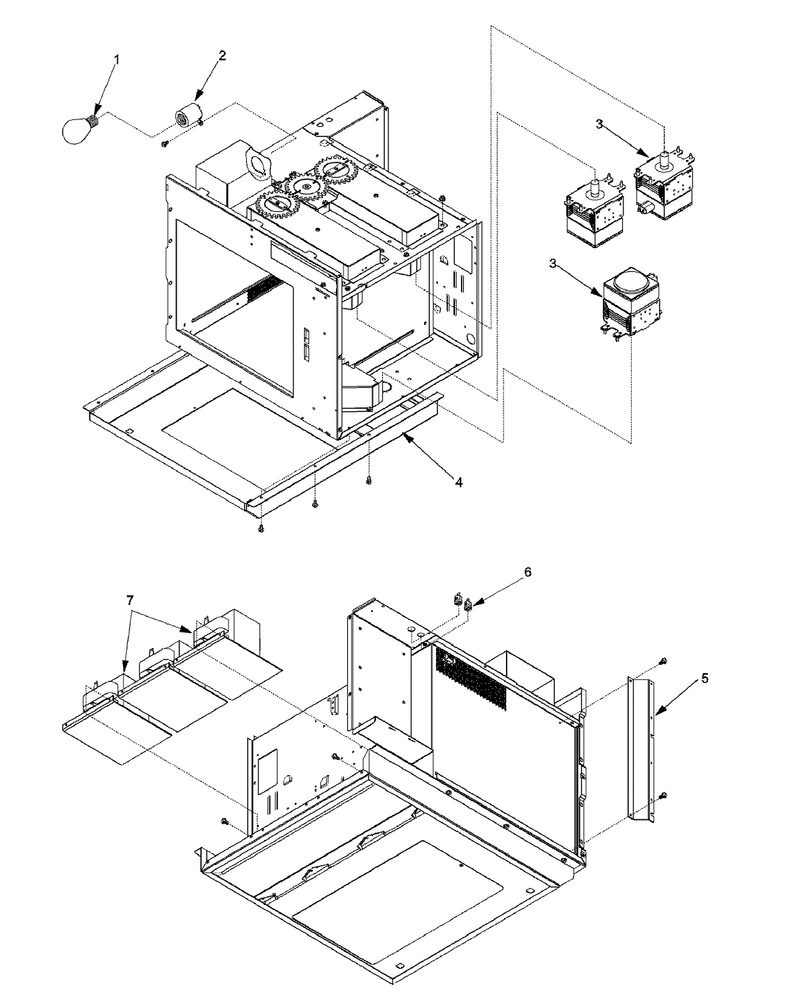

08 - Transformers, Magnetrons,

...
...
1
Light Bulb WPL-8009
...
2
Receptacle, Lamp WPL-B8371401
...
3
Magnetron-T WPL-10489402
...
4
Screw WPL-WP489128
...
5
Bracket,hinge Support WPL-12189003
...
6
Bushing,terminal WPL-M0325401
...
7
Transformer-Hv WPL-59001626

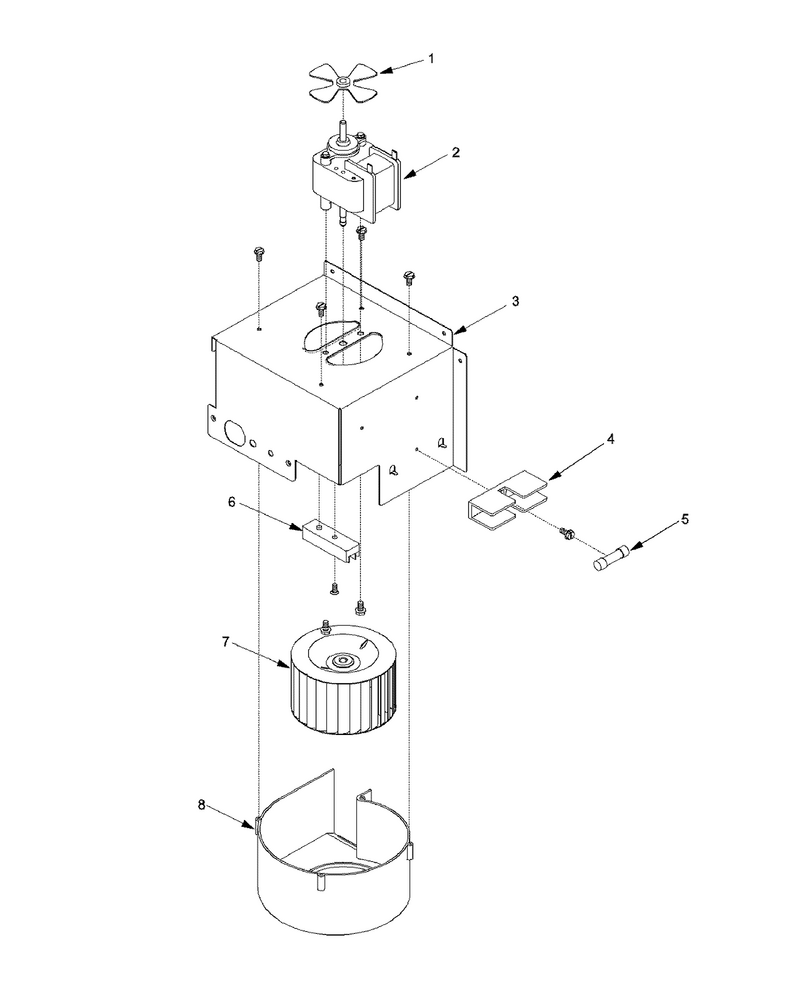

02 - Blower

...
...
1
Fan Blade WPL-B5706704
...
2
Motor,blower WPL-12138106
...
3
Bracket,blower WPL-12567703
...
4
Fuse Holder WPL-10091101
...
5
Fuse- 30a WPL-M0805205
...
6
Terminal Block WPL-B5677203
...
7
Wheel, Blower WPL-C3670809
...
8
Screw-Sm/hex WPL-12990523

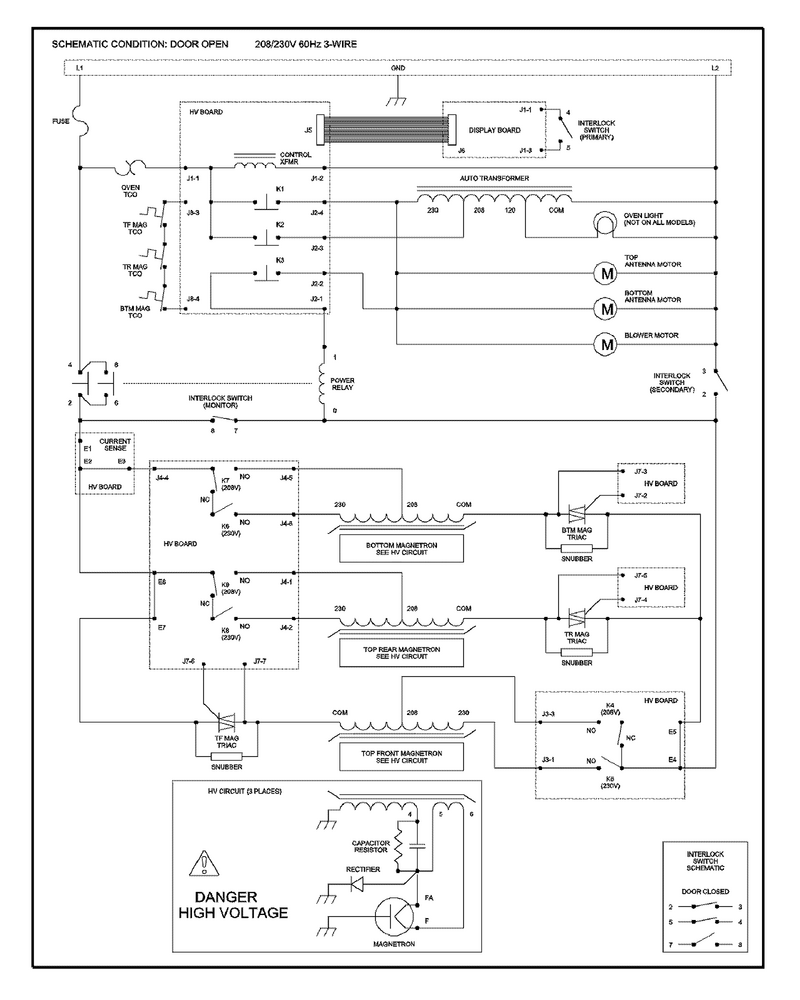

09 - Wiring Information

...
...
NI
Wiring Information WPL-15003009
Schematic Image Zoomed
