Amana K-880.001

Model: K-880.001

Save Part Not Listed?
product name

Popular Parts

Popular Parts

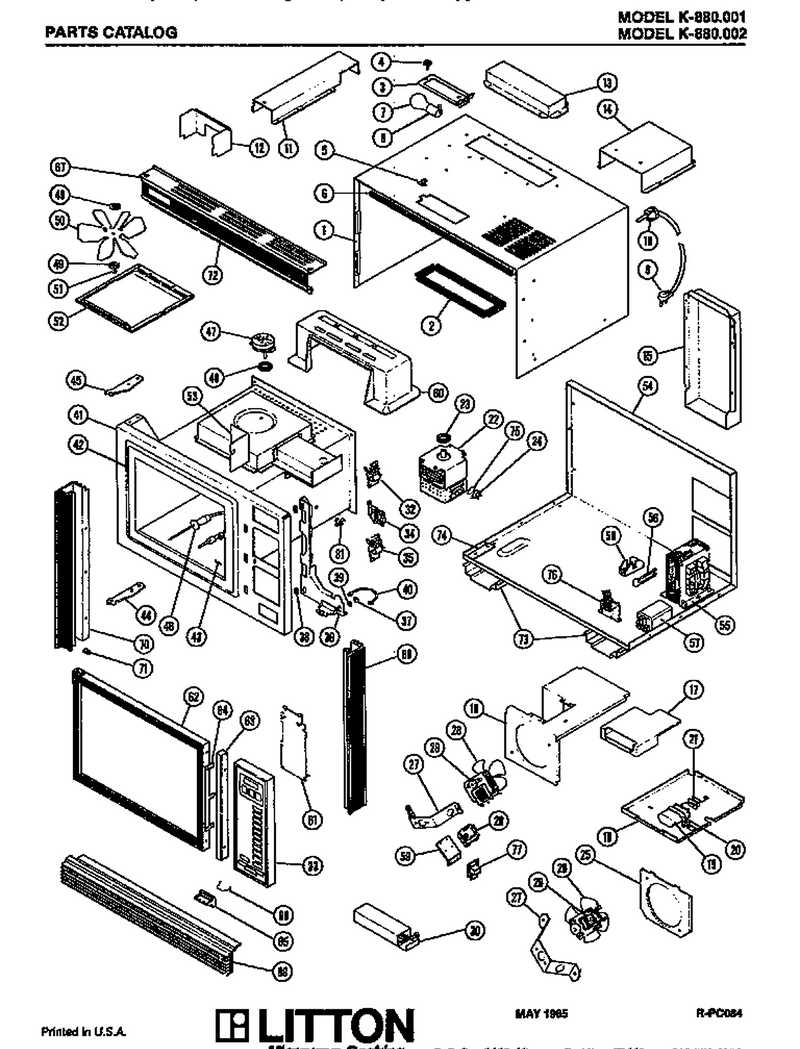

01 - Page 4

...
...
NI
M95d11-Centigrade Thermo WPL-M95D11
...
1
Screw WPL-WP90767
...
2
Not Available WPL-M25D31
...
3
Cover Lamp WPL-M7D309
...
4
Screw (1) WPL-M1D553
...
5
Push Nut (25) WPL-M1D652
...
6
Gasket WPL-A3030302
...
7
Light Bulb WPL-8009
...
8
Wire Harness WPL-M5D186
...
9
No.8 Spring Lockwasher (25) WPL-M1D57
...
10
Bush, Strain Relf (10) WPL-M1D600
...
11
Screw WPL-WP90767
...
12
Screw WPL-WP90767
...
13
Screw WPL-WP90767
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
Not Available WPL-M2D203
...
17
Not Available WPL-M65D154
...
18
Screw WPL-WP90767
...
19
Capacitor-.69 WPL-59001160
...
20
Screw WPL-WP90767
...
21
Kit, Diode WPL-M3D71
...
22
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
23
Gasket-Rf WPL-M2D296
...
24
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
25
Screw WPL-WP90767
...
26
Nut K WPL-M0282005
...
27
Washer (25) WPL-M1D733
...
28
Ia Fan WPL-M35D3
...
29
Screw (25) WPL-M1D590
...
30
H.v. Lead Kit WPL-M5D350
...
31
Switch-Probe Jack WPL-M14D133
...
32
Switch Assy M14d123 WPL-92547P01
...
33
Screw, No.6-32 X 1/4 Inch WPL-212951
...
34
Assy, Switch WPL-M14D153
...
35
Switch Assy M14d123 WPL-92547P01
...
36
Screw (25) WPL-M1D212
...
37
Washer (25) WPL-M1D361
...
38
Oval Bearing WPL-M2D175
...
39
Bearing WPL-M2D176
...
40
Lock Washer WPL-M0272803
...
41
Roller WPL-M2D174
...
42
Fillerx WPL-M55D6
...
43
Shelf W/rtv Kit WPL-M50D14
...
44
Bearing WPL-M2D171
...
45
Bearing WPL-M2D171
...
46
Ia Probete WPL-34005P01
...
47
Stirrer Motor Kit WPL-M12D45
...
48
R F Gasket Kit WPL-M2D152
...
49
Spcr-Stir WPL-M2D26
...
50
Stirrer Blade Kit WPL-M35D19
...
51
.156 Dia Push On Clip WPL-M1D78
...
52
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
53
Spacer Intrusion WPL-M2D364
...
54
Not Available WPL-M79D72
...
55
No.10 T X 3/8`` Screw WPL-M1D479
...
56
Varistor Asy WPL-M3D33
...
57
Relay WPL-31133P01
...
58
No.6 Pan Hd Machine Screw WPL-M1D69
...
59
Brkt Triac Mtg WPL-M20D292
...
60
Exhaust Duct, Cavity WPL-M65D105
...
61
Screw (25) WPL-M1D746
...
62
Door Assembly WPL-M68D83
...
63
Door Handle WPL-M7D270
...
64
Screw (25) WPL-M1D473
...
65
Release Barx WPL-M11D36
...
66
Ia Spring WPL-M2D168
...
67
Screw (25) WPL-M1D734
...
68
Vert S Trim Rt WPL-M75D43
...
69
Screw WPL-WP90767
...
70
1 In. Wood Screw (25) WPL-M1D736
...
71
Brkt Vent Mtg WPL-M20D117
...
72
Dec Panel Top WPL-M75D44
...
73
Support Rail WPL-M20D135
...
74
Not Available WPL-M2D172
...
75
Spacer (10) WPL-M1D675
...
76
L.v. Transformer WPL-M60D97
...
77
Screw (25) WPL-M1D590
