product name

Amana K-540.001

Model: K-540.001

Save Part Not Listed?
product name

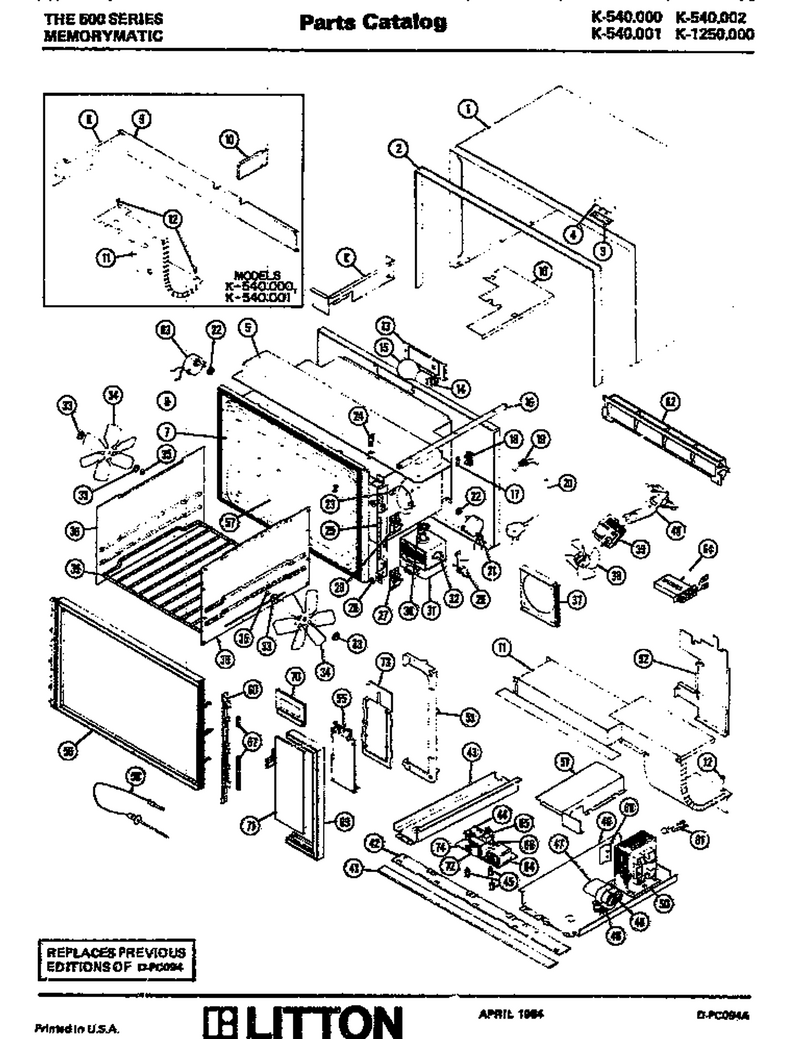

01 - Page 1

...
...
NI
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
1
Not Available WPL-M80D74
...
2
Trim, Outer Case WPL-M75D33
...
3
Bezel Door WPL-M6D201
...
4
Button, Door Release WPL-31990P01
...
5
Not Available WPL-M77D81
...
6
Gasket WPL-M25D48
...
7
Choke Filler WPL-M55D13
...
8
Light Barrier 500/1500 WPL-M2D360
...
9
Not Available WPL-M65D116
...
10
Not Available WPL-M65D120
...
11
Main Air Duct WPL-M65D151
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
13
Cover Lamp WPL-M7D309
...
14
Wire Harness WPL-M5D186
...
15
Light Bulb WPL-8009
...
16
Brace Upper WPL-M20D102
...
17
Fuse 20 A WPL-WPM0805101
...
18
Ia Screw WPL-M1D329
...
19
Bush, Strain Relf (10) WPL-M1D600
...
20
No.8 T X 3/8`` Screw WPL-M1D402
...
21
Stirrer Motor Kit WPL-M12D39
...
22
R F Gasket Kit WPL-M2D152
...
23
Ld Grn 16 Ga WPL-M5D120
...
24
3/8 Int Tooth Lockwasher WPL-M1D598
...
25
Latch Slide WPL-M20D101
...
26
Bearing Latch WPL-M2D327
...
27
Ia Screw No.10-32 WPL-M1D370
...
28
Ia Screw No.10-32 WPL-M1D370
...
29
Assy, Switch WPL-M14D75
...
30
Gasket-Rf WPL-M2D296
...
31
Kit, Magnetron WPL-M57D20
...
32
Screw Thrm WPL-M1D666
...
33
Washer WPL-M1D565
...
34
Stirrer Blade Kit WPL-M35D18
...
35
.156 Dia Push On Clip WPL-M1D78
...
36
Stirrer Cov WPL-M45D12
...
37
Not Available WPL-M20D104
...
38
Fan, Blower Kit WPL-M35D16
...
39
Nut K WPL-M0282005
...
40
Screw, Base Mtg. WPL-M1D663
...
41
Lower Trim WPL-M75D55
...
42
Support, Trim Mtg. WPL-M52D135
...
43
Not Available WPL-M79D44
...
44
Triac WPL-M16D66
...
45
Support C B WPL-M1D641
...
46
Screw, Base Mtg. WPL-M1D663
...
47
Capacitor-.69 WPL-59001160
...
48
Screw WPL-M0202325
...
49
Kit, Diode WPL-M3D71
...
50
Transformer WPL-M60D54
...
51
Air Duct Cont WPL-M65D198
...
52
Not Available WPL-M65D119
...
53
Back Platex WPL-M7D314
...
54
No.6 Trimmed Hex Hd Screw WPL-5000632401
...
55
Net-Assy,ckt Bd(rework) WPL-M32R19
...
56
Door Asy WPL-M68D81
...
57
Shelf WPL-M50D29
...
58
Ia Probete WPL-34005P01
...
59
Rack WPL-29888P01
...
60
H V Barrier WPL-M2D329
...
61
Varistor Asy WPL-M3D33
...
62
Ia Screw WPL-M1D329
...
63
Stirrer Motor Kit WPL-M12D41
...
64
H.v. Lead Kit WPL-M5D109
...
65
Relay, Auxiliary WPL-M16D67
...
66
Screw (25) WPL-M1D590
...
67
Spacer WPL-M2D440
...
68
End Cap Asm 515 Kit WPL-M7D360
...
69
Dec Panel Bezel WPL-M7D434
...
70
Not Available WPL-M2D403
...
71
Assy, Mem Sw 1551 WPL-M7D391
...
72
Screw (25) WPL-M1D590
...
73
Mtg Plate WPL-M7D389
...
74
Mtg Brkt WPL-92315P01
