product name

Amana K-460.001

Model: K-460.001

Save Part Not Listed?
product name

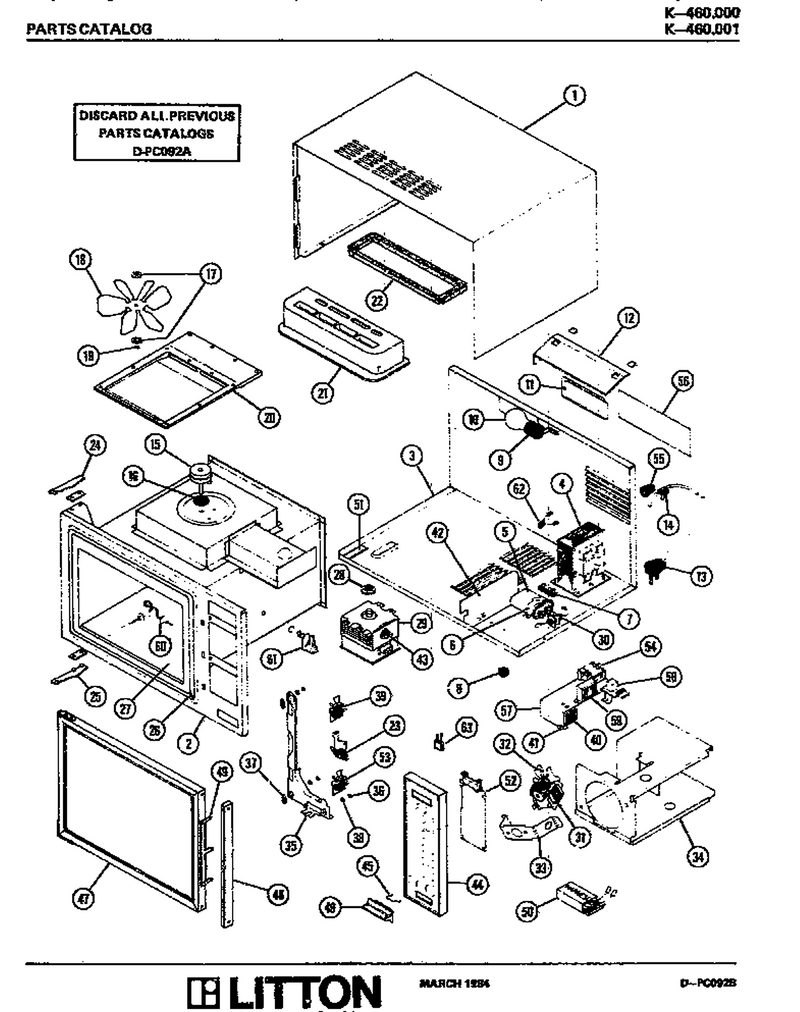

01 - Page 1

...
...
1
Not Available WPL-M80D38
...
2
Roller WPL-M2D174
...
3
Not Available WPL-M79D49
...
4
Transformer WPL-M60D54
...
5
Capacitor-.69 WPL-59001160
...
6
Screw, Capacitor/bracket WPL-M1D428
...
7
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
8
Tinnerman Clip (25) WPL-M1D179
...
9
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
10
Light Bulb WPL-8009
...
11
Lamp Cover WPL-M7D253
...
12
Tinnerman (25) WPL-M1D386
...
13
No.8 Spring Lockwasher (25) WPL-M1D57
...
14
Bush, Strain Relf (10) WPL-M1D600
...
15
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
16
R F Gasket Kit WPL-M2D152
...
17
Spcr-Stir WPL-M2D26
...
18
Stirrer Blade Kit WPL-M35D19
...
19
.156 Dia Push On Clip WPL-M1D78
...
20
Cover WPL-M45D9
...
21
Exhaust Duct, Cavity WPL-M65D105
...
22
Not Available WPL-M25D31
...
23
Screw (25) WPL-M1D107
...
24
Hinge Assy WPL-M8D48
...
25
Hinge-Bottom WPL-M8D49
...
26
Fillerx WPL-M55D6
...
27
Shelf W/rtv Kit WPL-M50D14
...
28
Gasket-Rf WPL-M2D296
...
29
Magnetron 2m172jd Kit WPL-M57D18
...
30
Nut WPL-WP488130
...
31
Nut K WPL-M0282005
...
32
Fan, Blower Kit WPL-M35D16
...
33
Blower Brkt.kit WPL-M20D89
...
34
Air Duct, Exhaust WPL-M65D102
...
35
Brkt-Latch Slide WPL-M20D92
...
36
Washer (25) WPL-M1D361
...
37
Oval Bearing WPL-M2D175
...
38
Bearing WPL-M2D176
...
39
Switch Assy M14d123 WPL-92547P01
...
40
No.6 Trimmed Hex Hd Screw WPL-5000632401
...
41
Lock Washer (25) WPL-M1D59
...
42
No.8 Ab X 1/2`` Screw WPL-M1D358
...
43
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
44
Dec Panel M7d380 WPL-92241A01
...
45
Ia Spring WPL-M2D168
...
46
Bar WPL-M11D37
...
47
Door Assembly WPL-M68D91
...
48
Ia Screw 8b M1d618 WPL-M1D618
...
49
Screw (25) WPL-M1D473
...
50
H.v. Lead Kit WPL-M5D109
...
51
Not Available WPL-M2D172
...
52
Net-Assy,ckt Bd(rework) WPL-M32R19
...
53
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
54
Screw (25) WPL-M1D590
...
55
Screw WPL-WP489474
...
56
Not Available WPL-M94D294
...
57
Bkt-Asm WPL-M20D156
...
58
Relay, Auxiliary WPL-M16D67
...
59
Screw (25) WPL-M1D590
...
60
Ia Probete WPL-34005P01
...
61
Switch-Probe Jack WPL-M14D133
...
62
Varistor Asy WPL-M3D33
...
63
R C Asy WPL-M3D66
