Amana JW1040.000 (BOM: JW1040.00 0)

Model: JW1040.000 (BOM: JW1040.00 0)

Save Part Not Listed?
product name

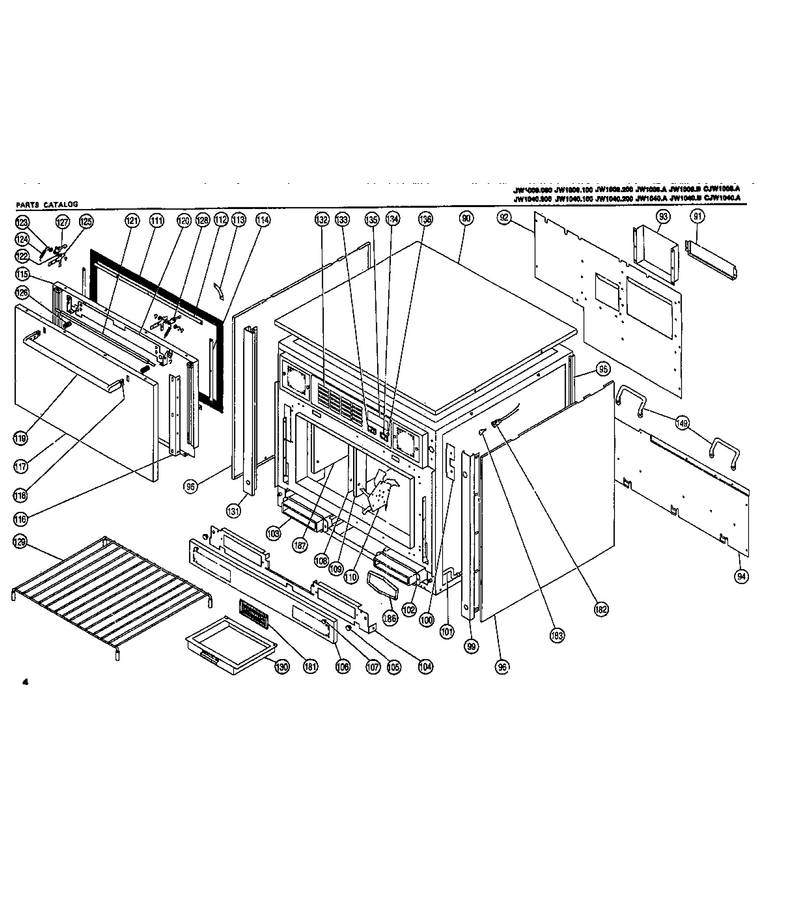

02 - Page 3

...
...
NI
Rack Foot M2d761 WPL-46545P01
...
90
Top Panel WPL-M82D206
...
91
Exhaust Cap WPL-M8D322
...
92
Upper Back Panel WPL-M82D200
...
93
Screw WPL-WP90767
...
94
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
95
Rear Trim WPL-M75D113
...
96
Side Panel WPL-M82D202
...
99
No.10 T X 3/8`` Screw WPL-M1D479
...
100
No.10 T X 3/8`` Screw WPL-M1D479
...
101
Jw Clip Handle WPL-M1D930
...
102
Ass`y, Pocket (Jw) M20d273 WPL-44438P01
...
103
J. W. Filter Kit Bottom WPL-M48D23
...
104
Lower Front Trim WPL-M75D115
...
105
Handle Knob WPL-M11D76
...
106
Foam Tape 3 Ft/pk WPL-M2D703
...
107
Knob Lower Draw Kit WPL-M6D313
...
108
Jw Cover Stir WPL-M45D36
...
109
Stir Cover Space WPL-M2D704
...
110
M35d50 Weldment Stirrer Cjwx WPL-M35D50
...
111
Not Available WPL-M25D74
...
112
T & B Gasket Ret WPL-M8D324
...
113
Corner Gasket Ret WPL-M8D325
...
114
Screw (25) WPL-M1D541
...
115
Inner Door Assy WPL-M70D117
...
116
Screw (25) WPL-M1D280
...
117
Lockwasher (25) WPL-M1D866
...
118
Handle Insert WPL-M2D705
...
119
Screw (25) WPL-M1D280
...
120
Jw Pivot Brkt WPL-44074P01
...
121
Jw Pivot Rod WPL-44073P01
...
122
Jw Washer Thrst WPL-44197P01
...
123
E-Ring .250 Shaft Jw WPL-M2D581
...
124
Hook Spring WPL-M2D706
...
125
Jw Latch WPL-44072P01
...
126
Spring, Door WPL-41205P01
...
127
Ia Hook Asy Lh WPL-44070P01
...
128
Right Hook Assembly WPL-M2D710
...
129
Oven Rack WPL-M67D39
...
130
Drip Pan WPL-M67D48
...
131
Corner Trim WPL-M75D116
...
132
Mem Swi Asy Jetwave WPL-M7D758
...
133
Jw Switch Rckr WPL-M14D271
...
134
Mode Switch WPL-M14D272
...
135
Jw Lens Controller WPL-46006P01
...
136
Ind Light WPL-M9D108
...
149
Jw Handle Rear M11d77 WPL-44550P01
...
181
Fastener(10) WPL-43415P01
...
182
Jw Switch - Security WPL-46711P01
...
183
Keys (2 Per Pkg) WPL-M95D27
...
186
Jw Filter Holder-Bottom WPL-3000011902
...
187
Lt Stirrer Cover WPL-M45D43

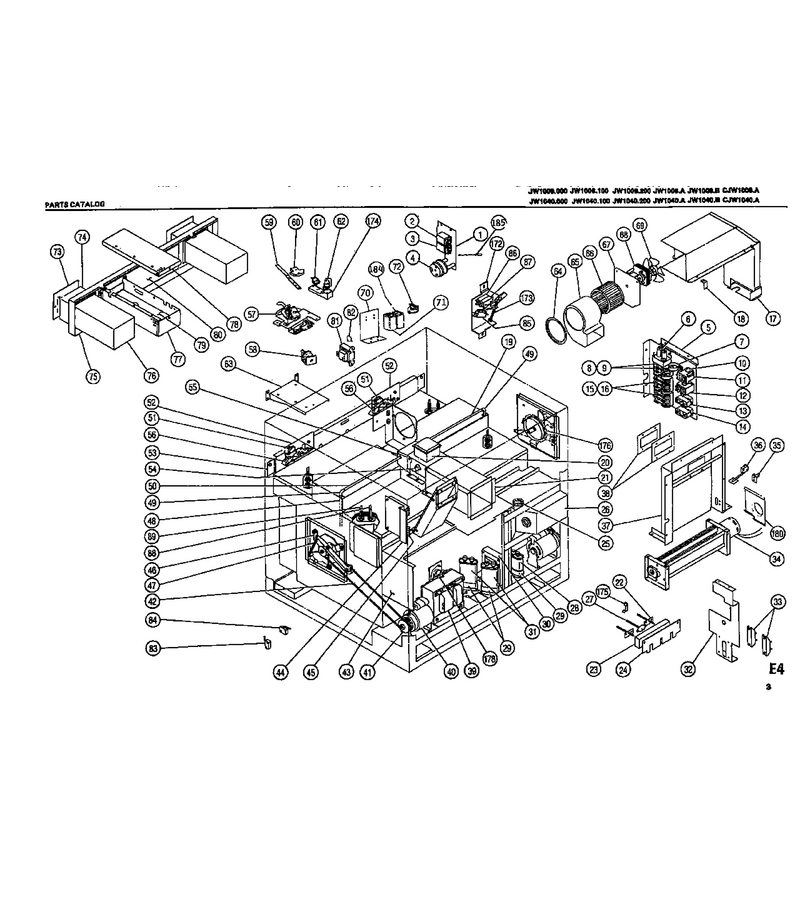

01 - Page 1

...
...
NI
Nut Heater WPL-M1D928
...
1
Relay Bracket WPL-M8D313
...
2
Screw, Tf WPL-M0231704
...
3
Screw, Tf WPL-M0231704
...
4
Screw, Tf WPL-M0231704
...
5
Screw (25) WPL-M1D860
...
6
Jw Diode Asy M3d77 WPL-M3D77
...
7
Nut WPL-WP488130
...
8
Jw Holder WPL-M5D241
...
9
Jw Fuse 8 Amps WPL-M4D107
...
10
.187 Dia Pop Rivet Steel WPL-M1D349
...
11
Diode & Resistor Asy WPL-M3D76
...
12
Relay Sec/intlk WPL-M16D105
...
13
Screw (25) WPL-M1D599
...
14
Jw Gasket WPL-M2D251
...
15
Pop Rivet WPL-A4539625
...
16
Fuse 20a WPL-A3410403
...
17
Fan Intake Duct WPL-M65D326
...
18
Screw WPL-WP90767
...
19
Bushing WPL-M2D690
...
20
Jw Insul Spacer WPL-M2D221
...
21
Screw WPL-WP90767
...
22
Nut WPL-WP3400029
...
23
Insulation WPL-M63D25
...
24
Screw WPL-WP90767
...
25
Bushing, Wire WPL-M2D647
...
26
Service Cover WPL-M8D317
...
27
Jw Harness No.11 WPL-44273P01
...
28
Capacitor 4.00mf Kit WPL-M10D60
...
29
Capacitor Mounting Bracket WPL-M10D167
...
30
Screw WPL-WPW10001160
...
31
Jw Hv Cap.94mfd 2500v WPL-M10D105
...
32
Screw WPL-WPW10001160
...
33
Screw WPL-WPW10001160
...
34
Assy, Exh Blower WPL-M41D30
...
35
Screw WPL-WP90767
...
36
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
37
Exhaust Duct WPL-M65D327
...
38
Vent Gasket 2/pk WPL-M25D73
...
39
Screw (25) WPL-M1D387
...
40
Motor, Stirrer, Jw WPL-M12D95
...
41
Screw (5) WPL-M1D921
...
42
M25d72 Jw Belt Xcuc WPL-M25D72
...
43
Screw (25) WPL-M1D860
...
44
Screw (25) WPL-M1D860
...
45
Screw (25) WPL-M1D841
...
46
Assy, Stirrer Drive R. WPL-45517P01
...
47
Idler Spring WPL-M2D693
...
48
Extention Tube WPL-M65D325
...
49
Coupling WPL-M2D694
...
50
Right Air Tube WPL-M65D320
...
51
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
52
M20d350 Switch Act Asy Jw WPL-4180023002
...
53
Screw Adjust M1d744 (10) WPL-M1D744
...
54
Cutout-Thermal-Control WPL-31866P01
...
55
Screw WPL-WP90767
...
56
Switch Snap Jetwave WPL-M14D277
...
57
Nut WPL-WP488130
...
58
Jw Solenoid 208vac Bz-Adj WPL-M16D122
...
59
Jw Arm Cleanlck M2d697 WPL-44183P01
...
60
Solenoid Sw Cam WPL-M2D771
...
61
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
62
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
63
Nut WPL-WP3400029
...
64
Screw WPL-WP90767
...
65
Screw WPL-WP90767
...
66
Jw Wheel, Blower WPL-M35D48
...
67
Plate, Motor (Jw) WPL-43845P01
...
68
Jw Motor Mag M12d93 WPL-M12D93
...
69
Jw Fan-Mtr Cool WPL-M35D49
...
70
Relay Bracket WPL-M8D321
...
71
Jw Relay - 3pdt Logic WPL-M16D120
...
72
Screw WPL-WP90767
...
73
Jw Door Filter WPL-46160P01
...
74
J.w. Filter Kit Top WPL-M48D22
...
75
Cont Pnl Frame WPL-M82D199
...
76
Rivet (25) WPL-M1D692
...
77
Edge Guard A WPL-M2D700
...
78
Controller Cover WPL-M20D272
...
79
Screw WPL-WPW10348409
...
80
Nut WPL-WP3400029
...
81
Jw L.v. Xfmr WPL-M60D130
...
82
Ia Varistor Asy WPL-M3D73
...
83
Switch Snap Jetwave WPL-M14D273
...
84
Out Tray Switch WPL-M14D274
...
85
M14d268 Jw Switch Inter. WPL-42345P01
...
86
Screw(25) WPL-M1D355
...
87
Screw(25) WPL-M1D355
...
88
Element 208v Lrg WPL-M61D67
...
89
Element 208v Sml WPL-M61D68
...
172
M20d264 Switch Bkt Asy Jw WPL-94357P01
...
173
Spring, Switch Assembly WPL-M2D719
...
174
Switch Spacer WPL-M8D331
...
175
Screw (25) WPL-M1D939
...
176
Left Stir Drive WPL-M20D281
...
178
Transformer Thermal Protector WPL-M4D113
...
180
Barrier- Foil Tape WPL-92011P01
...
184
No.2 Clean Relay WPL-M16D116
...
185
Blocking Diode WPL-M3D82

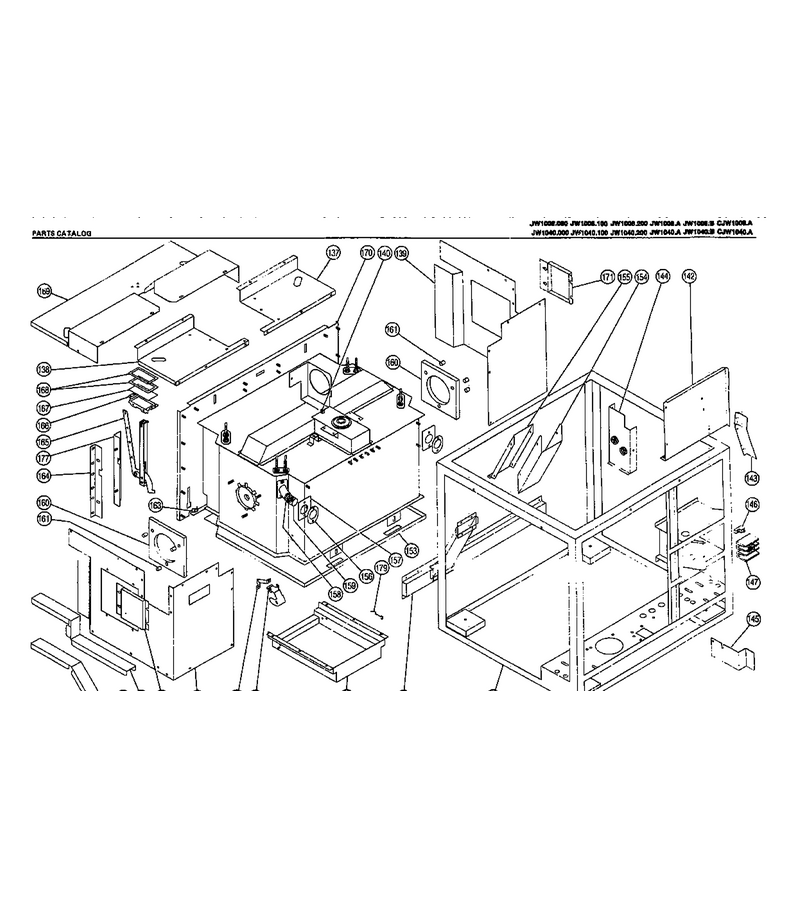

03 - Page 5

...
...
NI
14 Ga Term Kit (105/pkg) WPL-M5D355
...
97
Top Baffle WPL-M52D227
...
98
Screw WPL-WP90767
...
137
Screw WPL-WP90767
...
138
Screw WPL-WP90767
...
139
Screw WPL-WP90767
...
140
Nut 3/8 X 24 (10) WPL-M1D940
...
141
Nut WPL-WP3400029
...
142
Front Duct WPL-M20D275
...
143
Duct Baffle WPL-M8D327
...
144
Side Duct WPL-M20D276
...
145
Baffle WPL-M8D328
...
146
Ground Lug WPL-M2D712
...
147
Screw WPL-WPW10001160
...
148
Main Frame WPL-M83D13
...
150
Grease Stop Assy WPL-M20D326
...
151
Jw Clamp Grease Stop WPL-3000011301
...
152
Tray Enclosure WPL-M52D248
...
153
Bot Insul Cover WPL-M82D204
...
154
Screw WPL-WP90767
...
155
Bot Vent Insl Co WPL-M20D277
...
156
Gasket WPL-M25D75
...
157
Nut WPL-WP3400029
...
158
Catalytic Smk El WPL-M67D38
...
159
Exhaust Tube WPL-M65D323
...
160
Stir Insulation WPL-M63D26
...
161
Spacer WPL-M2D716
...
162
Rt Insl Cover WPL-M20D279
...
163
Ball Stud Recpt WPL-M2D717
...
164
Hinge Bracket WPL-M52D235
...
165
Ia Use M52d250 WPL-M8D329
...
166
No.10 Hex Wshr Hd Mach Scr WPL-M1D937
...
168
Jw Gasket Wdo M25d76 WPL-M25D76
...
169
Top Front Ins Cover WPL-M82D205
...
170
Nut WPL-WP3400029
...
171
Access Panel WPL-M20D280
...
177
Hinge Bracket WPL-M52D234
...
179
Spring WPL-M2D736
