Amana JP80/56.601

Model: JP80/56.601

Save Part Not Listed?
product name

Popular Parts

Popular Parts

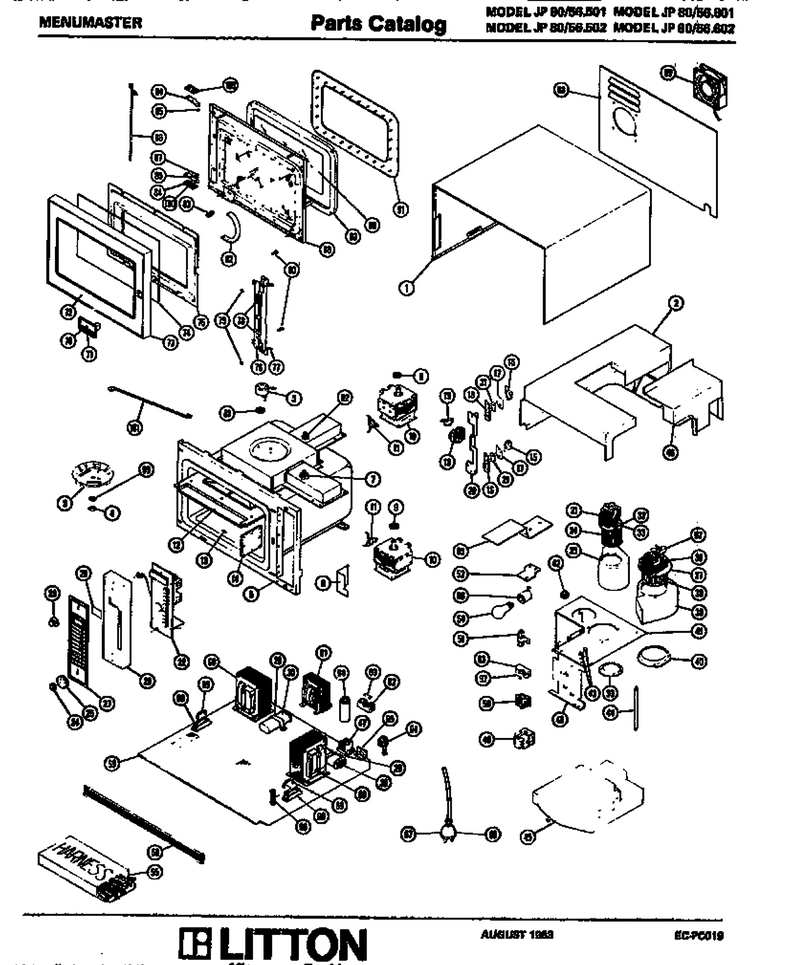

01 - Page 1

...
...
NI
Not Available WPL-M1D295
...
1
Not Available WPL-M80D105
...
2
Duct Exhaust Kit WPL-M65D183
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
Screw (25) WPL-M1D5
...
6
Insulator, Transformer WPL-M5D299
...
7
Antenna Pin Side Kit WPL-M2D566
...
8
Baffle Asm WPL-M65D211
...
9
Gasket-Rf WPL-M2D296
...
10
Kit, Magnetron WPL-M57D30
...
11
Screw Thrm WPL-M1D666
...
12
Stirrer Cover WPL-M45D19
...
13
Adhesive WPL-W10841140
...
14
Lamp Cover WPL-M7D367
...
15
Nut K WPL-M0282005
...
16
Strike, Latch WPL-M8D191
...
17
Insulator, Switch WPL-M5D268
...
18
Bracket, Monitor Switch Mtg. WPL-M8D65
...
19
Sw-Monitor M14d212 WPL-M14D212
...
20
Nut WPL-WP488130
...
21
Spacer, Switch WPL-M8D190
...
22
Screw, Timer Mtg. WPL-M1D378
...
23
Knob, Vari-Power WPL-M6D212
...
24
Knob Dial WPL-31818P01
...
25
Knob, Minutes WPL-M6D214
...
26
Lens/filter WPL-31820P01
...
27
Dec Panel WPL-M7D372
...
28
Insulator WPL-33409P01
...
29
Screw WPL-M1D764
...
30
Capacitor 1.05mf Kit WPL-M10D78
...
31
Motor, Blower Kit WPL-M12D65
...
32
Screw WPL-M1D574
...
33
Flange, Blower Housing WPL-M8D195
...
34
Impeller WPL-M35D29
...
35
Screw (25) WPL-M1D5
...
36
Motor, Blower WPL-M12D66
...
37
Plate, Blower WPL-M8D196
...
38
Wheel, Blower WPL-34487P01
...
39
Screw (25) WPL-M1D5
...
40
Flange, Blower Housing WPL-M8D197
...
41
Not Available WPL-M52D181
...
42
Bushing, Snap WPL-A3293504
...
43
Snap Bushing WPL-M2D114
...
44
Stand Off WPL-M2D382
...
45
Nut K WPL-M0282005
...
46
No.8 Flat Washer WPL-M1D136
...
47
Termnl Block WPL-M4D55
...
48
Panel WPL-M52D180
...
49
Relay WPL-M16D71
...
50
Screw, Tf WPL-M0231704
...
51
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
52
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
53
Lamp Holder WPL-M5D267
...
54
Lamp, Cavity WPL-M9D54
...
55
Wire Harness WPL-M27D329
...
56
Air Filter Kit WPL-M48D13
...
57
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
58
Fuse- 3 Am WPL-Y0078733
...
59
Not Available WPL-M79D75
...
60
Pwr. Transformer WPL-M60D90
...
61
Ia Screw No.10-32 WPL-M1D370
...
62
Fuse Holder WPL-M5D123
...
63
Ia Fuse WPL-M4D51
...
64
Strain Relf WPL-26632P01
...
65
Bracket, Strain Relief WPL-M8D199
...
66
Power Cord WPL-M26D40
...
67
Power Cord WPL-M26D41
...
68
Screw WPL-M1D764
...
69
Bleeder Resistor WPL-M3D62
...
70
Not Available WPL-M2D453
...
71
Inlay, Handle 80/56 WPL-M7D419
...
72
Dr Inlay Gold Kit WPL-M7D368
...
73
Ia 6-32 Screw (25) WPL-M1D123
...
74
Window, Outer WPL-M51D33
...
75
M70d60 Mask WPL-34429P01
...
76
Bracket, Latch Bar Mtg. WPL-M20D128
...
77
Bushing M2d46 WPL-25788P01
...
78
Spring Latch Kit WPL-M2D198
...
79
Nut, Locking WPL-M1D859
...
80
Screw Adjust M1d744 (10) WPL-M1D744
...
81
R F Gasket Kit WPL-M2D152
...
82
Screw Bkt Mtg WPL-M1D336
...
83
Cushion WPL-M2D452
...
84
Hinge M8d212 (2per) WPL-94115P01
...
85
Bearing Flng (10) WPL-M1D112
...
86
Rod Hinge M52d157 WPL-31618P01
...
87
Flat Washer WPL-M1D117
...
88
Net Use 10897701 Dr Pnl K WPL-M70D66
...
89
Choke Filler WPL-33775P01
...
90
Window, Inner WPL-M51D34
...
91
Nut K WPL-M0282005
...
92
Antenna Pin Rear WPL-M2D565
...
93
Wshr-Rubber WPL-32383P01
...
94
Line Filter Kit WPL-M10D35
...
95
Sealer Assy WPL-33487A01
...
96
Res Asy Service M3d60 WPL-M3D60
...
97
Fan Blade, Motor Cooling WPL-M35D31
...
98
Bumper, Transformer WPL-M2D439
...
99
Ia Screw 10ab WPL-M1D369
...
100
Gasket, Hinge Mtg. WPL-M25D65
...
101
Screw (25) WPL-M1D861
