Amana J3100I.600 (BOM: J3100I.60 0)

Model: J3100I.600 (BOM: J3100I.60 0)

Save Part Not Listed?
product name

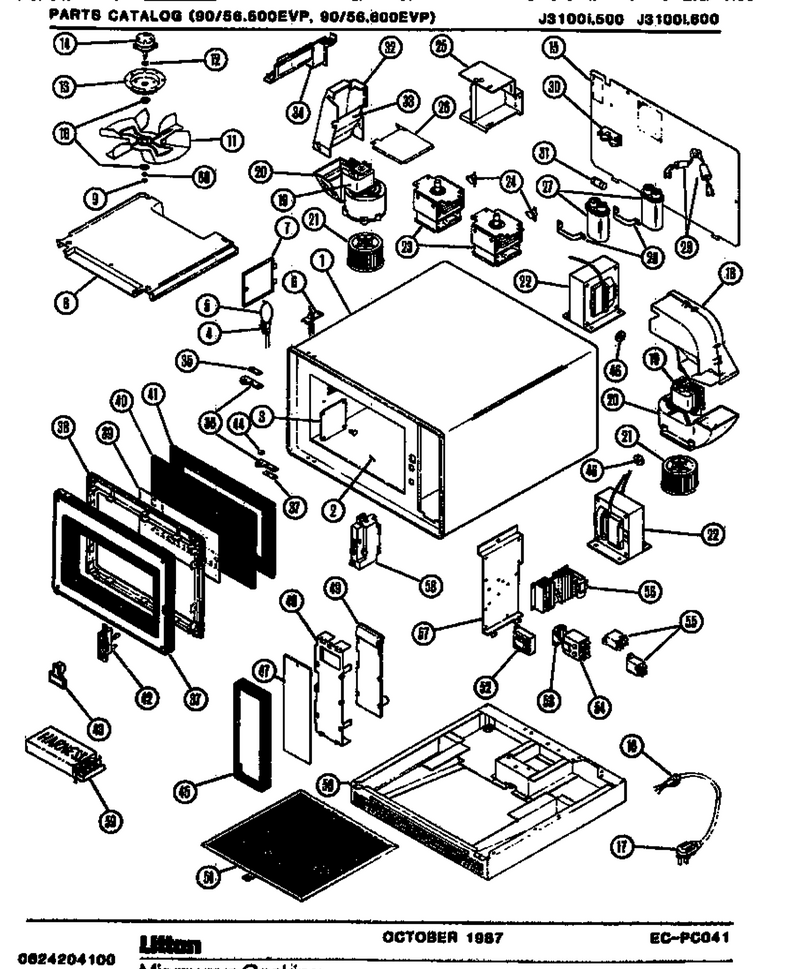

01 - Page 1

...
...
NI
Torx Driver, T-20 (M95d23) WPL-M95D23
...
1
Cavity, Weld Assy WPL-R0163301
...
2
Kit, Shelf WPL-R0156904
...
3
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
4
Screw WPL-WP90767
...
5
Light Bulb WPL-59002071
...
6
Screw WPL-WP90767
...
7
Screw WPL-WPW10348409
...
8
Stirrer Cover WPL-45422P01
...
9
Nut, Push WPL-Y04100035
...
10
Washer WPL-M1D565
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Support Mtr WPL-45437P01
...
14
Stirrer Motor WPL-2001225023
...
15
No.8 U-Clip WPL-M1D93
...
16
Strain Relf WPL-26632P01
...
17
Power Cord Jfs10.5/6 WPL-4180000601
...
18
Screw WPL-WP90767
...
19
Screw WPL-WPW10001160
...
20
Housing, Blower WPL-45559P01
...
21
Wheel, Blower M35d39 WPL-36300P01
...
22
Hv Trnsfmr J50/60 WPL-M60D172
...
23
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
24
Screw Thrm WPL-M1D666
...
25
Mag Exh Duct M65d342 WPL-94388P01
...
26
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
27
Capacitor- WPL-WP59001168
...
28
Bracket WPL-10825501
...
29
Rectifier WPL-WP13091701
...
30
Pop Rivet WPL-A4539625
...
31
Fuse 17 Amp WPL-M4D110
...
32
Screw WPL-WP90767
...
33
M65d346 Divider Air WPL-45402P01
...
34
Transition-Cav Exh Fs-10 WPL-45753P01
...
35
Shim-Hinge WPL-45540P01
...
36
Vent Tube WPL-M8D349
...
37
Fastener(10) WPL-43415P01
...
38
Door Filler Kit WPL-M55D18
...
39
Outer Window Kit WPL-M70D158
...
40
Inner Door Kit WPL-M70D83
...
41
Window, Inner Door WPL-10785001
...
42
Spring, Door WPL-41205P01
...
43
Handle, Door Kit WPL-M11D86
...
44
Nylon Flat Washer WPL-40370P01
...
45
Control Panel Frame WPL-M7D853
...
46
Toroid (Arc Suppressor) WPL-44780P01
...
47
Assy Memb Switch WPL-4100010317
...
48
Backer Plt Asy WPL-4180001602
...
49
Control,vp WPL-M31R44
...
50
.187 Dia Pop Rivet Steel WPL-M1D349
...
51
Filter Air WPL-45412P01
...
52
Screw WPL-WP90767
...
53
Screw WPL-WP90767
...
54
Relay Sec/intlk WPL-M16D105
...
55
Screw (25) WPL-M1D609
...
56
Screw WPL-WPW10348409
...
57
Panel, Component WPL-10791901
...
58
U-Clip WPL-M2D575
...
59
Harness Kit WPL-M27D400
...
60
Wshr-Rubber WPL-32383P01
