Amana ITH500VE (BOM: P1322506W E)

Model: ITH500VE (BOM: P1322506W E)

Save Part Not Listed?
product name

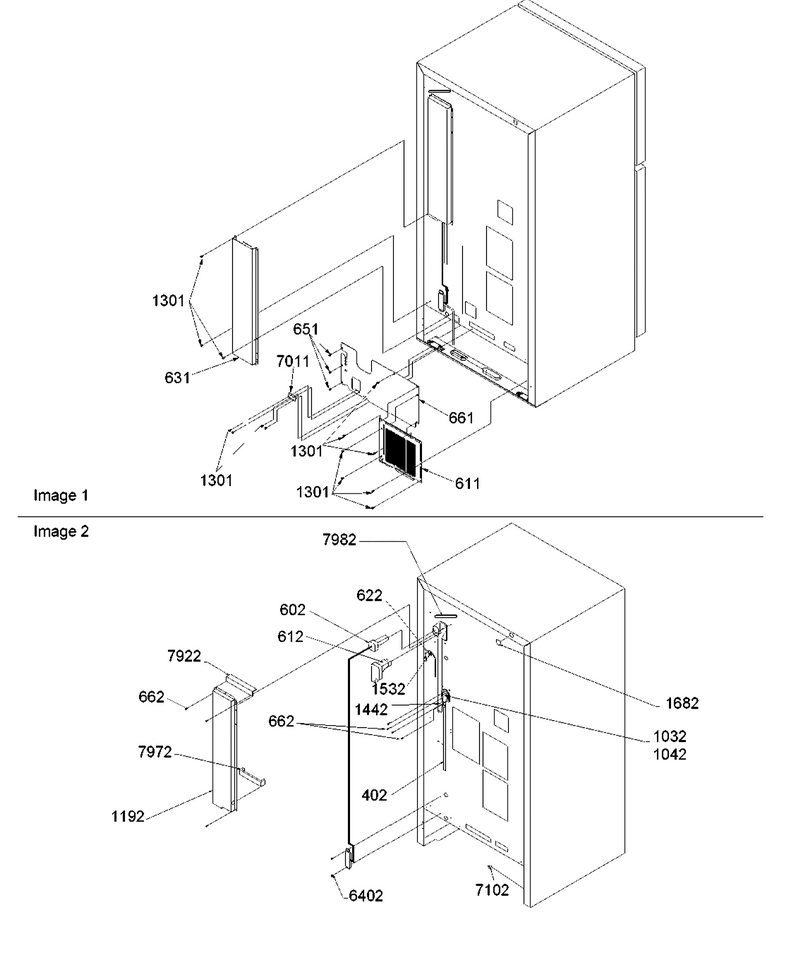

01 - Cabinet Back

...
...
402
Tube, Drain WPL-10908101
...
602
Grommet WPL-10699301
...
611
Back, Mach Comp WPL-12039807
...
612
Plug, Ht Exch V WPL-10428001
...
622
Cord, Power WPL-12425101
...
631
Cover, Ht Exch WPL-10442205
...
651
Screw WPL-WP489464
...
661
Assy, Mc Back WPL-12041854
...
662
Screw, Sm WPL-M0227217
...
1032
Elbow Drain Tube WPL-10163201
...
1042
Gasket WPL-A3132301
...
1192
Cover, Ht Exch WPL-10442205
...
1301
Screw, Sm WPL-M0227217
...
1442
Clamp WPL-B8372901
...
1532
Clip WPL-WPM0104106
...
1682
Plug, Im Tunnel WPL-10544301
...
6402
Screw WPL-WP489069
...
7011
Plate-Water Valve WPL-12047201
...
7102
Clip WPL-B5720303

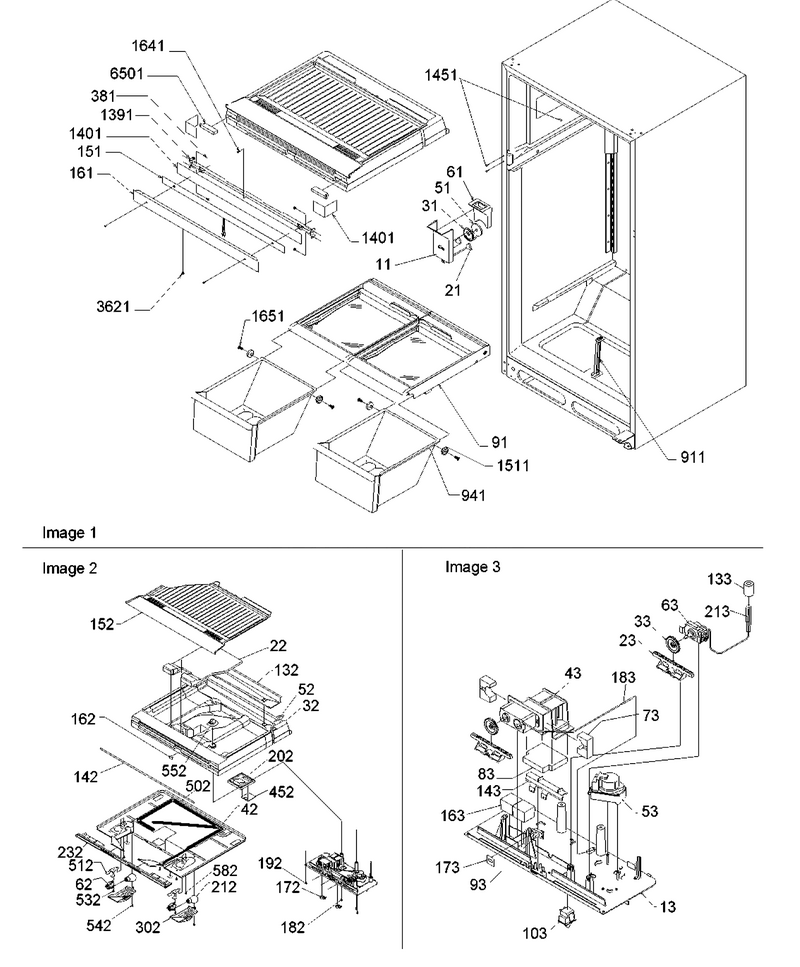

06 - Interior Cabinet & Drain Block Assy

...
...
NI
Harness, Control WPL-10785802
...
13
Housing, Control WPL-12035107
...
22
Insert, Drain Block WPL-10476402
...
23
Rack, Control WPL-10439601
...
32
Assy Drain Block WPL-R0156897
...
33
Pinion, Control WPL-10442601
...
42
Ref Top-E Ct WPL-12035214
...
43
Assy, Damper Control WPL-R0161072
...
52
Harness-Dr WPL-10781107
...
53
Kit- Defro WPL-R0168028
...
62
Socket, Light WPL-D7845103
...
63
Assy, Fz Control WPL-R0161082
...
73
Insert,damper WPL-10442801
...
83
Insulation, Damper WPL-10442901
...
91
Assy, Crisper Frame WPL-10698556Q
...
93
Switch, Heater WPL-10279202
...
103
Switch WPL-W11384469
...
132
Tray, Drip WPL-10435911
...
133
Insulation, Cap WPL-10673603
...
142
Membrane-Breaker Sl1 WPL-10450850
...
143
Shield, Wire WPL-10565101
...
151
Heater, Mullion WPL-10543611
...
152
Bottom, Frz WPL-10995003
...
161
Center Mullion-(black) Pnt WPL-10433361B
...
162
Cap-Switch WPL-10752201
...
163
Shield, Cont Hsg. WPL-10900801
...
172
Knob, Control WPL-10565401
...
173
Cover, Switch WPL-10877103
...
182
Screw (3) WPL-67006425
...
183
Tube-Plastic WPL-A3012542
...
192
Screw WPL-W10856125
...
202
Insert-Mk Air Sply WPL-10995201
...
212
Light Bulb WPL-59002071
...
213
Tube-Plastic WPL-A3012543
...
232
Frame, Ref Top Brk WPL-10435513
...
302
Shield, Refrig. Light WPL-10508701
...
381
Screw WPL-WP489349
...
502
Heater, Ref Top WPL-10775302
...
512
Brkt, Light WPL-10907501
...
532
Screw WPL-W10856125
...
542
Screw WPL-WP90767
...
552
Cap-Air WPL-10993701
...
582
Screw WPL-WP489128
...
911
Post, Crisper Support WPL-10461901
...
941
Pan-Crisper WPL-10430216
...
1391
Plate, Center Top WPL-10433610
...
1401
Insulation Per Ft. WPL-B0523584
...
1451
Plug, Button (wht) WPL-M0311605
...
1641
Screw WPL-M0253916
...
1651
Screw, Shldr WPL-M0221523
...
3621
Screw - Sm WPL-M0211520
...
6501
Insulation WPL-10772301

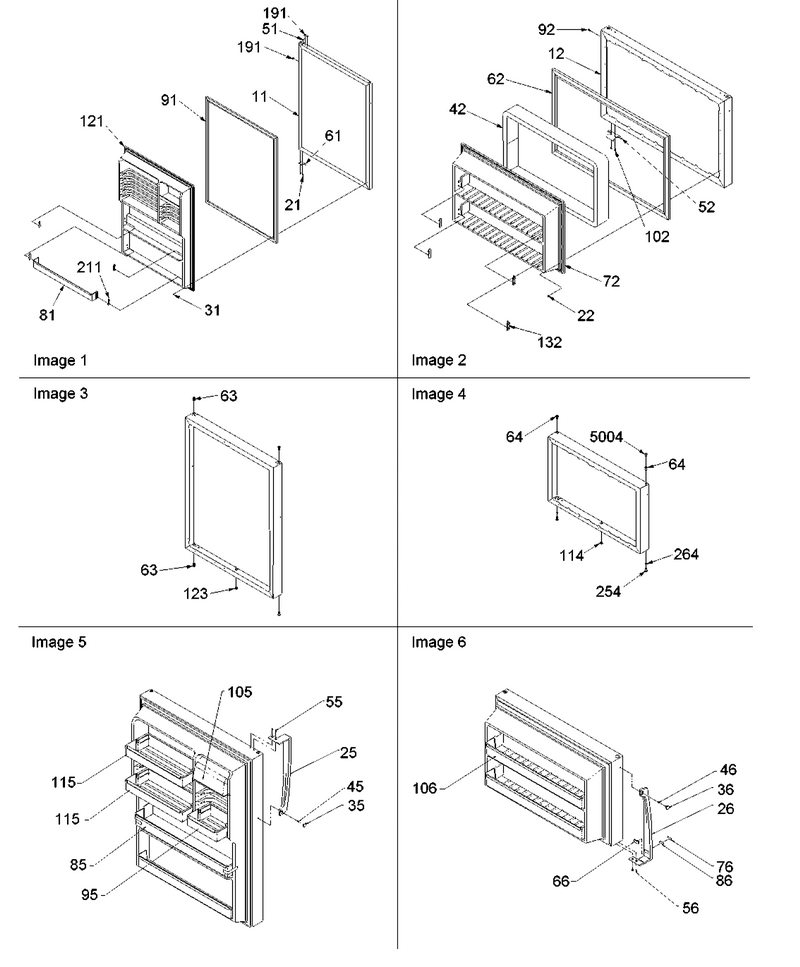

02 - Door Assy

...
...
11
Assy,ref Dr Foam(black) WPL-10481909E
...
12
Assy,fz Dr Foam(black) WPL-10482010E
...
21
Screw WPL-WPW10348409
...
22
Screw WPL-WPM0219730
...
25
Assy, Ref Hndl-Blk WPL-10253526Q
...
26
Assy, Fz Handle Blk WPL-10253525Q
...
31
Screw WPL-WPM0219730
...
35
Cover, Handle Screw-Blk WPL-10201810
...
36
Cover, Handle Screw-Blk WPL-10201809
...
42
Insulation, Batt Frz. Dr. WPL-B0523593
...
45
Screw WPL-WPW10348409
...
46
Screw WPL-WPW10348409
...
51
Plug, E Button WPL-12470503
...
52
Stop-Door WPL-W11708403
...
55
Screw WPL-WPW10348409
...
56
Screw WPL-WPW10348409
...
61
Stop-Door WPL-W11708403
...
62
Gasket,fz Dr(black) WPL-12529018
...
63
Hing-Bushg WPL-10961005B
...
64
Hing-Bushg WPL-10961005B
...
66
Plug Nameplate WPL-10184305
...
72
Liner, Frz Door (18) WPL-10461001Q
...
76
Nameplate, Handle WPL-10184401
...
81
Retainer, Ref Door WPL-10419207
...
85
Retainer, Ref Door WPL-10419107
...
86
Pad Nameplate WPL-10184501
...
91
Gasket-Ref WPL-12550117Q
...
92
Button- Pl WPL-WP12246608
...
95
Bucket, Ref Door (plain) WPL-10502911
...
102
Screw WPL-WPW10348409
...
105
Door,dairy WPL-10423420
...
106
Retainer, Ref Door WPL-10419207
...
114
Plug, Button (blk) WPL-M0310336
...
115
Shelf, Ref Door WPL-10419707
...
121
Liner,ref Door WPL-10461705
...
123
Plug, Button (blk) WPL-M0310336
...
132
Clip, Retainer WPL-10202001
...
191
Button- Pl WPL-WP12246608
...
211
Clip, Retainer WPL-10202001
...
254
Bushing, Door (blk) WPL-12028602
...
264
Filter, Bushing WPL-10252903
...
5004
Plug, Button(black) WPL-10686404

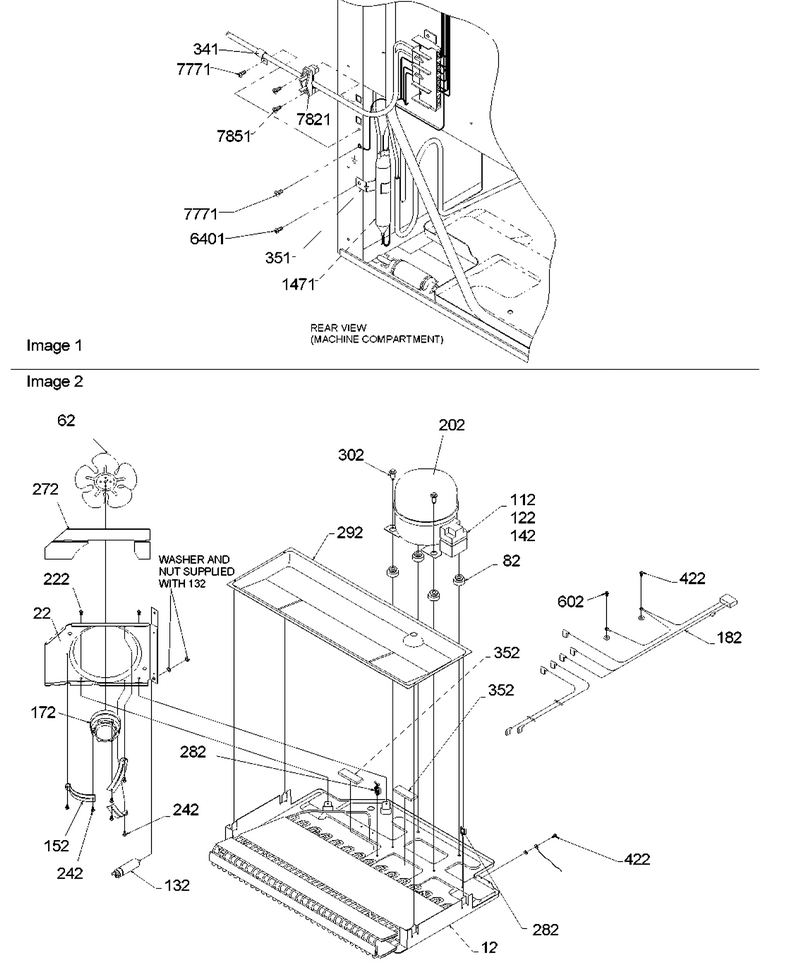

09 - Machine Compartment

...
...
12
Assy,cond/pan-E Ct WPL-10481224
...
22
Cond Fan Shrd-E Ct WPL-10426911
...
62
Blade, Fan WPL-B5742604
...
82
Grommet, Compressor WPL-67003493
...
112
Overload- 4tm WPL-10377019
...
122
Relay WPL-WP10097206
...
132
Capacitor WPL-10958303
...
142
Cover-Term WPL-4344043
...
152
Bracket, Cond. Motor WPL-10582501
...
172
Motor, Condenser WPL-10670403
...
182
Harness, Mach Comp WPL-10968601
...
202
Compressor WPL-W10309997
...
222
Screw WPL-WP90767
...
242
Screw WPL-WPM0223816
...
272
Gasket, Cond. Fan WPL-10442702
...
282
Wire Clip WPL-B5667304
...
292
Pan, Drain WPL-10427404
...
302
Screw, Shldr WPL-M0221523
...
341
Clamp WPL-M0102325
...
351
Clip, Drier WPL-10547001
...
352
Gasket WPL-B5759644
...
422
Screw WPL-WP489399
...
602
Screw WPL-12992301
...
1471
Drier WPL-WPB2150504
...
6401
Screw WPL-WP489069
...
7771
Screw WPL-WP489399

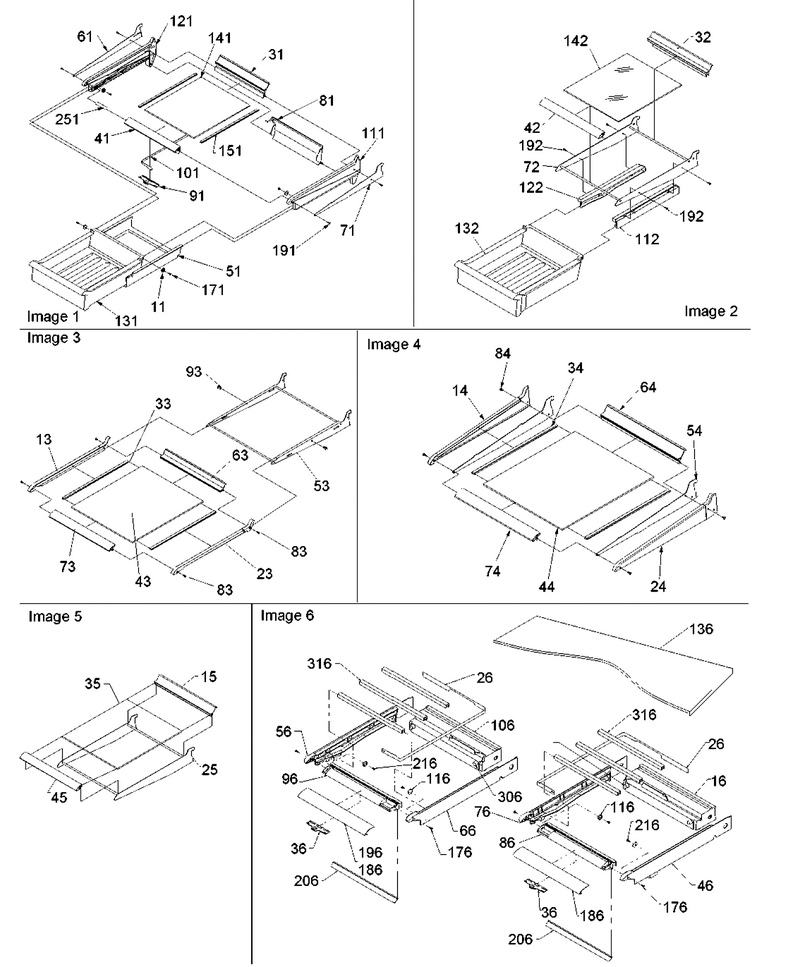

10 - Shelving Assy

...
...
15
Extr, Rear Shelf WPL-10946010
...
16
Rail, Crisper Back WPL-10433805
...
25
Shelf, Glass Frame WPL-10460106
...
26
Band, Crisper Control (18-19) WPL-10467802
...
32
Extr, Rear Shelf WPL-10946009
...
35
Glass, Full Shelf WPL-10370098
...
36
Slide, Crisper WPL-10797501
...
42
Extr-Front Shelf WPL-10459923
...
45
Extr-Front Shelf WPL-10459922
...
46
Rail, Side Crisper WPL-10432703
...
56
Rail, Side Crisper WPL-10432704
...
66
Rail, Ctr. Crisper WPL-10432805
...
72
Shelf, Glass Frame WPL-10460106
...
76
Rail, Ctr. Crisper WPL-10432806
...
86
Rail, Crisper Fr0nt(r) WPL-10687701
...
96
Rail, Crisper Front(l) WPL-10687702
...
106
Rail, Crisper Back WPL-10435605
...
112
Glide, R Deli WPL-12027201
...
122
Glide, L Deli WPL-12027101
...
132
Pan,meatkeeper WPL-10417119
...
136
Glass, Shelf (18) WPL-10370016
...
142
Glass, Split Shelf WPL-10370097
...
176
Screw WPL-67006692
...
186
Extr-R Crisp Front WPL-10688060
...
192
Screw WPL-W11233072
...
196
Extr-L Crisp Front Periwinkle WPL-10688059
...
306
Bumper-Pad WPL-M0051601
...
316
Spacer, Crisper WPL-12465701

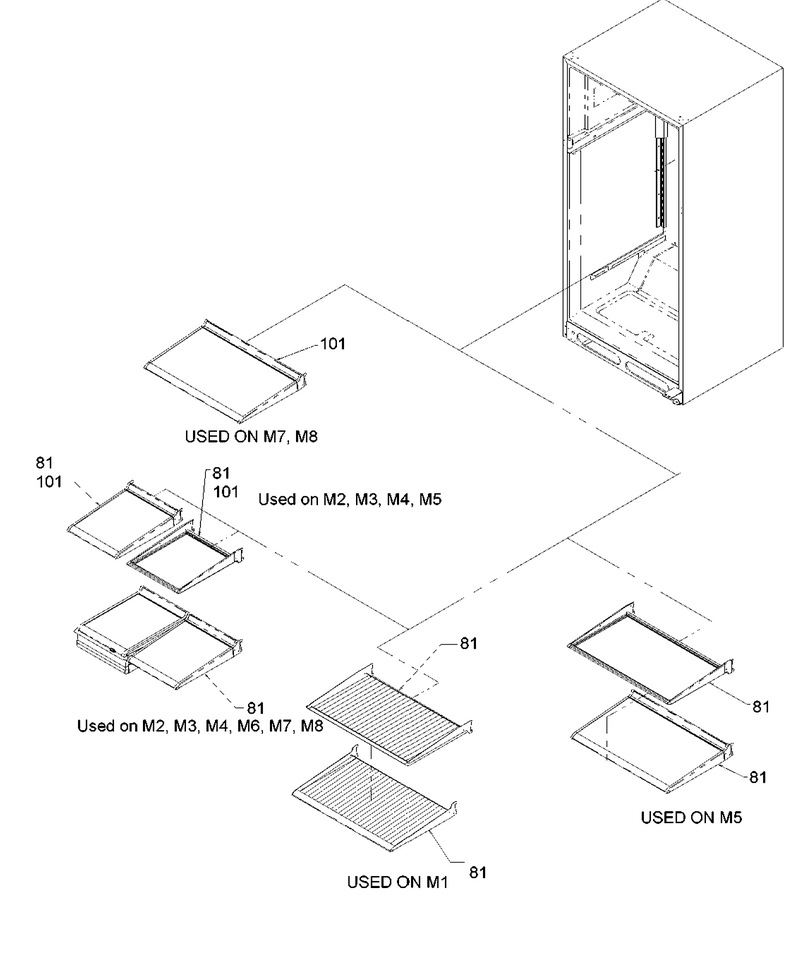

07 - Interior Shelving

...
...
81
Assy, Glass Shelf WPL-10480424Q
...
101
Assy, Glass Shelf WPL-10480425Q

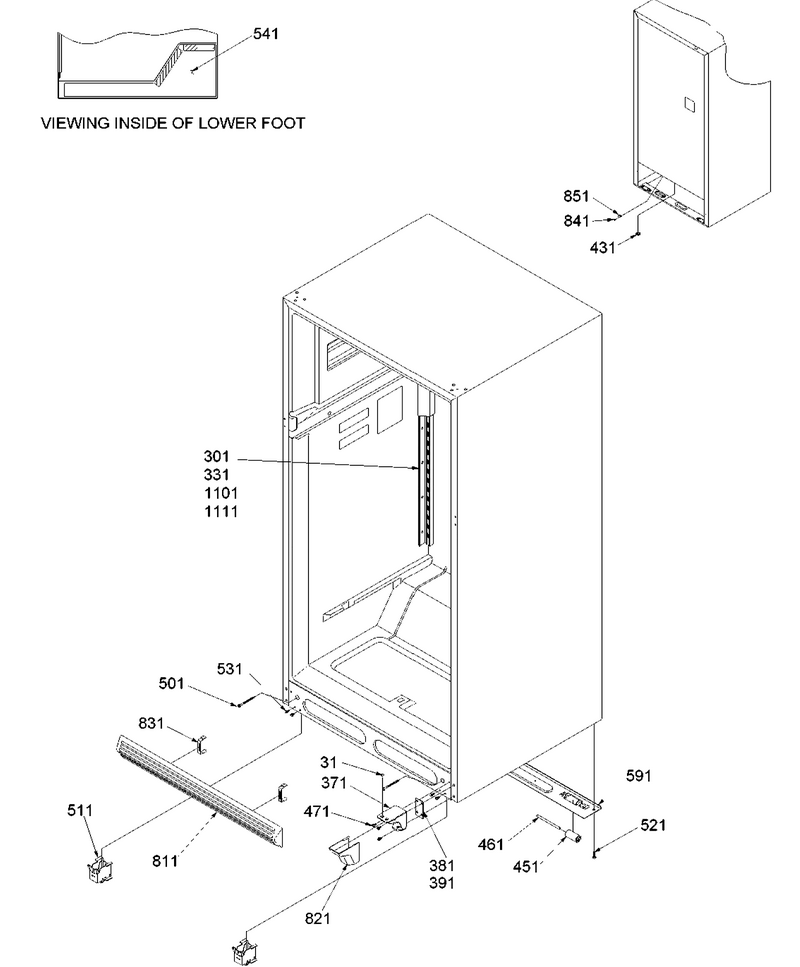

08 - Ladders, Lower Cabinet & Roller Assy

...
...
301
Screw (3) WPL-67006425
...
331
Ladder, Side (l/r) WPL-12435701
...
371
Hinge,(b)btm-E Ct WPL-10585509
...
381
Shim Hinge WPL-10447904
...
391
Shim, Btm Hinge WPL-10447903
...
431
Plug, Button WPL-A3076901
...
451
Roller, Rear WPL-10450701
...
461
Axle, Roller WPL-10450901
...
471
Screw WPL-WP67006715
...
501
Screw, Adj Roller WPL-M0204336
...
511
Assy, Roller Bracket WPL-12452601Q
...
521
Screw, Tf WPL-M0260242
...
531
Screw WPL-W11573574
...
541
Insul, Sound WPL-12403602
...
591
Cabinet Brace-Pnt WPL-10427110
...
811
Grille,toe-Am 18(black) WPL-12540301B
...
821
Cover, Lower Hinge (ebony) WPL-10584801
...
831
Clip- Toe WPL-WP10551502
...
841
Screw, Sm WPL-M0227217
...
851
Clip, Tube WPL-10547101
...
1101
Ladder, Center WPL-12435801
...
1111
Screw-Sm WPL-M0238636

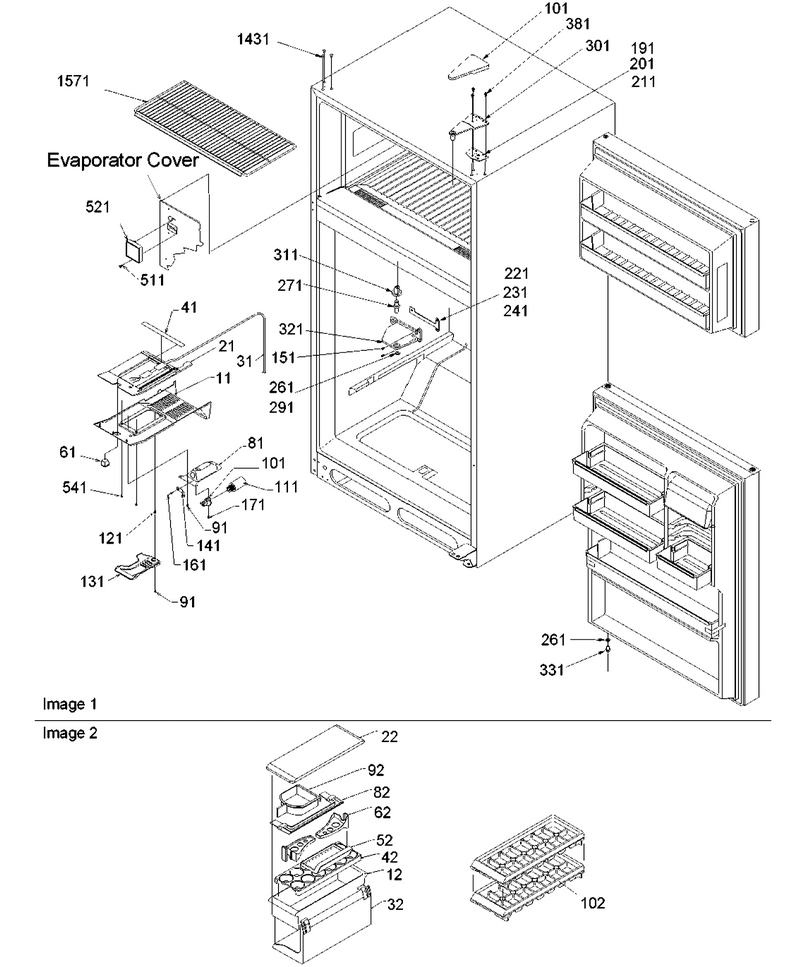

03 - Door Hinges, Freezer Shelf & Accessories

...
...
11
Duct, Frz Air WPL-10440405
...
12
Container WPL-WP10423131
...
21
Insul. Air Duct WPL-10779601
...
22
Lid, Utility WPL-10436404
...
31
Harness, Cabinet WPL-12172409
...
41
Gasket WPL-B8386613
...
42
Tray, Egg WPL-10436506
...
52
Tray, Butter WPL-10310901
...
61
Switch WPL-W11384469
...
81
Housing-Light WPL-D7861803
...
91
Screw WPL-WP90767
...
101
Socket, Light WPL-D7845103
...
102
Tray WPL-WP841180A
...
111
Light Bulb WPL-59002071
...
121
Grommet, Screw WPL-M0580007
...
131
Shield, Frz Light WPL-10678401
...
141
Terminal Ground A WPL-M0320905
...
151
Screw WPL-WP67006380
...
161
Pop Rivet WPL-A4539626
...
171
Screw WPL-W10856125
...
191
Shim, Top Hinge WPL-10448501
...
201
Shim, Top Hinge WPL-10448502
...
211
Shim, Top Hinge WPL-10448503
...
221
Shim, Center Hinge WPL-10562201
...
231
Shim, Center Hinge WPL-10562202
...
241
Shim, Center Hinge WPL-10562203
...
261
Shim- Non WPL-WPM0274062
...
271
Pin, Hinge (ctr) WPL-10351002
...
291
Shim- Non WPL-WPM0274058
...
301
Assy- Top WPL-R0000231
...
311
Closure, Door (blk) WPL-12028502
...
321
Ctr Hinge Bk E Ct WPL-12446504
...
331
Pin Hinge Bottom WPL-67007018
...
381
Screw WPL-WP489349
...
511
Screw (3) WPL-67006425
...
521
Cover-Fl Tb/plug WPL-D7874403
...
541
Screw WPL-WP98165
...
1431
Plug, Top Hinge Button (blk) WPL-M0310731
...
1571
Shelf, Wire Frz. (18) WPL-Y10440001

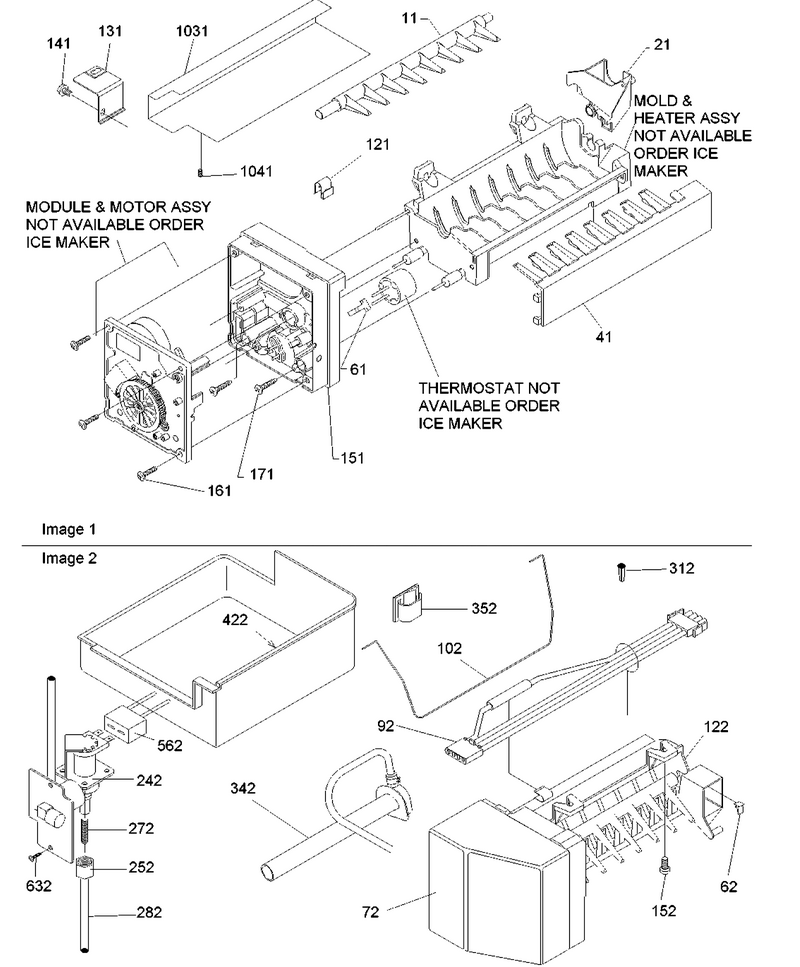

05 - Ice Maker Assy & Parts

...
...
NI
Clip WPL-M0288213
...
11
Arm-Ejectr WPL-WP627843
...
21
Cup-Fill WPL-WP628356
...
41
Arm-Stripr WPL-WP2182124
...
61
Clip WPL-WP2315522
...
62
Clip WPL-B5720302
...
72
Cover-Frnt WPL-WPW10289690
...
92
Harness Im Gg WPL-10179201
...
102
Arm-Shut WPL-WP67004028
...
121
Clip WPL-WP628379
...
122
Icemaker WPL-WPW10190972
...
131
Bracket, I/m WPL-B8391802
...
141
Screw (3) WPL-67006425
...
151
Housing-Im WPL-WP2195914
...
152
Screw WPL-WP98165
...
161
Screw WPL-R0186041
...
171
Screw WPL-R0186040
...
242
Valve, Water WPL-12490802
...
252
Nut WPL-WP627018
...
272
Spring WPL-WPA1055105
...
282
Tube WPL-WPB5705307
...
312
Insert- Pl WPL-WPA3223101
...
342
Tube-Water WPL-W11176463
...
352
Clip WPL-WPM0104106
...
422
Pan-Ice WPL-WP67001255
...
562
Harness, Water Valve WPL-10525901
...
632
Screw, Sm WPL-M0227217
...
1031
Shield, Ice Maker WPL-D7846203
...
1041
Screw WPL-WP90767

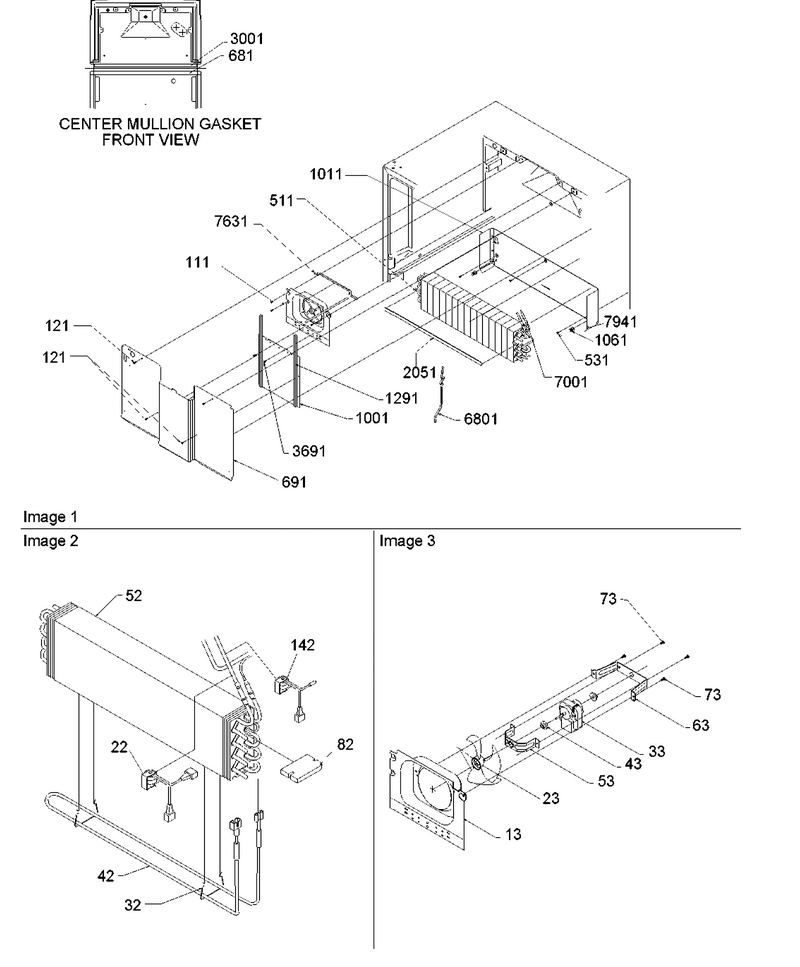

04 - Evaporator & Fan Motor Assy

...
...
13
Shroud, Evap. Fan WPL-10422304
...
22
Thermostat, Defrost WPL-12028301
...
23
Blade-Fan WPL-W10116797
...
32
Clip WPL-W11673433
...
33
Motor-Evap WPL-WP10449503
...
42
Heater, Evap WPL-10785904
...
43
Grommet WPL-WP2264462
...
52
Assy,low Side(tsi18a3) WPL-R0170058
...
53
Brkt, Up Evap. Fan WPL-10492801
...
63
Brakt-Mtr WPL-WP10492701
...
73
Screw WPL-WP90767
...
82
Block, Evap. R WPL-10428202
...
111
Screw WPL-WP67006380
...
121
Screw (3) WPL-67006425
...
142
Thermostat WPL-10789103
...
511
Block, Evap. L. WPL-10428301
...
531
Screw (3) WPL-67006425
...
681
Gasket, Sealing WPL-10685507
...
691
Cover, Evaporator WPL-10432402
...
1001
Cover, Evaporator WPL-10440713
...
1011
Shield, Evap. WPL-10427710
...
1061
Clip, Evaporator WPL-10442301
...
1291
Gasket WPL-A3030356
...
2051
Gasket, Foam WPL-A3189358
...
3001
Gasket, Sealing WPL-B5759626
...
3691
Screw WPL-WP489399
...
6801
Clip, Ht Transfer WPL-10586601
...
7001
Tie-Wire WPL-WPW10339879
...
7631
Gasket WPL-A3030354
...
7941
Clip-Wire WPL-M0110510
