Amana IMP2800A (BOM: P7731401W)

Model: IMP2800A (BOM: P7731401W)

Save Part Not Listed?
product name

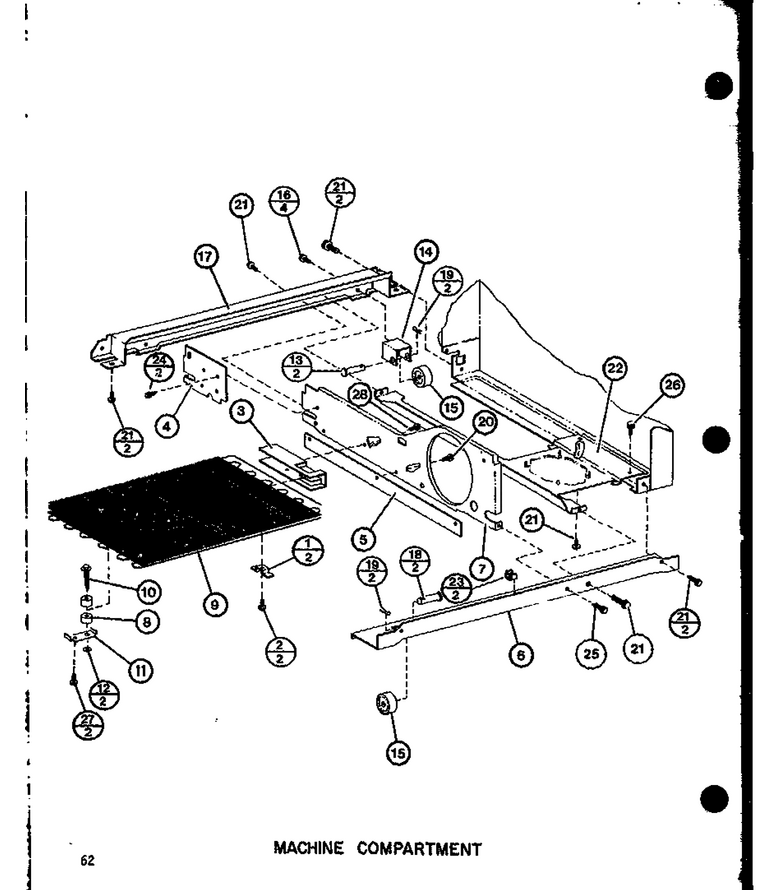

04 - Machine Compartment

...
...
1
Clip-Cond WPL-A3054502
...
2
Kit, Screw WPL-R9800670
...
3
Spacer WPL-B0544101
...
4
Extension WPL-B5619802
...
5
Seal-Fan Shroud Q WPL-B8314101
...
6
Rail-Rear Pnt. WPL-C3611308
...
7
Fan Shroud WPL-D7641702
...
8
Spacer Cond A WPL-B8346302
...
9
Condenser Assy Pnt WPL-D7455101
...
10
Screw A WPL-M0257023
...
11
Bracket, Support WPL-A3085401
...
12
Nut A WPL-M0286003
...
13
Rivet WPL-M1205302
...
14
Bracket, Roller WPL-C8836305
...
15
Roller WPL-M0520102
...
16
Screw K WPL-M0236230
...
17
Rail WPL-D7003306
...
18
Pivot Pin K WPL-M1210001
...
19
Cotter Pin K WPL-M1200001
...
20
Screw WPL-WP98165
...
21
Screw WPL-M0294459
...
22
Weld Comp Supt Pntd WPL-C8820402
...
23
Clip-Cable WPL-M0110505
...
24
Screw WPL-WP90767
...
25
Screw WPL-WP489464
...
26
Screw WPL-WP67006715
...
27
Screw WPL-M0241132
...
28
Screw WPL-M0237032

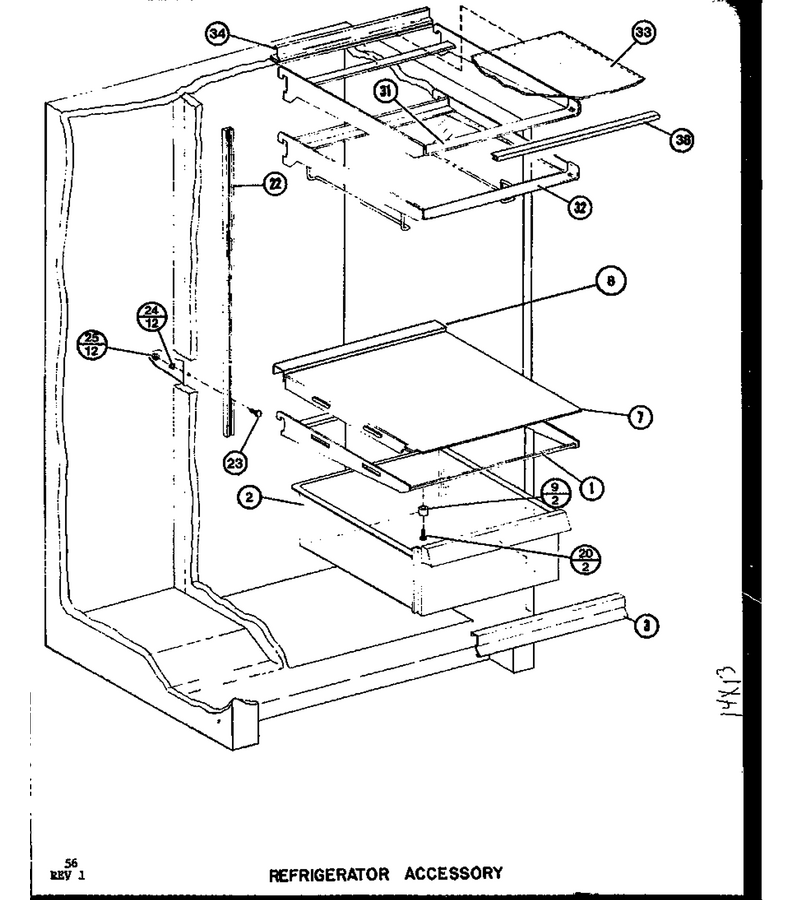

06 - Ref Accessory

...
...
NI
Glass Shelf Assy WPL-B5752408
...
1
Frame WPL-D7599701
...
2
Pan, Crisper WPL-D7298809
...
3
Trim, Handle WPL-C8831713
...
7
Top Fruit Pan WPL-D3951406
...
8
Ext-Crisper Top WPL-C3613005
...
9
Glide Pan WPL-A3213402
...
20
Screw WPL-M0230727
...
22
Ladder WPL-D7103701
...
23
Stud WPL-M0258801
...
24
Washer WPL-M0270519
...
25
Nut WPL-WP486255
...
31
Frame, Cantilever WPL-D7601401
...
33
Glass Shelf WPL-B5780703
...
34
Trim-Mtkpr WPL-C8831802
...
38
Trim A WPL-C8774503

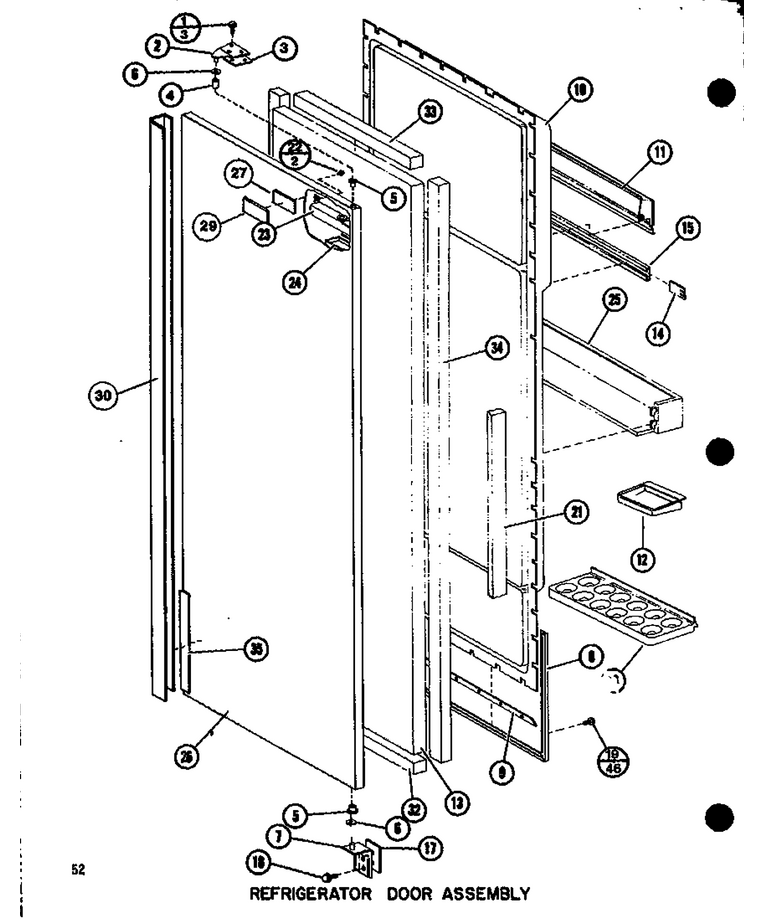

07 - Ref Door Assy

...
...
1
Kit, Screw WPL-R9800670
...
2
Hinge-Right WPL-C8816602
...
3
Shim Kit WPL-A3270303
...
4
Bushing WPL-A3132401
...
5
Bearing, Hinge WPL-C8852202
...
6
Washer K WPL-M0274013
...
7
Hinge WPL-D7250103
...
8
Gasket, Door WPL-D7092608
...
9
Retainer WPL-D7025101
...
10
Inner Dr Panel-Ref WPL-D7698601
...
11
Door Dairy WPL-D7511308
...
12
Butter Tray WPL-D3799802
...
13
Insulation WPL-B5612005
...
14
Support K WPL-B0530006
...
15
Retainer Egg Tray WPL-B8302618
...
16
Egg Tray WPL-D7466605
...
17
Shim WPL-A3143603
...
18
Screw WPL-WP67006715
...
19
Screw WPL-WPM0219730
...
21
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
22
Screw WPL-M1252001
...
23
Door Closure WPL-D7022901
...
24
Cover WPL-B5644001
...
25
Shelf, Door WPL-D7511404
...
26
Door Ref L-T Sldi25 WPL-D7624706
...
27
Thin Plate, Door Handle WPL-C8958901
...
29
Nameplate, Door WPL-C8959001
...
30
Door Handle WPL-D7573707
...
32
Insulation WPL-B5629008
...
33
Insulation WPL-B0534409
...
34
Insulation WPL-B5629002
...
35
Tape Kit WPL-R0195021

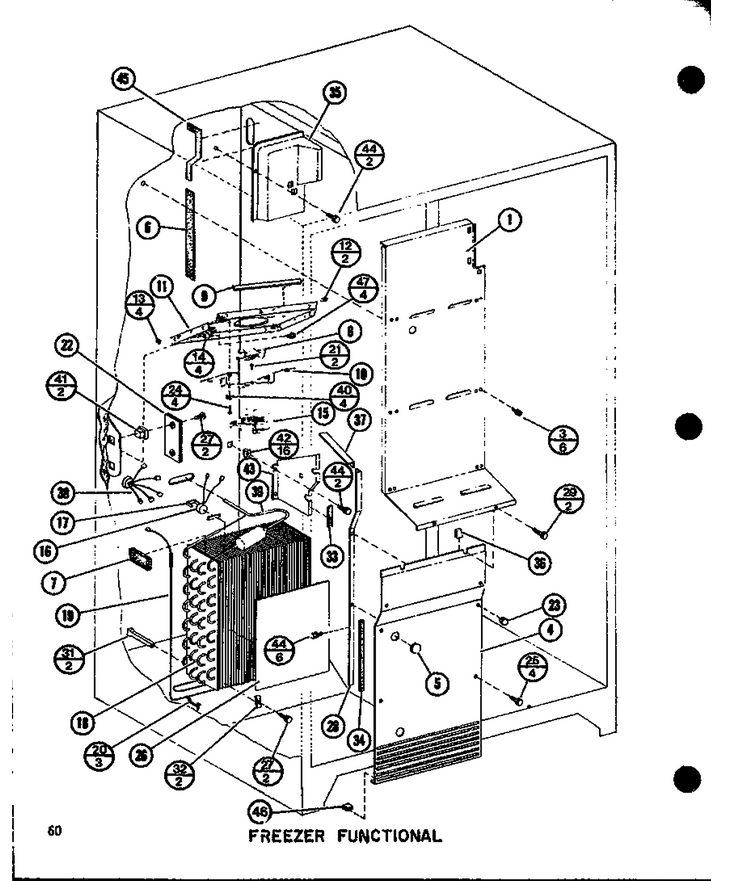

03 - Fz Functional

...
...
1
Baffle Fr Back WPL-D7482201
...
3
Screw-Sm WPL-M0238636
...
4
Cover/gasket Assy WPL-D7484702
...
5
Plug WPL-A3069103
...
6
Gasket Baffle WPL-B8328101
...
7
Air Block WPL-B8314701
...
8
Fan-Evap WPL-C8795501
...
9
Gasket WPL-B5757702
...
10
Bracket-Evap Motor WPL-C8829701
...
11
Plate, Fan Motor WPL-D7371506
...
12
Nut-Well WPL-M0292002
...
13
Clip, Waterline WPL-12454802
...
14
Eyelet K WPL-A0381401
...
15
Motor WPL-D7241412
...
16
Thermostat K WPL-C8871201
...
17
Clip Thermostat K WPL-B8325201
...
18
Evaporator Assy WPL-R0170012
...
19
Heater-Evap WPL-D7479703
...
20
Clip-Heater WPL-B8324701
...
21
Screw WPL-WP3400094
...
22
Term Board WPL-B8326801
...
23
Plug Button WPL-M0310316
...
24
Screw WPL-M0211020
...
25
Screw (3) WPL-67006425
...
26
Gasket, Evap. WPL-B8327901
...
27
Screw WPL-WP98165
...
28
Angle, Evaporator Cover, Left WPL-D7393501
...
29
Screw WPL-M0226960
...
31
Grommet WPL-C8830701
...
32
Clip-Heater WPL-B5784101
...
33
Gasket, Air Block WPL-B5757703
...
34
Gasket WPL-B5759608
...
35
Air Tunnel WPL-D7484901
...
36
Clip Ground WPL-B8324801
...
37
Angle-Fr Baffle WPL-B5795201
...
38
Wiring Harness Liner WPL-D7565502
...
39
Heat Exchanger WPL-D7646501
...
40
Grommet WPL-A4573802
...
41
Grommet A WPL-M0580002
...
42
Grommet WPL-M0580009
...
43
Block Air Coil WPL-C8868301
...
44
Screw WPL-WP90767
...
45
Gasket Air Tunnel WPL-B8320501
...
46
Clip WPL-M0117802
...
47
Screw (3) WPL-67006425

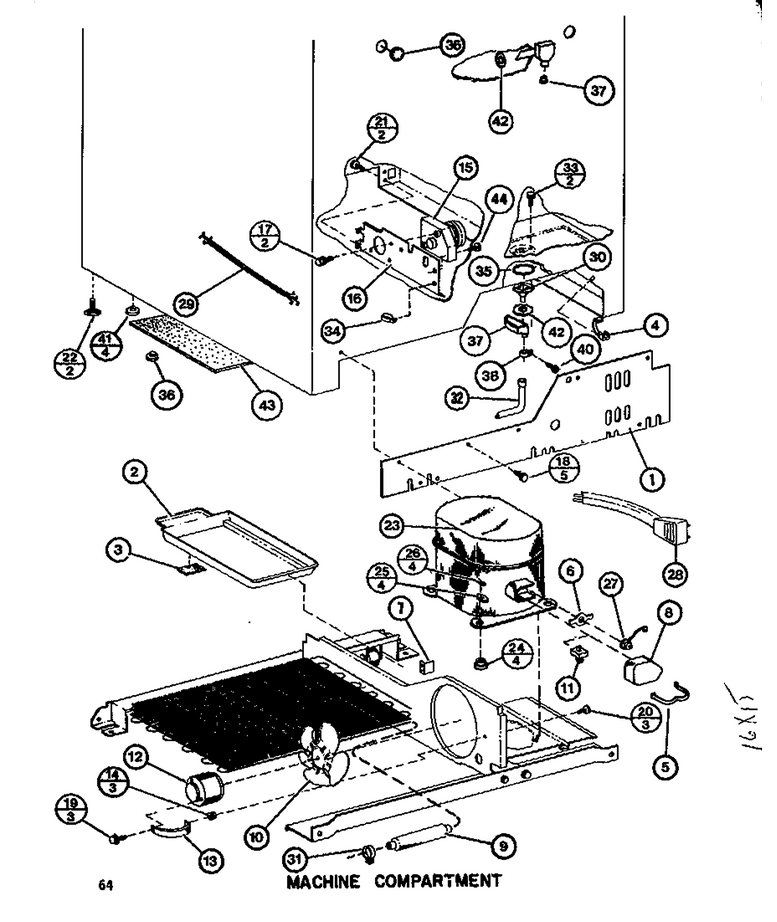

05 - Machine Compartment

...
...
1
Mc Back Assy WPL-C3655004
...
2
Pan, Drain WPL-D7001001
...
3
Pad A WPL-B5691701
...
4
Grommet, Cord WPL-211881
...
5
Strap K WPL-A3041801
...
6
Spring K WPL-C8916701
...
7
Stop,drain Pan WPL-A3125701
...
8
Terminal Cover WPL-B0551801
...
9
Drier WPL-WPB2150504
...
10
Blade, Fan WPL-B5742603
...
11
Relay K WPL-C3689202
...
12
Motor-Cond WPL-833697
...
13
Bracket, Cond Motor WPL-C8938501
...
14
Grommet K WPL-M0500107
...
15
Timer-Def WPL-W10822278
...
16
Timer Bracket WPL-C3647902
...
17
Screw,tc WPL-M0230017
...
18
Screw-Sm WPL-M0241118
...
19
Screw WPL-WPM0223816
...
20
Screw Shoulder WPL-M0238833
...
21
Screw WPL-M0211530
...
22
Glider Bolt WPL-M0266510
...
23
Compressor Aea1410axa WPL-D7672301
...
24
Grommet K WPL-A3026101
...
25
Washer, Nylon K WPL-M0590101
...
26
Clip K WPL-A3140801
...
27
Overload WPL-C3689105
...
28
Power Cord WPL-R0157154
...
29
Harness M.c WPL-D7655401
...
30
Drain Cup WPL-C8820601
...
31
Clamp-Drier WPL-M0104002
...
32
Drain Tube WPL-D7384701
...
33
Screw WPL-WP90767
...
34
Tie WPL-M0321401
...
35
Sealer, Gum (4 Feet) WPL-212643
...
37
Plug Button WPL-M0310319
...
38
Clamp WPL-M0102303
...
41
Plug, Button (blk) WPL-A3080001
...
43
Insulation M.c. A-K WPL-D7525101
...
44
Screw WPL-WP489399

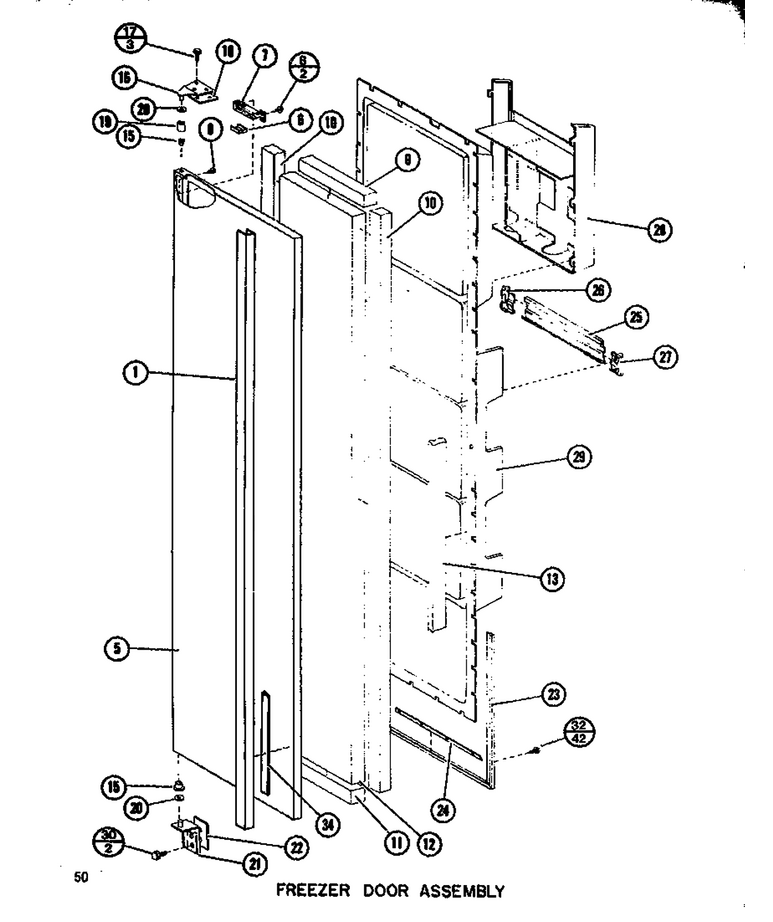

02 - Fz Door Assy

...
...
1
Door Handle WPL-D7573707
...
5
Door Frz L-T-Imperial WPL-D7624721
...
6
Cover WPL-B5644001
...
7
Door Closure WPL-D7022901
...
8
Screw WPL-M1252001
...
9
Insulation WPL-B5629006
...
10
Insulation WPL-B5629002
...
11
Insulation WPL-B5629003
...
12
Insulation WPL-B5612004
...
13
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
15
Bearing, Hinge WPL-C8852202
...
16
Hinge-Right WPL-C8816602
...
17
Kit, Screw WPL-R9800670
...
18
Shim Kit WPL-A3270303
...
19
Bushing WPL-A3132401
...
20
Washer K WPL-M0274014
...
21
Hinge WPL-D7250104
...
22
Shim WPL-A3143603
...
23
Gasket WPL-D7251020
...
24
Retainer Gasket WPL-D7025103
...
25
Retainer Package WPL-D7415728
...
26
Support - Cream Lh WPL-B5631705
...
27
Support- -Cream Rh WPL-B5631706
...
28
Juice Rack WPL-D7466205
...
29
Inner Dr Panel WPL-D7020604
...
30
Screw WPL-WP67006715
...
32
Screw WPL-WPM0219730
...
34
Tape Kit WPL-R0195021

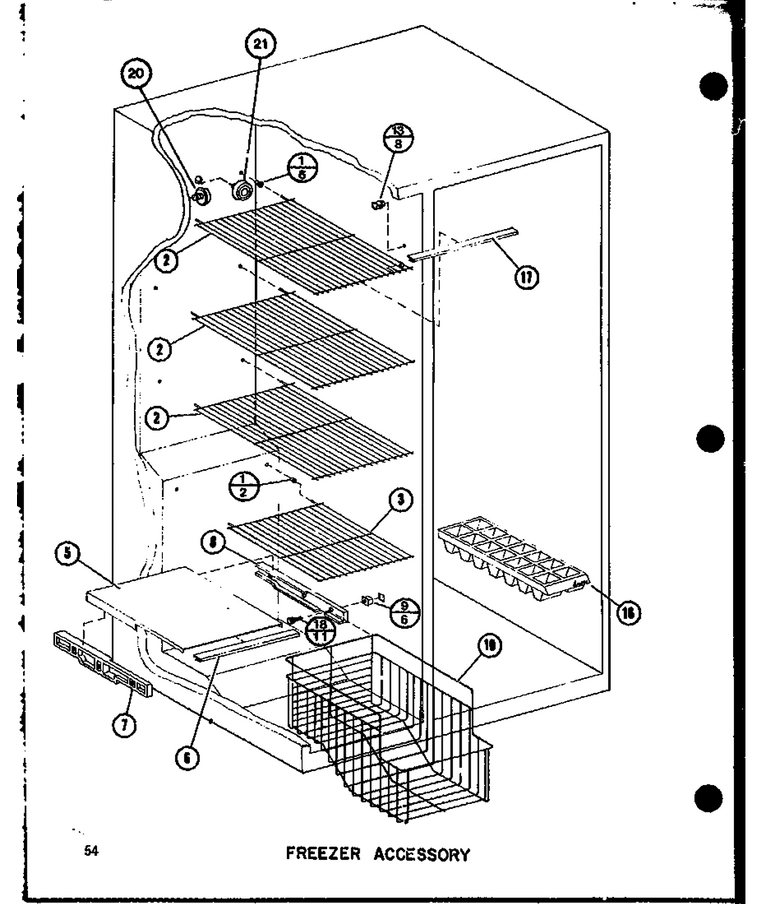

01 - Fz Accessory

...
...
1
Plug WPL-A0387302
...
2
Shelf WPL-D7549803
...
3
Shelf WPL-D7549801
...
5
Shelf-Fr WPL-B8303802
...
6
Trim WPL-B0596602
...
7
Glide Basket-L K WPL-D7442901
...
8
Glide Basket-R K WPL-D7442902
...
9
Grommet WPL-M0580009
...
10
(+) Basket Frz Ph,fr WPL-D7527002
...
13
Support WPL-B0595101
...
16
Tray WPL-WP841180A
...
17
Trim Shelf K WPL-C8795201
...
18
Screw WPL-WP98165
...
20
Cap WPL-B5636301
...
21
Cap Fill Tube WPL-B5631801

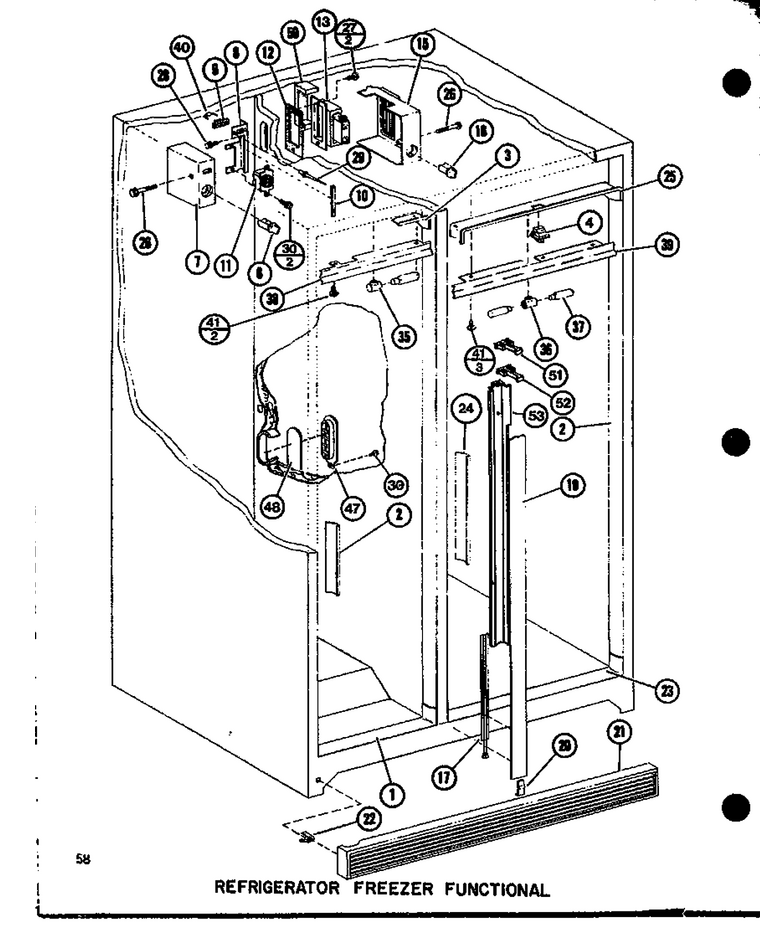

08 - Ref Fz Functional

...
...
NI
Return Air Assembly WPL-B8344901
...
1
Breaker Frame WPL-D3952402
...
2
Breaker WPL-D7510802
...
3
Br Frame WPL-D3953105
...
4
Switch WPL-W11384469
...
6
Knob WPL-D7009801
...
7
Escutcheon WPL-D7345503
...
8
Bracket WPL-C8850501
...
9
Switch WPL-M0341202
...
10
Gasket-Per Ft WPL-A30303-35
...
11
Control WPL-C3615018
...
12
Gasket-Damper WPL-B8315901
...
13
Control, Refriferator WPL-C3643113
...
15
Escutcheon WPL-D7417303
...
16
Knob WPL-D7009802
...
17
Mullion Heater, 115v WPL-C8867001
...
19
Mullion (almond) WPL-C8810405
...
20
Key WPL-A3120801
...
21
Grille WPL-D7415414
...
22
Clip WPL-WPM0117303
...
23
Breaker Frame WPL-D3952603
...
24
Breaker Frame WPL-D7510902
...
25
Breaker Frame WPL-D3952505
...
26
Screw WPL-M0230926
...
27
Screw (3) WPL-67006425
...
28
Screw WPL-WP489464
...
29
Rivet A WPL-M0010202
...
30
Screw WPL-WP90767
...
35
Socket WPL-B5637601
...
36
Socket-Light WPL-12096901
...
37
Bulb-Light WPL-WPA3073101
...
38
Light Shield WPL-D3954208
...
39
Light Shield WPL-D3954210
...
40
Diode WPL-M0305301
...
41
Screw WPL-M0211001
...
47
Grille A WPL-C3588305
...
48
Damper Assy WPL-B8344402
...
50
Insulation-Damp Cnt WPL-C8860701
...
51
Support Mullion WPL-B0594201
...
52
Support Mullion WPL-B5608001
...
53
Mullion WPL-B5626901
