Amana IM5-H (BOM: P6011901W)

Model: IM5-H (BOM: P6011901W)

Save Part Not Listed?
product name

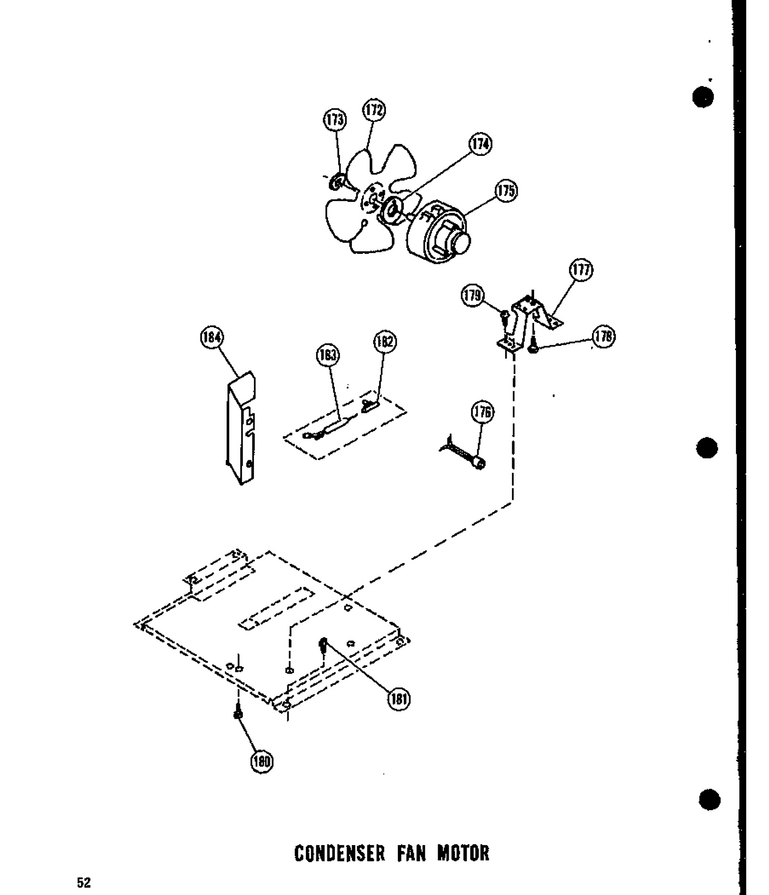

01 - Condenser Fan Motor

...
...
172
Fan Blade 572728 WPL-R0156001
...
173
Nut WPL-WP486692
...
174
Washer, Rubber WPL-R0190004
...
175
Motor Fan 833736 WPL-R0154002
...
176
Plug,female 583661 WPL-R0167021
...
177
Bracket, Motor Fan Condenser WPL-R0178001
...
178
Screw WPL-R0188001
...
179
Screw, Machine, Sems Hex Head, WPL-R0187003
...
180
Sems Fastener WPL-YM0258229
...
181
Screw WPL-M0225431
...
182
Access Valve 481825 WPL-R0175002
...
183
Drier WPL-WPB2150504
...
184
Baffle WPL-R0178003

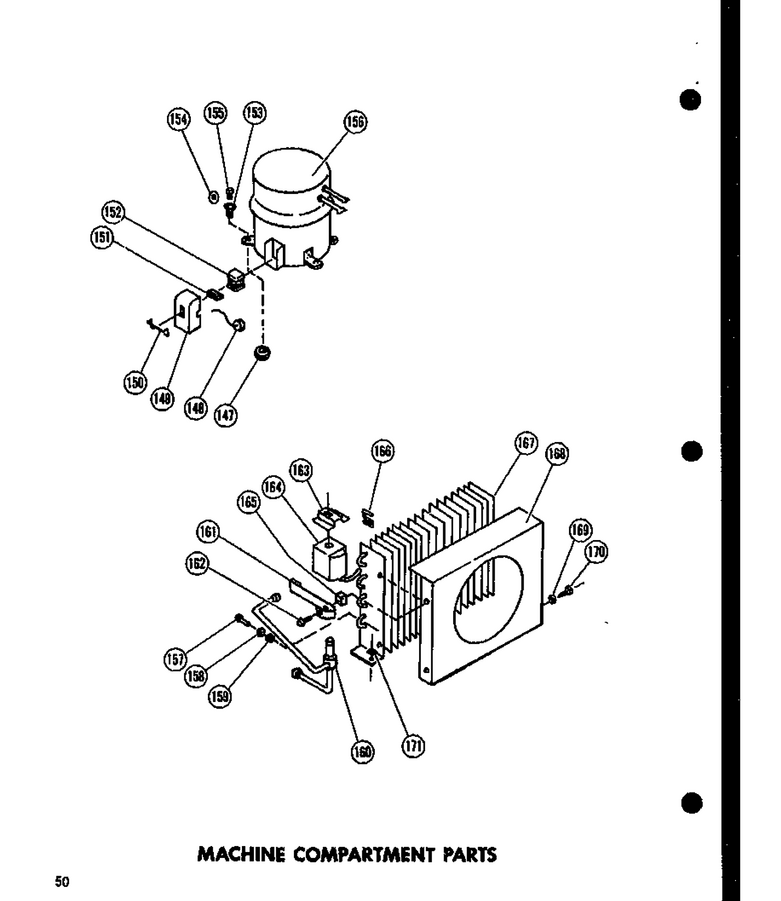

04 - Machine Compartment Parts

...
...
NI
Mtg Kit,comp 481873 WPL-R0178004
...
147
Grommet 596518 WPL-R0182008
...
148
Overload 572538 WPL-R0162001
...
149
Case-Relay WPL-R0181019
...
150
Spring WPL-R0191001
...
151
Bumper WPL-R0183004
...
152
Relay 531386 WPL-R0159002
...
153
Spacer WPL-R0190003
...
154
Washer WPL-M0270510
...
155
Screw WPL-WP67006715
...
156
Compressor Kit 463372 WPL-R0155001
...
157
Screw WPL-M0233018
...
158
Lock Washer WPL-M0272803
...
159
Washer WPL-M0270519
...
160
Body,valve 564232 WPL-R0175001
...
161
Clamp, Valve WPL-R0178006
...
162
Screw WPL-R0187001
...
163
Clamp WPL-R0178005
...
164
Coil 60hz 564233 WPL-R0163001
...
165
Spacer WPL-R0183003
...
166
Clip WPL-R0191002
...
167
Condenser 563214 WPL-R0171001
...
168
Shroud WPL-R0183002
...
169
Washer WPL-M0270504
...
170
Screw WPL-M0211530
...
171
Nut WPL-WP486692

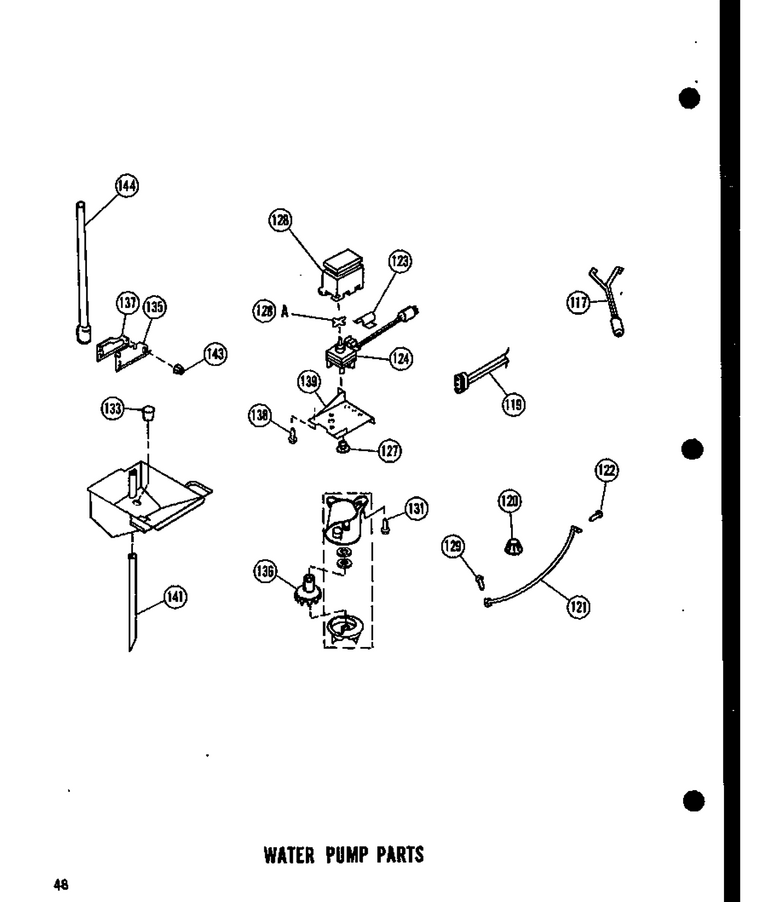

05 - Water Pump Parts

...
...
117
Cord WPL-R0164003
...
119
Cord WPL-R0164008
...
120
Wire Nut K WPL-A4617502
...
121
Well Thermostat WPL-R0180014
...
122
Screw WPL-R0186001
...
128
Fan Blade WPL-R0181034
...
129
Screw WPL-W11233072
...
131
Screw WPL-R0188007
...
132
Pan WPL-R0181031
...
133
Stopper 563180 WPL-R0182007
...
134
Housing Assy WPL-R0181033
...
135
Shelf WPL-R0180019
...
136
Impeller WPL-R0181030
...
137
Gasket WPL-R0183005
...
138
Screw WPL-R0188006
...
139
Bracket-Pump WPL-R0180018
...
141
Hose, Overflow WPL-R0181032
...
143
Nut WPL-R0189004
...
144
Tube WPL-R0181026

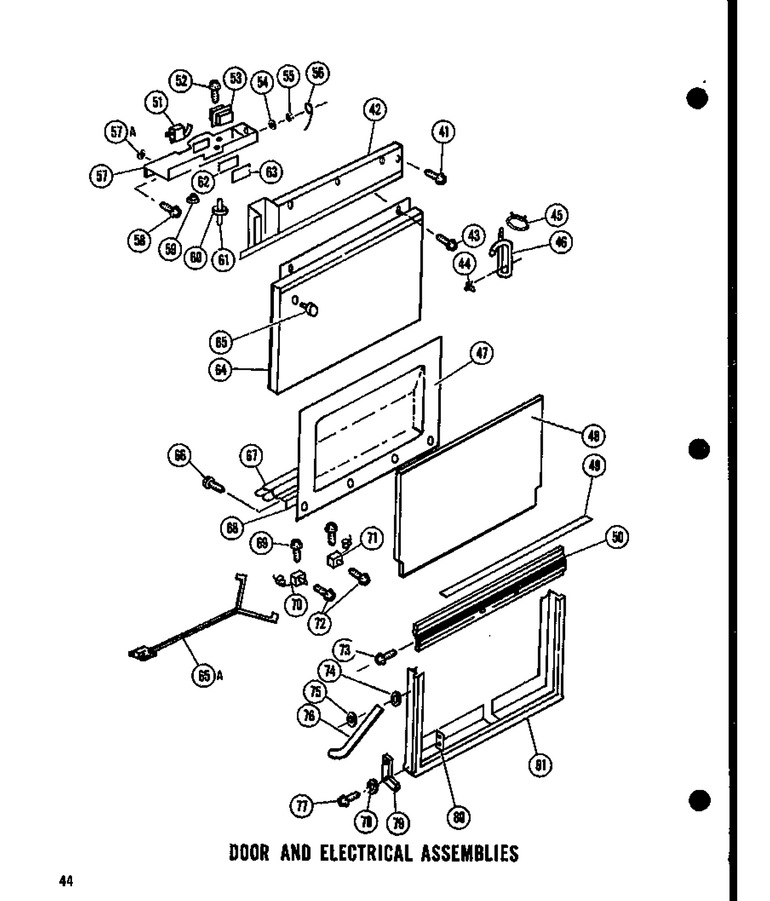

02 - Door And Electrical Assemblies

...
...
41
Screw WPL-M0211530
...
42
Frt Rail Assy WPL-R0178011
...
43
Screw WPL-M0212144
...
44
Clip WPL-R0191010
...
45
Clamp WPL-R0191008
...
46
Tube-Drain Trap WPL-R0174004
...
47
Door Panel 563193 WPL-R0181001
...
48
Front Panel WPL-R0180001
...
49
Insert, Handle WPL-C3653401
...
50
Pull-Door WPL-R0177001
...
51
Switch, Toggle WPL-R0163002
...
52
Screw WPL-M0211530
...
53
Transformer 569886 WPL-R0163003
...
54
Washer WPL-R0190006
...
55
Nut WPL-R0189001
...
56
Bracket WPL-R0178010
...
57
Lock Washer WPL-M0272402
...
58
Screw WPL-M0211530
...
59
Bushing WPL-R0181020
...
60
Fuse Holder 596008 WPL-R0167003
...
61
Fuse 596009 WPL-R0167004
...
62
Insulator WPL-R0167001
...
63
Block WPL-R0167002
...
64
Grille, Assembly WPL-R0178024
...
65
Control Knob 577708 WPL-R0181022
...
66
Screw WPL-M0211530
...
67
Gasket WPL-R0182001
...
68
Gasket WPL-R0178013
...
69
Screw WPL-M0206117
...
70
Thermostat 583435 WPL-R0161001
...
71
Thermostat 798635 WPL-R0161002
...
72
Screw WPL-M0205518
...
73
Screw WPL-M0202531
...
74
Washer 680971 WPL-R0190007
...
75
Ring 596476 WPL-R0190002
...
76
Support,door 563202 WPL-R0180002
...
77
Screw, Thread Cutting WPL-M0228530
...
78
Lock Washer WPL-M0272803
...
79
Block,hinge 563196 WPL-R0181002
...
80
Hinge Plate WPL-R0178014
...
81
Door Frame Assy WPL-R0177002

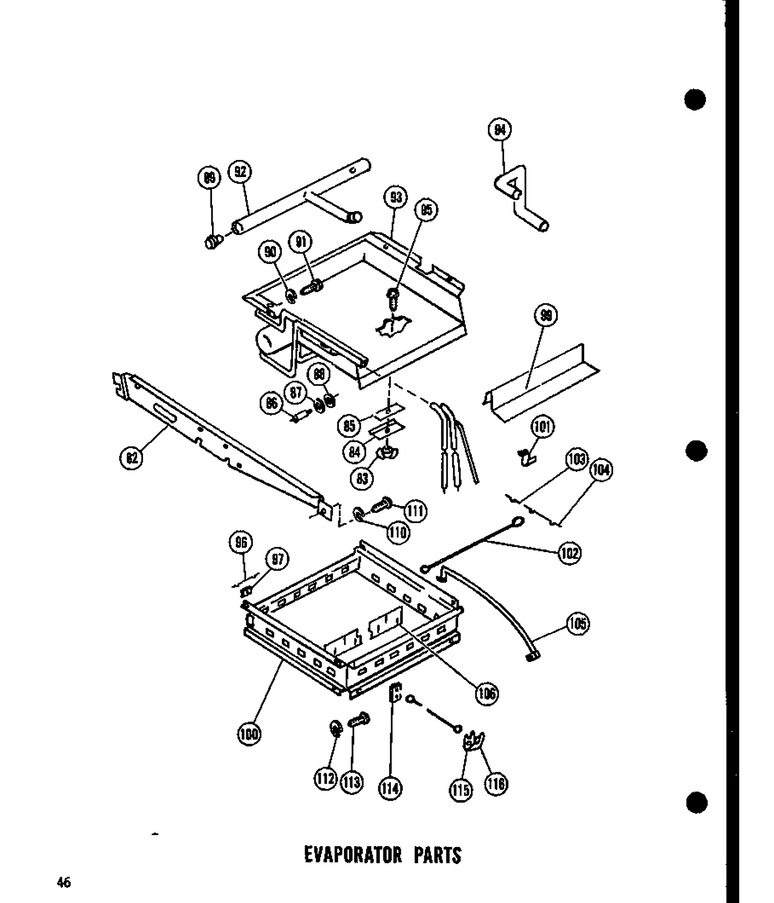

03 - Evap Parts

...
...
NI
Label, Wiring Diagram, 60 Hz 1 WPL-R0166001
...
82
Rail-Right WPL-R0180004
...
83
Wing Nut WPL-R0191004
...
84
Clamp WPL-R0180005
...
85
Gasket, Rubber WPL-R0182003
...
86
Support WPL-R0181010
...
87
Washer, Rubber WPL-R0190001
...
88
Ring 596476 WPL-R0190002
...
89
Plug 564061 WPL-R0182002
...
90
Washer, Lock, 5/16`` WPL-M0272804
...
91
Screw WPL-M0225431
...
92
Dispenser WPL-R0181028
...
93
Evaporator Assy WPL-R0170002
...
94
Tube 563410 WPL-R0181018
...
95
Screw WPL-R0188002
...
96
Pin Kit 278732 WPL-R0167007
...
97
Insulator 564071 WPL-R0167008
...
98
Tube WPL-R0181026
...
99
Deflector WPL-R0181027
...
100
Grid Frame 563887 WPL-R0180008
...
101
Clip,wire 564079 WPL-R0167018
...
102
Cutter 564317 WPL-R0167014
...
103
Pin Kit 564074 WPL-R0167017
...
104
Pin 564048 WPL-R0167011
...
105
Wire Connector WPL-R0167016
...
106
Shield 564069 WPL-R0182004
...
110
Washer, Lock, 5/16`` WPL-M0272804
...
111
Screw WPL-M0225431
...
112
Washer, Lock, 5/16`` WPL-M0272804
...
113
Thumb Screw WPL-R0188005
...
114
Insulator 564071 WPL-R0167008
...
115
Cutter 564318 WPL-R0167009
...
116
Clip 564072 WPL-R0180009
