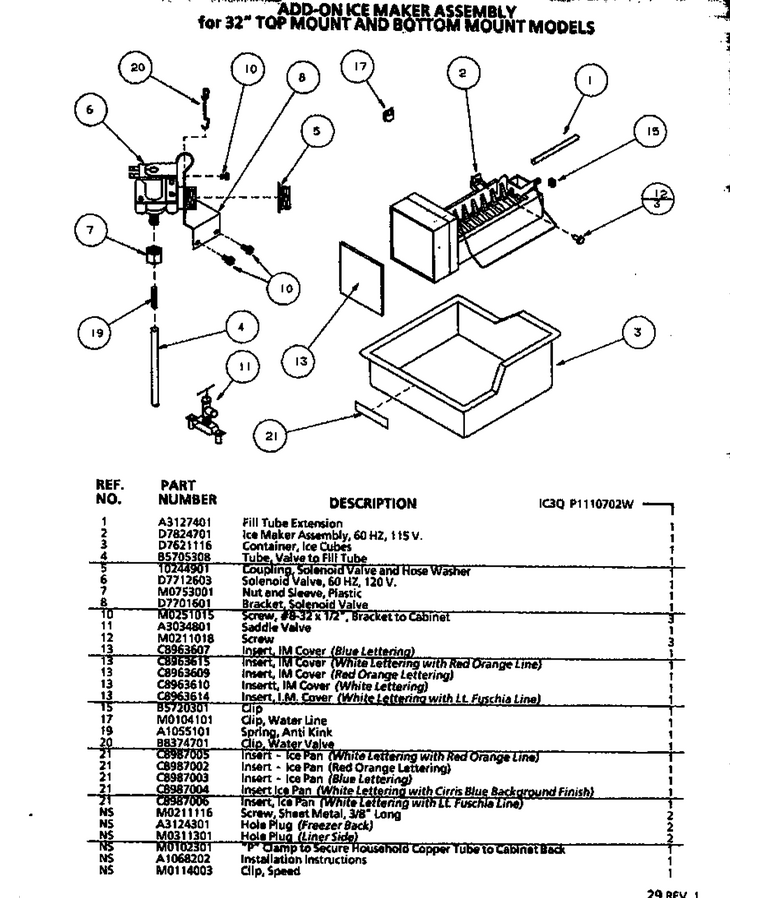

Amana IC3Q (BOM: P111702W)

Model: IC3Q (BOM: P111702W)

Save Part Not Listed?
product name

01 - Page 14

...
...
NI
Screw WPL-WP90767
...
1
Tube WPL-A3127404
...
2
Ice Maker Assy. WPL-D7824706Q
...
3
Pan-Ice WPL-WP67001255
...
4
Tube WPL-WPB5705307
...
5
Coupling WPL-10244901
...
6
Valve-Inlt WPL-WPD7712603
...
7
Nut WPL-WP627018
...
8
Bracket WPL-WPD7701602
...
10
Screw, 8-32 X 3/8 WPL-681390
...
11
Saddle Valve WPL-A3034801
...
12
Screw WPL-WP98165
...
13
Insert Im WPL-C8963610
...
15
Clip WPL-B5720301
...
17
Clip WPL-WPM0104106
...
19
Spring WPL-WPA1055105
...
20
Clip, Water Valve WPL-10798001
...
21
Insert, Ice Pan WPL-C8987006
