Amana IC3H (BOM: P7621305W)

Model: IC3H (BOM: P7621305W)

Save Part Not Listed?
product name

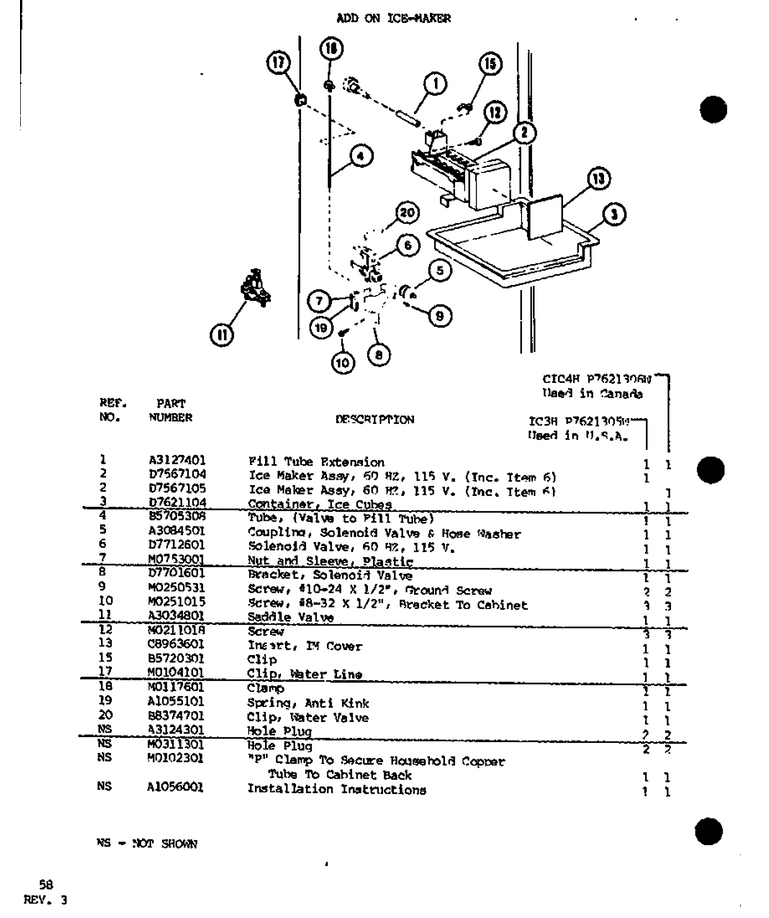

01 - Add On Ice-Maker

...
...
NI
Clamp WPL-M0102301
...
1
Tube WPL-A3127404
...
2
Ice Maker WPL-WP67003153
...
3
Ice Pan WPL-D7621104
...
4
Tube WPL-WPB5705307
...
5
Coupling, Solenoid Valve And H WPL-A3084501
...
6
Valve-Inlt WPL-WPD7712603
...
7
Nut WPL-WP627018
...
8
Bracket WPL-WPD7701602
...
9
Screw WPL-M0250531
...
10
Screw, 8-32 X 3/8 WPL-681390
...
11
Saddle Valve WPL-A3034801
...
12
Screw WPL-WP98165
...
13
Insert Cover WPL-C8963601
...
15
Clip WPL-B5720301
...
17
Clip WPL-WPM0104106
...
18
Clip- Spee WPL-WPM0114003
...
19
Spring WPL-WPA1055105
...
20
Clip, Water Valve WPL-10798001
