product name

Amana IC3 (BOM: P7621301W)

Model: IC3 (BOM: P7621301W)

Save Part Not Listed?
product name

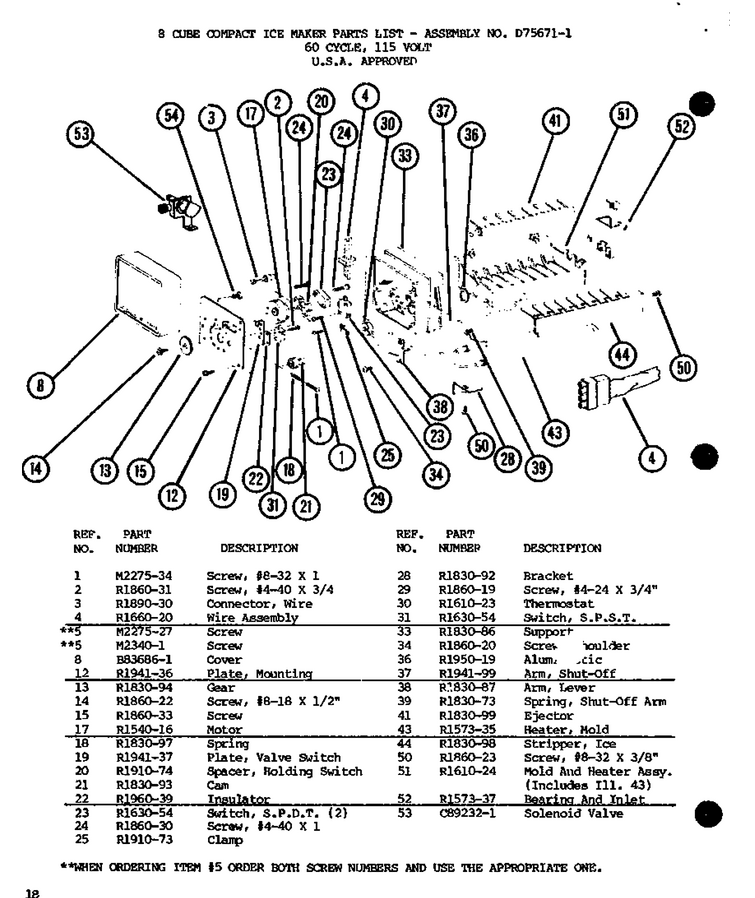

01 - 8 Cube Compact Ice Maker

...
...
1
Screw WPL-M0227534
...
2
Screw WPL-R0186031
...
3
Nut, Wire WPL-R0189030
...
4
Harness Wiring WPL-R0166020
...
5
Screw WPL-M0227527
...
8
Cover WPL-B8368601
...
12
Mounting Plate WPL-R0194136
...
13
Gear WPL-WP628210
...
14
Screw WPL-R0186022
...
15
Screw WPL-R0186033
...
17
Motor WPL-R0154016
...
18
Spring WPL-R0183097
...
19
Plate WPL-R0194137
...
20
Spacer WPL-R0191074
...
21
Cam WPL-625913
...
22
Insulator WPL-R0196039
...
23
Switch, S.p.s.t. WPL-R0163054
...
24
Screw WPL-R0186030
...
25
Clamp WPL-R0191073
...
28
Bracket WPL-R0183092
...
29
Screw WPL-R0186019
...
30
Thermostat WPL-R0161023
...
31
Switch, S.p.s.t. WPL-R0163054
...
33
Support WPL-R0183086
...
34
Screw WPL-R0186020
...
36
Alumalastic WPL-R0195019
...
37
Arm, Shut-Off WPL-R0194199
...
38
Lever Arm WPL-R0183087
...
39
Spring WPL-R0183073
...
41
Ejector WPL-R0183099
...
43
Kit WPL-R0157335
...
44
Stripper WPL-R0183098

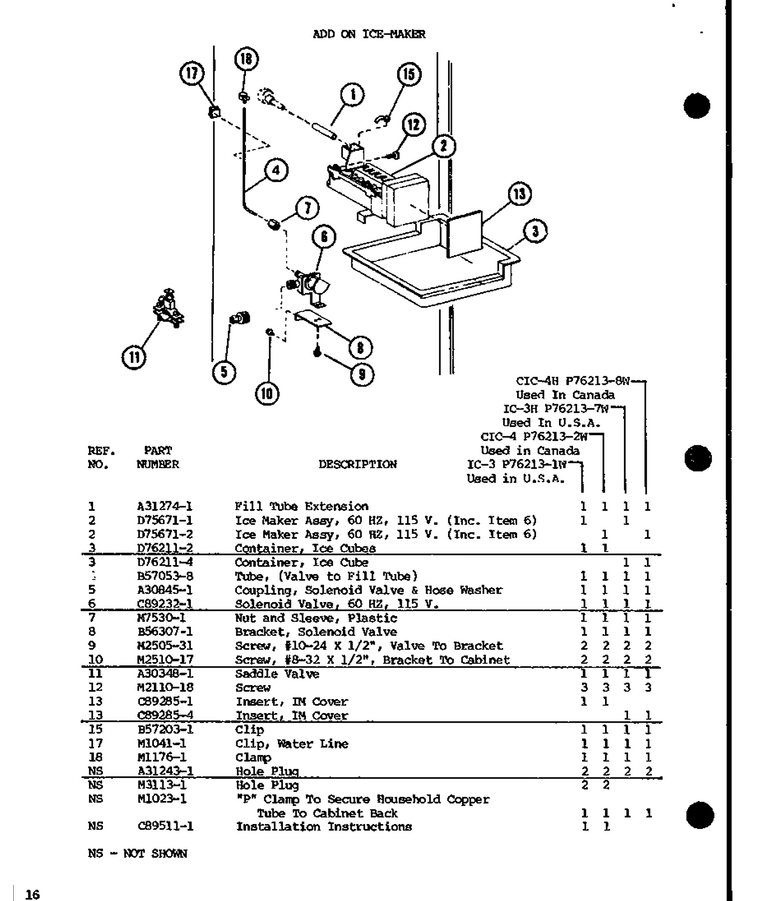

02 - Add On Ice-Maker

...
...
NI
Clamp WPL-M0102301
...
1
Tube WPL-A3127404
...
2
Ice Maker Assy WPL-D7567101
...
3
Pan, Ice WPL-D7621102
...
4
Tube WPL-WPB5705307
...
5
Coupling, Solenoid Valve And H WPL-A3084501
...
6
Valve-Inlt WPL-4318047
...
7
Nut WPL-WP627018
...
8
Bracket WPL-B5630701
...
9
Screw WPL-M0250531
...
10
Screw WPL-M0251017
...
11
Saddle Valve WPL-A3034801
...
12
Screw WPL-WP98165
...
13
Insert Cover WPL-C8928501
...
15
Clip WPL-B5720301
...
17
Clip WPL-WPM0104106
...
18
Clip- Spee WPL-WPM0114003
