Amana HTK530RW (BOM: P1303803W)

Model: HTK530RW (BOM: P1303803W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

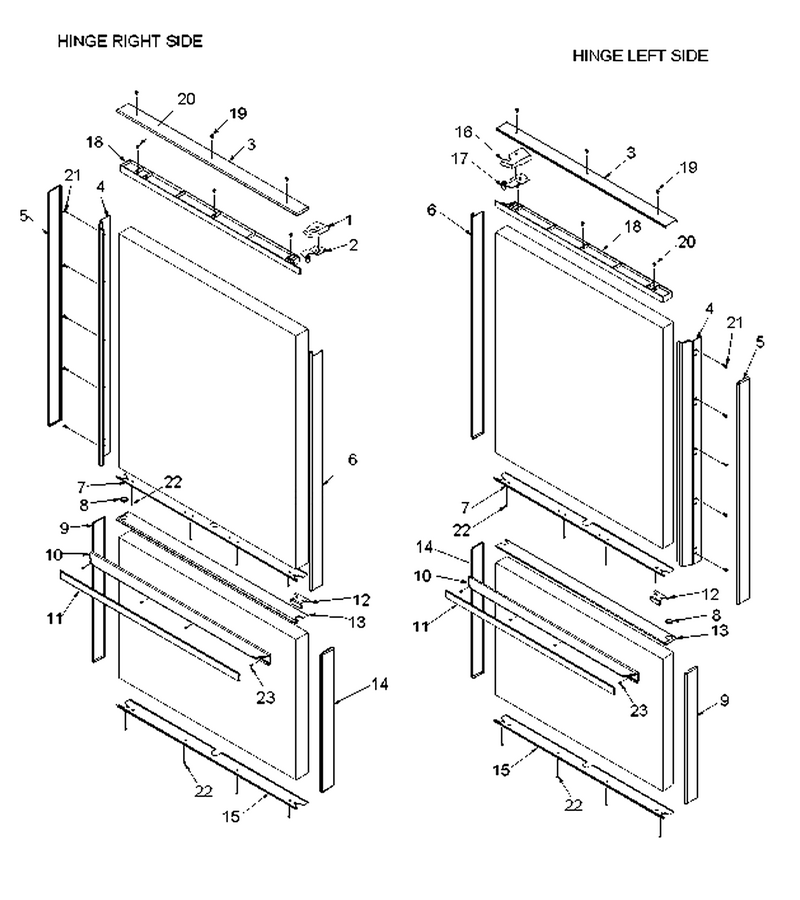

01 - Htk530 Handle And Trim Kits

...
...
NI
Screw WPL-M0202325
...
1
Cover, Hinge, White (r) WPL-12072102
...
2
Hinge, Rh Top-E Ct WPL-12077319
...
3
Trim, Hz WPL-12078811
...
4
Handle, Refr Door (wh) WPL-12080910
...
5
Assy, Ref Trim Vt WPL-12085146
...
6
Assy, Ref Trim Vt WPL-12085153
...
7
Trim, Hz WPL-12079006
...
8
Plug, Trim (wht) WPL-12098902
...
9
Assy, Frz Trim Vt White WPL-12085151
...
10
Handle-W Fz Dr WPL-12081602
...
11
Insert-W Fz Hndl WPL-12078402
...
13
Assy, Hz Trim WPL-12085226
...
14
Assy, Frz Trim Vt WPL-12085147
...
15
Trim, Hz WPL-12079406
...
18
Extension, Ref Dr (wht) WPL-12059101
...
19
Screw WPL-WP489474
...
20
Screw WPL-M0213815
...
21
Screw WPL-8169479
...
22
Screw WPL-WPW10348409
...
23
Screw WPL-WP98165
