Amana HTK530RE (BOM: P1303805W)

Model: HTK530RE (BOM: P1303805W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

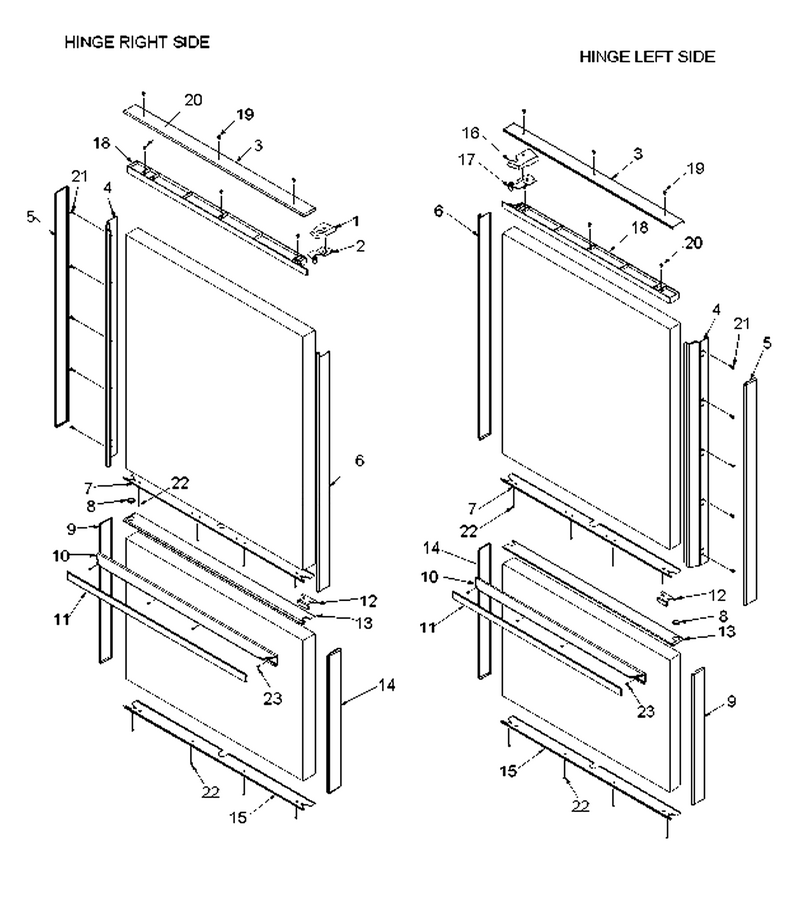

01 - Htk530 Handle And Trim Kits

...
...
NI
Screw WPL-M0202325
...
1
Cover, Hinge, Right, (e) WPL-12072106
...
2
Hinge, Rh Top-E Ct WPL-12077319
...
3
Trim, Horiz Top (black) WPL-12078804
...
4
Handle, Refr Door (e) WPL-12080912
...
5
Assy, Vt Trim Ref (black) WPL-12085104
...
6
Assy, Vt Trim Ref (black) WPL-12085132
...
7
Trim, Horiz Bot (black) WPL-12079004
...
8
Plug, Trim (blk) WPL-12098904
...
9
Assy, Vt Trim Frz (black) WPL-12085124
...
10
Handle, Frz Door (black) WPL-12081604
...
11
Insert, Freezer Handle, Ebony WPL-12078405
...
13
Assy, Horiz Top Trim (black) WPL-12085204
...
14
Assy, Vt Trim Frz (black) WPL-12085108
...
15
Trim, Horiz Bot (black) WPL-12079404
...
18
Extension, Ref Dr (blk) WPL-12059103
...
19
Screw WPL-WP489474
...
20
Screw WPL-M0213815
...
21
Screw WPL-8169479
...
22
Screw WPL-WPW10348409
...
23
Screw WPL-WP98165
Schematic Image Zoomed
