Amana HTK530LS (BOM: P1303802W)

Model: HTK530LS (BOM: P1303802W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

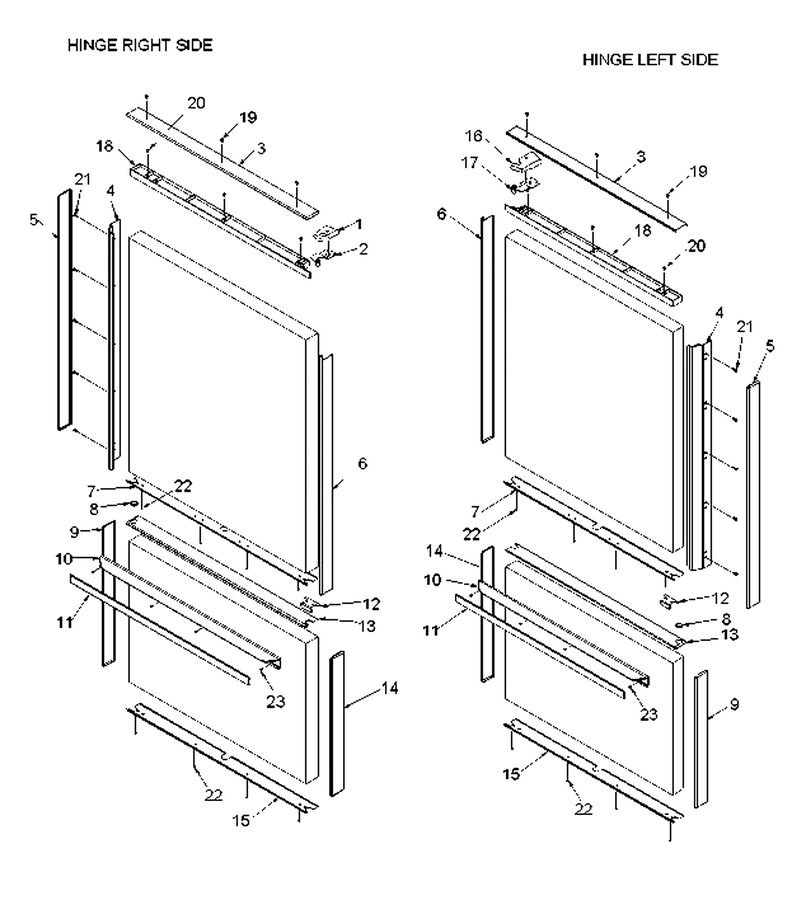

01 - Htk530 Handle And Trim Kits

...
...
NI
Screw WPL-M0202325
...
3
Trim, Horiz Top WPL-12078810
...
4
Handle, Ref Door (s) WPL-12080918
...
5
Assy, Vt Ref Trim WPL-12085137
...
6
Assy, Vt Ref Trim WPL-12085145
...
7
Trim, Horiz Bottom WPL-12079005
...
8
Plug, Trim (stnls) WPL-12098901
...
9
Assy, Vt Frz Trim WPL-12085143
...
10
Handle, Frz Door (s) WPL-12081606
...
11
Insert, S Frz Hndl WPL-12078406
...
12
Stop-Bright Up Dr WPL-12051004
...
13
Assy, Horiz Top Trim WPL-12085222
...
14
Assy, Vt Frz Trim WPL-12085138
...
15
Trim, Horiz Bottom WPL-12079405
...
16
Cover-Gy Hinge L WPL-12072107
...
17
Hinge, Lh Top-E Ct WPL-12077309
...
18
Extension, Ref Dr (wht) WPL-12059101
...
19
Screw WPL-WP489474
...
20
Screw WPL-M0213815
...
21
Screw WPL-8169479
...
22
Screw WPL-WPW10348409
...
23
Screw WPL-WP98165
