Amana HSL2050 (BOM: P1305201M)

Model: HSL2050 (BOM: P1305201M)

Save Part Not Listed?
product name

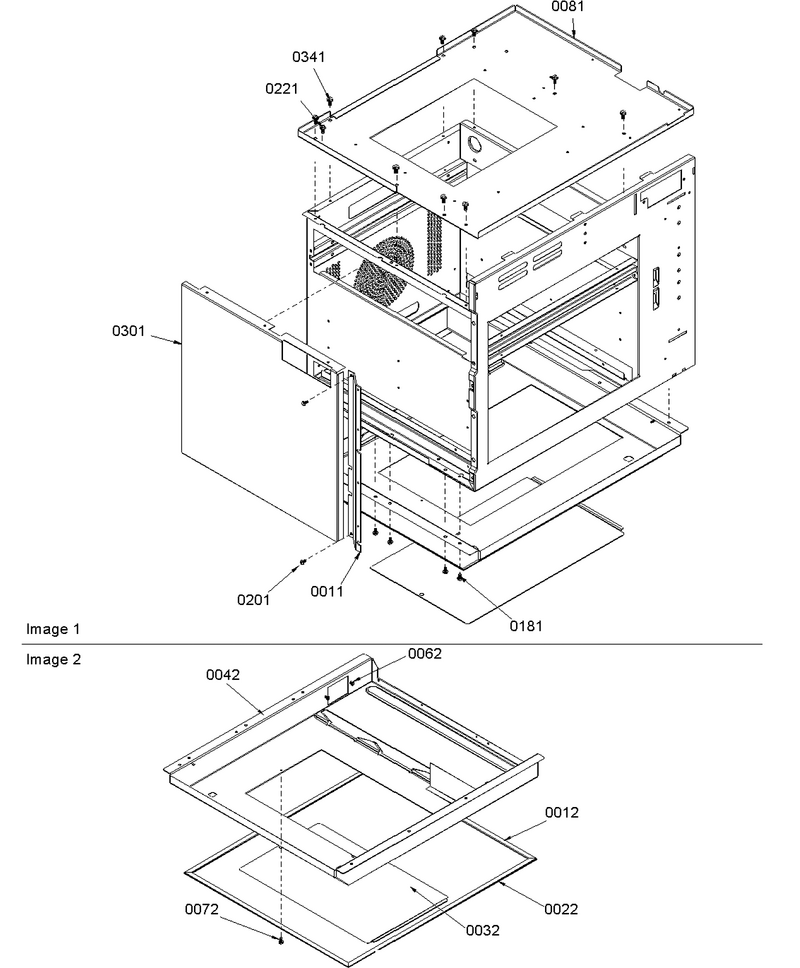

02 - Cavity & Basepan

...
...
11
Bracket,hinge Support WPL-12189003
...
12
Gasket, Basepan (Cut) WPL-10732512Q
...
22
Gasket, Basepan WPL-10732507
...
32
Bottom Access Panel WPL-10782402
...
42
Basepan Weld WPL-R0150201
...
62
Nut, Self Clinch WPL-M0294701
...
81
Top-Oven WPL-12236501
...
301
Shield-Heat WPL-12236801

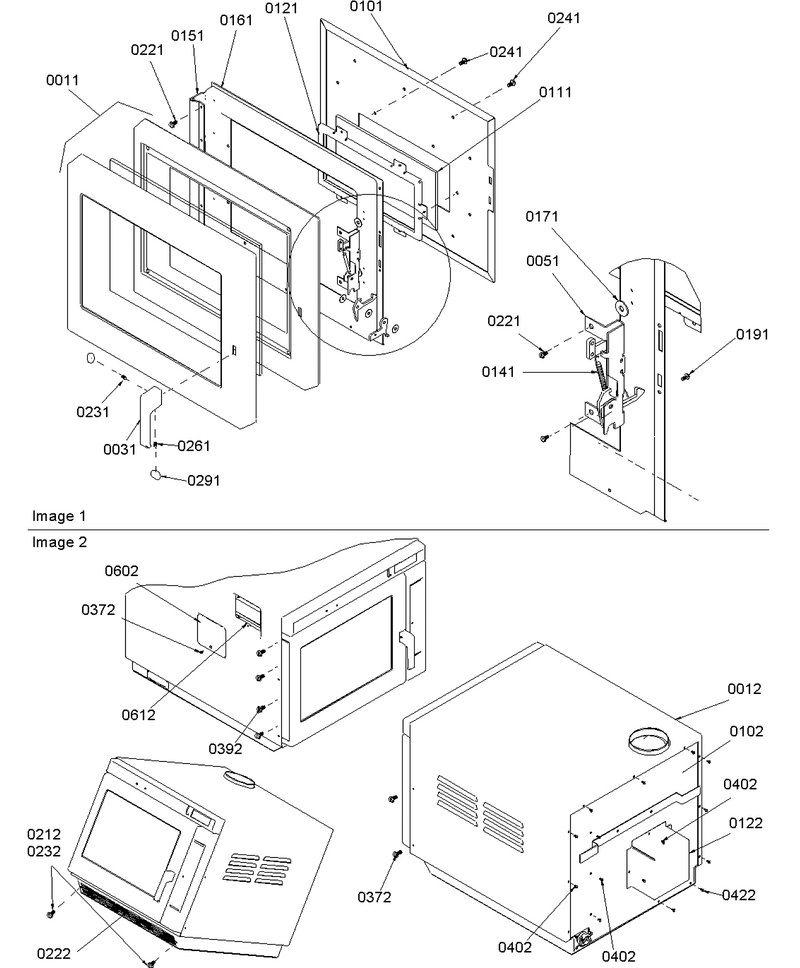

04 - Door/outer Cabinet

...
...
11
Outer Door WPL-R0156054
...
12
Wrapper-Oc (Ss) WPL-10908902
...
31
Handle, Door WPL-12490901
...
51
Kit, Latch WPL-R9800003
...
101
Door-Inner WPL-12237801
...
102
Weld, Panel WPL-12148701
...
111
Glass, Inner WPL-12108503
...
121
Plate, Tap WPL-12297401
...
122
Cover-Motor WPL-12239101
...
141
Spring, Door Latch WPL-C8893502
...
151
Hinge-Door WPL-C8961811
...
161
Weldment-Inner Door WPL-D7683907
...
171
Washer WPL-M0270528
...
191
Rivet-Pop WPL-59002054
...
211
Rivet A K WPL-M0010214
...
222
Grille, Air Inlet WPL-10853102
...
232
Washer, Nylon WPL-M0274066
...
291
Cover-Hole WPL-12285602
...
602
Cover Light (Ss) WPL-10785608
...
612
Clip WPL-M0288213

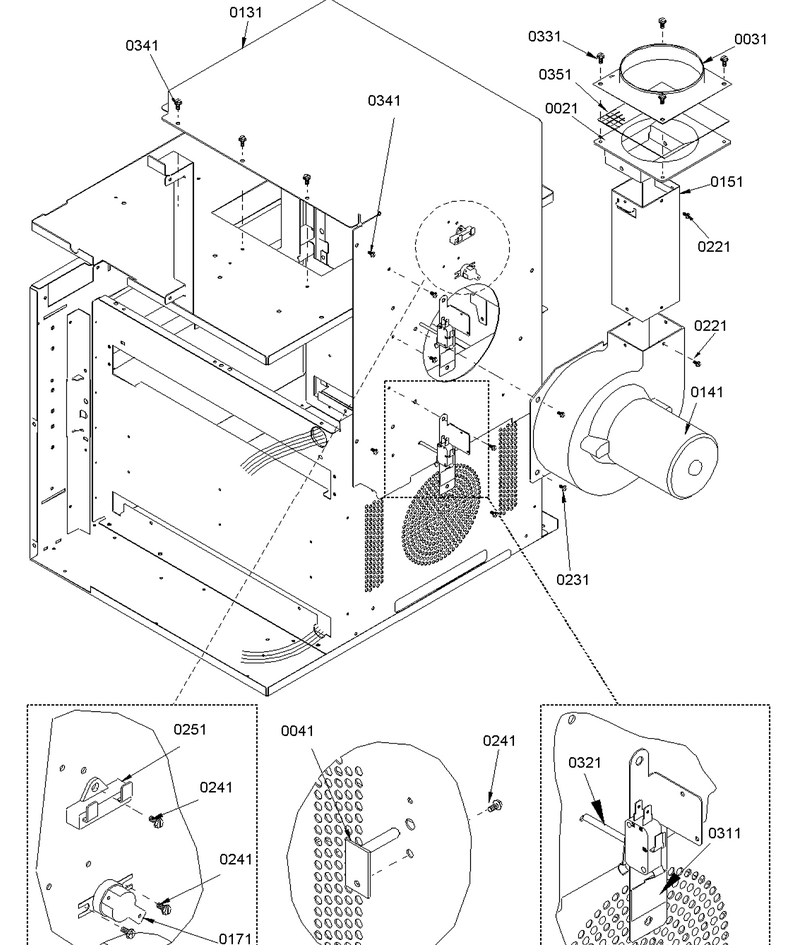

01 - Blower

...
...
21
Transition, I.d. Blwr WPL-11009401
...
31
Top, Transplate WPL-11009701
...
41
Sensor-Temp WPL-12000202
...
131
Assy, Air Duct (Weldment) WPL-12110601
...
141
Blower Assy WPL-12110701
...
151
Assy, Exhaust Ext (Weldment) WPL-12110802
...
171
Protector, Thermal WPL-B5684109
...
251
Fuse, Thermal WPL-B5795305
...
311
Assy, Interlock Sw WPL-12112002Q
...
321
Pin-Intlck WPL-12112301
...
351
Screen, Wire WPL-12235401

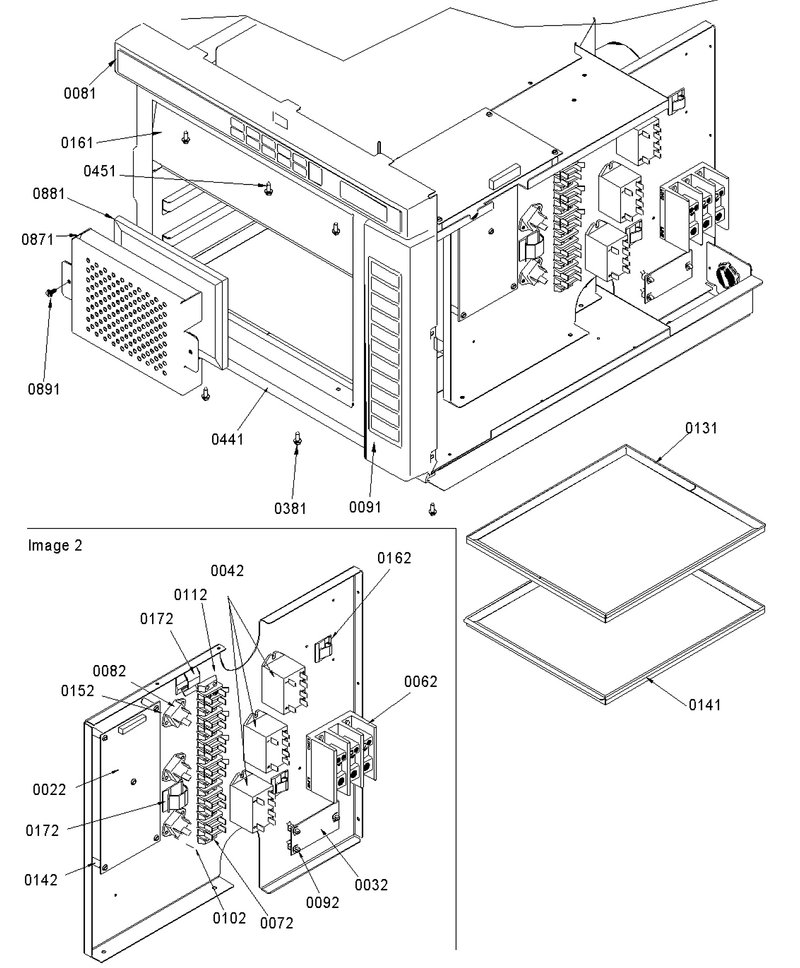

03 - Control Panels

...
...
22
Board, Power WPL-12136802
...
32
Board-Sensor WPL-12136901
...
42
Relay WPL-12147101
...
62
Block, Line WPL-12147301
...
72
Block, Terminal WPL-12147401
...
81
Touch Panel (Top) WPL-R0156053
...
82
Triac WPL-D7681501
...
91
Touch Panel (Side) WPL-R0156052
...
92
Support WPL-M0585505
...
131
Up Panel Weld WPL-12265601
...
141
Panel, Lower WPL-12265802
...
142
Spacer WPL-M0800601
...
161
Facade, Cavity WPL-12238401
...
162
Clip WPL-WPM0104106
...
172
Clip, Cord WPL-M0104102
...
441
Trim-Oc (Brushed) WPL-10909001
...
871
Frame, Filter WPL-12346201
...
881
Filter, Oven WPL-12181302

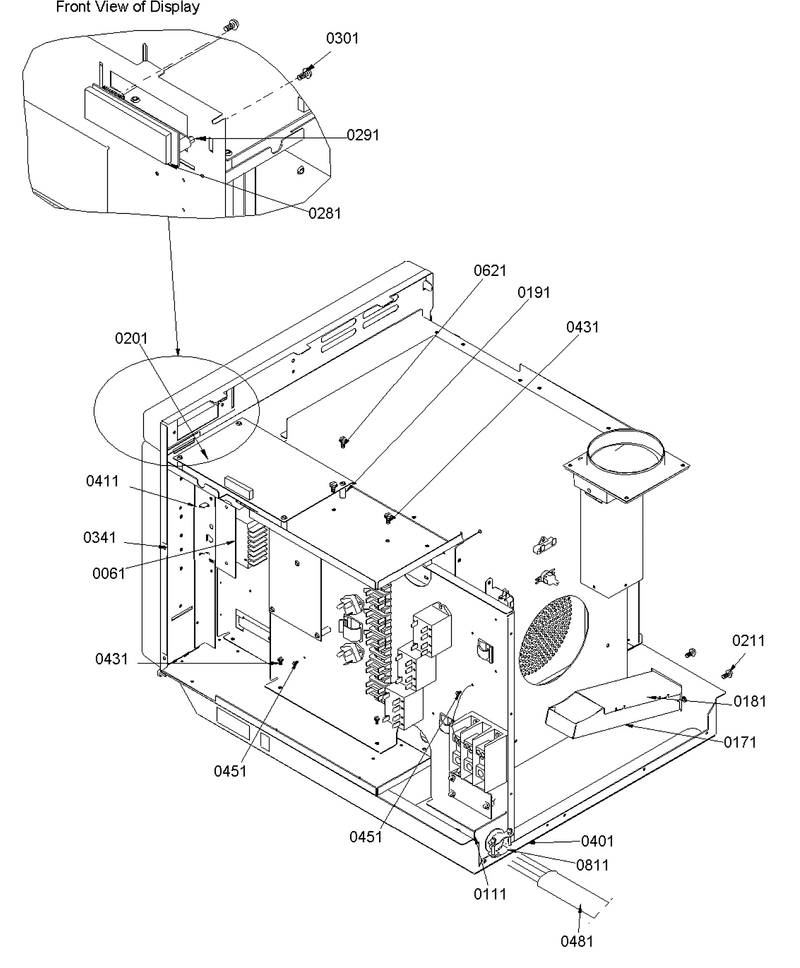

05 - Interior Components

...
...
61
Switch-Interlock WPL-R0150155
...
111
Panel-Power WPL-12239001
...
171
Assy, Grease Tray (Weldment) WPL-12112402
...
181
Cover, Grease Tray WPL-12238601
...
191
Spacer WPL-M0800601
...
201
Control Board WPL-R0163327
...
281
Vfd- Mod (Lighted Display) WPL-12040201
...
291
Spacer-Hex WPL-M0800401
...
341
Nut-Speed WPL-M0287001
...
481
Power Cord WPL-10098914
...
811
Relief, Strain WPL-12190201

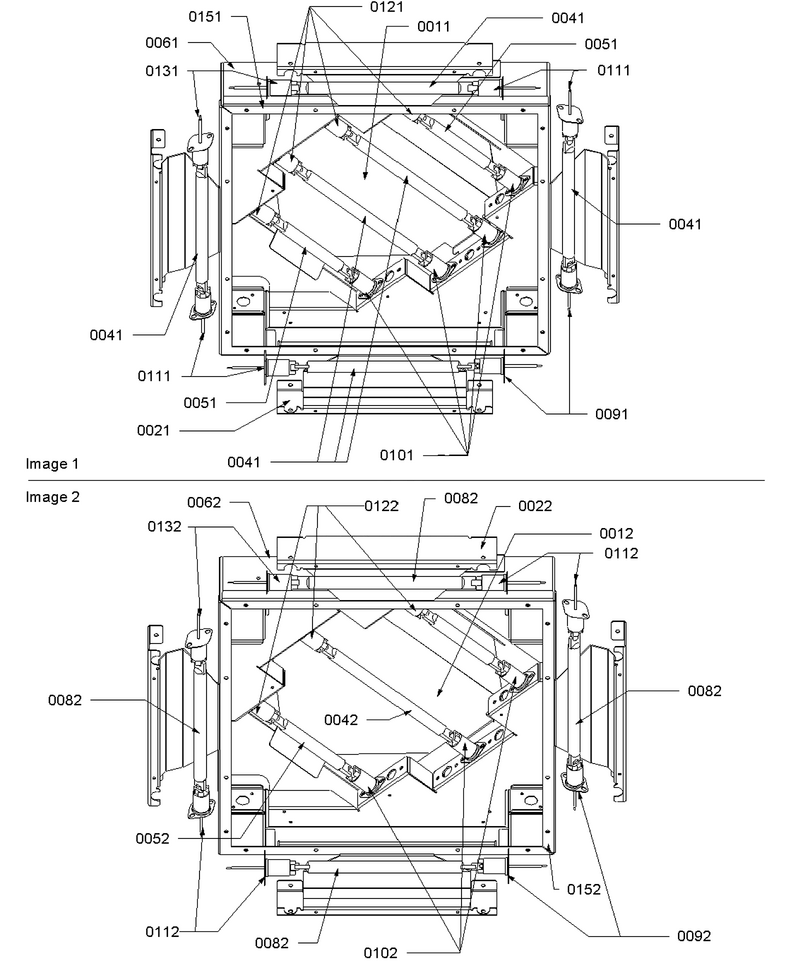

06 - Lower Lamp Assembly

...
...
11
Frame-Lw Module WPL-12237102
...
21
Base-Lw Module WPL-12237201
...
31
Reflector-Lw WPL-12237601
...
51
Lamp-Hal 1000/208 WPL-12109401
...
81
Assy, Connector WPL-12176506
...
91
Assy, Connector WPL-12176507
...
101
Lamp-Hal 750/208 WPL-12109402
...
102
Rail-Lamp Module WPL-12238801
...
112
Reflector-L Side WPL-12237701
...
122
Reflector-R Side WPL-12237702
...
162
Support-Rack WPL-12239301
...
262
Front, Cavity WPL-12352401

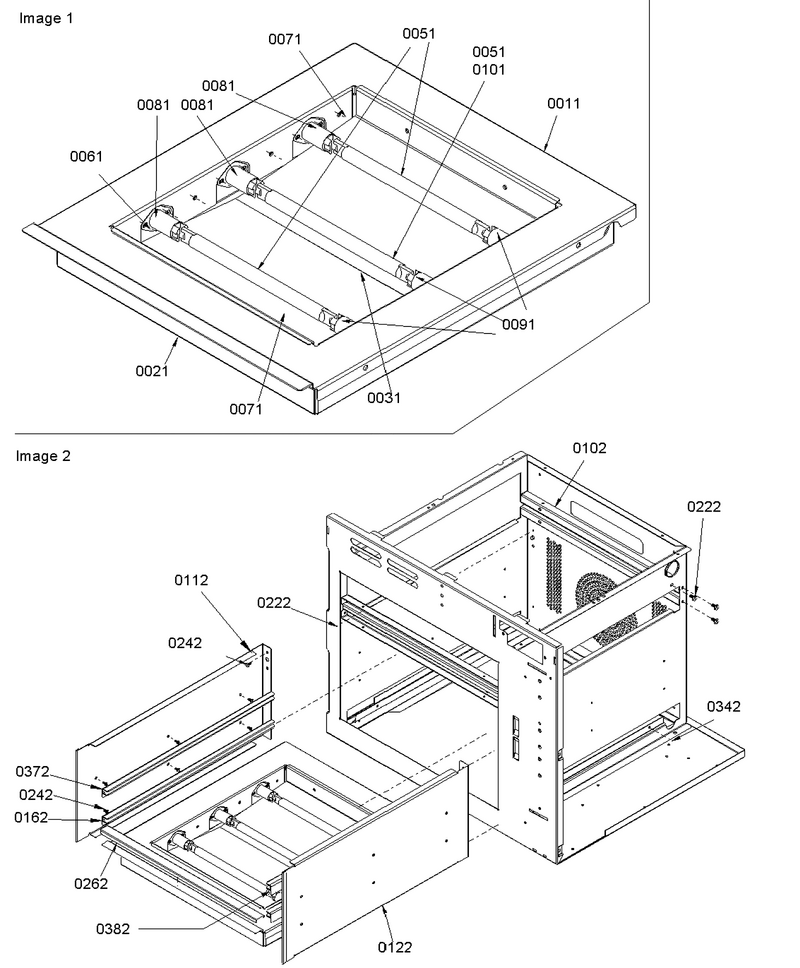

08 - Upper Lamp Assembly

...
...
12
Reflector-Top WPL-12237401
...
22
Reflector- Side WPL-12237501
...
42
Lamp-Hal 1000/208 WPL-12109401
...
52
Lamp-Hal 500/208 WPL-12109403
...
62
Assy, Lamp Module WPL-12109502
...
82
Lamp-Hal 750/208 WPL-12109402
...
92
Assy, Connector WPL-12176501
...
102
Assy, Connector WPL-12176502
...
112
Assy, Connector WPL-12176503
...
122
Assy, Connector WPL-12176504
...
132
Assy, Connector WPL-12176505
...
152
Retainer, Frame WPL-12235301

...
...
1
Sheet-Tech WPL-RT2820001
...
21
Mnl, Use & Care WPL-12153401
...
501
Harness, Relay WPL-12166401
...
511
Harness, Power Board WPL-12166502
...
521
Harness, Power WPL-12166601
...
531
Harness, Control WPL-12166701
...
781
Harness, Blower WPL-12189602
...
821
Cable, Ribbon WPL-12176401
