Amana HG6490

Model: HG6490

Save Part Not Listed?
product name

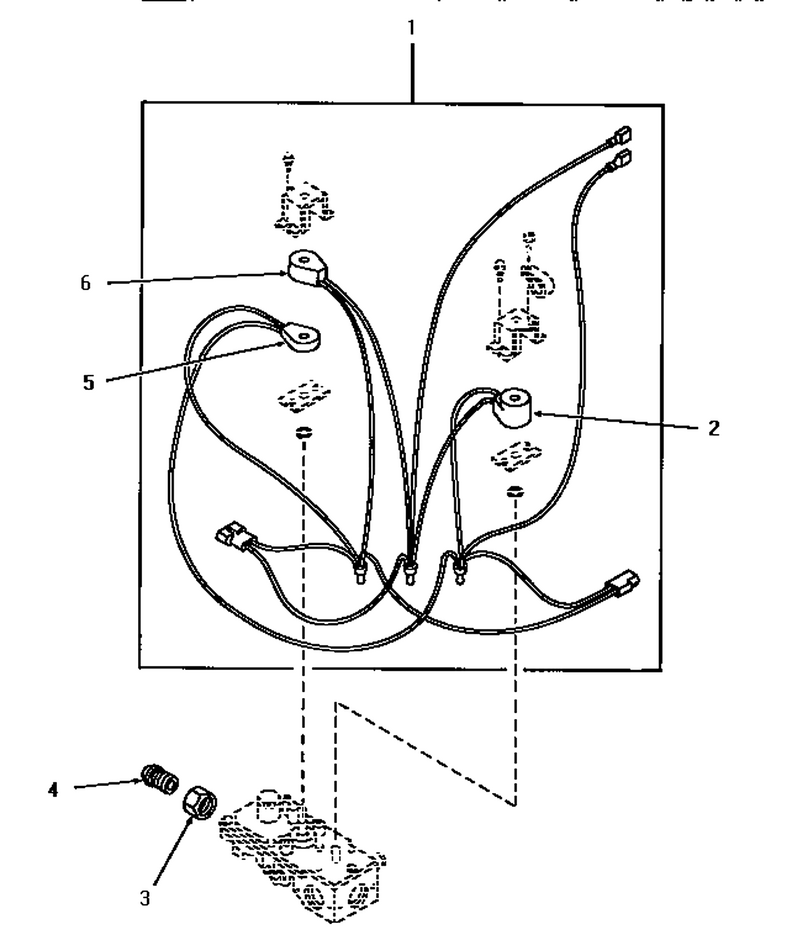

01 - 56225 Gas Valve Assy

...
...
NI
Gas Valve Assembly WPL-56225
...
1
Kit,coil WPL-56225A
...
2
Kit,coil WPL-56225A
...
3
Nut,union WPL-56281
...
4
Nipple WPL-56282
...
5
Kit,coil WPL-56225A
...
6
Kit,coil WPL-56225A

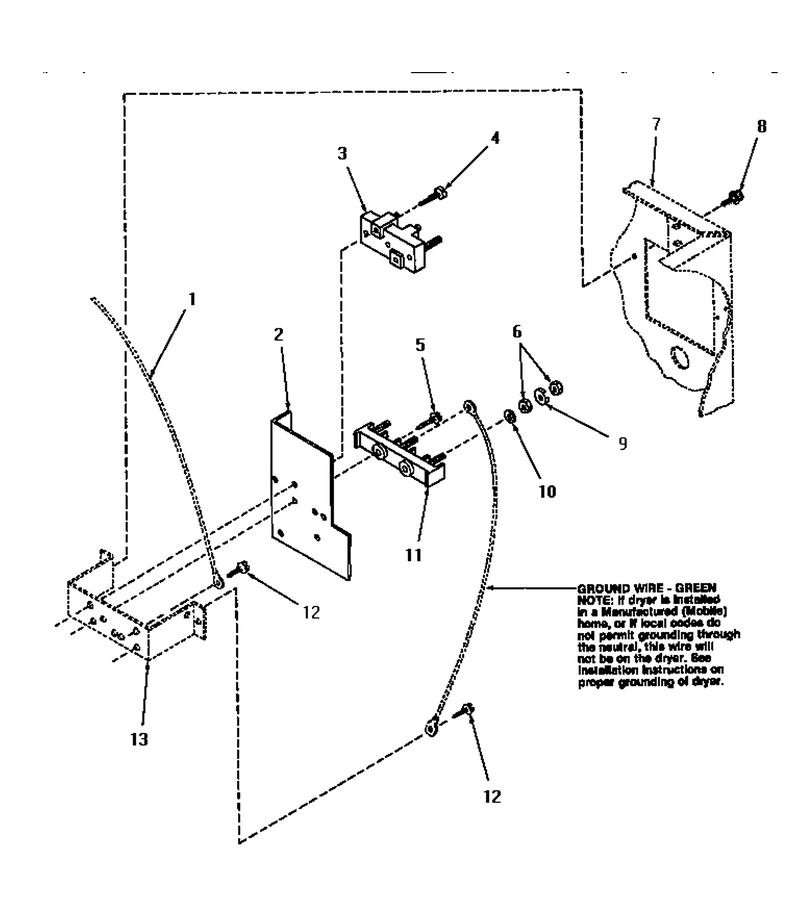

16 - Terminal Block

...
...
1
See Note Ground Wire, Green WPL-Y00000000
...
2
Shield,terminal Block WPL-56087
...
3
Block- Ter WPL-W11705611
...
4
Screw,10b-16 X 3/4 Rou WPL-Q6535
...
5
Screw,10bt X 1 Tapping WPL-56131
...
6
Nut WPL-Q6163
...
7
See Note Cabinet WPL-Y00000000
...
8
Screw WPL-WP27001200
...
9
Washer,13/64idx1/2odx. WPL-51474
...
10
Lockwasher WPL-56552
...
11
Terminal Block WPL-58555
...
12
Screw,10b-16 X 1/2 Hex WPL-51784
...
13
See Note Terminal Block Bracket WPL-Y00000000

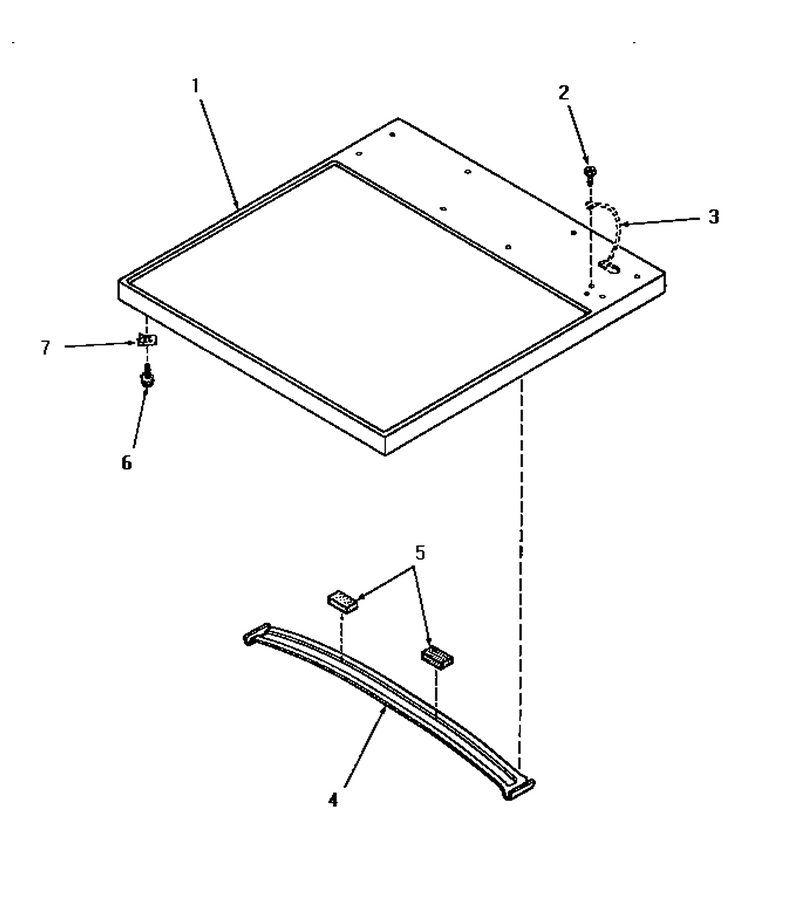

02 - Cabinet Top

...
...
1
Assy,top Panel-Domestixreplace WPL-57066W
...
2
Screw,10b-16 X 1/2 Hex WPL-51784
...
3
See Note Ground Wire, Green WPL-Y00000000
...
4
Top Brace WPL-56213
...
5
Pad,felt-Adhesive Back WPL-56968
...
6
Screw,10-24 X 3/4 Sems WPL-23008
...
7
Nut-10-24 WPL-36020

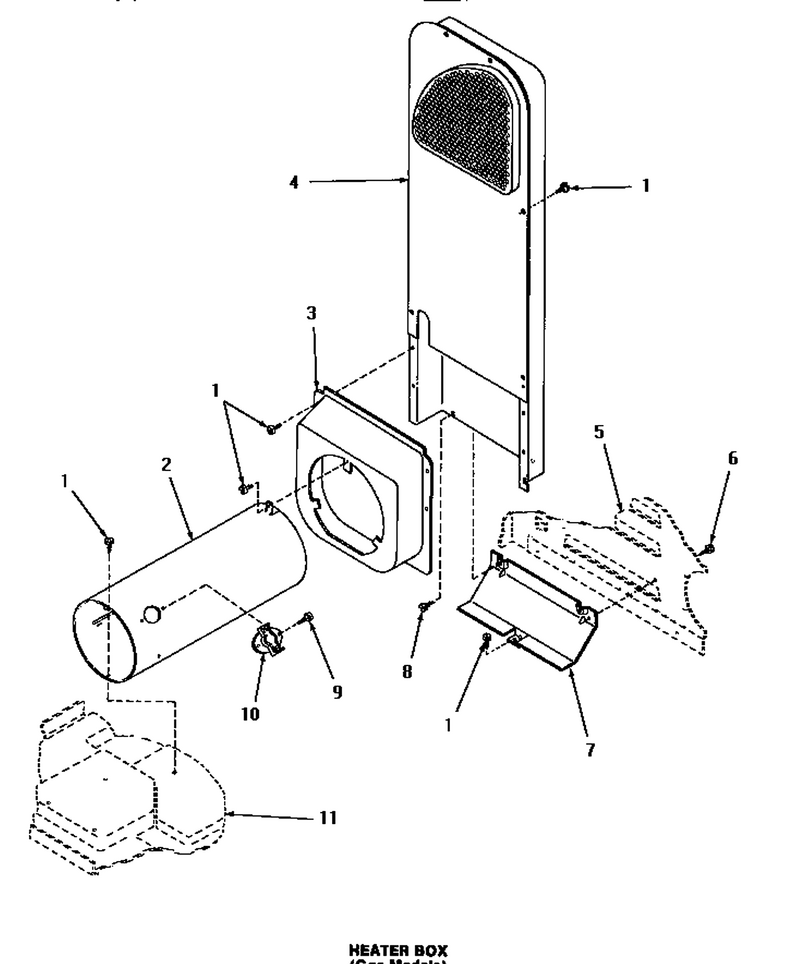

10 - Heater Box

...
...
1
Screw WPL-WP27001200
...
2
Burner Housing WPL-56240
...
3
Shroud, Heat Duct WPL-500122
...
4
Assembly, Heater Duct WPL-503605
...
5
See Note Cabinet WPL-Y00000000
...
6
Screw WPL-WP27001200
...
7
Heat Shield WPL-58048
...
8
Screw WPL-WP3390631
...
9
Screw WPL-WP3177991
...
10
Limit Thermostat WPL-58366
...
11
See Note Base WPL-Y00000000

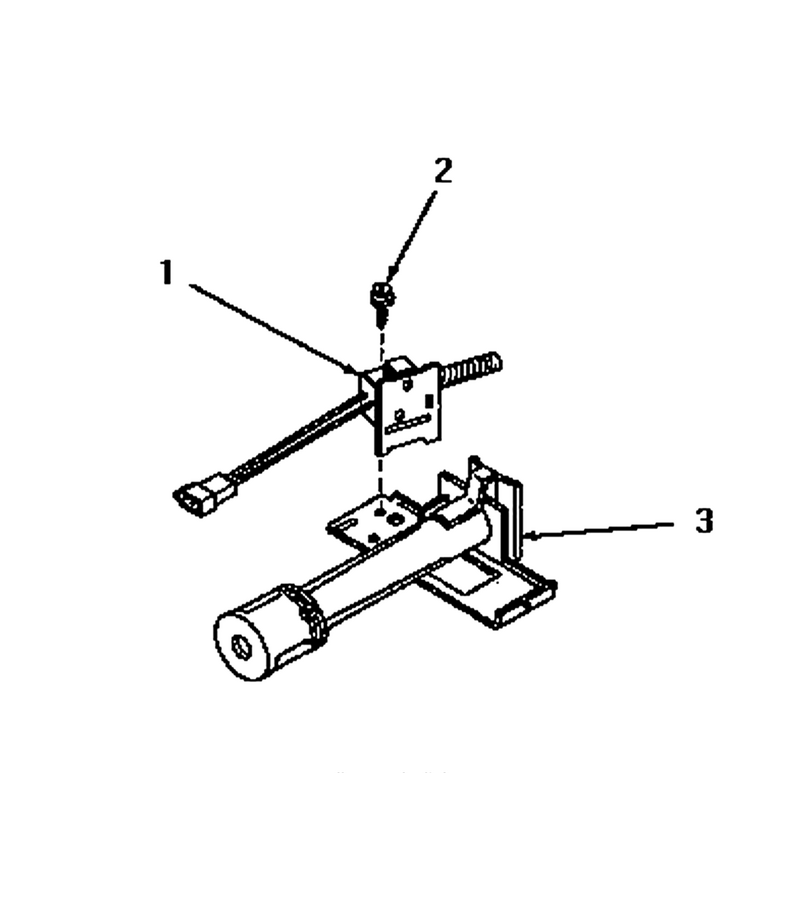

11 - Igniter (change)

...
...
1
Ignitor WPL-WP37001308
...
2
Screw,no.6-20x.44/.41 In WPL-56693
...
3
See Note Burner Tube Assembly WPL-Y00000000

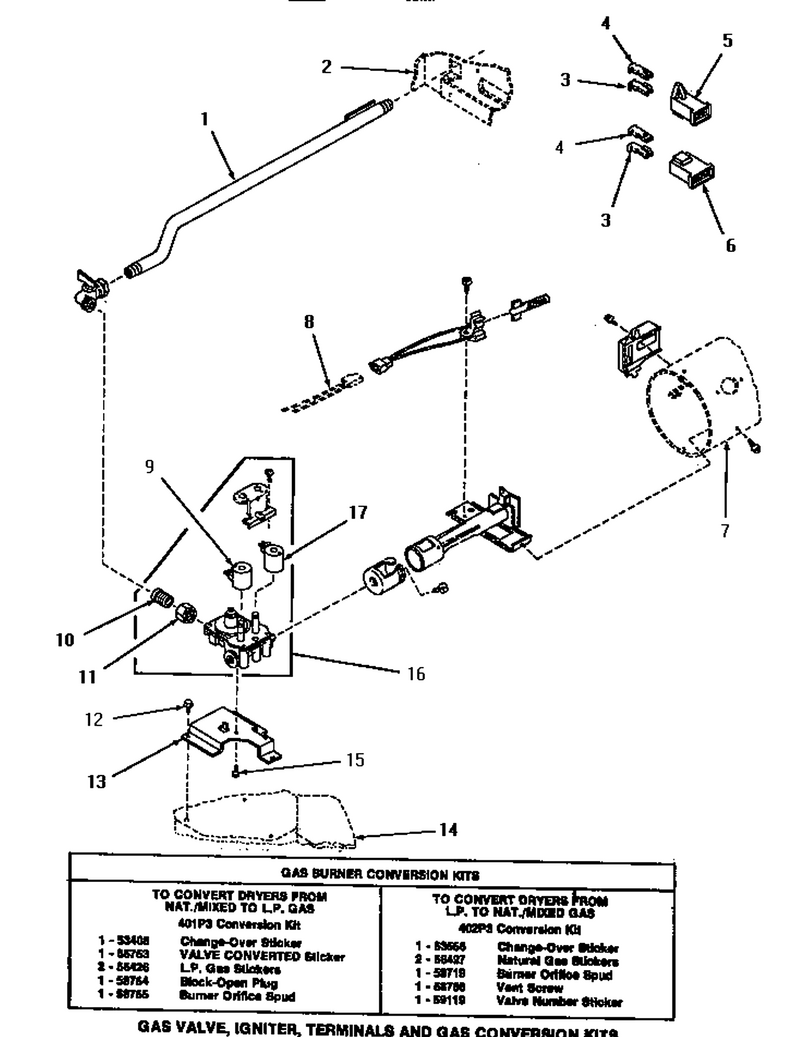

08 - Gas Valve, Ign, Term & Gas Conv Kits

...
...
NI
Kit, Conversion-Lp WPL-401P3
...
1
Assy,lead-In Pipe WPL-58911
...
2
See Note Cabinet WPL-Y00000000
...
3
Connector,receptacle WPL-Y00190
...
4
Terminal,spade WPL-Y00189
...
5
Connector,2 Circuit WPL-58799
...
6
Connector,3 Circuit WPL-58800
...
7
See Note Burner Housing WPL-Y00000000
...
8
See Note Wiring Harness WPL-Y00000000
...
9
Coil-Valve WPL-279834
...
10
Nipple WPL-56282
...
11
Nut WPL-Y58281
...
12
Screw WPL-WP27001200
...
13
Complete T WPL-WFR500821
...
14
See Note Base WPL-Y00000000
...
15
Screw WPL-WP489128
...
16
Assy,valve-Gas-Single- WPL-58804
...
17
Coil-Valve WPL-279834

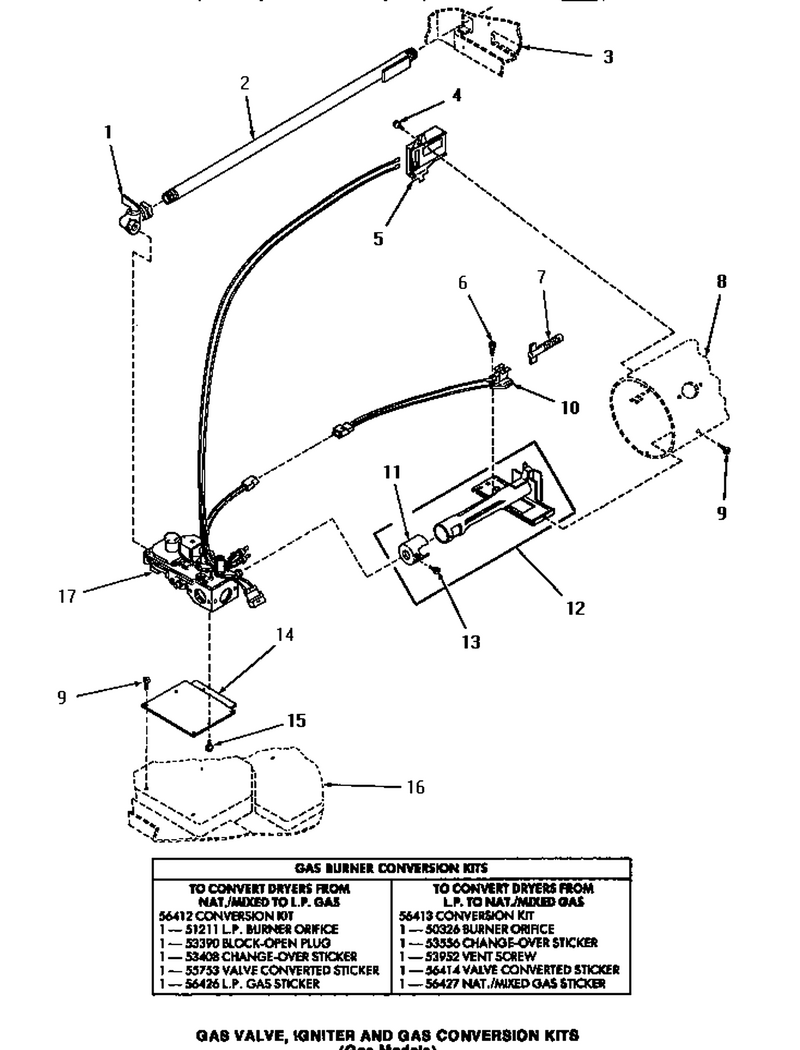

09 - Gas Valve, Igniter & Gas Conversion Kits

...
...
NI
Valve Converted Sticker WPL-56414
...
1
Valve,elbow Shut-Off WPL-Y56229
...
2
Assy,lead-In Pipe WPL-Y56228
...
3
See Note Cabinet WPL-Y00000000
...
4
Screw WPL-WP3177991
...
5
Sensor WPL-WP338906
...
6
Screw WPL-52973
...
7
Igniter,80 Volt WPL-55438
...
8
See Note Burner Housing WPL-Y00000000
...
9
Screw WPL-WP27001200
...
10
Igniter Bracket WPL-56233
...
11
Shutter,air WPL-53007
...
12
Assembly, Burner WPL-Y56234
...
13
Round Head Screw WPL-53006
...
14
Bracket,mounting-Valve WPL-56242
...
15
Screw WPL-WP489128
...
16
See Note Base WPL-Y00000000
...
17
Gas Valve Assembly WPL-56225

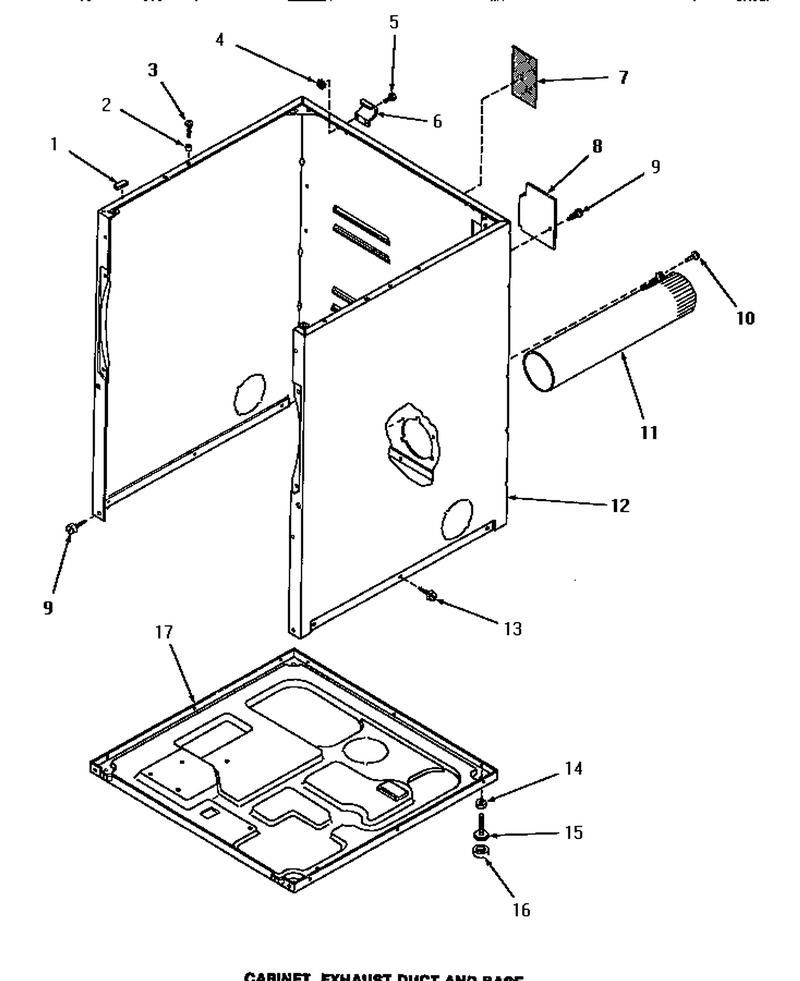

03 - Cabinet, Exhaust Duct & Base

...
...
1
Pad, Bumper WPL-Y56128
...
2
Locator, Panel WPL-505187
...
3
Screw WPL-WPY014874
...
4
Nut WPL-M0282009
...
5
Screw WPL-WP27001200
...
6
Hinge, Top WPL-56043
...
7
Sticker WPL-56427
...
8
Access Plate WPL-56044
...
9
Screw WPL-WP27001200
...
10
Hex Head Screw WPL-25724
...
11
Assy, Exhaust Duct WPL-56118
...
12
Cabinet, Avocado WPL-57070A
...
13
Screw,10b-16 X 1/2 Hex WPL-51784
...
14
Nut WPL-WP62739
...
15
Feet-Lvlng WPL-W10176519
...
16
Foot- Rubb WPL-WPY314137
...
17
Base WPL-56074

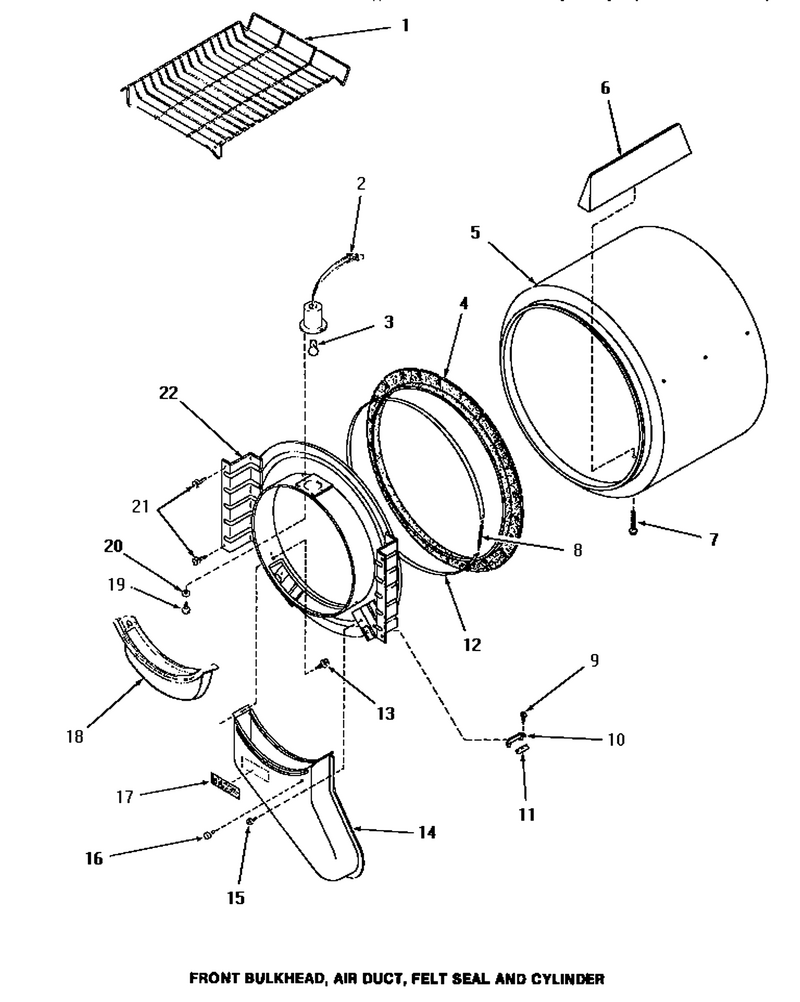

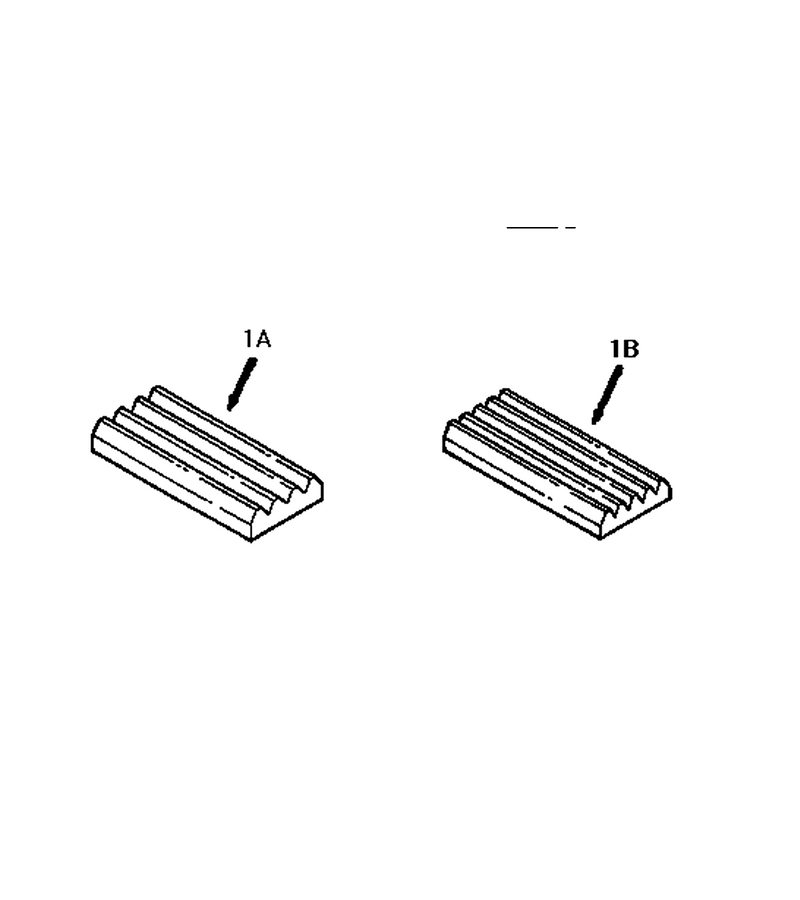

07 - Fr Blkhd, Air Duct, Felt Seal & Cylinder

...
...
1
Rack,drying WPL-58846
...
3
Bulb, Cylinder Light WPL-31001575
...
4
Seal Asm WPL-WP56088
...
5
Assy,cylinder Pack WPL-56175
...
6
Baffle,cylinder-Short- WPL-Y61399
...
7
Screw,10bt X 1 Tapping WPL-56131
...
8
Spring WPL-52310
...
9
Screw WPL-WP3177991
...
10
Bracket WPL-WP57005
...
11
Pad WPL-WP500121
...
12
Strap, Seal WPL-56090P
...
13
Screw WPL-WP489464
...
14
Air Duct WPL-56027
...
15
Hex Head Screw WPL-25724
...
16
Bumper WPL-56938
...
17
Sticker,disconnect Pow WPL-24903
...
18
Screen WPL-61376
...
19
Screw,6z-20x 3/8 Ss Rd WPL-22145
...
20
Lockwasher WPL-51345
...
21
Screw WPL-WP27001200
...
22
Relay WPL-Y0056154

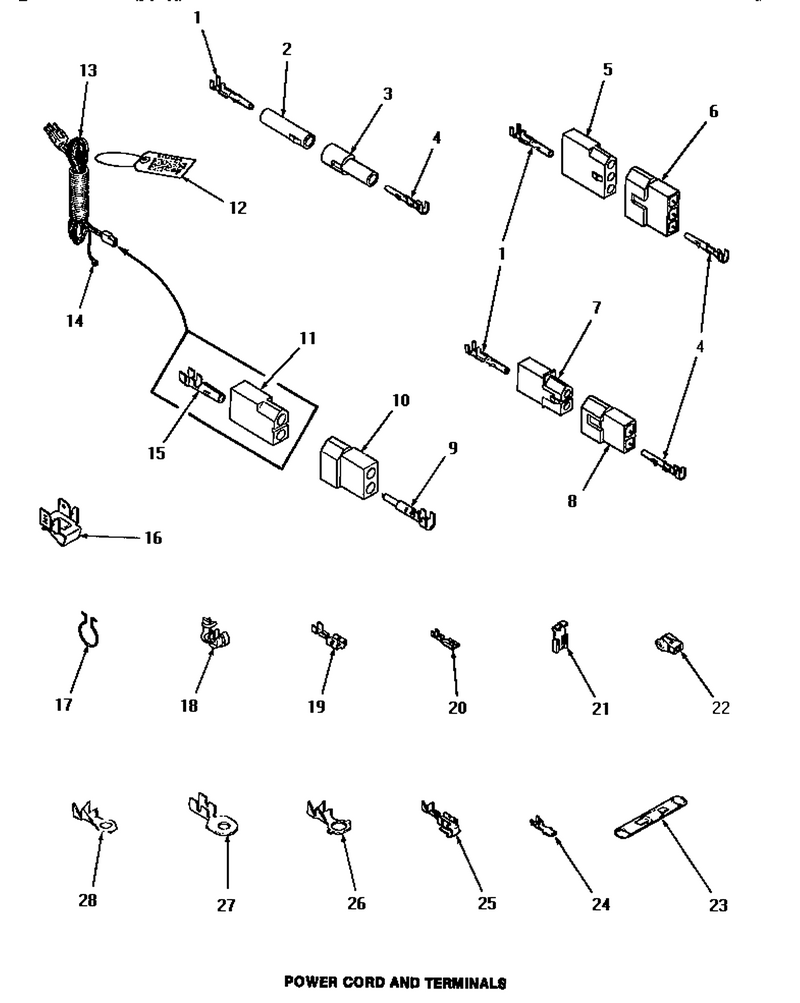

14 - Power Cord & Terminals

...
...
1
Female Socket Terminal WPL-Y00117
...
2
Receptacle,molex WPL-26301
...
3
Plug,1 Circuit WPL-26302
...
4
Terminal,pin-Male WPL-Y00116
...
5
Receptacle, (Gas Valve) WPL-697780
...
6
Plug, 3 Circuit WPL-23040
...
7
Receptacle,2 Circuit WPL-56451
...
8
Plug 2 Circuit WPL-56448
...
9
Terminal,pin-1/8 Male WPL-Y00127
...
10
Plug WPL-56266
...
11
Receptacle,2 Circuit WPL-56265
...
12
Warning Tag WPL-25235
...
13
Cord- Powe WPL-WP27001142
...
14
See Note Ground Wire, Green WPL-Y00000000
...
15
Terminal,pin-1/8 Femal WPL-00130
...
16
Ground Clip WPL-Y00161
...
17
Clip,wire WPL-51291
...
18
Grommet, Cord WPL-211881
...
19
Spade Terminal(18 Gauge) WPL-Y00119
...
20
Terminal,spade-3/16 Fe WPL-00112
...
21
Terminal,flag-1/4 Fema WPL-Y00120
...
22
Insulator, Pod K WPL-M0325501
...
23
Connector WPL-WP75614
...
24
Terminal,tab 1/4 Male WPL-Y00138
...
25
Terminal,spade-1/4 Fem WPL-Y00114
...
26
Terminal,ring-1/4 Stud WPL-Y00113
...
27
Terminal,ring-10 Stud WPL-Y00111
...
28
Terminal,ring-10 Stud WPL-00110

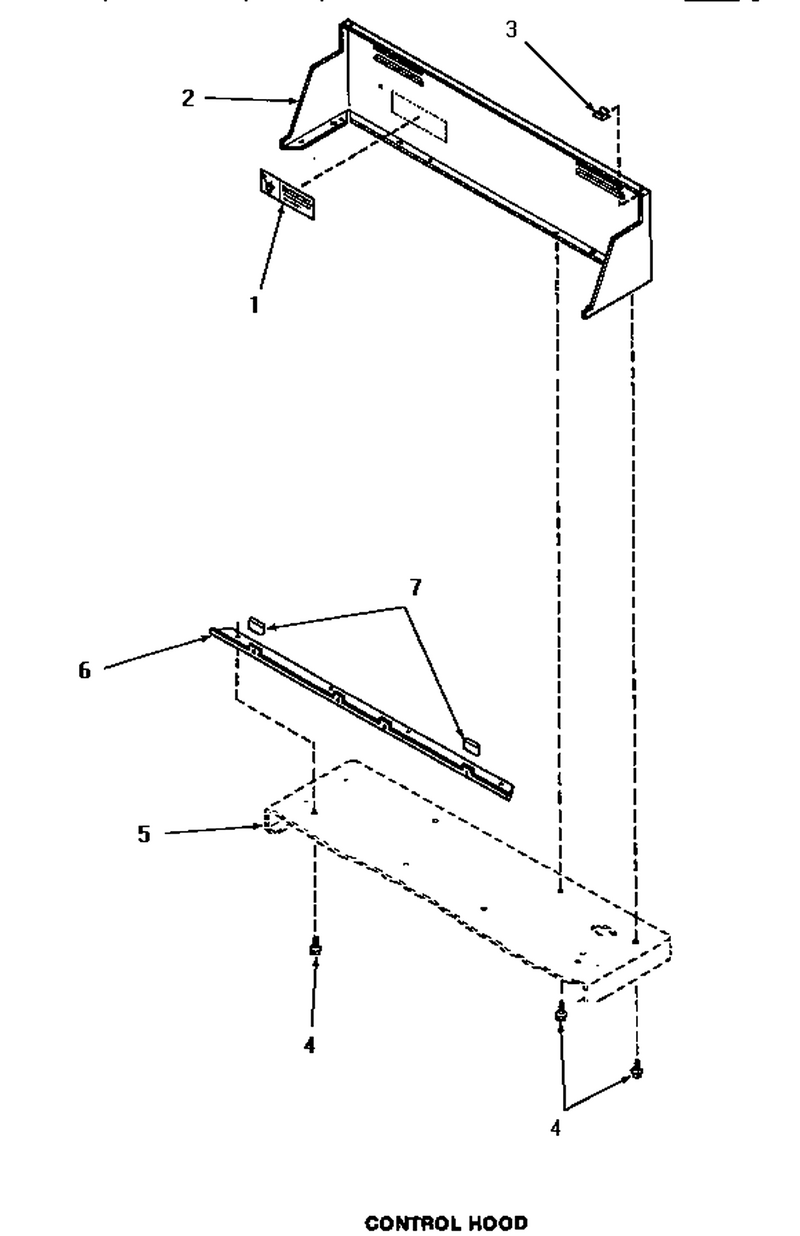

04 - Control Hood

...
...
1
Sticker,disconnect Pow WPL-24903
...
2
Control Hood, Harvest Gold WPL-56014H
...
3
Nut,speed-8ab-18 C1995 WPL-24522
...
4
Screw WPL-WP90767
...
5
See Note Cabinet Top WPL-Y00000000
...
6
Angle,mounting-Control WPL-56070
...
7
Sleeve,support Angle WPL-24859

06 - Dryer Belts

...
...
1
Belt,cylinder WPL-56095

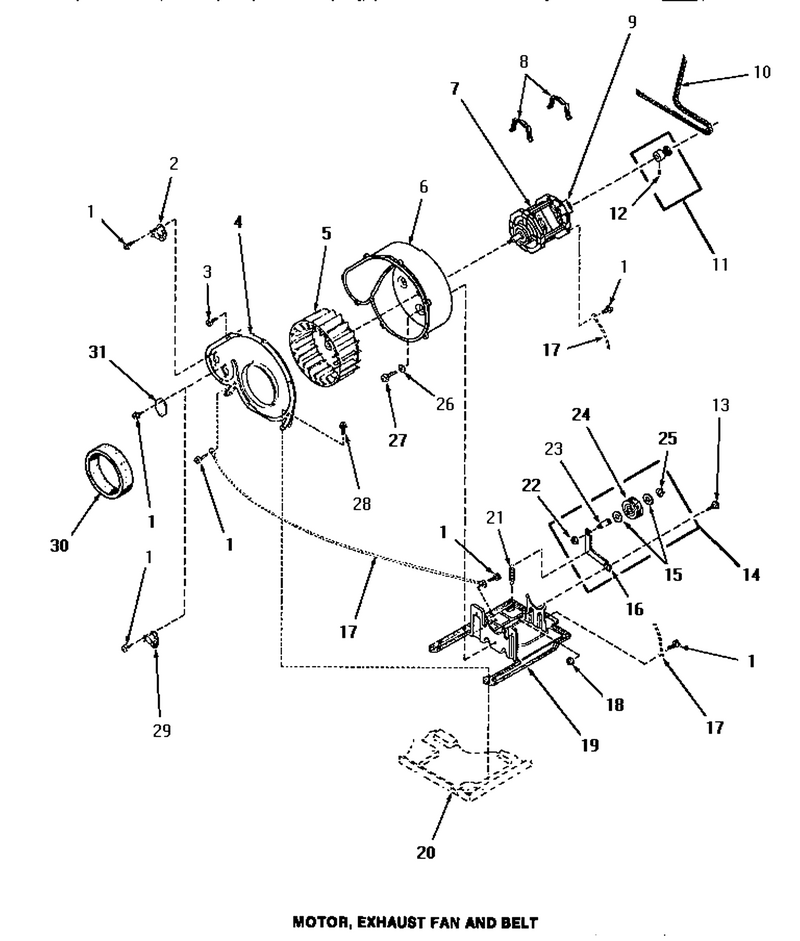

13 - Motor, Exhaust Fan & Belt

...
...
1
Screw WPL-WP3177991
...
2
Thermostat WPL-56410
...
3
Screw WPL-WP90767
...
4
Exhaust Fan Impeller WPL-56059
...
5
Assembly, Blower Fan WPL-56000
...
6
Housing, Blower WPL-56020
...
7
Motor-Drve WPL-WP915P3
...
8
Clamp WPL-WP660658
...
9
Switch,motor WPL-53226
...
10
Belt,cylinder WPL-56095
...
11
Kit-Motor WPL-56062P
...
12
Setscrew WPL-52906
...
13
Bolt,shoulder WPL-52567
...
14
Lever-Idl WPL-WP56170P
...
15
Washer WPL-WP233520
...
16
Lever,idler WPL-56057
...
17
See Note Ground Wire, Green WPL-Y00000000
...
18
Nut WPL-WPW10139757
...
19
Mount, Motor WPL-503613
...
20
See Note Base WPL-Y00000000
...
21
Spring- Id WPL-WP56076
...
22
Nut, 3/8-16 Serrated WPL-56156
...
23
Shaft WPL-WP56461
...
24
Pulley-Idr WPL-WPY54414
...
25
Ring- Reta WPL-WP23748
...
26
Washer WPL-M0270504
...
27
Screw WPL-WP27001200
...
28
Screw WPL-WP27001200
...
29
Assy,thermostat Kit WPL-56081
...
30
Seal WPL-56065
...
31
Sub 86495, Switch, Light WPL-Y0056157

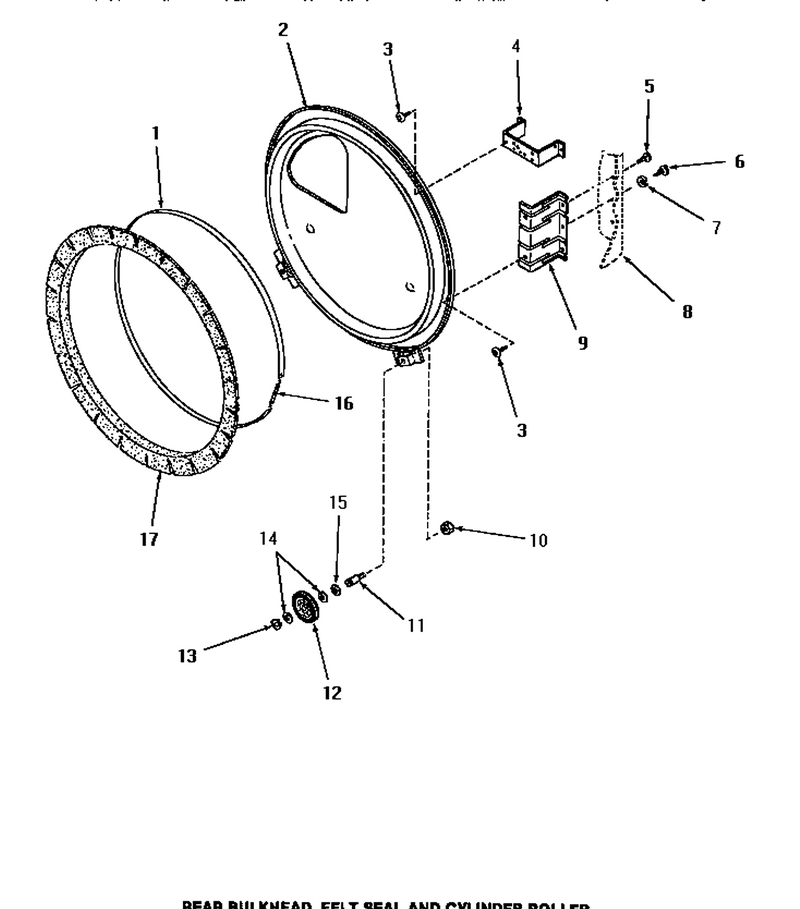

15 - Rear Blkhd, Felt Seal & Cylinder Roller

...
...
1
Strap, Seal WPL-56090P
...
2
Assy,rear Bulkhead WPL-61135P
...
3
M400664 WPL-56078
...
4
Terminal Block Bracket WPL-56048
...
5
Screw WPL-WP27001200
...
6
Screw,10b-16 X 1/2 Hex WPL-52909
...
7
Washer,13/64idx1/2odx. WPL-51474
...
8
See Note Cabinet WPL-Y00000000
...
9
Bracket,bulkhead-Rear WPL-56055
...
10
Nut, 3/8-16 Serrated WPL-56156
...
11
Shaft WPL-WP56461
...
12
Cylinder Roller WPL-56457
...
13
Ring- Reta WPL-WP23748
...
14
Washer WPL-WP233520
...
15
Washer,.578idx1.25odx1 WPL-23886
...
16
Spring WPL-52310
...
17
Seal Asm WPL-WP56088

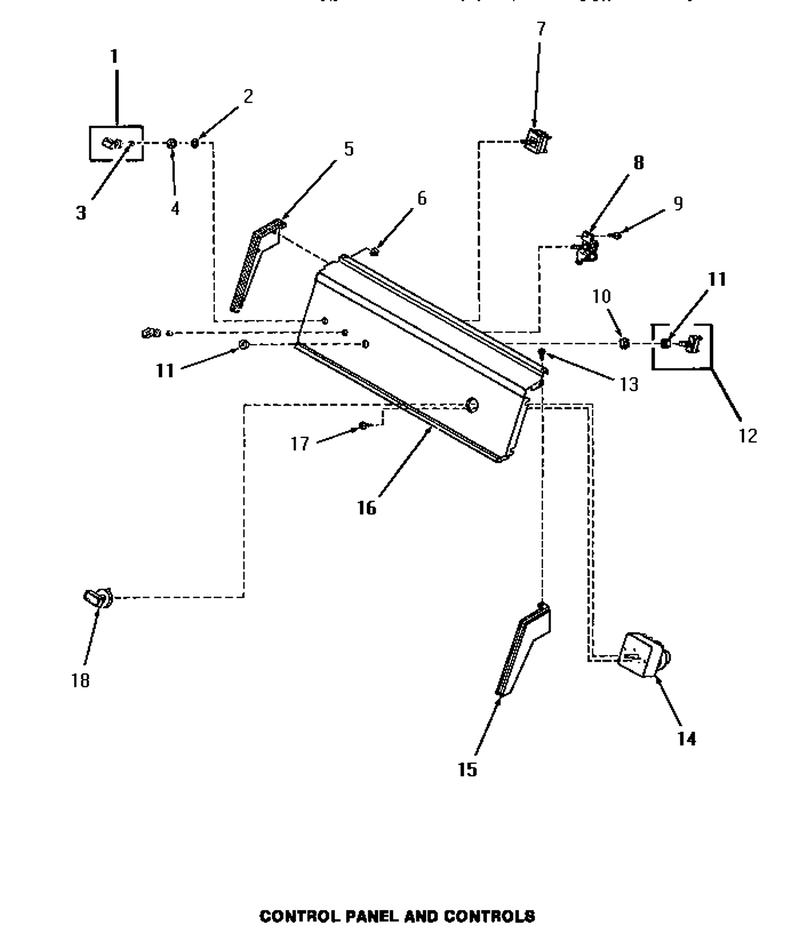

05 - Control Panel & Controls

...
...
The 56225 Gas Valve Has Been Replaced By The 58804 Gas Valve--See Pages 14, 15. WPL-NOTE:
...
1
Assy,knob-Switch WPL-27379
...
2
Lockwasher,3/8 Intshkp WPL-91176
...
3
Retainer WPL-10519
...
4
Nut,knurled 3/8-24 WPL-24205
...
5
Control Hood End, Left WPL-25124
...
6
Palnut,3/16 Sf188 WPL-25126
...
7
Switch WPL-58813
...
9
Screw WPL-WP90767
...
10
Lockwasher,1/2 Int Shk WPL-25820
...
11
Nut,hex 15/32-32 WPL-52947
...
12
Assy, Switch WPL-55882
...
13
Screw,8ab-18x7/8 Oval WPL-25232
...
14
Timer WPL-53466
...
15
Control Hood End, Right WPL-25123
...
16
Shield, Electrical WPL-Y0056819
...
17
Screw,8-32 X 5/32 Rd H WPL-70212
...
18
Assy,knob-Timer WPL-56508

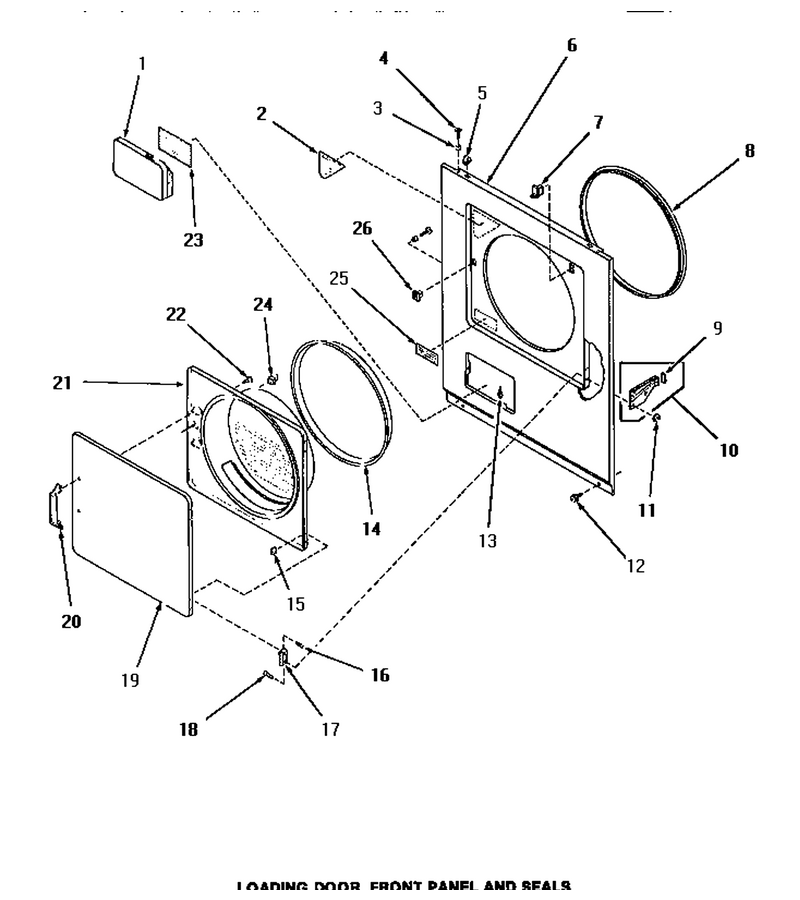

12 - Loading Door, Front Panel & Seals

...
...
1
Access Door, Avocado WPL-57446A
...
2
Label,dryer Door Xreplace WPL-55398
...
3
Locator, Panel WPL-505187
...
4
Screw WPL-WPY014874
...
5
Fastener- WPL-WP22001650
...
6
Front Panel, White WPL-56537W
...
7
Switch-Dor WPL-W10169313
...
8
Seal,front Panel WPL-Y61380
...
9
Pad, Bumper WPL-Y56128
...
10
Manifold Pnl WPL-0056129
...
11
Nut WPL-WP488130
...
12
Screw WPL-WP27001200
...
13
Support WPL-56174
...
14
Door Seal WPL-56163
...
15
Nut,speed-8a Tinn C15 WPL-23407
...
16
Screw, 8b-16x5/8 Tap WPL-500226
...
17
Hinge (Dryer) WPL-56045
...
18
Screw,8-32 X 13/32 Fl WPL-22649
...
19
Outer Door Panel, White WPL-56021W
...
20
Pull,door WPL-54068P
...
21
Liner,door & Carton WPL-56018
...
22
Screw WPL-WP489464
...
23
Sticker WPL-56427
...
24
Door Catch La-1003 WPL-LA-1003
...
25
Label,dryer Door WPL-57286
...
26
Door Catch La-1003 WPL-LA-1003
