Amana HDC5182 (BOM: P1331219M)

Model: HDC5182 (BOM: P1331219M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

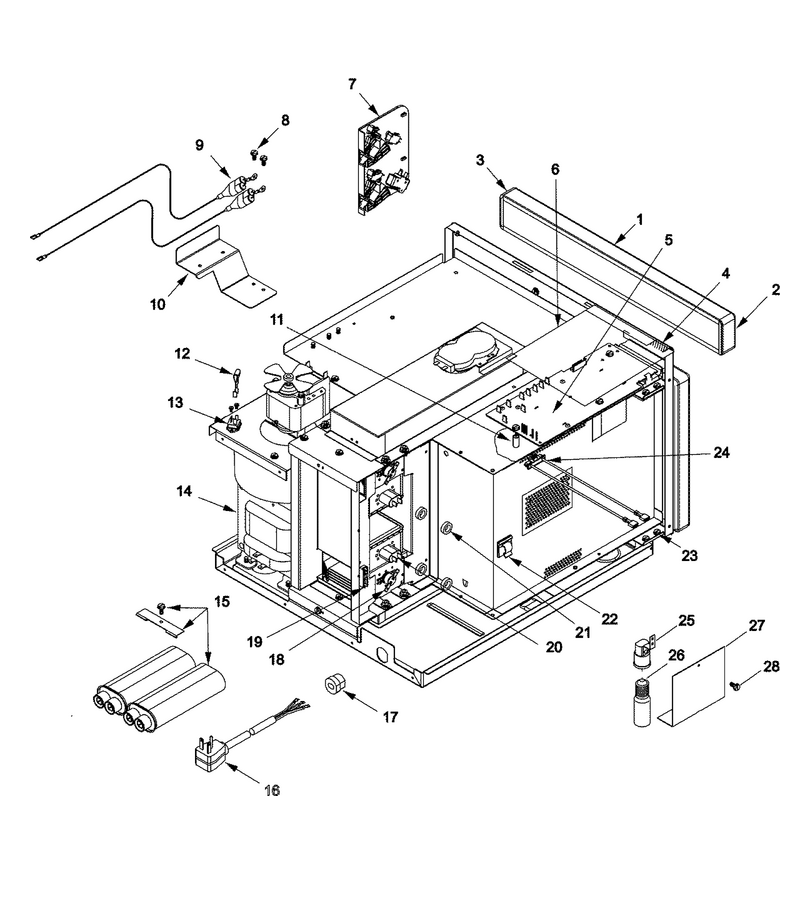

01 - Electrical Components

...
...
1
Screw-Sm/hex WPL-12990523
...
2
Endcap-Esc (Right) WPL-12131001
...
3
Endcap-Esc (Left) WPL-12131002
...
4
Tape Per Roll WPL-M0275163
...
5
Hv/lv Board WPL-59002070
...
6
Shield, Spill WPL-12160602
...
7
Screw-Hi Lo/pan WPL-12993002
...
8
Screw WPL-WP90767
...
9
Kit, Diode WPL-R9800022
...
10
Screw WPL-WP489349
...
11
Cap, Protective-Threaded (Red) WPL-M0308801
...
12
Screw WPL-WP489349
...
13
Screw WPL-WP489349
...
14
Screw-Tc/hex WPL-12991606
...
15
Screw WPL-WP488234
...
16
Cord, Power WPL-59002001
...
17
Relief- Strain WPL-M0370009
...
18
Screw T.c WPL-M0229916
...
19
Screw WPL-WP90767
...
20
Magnetron-T WPL-D7831007
...
21
Toroid (Arc Suppressor) WPL-44780P01
...
22
Clip WPL-WPM0104106
...
23
Screw-Tf/hex WPL-13048901
...
24
Screw WPL-WP489349
...
25
Receptacle-Export WPL-12163802
...
26
Light Bulb WPL-59002071
...
27
Barrier,lamp WPL-12544201
...
28
Screw WPL-WP489128
...
29
Cavity Kit- Hdc18, 21 WPL-12002678
