Amana HDC5112 (BOM: P1331233M)

Model: HDC5112 (BOM: P1331233M)

Save Part Not Listed?
product name

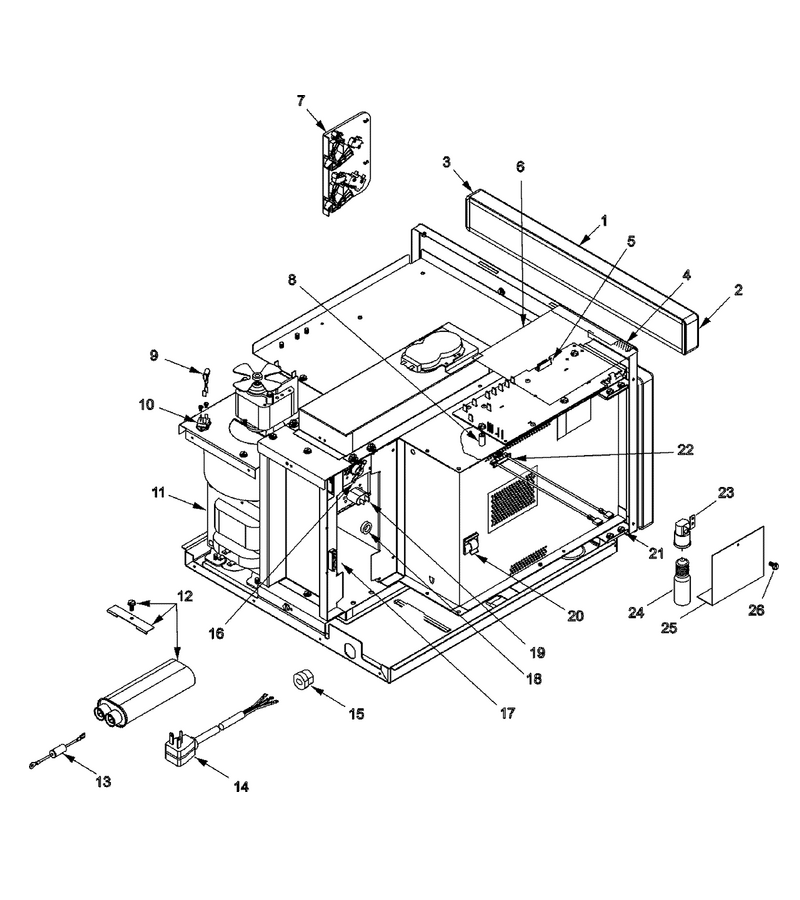

02 - Electrical Components

...
...
1
Assy, Touch Panel WPL-R9900111
...
2
Endcap-Esc (Right) WPL-12131001
...
3
Endcap-Esc (Left) WPL-12131002
...
4
Tape Per Roll WPL-M0275163
...
5
Hv/lv Board WPL-59002070
...
6
Shield, Spill WPL-12160602
...
7
Assy, Interlock Switch WPL-59002060
...
8
Cap, Protective-Threaded (Red) WPL-M0308801
...
9
Snubber Assembly WPL-59002017
...
10
Kit, Triac Assy WPL-R0157373
...
11
Transformer-Hv WPL-10788623
...
12
Capacitor-1.15 WPL-59001170
...
13
Rectifier WPL-WP13091701
...
14
Cord, Power WPL-59002001
...
15
Relief- Strain WPL-M0370009
...
16
Cut Out, Thermal WPL-B5684129
...
17
Terminal Block WPL-B5677203
...
18
Toroid (Arc Suppressor) WPL-44780P01
...
19
Magnetron-T WPL-10489404
...
20
Clip WPL-WPM0104106
...
21
Screw-Tf/hex WPL-13048901
...
22
Thermal Cut Out WPL-59001874
...
23
Receptacle-Export WPL-12163802
...
24
Light Bulb WPL-59002071
...
25
Barrier,lamp WPL-12544201
...
26
Screw WPL-WP489128

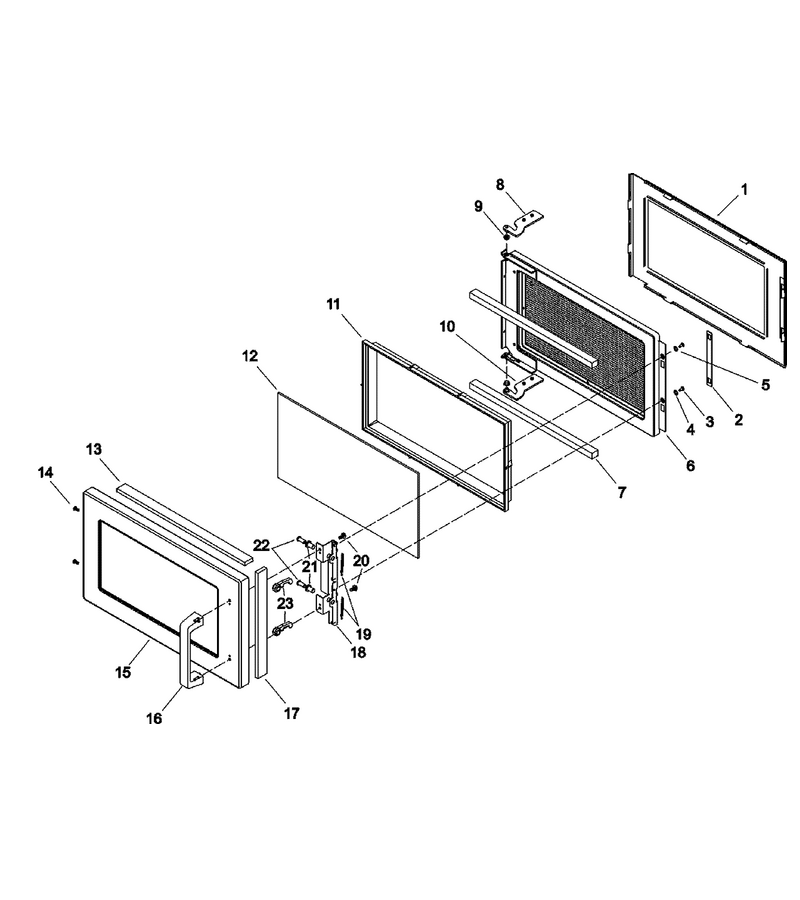

01 - Door

...
...
1
Assy, Inner Door WPL-13067001
...
2
Linkage, Dr Latch WPL-12526201
...
3
Screw-Tc/flat WPL-13047402
...
4
Washer, Nylon WPL-M0274066
...
5
Washer WPL-M0272503
...
6
Door Ring Weld, E Ct WPL-12472202
...
7
Gasket, Neoprene WPL-10966601
...
8
Plate, Hinge (Upper) WPL-12126805
...
9
Bushing, Nylon WPL-5210001001
...
10
Plate, Hinge (Lower) WPL-12126806
...
11
Retainer, Lens WPL-R0150147
...
12
Window-Outer WPL-59001236
...
13
Energy, Strip WPL-12210803
...
14
Screw WPL-W11233072
...
15
Door, Outer WPL-R9900567
...
16
Handle-Door WPL-12133901
...
17
Energy, Strip WPL-12210804
...
18
Brkt-Door Latch WPL-12114401
...
19
Spring, Door Latch WPL-C8893502
...
20
Screw WPL-WP489128
...
21
Spacer WPL-M0800501
...
22
Pin-Latch WPL-59002069
...
23
Latch-Door WPL-12126901

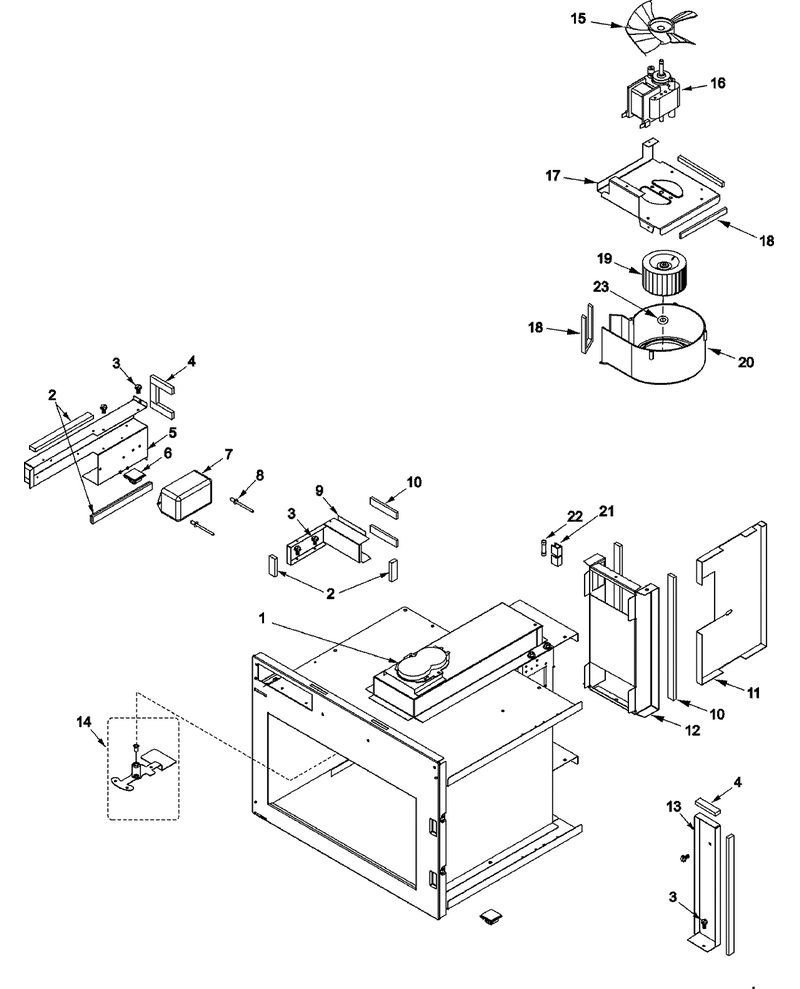

03 - Fuses, Antennas, Blower, Ducts,

...
...
1
Motor-Stirrer (230v) WPL-R0150197
...
2
Gasket,per Ft WPL-A30303-30
...
3
Screw-Sm/hex WPL-12990522
...
4
Gasket,per Ft WPL-A30303-30
...
5
Duct,cav Exh-E Ct WPL-12135604
...
6
Clip WPL-WPM0104106
...
7
Line Filter WPL-59001893
...
8
Rivet-Pop WPL-A4539638
...
9
Assy, Exhaust Duct Kit WPL-12135704
...
10
Gasket (Per Foot) WPL-10839706
...
11
Flow Divider WPL-59002000
...
12
Assy, Duct WPL-R0150161
...
13
Barrier, Air WPL-12525701
...
14
Assy, Ant/retainer WPL-R0150185
...
15
Fan Blade WPL-B5706704
...
16
Blower Motor WPL-12138105
...
17
Brkt, Blower Mtg WPL-12271103
...
18
Gasket,per Ft WPL-A30303-30
...
19
Wheel-Blower WPL-12138201
...
20
Scroll-Blower WPL-12138302
...
21
Screw-Sm/pan WPL-12990606
...
22
Fuse,15 Amp WPL-M0805202
...
23
Clip WPL-M0118901

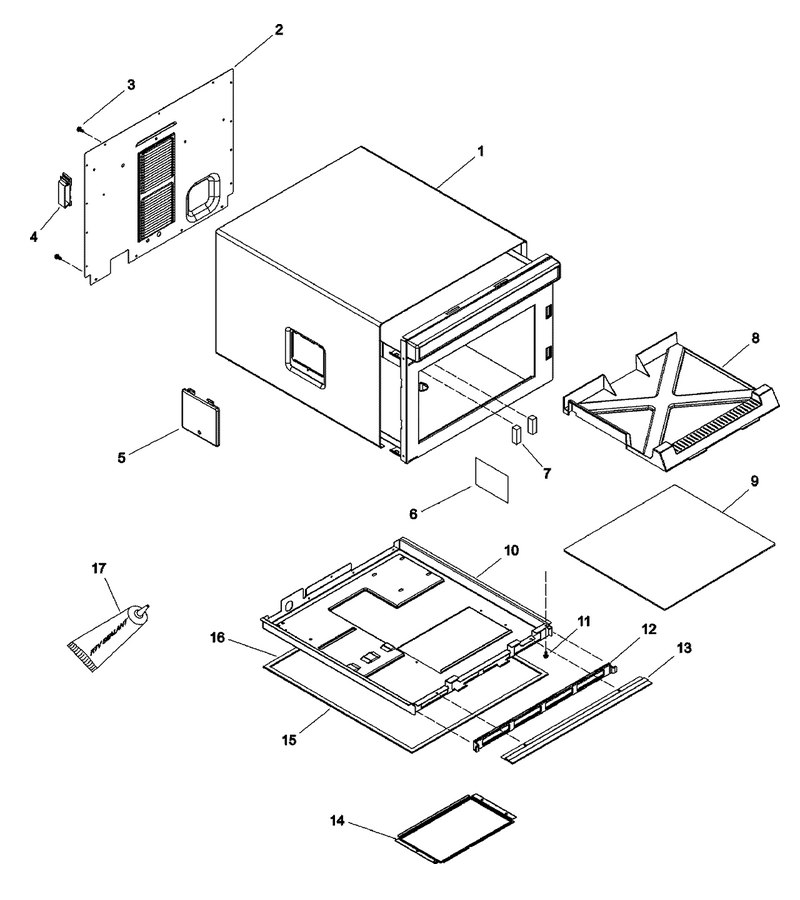

05 - Tray, Grease Shield, Cabinet,

...
...
1
Wrapper, Outer Case WPL-12408501
...
2
Pan, Access-E Ct WPL-12296804
...
3
Screw WPL-WP3388228
...
4
Clip, Guide WPL-M0118705
...
5
Spacer, Rubber WPL-M0274072
...
6
Assy, Window Kit (Light Lens) WPL-R9900114
...
7
Support, Shelf WPL-12496801
...
8
Shield-Grease WPL-12126601
...
9
Tray-Ceramic Floor W/sealer WPL-R0150144
...
10
Asy, Base Pan 50 Hz WPL-59002074
...
11
Screw WPL-WP90767
...
12
Screen Filter WPL-59001659
...
13
Screw, Handle (Black) WPL-12991101
...
14
Screw-Sm/hex WPL-12990522
...
15
Gasket,basepan - Cut WPL-59001643
...
16
Gasket,basepan - Cut WPL-59001642
...
17
Adhesive WPL-W10841140

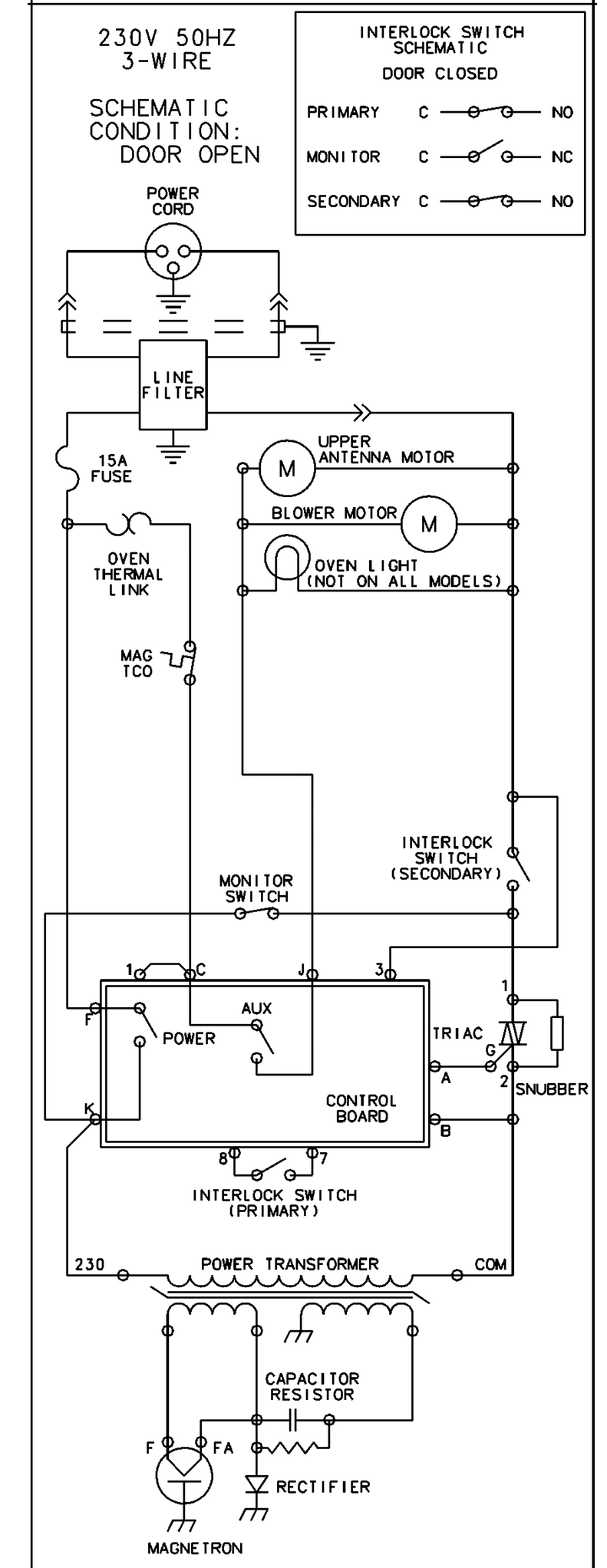

06 - Wiring Information

...
...
NI
Wiring Information WPL-15003506

...
...
1
Mnl,svc-Int`l Comm`l Micro WPL-RS5320013
...
2
Manual-Owners WPL-59002064
...
3
Tech Sht, Comm Micro WPL-16027612
...
4
Manual-Prod Safety WPL-16027379
...
5
Instr-Quick Start WPL-59002059
...
6
Bit For Torx 15h Drive Screws WPL-R0193551
...
7
Harness-Oven WPL-13018001
