Amana HDC18 (BOM P1323013M)

Model: HDC18 (BOM P1323013M)

Save Part Not Listed?
product name

...
...
011
Duct-Mag Inlet WPL-R0150161
...
021
Gasket (Per Foot) WPL-10839706
...
031
Duct-Mag Outlet WPL-59002075
...
041
Screw WPL-WP489349
...
051
Screw-Tc/hex WPL-12991606
...
061
Motor-Top Antenna WPL-R0150197
...
071
Magnetron-T WPL-D7831007
...
081
Motor-Bottom Antenna Includes Gear-Spur & Ring-Reta WPL-R9900668
...
091
Screw-Tf/hex WPL-13048901
...
101
Harness, Lw Antenna WPL-59002066
...
111
Antenna Assy-Bottom Includes Antenna, Clip, Shaft, WPL-R9900585
...
121
Gear,spur WPL-12570101
...
131
Ring, Retainer WPL-M0274902
...
141
Washer, Bearing WPL-12520001
...
151
Clip WPL-WPM0104106
...
161
Nut-Magnetron WPL-NLA

...
...
011
Power Cord Kit WPL-R0131016
...
021
Strain Relief WPL-8536977
...
031
Cav Exh Duct-E Ct WPL-R9900126
...
041
Bulb-Light WPL-WPA3073101
...
051
Receptical-Lamp Includes Pop Rivet. WPL-R9900584
...
061
Screw WPL-WP489349
...
071
Screw WPL-WP90767
...
081
Gasket WPL-A3030302
...
091
Screw WPL-12992301
...
101
Tape, Foam WPL-M0275058
...
111
Gasket (Per Foot) WPL-10839706
...
121
Rivet-Pop (Qty 4) WPL-A4539625
...
131
Harness, Hi Volt WPL-59002065

...
...
011
Dr Rng Weld-E Ct WPL-12472202
...
021
Outer Door Includes Item 191 And 201. WPL-R9900567
...
031
Assy, Inner Door WPL-13067001
...
041
Retainer, Lens WPL-R0150147
...
051
Window-Outer WPL-59001236
...
061
Shoulder Washer Ny WPL-5210001001
...
071
Top Hng Plt Weld WPL-12126805
...
081
Bot Hng Plt Weld WPL-12126806
...
091
Brkt-Door Latch WPL-12114401
...
101
Latch-Door WPL-12126901
...
111
Pin-Latch WPL-59002069
...
121
Spacer WPL-M0800501
...
131
Spring, Door Latch WPL-C8893502
...
141
Linkage, Dr Latch WPL-12526201
...
151
Handle-Door WPL-12133901
...
161
Screw-Tc/flat WPL-13047402
...
171
Screw WPL-WP489128
...
181
Washer-Lock WPL-M0272503
...
191
Absorber-Energy WPL-12210803
...
201
Absorber-Energy WPL-12210804
...
211
Screw WPL-W11233072
...
221
Washer, Nylon WPL-M0274066

...
...
011
Touch Panel WPL-R9900111
...
012
Asy, Base Pan 50 Hz WPL-59002074
...
021
Endcap-Esc WPL-12131001
...
022
Gasket,basepan - Cut WPL-59001643
...
031
Endcap-Esc WPL-12131002
...
032
Gasket,basepan - Cut WPL-59001642
...
041
Assy, Interlock Switch WPL-59002060
...
042
Transformer WPL-12136102
...
051
Trim-Oc WPL-59002068
...
052
Screw-Tc/hex WPL-12991606
...
061
Tray-Oven Includes Sealer-Rtv & Scraper- WPL-R0150144
...
062
Xfmr-Auto WPL-C8901509
...
071
Diode Assy WPL-R9800022
...
072
Screw WPL-WP489349
...
081
Antenna Assy-Bottom Includes Antenna, Clip, Shaft, WPL-R9900585
...
082
Base Cover, E Ct WPL-12486002
...
091
Antenna Assy-Top WPL-R0150185
...
101
Screw-Hi Lo/pan WPL-12993002
...
111
Screw, Handle (Black) WPL-12991101
...
121
Screw-Sm/hex WPL-12990523
...
131
Screw WPL-WP3388228
...
141
Brkt-Diode WPL-12529501
...
151
Support, Shelf WPL-12496801
...
161
Adhesive WPL-W10841140

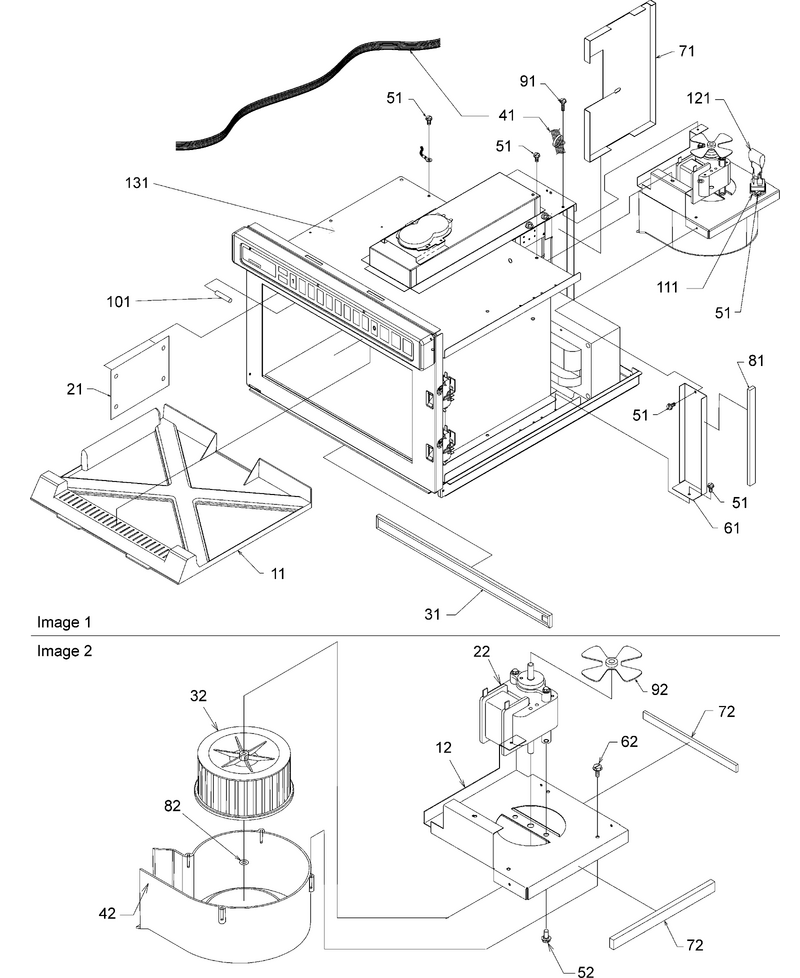

03 - Splash Shield/blower/cavity

...
...
011
Shield-Grease WPL-12126601
...
012
Brkt, Blower Mtg WPL-12271103
...
021
Window-Oven Light Includes 4 Screws WPL-R9900114
...
022
Motor-Blower WPL-12138105
...
031
Screen Filter WPL-59001659
...
032
Wheel-Blower WPL-12138201
...
041
Harness, Oven WPL-12538601
...
042
Scroll-Blower WPL-12138302
...
051
Screw WPL-WP489349
...
052
Screw WPL-WP3400094
...
061
Barrier, Air WPL-12525701
...
062
Screw-Sm/hex WPL-12990523
...
071
Flow Divider WPL-59002000
...
072
Gasket WPL-A3030302
...
081
Gasket WPL-A3030302
...
082
Clip-Push WPL-M0118901
...
091
Screw-Sm/hex WPL-12990523
...
092
Fan Blade WPL-B5706704
...
101
Cap-Screw WPL-M0308801
...
111
Triac WPL-D7681501
...
121
Snubber Assembly WPL-59002017
...
131
Cavity Kit- Hdc18, 21 Kit Includes Tray, Antennas WPL-12002678

...
...
001
Manual-Parts WPL-RP2230004
...
002
Manual-Service WPL-RS2240002
...
003
T-15 Torx Bit Driver-Outer Doo WPL-NLA
...
004
Manual-Owners WPL-NLA
...
005
Tech Sheet-Comm`l Micro Xxno WPL-16027355
...
006
Instr Sht For R0131381 Kit WPL-16021916

...
...
011
Wrapper-Oc WPL-12408501
...
021
Access Pan-E Ct WPL-12296804
...
031
Cover-Light WPL-10785608
...
041
Cntrl-Elec WPL-59001867
...
051
Capacitor-.74 WPL-59001162
...
061
Strap-Capacitor WPL-12132501
...
071
Fuse Holder WPL-10091101
...
081
Fuse-20a WPL-M0805303
...
091
Cutout-Thermal Cavity WPL-B5795302
...
101
Clip, Cord WPL-M0104102
...
111
Screw-Tc/hex WPL-12991607
...
121
Screw WPL-WP489349
...
131
Screw WPL-WP3388228
...
141
Screw-Tf WPL-M0251717
...
151
Screw-Tf/hex WPL-13048901
...
161
Clip, Guide WPL-M0118705
...
171
Cut Out, Thermal WPL-B5684129
...
181
Screw WPL-WP488234
...
191
Clip WPL-WPM0104106
...
201
Screw, T F WPL-M0249619
...
211
Film-Polyester WPL-Y10459002
...
221
Duct, Air WPL-12296601
...
231
Spacer, Rubber WPL-M0274072
...
241
Shield, Spill WPL-12160602
