product name

Amana HDC12 (BOM P1323009M)

Model: HDC12 (BOM P1323009M)

Save Part Not Listed?
product name

...
...
011
Duct, Mag Inlet WPL-12107301
...
021
Gasket (Per Foot) WPL-10839706
...
031
Duct-Mag Outlet WPL-12107401
...
041
Screw WPL-WP489349
...
051
Screw-Tc/hex WPL-12991606
...
061
Motor-Stirrer (Upper) WPL-R0150186
...
071
Magnetron-T WPL-10489404
...
161
Nut-Magnetron WPL-NLA

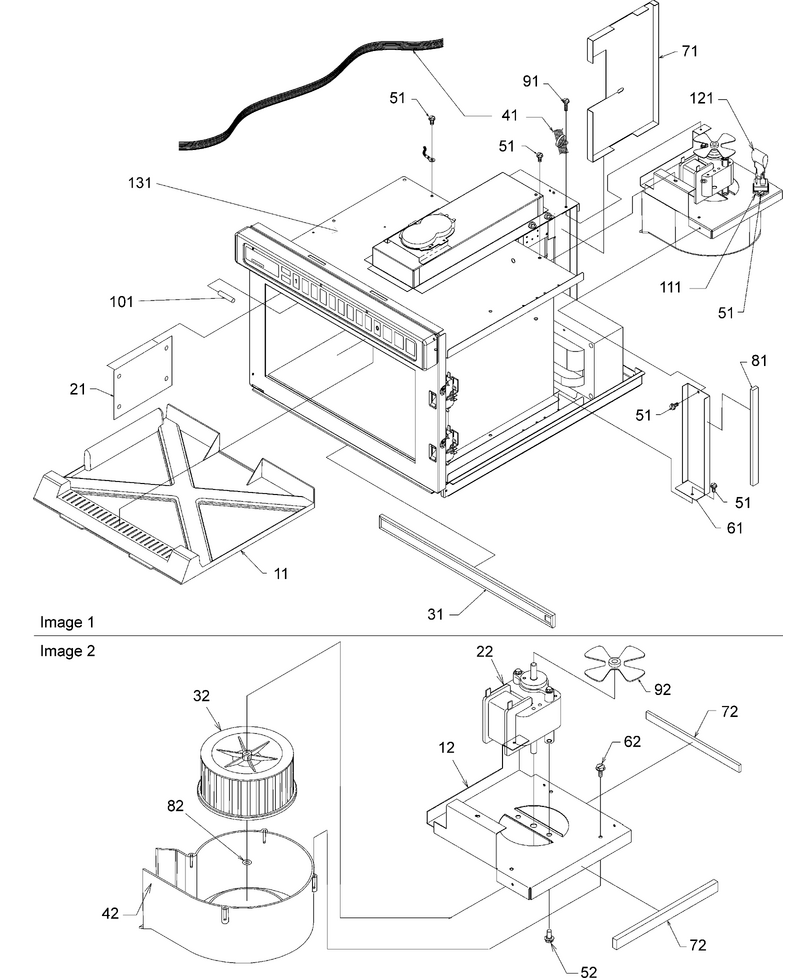

03 - Splash Shield/blower

...
...
011
Shield-Grease WPL-12126601
...
012
Brkt, Blower Mtg WPL-12271103
...
021
Window-Oven Light Includes 4 Screws WPL-R9900114
...
022
Motor, Blower WPL-12138102
...
031
Screen Filter WPL-59001659
...
032
Wheel-Blower WPL-12138201
...
041
Harness, Oven WPL-59001155
...
042
Scroll-Blower WPL-12138302
...
051
Screw WPL-WP489349
...
052
Screw WPL-WP3400094
...
061
Barrier, Air WPL-12525701
...
062
Screw-Sm/hex WPL-12990523
...
071
Flow Divider WPL-59002000
...
072
Gasket WPL-A3030302
...
081
Gasket WPL-A3030302
...
082
Clip-Push WPL-M0118901
...
091
Screw-Sm/hex WPL-12990523
...
092
Fan Blade WPL-B5706704
...
101
Cap-Screw WPL-M0308801
...
111
Triac WPL-D7681501
...
121
Snubber Assembly WPL-59002017
...
999
Wire, H.v. Jumper WPL-12180902

...
...
011
Power Cord WPL-59001672
...
021
Strain Relief WPL-8536977
...
031
Cav Exh Duct-E Ct WPL-R9900126
...
041
Bulb-Light WPL-WPA3073101
...
051
Receptical-Lamp Includes Pop Rivet. WPL-R9900584
...
061
Screw WPL-WP489349
...
071
Screw WPL-WP90767
...
081
Gasket WPL-A3030302
...
091
Screw WPL-12992301
...
101
Tape, Foam WPL-M0275058
...
111
Gasket (Per Foot) WPL-10839706
...
121
Rivet-Pop (Qty 4) WPL-A4539625

...
...
011
Touch Panel WPL-R9900111
...
012
Asy, Base Pan 50 Hz WPL-59002074
...
021
Endcap-Esc WPL-12131001
...
022
Gasket,basepan - Cut WPL-59001643
...
031
Endcap-Esc WPL-12131002
...
032
Gasket,basepan - Cut WPL-59001642
...
041
Switch Kit WPL-R0000277
...
042
Transformer, H.v. WPL-10426610
...
051
Trim-Oc WPL-59002068
...
052
Screw-Tc/hex WPL-12991606
...
061
Tray-Oven Includes Sealer-Rtv & Scraper- WPL-R0150144
...
071
Rectifier WPL-WP13091701
...
072
Screw WPL-WP489349
...
082
Base Cover, E Ct WPL-12486002
...
091
Antenna Assy-Top WPL-R0150185
...
101
Screw-Hi Lo/pan WPL-12993002
...
111
Screw, Handle (Black) WPL-12991101
...
121
Screw WPL-WP489349
...
131
Screw WPL-WP3388228
...
151
Support, Shelf WPL-12496801
...
161
Adhesive WPL-W10841140

...
...
001
Manual-Parts WPL-RP2230004
...
002
Manual-Service WPL-RS2240002
...
003
T-15 Torx Bit Driver-Outer Doo WPL-NLA
...
004
Manual-Owners WPL-16000132
...
005
Instr Sht For R0131389 Kit WPL-16021919
...
006
Tech Sheet-Comm`l Micro Xxno WPL-16027350

...
...
011
Dr Rng Weld-E Ct WPL-12472202
...
021
Outer Door Includes Item 191 And 201. WPL-R9900567
...
031
Assy, Inner Door WPL-13067001
...
041
Retainer, Lens WPL-R0150147
...
051
Window-Outer WPL-59001236
...
061
Shoulder Washer Ny WPL-5210001001
...
071
Top Hng Plt Weld WPL-12126805
...
081
Bot Hng Plt Weld WPL-12126806
...
091
Brkt-Door Latch WPL-12114401
...
101
Latch-Door WPL-12126901
...
111
Pin-Latch WPL-59002069
...
121
Spacer WPL-M0800501
...
131
Spring, Door Latch WPL-C8893502
...
141
Linkage, Dr Latch WPL-12526201
...
151
Handle-Door WPL-12133901
...
161
Screw-Tc/flat WPL-13047402
...
171
Screw WPL-WP489128
...
181
Washer-Lock WPL-M0272503
...
191
Absorber-Energy WPL-12210803
...
201
Absorber-Energy WPL-12210804
...
211
Screw WPL-W11233072
...
221
Washer, Nylon WPL-M0274066

...
...
011
Wrapper-Oc WPL-12408501
...
021
Access Pan-E Ct WPL-12296804
...
031
Cover-Light WPL-10785608
...
041
Kit, Hv/lv Board WPL-12002447
...
051
Capacitor-.69 WPL-59001160
...
061
Strap-Capacitor WPL-12132501
...
071
Block-Fuse WPL-10091101
...
081
Fuse-25a WPL-M0805201
...
091
Cutout-Thermal Cavity WPL-B5795302
...
101
Clip, Cord WPL-M0104102
...
111
Screw-Tc/hex WPL-12991607
...
121
Screw WPL-WP489349
...
131
Screw WPL-WP3388228
...
141
Screw-Tf WPL-M0251717
...
151
Screw-Tf/hex WPL-13048901
...
161
Clip, Guide WPL-M0118705
...
171
Cut Out, Thermal WPL-B5684129
...
181
Screw WPL-WP488234
...
191
Clip WPL-WPM0104106
...
201
Screw, T F WPL-M0249619
...
211
Film-Polyester WPL-Y10459002
...
231
Spacer, Rubber WPL-M0274072
...
241
Shield, Spill WPL-12160602
