Amana HDC10 (BOM: P1330501M)

Model: HDC10 (BOM: P1330501M)

Save Part Not Listed?
product name

06 - Wiring Information

...
...
NI

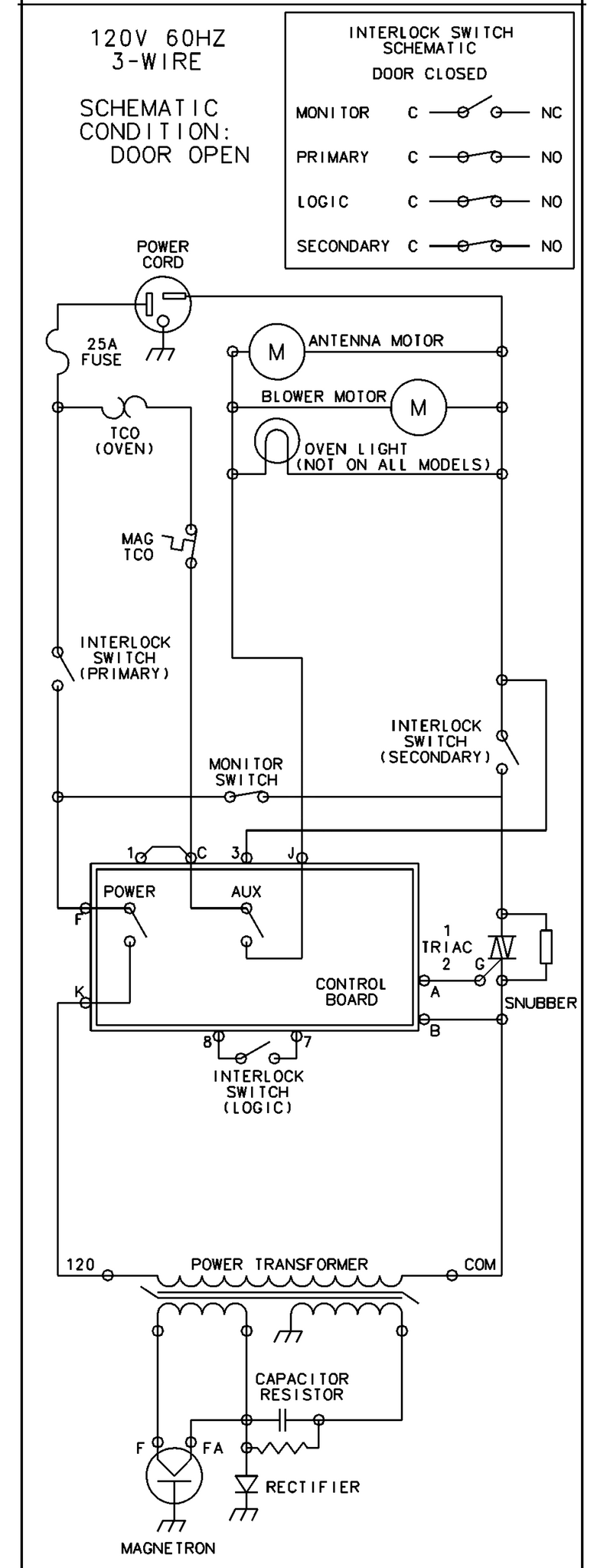

Wiring Information WPL-15003502

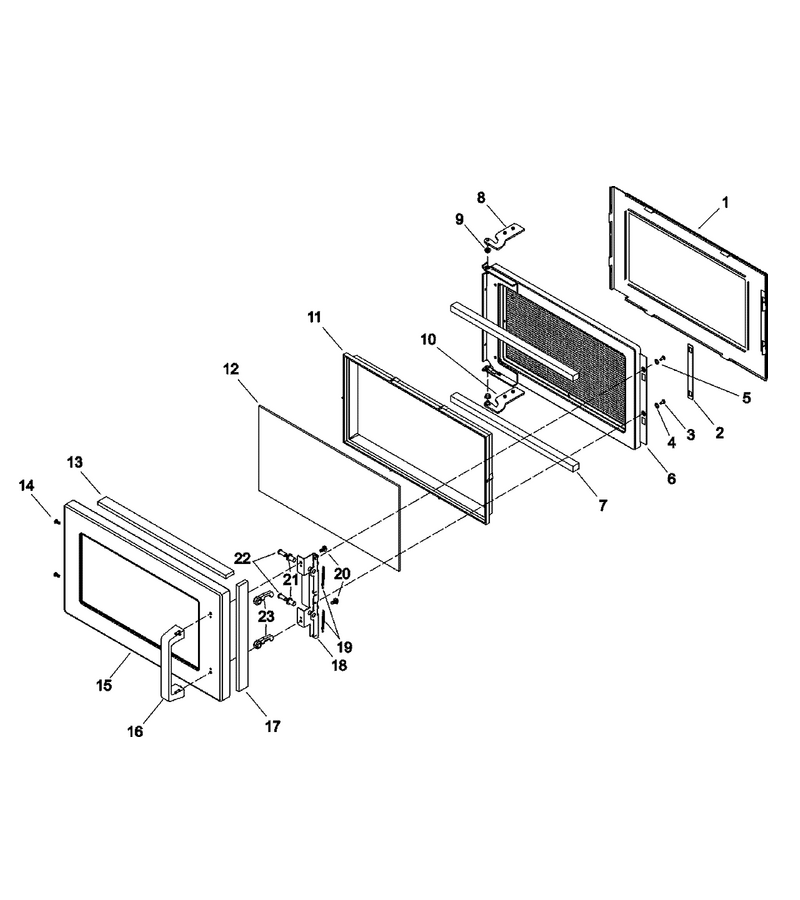

01 - Door

...
...
1
Assy, Inner Door WPL-13067001
...
2
Linkage, Dr Latch WPL-12526201
...
3
Screw-Tc/flat WPL-13047402
...
4
Washer, Nylon WPL-M0274066
...
5
Washer WPL-M0272503
...
6
Door Ring Weld, E Ct WPL-12472202
...
7
Gasket, Neoprene WPL-10966601
...
8
Plate, Hinge (Upper) WPL-12126805
...
9
Bushing, Nylon WPL-5210001001
...
10
Plate, Hinge (Lower) WPL-12126806
...
11
Retainer, Lens WPL-R0150147
...
12
Window-Outer WPL-59001236
...
13
Energy, Strip WPL-12210804
...
14
Screw WPL-W11233072
...
15
Door, Outer WPL-R9900567
...
16
Handle-Door WPL-12133901
...
17
Energy, Strip WPL-12210803
...
18
Brkt-Door Latch WPL-12114401
...
19
Spring, Door Latch WPL-C8893502
...
20
Screw WPL-WP489128
...
21
Spacer WPL-M0800501
...
22
Pin-Latch WPL-59002069
...
23
Latch-Door WPL-12126901

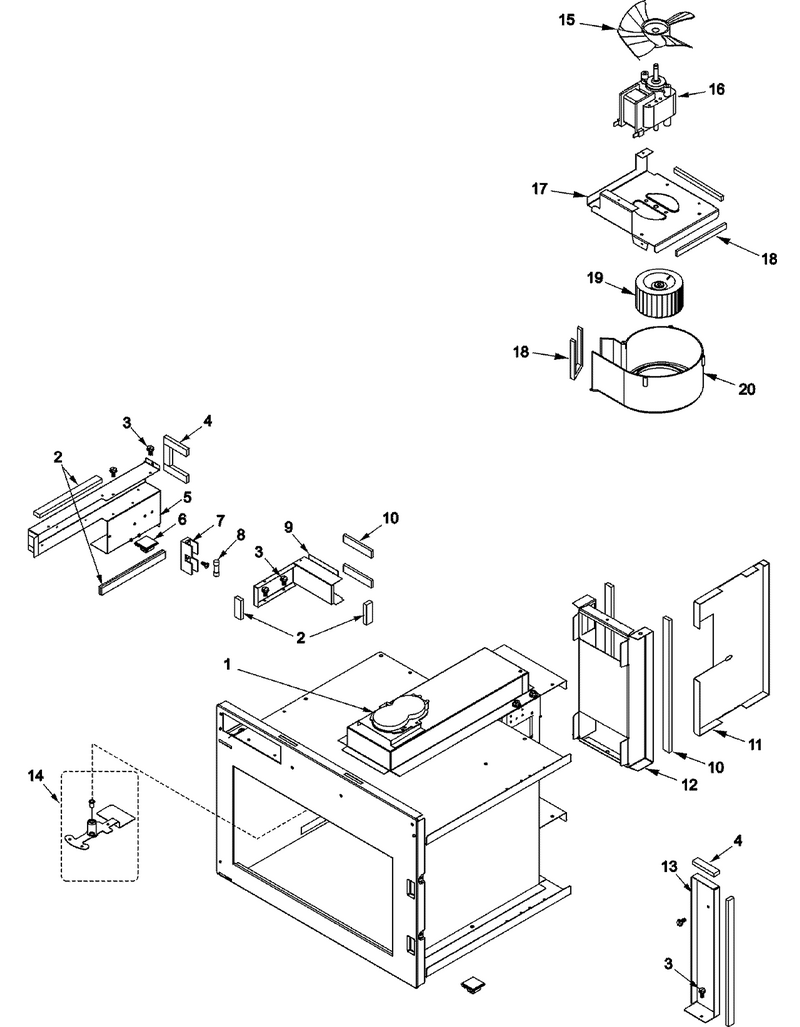

03 - Fuses, Antennas, Blower, Ducts,

...
...
1
Motor, Stirrer WPL-R0150186
...
2
Tape, Foam WPL-M0275058
...
3
Screw WPL-WP489349
...
4
Gasket WPL-A3030302
...
5
Duct,cav Exh-E Ct WPL-12135604
...
6
Clip WPL-WPM0104106
...
7
Fuse Holder WPL-10091101
...
8
Fuse, 25 Amp WPL-M0805201
...
9
Assy, Exhaust Duct Kit WPL-12135704
...
10
Gasket (Per Foot) WPL-10839706
...
11
Divider-Flow WPL-12133501
...
12
Duct, Mag Inlet WPL-12107301
...
13
Barrier, Air WPL-12525701
...
14
Assy, Ant/retainer WPL-R0150185
...
15
Fan Blade WPL-B5706704
...
16
Motor, Blower WPL-12138102
...
17
Brkt, Blower Mtg WPL-12271103
...
18
Gasket (Per Foot) WPL-A3030303
...
19
Wheel-Blower WPL-12138201
...
20
Scroll-Blower WPL-12138302
...
21
Clip WPL-M0118901

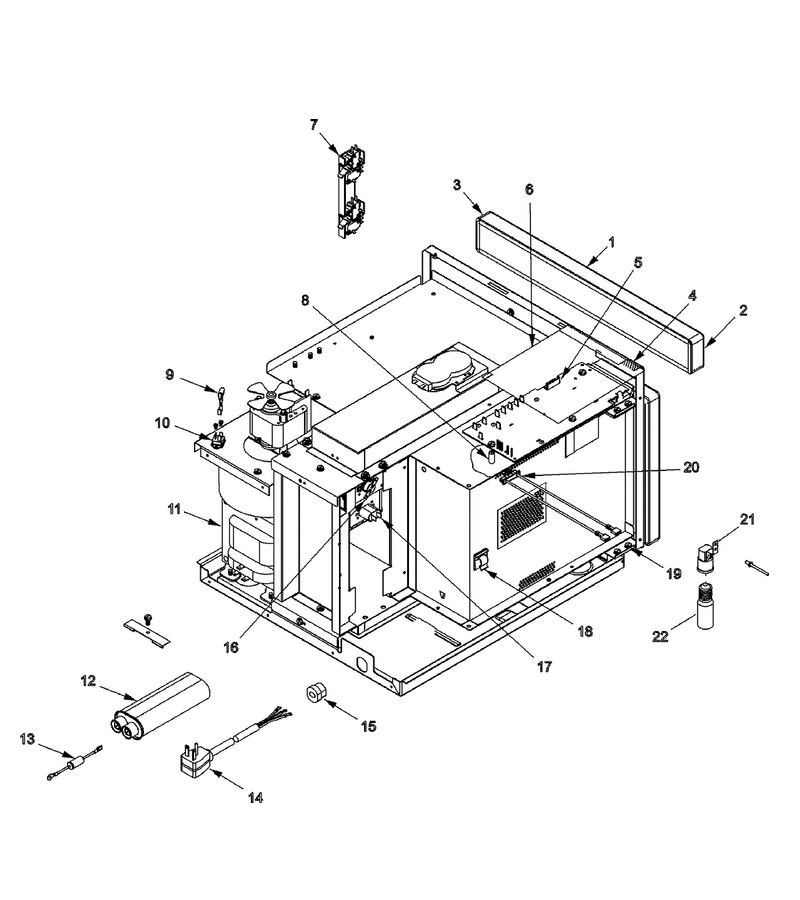

02 - Electrical Components

...
...
1
Screw-Sm/hex WPL-12990523
...
2
Endcap-Esc (Right) WPL-12131001
...
3
Endcap-Esc (Left) WPL-12131002
...
4
Tape Per Roll WPL-M0275163
...
5
Screw-Tc/hex WPL-12991607
...
6
Shield, Spill WPL-12160602
...
7
Screw-Hi Lo/pan WPL-12993002
...
8
Cap, Protective-Threaded (Red) WPL-M0308801
...
9
Snubber Assembly WPL-59002017
...
10
Screw WPL-WP489349
...
11
Transformer WPL-10426610
...
12
Screw WPL-WP489349
...
13
Rectifier WPL-WP13091701
...
14
Screw-Tc/hex WPL-12991606
...
15
Strain Relief WPL-8536977
...
16
Cut Out, Thermal WPL-B5684129
...
17
Magnetron-T WPL-10489404
...
18
Clip WPL-WPM0104106
...
19
Screw-Tf/hex WPL-13048901
...
20
Thermal Cut Out WPL-59001874
...
21
Kit, Receptacle WPL-R9900584
...
22
Bulb-Light WPL-WPA3073101

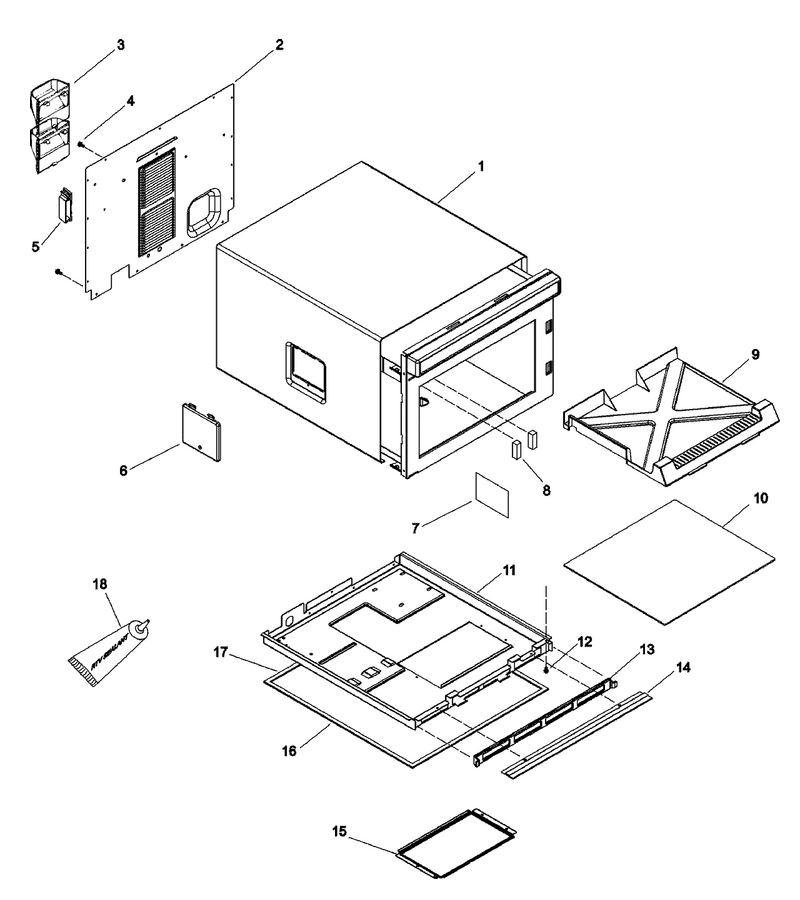

05 - Tray, Grease Shield, Cabinet,

...
...
1
Wrapper, Outer Case WPL-12408501
...
2
Pan, Access-E Ct WPL-12296804
...
3
Duct, Air WPL-12296601
...
4
Screw WPL-WP3388228
...
5
Clip, Guide WPL-M0118705
...
6
Spacer, Rubber WPL-M0274072
...
7
Assy, Window Kit (Light Lens) WPL-R9900114
...
8
Support, Shelf WPL-12496801
...
9
Shield-Grease WPL-12126601
...
10
Tray-Ceramic Floor W/sealer WPL-R0150144
...
11
Asy, Base Pan 50 Hz WPL-59002074
...
12
Screw WPL-WP90767
...
13
Screen Filter WPL-59001659
...
14
Screw, Handle (Black) WPL-12991101
...
15
Base Cover, E Ct WPL-12486002
...
16
Gasket,basepan - Cut WPL-59001643
...
17
Gasket,basepan - Cut WPL-59001642
...
18
Adhesive WPL-W10841140

...
...
1
Mnl,svc-Comm`l Micro WPL-RS2240002
...
2
Manual-Owners WPL-59001618
...
3
Tech Sheet-Comm`l Micro Xxno WPL-16027355
...
4
Manual, Product Safety WPL-59001679
...
5
Quick Start Instructions WPL-59001688
...
6
Bit For Torx 15h Drive Screws WPL-R0193551
...
7
Harness- Oven WPL-59001697
...
8
Hv Lead WPL-12180901
...
9
Wire, H.v. Jumper WPL-12180902
...
10
Menu Label WPL-12155701
