Amana GTA18B2W (BOM: P1192603W W)

Model: GTA18B2W (BOM: P1192603W W)

Save Part Not Listed?
product name

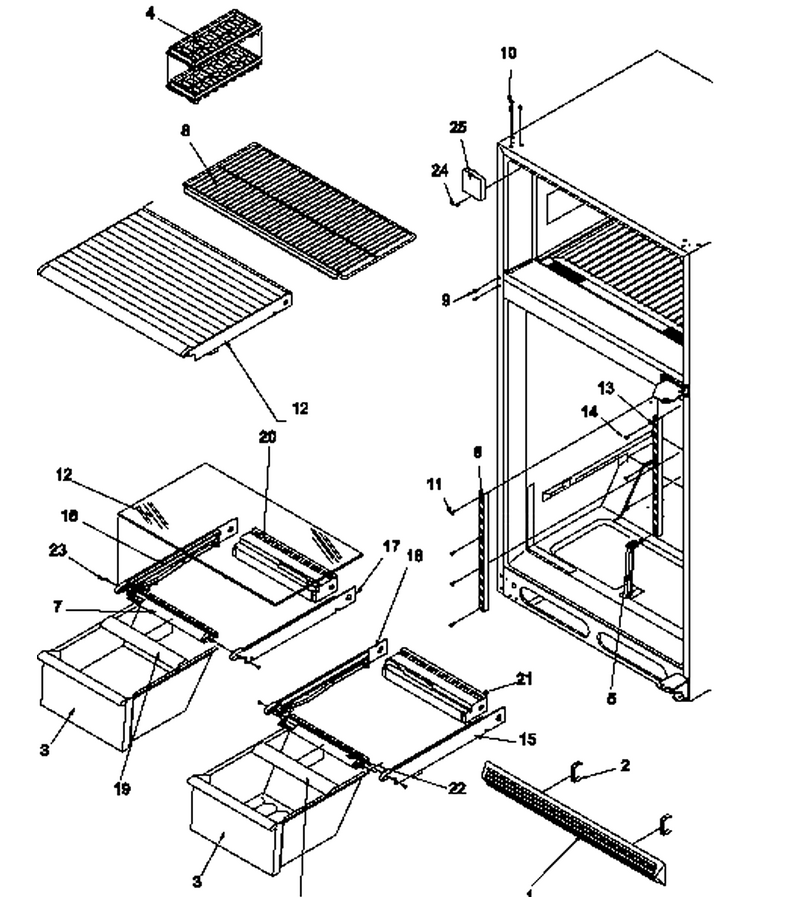

03 - Cabinet Shelving

...
...
1
Grille, Toe (18) WPL-10474901
...
2
Clip- Toe WPL-WP10551502
...
3
Pan, Crisper (v) WPL-10430215
...
5
Post, Crisper Support WPL-10461901
...
6
Ladder, Side WPL-D7599105
...
7
Rail, L. Crisper Frt WPL-10687802
...
8
Shelf, Wire Frz. (18) WPL-Y10440001
...
9
Button- Pl WPL-WP67001130
...
10
Button- Pl WPL-WP67001130
...
11
Screw (3) WPL-67006425
...
12
Top, Crisper WPL-10488502
...
15
Rail, Side Crisper WPL-10432701
...
16
Rail, Side Crisper WPL-10432704
...
17
Rail, Ctr. Crisper WPL-10432803
...
18
Rail, Ctr. Crisper WPL-10432804
...
19
Extr-L Crisp Front WPL-10688056
...
20
Rail, Crisper Back WPL-10435605
...
21
Rail, Crisper Back WPL-10433805
...
22
Rail, R. Crisper Frt WPL-10687801
...
23
Screw WPL-67006692
...
24
Screw (3) WPL-67006425
...
25
Cover-Fl Tb/plug WPL-D7874403
...
99
Assy, Crisp Frame WPL-10698536Q

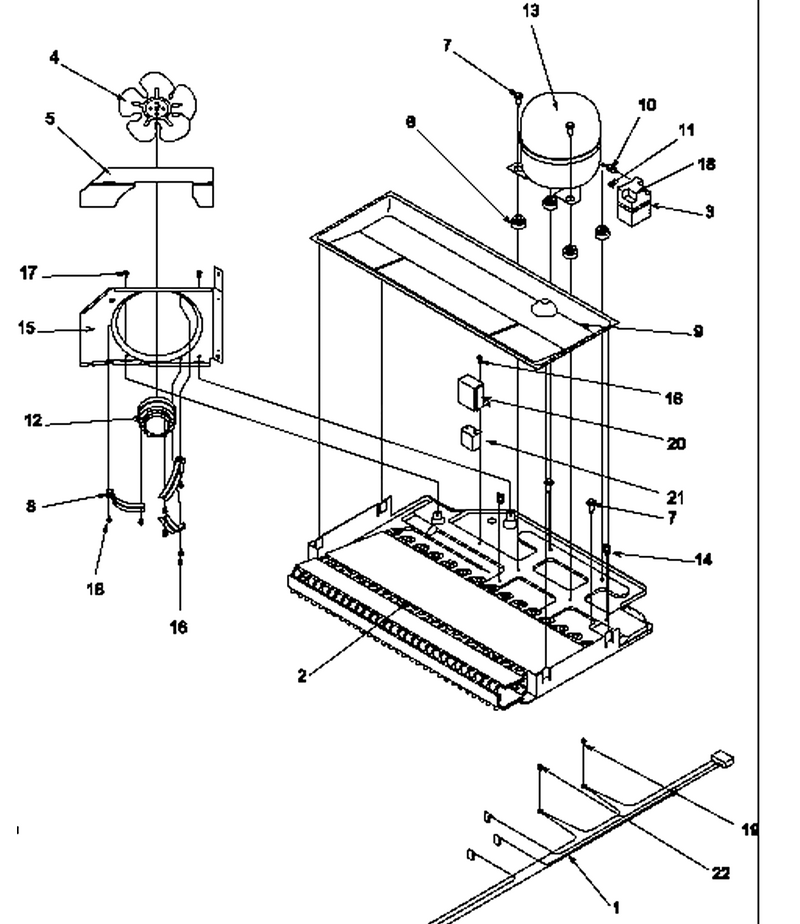

05 - Compressor Compartment

...
...
NI
Assy, Roller Brkt WPL-10476101Q
...
1
Harness, Mach Comp WPL-10705804
...
2
Condenser & Pan Assembly WPL-8170515
...
4
Blade, Fan WPL-B5742604
...
5
Gasket, Cond. Fan WPL-10442702
...
6
Grommet, Compressor WPL-67003493
...
7
Screw, Shldr WPL-M0221523
...
8
Bracket, Cond. Motor WPL-10582501
...
9
Pan, Drain WPL-10427404
...
10
Overload WPL-10377015
...
11
Start-Dev WPL-WP10097202
...
12
Motor-Cond WPL-833697
...
13
Compressor WPL-W10309990
...
14
Wire Clip WPL-B5667304
...
15
Cond Fan Shrd-E Ct WPL-10426911
...
16
Screw WPL-M0223803
...
17
Screw WPL-WP90767
...
18
Cover-Term WPL-4344043
...
19
Screw WPL-12992301
...
20
Shield, Capacitor WPL-10266402
...
21
Capacitor WPL-WP65889-4
...
22
Screw WPL-WP489399

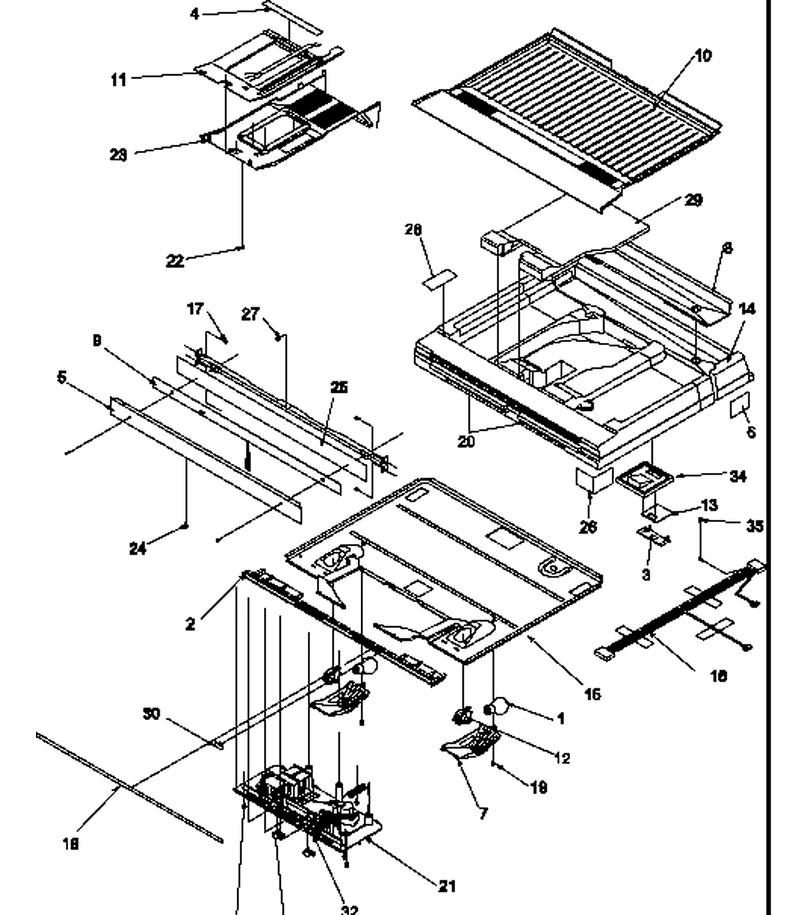

07 - Divider Block

...
...
1
Light Bulb WPL-8009
...
2
Frame, Ref Top Brk WPL-10435513
...
3
Cover, Deli Bleed WPL-10931701
...
4
Gasket WPL-B8386613
...
5
Mullion, Center (white) WPL-10433346
...
6
Gasket, Sealing WPL-10685507
...
7
Shield, Refrig. Light WPL-10508701
...
8
Tray, Drip WPL-10435911
...
9
Heater Mull. WPL-10543601
...
10
Bottom, Frz WPL-10995001
...
11
Insul. Air Duct WPL-10779602
...
12
Socket, Light WPL-D7714408
...
13
Gasket, Mk Air Supply WPL-10594901
...
14
Assy Drain Block WPL-R0156897
...
15
Ref Top-E Ct WPL-12035214
...
16
Harness, Mullion WPL-10573505
...
17
Kit, Screw WPL-R9800670
...
18
Membrane, Breaker WPL-10450819
...
19
Screw WPL-WP90767
...
20
Insulation WPL-10772301
...
21
See Note Control Assembly -- (see Pages 24 And 25 For Parts Breakdown) WPL-Y00000000
...
22
Screw WPL-WP98165
...
23
Duct, Frz Air WPL-10440404
...
24
Screw - Sm WPL-M0211520
...
25
Plate, Center Top WPL-10433610
...
26
Insulation Per Ft. WPL-B0523584
...
27
Screw WPL-M0253916
...
28
Gasket, Sealing WPL-B5759626
...
29
Insert, Drain Block WPL-10476402
...
30
Cap, Switch WPL-10453001
...
31
Knob, Control WPL-10565401
...
32
Screw WPL-WP489464
...
33
Screw WPL-W10856125
...
34
Insert-Mk Air Sply WPL-10995201
...
35
Screw WPL-WP489399

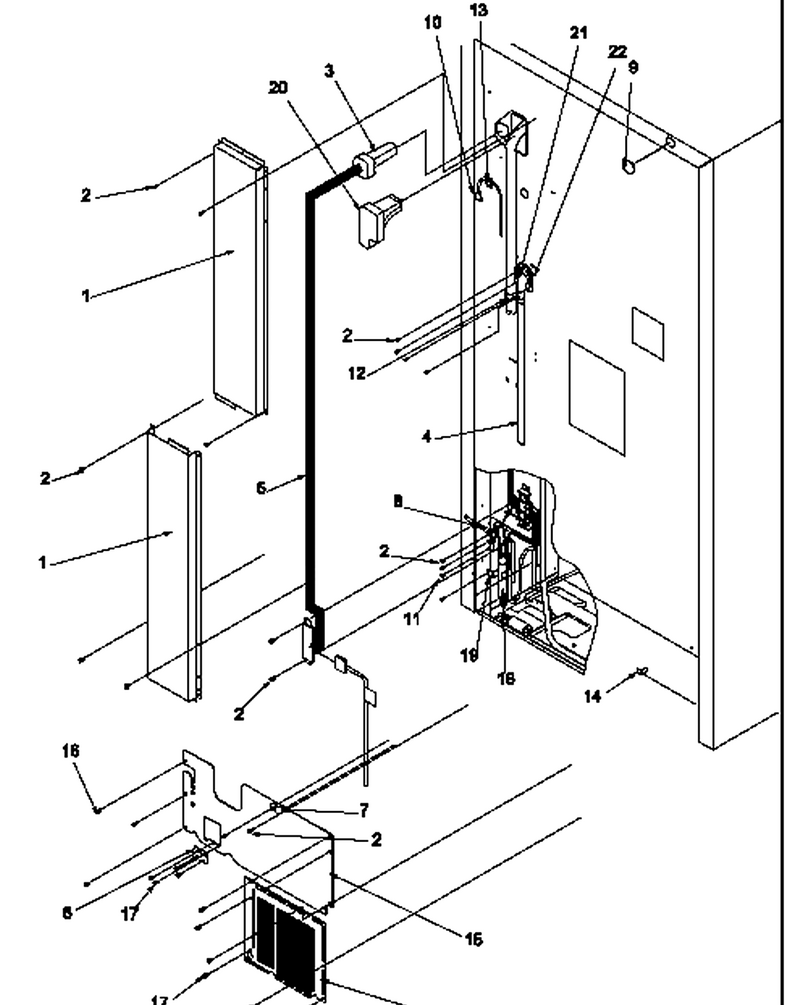

01 - Cabinet Back

...
...
1
Cover, Ht Exch WPL-10442205
...
2
Screw, Sm WPL-M0227217
...
3
Grommet WPL-10699301
...
4
Tube, Drain WPL-10908101
...
5
Harness, Cabinet WPL-12172601
...
6
Plate-Water Valve WPL-12047201
...
7
Clip, Tube WPL-10547101
...
8
Clamp, Speed WPL-M0103904
...
9
Plug, Im Tunnel WPL-10544301
...
10
Cord, Power WPL-10916501
...
11
Screw, Spextite WPL-M0232330
...
12
Clamp WPL-B8372901
...
13
Clip WPL-WPM0104106
...
14
Clip WPL-B5720303
...
15
Assy, M.c. Back WPL-12041819
...
16
Screw WPL-WP489464
...
17
Screw WPL-WP90767
...
18
Drier WPL-WPB2150504
...
19
Clip, Drier WPL-10547001
...
20
Plug, Ht Exch V WPL-10428001
...
21
Elbow Drain Tube WPL-10163201
...
22
Gasket WPL-A3132301
...
23
Back, Mach Comp WPL-12039807

04 - Cabinet Shelving

...
...
15
Shelf, Wire Ref WPL-10897601

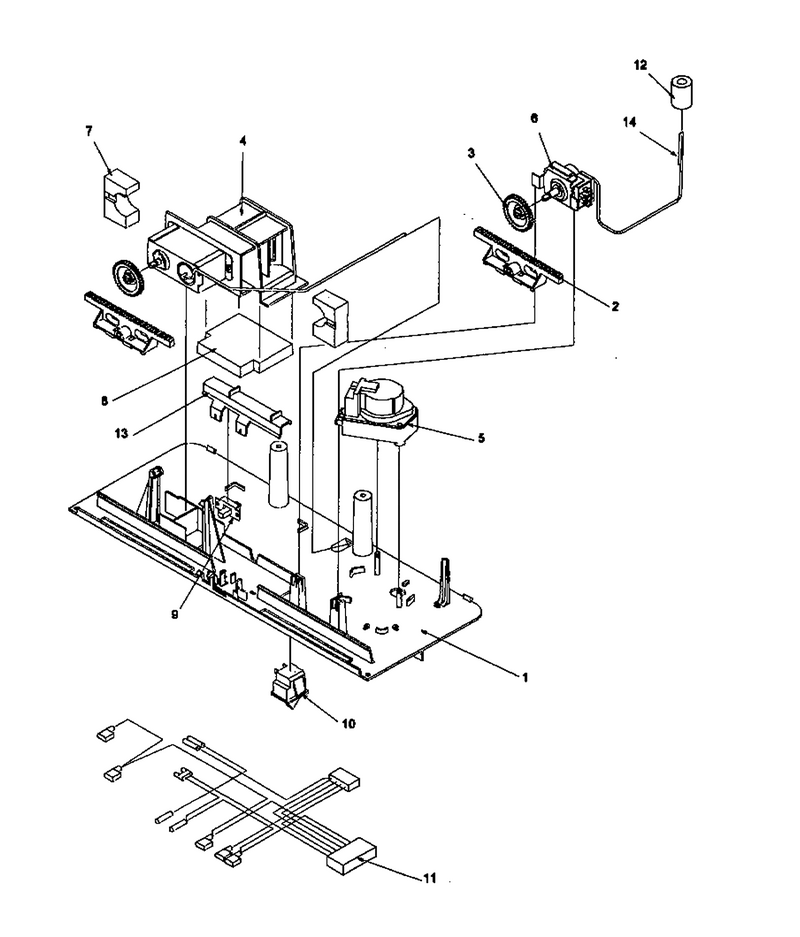

06 - Control Assy

...
...
1
Housing, Control WPL-12035107
...
2
Rack, Control WPL-10439601
...
3
Pinion, Control WPL-10442601
...
4
Assy, Damper Control WPL-R0161074
...
5
Timer-Def WPL-R0168027
...
6
Assy, Frz Control WPL-R9700006
...
7
Insert,damper WPL-10442801
...
8
Insulation, Damper WPL-10442901
...
9
Switch, St WPL-M0350201
...
10
Switch WPL-W11384469
...
11
Harness, Control WPL-10573401
...
12
Insulation, Cap WPL-10673603
...
13
Shield, Wire WPL-10565101
...
14
Tube-Plastic WPL-A3012543

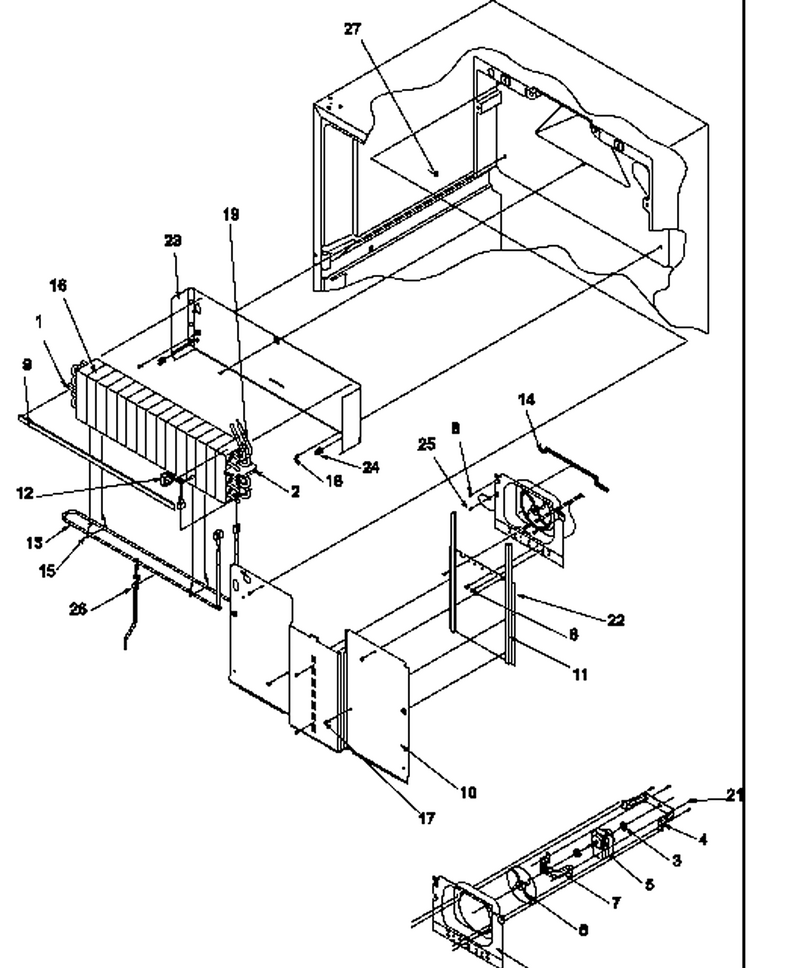

08 - Evap Assy

...
...
1
Block, Evap. L. WPL-10428301
...
2
Block-R Evap WPL-10991001
...
3
Grommet WPL-WP2264462
...
4
Brakt-Mtr WPL-WP10492701
...
5
Motor-Evap WPL-WP10449501
...
6
Blade-Fan WPL-W10116797
...
7
Brkt, Up Evap. Fan WPL-10492801
...
8
Screw WPL-WP489464
...
9
Gasket, Foam WPL-A3189358
...
10
Cover, Evaporator WPL-10432402
...
11
Gasket WPL-A3030356
...
12
Thermostat WPL-WP10442410
...
13
Heater, Evaporator WPL-10991101
...
14
Gasket WPL-A3030354
...
15
Clip WPL-W11673433
...
16
Assy,low Side(tsi18a3) WPL-R0170058
...
17
Screw (3) WPL-67006425
...
18
Screw (3) WPL-67006425
...
19
Wire Tie WPL-M0321204
...
20
Shroud, Evap. Fan WPL-10422304
...
21
Screw WPL-WP90767
...
22
Cover, Evaporator WPL-10440713
...
23
Shield, Evap. WPL-10427710
...
24
Clip, Evaporator WPL-10442301
...
25
Screw WPL-WP489399
...
26
Clip, Ht Transfer WPL-10586601
...
27
Button- Pl WPL-WP67001130

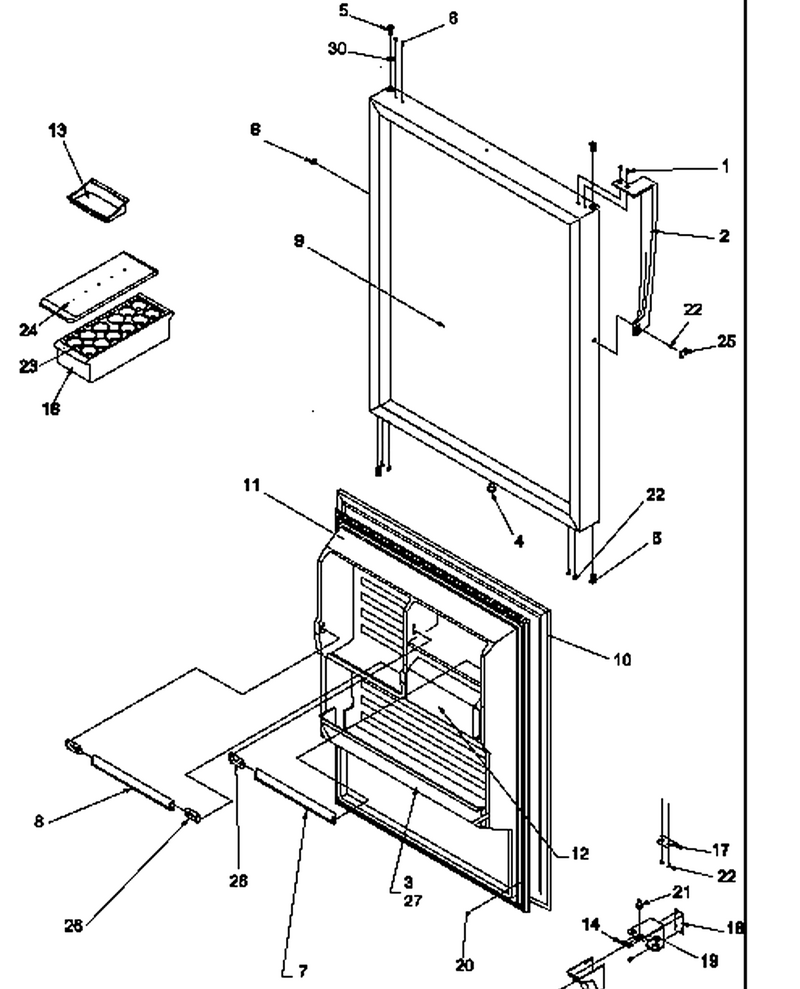

10 - Ref Door

...
...
1
Screw WPL-WPW10348409
...
2
Assy, Ref Hndl-Blk WPL-10253526Q
...
3
Clip, Retainer WPL-10202001
...
4
Plug, Button (wht) WPL-M0310308
...
5
Bushing, Door (wht) WPL-10961001
...
6
Button- Pl WPL-WP67001130
...
7
Retainer-Package WPL-10423917
...
8
Retainer, Pkg WPL-10423911
...
9
Ass`y, Ref Door (white) WPL-10481909W
...
10
Gasket- Re WPL-WP12550109Q
...
11
Liner, Ref Door WPL-10903901
...
12
Door-Dairy WPL-10418503
...
13
Tray, Butter WPL-10310901
...
14
Screw WPL-WP67006715
...
15
Cover, Hinge Lower (black) WPL-10462801
...
17
Stop-Door WPL-W11708403
...
18
Shim, Btm Hinge WPL-10447903
...
19
Hinge, Bottom Black WPL-10433209
...
20
Screw WPL-WPM0219730
...
21
Pin Hinge Bottom WPL-67007018
...
22
Screw WPL-WPW10348409
...
25
Cover, Handle Screw-Blk WPL-10201810
...
26
Clip, Retaining WPL-10926101
...
27
Retainer, Ref Door WPL-10419104

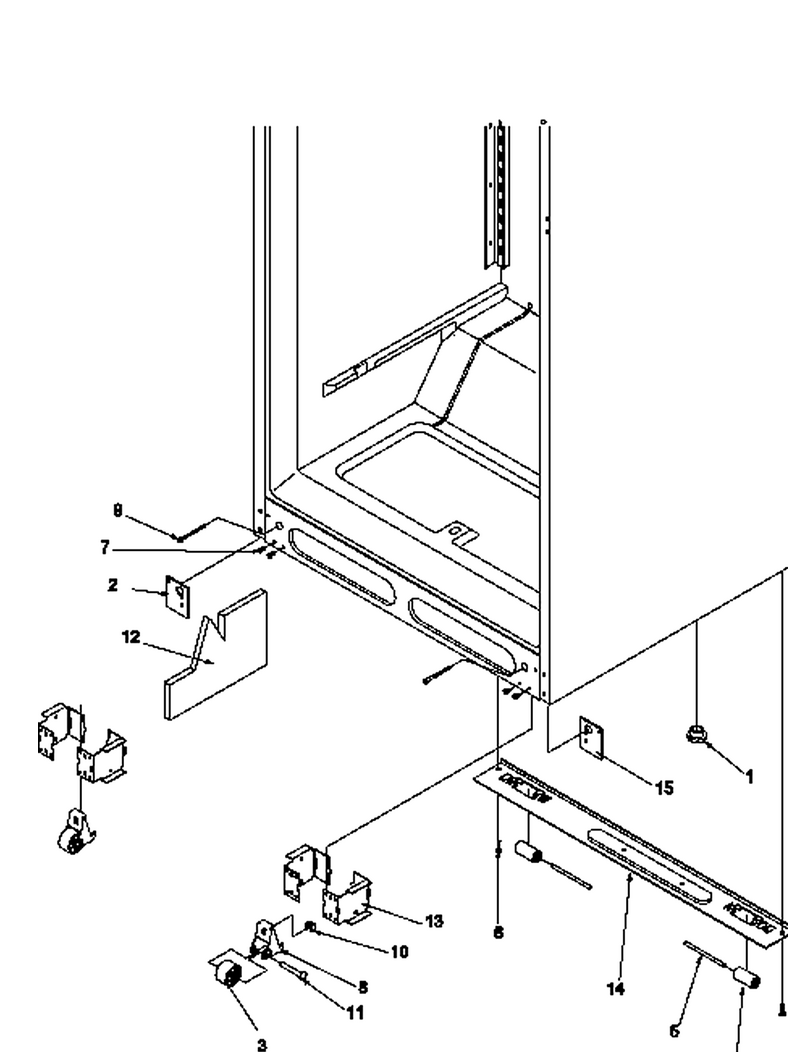

02 - Cabinet Bottom

...
...
1
Plug, Button WPL-A3076901
...
2
Plate-Lw Hng Tap WPL-10567206
...
3
Roller WPL-WP10450603
...
4
Roller, Rear WPL-10450701
...
5
Axle, Roller WPL-10450901
...
6
Screw, Tf WPL-M0260242
...
7
Screw WPL-W11573574
...
8
Assy, Roller Brkt WPL-10476101Q
...
9
Screw, Mach WPL-M0204338
...
10
Nut, Speed WPL-M0286708
...
11
Rivet WPL-M1205302
...
12
Insul., L. Foot WPL-10663002
...
13
Housing-Roller WPL-10427204
...
14
Cabinet Brace-Pnt WPL-10427110
...
15
Plate-Lw Hng Tap WPL-10567205

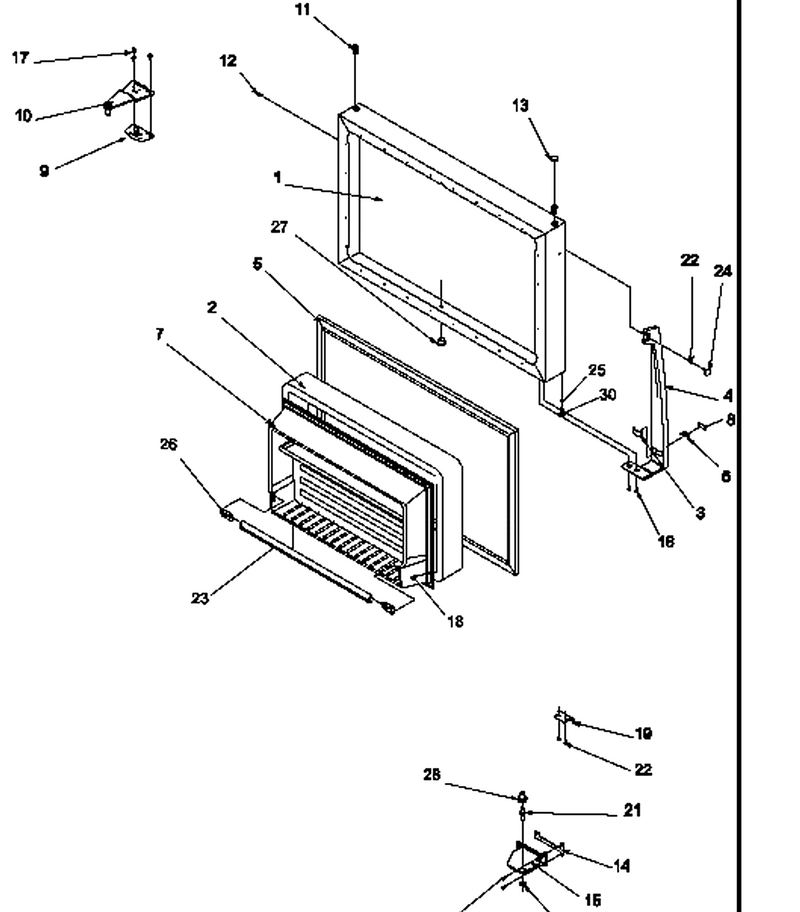

09 - Fz Door

...
...
1
Assy, Fz Dr Foam WPL-10925612W
...
2
Insulation, Batt Frz. Dr. WPL-B0523593
...
3
Plug Nameplate WPL-10184305
...
4
Assy, Fz Handle Blk WPL-10253525Q
...
5
Gasket- Fr WPL-WP12550110Q
...
6
Pad Nameplate WPL-10184501
...
7
Liner, Frz Door WPL-10460902
...
8
Nameplate, Handle WPL-10184402
...
9
Shim, Top Hinge WPL-10448502
...
10
Assy- Top WPL-R0000231
...
11
Bushing, Door (wht) WPL-10961001
...
12
Button- Pl WPL-WP67001130
...
13
Plug Button WPL-10686401
...
14
Shim, Center Hinge WPL-10562201
...
15
Hinge-Ctr Chrome WPL-10433412
...
16
Screw WPL-WPW10348409
...
17
Kit, Screw WPL-R9800670
...
18
Screw WPL-WPM0219730
...
19
Stop, Door WPL-10447102
...
20
Shim- Non WPL-WPM0274057
...
21
Pin, Hinge (ctr) WPL-10351002
...
22
Screw WPL-WPW10348409
...
23
Retainer, Pkg WPL-10423912
...
24
Cover, Handle Screw-Blk WPL-10201809
...
25
Filter, Bushing WPL-10252903
...
26
Clip, Retaining WPL-10926101
...
27
Plug, Button (wht) WPL-M0310308
...
28
Closure, Door (wht) WPL-12028501
...
29
Screw WPL-WP67006380
...
30
Bushing, Door (wht) WPL-12028601
