Amana GTA18AL (BOM: P1184607W L)

Model: GTA18AL (BOM: P1184607W L)

Save Part Not Listed?
product name

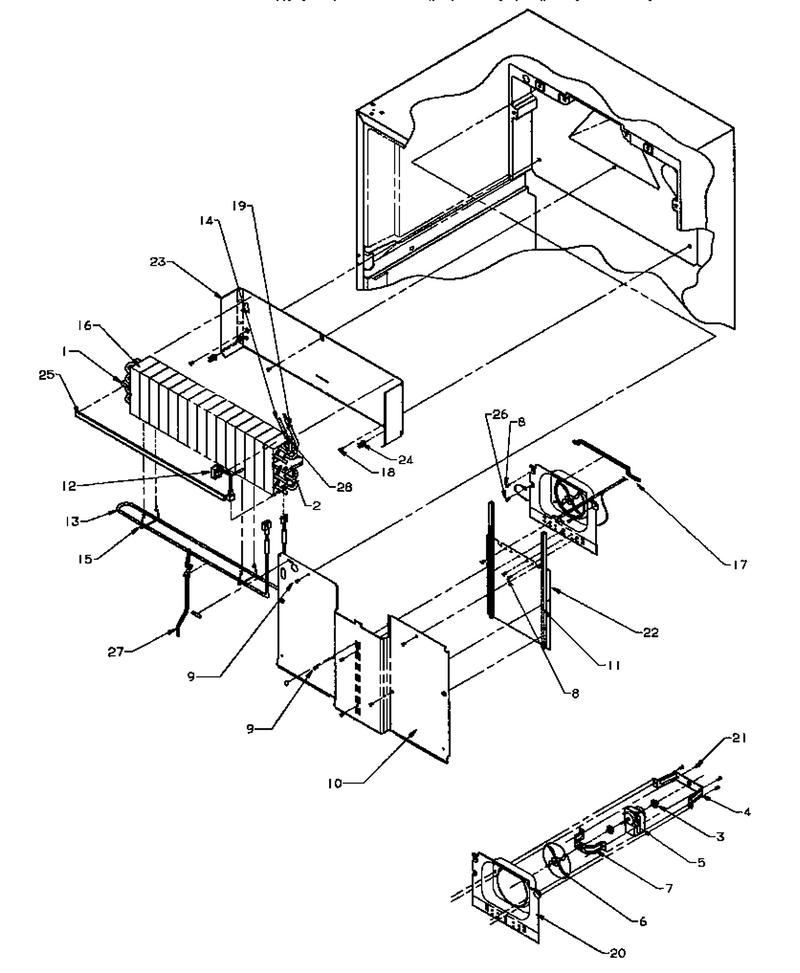

07 - Evap Area

...
...
NI
Sleeve, Vinyl WPL-M0321041
...
1
Block, Evap. L. WPL-10428301
...
2
Block, Evap. R WPL-10428202
...
3
Grommet WPL-WP2264462
...
4
Brkt, Up Evap. Fan WPL-10492801
...
5
Motor-Evap WPL-WP10449501
...
6
Blade-Fan WPL-W10116797
...
7
Brakt-Mtr WPL-WP10492701
...
8
Screw WPL-WP489464
...
9
Screw (3) WPL-67006425
...
10
Cover, Evaporator WPL-10432402
...
11
Gasket WPL-A3030356
...
12
Thermostat WPL-WP10442410
...
13
Heater, Evap WPL-10428407
...
14
Assy,low Side(tsi18a3) WPL-R0170058
...
15
Clip WPL-W11673433
...
16
Assy,low Side WPL-R0170060
...
17
Gasket WPL-A3030354
...
18
Screw (3) WPL-67006425
...
19
Wire Tie WPL-M0321204
...
20
Shroud, Evap. Fan WPL-10422304
...
21
Screw WPL-WP12990527
...
22
Cover, Evaporator WPL-10440713
...
23
Shield, Evap. WPL-10427710
...
24
Clip, Evaporator WPL-10442301
...
25
Gasket, Foam WPL-A3189358
...
26
Screw WPL-WP489399
...
27
Clip, Ht Transfer WPL-10586601
...
28
Tie-Wire WPL-WPM0321209

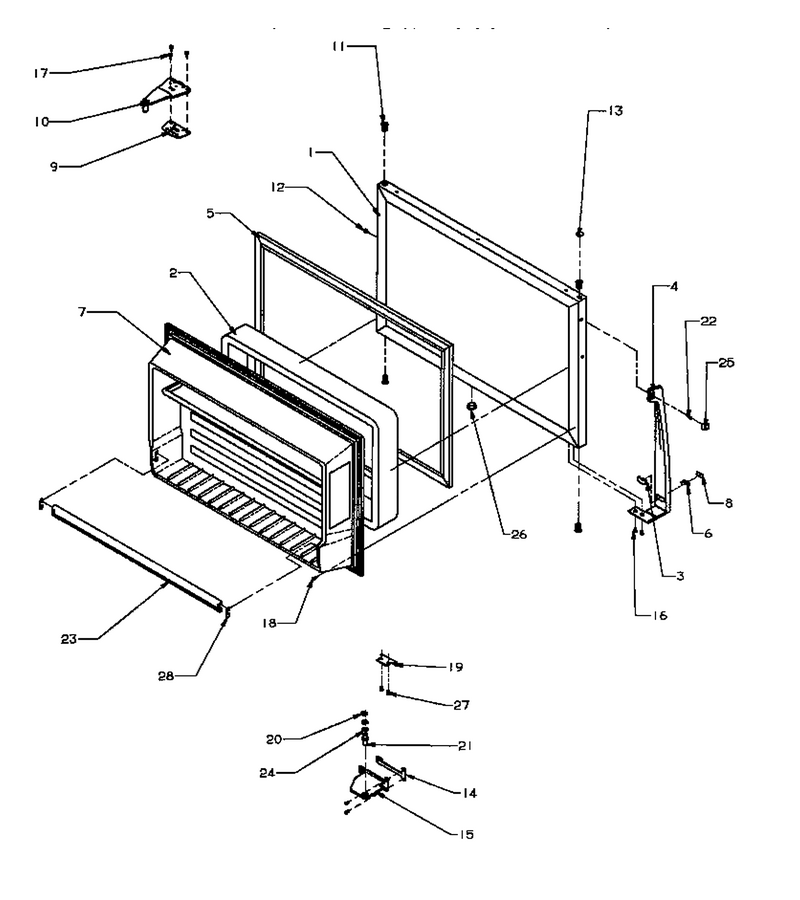

08 - Fz Door

...
...
1
Assy Frz Dr Fm WPL-10482003L
...
2
Insulation, Batt Frz. Dr. WPL-B0523593
...
3
Plug Nameplate WPL-10184305
...
4
Fz Handle Assy Bk WPL-10253507
...
5
Gasket- Fr WPL-WP12550110Q
...
6
Pad Nameplate WPL-10184501
...
7
Liner, Frz Door WPL-10460902
...
8
Nameplate, Handle WPL-10184402
...
9
Shim, Top Hinge WPL-10448502
...
10
Ass`y, Top Hinge (tg) WPL-D7757814
...
11
Bushing, Door (wht) WPL-10393802
...
12
Plug Button (almond) WPL-M0310730
...
13
Plug,button(bisque) WPL-10686407
...
14
Shim, Center Hinge WPL-10562202
...
15
Hinge-Ctr Chrome WPL-10433403
...
16
Screw WPL-WPW10348409
...
17
Kit, Screw WPL-R9800670
...
18
Screw WPL-WPM0219730
...
19
Stop, Door (18) WPL-10447101
...
20
Shim- Non WPL-WPM0274057
...
21
Pin- Cente WPL-WP67006744
...
22
Screw WPL-WPW10348409
...
23
Retainer, Pkg WPL-10423912
...
24
Shim- Non WPL-WPM0274058
...
25
Cover, Handle Screw-Blk WPL-10201809
...
26
Plug Button Almond WPL-M0310338
...
27
Screw WPL-WPW10348409
...
28
Clip, Retaining WPL-10926101

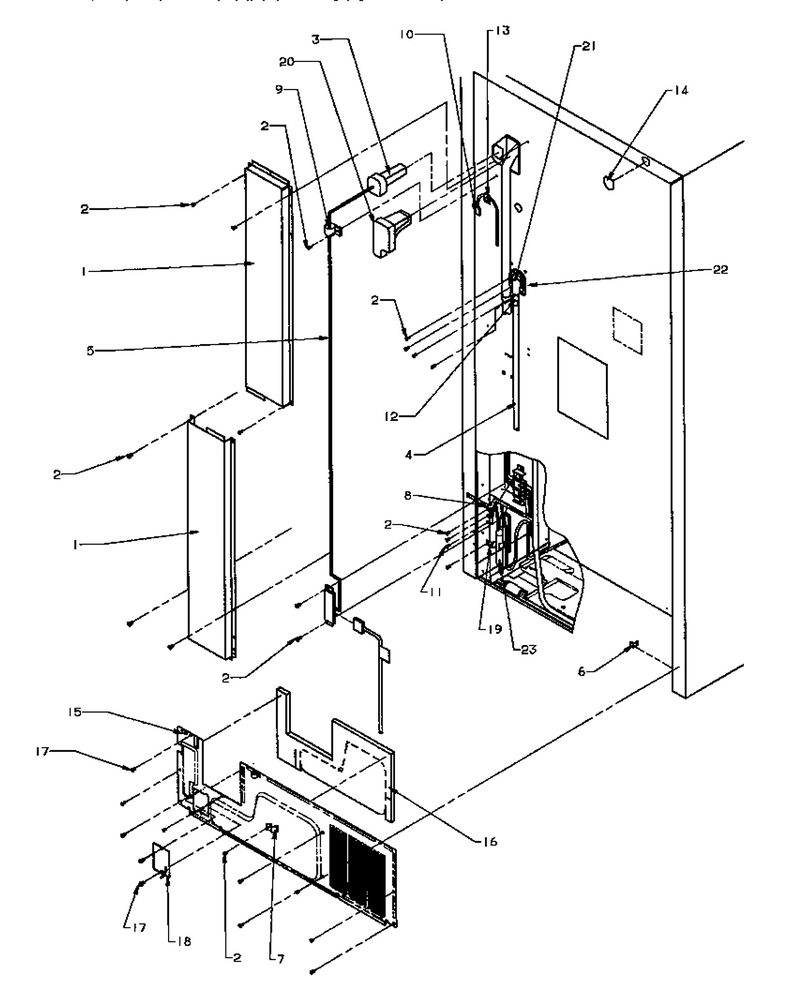

01 - Cabinet Back

...
...
1
Cover, Heat Exch. WPL-10442202Q
...
2
Screw, Sm WPL-M0227217
...
3
Grommet WPL-10699301
...
4
Tube, Drain WPL-10908101
...
5
Harness, Cabinet WPL-12172601
...
6
Clip WPL-B5720303
...
7
Clip, Tube WPL-10547101
...
8
Clamp, Speed WPL-M0103904
...
10
Cord, Power WPL-10916501
...
11
Screw, Spextite WPL-M0232330
...
12
Clamp WPL-B8372901
...
13
Clip WPL-WPM0104106
...
14
Plug, Im Tunnel WPL-10544301
...
15
Back, Mach Comp WPL-10467912
...
16
Insulation, Mach Comp Bk WPL-10584601
...
17
Screw WPL-WP12990527
...
18
Cover, Water Valve WPL-10541403
...
19
Clip, Drier WPL-10547001
...
20
Plug, Ht Exch V WPL-10428001
...
21
Elbow Drain Tube WPL-10163201
...
22
Gasket WPL-A3132301
...
23
Drier WPL-WPB2150504

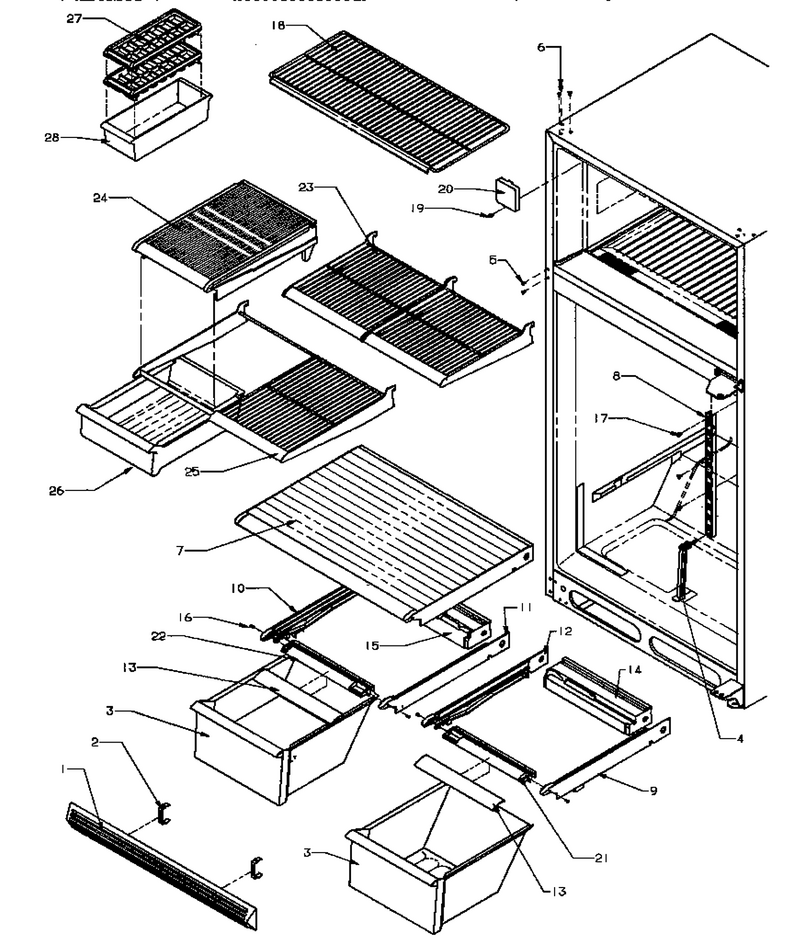

03 - Cabinet Shelving

...
...
NI
Ass`y, Crisper Frame WPL-10698512
...
1
Grille, Toe (18) WPL-10474901
...
2
Clip- Toe WPL-WP10551502
...
3
Pan, Crisper WPL-10430214
...
4
Post, Crisper Support WPL-10461901
...
5
Plug Button (almond) WPL-M0310730
...
6
Plug Button (almond) WPL-M0310730
...
7
Top, Crisper WPL-10488502
...
8
Ladder, Side WPL-D7599105
...
9
Rail, Side Crisper WPL-10432701
...
10
Rail, Side Crisper WPL-10432704
...
11
Rail, Ctr. Crisper WPL-10432803
...
12
Rail, Ctr. Crisper WPL-10432804
...
13
Extr, Crisper Front WPL-10688020
...
14
Rail, Crisper Back WPL-10433805
...
15
Rail, Crisper Back WPL-10435605
...
16
Screw WPL-67006692
...
17
Screw (3) WPL-67006425
...
18
Shelf, Wire Frz. (18) WPL-Y10440001
...
19
Screw (3) WPL-67006425
...
20
Cover-Fl Tb/plug WPL-D7874402
...
21
Rail, Crisper Fr0nt(r) WPL-10687701
...
22
Rail, Crisper Front(l) WPL-10687702
...
23
Shelf, Cantilever Wire WPL-10440104

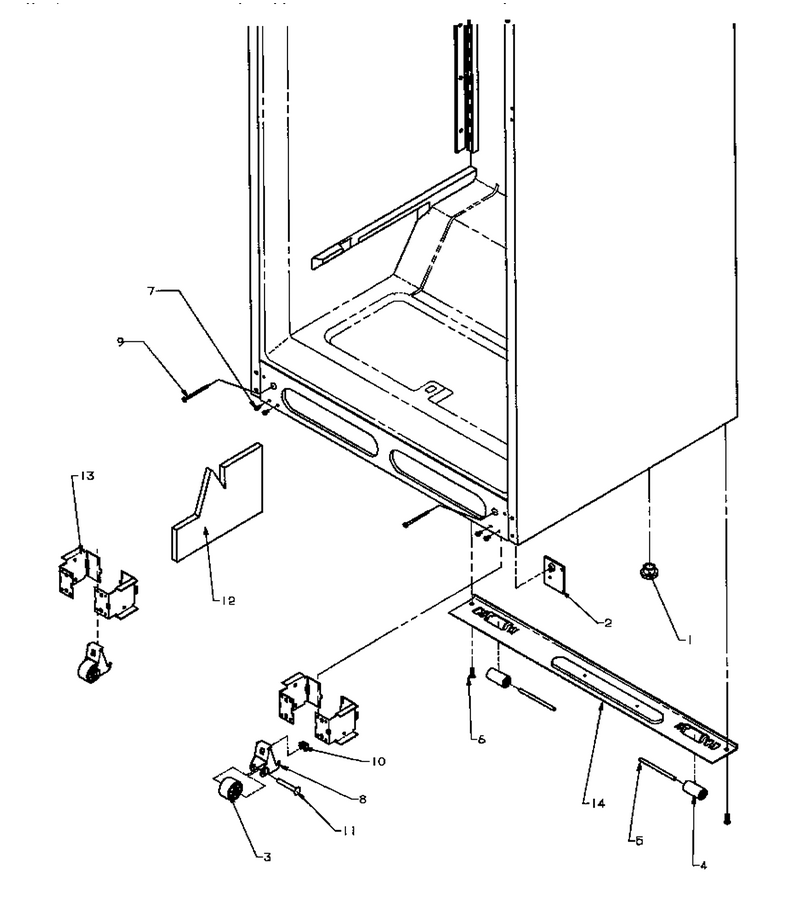

02 - Cabinet Bottom

...
...
NI
Assy, Roller Brkt WPL-10476101Q
...
1
Plug, Button WPL-A3076901
...
2
Kit, Lw Hinge Plate WPL-R0194687
...
3
Roller WPL-WP10450603
...
4
Roller, Rear WPL-10450701
...
5
Axle, Roller WPL-10450901
...
6
Screw, Tf WPL-M0260242
...
7
Screw WPL-WP98165
...
8
Assy, Roller Brkt WPL-10476101Q
...
9
Screw, Mach WPL-M0204338
...
10
Nut, Speed WPL-M0286708
...
11
Rivet WPL-M1205302
...
12
Insul., L. Foot WPL-10663002
...
13
Housing-Roller WPL-10427204
...
14
Cabinet Brace-Pnt WPL-10427110

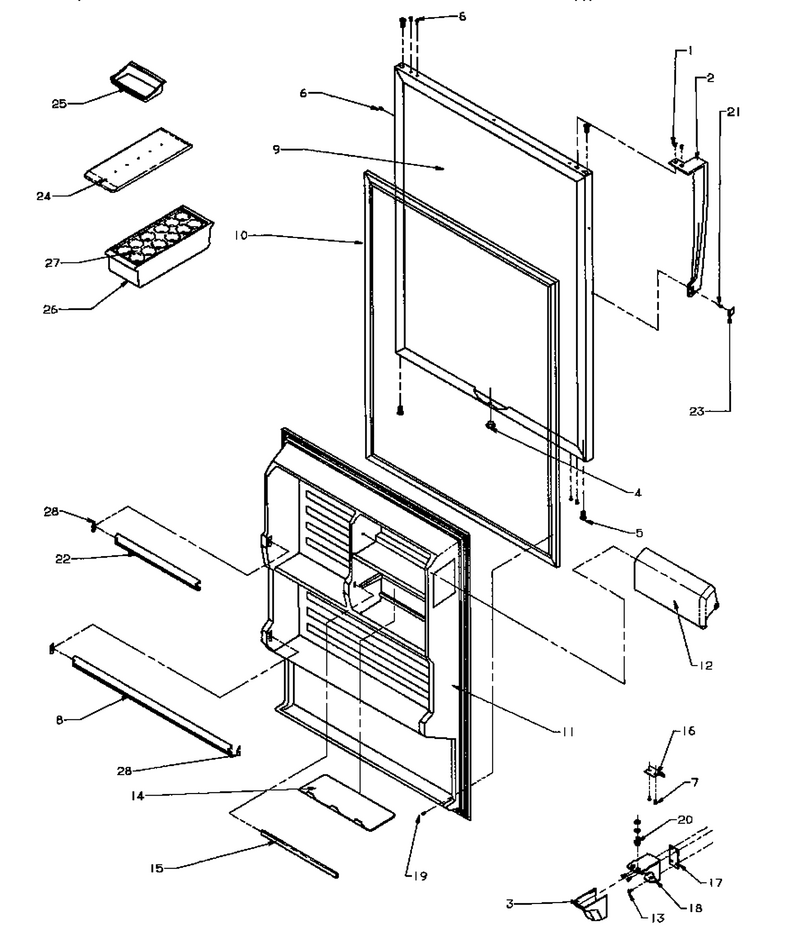

09 - Ref Door

...
...
1
Screw WPL-WPW10348409
...
2
Ref Handle Assy Bk WPL-10253508
...
3
Cover, Hinge Lower (black) WPL-10462801
...
4
Plug Button Almond WPL-M0310338
...
5
Bushing, Door (wht) WPL-10393802
...
6
Plug Button (almond) WPL-M0310730
...
7
Screw WPL-WPW10348409
...
8
Retainer, Pkg WPL-10423914
...
9
Assy Ref. Door Fm WPL-10481903L
...
10
Gasket- Re WPL-WP12550109Q
...
11
Liner, Refr Door WPL-10461602
...
12
Door, Dairy WPL-10418502
...
13
Screw WPL-WP67006715
...
14
Shelf, Sec Server WPL-10425201
...
15
Extrsn, Sec Server WPL-10304108
...
16
Stop-Door WPL-W11708403
...
17
Shim, Btm Hinge WPL-10447901
...
18
Hinge, Bottom Black WPL-10433209
...
19
Screw WPL-WPM0219730
...
20
Pin Hinge Bottom WPL-67007018
...
21
Screw WPL-WPW10348409
...
22
Retainer, Pkg WPL-10423913
...
23
Cover, Handle Screw-Blk WPL-10201810
...
28
Clip, Retaining WPL-10926101

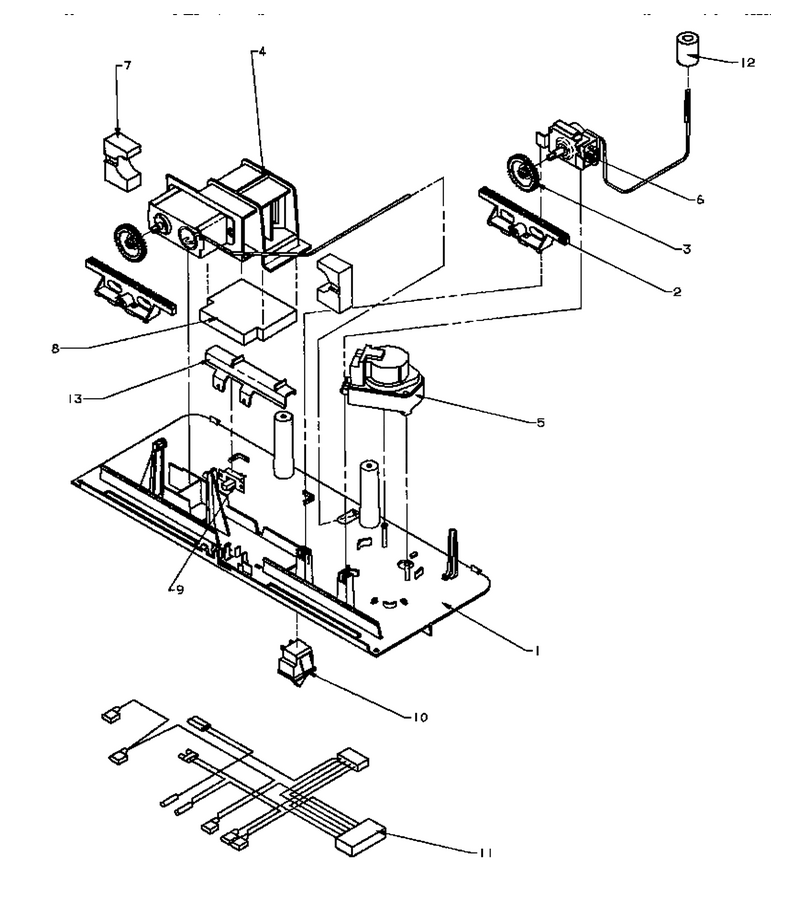

05 - Control Panel

...
...
NI
Assy, Damper Control WPL-R0161072
...
1
Housing, Control WPL-10880601
...
2
Rack, Control WPL-10439601
...
3
Pinion, Control WPL-10442601
...
4
Assy, Damper Control WPL-R0161072
...
5
Timer-Def WPL-R0168027
...
6
Assy, Frz Control WPL-R9700006
...
7
Insert,damper WPL-10442801
...
8
Insulation, Damper WPL-10442901
...
9
Switch, St WPL-M0350201
...
10
Switch WPL-W11384469
...
11
Harness, Control WPL-10573401
...
12
Insulation, Cap WPL-10673603
...
13
Shield, Wire WPL-10565101

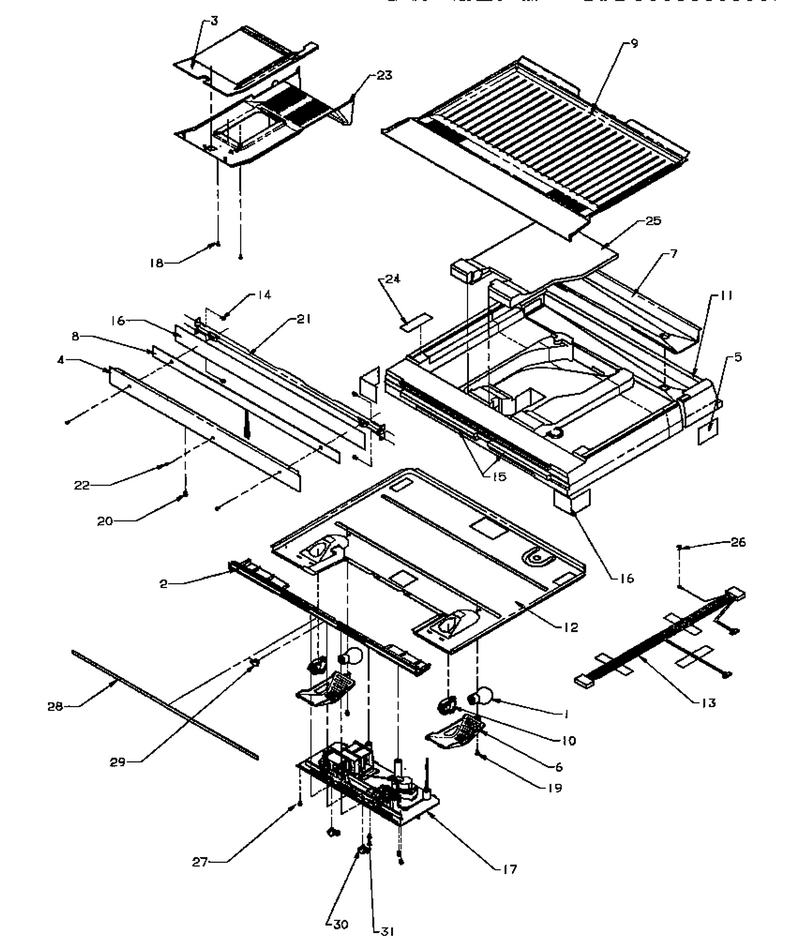

06 - Divider Block

...
...
1
Light Bulb WPL-8009
...
2
Frame, Ref Top Brk WPL-10435513
...
3
Insul. Air Duct WPL-10779602
...
4
Mullion, Center(almond) WPL-10433358
...
5
Gasket, Sealing WPL-10685506
...
6
Shield, Refrig. Light WPL-10508701
...
7
Tray, Drip WPL-10435911
...
8
Heater Mull. WPL-10543601
...
9
Bottom, Frz WPL-10430604
...
10
Socket, Light WPL-D7714408
...
11
Block, Drain WPL-R0156860
...
12
Ref Top-E Ct WPL-12035214
...
13
Harness, Mullion WPL-10573505
...
14
Kit, Screw WPL-R9800670
...
15
Insulation WPL-10772301
...
16
Insulation Per Ft. WPL-B0523584
...
17
See Note Control Assembly -- (see Control Panel Page For Breakdown) WPL-Y00000000
...
18
Screw (3) WPL-67006425
...
19
Screw WPL-WP489069
...
20
Screw - Sm WPL-M0211520
...
21
Plate, Center Tap WPL-10433607
...
22
Screw WPL-M0253916
...
23
Duct, Frz Air WPL-10440404
...
24
Gasket, Sealing WPL-B5759626
...
25
Insert, Drain Block WPL-10476402
...
26
Screw WPL-WP489399
...
27
Screw WPL-M0211530
...
28
Membrane, Breaker WPL-10450819
...
29
Cap, Switch WPL-10453001
...
30
Knob, Control WPL-10565401
...
31
Screw WPL-WP489464

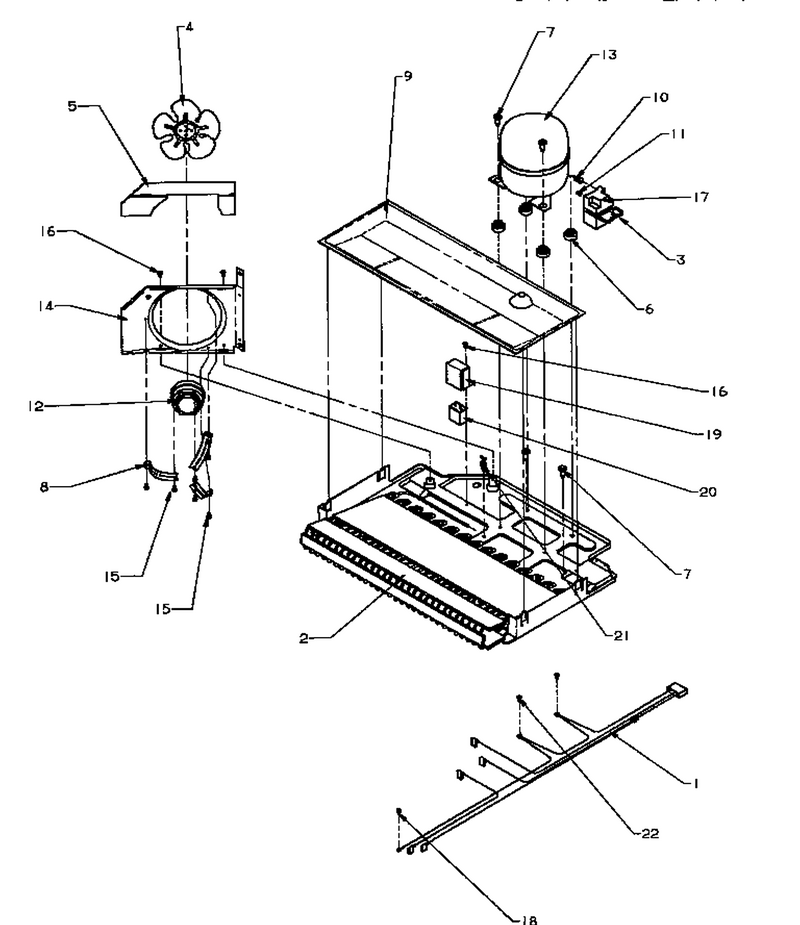

04 - Compressor Compartment

...
...
1
Harness, Mach. Comp. WPL-10705801
...
2
Condenser & Pan Assembly WPL-8170515
...
3
Bale Strap WPL-YB8358601
...
4
Blade, Fan WPL-B5742602
...
5
Gasket, Cond. Fan WPL-10442702
...
6
Grommet, Compressor WPL-67003493
...
7
Screw, Shoulder WPL-M0221548
...
8
Bracket, Cond. Motor WPL-10582501
...
9
Pan, Drain WPL-10427404
...
10
Overload WPL-10377003
...
11
Relay WPL-2154436
...
12
Motor-Cond WPL-833697
...
13
Compressor WPL-W10439652
...
14
Cond Fan Shrd-E Ct WPL-10426911
...
15
Screw WPL-M0223803
...
16
Screw WPL-WP12990527
...
17
Term Cover WPL-C8960801
...
18
Screw WPL-M0253916
...
19
Shield, Capacitor WPL-10266402
...
20
Capacitor WPL-WPW10662129
...
21
Wire Clip WPL-B5667304
...
22
Screw WPL-WP489399
