Amana GSGD21BL (BOM: P1193905W L)

Model: GSGD21BL (BOM: P1193905W L)

Save Part Not Listed?
product name

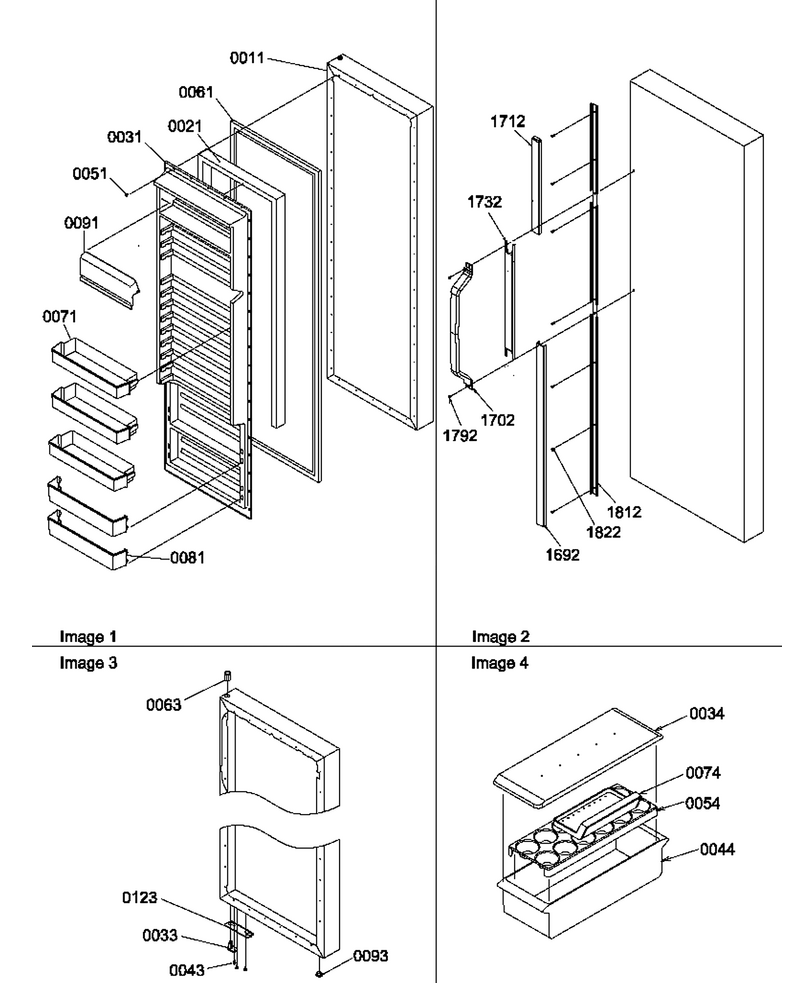

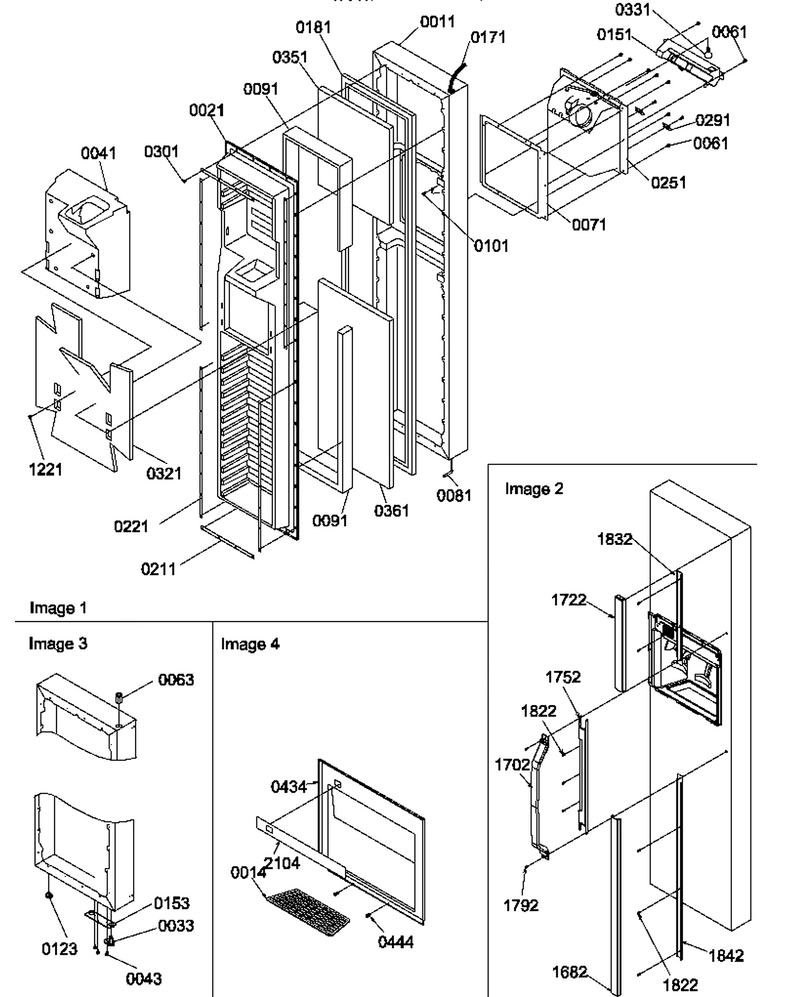

10 - Ref Door And Accessories

...
...
11
Ass`y, Ref Dr Foam WPL-10937904L
...
21
Insulation Ft. K WPL-B0523563
...
31
Liner, Ref Door WPL-10946301
...
33
Kit,dr Closure WPL-R0181181
...
34
Lid, Utility WPL-10436404
...
43
Screw WPL-WP98165
...
44
Container WPL-WP10423131
...
51
Screw WPL-WPM0219730
...
54
Tray, Egg WPL-10436505
...
61
Gasket- Do WPL-10359712Q
...
63
Bushing, Door (wht) WPL-10393802
...
71
Bucket Ref. WPL-10937303
...
74
Tray, Butter WPL-10310901
...
81
Shelf, Ref Door WPL-10580104
...
91
Door-Dairy WPL-10418503
...
93
Plug Button Almond WPL-M0310338
...
123
Gskt-Air Venting WPL-10289401
...
1692
Trim, Lower Refr Dr (black) WPL-D7792812
...
1702
Ass`y, Dr Hndl Blk WPL-D7815915Q
...
1712
Trim-Bk Top Ref Dr WPL-D7852021
...
1732
Trim, Center Refr Dr. Black WPL-D7853808
...
1792
Kit, Screw WPL-R9800670
...
1812
Ref. Trim, Retainer WPL-D7793202
...
1822
Screw WPL-WP489349

04 - Fz Door

...
...
11
Ass`y, Fz Dr Foam WPL-10876207L
...
14
Grille Sump (black) WPL-D7750602
...
21
Liner-I&w Fz Dr WPL-10861002
...
33
Kit,dr Closure WPL-R0181181
...
41
Insul-I&w Cavity WPL-10872801
...
43
Screw WPL-WP98165
...
61
Screw-Sm/hex WPL-12990523
...
63
Bushing- D WPL-WP67004977
...
71
Gasket Cavity WPL-D7791003
...
81
Tube WPL-WPB5705307
...
91
Insulation Ft. K WPL-B0523563
...
101
Screw WPL-WP489399
...
123
Plug Button Almond WPL-M0310338
...
151
Assy, Elec Brkt WPL-10058410
...
153
Door Stop WPL-10161802
...
171
Harness-Fz Door WPL-10952104
...
181
Gasket W WPL-WP10359709Q
...
211
Retainer, Door Liner WPL-C8982801
...
221
Retainer, Door Liner WPL-D7828601
...
251
Ass`y, Bk Cavity WPL-10164124
...
291
Clip WPL-C8992901
...
301
Screw WPL-WPM0219730
...
321
Insul-Disp Batt WPL-10940701
...
331
Bulb-Light WPL-W10857122
...
351
Insul, Batt WPL-12016905
...
361
Insul, Batt WPL-12016906
...
434
Facade-Dispenser WPL-D7877533
...
444
Screw WPL-M0219601
...
1221
Plug, Button (wht) WPL-M0311605
...
1682
Trim, Lower Frz Dr (black) WPL-D7792712
...
1702
Ass`y, Dr Hndl Blk WPL-D7815915Q
...
1722
Trim, Upper Frz Dr Black WPL-D7852112
...
1752
Trim Center Frz (b) WPL-D7854002
...
1792
Kit, Screw WPL-R9800670
...
1822
Screw WPL-WP489349
...
1832
Retainer, Trim WPL-D7793002
...
1842
Retainer, Trim WPL-D7793102
...
2104
Insert-E Facade WPL-D7842262

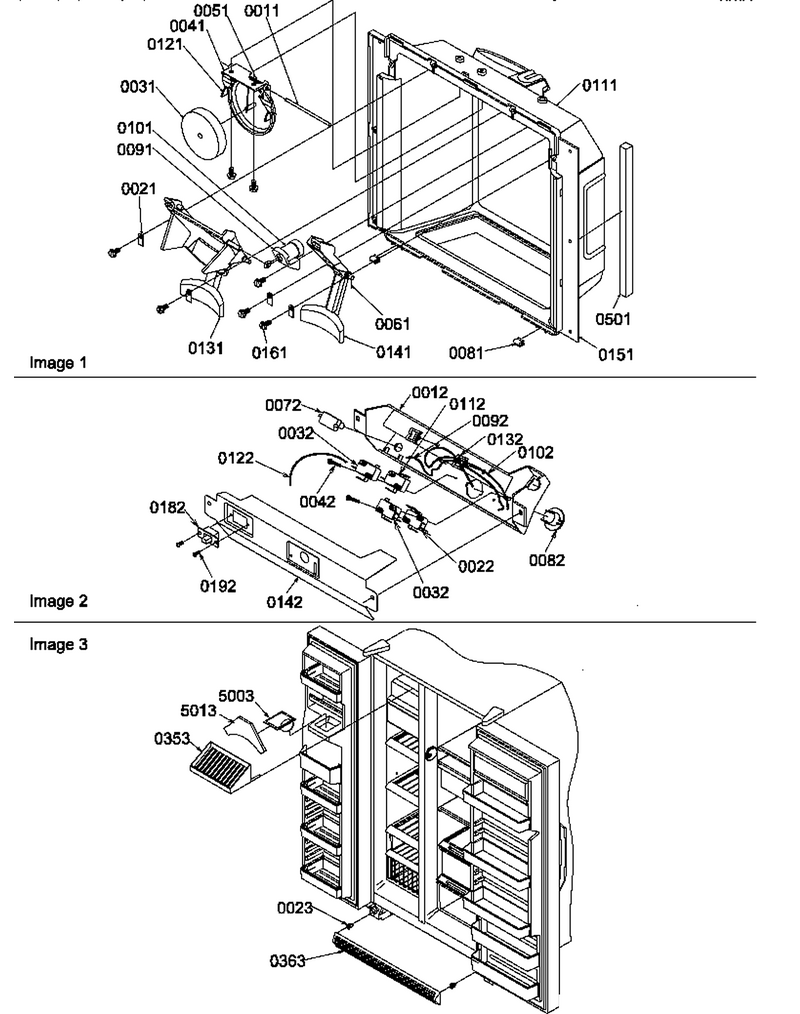

06 - Ice & Water Cav/elec Brkt/& Toe Grille

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
11
Pin, Chute Door WPL-A1061501
...
12
Bracket, Elec Mtg WPL-10323305
...
21
Retainer, Ice Arm WPL-A1061601
...
22
Switch, Limit (water Disp) WPL-10533002
...
23
Clip WPL-WPM0117303
...
31
Insulation, Chute Door WPL-B8380701
...
32
Switch- Li WPL-WP10533003
...
41
Brkt-Chute Door WPL-B8380801
...
42
Screw, T.f. WPL-M0237809
...
51
Spring,chute Door WPL-B8380901
...
61
Spring, Return WPL-B8385401
...
72
Switch-Light Cavity WPL-10166101
...
81
Clip WPL-W10819546
...
82
Socket, Light WPL-10131701
...
91
Retainer Door Delay WPL-C8972501
...
92
Wire-Jumper WPL-D7726590
...
101
Delay, Door WPL-C8973602
...
102
Wire, Jumper WPL-D7726597
...
111
Cavity-Dis WPL-10876038
...
112
Switch, Limit WPL-10533001
...
121
Kit,chute Dr No.3 WPL-10246601
...
122
Wire-Jumper WPL-D7726592
...
131
Arm-Dispsr WPL-12002642
...
132
Wire Clip WPL-B5667304
...
141
Arm-Dispsr WPL-12002642
...
142
Cover, Electric Brkt WPL-10131808
...
151
Heater-Cavity WPL-10882106
...
161
Screw WPL-WP90767
...
182
Switch-Crushed/cube WPL-10166002
...
192
Screw WPL-W11084238
...
353
Rack, Juice V WPL-D7839703
...
363
Assy, Toe Grille (black) WPL-10492001
...
501
Gasket WPL-A3030357
...
5003
Ice Chute WPL-10131401
...
5013
Gasket-Ice Chute WPL-12044601

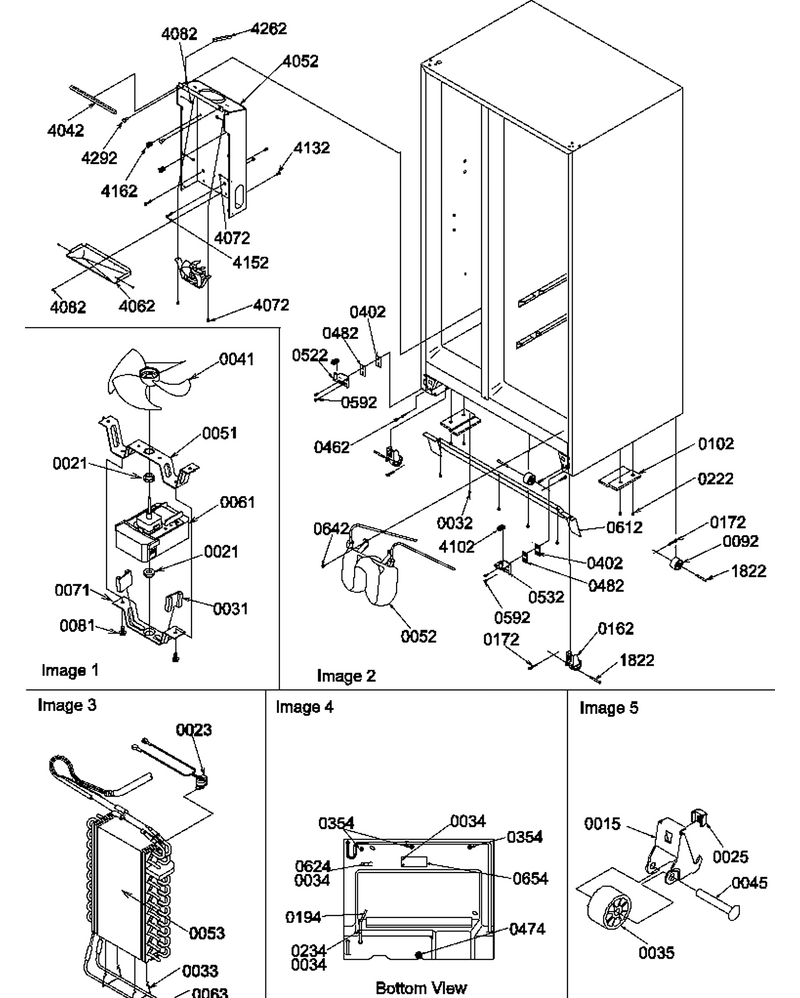

03 - Drain System, Rollers, And Evap

...
...
15
Assy, Roller Bracket WPL-12452602Q
...
21
Grommet WPL-WP2264462
...
23
Thermostat WPL-R0161088
...
25
Nut, Speed WPL-M0286708
...
31
Shim WPL-A1047901
...
32
Screw WPL-WP489069
...
33
Clip WPL-W11673433
...
34
Screw WPL-WP489069
...
35
Roller WPL-WP10450603
...
41
Fan-Evap WPL-12033101
...
45
Rivet WPL-M1205302
...
51
Brkt Evap Fan WPL-C8881301
...
52
Reservoir WPL-R0181175
...
53
Low-Side Assembly WPL-RO170055
...
61
Motor-Evap WPL-WPC8891605
...
63
Heater- Ev WPL-WP12049801
...
71
Brkt, Mtr Shroud WPL-D7767705
...
81
Screw WPL-WP90767
...
92
Roller WPL-WP10450603
...
102
Support, Mach Comp. WPL-10508001
...
162
Assy, Roller Bracket WPL-12452602Q
...
172
Cotter Pin K WPL-M1200004
...
194
Tube, Drain WPL-10505101
...
222
Screw WPL-WP3400094
...
234
Clamp WPL-M0102303
...
354
Plug, Button (blk) WPL-A3080001
...
402
Kit,btm Hinge Shim WPL-10399501
...
462
Screw, Mach WPL-M0206313
...
474
Plug, Button WPL-A3076901
...
482
Kit,btm Hinge Shim WPL-10399502
...
522
Bottom Hinge, Frz WPL-10163601
...
532
Rh Bot Hinge-Bk E Ct WPL-10496118
...
592
Screw WPL-WP67006715
...
612
Baffle, Mach Air WPL-10508105
...
624
Clip, Wire WPL-M0585206
...
642
Screw WPL-W11573574
...
654
Brkt, Defrost Timer WPL-10876901
...
1822
Pin K WPL-M1200202
...
4042
Gasket, Foam WPL-A3189362
...
4052
Evap. Shield WPL-D7865812
...
4062
Drip Tray Pnt. WPL-D7850202
...
4072
Screw WPL-WP90767
...
4082
Rivet WPL-10098801
...
4102
Kit,dr Closure WPL-R0181181
...
4132
Grommet A WPL-M0580002
...
4152
Clip, Evap WPL-10527401
...
4162
Clip, Evaporator WPL-10623003
...
4262
Gasket WPL-B8386602
...
4292
Grommet WPL-M0580003

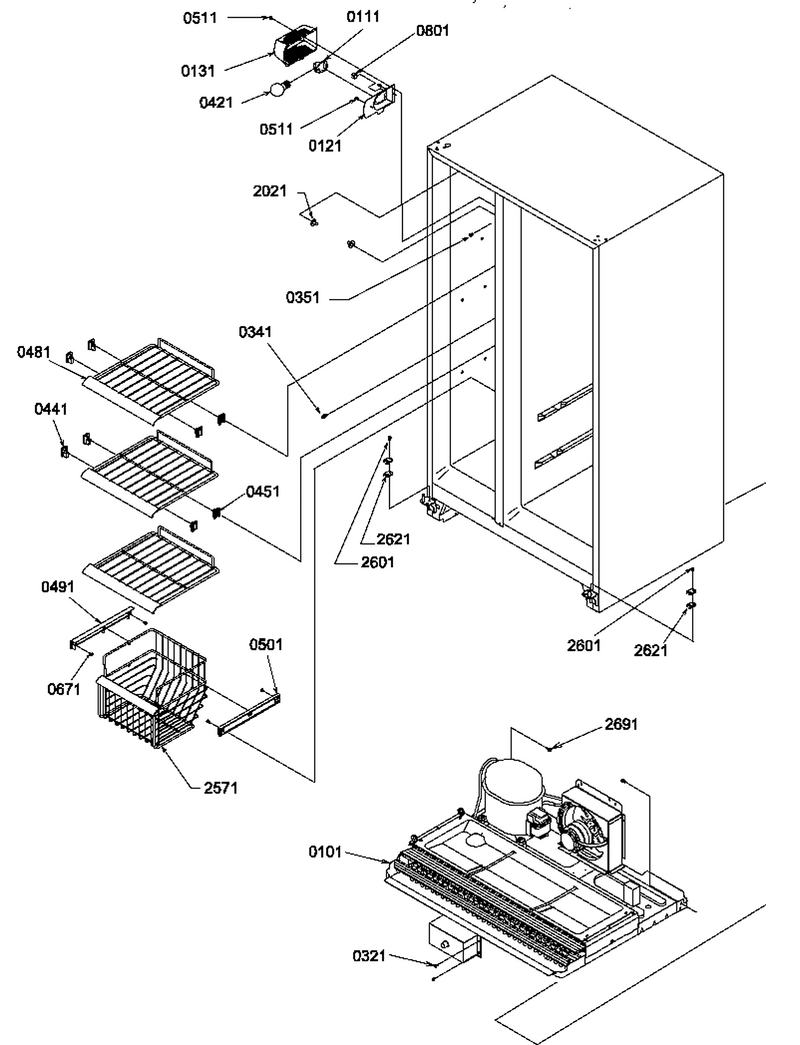

05 - Fz Shelves & Light

...
...
101
See Note Mc Assy -- (see Page 22 And 23 For Assy Breakdown) WPL-Y00000000
...
111
Socket-Light WPL-D7714407
...
121
Plate-Light Socket WPL-D7753503
...
131
Shield, Light WPL-D7786603
...
321
Screw WPL-WP489464
...
341
Tie Wire WPL-WPM0322202
...
351
Grommet, Screw WPL-M0580007
...
421
Light Bulb WPL-8009
...
441
Support, Shelf (lt) WPL-12015002
...
451
Support- S WPL-WP10941102
...
481
Shelf, Stat. Freezer WPL-12012603
...
491
Rail, Shelf (lt) WPL-12015101
...
501
Rail, Shelf (rt) WPL-10972801
...
511
Screw (3) WPL-67006425
...
671
Screw WPL-WP98165
...
801
Clip, Ground WPL-B5733302
...
2021
Support WPL-M0560005
...
2571
Basket, Freezer WPL-12012001
...
2601
Screw, Lock Brake Mounting WPL-M0220418
...
2621
Kit- E Bot WPL-R9800056
...
2691
Screw, Sm WPL-M0211357

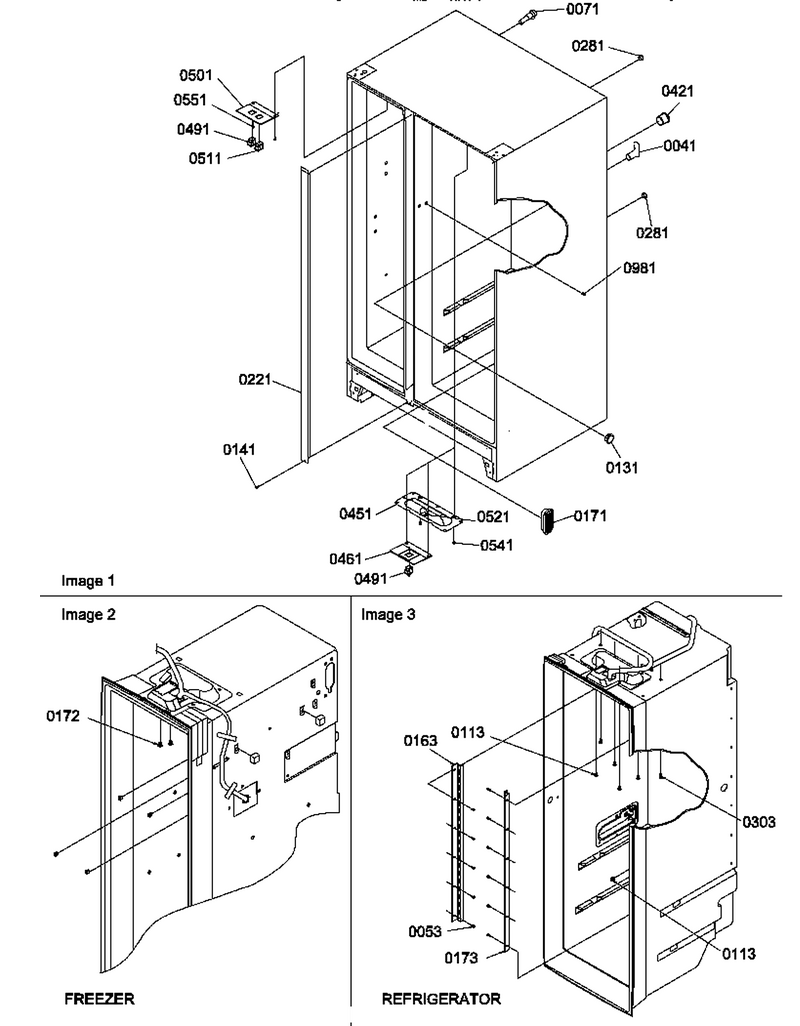

02 - Cabinet Parts

...
...
41
Tunnel, Heat Exchanger WPL-C8971903
...
53
Screw WPL-WP90767
...
71
Fill Tube WPL-R0182123
...
113
Grommet, Screw WPL-M0580007
...
131
Tunnel, Retainer WPL-10923101
...
141
Screw, Handle (black) WPL-12991101
...
163
Ladder, Cantilever WPL-D7789808
...
171
Grille-Rtn Air WPL-D7785401
...
172
Grommet, Screw WPL-M0580007
...
173
Ladder, Cantilever WPL-D7789809
...
221
See Note Vertical Mullion, Almond WPL-Y00000000
...
281
Plug, Button (blk) WPL-A3080001
...
303
Grommet, Screw WPL-M0581001
...
421
Tunnel, Wire WPL-10703701
...
451
Housing-Ref Light WPL-D7716409
...
461
Cover, Light Sw WPL-D7297604
...
491
Switch WPL-W11384469
...
501
Cover Light WPL-D7749002
...
511
Switch WPL-C3680306
...
521
Clip, Ground WPL-B5733302
...
541
Screw WPL-WP90767
...
551
Screw (3) WPL-67006425
...
981
Clip, Air Tunnel WPL-10426801

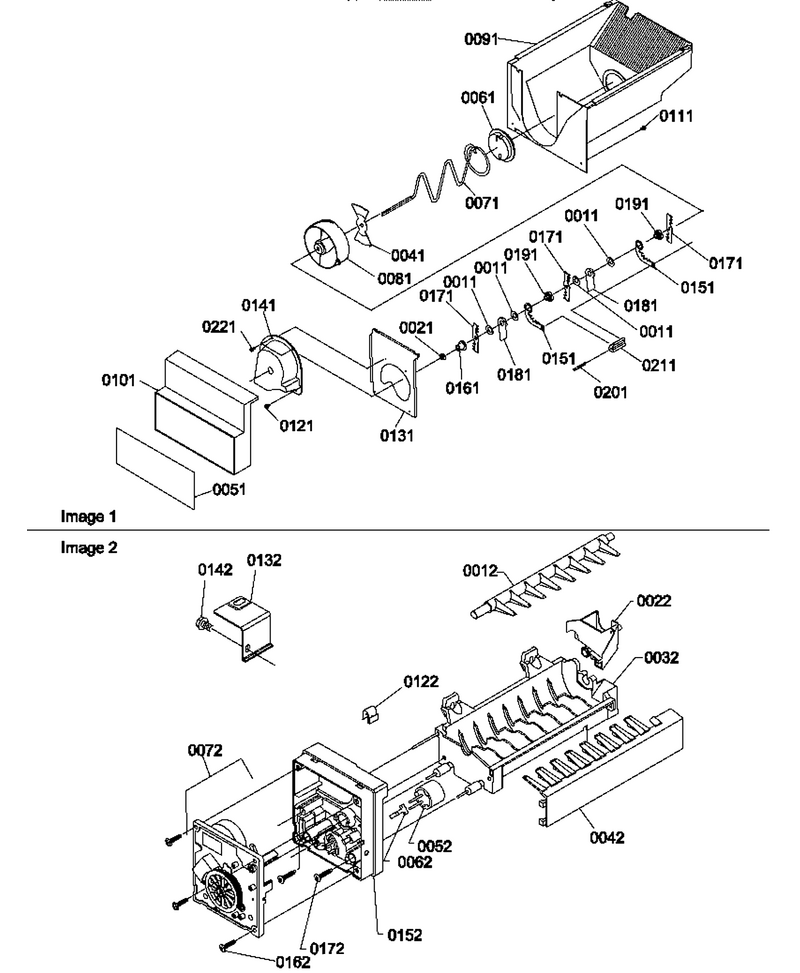

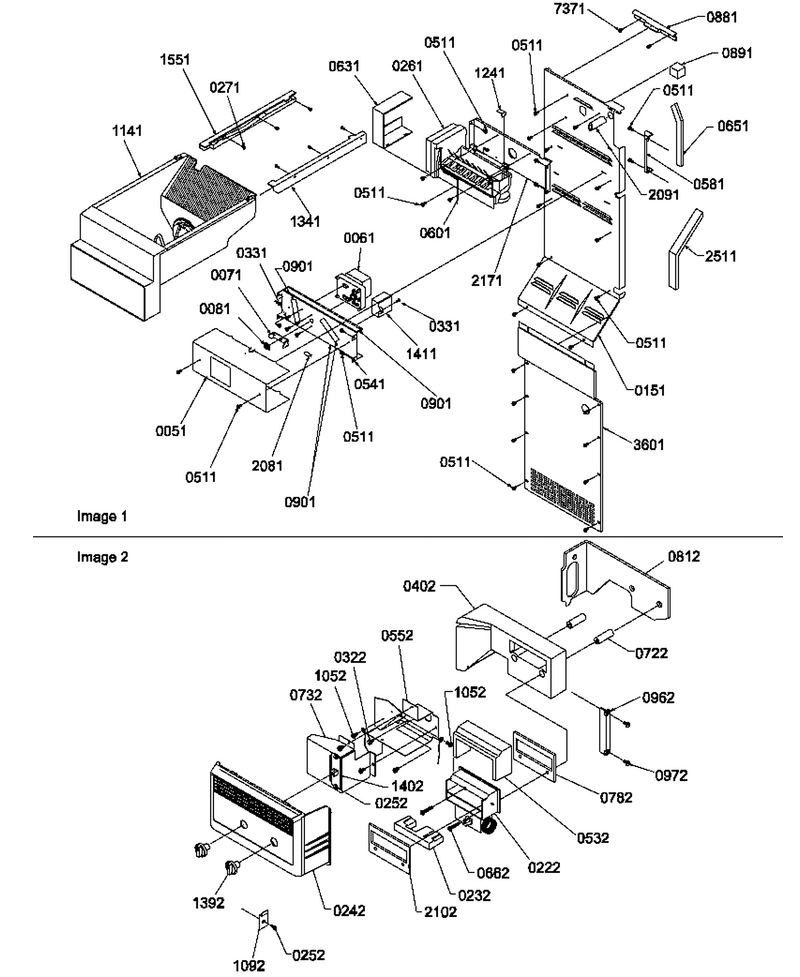

07 - Ice Bucket Auger And Ice Maker Parts

...
...
NI
Crushr-Mec WPL-WP12740302
...
11
Washer, Waved WPL-10275101
...
12
Arm-Ejectr WPL-WP627843
...
21
Nut WPL-WPM0223101
...
22
Cup-Fill WPL-WP628356
...
32
Ice Maker Assy. WPL-D7824706Q
...
41
Bar, Crsh Ice Bucket WPL-10113801
...
42
Arm-Stripr WPL-WP2182124
...
51
Insert,bucket Fr WPL-C8975339
...
52
Bimetl-Def WPL-WP627985
...
61
Cap- Helix WPL-WPD7749401
...
62
Clip WPL-WP2315522
...
71
Agitator, Ice WPL-10114401
...
72
Motor-Modl WPL-W10190935
...
81
Wheel- Crs WPL-WP67002052
...
91
Bucket- Cr WPL-WP10111905
...
101
Front-Crsh Ice Brkt WPL-10112001
...
111
Screw (3) WPL-67006425
...
121
Screw WPL-M0254706
...
122
Clip WPL-WP628379
...
131
Front, Ice Crusher WPL-10115001
...
132
Bracket, I/m WPL-B8391802
...
141
Cover, Blade WPL-10114002
...
142
Screw (3) WPL-67006425
...
151
Blade, Static WPL-10114601
...
152
Housing-Im WPL-WP2195914
...
161
Spacer, Cover WPL-10113901
...
162
Screw WPL-R0186041
...
171
Blade, Rotating WPL-10114501
...
172
Screw WPL-R0186040
...
181
Damper, Ice WPL-10275201
...
191
Washer Stepped WPL-10114301
...
201
Pin, Roll WPL-M1200108
...
211
Anchor, Blade WPL-10114101
...
221
Screw, Tf WPL-M0231704

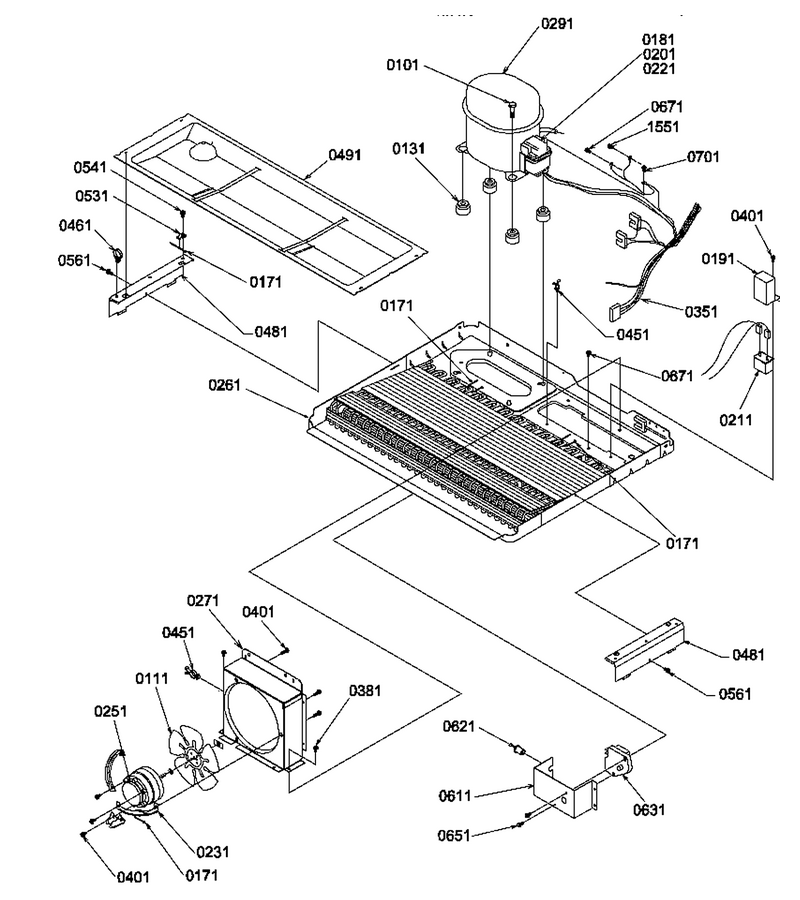

09 - Machine Compartment

...
...
101
Screw, Shldr WPL-M0221523
...
111
Blade, Fan WPL-10518702
...
131
Grommet, Compressor WPL-67003493
...
171
Tie-Wire WPL-WPW10339879
...
181
Overload WPL-10377015
...
191
Shield, Capacitor WPL-10266402
...
201
Start-Dev WPL-WP10097202
...
211
Capacitor WPL-WP65889-4
...
221
Cover-Term WPL-4344043
...
231
Kit-Shroud WPL-R0130014
...
251
Motor-Cond WPL-833697
...
261
Cond/pan Ass`y(e Ct) WPL-10580406
...
271
Kit-Shroud WPL-R0130014
...
291
Compressor WPL-W10309990
...
351
Harness, Mc WPL-10947202
...
381
Screw WPL-WP90767
...
401
Screw WPL-M0223803
...
451
Clamp, Purse Lock Standoff WPL-74006883
...
461
Clip, Guide WPL-M0118703
...
481
Brkt, Drain Pan Mtg. WPL-10495702
...
491
Pan, Drain WPL-10507904
...
531
Tab, Wire Tie WPL-M0585601
...
541
Screw, Handle WPL-67006529
...
561
Rivet-Pop WPL-59002054
...
611
Bracket, Timer WPL-12534801
...
621
Bushing-Snap WPL-A3293505
...
631
Timer-Def WPL-R0131577
...
651
Screw WPL-M0218118
...
671
Screw WPL-WP489128
...
701
Screw WPL-12992301
...
1551
Screw WPL-WP489399

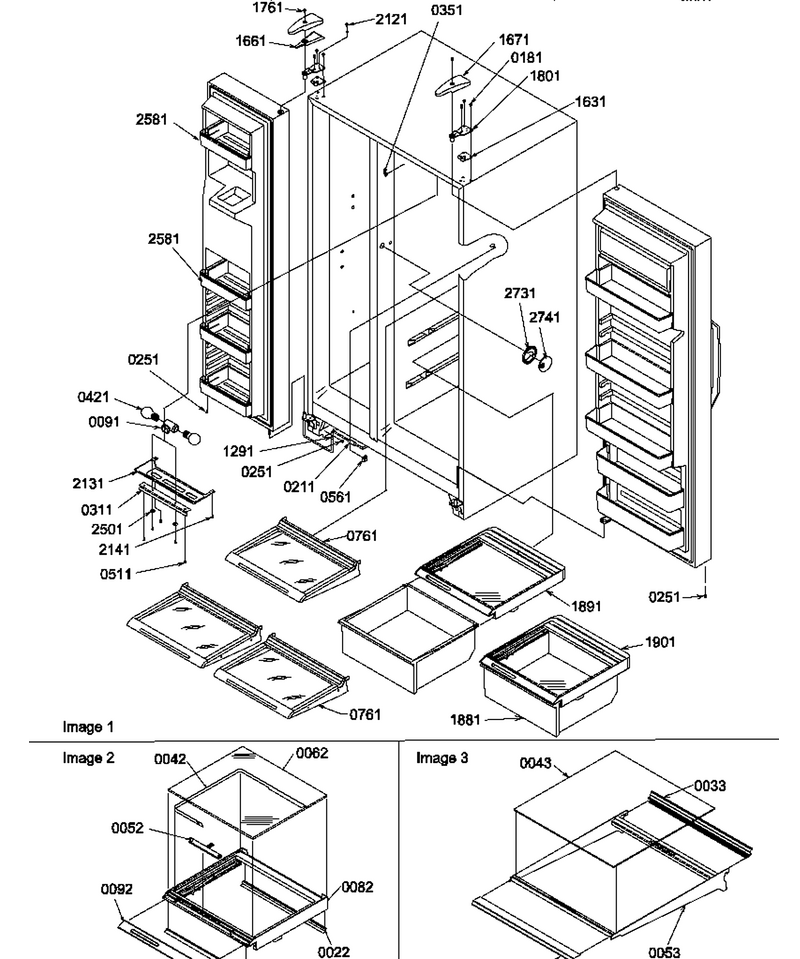

11 - Ref/fz Shelves, Lights, And Hinges

...
...
22
Seal Crisper WPL-D7718402
...
23
Trim-Front Shelf WPL-C8913560
...
32
Seal, Crisper Frt WPL-10523402
...
33
Trim-Gl Shelf Rear WPL-C8913621
...
42
Band, Crisper WPL-10519307
...
43
Glass, Shelf WPL-Y10370052
...
52
Slide Crisper Control WPL-10289908
...
53
Assy, Glass Shelf WPL-D7871031
...
62
Glass, Shelf WPL-Y10370045
...
82
Frame, Crisper WPL-10470102
...
91
Socket, Dual Lamp WPL-12156201
...
92
Trim-Crsip Top Front WPL-10524321
...
181
Kit, Screw WPL-R9800670
...
211
Fitting WPL-WP4373559
...
251
Screw WPL-WP90767
...
311
Shield, Light WPL-10014717
...
351
Grommet, Screw WPL-M0580007
...
421
Light Bulb WPL-8009
...
511
Screw (3) WPL-67006425
...
561
Deflector-Air WPL-12016501
...
761
Assy, Glass Shelf WPL-10279143
...
1291
Clamp, Tube WPL-M0108001
...
1631
Shim, Top Hinge WPL-B8389007
...
1661
Foil, Hinge Cover V/a WPL-10126601
...
1671
Cover Hinge Black WPL-10126402
...
1761
Screw WPL-WP8281196
...
1801
Top Hinge-E Ct WPL-12077313
...
1881
Pan-Crisper WPL-10471910
...
1891
Up Crisp Frm Assy WPL-10543744
...
1901
Lw Crisp Frm Assy WPL-10543743
...
2121
Screw WPL-W11214483
...
2131
Cover, Ref. Light WPL-10493202
...
2141
Screw WPL-M0219546
...
2501
Washer WPL-M0270519
...
2581
Bucket-Fz Door WPL-10111206
...
2731
Control-Air WPL-10164702
...
2741
Grille-Control WPL-10164812

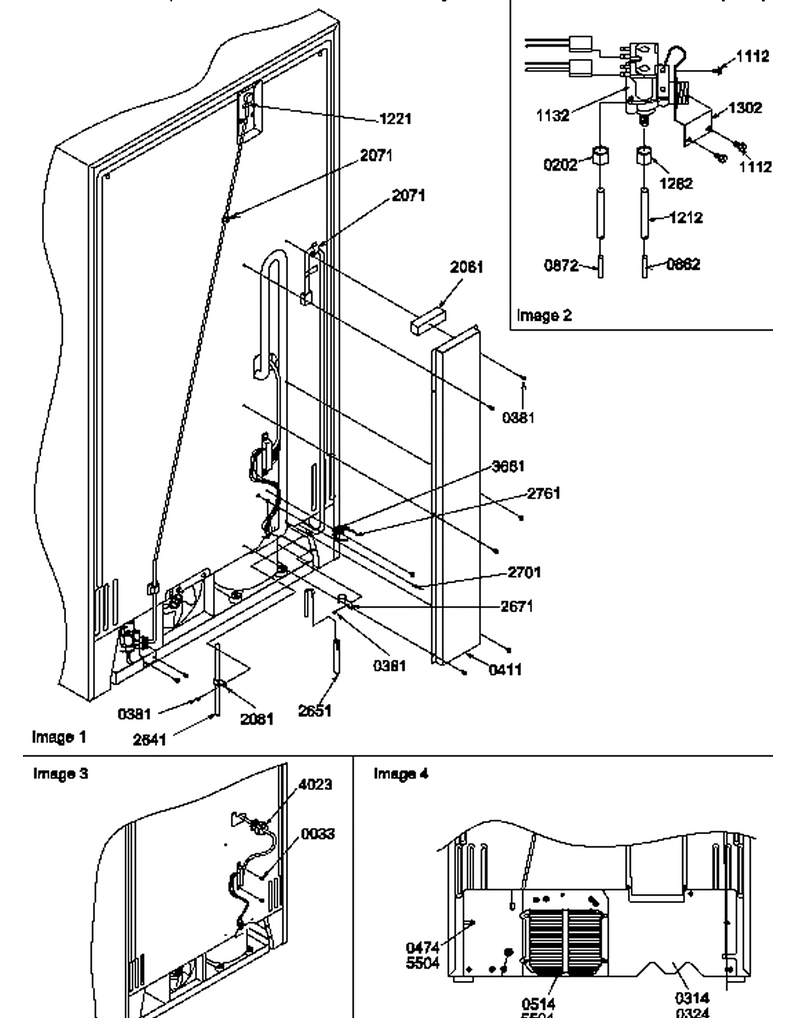

01 - Cabinet Back

...
...
NI
Insert- Pl WPL-WPA3223101
...
33
Screw WPL-WP489069
...
202
Nut, Sleeve WPL-M0753003
...
314
Assy, Mc Back WPL-12041703
...
324
Screw WPL-WP489464
...
381
Screw, Sm WPL-M0227217
...
411
Cover, Ht Exch WPL-10581305
...
474
Clamp, Tube WPL-M0108001
...
514
Back, M.c. WPL-12039903
...
862
Spring WPL-WPA1055105
...
872
Spring WPL-WPA1055105
...
1112
Screw, 8-32 X 3/8 WPL-681390
...
1132
Valve-Inlt WPL-WPW10245167
...
1212
Tube WPL-WPB5705307
...
1221
Clip- Spee WPL-WPM0114003
...
1262
Nut WPL-WP627018
...
1302
Brkt, Water Valve WPL-10496302
...
2061
Gasket, Foam WPL-A3189357
...
2071
Clip WPL-WPM0104106
...
2081
Lock, Purse WPL-74007369
...
2641
Cord-Power WPL-10916505
...
2651
Drier WPL-WPB2150504
...
2671
Clip, Drier WPL-10547001
...
2701
Screw, Spextite WPL-M0232330
...
2761
Tie-Wire WPL-WPW10339879
...
3661
Mount-Cradle WPL-10953201
...
4023
Harness, Outer Cab WPL-12017002
...
5504
Screw, Sm WPL-M0227217

08 - Ice Maker/control Assy

...
...
51
Sue D7788808 WPL-D7788828
...
61
Kit, Auger Motor WPL-10114804
...
71
Coupling WPL-WP10114901
...
81
Nut WPL-WPM0223101
...
151
Inner Fr Back Pnt WPL-D7821109
...
222
Control-Damper WPL-D7547411
...
232
Insert, Control WPL-C8902601
...
242
Cover, Control WPL-D7790335
...
252
Screw WPL-WP90767
...
261
Ice Maker Assy. WPL-D7824706Q
...
271
Screw, Handle WPL-67006529
...
322
Screw WPL-WP489464
...
331
Screw WPL-WPW10139210
...
402
D7749902q WPL-D7749902
...
511
Screw (3) WPL-67006425
...
532
Insulation WPL-D7788201
...
541
Support,auger Motor WPL-D7749207
...
552
Box, Control Btm WPL-D7822406
...
581
Cover, Supply Air WPL-D7838302
...
601
Arm,ice Maker Shut Off WPL-D7877001
...
631
Cover Im WPL-D7820401
...
651
Gasket WPL-B8386602
...
662
Screw WPL-M0216539
...
722
Spacer Damper WPL-A3044208
...
732
Box, Control Top WPL-D7868606
...
782
Gasket, Damper WPL-B8345401
...
812
Gasket Air Duct WPL-D7819101
...
881
Clamp WPL-C8976201
...
891
Gasket, Air Block WPL-C8976102
...
901
Gasket-Per Ft WPL-A3030305
...
962
Clamp WPL-C8977301
...
972
Screw WPL-WP489474
...
1052
Screw WPL-WP489399
...
1092
Brkt, Cont Cover WPL-12414701
...
1141
See Note Crsh Ice Bkt Assy -- (see Image 1, Page 28 And 29 For Assy Breakdown) WPL-Y00000000
...
1241
Clip WPL-B5720301
...
1341
Glide, Frz. (rt) WPL-67004323
...
1392
Knob, Control (wht) WPL-D7795826
...
1402
Assy, Control-Fz WPL-R0161092
...
1411
Start-Dev WPL-W10613606
...
1551
Glide, Container (left) WPL-67005375
...
2081
Lock, Purse WPL-74007369
...
2091
Ext, Fill Tube WPL-A3127411
...
2102
Gasket, Damper WPL-10383201
...
2171
Support-Im WPL-D7821004
...
2511
Gasket Foam WPL-A3189335
...
3601
Cover, Evap. WPL-D7865914
...
7371
Screw (3) WPL-67006425
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
