Amana GSAND-7D.A (BOM: GSAND-7D. A)

Model: GSAND-7D.A (BOM: GSAND-7D. A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

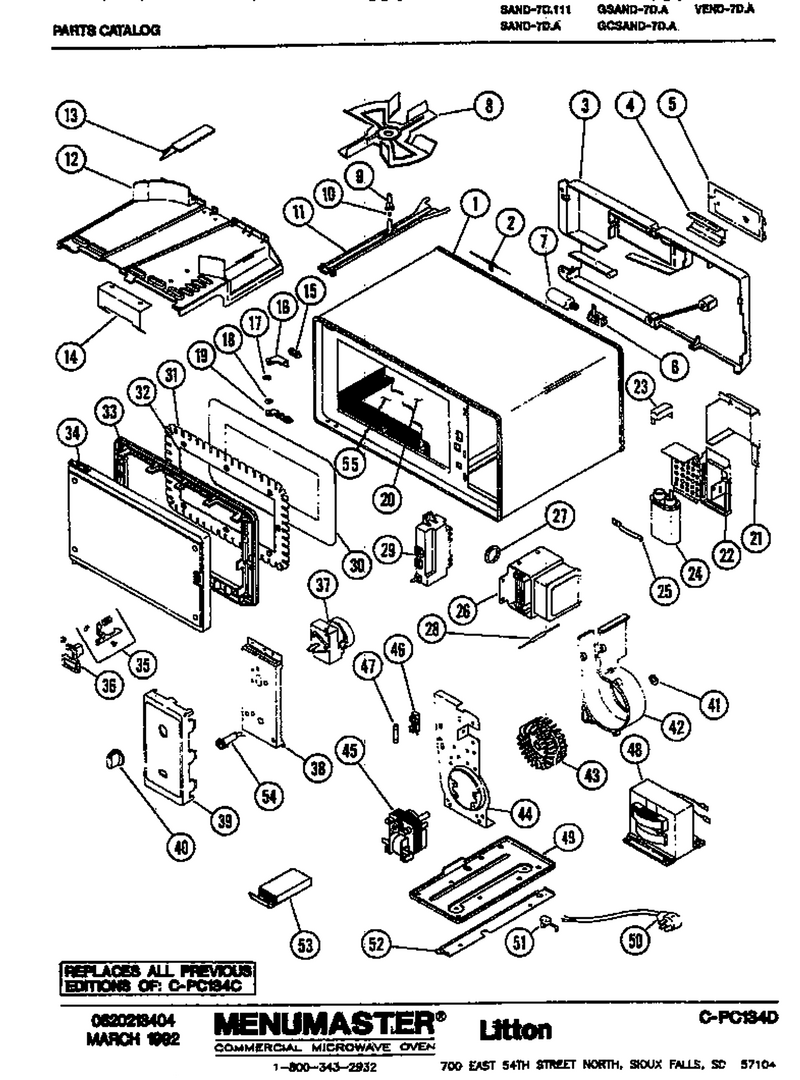

01 - Page 1

...
...
NI
U&c Mnl Vend-7d WPL-M94D490
...
1
Retainer Clip WPL-M2D677
...
2
Sensor, Cavity Kit WPL-M4D102
...
3
Rear Cover WPL-M20D289
...
4
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP90767
...
7
Light Bulb WPL-44865P01
...
8
Kit-Insert & Blade Stirrer WPL-R0130737
...
9
Kit, Stirrer Insert WPL-M2D678
...
10
Ball WPL-38321P01
...
11
Kit, Stirrer Bar WPL-M20D319
...
12
Stirrer Cover WPL-46713P01
...
13
Baffle Rh-Uas-S/s-46713p01x WPL-M65D311
...
14
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
15
Plate Nut WPL-45010P01
...
16
No.6 Flat Hd Machine Screw WPL-M1D60
...
17
No.10 Wave Washer WPL-M2D583
...
18
Nylon Flat Washer WPL-40370P01
...
19
Hinge Asy WPL-45179P01
...
20
Shelf Support WPL-M2D793
...
21
Lead Cover WPL-M20D257
...
22
Capacitor Cover WPL-M20D258
...
23
Kit, Diode WPL-M3D71
...
24
Hv Cap .91+6%-3%mfd 2kvacx WPL-43912P03
...
25
Screw WPL-WP90767
...
26
Kit, Magnetron WPL-M57D37
...
27
Gasket-Rf WPL-M2D296
...
28
Sensor Magnetron Kit WPL-M4D101
...
29
Screw WPL-WPW10001160
...
30
Window, Inner Door WPL-10785201
...
31
No.8 Ab X 3/8`` Screw WPL-M1D906
...
32
Outer Window Kit WPL-M51D60
...
33
Door Filler Kit WPL-M55D20
...
34
Outer Window Kit WPL-M51D99
...
35
Kit, Door Hook WPL-M2D675
...
36
Screw WPL-WP8533976
...
37
Timer Kit WPL-M30D91
...
38
Screw WPL-WP90767
...
39
Dec Panel Gsand-7d.a WPL-3131006601
...
40
Knob Timer WPL-M6D322
...
41
Retainer WPL-M1D892
...
42
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
43
Kit, Blower Wheel WPL-R0163293
...
44
Blower Brkt Kit WPL-M20D256
...
45
Nut WPL-WP488130
...
46
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
47
Fuse 20 A WPL-WPM0805101
...
48
Xfmr-Hv WPL-R9700031
...
49
Btm Acc Pnl Assy WPL-M53D67
...
50
Cord Retainer WPL-M2D674
...
51
Spacer Fuse WPL-M2D365
...
52
Rail Kit WPL-M20D290
...
53
Wire Harness WPL-M27D376
...
54
Lamp-Indicator M9d120 WPL-1341004275
...
55
Ass`y, Spacer Support-Reworked WPL-4180030501Q
