Amana GRI2001W (BOM: P1168202W W)

Model: GRI2001W (BOM: P1168202W W)

Save Part Not Listed?
product name

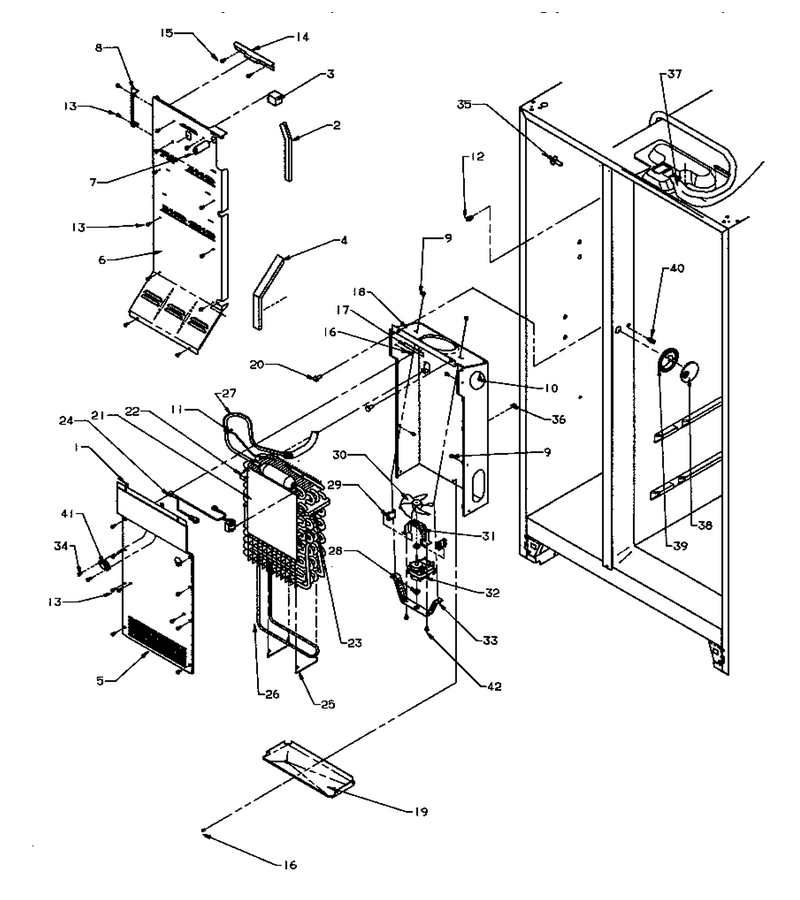

02 - Evap And Air Handling

...
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Gasket Foam WPL-A3189335
...
5
Cover, Evaporator WPL-D7865907
...
6
Back, Inner Frz (pnt) WPL-D7821146
...
7
Ext. Fill Tube WPL-A3127412
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP489399
...
11
Tie-Wire WPL-WPW10339879
...
12
Tie Wire WPL-WPM0322202
...
13
Screw (3) WPL-67006425
...
14
Clamp WPL-C8976201
...
15
Screw WPL-WP98165
...
16
Rivet WPL-10098801
...
17
Gasket, Foam WPL-A3189362
...
18
Shield, Evap (ect) WPL-D7865810
...
19
Drip Tray Pnt. WPL-D7850202
...
20
Grommet WPL-M0580003
...
21
Gasket, Evap. WPL-B8327901
...
22
Block, Air Coil (left) WPL-10629601
...
23
Block, Air Coil (right) WPL-10629001
...
24
Kit, Defrost Thermostat WPL-10544004
...
25
Clip, Evap. Heater WPL-C8983101
...
26
Heater, Defrost WPL-D7872801
...
27
Assy,low Side-Thin Wall Evap WPL-R0170041
...
28
Grommet WPL-WP2264462
...
29
Shim WPL-A1047901
...
30
Fan-Evap WPL-C8795501
...
31
Brkt Evap Fan WPL-C8881301
...
32
Motor-Evap WPL-WPC8891605
...
33
Brkt, Mtr Shroud WPL-D7767705
...
34
Screw WPL-WP90767
...
36
Grommet A WPL-M0580002
...
37
Harness, Outer Liner WPL-10554801
...
38
Grille, Control WPL-10164813
...
39
Control-Air WPL-10164702
...
40
Clip, Air Tunnel WPL-10426801
...
42
Screw WPL-WP12990527

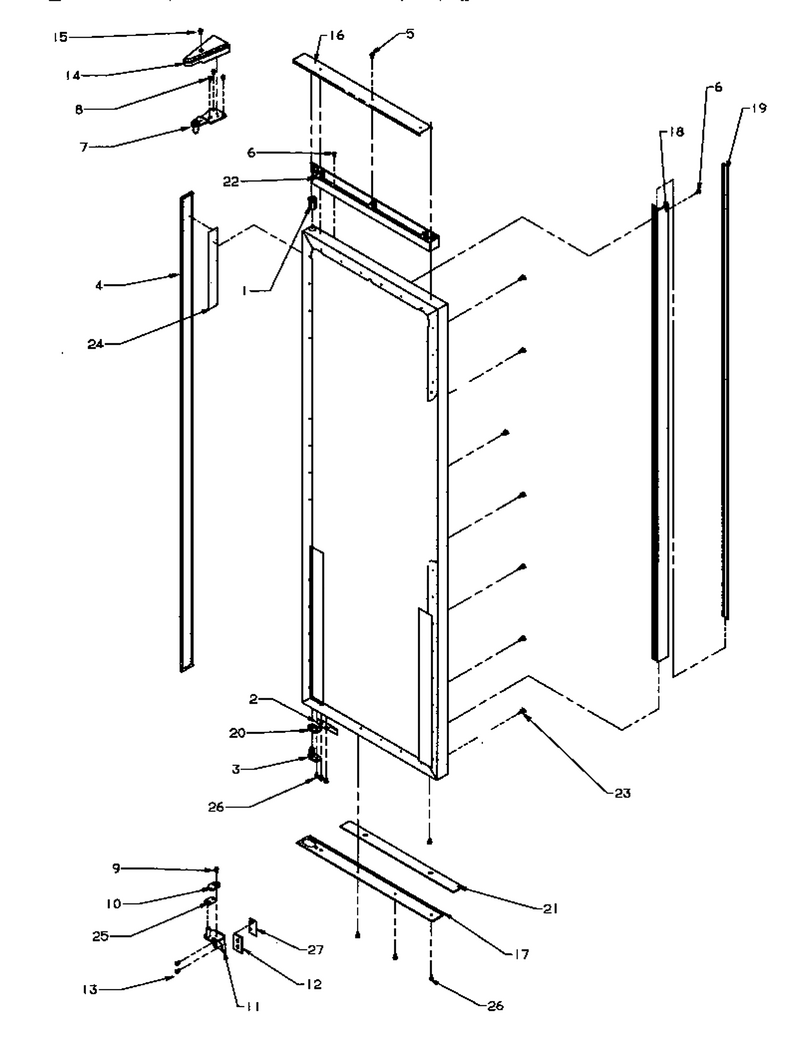

09 - Ref Door, Hinge & Trim Parts

...
...
1
Bushing, Door (wht) WPL-10393802
...
2
Stop, Door (blk) WPL-12636401B
...
3
Kit,dr Closure WPL-R0181181
...
4
Trim, Vertical WPL-10494505
...
5
Screw WPL-M0213815
...
6
Screw WPL-WP98165
...
7
Hinge, Top R (e-Ct) WPL-10495805
...
8
Kit, Screw WPL-R9800670
...
9
Screw, Lock Brake Mounting WPL-M0220418
...
10
Kit,dr Closure WPL-R0181181
...
11
Kit,hinge Rh Btm(b) WPL-10496105
...
12
Kit,btm Hinge Shim WPL-10399501
...
13
Screw WPL-WP67006715
...
14
Hinge- Cover Lh Gray WPL-10504217
...
15
Screw WPL-M0202325
...
16
Trim, Refrig Door (top) WPL-10602702
...
17
Trim, Refrig Door (bottom) WPL-10602603
...
18
Handle, Refrig. Dr WPL-10345605
...
19
Insert, Handle WPL-10234704
...
20
Shim- Dr B WPL-WP10361803
...
21
Support Ref Trim (btm) WPL-10494606
...
22
Extrusion, Refrig Door WPL-10496004
...
23
Grommet, Screw WPL-10281002
...
24
Double Backed Tape 6ft Roll WPL-R0195042
...
25
Shim, Door Closure WPL-B8387701
...
26
Screw WPL-WP98165
...
27
Kit, Bot.hinge Shim WPL-10860201

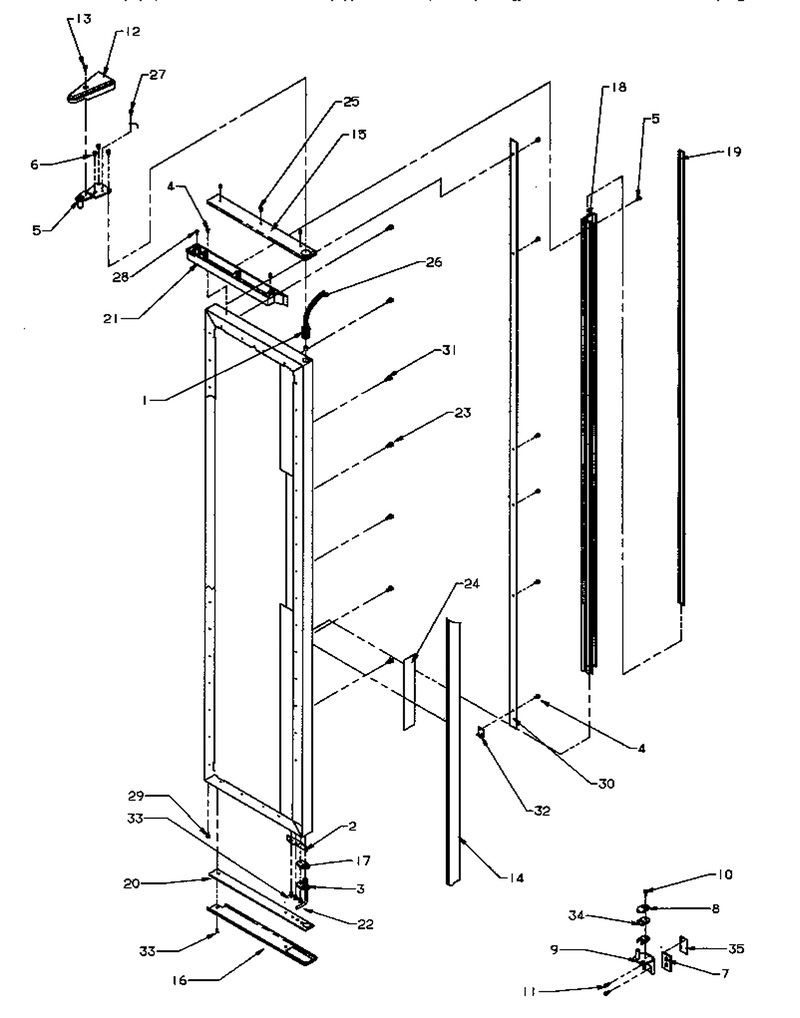

04 - Fz Door Hinge & Trim Parts

...
...
The Foamed In Place Post Condenser Mullion Loop Which Replaces The Electric Mullion On This Manual Clips To The Back Of The Mullion. Any Attempt To Remove Wil WPL-NOTE:
...
1
Bushing, Door (wht) WPL-10393802
...
2
Stop, Door (blk) WPL-12636401B
...
3
Kit,dr Closure WPL-R0181181
...
4
Screw WPL-WP98165
...
5
Hinge, Top L (e-Ct) WPL-10495807
...
6
Kit, Screw WPL-R9800670
...
7
Kit,btm Hinge Shim WPL-10399501
...
8
Kit,dr Closure WPL-R0181181
...
9
Kit,hinge Lh Btm(b) WPL-10496104
...
10
Screw, Lock Brake Mounting WPL-M0220418
...
11
Screw WPL-WP67006715
...
12
Cover Hinge WPL-10504218
...
13
Screw WPL-M0202325
...
14
Trim, Vertical WPL-10494506
...
15
Trim, Frz Door (top) WPL-10602802
...
16
Trim, Frz Dr (bottom) Ss WPL-10602503
...
17
Shim- Dr B WPL-WP10361803
...
18
Handle, Refrig. Dr WPL-10345606
...
19
Insert, Handle WPL-10234704
...
20
Support, Fz Trim WPL-10494604
...
21
Extrusion, Frz Door White WPL-10494704
...
23
Grommet, Screw WPL-10281002
...
24
Double Backed Tape 6ft Roll WPL-R0195042
...
25
Screw WPL-M0213815
...
33
Screw WPL-WP98165
...
34
Shim, Door Closure WPL-B8387701
...
35
Kit, Bot.hinge Shim WPL-10860201

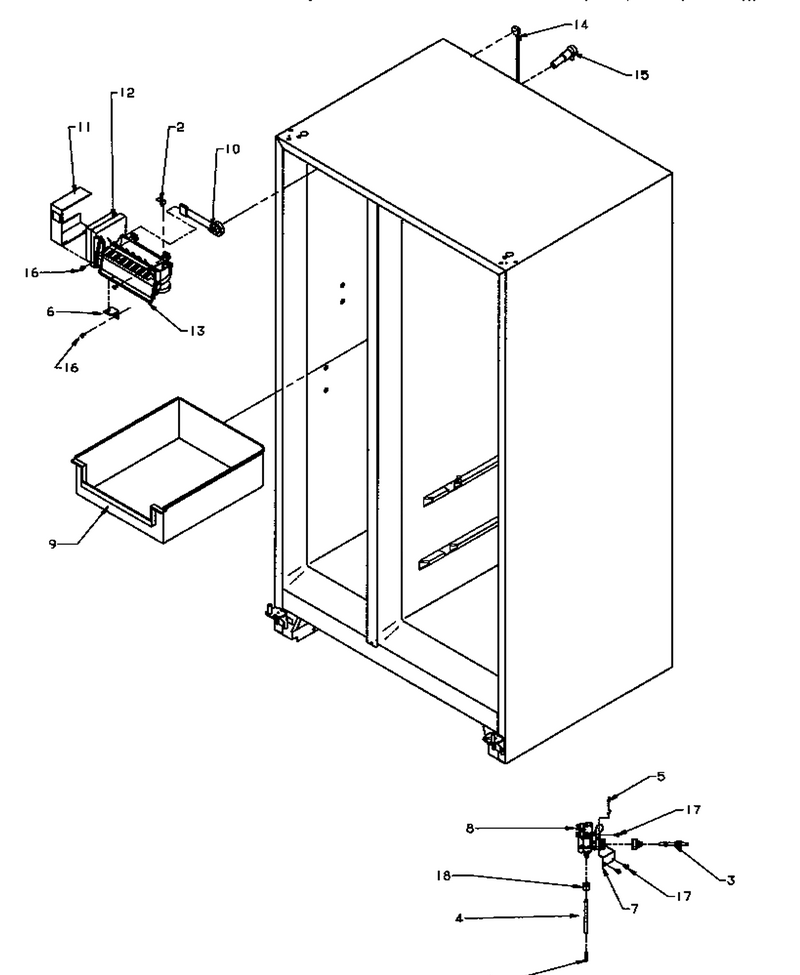

06 - Ice Maker

...
...
NI
Insert- Pl WPL-WPA3223101
...
1
Spring WPL-WPA1055105
...
2
Clip WPL-B5720301
...
3
Coupling WPL-10244903
...
4
Tube WPL-WPB5705307
...
5
Clip, Water Valve WPL-10798001
...
6
Bracket, I/m WPL-B8391802
...
7
Bracket WPL-WPD7701602
...
8
Valve-Inlt WPL-WPD7712603
...
9
Pan, Ice WPL-D7806211
...
10
Harness, Mod. Im WPL-D7826301
...
11
Cover Im WPL-D7820401
...
12
Ice Maker Assy. WPL-D7824706Q
...
13
Arm, I.m. Shut-Off WPL-Y10901401
...
14
Clip- Spee WPL-WPM0114003
...
15
Assy, Fill Tube WPL-12023401Q
...
16
Screw (3) WPL-67006425
...
17
Screw, 8-32 X 3/8 WPL-681390
...
18
Nut WPL-WP627018

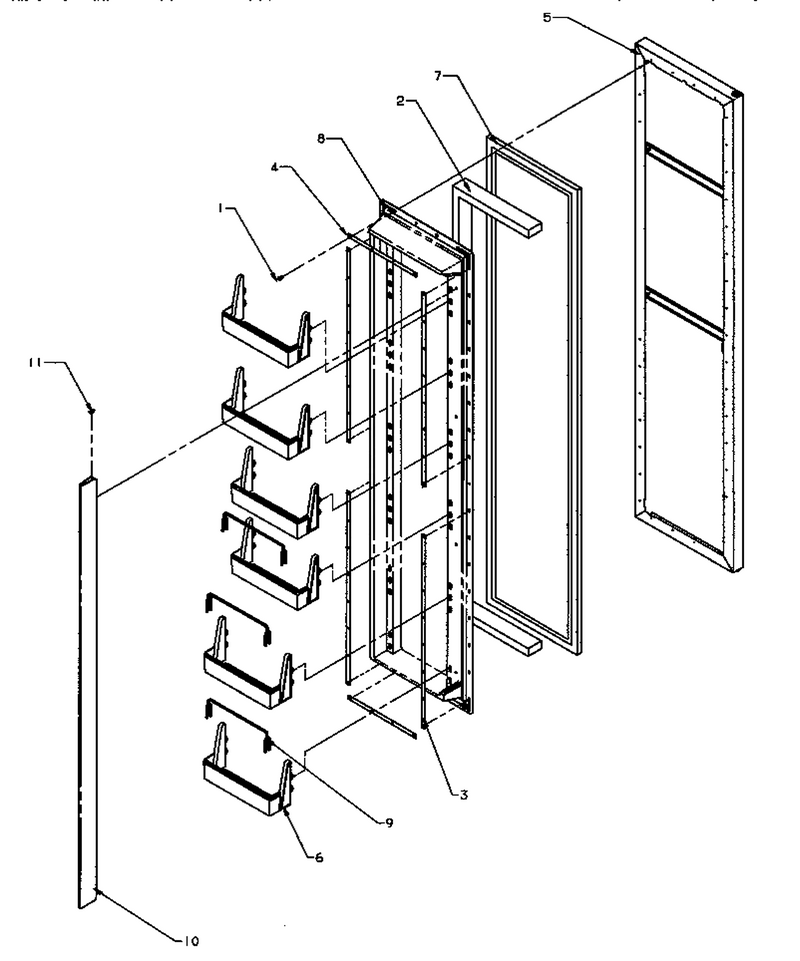

08 - Ref Door

...
...
1
Ref. Door Fm Assy. WPL-10568301W
...
2
Liner, Refrig Door WPL-10505401
...
3
Bucket, Refrig Door WPL-10520206
...
4
Shelf-Ref Door WPL-10521806
...
5
Bin-Cntlvr WPL-WP10520405
...
6
Assy, Shelf Remove WPL-10426704
...
7
Insul., Batt WPL-B0523590
...
8
Gasket, Door (gray) Ref WPL-10359706
...
9
Screw WPL-WPM0219730
...
10
Cavity, Dairy WPL-10516901
...
11
Door, Dairy WPL-10161609
...
13
Snugger, Shelf WPL-10169004
...
14
Tray, Butter WPL-10310901
...
15
Bin-Egg WPL-10423116
...
16
Lid, Utility WPL-10436404
...
17
Frame-Chiller WPL-10519004
...
18
Door, Chiller WPL-10519208
...
19
Glide-Igloo Door WPL-10162101
...
20
Tunnel-Air WPL-12033201
...
21
Clip-Tubular WPL-10165101
...
22
Clip, Retainer WPL-10202001
...
23
Tray, Egg WPL-10436504
...
26
Extrusion, Shelf Dairy WPL-10162007
...
37
Compartment, Medicine WPL-10601801
...
38
Door, Medicine Compartment WPL-10601902

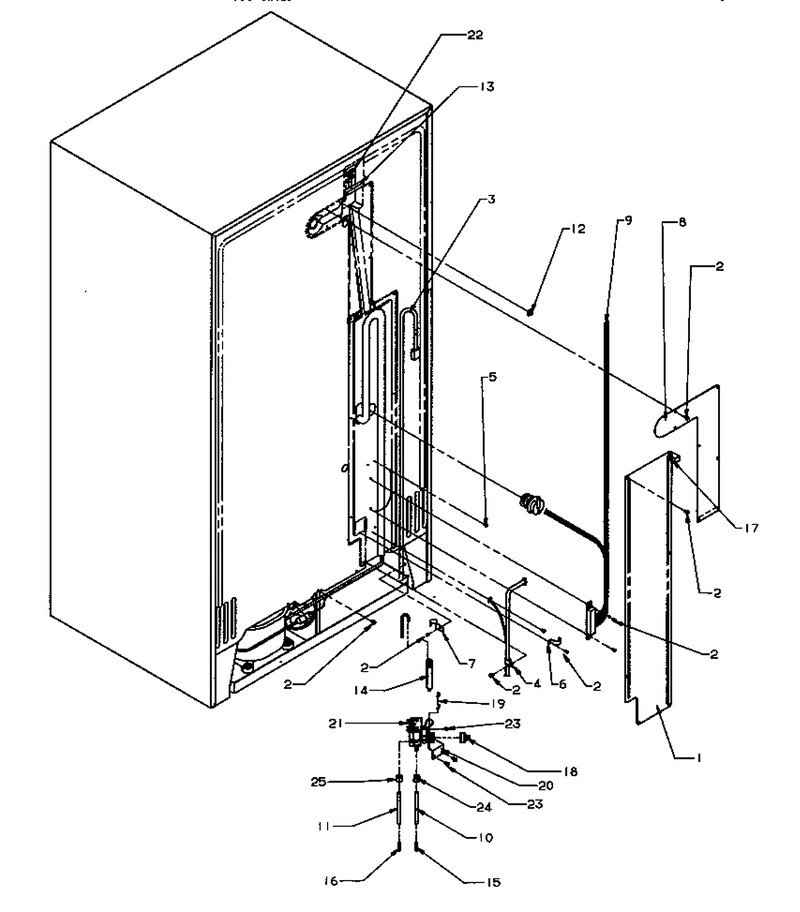

01 - Back Unit

...
...
1
Cover, O.c.back WPL-10178406
...
2
Screw WPL-WP489069
...
3
Cord, Power WPL-10678503
...
4
Clamp, Speed WPL-M0103904
...
5
Screw, Spextite WPL-M0232330
...
6
Clamp WPL-B5794201
...
7
Clip, Drier WPL-10547001
...
8
Cover - Wire WPL-10178505
...
9
Harness, Cab WPL-10844001
...
12
Clip WPL-WPM0104106
...
13
Gasket (ft.) WPL-10839803
...
14
Drier WPL-WPB2150504
...
17
Clamp, Speed WPL-M0103904
...
18
Coupling WPL-10244903

03 - Fz Door

...
...
1
Screw WPL-WPM0219730
...
2
Insulation Ft. K WPL-B0523563
...
3
Retainer, Door Liner WPL-D7828601
...
4
Retainer, Door Liner WPL-C8982801
...
5
Assy Frz Dr Cfc11 WPL-10574601W
...
6
Shelf, Frz Door WPL-10525506
...
7
Gasket, Door (gray) Ref WPL-10359706
...
8
Liner, Frz. Door WPL-10534901
...
9
Retainer, Package WPL-10237604
...
10
Rem Dike I & W Lower WPL-10063206
...
11
Clip, Door Dike WPL-10063102

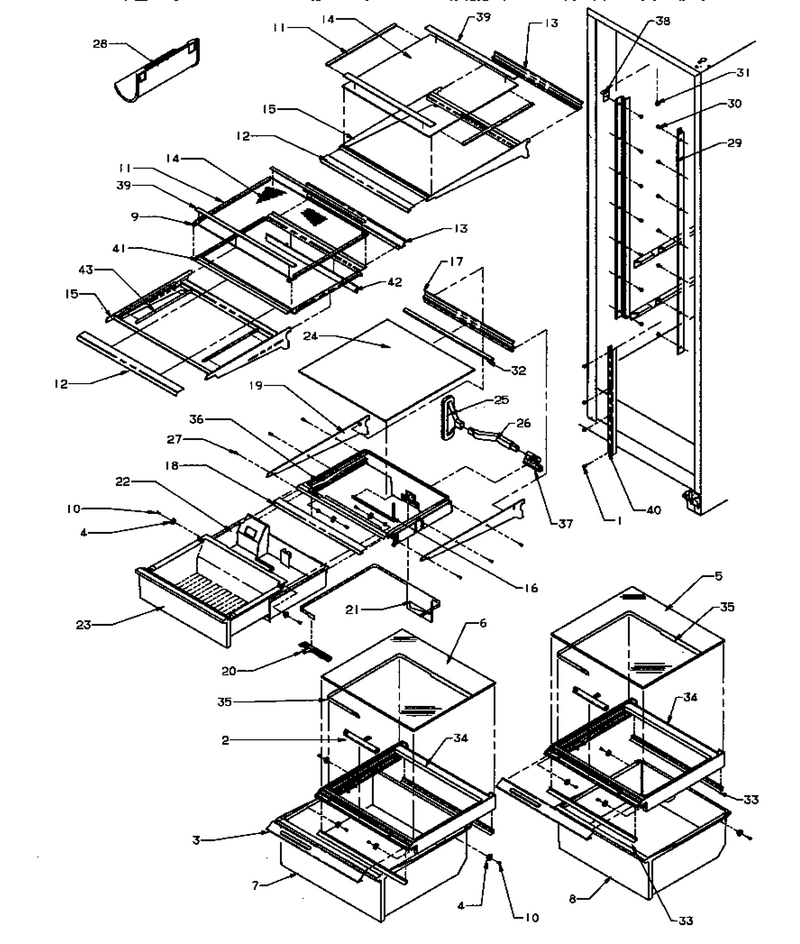

10 - Ref Shelving & Drawers

...
...
NI
Ass`y, Shelf (split) WPL-10582418
...
1
Screw-Sm WPL-M0238636
...
2
Slide Crisper Control WPL-10289908
...
3
Trim, Crisper Top (frt) WPL-10524309
...
4
Roller, Pan WPL-10481001
...
5
Glass, Shelf WPL-10370028
...
6
Glass, Shelf WPL-10370025
...
7
Pan, Crisper WPL-10471711
...
8
Pan, Crisper WPL-10469015
...
9
Block, Glide WPL-10903701
...
10
Screw WPL-67006692
...
11
Extrusion, Glass Shelf WPL-10635801
...
12
Trim, Shelf Front WPL-10049952
...
13
Trim Rear Shelf WPL-C8913613
...
14
Shelf, Glass WPL-10370018
...
15
Frame, Cant.shelf WPL-10824401
...
16
Gasket WPL-A3030353
...
17
Trim, Rear WPL-C8990405
...
18
Trim, Shelf Front WPL-10049951
...
19
Rail, Blank Side WPL-D7862986
...
20
Slide-Mk C WPL-D7859404
...
21
Band, Mk WPL-10518401
...
22
Sleeve, Mk WPL-10469905
...
23
Pan, Mt Kpr WPL-10469815
...
24
Glass, Mtkpr Shelf WPL-10370094
...
25
Grommet, Mk WPL-D7873602
...
26
Duct, Mk Air WPL-10518201
...
27
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
28
Rack, Wine WPL-10448901
...
29
Ladder, Cantilever WPL-D7789809
...
30
Screw WPL-WP90767
...
31
Grommet, Screw WPL-M0580007
...
32
Ext. Rear Glass WPL-10043102
...
33
Seal, Crisper Front WPL-10523401
...
34
Frame, Crisper WPL-10469603
...
35
Band, Crisper WPL-10519304
...
36
Frame, Mk WPL-10469701
...
37
Ext. Air Duct WPL-D7869101
...
38
Brkt, Cont Cover WPL-12414701
...
39
Gasket, Foam WPL-A3189354
...
40
Ladder, Center WPL-D7599003
...
41
Frame, Sliding WPL-10825201
...
42
Stop, Refr Shelf WPL-10850701
...
43
Bearing, Sliding Shelf WPL-10826701

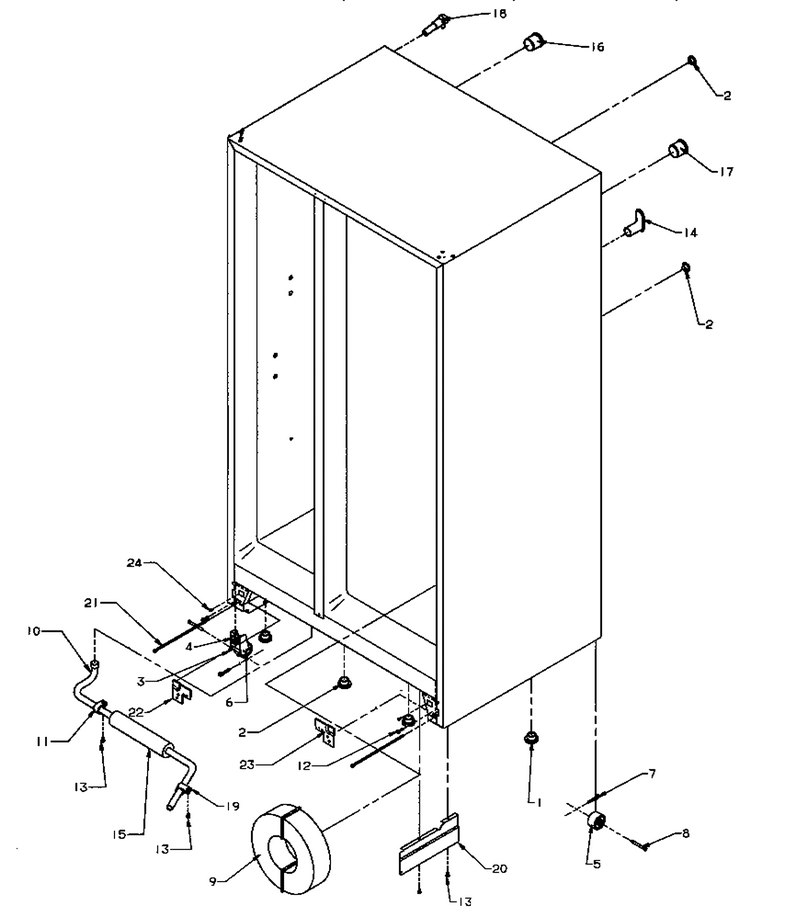

12 - Rollers And Back Unit

...
...
NI
Snap Bushing WPL-A4554806
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
10
Tube-Drain WPL-10393001
...
11
Clamp WPL-M0102303
...
12
Screw, Mach WPL-M0206313
...
13
Screw WPL-WP489069
...
14
Tunnel, Heat Ex. WPL-C8971902
...
15
Insulation, Tube WPL-10851302
...
16
Tunnel Wire WPL-10187501
...
17
Tunnel Wire WPL-10187601
...
18
Assy, Fill Tube WPL-12023401Q
...
19
Holder Tube WPL-10161301
...
20
Shield Elect Box WPL-10248101
...
21
Kit- Machi WPL-R0000213
...
22
Strip, Bot Hinge Tap WPL-10860102
...
23
Strip-Rh Bot Hinge WPL-12146601
...
24
Rivet, Pop (blk) WPL-B5642912

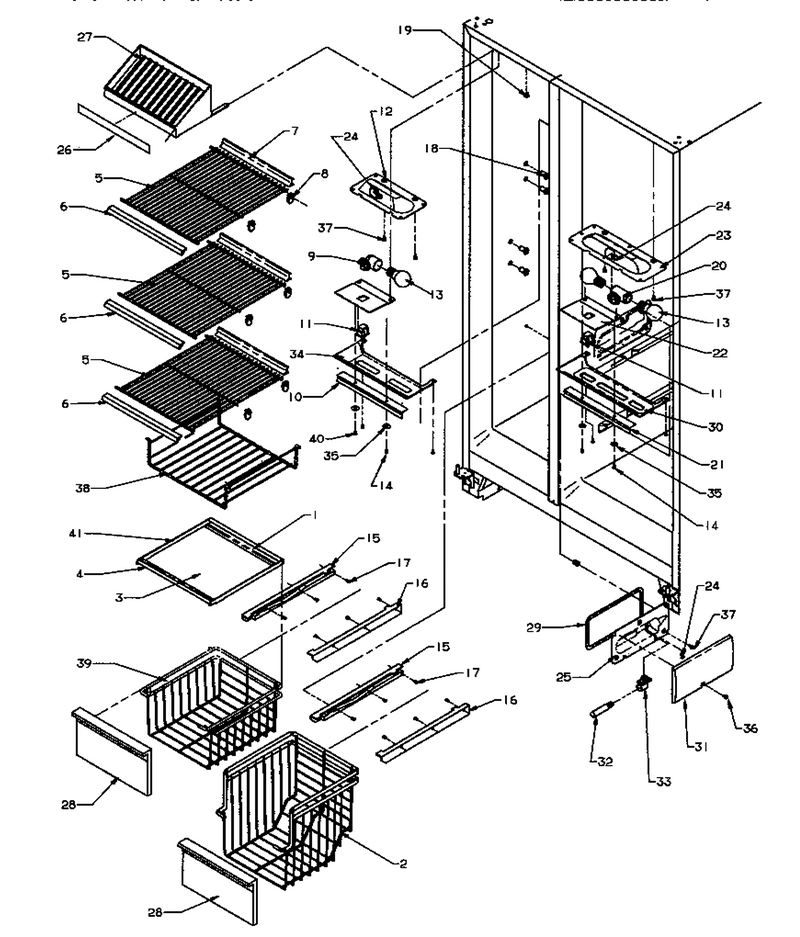

05 - Fz Shelving & Ref Light

...
...
NI
Ass`y, Glass Shelf WPL-10607101Q
...
1
Trim WPL-C8913609
...
2
Basket, Frz WPL-D7820802
...
3
Glass, Shelf WPL-10370053
...
4
Trim, Shelf Front WPL-10049954
...
5
Shelf, Frz WPL-D7788309
...
6
Trim, Shelf Front WPL-10049955
...
7
Trim WPL-C8913609
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-C8973404
...
10
Shield, Light WPL-10014715
...
11
Switch WPL-W11384469
...
12
Housing, Light WPL-D7760104
...
13
Light Bulb WPL-8009
...
14
Screw WPL-M0219546
...
15
Glide, Frz L.h. WPL-10282303
...
16
Glide, Frz. L.h. WPL-10282304
...
17
Screw WPL-WP98165
...
18
Plug, Frz Shelf Support WPL-C8973701
...
19
Grommet, Screw WPL-M0580007
...
20
Socket, Dual Lamp WPL-10796001
...
21
Shield, Light WPL-10014716
...
22
Cover, Light Sw WPL-D7297604
...
23
Housing-Ref Light WPL-D7716409
...
24
Clip, Ground WPL-B5733302
...
25
Housing, Light WPL-10270203
...
26
Insert, Juice Rack WPL-C8986123
...
27
Rack, Juice V WPL-D7839701
...
28
Front,basket WPL-D7820712
...
29
Gasket WPL-A3189337
...
30
Cover, Ref. Light WPL-10493201
...
31
Cover-Light WPL-Y10270101
...
32
Bulb-Light WPL-WPA3073101
...
33
Socket-Light WPL-10281601
...
34
Cover, Frz Light WPL-10493301
...
35
Washer WPL-M0270519
...
36
Screw WPL-WP90767
...
37
Screw WPL-WP90767
...
38
Rack, Freezer WPL-10729201
...
39
Basket, Freezer WPL-10606301
...
40
Screw (3) WPL-67006425
...
41
Frame, Frz Shelf WPL-10606401

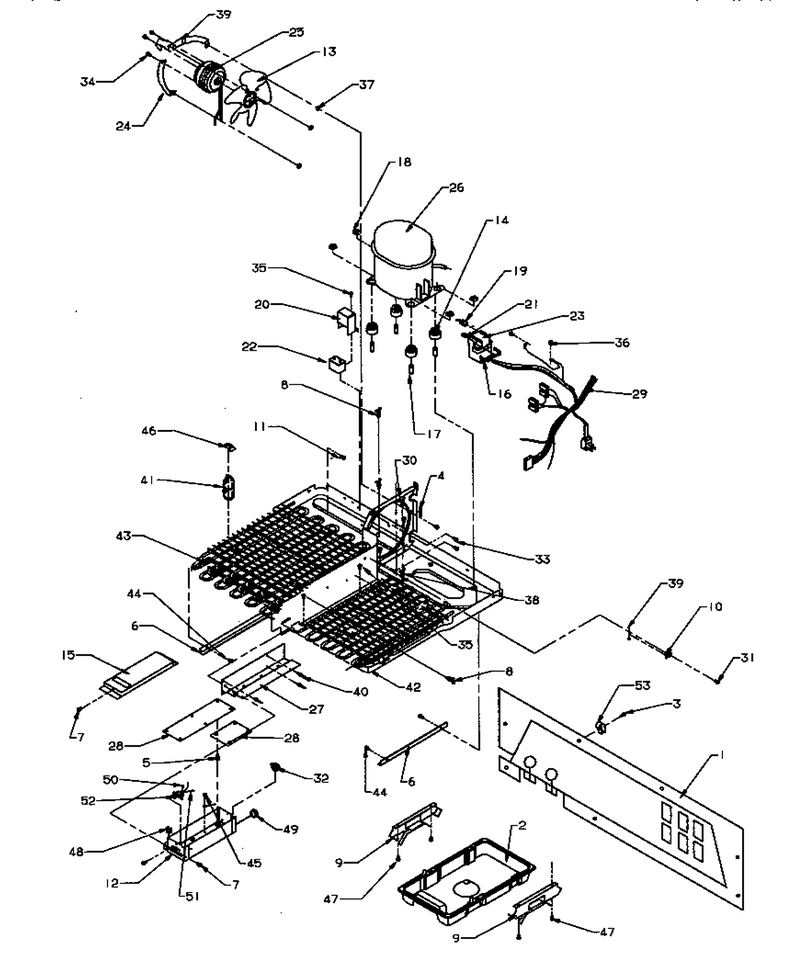

07 - Machine Compartment

...
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Support WPL-M0585504
...
6
Support, Mc WPL-C8913701
...
7
Screw WPL-WP90767
...
8
Clamp, Purse Lock Standoff WPL-74006883
...
9
Support Drain Pan WPL-D7790501
...
10
Tab, Wire Tie WPL-M0585601
...
11
Screw, Sm WPL-M0211357
...
12
Box, H.v. WPL-10277008
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
15
Top, Hv Box WPL-10276906
...
16
Bale Strap WPL-YB8358601
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-10377003
...
20
Shield, Capacitor WPL-10266402
...
21
Relay WPL-2154436
...
22
Capacitor WPL-WPW10662129
...
23
Term Cover WPL-C8960801
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-W10439652
...
27
Bracket H.v Box WPL-10277101
...
28
Cont, Adap. Defrost WPL-12050506
...
29
Harness, M. C. Wire WPL-10598401
...
30
Shroud-Condenser Fan WPL-D7844112
...
31
Screw, Handle WPL-67006529
...
32
Clamp, Wire WPL-M0585703
...
33
Screw Shoulder WPL-M0238833
...
34
Screw WPL-M0223803
...
35
Screw WPL-WP90767
...
36
Screw WPL-M0253916
...
37
Grommet K WPL-M0500107
...
38
Tie, Wire WPL-M0585401
...
39
Tie-Wire WPL-WPW10339879
...
40
Rivet-Pop WPL-59002054
...
41
Spacer Cond. WPL-B8346301
...
42
Pan, Base WPL-D7748610
...
43
Condenser WPL-D7824504
...
44
Screw WPL-M0217224
...
45
Screw WPL-12992301
...
46
Speednut WPL-M0293703
...
47
Screw WPL-WP489069
...
49
Bushing, Snap WPL-A3293504
...
53
Clamp, Tube WPL-M0108001

11 - Ref/fz Controls And Cabinet Parts

...
...
1
Kit, Toe Grille (blk) WPL-10470301
...
2
Clip WPL-WPM0117303
...
4
Retainer WPL-A3187801
...
5
Gasket, Damper WPL-10383201
...
6
Tube-Plastic WPL-B8372601
...
7
Screw WPL-WP489399
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel Air Supply WPL-10178001
...
12
See Note Vrt Mullion, W -- (not Replaceable, Foamed In Place) (see Note) WPL-Y00000000
...
14
Screw, Handle (black) WPL-12991101
...
16
Gasket, Damper WPL-B8345401
...
18
Insert, Control WPL-C8902601
...
19
Control-Damper WPL-D7547411
...
20
Air Duct, Waxed WPL-10176602
...
21
Insulation WPL-D7788201
...
22
Cover, Control WPL-D7790342
...
23
Knob, Control WPL-D7795811
...
24
Gasket, Air Duct WPL-10177901
...
25
Box, Bottom Control WPL-D7822404
...
28
Assy, Control-Fz WPL-R0161092
...
29
Box, Control Top WPL-D7868606
...
32
Screw WPL-WP489474
...
33
Spacer Damper WPL-A3044208
...
34
Clamp WPL-C8977301
...
35
Screw WPL-WP489464
...
36
Screw WPL-M0216539
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
