product name

Amana GRH2402SW (BOM: P1168104W W)

Model: GRH2402SW (BOM: P1168104W W)

Save Part Not Listed?
product name

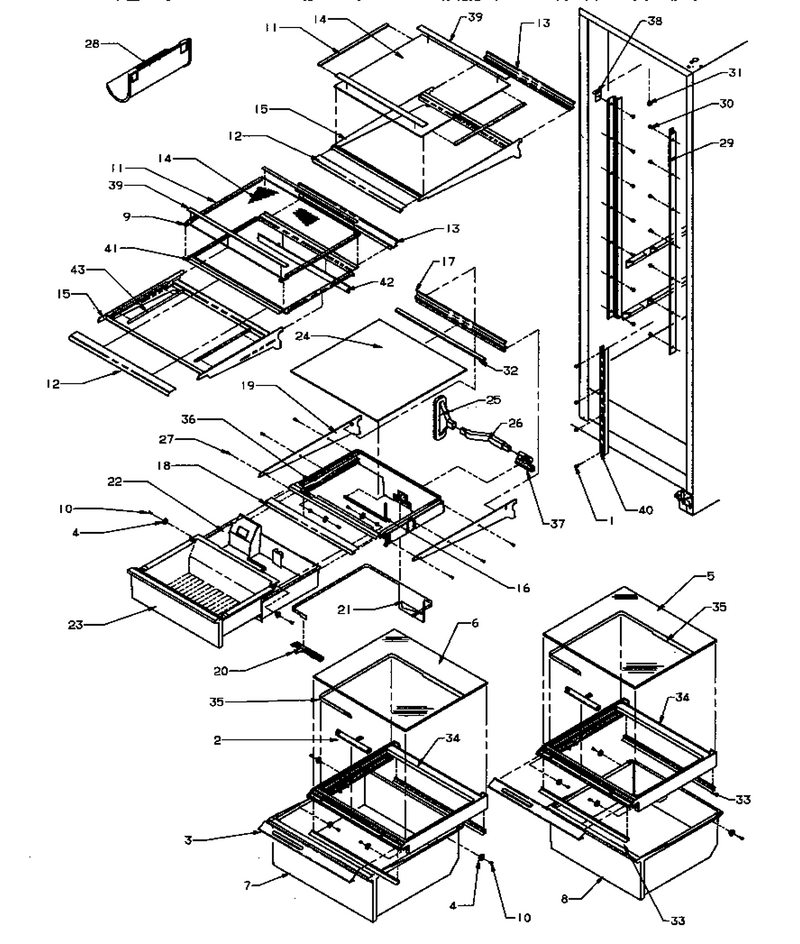

13 - Ref Shelving & Drawers

...
...
NI
Ass`y, Shelf (split) WPL-10582418
...
1
Screw-Sm WPL-M0238636
...
2
Slide Crisper Control WPL-10289908
...
3
Trim, Crisper Top (frt) WPL-10524309
...
4
Roller, Pan WPL-10481001
...
5
Glass, Shelf WPL-10370028
...
6
Glass, Shelf WPL-10370025
...
7
Pan, Crisper WPL-10471711
...
8
Pan, Crisper WPL-10469015
...
9
Block, Glide WPL-10903701
...
10
Screw WPL-67006692
...
11
Extrusion, Glass Shelf WPL-10635801
...
12
Trim, Shelf Front WPL-10049952
...
13
Trim Rear Shelf WPL-C8913613
...
14
Shelf, Glass WPL-10370018
...
15
Frame, Cant.shelf WPL-10824401
...
16
Gasket WPL-A3030353
...
17
Trim, Rear WPL-C8990405
...
18
Trim, Shelf Front WPL-10049951
...
19
Rail, Blank Side WPL-D7862986
...
20
Slide-Mk C WPL-D7859404
...
21
Band, Mk WPL-10518401
...
22
Sleeve, Mk WPL-10469905
...
23
Pan, Mt Kpr WPL-10469815
...
24
Glass, Mtkpr Shelf WPL-10370094
...
25
Grommet, Mk WPL-D7873602
...
26
Duct, Mk Air WPL-10518201
...
27
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
28
Rack, Wine WPL-10448901
...
29
Ladder, Cantilever WPL-D7789809
...
30
Screw WPL-WP90767
...
31
Grommet, Screw WPL-M0580007
...
32
Ext. Rear Glass WPL-10043102
...
33
Seal, Crisper Front WPL-10523401
...
34
Frame, Crisper WPL-10469603
...
35
Band, Crisper WPL-10519304
...
36
Frame, Mk WPL-10469701
...
37
Ext. Air Duct WPL-D7869101
...
38
Brkt, Cont Cover WPL-12414701
...
39
Gasket, Foam WPL-A3189354
...
40
Ladder, Center WPL-D7599003
...
41
Frame, Sliding WPL-10825201
...
42
Stop, Refr Shelf WPL-10850701
...
43
Bearing, Sliding Shelf WPL-10826701

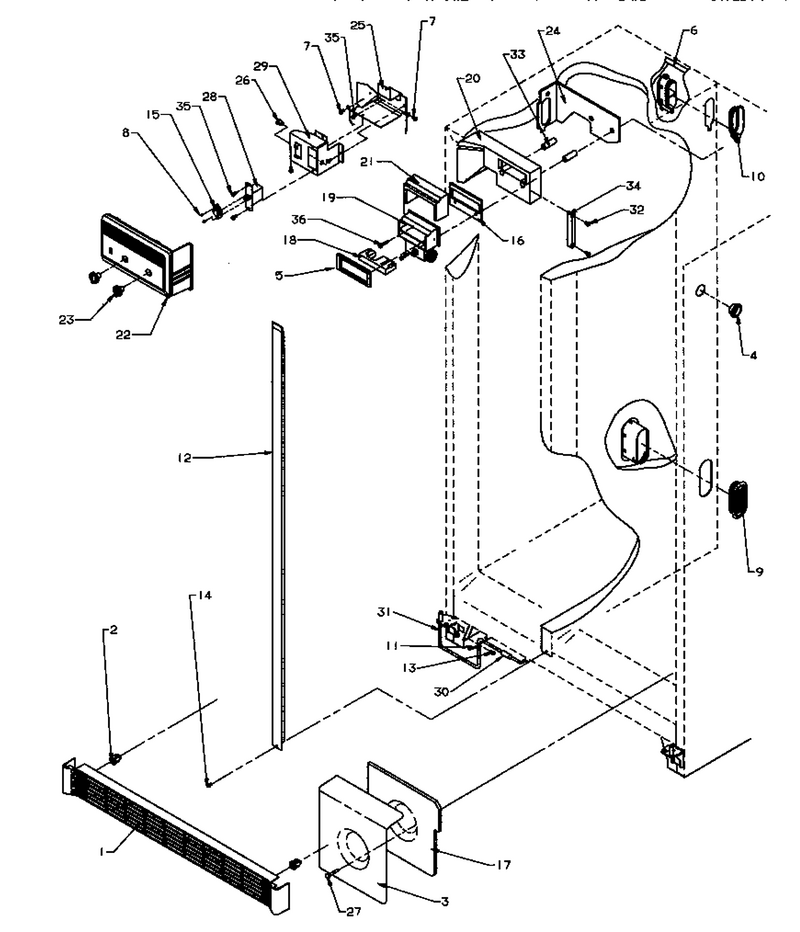

14 - Ref/fz Controls And Cabinet Parts

...
...
1
Kit, Toe Grille (blk) WPL-10470301
...
2
Clip WPL-WPM0117303
...
3
Cover, Tank Insul. WPL-D7879302
...
4
Retainer WPL-A3187801
...
5
Gasket, Damper WPL-10383201
...
6
Tube-Plastic WPL-B8372601
...
7
Screw WPL-WP489399
...
8
Screw WPL-WP489349
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel Air Supply WPL-10178001
...
11
Clamp, Tube WPL-M0108001
...
12
See Note Vrt Mullion, W -- (not Replaceable, Foamed In Place) (see Note) WPL-Y00000000
...
13
Screw WPL-WP90767
...
14
Screw, Handle (black) WPL-12991101
...
15
Thermistor WPL-WPW10331672
...
16
Gasket, Damper WPL-B8345401
...
17
Insulation Cut Tank WPL-D7793403
...
18
Insert, Control WPL-C8902601
...
19
Control-Damper WPL-D7832702
...
20
Duct-Waxed Air WPL-10176604
...
21
Insulation WPL-D7788201
...
22
Cover, Control WPL-D7790337
...
24
Gasket, Air Duct WPL-10177901
...
25
Box, Bottom Control WPL-D7822404
...
26
Snap Bushing WPL-A4554806
...
27
Clip K WPL-C6457701
...
29
Top, Cont. Box WPL-D7832805
...
30
Fitting WPL-WP4373559
...
31
Tube WPL-WPB5705307
...
32
Screw WPL-WP489474
...
33
Spacer Damper WPL-A3044208
...
34
Clamp WPL-C8977301
...
35
Screw WPL-WP489464
...
36
Screw WPL-M0216539

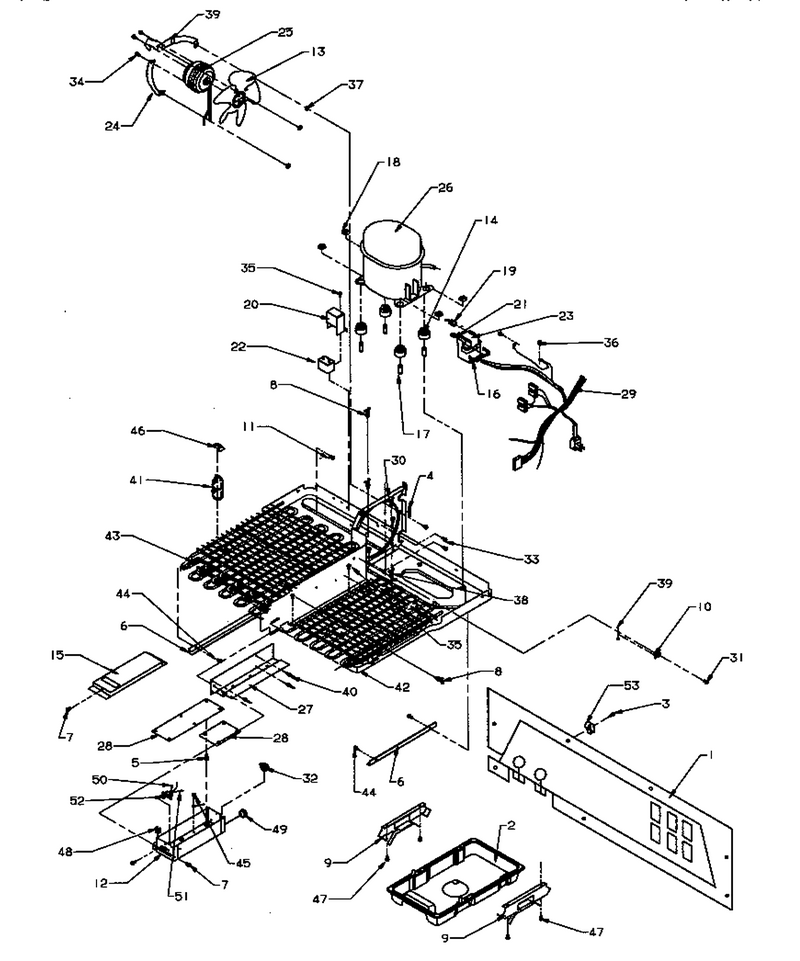

10 - Machine Compartment

...
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Support-Pc Board WPL-M0585502
...
6
Support, Mc WPL-C8913701
...
7
Screw WPL-WP90767
...
8
Clamp, Purse Lock Standoff WPL-74006883
...
9
Support Drain Pan WPL-D7790501
...
10
Tab, Wire Tie WPL-M0585601
...
11
Screw, Sm WPL-M0211357
...
12
Box, H.v. WPL-10277008
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
15
Top, Hv Box WPL-10276906
...
16
Bale Strap WPL-YB8358601
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-10377003
...
20
Shield, Capacitor WPL-10266402
...
21
Relay WPL-2154436
...
22
Capacitor WPL-WPW10662129
...
23
Term Cover WPL-C8960801
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-W10439652
...
27
Bracket H.v Box WPL-10277101
...
28
Board, H.v. Pc WPL-10627301
...
29
Harness, Mach Comp WPL-10548901
...
30
Shroud-Condenser Fan WPL-D7844112
...
31
Screw, Handle WPL-67006529
...
32
Clamp, Wire WPL-M0585702
...
33
Screw Shoulder WPL-M0238833
...
34
Screw WPL-M0223803
...
35
Screw WPL-WP90767
...
36
Screw WPL-M0253916
...
37
Grommet K WPL-M0500107
...
38
Tie, Wire WPL-M0585401
...
39
Tie-Wire WPL-WPW10339879
...
40
Rivet-Pop WPL-59002054
...
41
Spacer Cond. WPL-B8346301
...
42
Pan, Base WPL-D7748610
...
43
Condenser WPL-D7824504
...
44
Screw WPL-M0217224
...
45
Screw WPL-12992301
...
46
Speednut WPL-M0293703
...
47
Screw WPL-WP489069
...
48
Clip, Ground WPL-B5733302
...
50
Wire, Jumper WPL-D7383454
...
51
Wire, Jumper WPL-D7383455
...
52
Switch, Slide WPL-10544502
...
53
Clamp, Tube WPL-M0108001

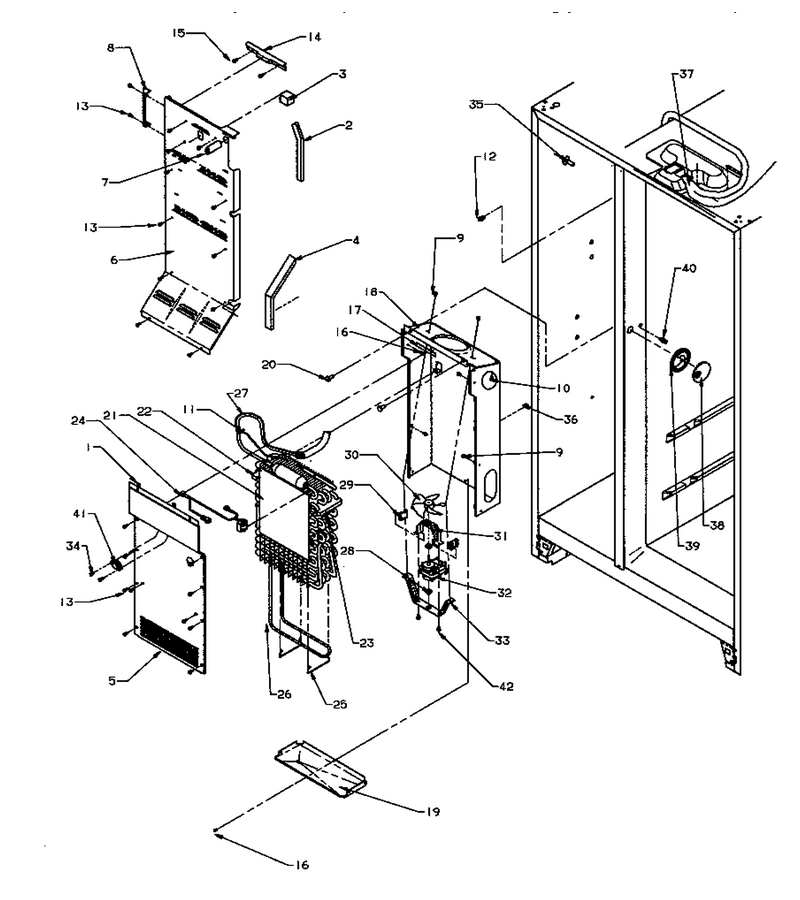

04 - Evap And Air Handling

...
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Gasket Foam WPL-A3189335
...
5
Cover, Evap. WPL-D7865920
...
6
Back, Inner Freezer WPL-D7821144
...
7
Ext. Fill Tube WPL-A3127412
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP489399
...
11
Tie-Wire WPL-WPW10339879
...
12
Tie Wire WPL-WPM0322202
...
13
Screw (3) WPL-67006425
...
14
Clamp WPL-C8976201
...
15
Screw WPL-WP98165
...
16
Rivet WPL-10098801
...
17
Gasket, Foam WPL-A3189362
...
18
Shield, Evap (ect) WPL-D7865810
...
19
Drip Tray Pnt. WPL-D7850202
...
20
Grommet WPL-M0580003
...
21
Gasket, Evap. WPL-B8327901
...
22
Block, Air Coil (left) WPL-10629601
...
23
Block, Air Coil (right) WPL-10629001
...
24
Kit, Thermostat WPL-10544002
...
25
Clip, Evap. Heater WPL-C8983101
...
26
Heater, Defrost WPL-D7872801
...
27
Assy,low Side-Thin Wall Evap WPL-R0170041
...
28
Grommet WPL-WP2264462
...
29
Shim WPL-A1047901
...
30
Fan-Evap WPL-C8795501
...
31
Brkt-Mtr Mt/up WPL-C8881302
...
32
Motor-Evap WPL-R0151003
...
33
Bracket-Motor/shroud WPL-D7767706
...
34
Screw WPL-WP90767
...
35
Support WPL-M0560001
...
36
Grommet A WPL-M0580002
...
37
Harness-Ref Liner WPL-10554701
...
38
Grille, Control WPL-10164813
...
39
Control-Air WPL-10164702
...
40
Clip, Air Tunnel WPL-10426801
...
41
Thermistor WPL-WPW10331672
...
42
Screw WPL-WP12990527

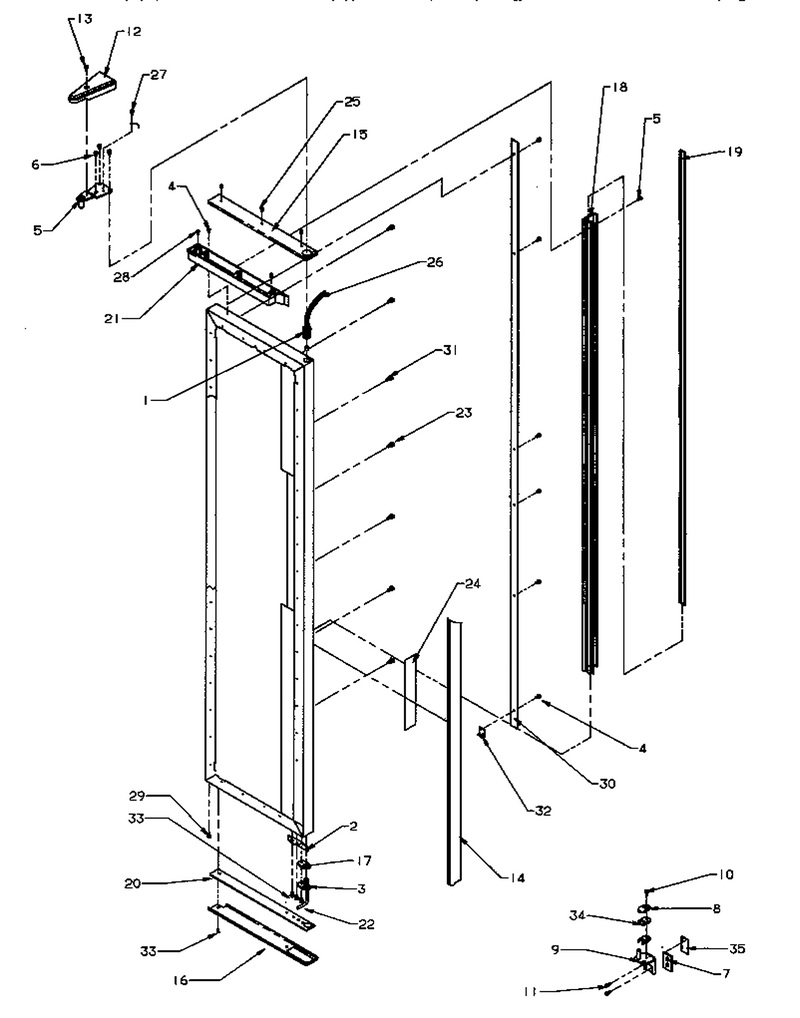

06 - Fz Door Hinge & Trim Parts

...
...
The Foamed In Place Post Condenser Mullion Loop Which Replaces The Electric Mullion On This Manual Clips To The Back Of The Mullion. Any Attempt To Remove Wil WPL-NOTE:
...
1
Bushing- D WPL-WP67004977
...
2
Stop, Door (blk) WPL-12636401B
...
3
Kit,dr Closure WPL-R0181181
...
4
Screw, Handle WPL-67006529
...
5
Hinge, Top L (e-Ct) WPL-10495807
...
6
Kit, Screw WPL-R9800670
...
7
Kit,btm Hinge Shim WPL-10399502
...
8
Kit,dr Closure WPL-R0181181
...
9
Kit,hinge Lh Btm(b) WPL-10496104
...
10
Screw, Lock Brake Mounting WPL-M0220418
...
11
Screw WPL-WP67006715
...
12
Cover Hinge WPL-10504218
...
13
Screw WPL-M0202325
...
14
Trim, Vertical WPL-10494506
...
15
Trim, Frz Door (top) WPL-10602802
...
16
Trim, Frz Door (bottom) WPL-10602504
...
17
Shim- Dr B WPL-WP10361803
...
18
Handle, Frz Door WPL-10601602
...
20
Support, Fz Trim WPL-10494604
...
21
Extrusion, Frz Door White WPL-10494704
...
22
Tube WPL-WPB5705307
...
23
Grommet, Screw WPL-M0586301
...
24
Double Backed Tape 6ft Roll WPL-R0195042
...
25
Screw WPL-M0213815
...
26
Harness Fz Door WPL-10164203
...
27
Screw WPL-W11214483
...
28
Screw, T.f. WPL-M0209932
...
29
Screw, Sm WPL-M0213531
...
30
Retainer, Door Handle WPL-10515902
...
31
Grommet, Screw WPL-M0586301
...
32
Clip, Spring (freezer) WPL-10689702
...
33
Screw WPL-WP98165
...
35
Kit, Bot.hinge Shim WPL-10860201

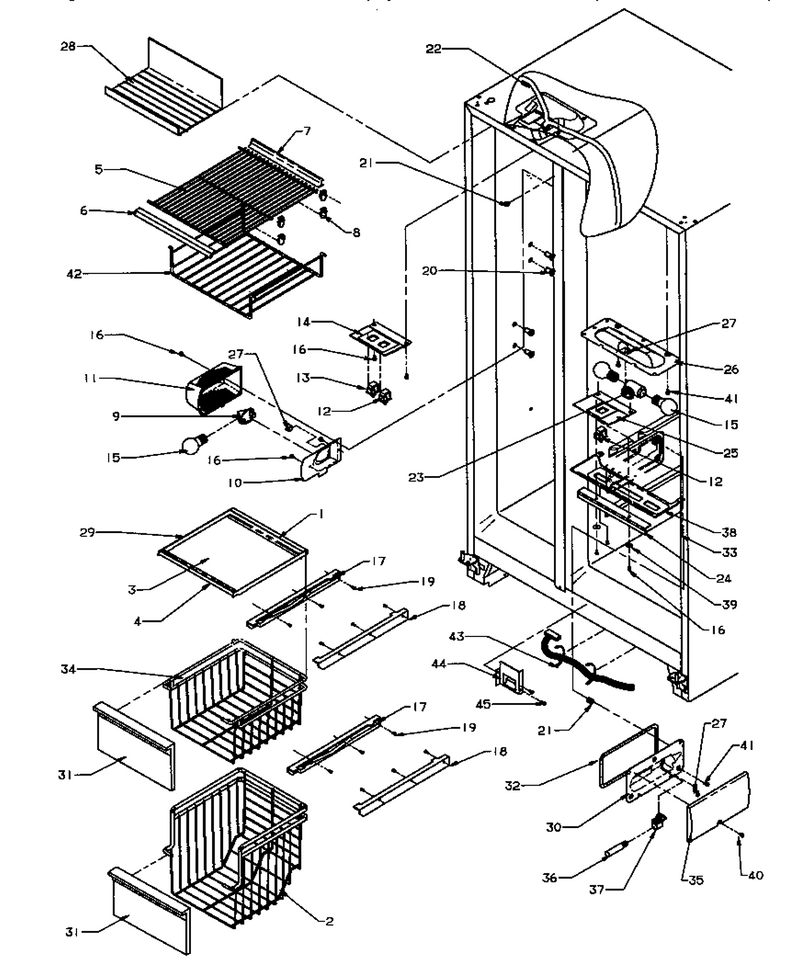

07 - Fz Shelving & Ref Light

...
...
NI
Ass`y, Glass Shelf WPL-10607101Q
...
1
Trim WPL-C8913609
...
2
Basket, Frz WPL-D7820802
...
3
Glass, Shelf WPL-10370053
...
4
Trim, Shelf Front WPL-10049954
...
5
Shelf, Freezer WPL-D7788311
...
6
Trim, Shelf Front WPL-10049955
...
7
Trim WPL-C8913609
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-D7714407
...
10
Plate-Light Socket WPL-D7753503
...
11
Shield, Light WPL-D7786603
...
12
Switch WPL-W11384469
...
13
Switch WPL-C3680306
...
14
Cover Light WPL-D7749002
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
Glide, Frz L.h. WPL-10282303
...
18
Glide, Frz. L.h. WPL-10282304
...
19
Screw WPL-WP98165
...
20
Plug, Frz Shelf Support WPL-C8973701
...
21
Grommet, Screw WPL-M0580007
...
22
Harness-Fz Liner WPL-10535601
...
23
Socket, Dual Lamp WPL-10796001
...
24
Shield, Light WPL-10014716
...
25
Cover, Light Sw WPL-D7297604
...
26
Housing-Ref Light WPL-D7716409
...
27
Clip, Ground WPL-B5733302
...
28
Shelf, Ice Cream WPL-10175804
...
29
Frame, Frz Shelf WPL-10606401
...
30
Housing, Light WPL-10270203
...
31
Front,basket WPL-D7820712
...
32
Gasket WPL-A3189337
...
33
Screw WPL-M0219546
...
34
Basket, Freezer WPL-10606301
...
35
Cover-Light WPL-Y10270101
...
36
Bulb-Light WPL-WPA3073101
...
37
Socket-Light WPL-10281601
...
38
Cover, Ref. Light WPL-10493201
...
39
Washer WPL-M0270519
...
40
Screw WPL-WP90767
...
41
Screw WPL-WP90767
...
42
Rack, Freezer WPL-10729201
...
43
Lock, Purse WPL-74007369
...
44
End Plate Shield WPL-10045701
...
45
Screw WPL-WP90767

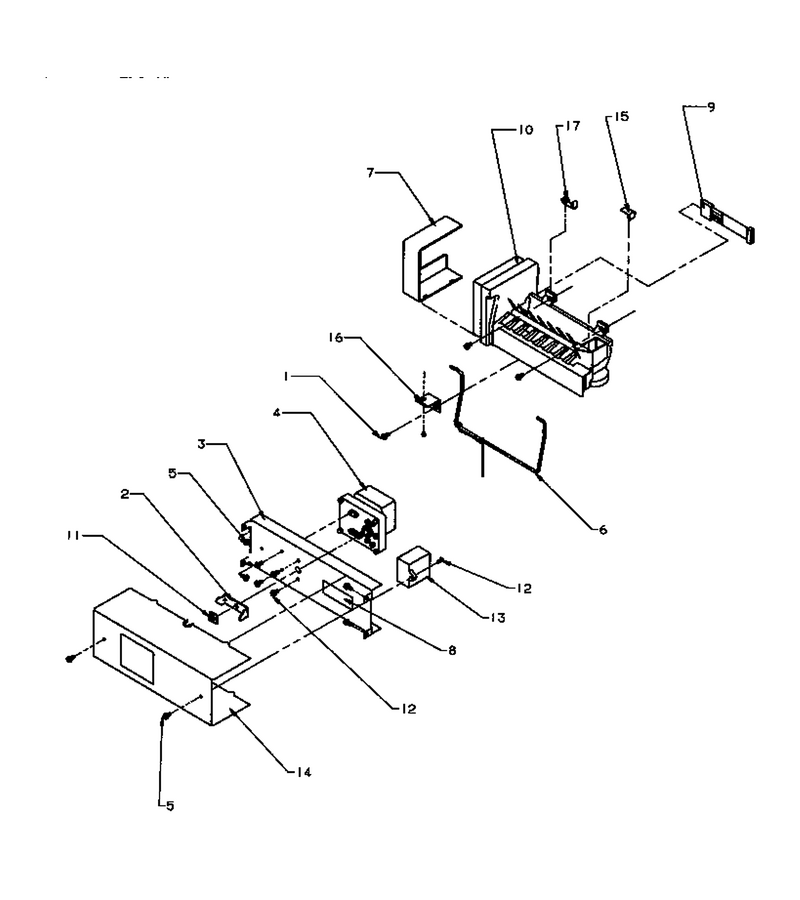

09 - Ice Maker

...
...
1
Screw WPL-WP98165
...
2
Coupling WPL-WP10114901
...
3
Support,auger Motor WPL-D7749207
...
4
Kit, Auger Motor WPL-10114804
...
5
Screw (3) WPL-67006425
...
6
Arm,ice Maker Shut Off WPL-D7877001
...
7
Cover Im WPL-D7820401
...
8
Gasket-Per Ft WPL-A3030305
...
9
Harness WPL-D7824601
...
10
Ice Maker Assy. WPL-D7824706Q
...
11
Nut WPL-WPM0223101
...
12
Screw WPL-WPW10139210
...
13
Start-Dev WPL-W10613606
...
14
Cover, Auger Mtr WPL-D7788820
...
15
Clip WPL-B5720301
...
16
Bracket, I/m WPL-B8391802
...
17
Clamp, Wire WPL-10526701

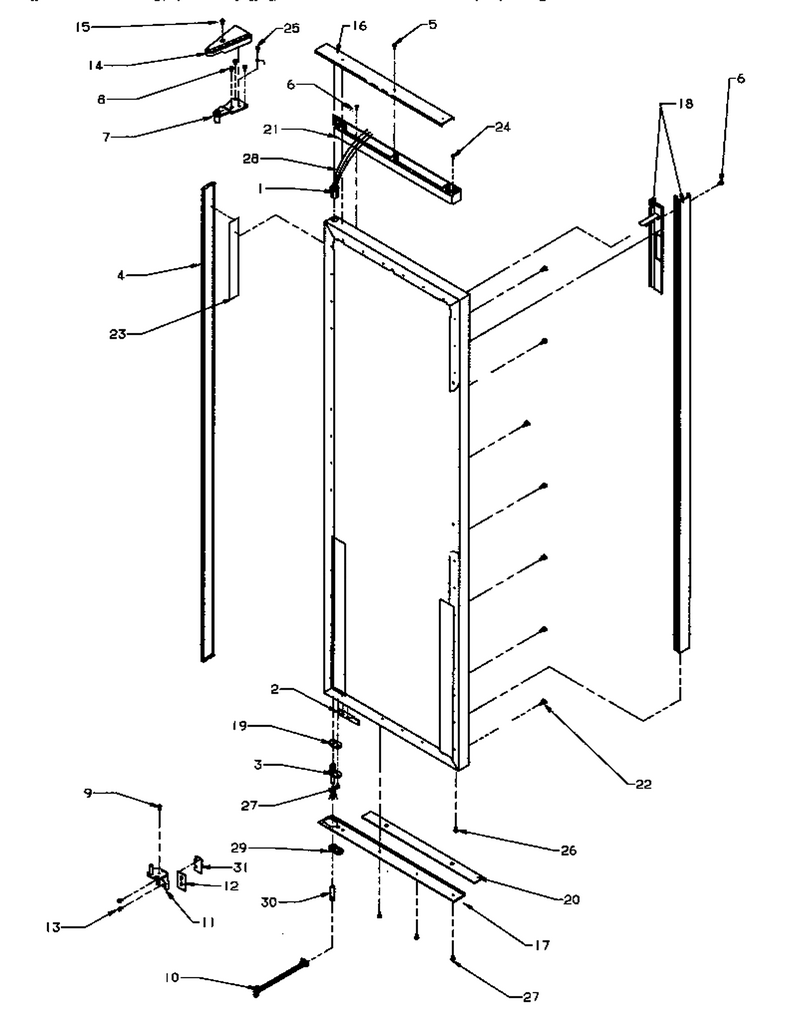

11 - Ref Door

...
...
1
Assy Ref.door Fm WPL-10601401W
...
2
Liner, Refrig Door WPL-10505401
...
3
Bucket, Refrig Door WPL-10520206
...
4
Shelf-Ref Door WPL-10521806
...
5
Bin-Cntlvr WPL-WP10520405
...
6
Assy, Shelf Remove WPL-10426704
...
7
Insul., Batt WPL-B0523590
...
8
Gasket, Door (gray) Ref WPL-10359706
...
9
Screw WPL-WPM0219730
...
10
Cavity, Dairy WPL-10516901
...
11
Door, Dairy WPL-10161609
...
13
Snugger, Shelf WPL-10169004
...
14
Tray, Butter WPL-10310901
...
15
Bin-Egg WPL-10423116
...
16
Lid, Utility WPL-10436404
...
17
Frame-Chiller WPL-10519004
...
18
Door, Chiller WPL-10519208
...
19
Glide-Igloo Door WPL-10162101
...
20
Tunnel-Air WPL-12033201
...
21
Clip-Tubular WPL-10165101
...
22
Clip, Retainer WPL-10202001
...
23
Tray, Egg WPL-10436504
...
24
Panel, Stainless WPL-10704701
...
26
Extrusion, Shelf Dairy WPL-10162007
...
27
Retainer, Dr Hndl WPL-10516002
...
28
Clip, Spring (refrig.) WPL-10689701
...
29
Insulation Batt WPL-B5629063
...
30
Insul. Batt. WPL-10271101
...
31
Insulation, Batt WPL-B5629064
...
32
Screw WPL-WP59002061
...
33
Insulation Batt WPL-B5612028
...
34
Kit- Board WPL-12002771
...
35
Cover,p.c. Board WPL-D7832904
...
36
Screw WPL-M0232702
...
37
Compartment, Medicine WPL-10601801
...
38
Door, Medicine Compartment WPL-10601902
...
39
Insulation, Batt WPL-B5629065
...
40
Insulation, Batt Frz. Dr. WPL-B0523593
...
41
Gasket, Control WPL-10619202
...
42
Screw, Handle WPL-67006529

12 - Ref Door, Hinge & Trim Parts

...
...
1
Bushing- D WPL-WP67004977
...
2
Stop, Door (blk) WPL-12636401B
...
3
Closure, Door (wht) WPL-12113401
...
4
Trim, Vertical WPL-10494505
...
5
Screw WPL-M0213815
...
6
Screw WPL-WP98165
...
7
Hinge, Top R (e-Ct) WPL-10495805
...
8
Kit, Screw WPL-R9800670
...
9
Screw, Lock Brake Mounting WPL-M0220418
...
10
Connector-12 Pin WPL-M0335412
...
11
Kit- Hinge WPL-R9800051
...
12
Kit,btm Hinge Shim WPL-10399501
...
13
Screw WPL-WP67006715
...
14
Hinge- Cover Lh Gray WPL-10504217
...
15
Screw WPL-M0202325
...
16
Trim, Refrig Door (top) WPL-10602702
...
17
Trim, Refrig Door (bottom) WPL-10602603
...
18
Assy, Ref Handle WPL-10517302
...
19
Shim- Dr B WPL-WP10361803
...
20
Support Ref Trim (btm) WPL-10494606
...
21
Extrusion, Refrig Door WPL-10496004
...
22
Grommet, Screw WPL-M0586301
...
23
Double Backed Tape 6ft Roll WPL-R0195042
...
24
Screw, T.f. WPL-M0209932
...
25
Screw WPL-W11214483
...
26
Screw, Sm WPL-M0213531
...
27
Screw WPL-WP98165
...
28
Harness-Ref Dr Kit WPL-10520905
...
29
Closure, Door (wht) WPL-12113301
...
30
Assy, Hinge Pin WPL-10561601
...
31
Kit, Bot.hinge Shim WPL-10860201

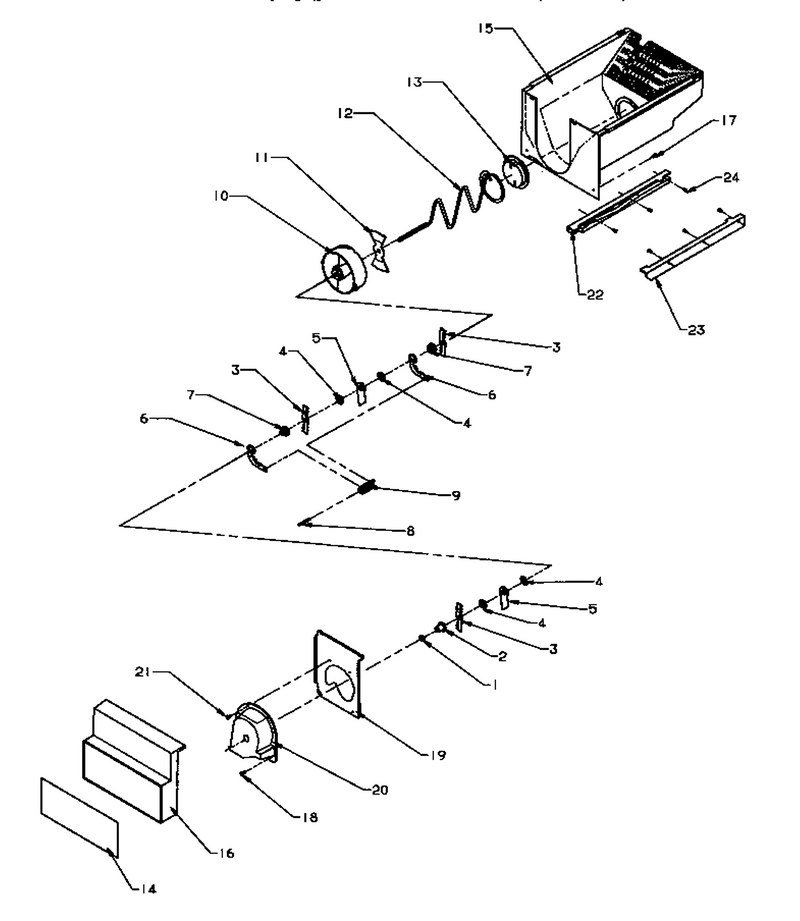

02 - Crushed Ice Bucket

...
...
NI
Crushr-Mec WPL-WP12740302
...
1
Nut WPL-WPM0223101
...
2
Spacer, Cover WPL-10113901
...
3
Blade, Rotating WPL-10114501
...
4
Washer, Waved WPL-10275101
...
5
Damper, Ice WPL-10275201
...
6
Blade, Static WPL-10114601
...
7
Washer Stepped WPL-10114301
...
8
Pin, Roll WPL-M1200108
...
9
Anchor, Blade WPL-10114101
...
10
Wheel- Crs WPL-WP67002052
...
11
Bar, Crsh Ice Bucket WPL-10113801
...
12
Agitator, Ice WPL-10114401
...
13
Cap- Helix WPL-WPD7749401
...
14
Insert, Bucket Front WPL-C8975330
...
15
Bucket- Cr WPL-WP10111905
...
16
Front-Crsh Ice Brkt WPL-10112001
...
17
Screw (3) WPL-67006425
...
18
Screw WPL-M0254706
...
19
Front, Ice Crusher WPL-10115001
...
20
Cover, Blade WPL-10114002
...
21
Screw, Tf WPL-M0231704
...
22
Glide, Container (left) WPL-67005375
...
23
Glide, Frz. (rt) WPL-67004323
...
24
Screw, Handle WPL-67006529

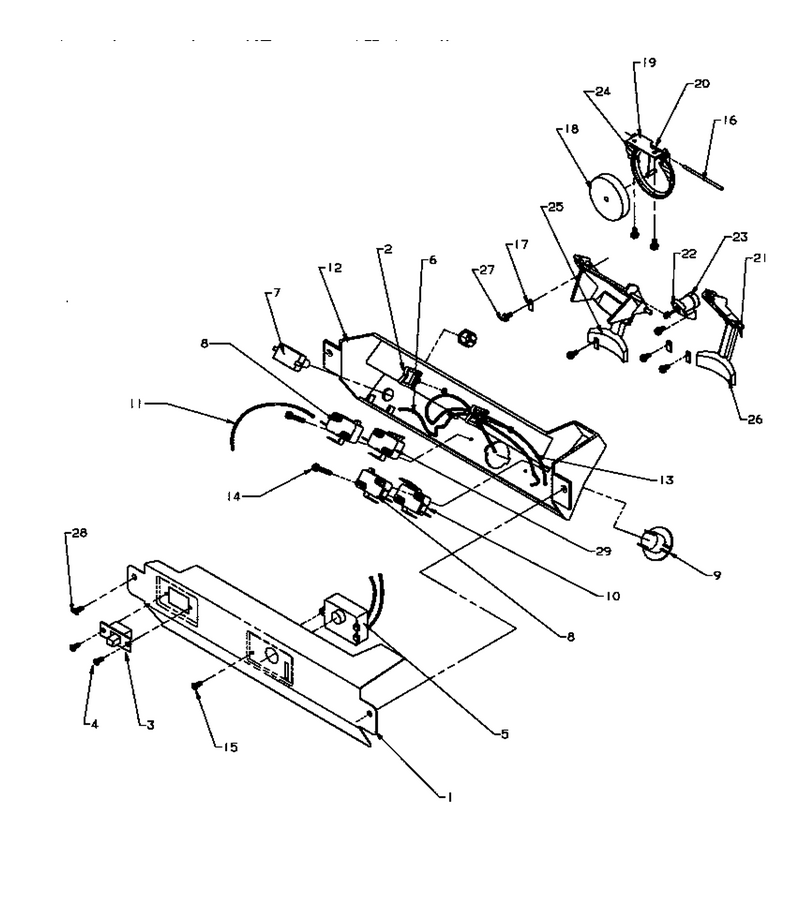

03 - Electronic Bracket Assy

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Cover-Elect Brkt WPL-10131801
...
2
Wire Clip WPL-B5667304
...
3
Switch-Crushed/cube WPL-10166002
...
4
Screw WPL-M0234003
...
5
Switch-Photosensitive WPL-D7854104
...
6
Wire-Jumper WPL-D7726590
...
7
Switch-Light Cavity WPL-10166101
...
8
Switch- Li WPL-WP10533003
...
9
Socket, Light WPL-10131701
...
10
Switch, Limit (water Disp) WPL-10533002
...
11
Wire-Jumper WPL-D7726592
...
12
Bracket, Elec Mtg WPL-10323305
...
13
Wire Jumper WPL-D7726593
...
14
Screw, T.f. WPL-M0237809
...
15
Screw WPL-WP489349
...
16
Pin, Chute Door WPL-A1061501
...
17
Retainer, Ice Arm WPL-A1061601
...
18
Insulation, Chute Door WPL-B8380701
...
19
Brkt-Chute Door WPL-B8380801
...
20
Spring,chute Door WPL-B8380901
...
21
Spring, Return WPL-B8385401
...
22
Retainer Door Delay WPL-C8972501
...
23
Delay, Door WPL-C8973601
...
24
Kit,chute Dr No.3 WPL-10246601
...
25
Arm-Dispsr WPL-12002642
...
26
Arm, Water Actuator (stn) WPL-10164905
...
27
Screw WPL-WP90767
...
28
Screw-Sm/hex WPL-12990523
...
29
Switch, Limit WPL-10533001

05 - Fz Door

...
...
1
Insulation Ft. K WPL-B0523563
...
2
Insul. By The Ft. WPL-B0523562
...
3
Retainer, Door Liner WPL-C8982801
...
4
Ass`y, Frz Door (white) WPL-10568402W
...
5
Shelf, Frz Door (half) WPL-10534706
...
6
Shelf, Frz Door WPL-10525506
...
7
Gasket, Door (gray) Freezer WPL-10359707
...
8
Liner, Frz. Dr I/w WPL-10533601
...
9
Retainer, Door Liner WPL-D7828601
...
10
Screw WPL-WPM0219730
...
11
Clip, Door Dike WPL-10063102
...
12
Rem Dike I & W Upper WPL-10063202
...
13
Removable Dike I & W WPL-10063204
...
14
Retainer, Package WPL-10237604
...
15
Screw WPL-WP489399
...
16
Tape Per Roll WPL-M0275163
...
17
Panel-Stainless WPL-10704705
...
18
Panel, Stainless WPL-10704703
...
21
Retainer, Dec Pnl WPL-B8391213

01 - Back Unit

...
...
NI
Insert- Pl WPL-WPA3223101
...
1
Cover, O.c.back WPL-10178406
...
2
Screw WPL-WP489069
...
3
Cord, Power WPL-10678503
...
4
Clamp, Speed WPL-M0103904
...
5
Screw, Spextite WPL-M0232330
...
6
Clamp WPL-B5794201
...
7
Clip, Drier WPL-10547001
...
8
Cover - Wire WPL-10178505
...
9
Harness, Cabinet WPL-10983501
...
10
Tube WPL-WPB5705307
...
11
Tank, Coil Water WPL-D7787804
...
12
Clip WPL-WPM0104106
...
13
Gasket (ft.) WPL-10839803
...
14
Drier WPL-WPB2150504
...
15
Spring WPL-WPA1055105
...
16
Spring K WPL-A1055102
...
17
Clamp, Speed WPL-M0103904
...
18
Coupling WPL-10244903
...
19
Clip, Water Valve WPL-10798001
...
20
Bracket WPL-WPD7701602
...
21
Valve-Inlt WPL-WPW10245167
...
22
Clip- Spee WPL-WPM0114003
...
23
Screw, 8-32 X 3/8 WPL-681390
...
24
Nut WPL-WP627018
...
25
Nut WPL-8201513

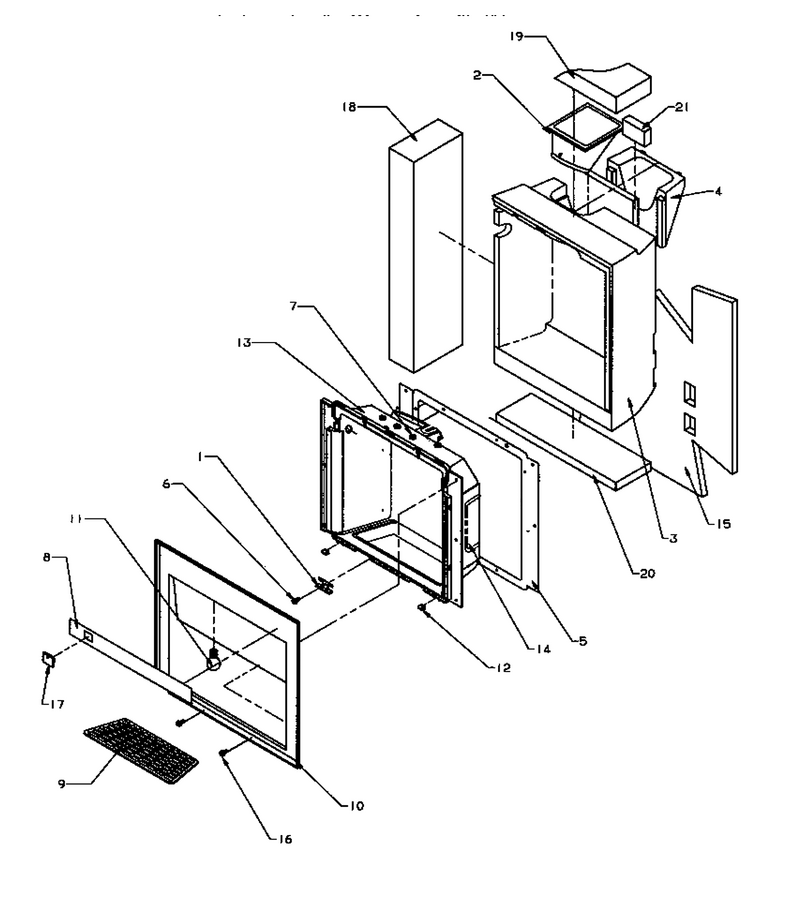

08 - Ice And Water Cavity

...
...
1
Clip WPL-C8992901
...
2
Chute- Ice WPL-10504103
...
3
Insul., I/w Cavity WPL-10506501
...
4
Insul., Ice Chute WPL-10504601
...
5
Gasket Cavity WPL-D7791003
...
6
Screw-Sm/hex WPL-12990523
...
7
Retainer, Ring WPL-M0274701
...
8
Membrane, Facade (black) WPL-D7842258
...
9
Grille, Sump (satin) WPL-D7750608
...
10
Facade, Dispenser (gray) WPL-D7877540
...
11
Bulb-Light WPL-W10857122
...
12
Clip WPL-W10819546
...
13
Cavity, Dispenser (gray) WPL-10198006
...
14
Heater-Cavity WPL-10176101
...
15
Insulation Batt WPL-10220201
...
16
Screw WPL-M0217701
...
17
Cap-Grey Switch WPL-12043805
...
18
Insul, Batt WPL-10270907
...
19
Insul., Batt WPL-B5629061
...
20
Insulation Per Ft. WPL-B0523584
...
21
Insulation Batt WPL-B5629058

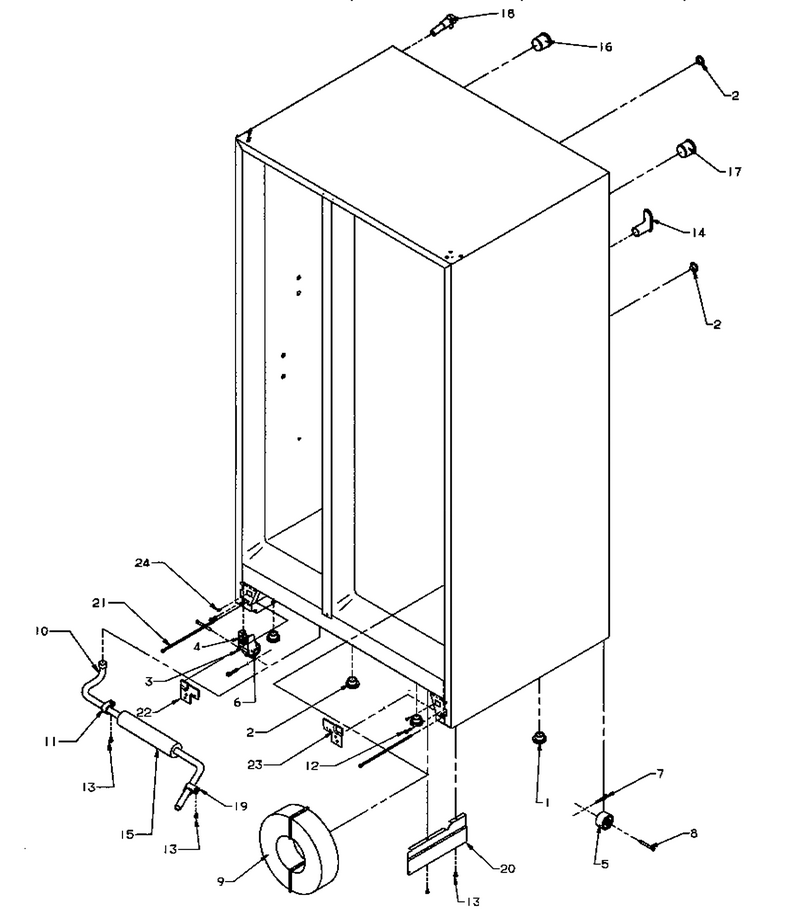

15 - Rollers And Back Unit

...
...
NI
Snap Bushing WPL-A4554806
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Tank, Coil Water WPL-D7787804
...
10
Tube-Drain WPL-10393001
...
11
Clamp WPL-M0102303
...
12
Screw, Mach WPL-M0206313
...
13
Screw WPL-WP489069
...
14
Tunnel, Heat Ex. WPL-C8971902
...
15
Insulation, Tube WPL-10851302
...
16
Tunnel Wire WPL-10187501
...
17
Tunnel Wire WPL-10187601
...
18
Assy, Fill Tube WPL-12023401Q
...
19
Holder Tube WPL-10161301
...
20
Shield Elect Box WPL-10248101
...
21
Kit- Machi WPL-R0000213
...
22
Strip, Bot Hinge Tap WPL-10860102
...
23
Strip-Rh Bot Hinge WPL-12146601
...
24
Rivet, Pop (blk) WPL-B5642912
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
