Amana GRH2401SW (BOM: P1168101W W)

Model: GRH2401SW (BOM: P1168101W W)

Save Part Not Listed?
product name

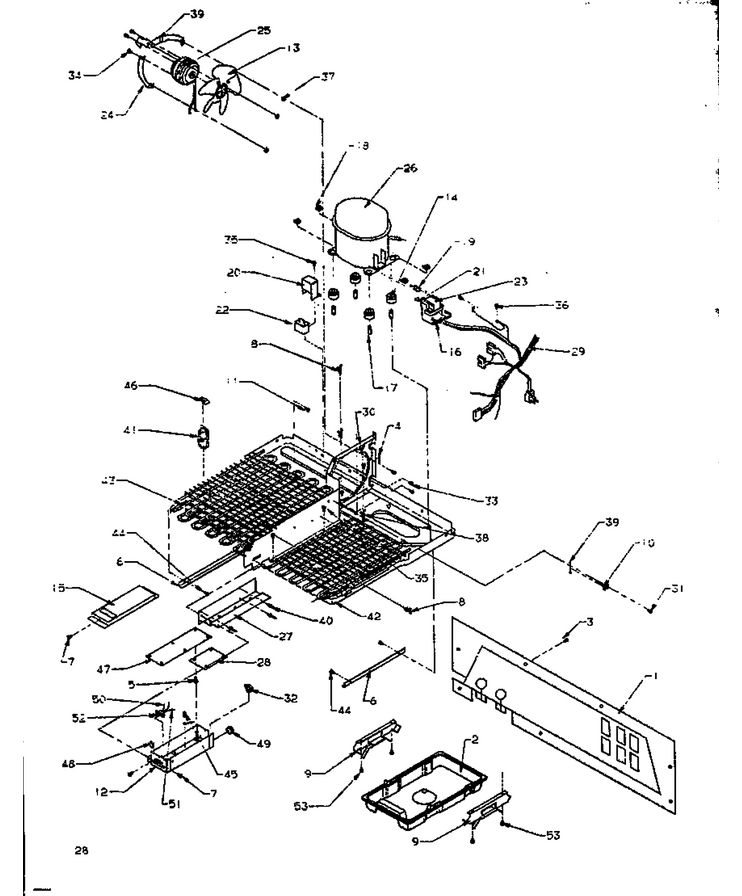

11 - Machine Compartment

...
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Support-Pc Board WPL-M0585502
...
6
Support, Mc WPL-C8913701
...
7
Screw WPL-WP90767
...
8
Clamp, Purse Lock Standoff WPL-74006883
...
9
Support Drain Pan WPL-D7790501
...
10
Tab, Wire Tie WPL-M0585601
...
11
Screw, Sm WPL-M0211357
...
12
Box, H.v. WPL-10277008
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
15
Top, Hv Box WPL-10276906
...
16
Bale Strap WPL-YB8358601
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-10377003
...
20
Shield, Capacitor WPL-10266402
...
21
Relay WPL-2154436
...
22
Capacitor WPL-WPW10662129
...
23
Term Cover WPL-C8960801
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-W10439652
...
27
Bracket H.v Box WPL-10277101
...
29
Harness, Mach Comp WPL-10548901
...
30
Shroud-Condenser Fan WPL-D7844112
...
31
Screw, Handle WPL-67006529
...
32
Clamp, Wire WPL-M0585702
...
33
Screw Shoulder WPL-M0238833
...
34
Screw WPL-M0223803
...
35
Screw WPL-WP12990527
...
36
Screw WPL-M0253916
...
37
Grommet K WPL-M0500107
...
38
Tie, Wire WPL-M0585401
...
39
Tie-Wire WPL-WPW10339879
...
40
Rivet-Pop WPL-59002054
...
41
Spacer Cond. WPL-B8346301
...
42
Pan, Base WPL-D7748610
...
43
Condenser WPL-D7824504
...
44
Screw WPL-M0217224
...
45
Screw WPL-12992301
...
46
Speednut WPL-M0293703
...
47
Screw WPL-WP489069
...
48
Clip, Ground WPL-B5733302
...
49
Bushing, Snap WPL-A3293504
...
50
Wire, Jumper WPL-D7383454
...
51
Wire, Jumper WPL-D7383455
...
52
Switch, Slide WPL-10544502

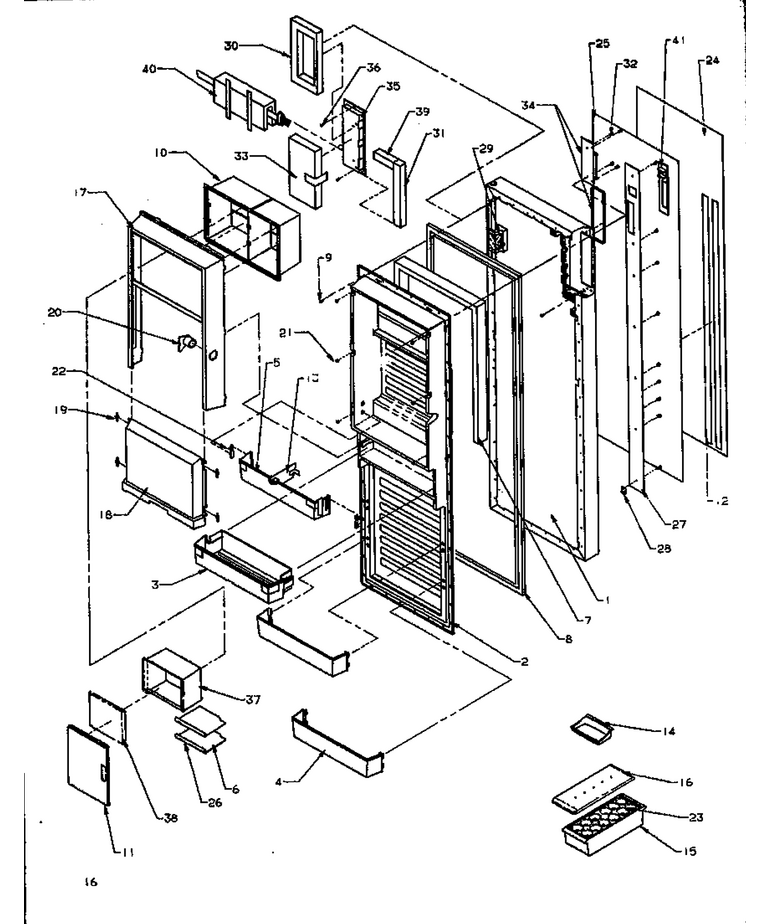

12 - Ref Door

...
...
1
Assy Ref.door Fm WPL-10601401W
...
2
Liner, Refrig Door WPL-10505401
...
3
Bucket, Refrig Door WPL-10520206
...
4
Shelf-Ref Door WPL-10521806
...
5
Bin-Cntlvr WPL-WP10520405
...
6
Assy, Shelf Remove WPL-10426704
...
7
Insul., Batt WPL-B0523590
...
8
Gasket, Door (gray) Ref WPL-10359706
...
9
Screw WPL-WPM0219730
...
10
Cavity, Dairy WPL-10516901
...
11
Door, Dairy WPL-10161609
...
13
Snugger, Shelf WPL-10169004
...
14
Tray, Butter WPL-10310901
...
15
Bin-Egg WPL-10423116
...
16
Lid, Utility WPL-10436404
...
17
Frame-Chiller WPL-10519004
...
18
Door, Chiller WPL-10519208
...
19
Glide-Igloo Door WPL-10162101
...
20
Tunnel-Air WPL-12033201
...
21
Clip-Tubular WPL-10165101
...
22
Clip, Retainer WPL-10202001
...
23
Tray, Egg WPL-10436504
...
24
Panel, Stainless WPL-10704701
...
26
Extrusion, Shelf Dairy WPL-10162007
...
27
Retainer, Dr Hndl WPL-10516002
...
28
Clip, Spring (refrig) WPL-10704401
...
29
Insulation Batt WPL-B5629063
...
30
Insul. Batt. WPL-10271101
...
31
Insulation, Batt WPL-B5629064
...
32
Screw WPL-WP59002061
...
33
Insulation Batt WPL-B5612028
...
34
Kit- Board WPL-12002771
...
35
Cover,p.c. Board WPL-D7832904
...
36
Screw WPL-M0232702
...
37
Compartment, Medicine WPL-10601801
...
38
Door, Medicine Compartment WPL-10601902
...
39
Insulation, Batt WPL-B5629065
...
40
Insulation, Batt Frz. Dr. WPL-B0523593
...
41
Gasket, Control WPL-10619202

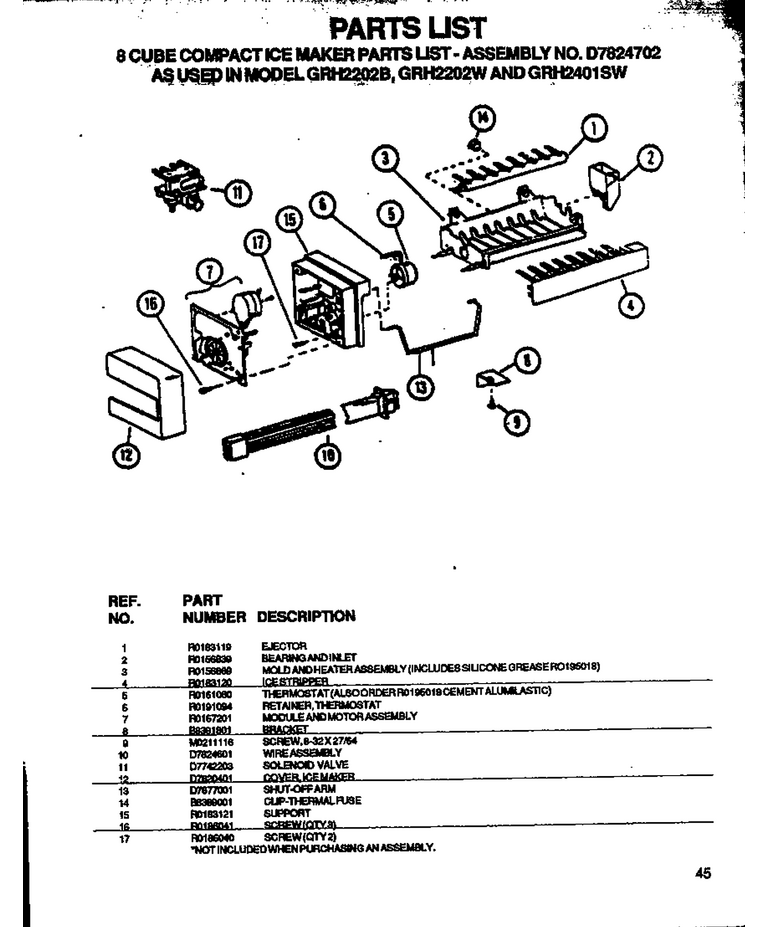

01 - 8 Cube Compact Ice Maker Parts Lists

...
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Ice Maker Assy. WPL-D7824706Q
...
4
Arm-Stripr WPL-WP2182124
...
5
Bimetl-Def WPL-WP627985
...
6
Clip WPL-WP2315522
...
7
Ice Maker Assy. WPL-D7824706Q
...
8
Bracket, I/m WPL-B8391802
...
9
Screw WPL-WP90767
...
10
Harness WPL-D7824601
...
11
Valve-Inlt WPL-WPW10245167
...
12
Cover Im WPL-D7820401
...
13
Arm,ice Maker Shut Off WPL-D7877001
...
14
Shim, Top Hinge WPL-B8389007
...
15
Housing-Im WPL-WP2195914
...
16
Screw WPL-R0186041
...
17
Screw WPL-R0186040

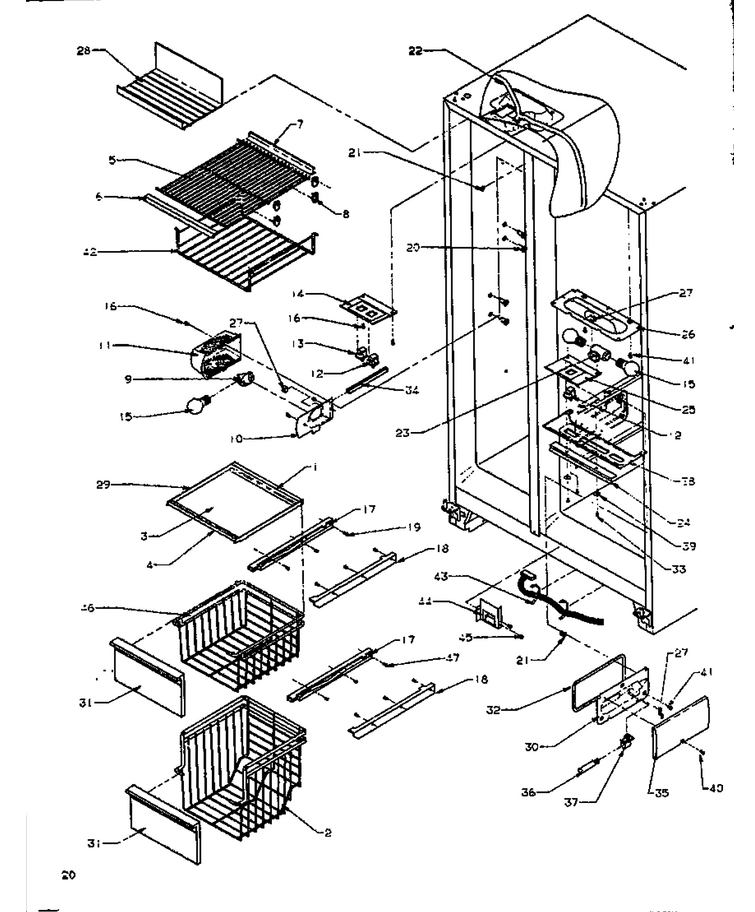

08 - Fz Shelving And Ref Light

...
...
NI
Ass`y, Glass Shelf WPL-10607101Q
...
1
Trim WPL-C8913609
...
2
Basket, Frz WPL-D7820802
...
3
Glass, Shelf WPL-10370053
...
4
Trim, Shelf Front WPL-10049954
...
5
Shelf, Freezer WPL-D7788311
...
6
Trim, Shelf Front WPL-10049955
...
7
Trim WPL-C8913609
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-D7714407
...
10
Plate-Light Socket WPL-D7753503
...
11
Shield, Light WPL-D7786603
...
12
Switch WPL-W11384469
...
13
Switch WPL-C3680306
...
14
Cover Light WPL-D7749002
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
Glide, Frz L.h. WPL-10282303
...
18
Glide, Frz. L.h. WPL-10282304
...
19
Screw, Handle WPL-67006529
...
20
Plug, Frz Shelf Support WPL-C8973701
...
21
Grommet, Screw WPL-M0580007
...
22
Harness-Fz Liner WPL-10535601
...
23
Socket, Dual Lamp WPL-D7808602
...
24
Shield, Light WPL-10014716
...
25
Cover, Light Sw WPL-D7297604
...
26
Housing-Ref Light WPL-D7716409
...
27
Clip, Ground WPL-B5733302
...
28
Shelf, Ice Cream WPL-10175804
...
29
Frame, Frz Shelf WPL-10606401
...
30
Housing, Light WPL-10270203
...
31
Front,basket WPL-D7820712
...
32
Gasket WPL-A3189337
...
33
Screw WPL-M0219546
...
34
Cover Wiring WPL-10250001
...
35
Cover-Light WPL-Y10270101
...
36
Bulb-Light WPL-WPA3073101
...
37
Socket-Light WPL-10281601
...
38
Cover, Ref. Light WPL-10493201
...
39
Washer WPL-M0270519
...
40
Screw WPL-WP12990527
...
41
Screw (3) WPL-67006425
...
42
Rack, Freezer WPL-10729201
...
43
Lock, Purse WPL-74007369
...
44
End Plate Shield WPL-10045701
...
45
Screw WPL-WP90767
...
46
Basket, Freezer WPL-10606301
...
47
Screw WPL-WP98165

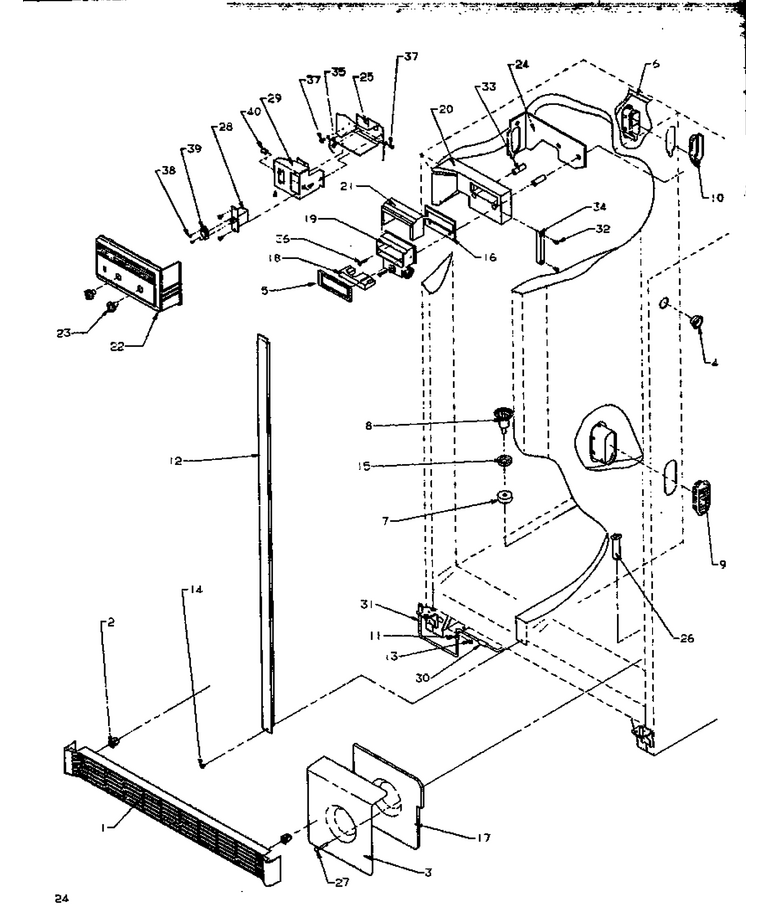

15 - Ref/fz Controls And Cabinet Parts

...
...
1
Kit, Toe Grille (blk) WPL-10470301
...
2
Clip WPL-WPM0117303
...
3
Cover, Tank Insul. WPL-D7879302
...
4
Retainer WPL-A3187801
...
5
Gasket, Damper WPL-10383201
...
6
Tube-Plastic WPL-B8372601
...
7
Gasket- Dr WPL-WPB8381501
...
8
Funnel WPL-W10815413
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel Air Supply WPL-10178001
...
11
Clamp WPL-M0102301
...
12
See Note Vertical Mullion, White -- (not Replaceable, Foamed In Place) WPL-Y00000000
...
13
Screw WPL-WP90767
...
14
Screw, Handle (black) WPL-12991101
...
15
Seal- O Ri WPL-WPM0500703
...
16
Gasket, Damper WPL-B8345401
...
17
Insulation Cut Tank WPL-D7793403
...
18
Insert, Control WPL-C8902601
...
19
Control-Damper WPL-D7832702
...
20
Duct-Waxed Air WPL-10176604
...
21
Insulation WPL-D7788201
...
22
Cover, Control WPL-D7790339
...
24
Gasket, Air Duct WPL-10177901
...
25
Box, Bottom Control WPL-D7822404
...
26
Grommet WPL-D7793501
...
27
Clip K WPL-C6457701
...
29
Box, Control Top WPL-D7868603
...
30
Fitting WPL-WP4373559
...
31
Tube WPL-WPB5705307
...
32
Screw WPL-WP489474
...
33
Spacer Damper WPL-A3044208
...
34
Clamp WPL-C8977301
...
35
Screw WPL-WP489464
...
36
Screw WPL-M0216539
...
37
Screw WPL-WP489399
...
38
Screw WPL-WP489349
...
39
Thermistor WPL-WPW10331672
...
40
Snap Bushing WPL-A4554806

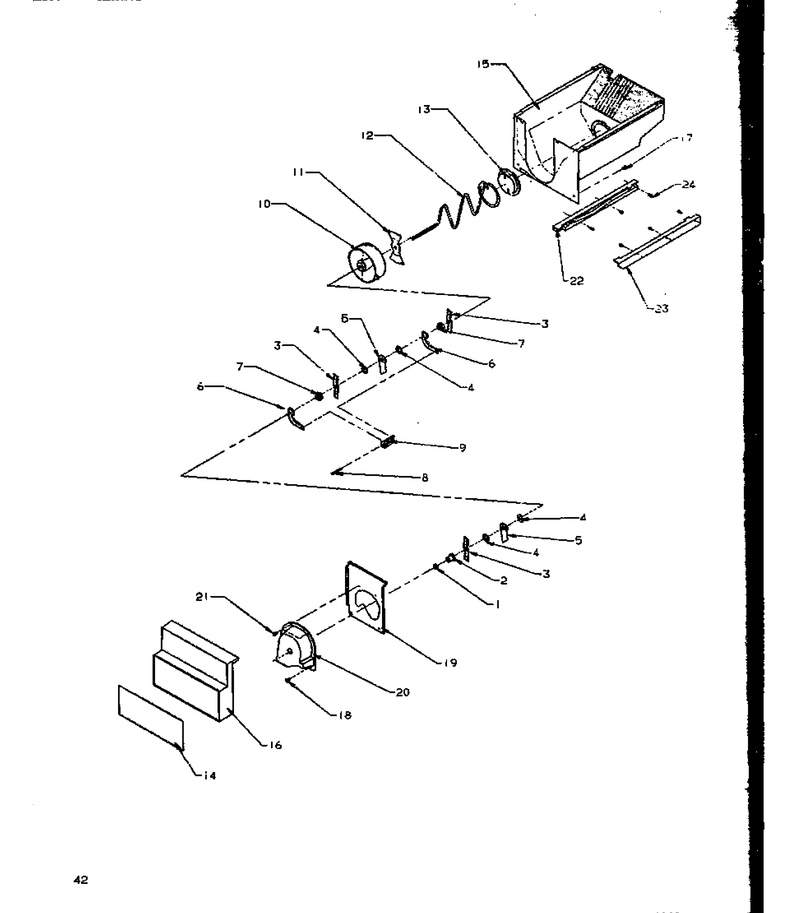

03 - Crushed Ice Bucket

...
...
NI
Crushr-Mec WPL-WP12740302
...
1
Nut WPL-WPM0223101
...
2
Spacer, Cover WPL-10113901
...
3
Blade, Rotating WPL-10114501
...
4
Washer, Waved WPL-10275101
...
5
Damper, Ice WPL-10275201
...
6
Blade, Static WPL-10114601
...
7
Washer Stepped WPL-10114301
...
8
Pin, Roll WPL-M1200108
...
9
Anchor, Blade WPL-10114101
...
10
Wheel- Crs WPL-WP67002052
...
11
Bar, Crsh Ice Bucket WPL-10113801
...
12
Agitator, Ice WPL-10114401
...
13
Cap- Helix WPL-WPD7749401
...
14
Insert, Bucket Front WPL-C8975330
...
15
Bucket- Cr WPL-WP10111905
...
16
Front-Crsh Ice Brkt WPL-10112001
...
17
Screw (3) WPL-67006425
...
18
Screw WPL-M0254706
...
19
Front, Ice Crusher WPL-10115001
...
20
Cover, Blade WPL-10114002
...
21
Screw, Tf WPL-M0231704
...
22
Glide, Container (left) WPL-67005375
...
23
Glide, Frz. (rt) WPL-67004323
...
24
Screw, Handle WPL-67006529

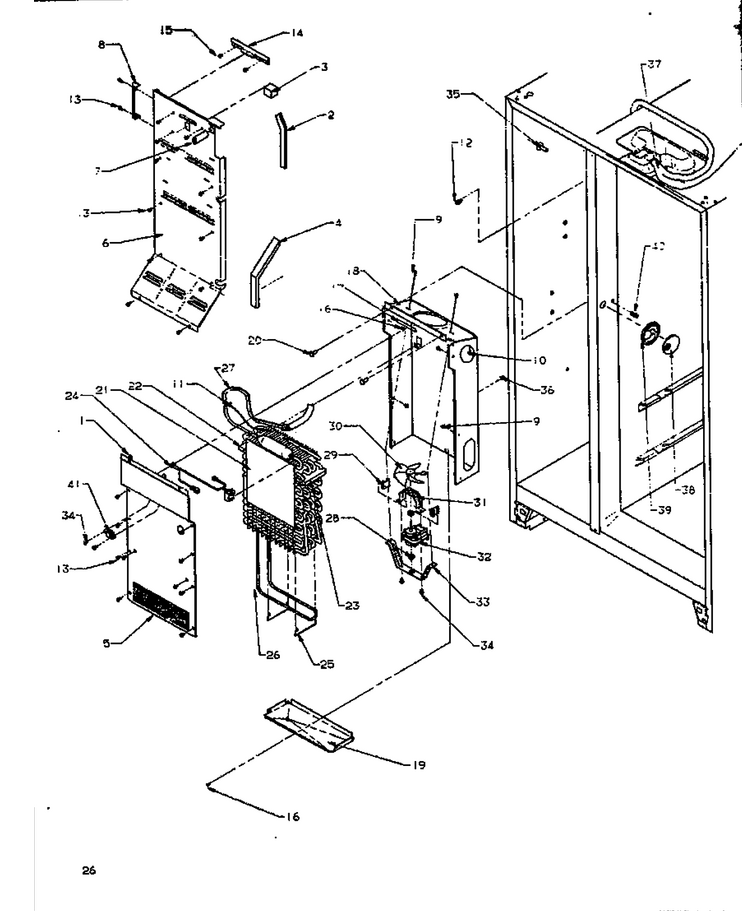

05 - Evap And Air Handling

...
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Gasket Foam WPL-A3189335
...
5
Cover Evaporator WPL-D7865908
...
6
Back, Inner Freezer WPL-D7821144
...
7
Ext. Fill Tube WPL-A3127412
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP12990527
...
10
Screw WPL-WP489399
...
11
Tie-Wire WPL-WPW10339879
...
12
Tie Wire WPL-WPM0322202
...
13
Screw (3) WPL-67006425
...
14
Clamp WPL-C8976201
...
15
Screw WPL-WP98165
...
16
Rivet WPL-10098801
...
17
Gasket, Foam WPL-A3189362
...
18
Evap. Shield WPL-D7865806
...
19
Drip Tray Pnt. WPL-D7850202
...
20
Grommet WPL-M0580003
...
21
Gasket, Evap. WPL-B8327901
...
22
Block-Lh Air Coil WPL-B8385502
...
23
Block P M Air Coil WPL-B8385601
...
24
Kit, Thermostat WPL-C8972007
...
25
Clip, Evap. Heater WPL-C8983101
...
26
Heater, Defrost WPL-D7872801
...
27
Assy,low Side-Thin Wall Evap WPL-R0170041
...
28
Grommet WPL-WP2264462
...
29
Shim WPL-A1047901
...
30
Fan-Evap WPL-C8795501
...
31
Brkt Evap Fan WPL-C8881301
...
32
Motor-Evap WPL-WPC8891605
...
33
Bracket-Motor/shroud WPL-D7767703
...
34
Screw WPL-WP12990527
...
35
Support WPL-M0560001
...
36
Grommet A WPL-M0580002
...
37
Harness- R WPL-10535702
...
38
Grille, Control WPL-10164813
...
39
Control-Air WPL-10164702
...
40
Clip, Air Tunnel WPL-10426801
...
41
Thermistor WPL-WPW10331672

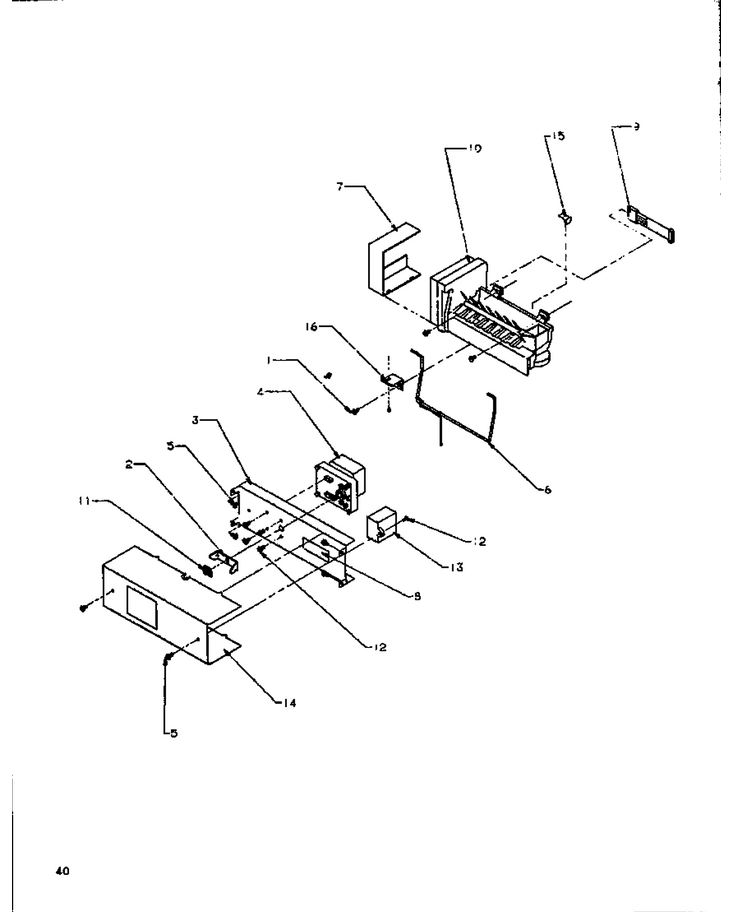

10 - Ice Maker

...
...
1
Screw WPL-WP90767
...
2
Coupling WPL-WP10114901
...
3
Support,auger Motor WPL-D7749207
...
4
Kit, Auger Motor WPL-10114803
...
5
Screw (3) WPL-67006425
...
6
Arm,ice Maker Shut Off WPL-D7877001
...
7
Cover Im WPL-D7820401
...
8
Gasket-Per Ft WPL-A3030305
...
9
Harness WPL-D7824601
...
10
Ice Maker Assy. WPL-D7824706Q
...
11
Nut WPL-WPM0223101
...
12
Screw WPL-WPW10139210
...
13
Start-Dev WPL-W10613606
...
14
Cover, Auger Mtr WPL-D7788820
...
15
Clip WPL-B5720301
...
16
Bracket, I/m WPL-B8391802

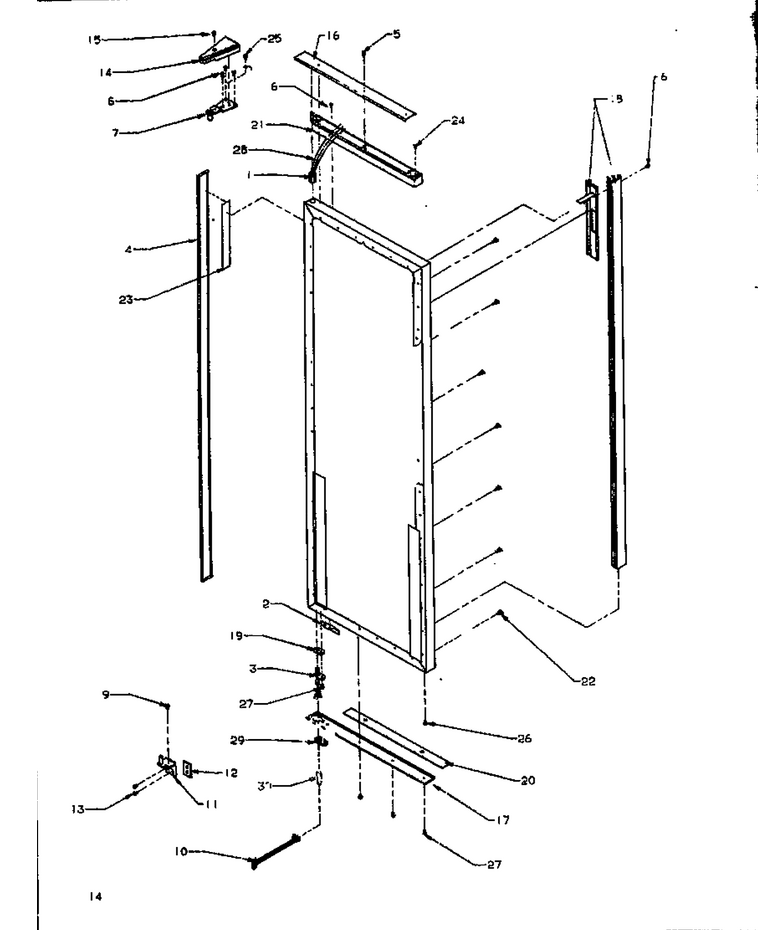

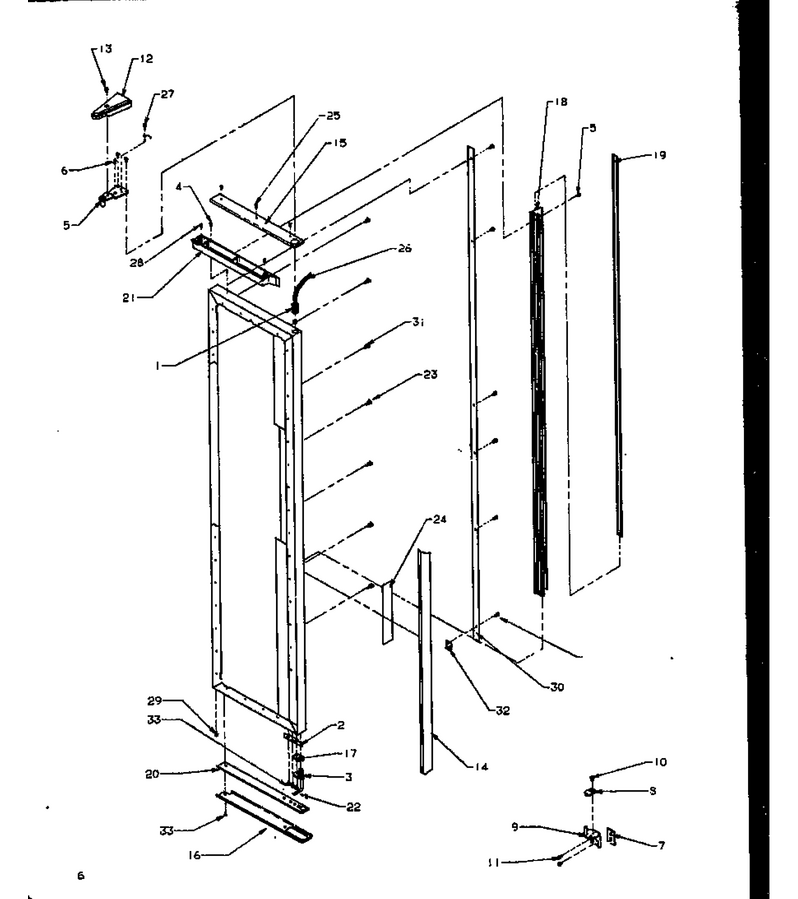

13 - Ref Door Hinge And Trim Parts

...
...
1
Bushing- D WPL-WP67004977
...
2
Stop, Door (blk) WPL-12636401B
...
3
Closure, Door (wht) WPL-12113401
...
4
Trim, Vertical WPL-10494505
...
5
Screw WPL-M0213815
...
6
Screw, Handle WPL-67006529
...
7
Hinge, Top R (e-Ct) WPL-10495805
...
8
Kit, Screw WPL-R9800670
...
9
Screw WPL-WP489128
...
10
Connector-12 Pin WPL-M0335412
...
11
Kit- Hinge WPL-R9800051
...
12
Kit,btm Hinge Shim WPL-10399501
...
13
Screw WPL-WP67006715
...
14
Hinge- Cover Lh Gray WPL-10504217
...
15
Screw WPL-M0202325
...
16
Trim, Refrig Door (top) WPL-10602702
...
17
Trim, Refrig Door (bottom) WPL-10602603
...
18
Assy, Ref Handle WPL-10517302
...
19
Shim- Dr B WPL-WP10361803
...
20
Support Ref Trim (btm) WPL-10494606
...
21
Extrusion, Refrig Door WPL-10496004
...
22
Grommet, Screw WPL-M0586301
...
23
Double Backed Tape 6ft Roll WPL-R0195042
...
24
Screw, T.f. WPL-M0209932
...
25
Screw WPL-W11214483
...
26
Screw, Sm WPL-M0213531
...
27
Screw WPL-WP98165
...
28
Harness-Ref Dr Kit WPL-10520905
...
29
Closure, Door (wht) WPL-12113301
...
30
Assy, Hinge Pin WPL-10561601

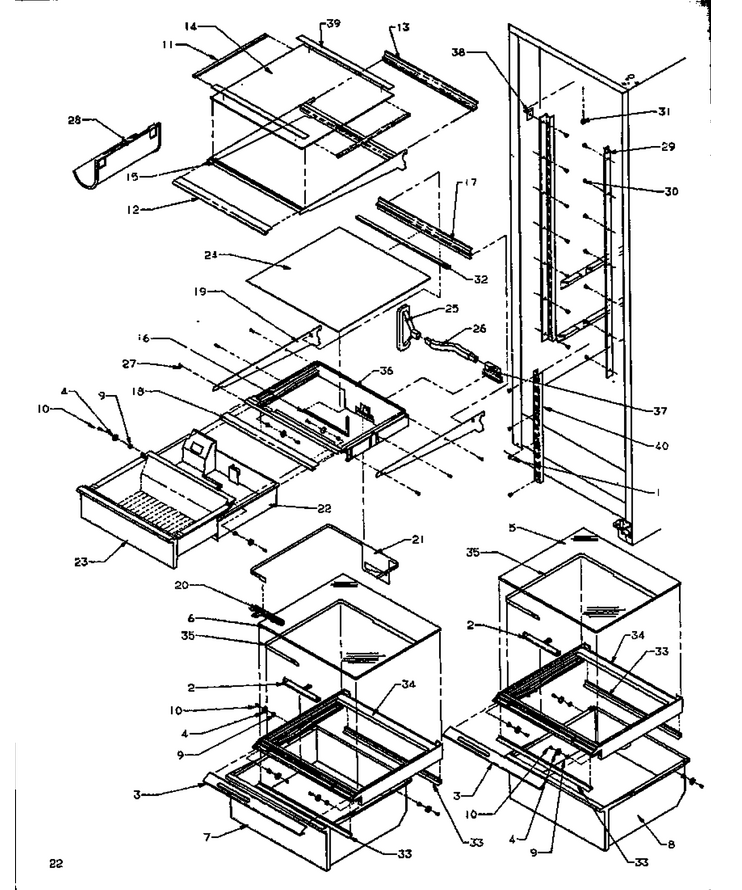

14 - Ref Shelving And Drawers

...
...
NI
Ass`y, Shelf (split) WPL-10582418
...
1
Screw-Sm WPL-M0238636
...
2
Slide Crisper Control WPL-10289908
...
3
Trim, Crisper Top (frt) WPL-10524309
...
4
Roller, Pan WPL-10481001
...
5
Glass, Shelf WPL-10370028
...
6
Glass, Shelf WPL-10370025
...
7
Pan, Crisper WPL-10471711
...
8
Pan, Crisper WPL-10469015
...
9
Screw WPL-67006692
...
10
Screw WPL-67006692
...
11
Extrusion, Glass Shelf WPL-10635801
...
12
Trim, Shelf Front WPL-10049952
...
13
Trim WPL-C8913608
...
14
Shelf, Glass WPL-10370018
...
15
Frame, Cant. Shelf WPL-10579101
...
16
Gasket WPL-A3030353
...
17
Trim, Rear WPL-C8990405
...
18
Trim, Shelf Front WPL-10049951
...
19
Rail, Blank Side WPL-D7862986
...
20
Slide-Mk C WPL-D7859404
...
21
Band, Mk WPL-10518401
...
22
Sleeve, Mk WPL-10469905
...
23
Pan, Mt Kpr WPL-10469815
...
24
Glass, Mtkpr Shelf WPL-10370094
...
25
Grommet, Mk WPL-D7873602
...
26
Duct, Mk Air WPL-10518201
...
27
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
28
Rack, Wine WPL-10448901
...
29
Ladder Cantilever WPL-D7789805
...
30
Screw WPL-WP90767
...
31
Grommet, Screw WPL-M0580007
...
32
Ext. Rear Glass WPL-10043102
...
33
Seal, Crisper Front WPL-10523401
...
34
Frame, Crisper WPL-10469603
...
35
Band, Crisper WPL-10519304
...
36
Frame, Mk WPL-10469701
...
37
Ext. Air Duct WPL-D7869101
...
38
Brkt, Cont Cover WPL-12414701
...
39
Gasket, Foam WPL-A3189354
...
40
Ladder, Center WPL-D7599003

07 - Fz Door Hinge And Trim Parts

...
...
1
Bushing- D WPL-WP67004977
...
2
Stop- Sati WPL-C8972408
...
3
Kit,dr Closure WPL-R0181181
...
4
Screw, Handle WPL-67006529
...
5
Hinge, Top L (e-Ct) WPL-10495807
...
6
Kit, Screw WPL-R9800670
...
7
Kit,btm Hinge Shim WPL-10399501
...
8
Kit,dr Closure WPL-R0181181
...
9
Kit,hinge Lh Btm(b) WPL-10496104
...
10
Screw WPL-WP489128
...
11
Screw WPL-WP67006715
...
12
Cover Hinge WPL-10504218
...
13
Screw WPL-M0202325
...
14
Trim, Vertical WPL-10494506
...
15
Trim, Frz Door (top) WPL-10602802
...
16
Trim, Frz Door (bottom) WPL-10602504
...
17
Shim- Dr B WPL-WP10361803
...
18
Handle, Frz Door WPL-10601602
...
20
Support, Fz Trim WPL-10494604
...
21
Extrusion, Frz Door White WPL-10494704
...
22
Tube WPL-WPB5705307
...
23
Grommet, Screw WPL-M0586301
...
24
Double Backed Tape 6ft Roll WPL-R0195042
...
25
Screw WPL-M0213815
...
26
Harness Fz Door WPL-10164202
...
27
Screw WPL-W11214483
...
28
Screw, T.f. WPL-M0209932
...
29
Screw, Sm WPL-M0213531
...
30
Retainer, Door Handle WPL-10515902
...
31
Grommet, Screw WPL-M0586301
...
32
Clip, Spring (freezer) WPL-10704402
...
33
Screw WPL-WP98165

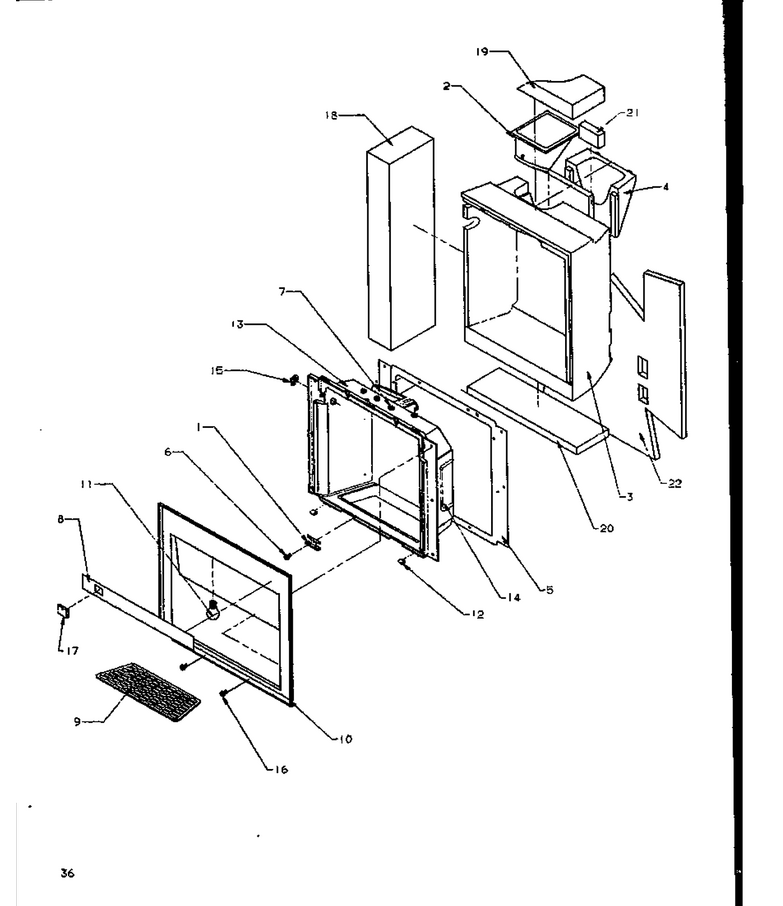

09 - Ice And Water Cavity

...
...
1
Clip WPL-C8992901
...
2
Chute- Ice WPL-10504103
...
3
Insul., I/w Cavity WPL-10506501
...
4
Insul., Ice Chute WPL-10504601
...
5
Gasket Cavity WPL-D7791002
...
6
Screw-Sm/hex WPL-12990523
...
7
Retainer, Ring WPL-M0274701
...
8
Membrane, Facade (black) WPL-D7842247
...
9
Grille, Sump (satin) WPL-D7750608
...
10
Facade, Dispenser (gray) WPL-D7877540
...
11
Bulb-Light WPL-W10857122
...
12
Clip WPL-W10819546
...
13
Cavity, Dispenser (gray) WPL-10198006
...
14
Heater-Cavity WPL-10176101
...
15
Plug Button WPL-M0311401
...
16
Screw WPL-M0217701
...
17
Cap-Grey Switch WPL-12043805
...
18
Insul, Batt WPL-10270907
...
19
Insul., Batt WPL-B5629061
...
20
Insulation Per Ft. WPL-B0523584
...
21
Insulation Batt WPL-B5629058
...
22
Insulation Batt WPL-10220201

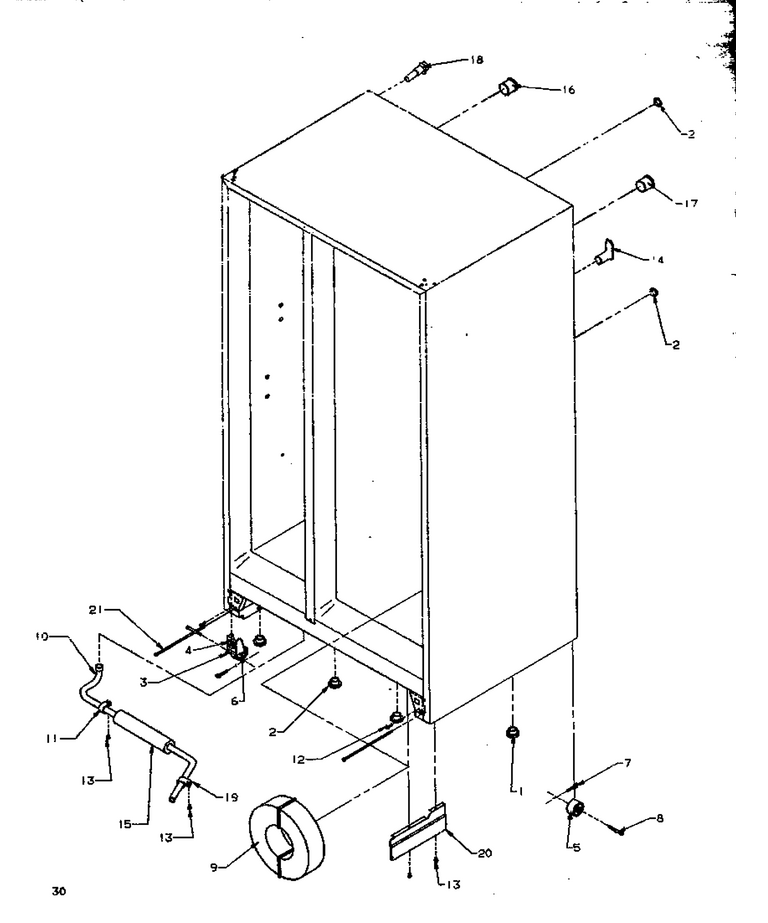

16 - Rollers And Back Unit

...
...
NI
Clip, Tube WPL-10527501
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Tank, Coil Water WPL-D7787804
...
10
Tube-Drain WPL-10393001
...
11
Clamp WPL-M0102303
...
12
Screw, Mach WPL-M0206313
...
13
Screw WPL-WP489069
...
14
Tunnel, Heat Ex. WPL-C8971902
...
15
Insulation, Tube WPL-10851302
...
16
Tunnel Wire WPL-10187501
...
17
Tunnel Wire WPL-10187601
...
18
Assy, Fill Tube WPL-12023401Q
...
19
Holder Tube WPL-10161301
...
20
Shield Elect Box WPL-10248101
...
21
Kit- Machi WPL-R0000213

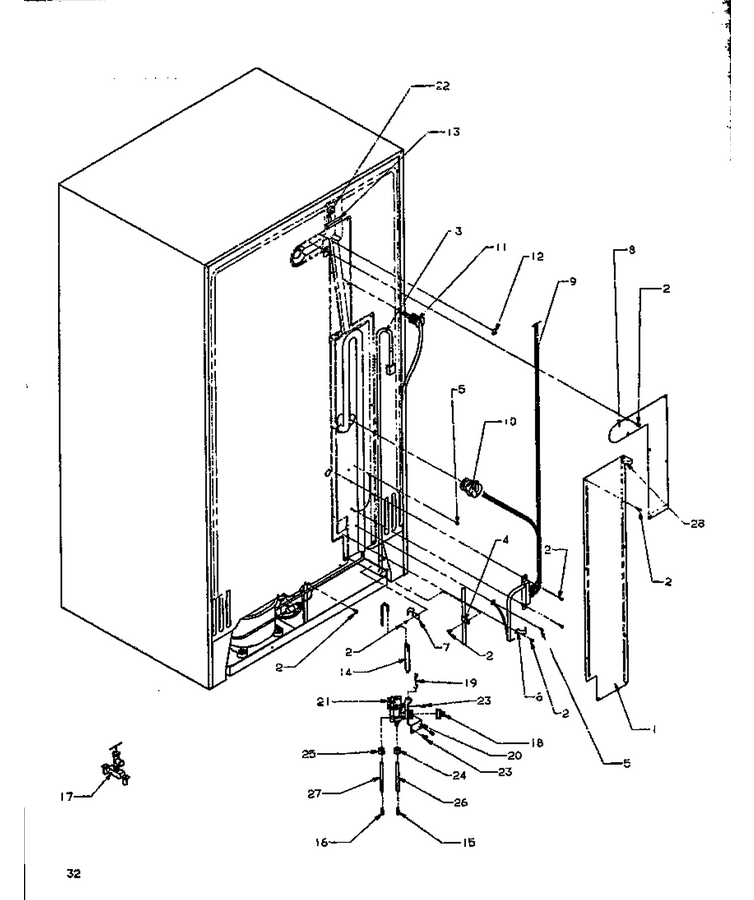

02 - Back Unit

...
...
NI
Insert- Pl WPL-WPA3223101
...
1
Cover, O.c.back WPL-10178406
...
2
Screw WPL-WP489069
...
3
Cord, Power WPL-10678503
...
4
Clamp, Speed WPL-M0103904
...
5
Screw, Spextite WPL-M0232330
...
6
Clamp WPL-B5794201
...
7
Clip, Drier WPL-10547001
...
8
Cover - Wire WPL-10178505
...
9
Harness, Cabinet WPL-10554301
...
10
Grommet Wire WPL-10178702
...
11
Grommet Wire WPL-10178802
...
12
Clip WPL-WPM0104106
...
13
Gasket (ft.) WPL-10839803
...
14
Drier WPL-WPB2150504
...
15
Spring WPL-WPA1055105
...
16
Spring K WPL-A1055102
...
17
Saddle Valve WPL-A3034801
...
18
Coupling WPL-10244901
...
19
Clip, Water Valve WPL-10798001
...
20
Bracket WPL-WPD7701602
...
21
Valve-Inlt WPL-WPW10245167
...
22
Clip- Spee WPL-WPM0114003
...
23
Screw, 8-32 X 3/8 WPL-681390
...
24
Nut WPL-WP627018
...
25
Nut WPL-8201513
...
26
Tube WPL-WPB5705307
...
27
Tank, Coil Water WPL-D7787804
...
28
Clamp, Speed WPL-M0103904

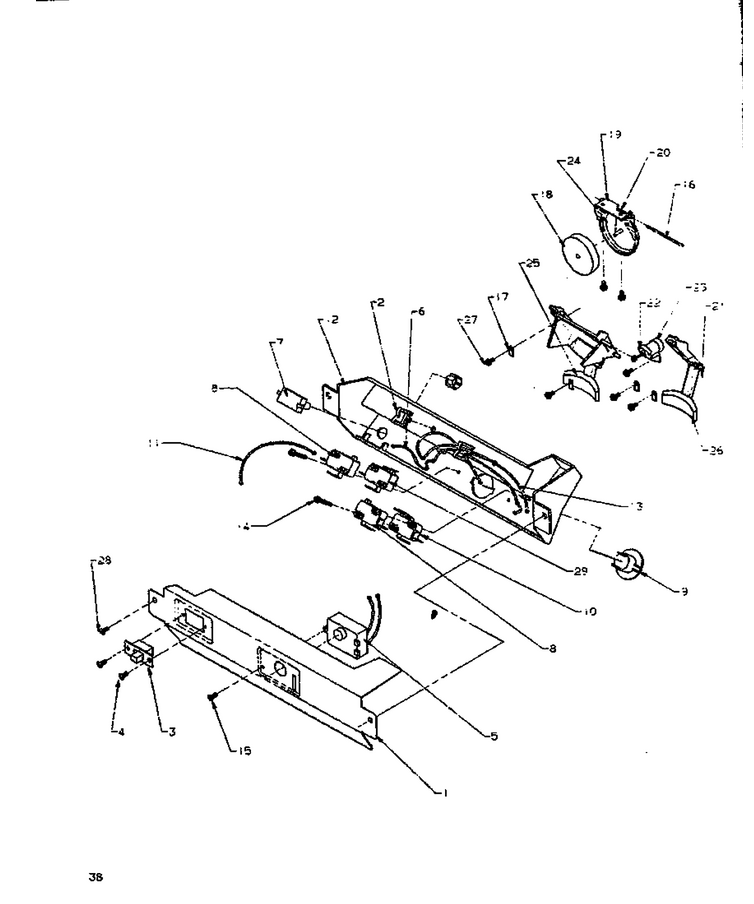

04 - Electronic Bracket Assy

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Cover-Elect Brkt WPL-10131801
...
2
Wire Clip WPL-B5667304
...
3
Switch-Crushed/cube WPL-10166002
...
4
Screw WPL-M0234003
...
5
Switch-Photosensitive WPL-D7854104
...
6
Wire-Jumper WPL-D7726590
...
7
Switch-Light Cavity WPL-10166101
...
8
Switch- Li WPL-WP10533003
...
9
Socket, Light WPL-10131701
...
10
Switch, Limit (water Disp) WPL-10533002
...
11
Wire-Jumper WPL-D7726592
...
12
Bracket, Elec Mtg WPL-10323305
...
13
Wire Jumper WPL-D7726593
...
14
Screw, T.f. WPL-M0237809
...
15
Screw WPL-WP489349
...
16
Pin, Chute Door WPL-A1061501
...
17
Retainer, Ice Arm WPL-A1061601
...
18
Insulation, Chute Door WPL-B8380701
...
19
Brkt-Chute Door WPL-B8380801
...
20
Spring,chute Door WPL-B8380901
...
21
Spring, Return WPL-B8385401
...
22
Retainer Door Delay WPL-C8972501
...
23
Delay, Door WPL-C8973601
...
24
Kit,chute Dr No.3 WPL-10246601
...
25
Arm-Dispsr WPL-12002642
...
26
Arm, Water Actuator (stn) WPL-10164905
...
27
Screw WPL-WP90767
...
28
Screw-Sm/hex WPL-12990523
...
29
Switch, Limit WPL-10533001

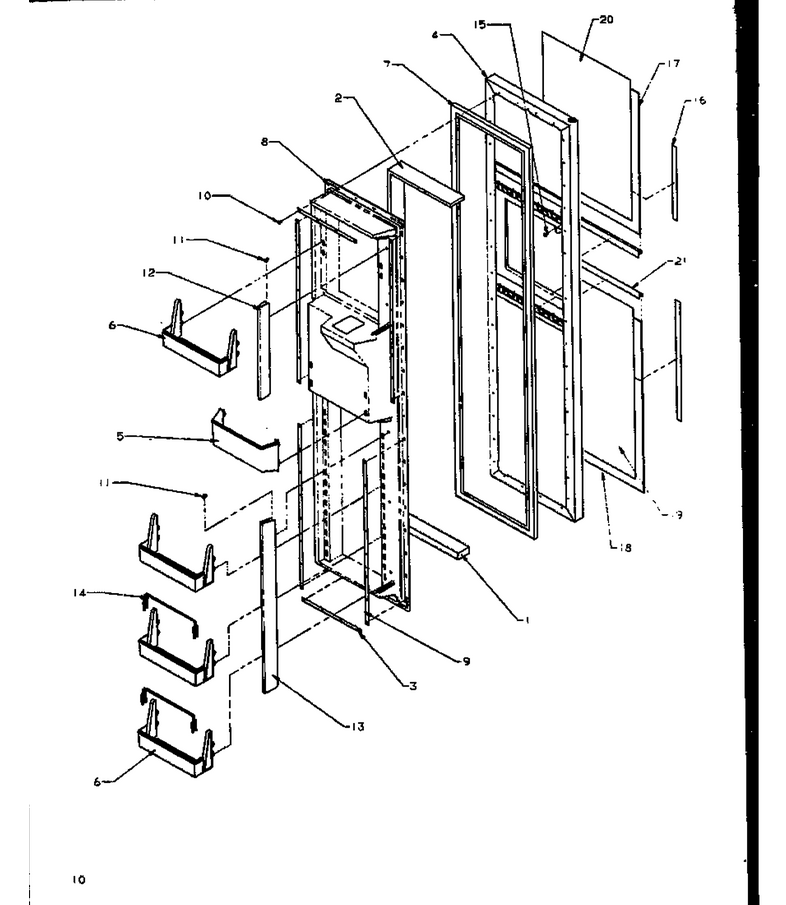

06 - Fz Door

...
...
1
Insulation Ft. K WPL-B0523563
...
2
Insul. By The Ft. WPL-B0523562
...
3
Retainer, Door Liner WPL-C8982801
...
4
Ass`y, Frz Door (white) WPL-10568402W
...
5
Shelf, Frz Door (half) WPL-10534706
...
6
Shelf, Frz Door WPL-10525506
...
7
Gasket, Door (gray) Freezer WPL-10359707
...
8
Liner, Frz. Dr I/w WPL-10533601
...
9
Retainer, Door Liner WPL-D7828601
...
10
Screw WPL-WPM0219730
...
11
Clip, Door Dike WPL-10063102
...
12
Rem Dike I & W Upper WPL-10063202
...
13
Removable Dike I & W WPL-10063204
...
14
Retainer, Package WPL-10237604
...
15
Screw WPL-WP489399
...
16
Tape Per Roll WPL-M0275163
...
17
Panel-Stainless WPL-10704705
...
18
Panel, Stainless WPL-10704703
...
21
Retainer, Dec Pnl WPL-B8391213
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
