Amana GRH220-1D (BOM: GRH22001D)

Model: GRH220-1D (BOM: GRH22001D)

Save Part Not Listed?
product name

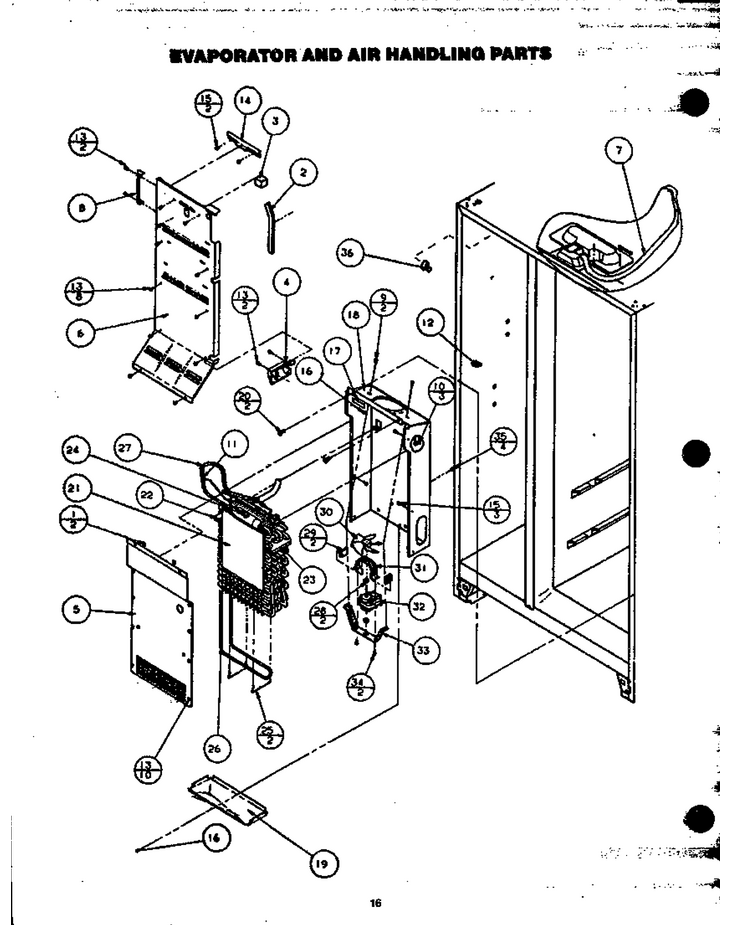

03 - Evap And Air Handling Parts

...
...
1
Bracket,igniter Xreplace WPL-55448
...
2
Gasket WPL-B8386606
...
3
Gasket, Air Block WPL-0312481
...
4
Cover, M.k Air WPL-D7786901
...
5
Cover, Evaporator WPL-0312609
...
6
Back, Inner Frz WPL-D7821103
...
8
Cover, Supply Air WPL-D7838302
...
9
Template-Eng Supplies WPL-56272
...
10
Screw WPL-WP489399
...
11
Tie-Wire WPL-WPW10339879
...
12
Tie Wire WPL-WPM0322202
...
13
Screw (3) WPL-67006425
...
14
Clamp WPL-C8976201
...
15
Crate,cap WPL-56268
...
16
Rivet WPL-10098801
...
17
Gasket, Foam WPL-Y0312424
...
18
Use D7865804 WPL-0312608
...
19
Drip Tray Pnt. WPL-0312596
...
20
Grommet WPL-0312658
...
21
Gasket, Evap. WPL-0055451
...
22
Block-Lh Air Coil WPL-0312437
...
23
Block P M Air Coil WPL-0312438
...
24
Thermostat WPL-WPC8972006
...
25
Clip, Evap. Heater WPL-0312488
...
26
Heater, Defrost WPL-D7872801
...
27
Assy,low Side-Thin Wall Evap WPL-0312662
...
28
Grommet WPL-WP2264462
...
29
Shim WPL-A1047901
...
30
Fan-Evap WPL-12033101
...
31
Bracket, Evaporator Fan WPL-54412
...
32
Motor-Evap WPL-WPC8891605
...
33
Use D7767701 WPL-0312532
...
34
Use M0219916 WPL-0312645
...
35
Sticker WPL-56327
...
36
Support WPL-0312657

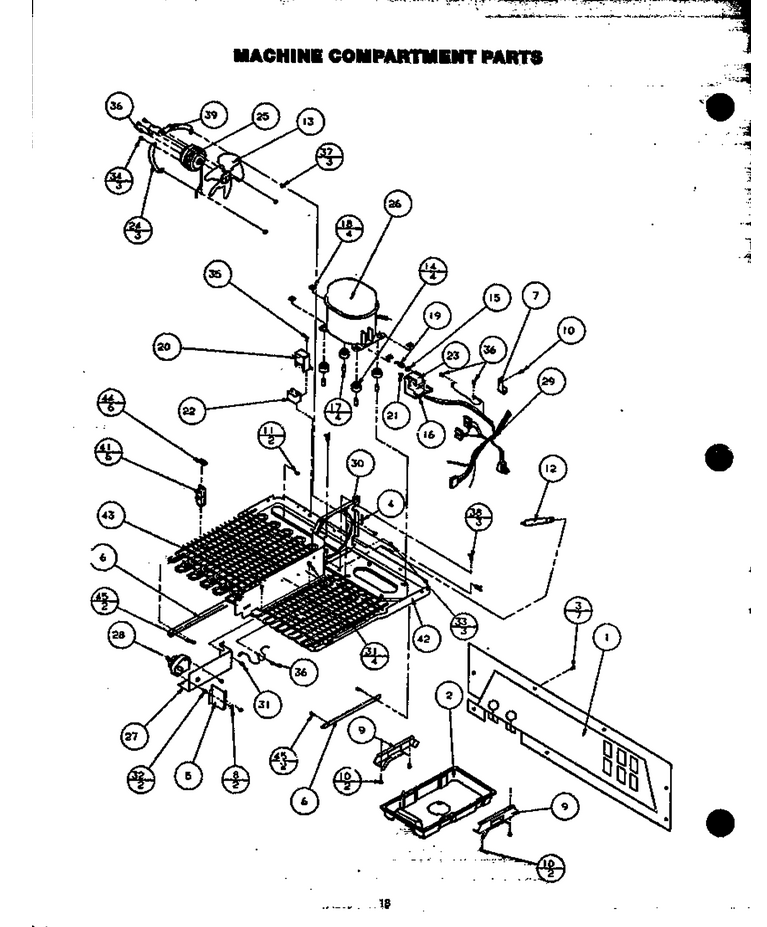

08 - Machine Compartment Parts

...
...
1
Mach Back Assy A WPL-0312550
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-Y0312643
...
4
Gasket WPL-54363
...
5
Bracket, Timer WPL-0312476
...
6
Support, Machine Compartment WPL-54424
...
7
Clamp, Tube WPL-Y54567
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-0312556
...
10
Screw WPL-WP489069
...
11
Screw WPL-Y0056292
...
12
Insulation Ft. K WPL-0054324
...
13
Blade, Fan WPL-B5742603
...
14
Grommet WPL-54372
...
15
Clip, Overload WPL-54380
...
16
Cover WPL-Y54386
...
17
Pin, Comp. Mtg. WPL-0312433
...
18
Clip, Comp. Mtg WPL-0312434
...
19
Overload WPL-C8906203
...
20
Shield, Capacitor WPL-10266402
...
21
Relay WPL-2154436
...
22
Capacitor WPL-0054164
...
23
Cover, Terminal WPL-54436
...
24
Bracket, Cond Motor WPL-0055516
...
25
Motor, Condenser WPL-Y312499
...
26
Compressor Aea1410axa WPL-Y0312509
...
27
Bracket, Timer WPL-0312592
...
28
Timer-Def WPL-R0131577
...
29
Harness, Mc WPL-0312690
...
30
Use D7844110 WPL-0312591
...
31
Use M0219916 WPL-0312645
...
32
Screw WPL-54588
...
33
Screw Shoulder WPL-M0238833
...
34
Screw WPL-WPM0223816
...
35
Template-Eng Supplies WPL-56272
...
36
Screw - WPL-88487
...
37
Grommet K WPL-M0500107
...
38
Tie, Wire WPL-M0585401
...
39
Tie-Wire WPL-WPW10339879
...
41
Spacer Cond. WPL-B8346301
...
42
Pan, Base WPL-D7748610
...
43
Use D7824504 WPL-0312576
...
44
Nut, Speed WPL-54617
...
45
Screw WPL-M0211530

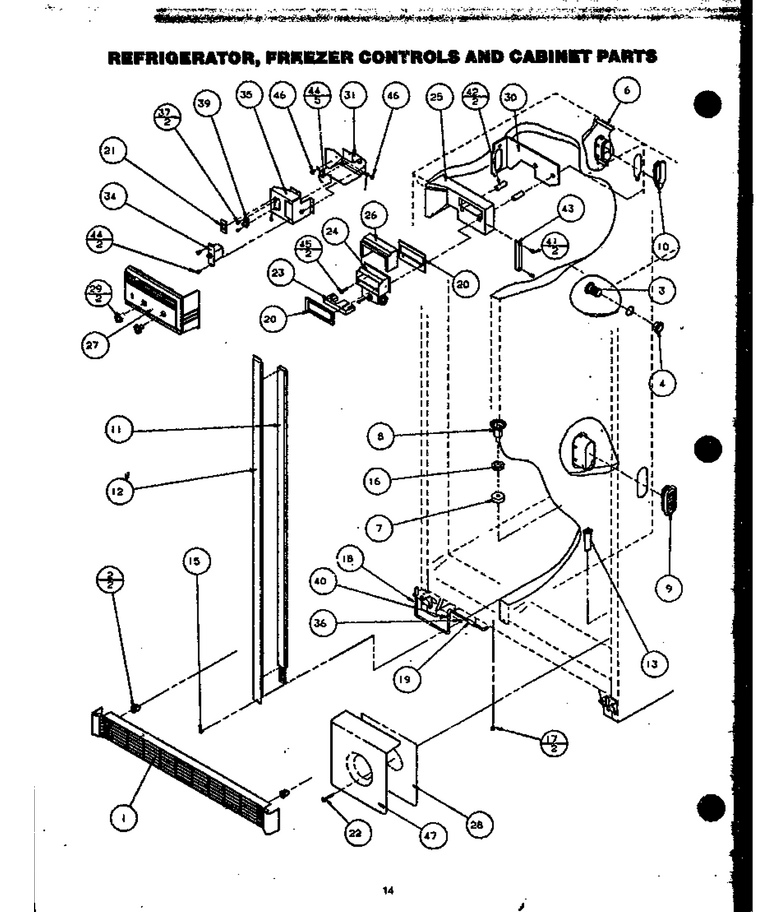

10 - Ref

...
...
1
Grille, Toe Black WPL-D7786702
...
2
Receptacle,2 Circuit WPL-56265
...
3
Tunnel, Air WPL-A3187703
...
4
Retainer WPL-A3187801
...
6
Tubing, Plastic (wtr Tank/do WPL-Y0312423
...
7
Gasket- Dr WPL-WPB8381501
...
8
Funnel WPL-W10815413
...
9
Grille-Rtn Air WPL-Y0312539
...
10
Tunnel Air Supply WPL-10178001
...
15
Screw WPL-W11245710
...
16
Seal- O Ri WPL-WPM0500703
...
17
Grommet, Screw WPL-M0580007
...
18
Use B5705308 WPL-Y0054341
...
19
Fitting WPL-WP4373559
...
20
Gasket, Damper WPL-54374
...
21
Use B8391602 WPL-0312451
...
22
Clip K WPL-C6457701
...
23
Insert, Control WPL-Y54418
...
24
Control, Damper WPL-0312498
...
25
Air Duct, Waxed WPL-0312692
...
26
Insulation WPL-D7788201
...
27
Use D7790319 WPL-0312554
...
28
Insulation Cut Tank WPL-0312560
...
29
Use D7795815 WPL-0312562
...
30
Gasket, Air Duct WPL-10177901
...
31
Box, Bottom Control WPL-D7822404
...
34
Assy, Control-Fz WPL-R0161092
...
35
Box Control Top WPL-0312612
...
36
Screw WPL-WP90767
...
37
Screw WPL-M0234003
...
39
Switch, Heater WPL-0312655
...
40
``p`` Clamp, Copper Tube To Cabi WPL-Y54564
...
41
Screw WPL-WP489474
...
42
Spacer Damper WPL-A3044208
...
43
Clamp WPL-C8977301
...
44
Template-Eng Supplies WPL-56272
...
45
Screw WPL-M0216539
...
46
Screw WPL-WP489399
...
47
Cover, Tank WPL-0312627

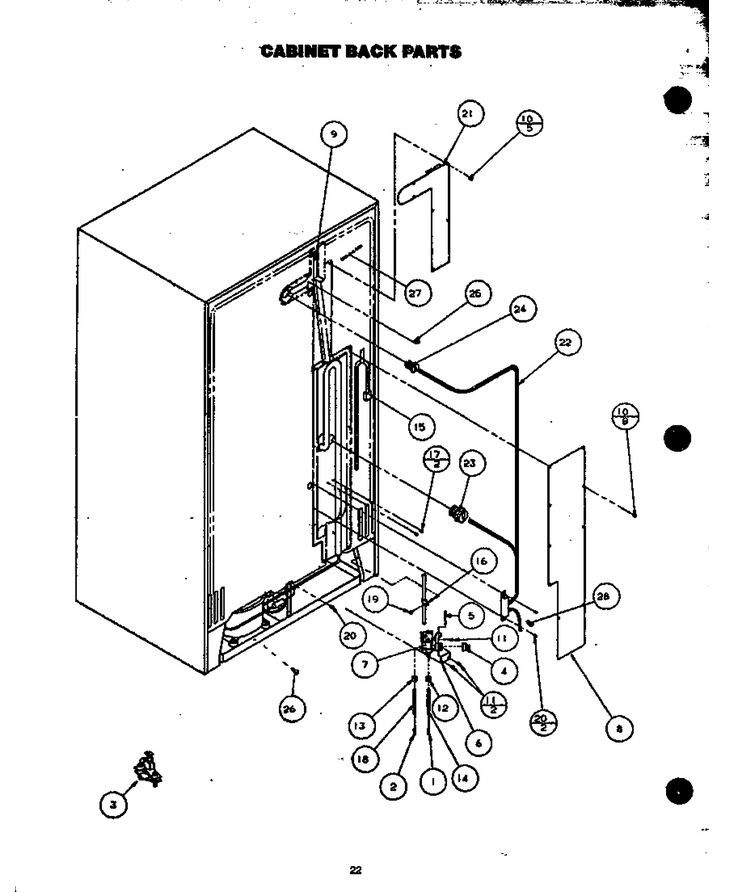

01 - Cabinet Back Parts

...
...
1
Connecting Rod A WPL-A1050103
...
2
Spring K WPL-A1055102
...
3
Use A3034801 WPL-0054189
...
4
Coupling WPL-WP10244903
...
5
Clip, Water Valve WPL-54389
...
6
Bracket WPL-WPD7701602
...
7
Valve-Inlt WPL-WPW10245167
...
8
Cover, O.c.back WPL-10178406
...
9
Clamp WPL-Y54575
...
10
Screw WPL-WP90767
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Nut, Sleeve WPL-Y0056334
...
13
Sub 56535, Screw WPL-0056335
...
14
Use B5705308 WPL-Y0054341
...
15
Cord, Power WPL-B8310509
...
16
Clamp, Speed WPL-54568
...
17
Screw WPL-WP489399
...
18
Tank- Coil WPL-D7787801Q
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP489069
...
21
Use 10178502 WPL-0312696
...
22
Use 10268501 WPL-0312723
...
23
Grommet Wire WPL-0312697
...
24
Grommet Wire WPL-10178801
...
25
Use M0102408 WPL-0312629
...
26
Screw WPL-WP489474
...
27
Gasket (ft.) WPL-10839803
...
28
Screw WPL-Y0312647

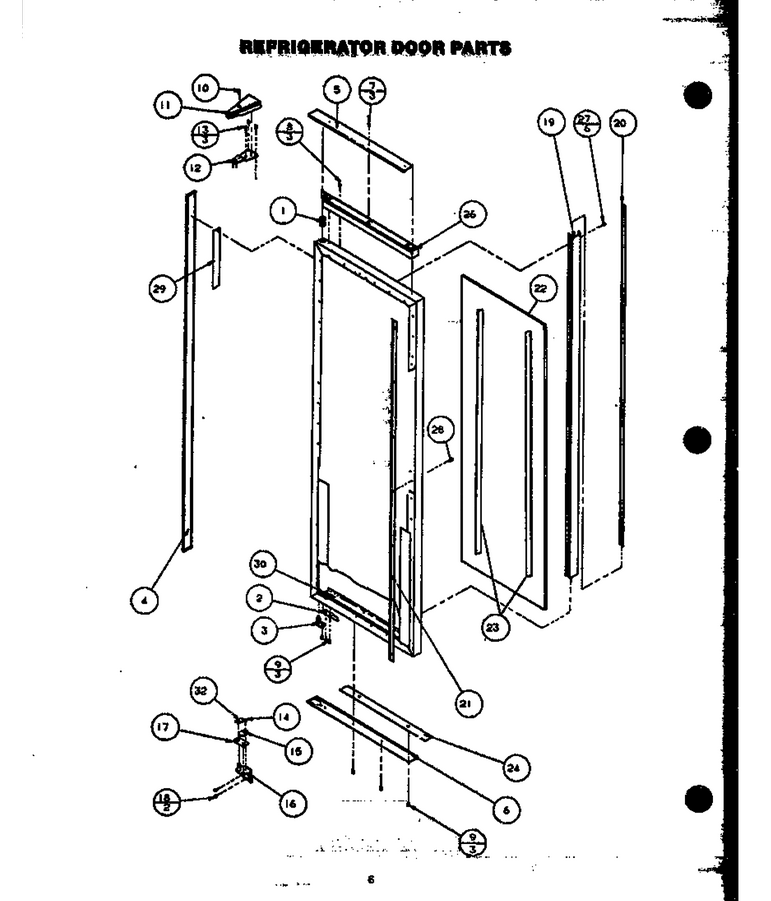

11 - Ref Door Parts

...
...
NI
Spacer, Panel WPL-0312706
...
1
Bushing, Top WPL-312467
...
2
Stop, Door (blk) WPL-Y0312473
...
3
Kit,dr Closure WPL-R0181181
...
4
Trim WPL-0312585
...
5
Trim, Top Ref Door WPL-0312714
...
6
Use 10235001 WPL-0312715
...
7
Screw WPL-M0213815
...
8
Screw WPL-Y0089861
...
9
Crate,cap WPL-56268
...
10
Screw WPL-W11227370
...
11
Cover, Hinge WPL-0312616
...
12
Hinge Assy, Top WPL-0312599
...
13
Kit, Screw WPL-R9800670
...
14
Screw WPL-WP489128
...
15
Kit,dr Closure WPL-R0181181
...
16
Rh Bot Hinge-Bk E Ct WPL-10496118
...
17
Kit-Btm Hi WPL-R0131015
...
18
Screw WPL-Y0056292
...
19
Handle Ref WPL-10234803
...
20
Insert Handle WPL-0312709
...
21
Top Strip WPL-0312581
...
22
Panel, Black WPL-0312676
...
23
Tape, Adhesive WPL-Y87788
...
24
Spacer, Bottom Trim WPL-0312619
...
26
Spacer- Do WPL-YD7866202
...
27
Use M0211005 WPL-0312635
...
28
Use M0248718 WPL-0312650
...
29
Use R0195042 WPL-0312665
...
30
Use D7826402 WPL-0312579
...
32
Use B8387701 WPL-Y0312444

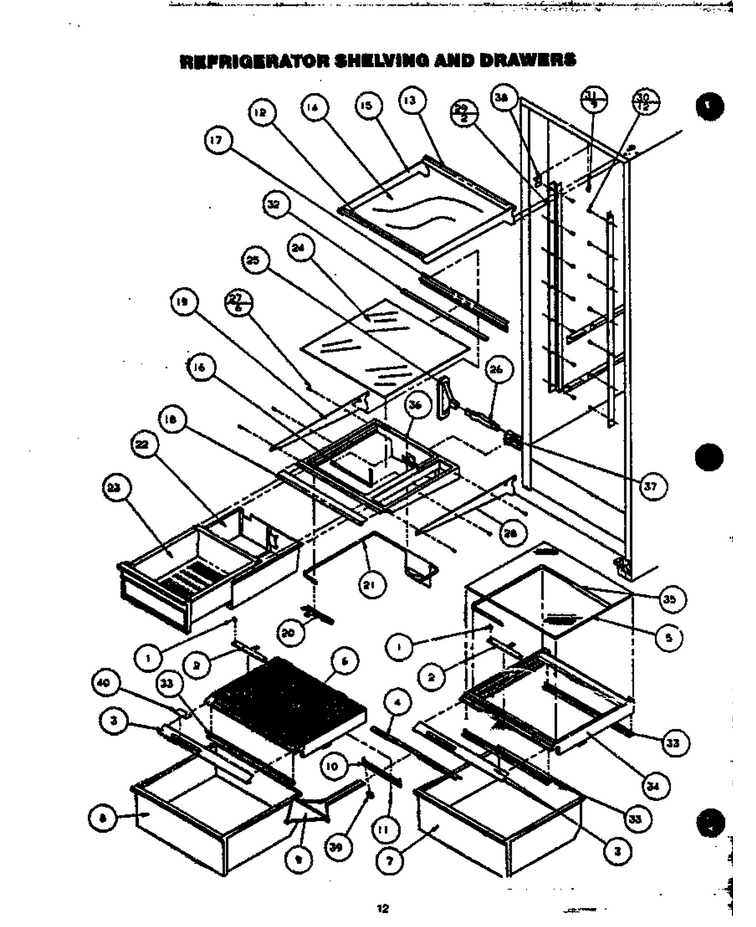

13 - Ref Shelving And Drawers

...
...
NI
Use R0179189 WPL-0312664
...
1
Knob, Crisper Control WPL-10038401
...
2
Use D7860607 WPL-Y0312605
...
3
Trim Crisp WPL-D7616677
...
4
Damper, Humidity Control WPL-Y0312531
...
5
Glass Top Crisper WPL-10036007
...
6
Top Crisper WPL-0312600
...
7
Pan-Fruit WPL-D7817212
...
8
Crisper Pa WPL-D7782017
...
9
Slide, Arm Crisper Control WPL-0312535
...
10
Support, Slide WPL-0312566
...
11
Screw,tc WPL-M0230017
...
12
Use C8913550 WPL-0312459
...
13
Use C8913606 WPL-0312461
...
14
Use 10036056 WPL-0312667
...
15
Use D7871006 WPL-0312618
...
16
Gasket WPL-A3030302
...
17
Use C8990404 WPL-0312494
...
18
Trim- Mk T WPL-C8913551
...
19
Side Rail WPL-0312606
...
20
Slide-Mk C WPL-D7859404
...
21
Band M.k. Control WPL-0312603
...
22
Sleeve, Meatkeeper WPL-Y0312570
...
23
Pan-Meat WPL-0312568
...
24
Glass M K Shelf WPL-0312668
...
25
Grommet, Mk WPL-D7873602
...
26
Use D7869001 WPL-0312613
...
27
Screw, Air Duct WPL-Y0089883
...
28
Side Rail WPL-0312607
...
29
Ladder Cantilever WPL-0312552
...
30
Screw (3) WPL-67006425
...
31
Grommet, Screw WPL-M0580007
...
32
Ext. Rear Glass WPL-10043102
...
33
Seal, Crisper Front WPL-D7718403
...
34
Frame Crisper WPL-D7853202
...
35
Band Crisper Control WPL-Y0312604
...
36
Use D7857003 WPL-0312601
...
37
Ext. Air Duct WPL-D7869102
...
38
Brkt, Cont Cover WPL-12414701
...
39
Clip WPL-0312630
...
40
Insert, Crisper Top WPL-0312685

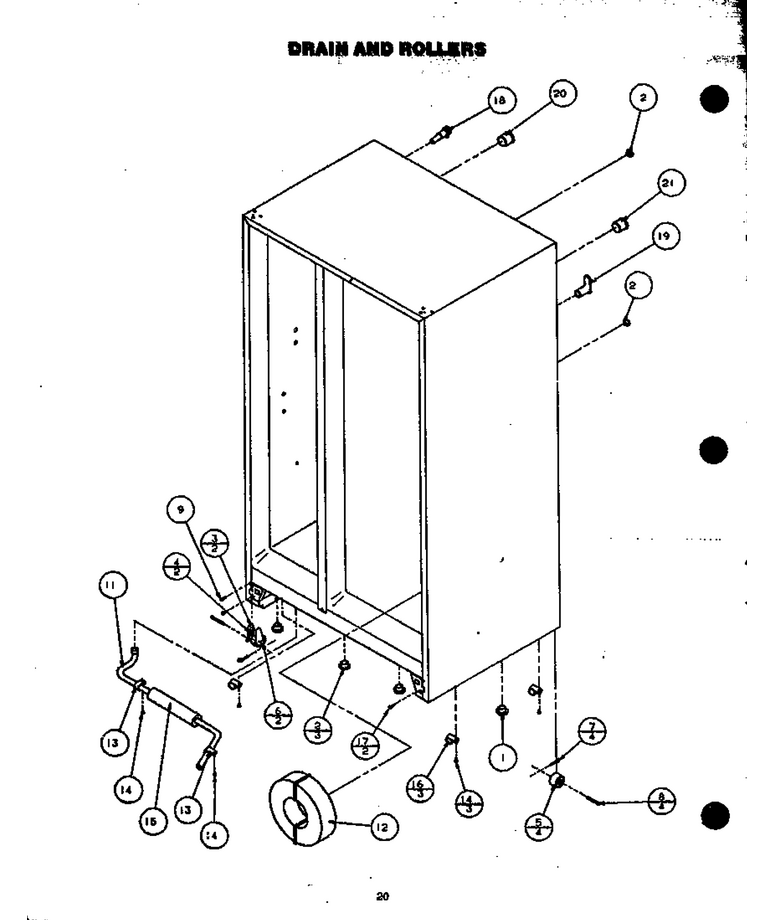

02 - Drain And Rollers

...
...
NI
Assy, Roller Bracket WPL-12452602Q
...
1
Plug Button WPL-54194
...
2
Plug Button WPL-54195
...
3
Bracket, Roller WPL-54398
...
4
Nut, Speed WPL-M0286708
...
5
Assy,conversion Kit WPL-56326
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Screw, Adj Roller WPL-Y0312675
...
11
Use D7748501 WPL-0312512
...
12
Tank- Coil WPL-D7787801Q
...
13
Timer WPL-56260
...
14
Screw WPL-WP489069
...
15
Tubing Insulation By Inch WPL-Y0312400
...
16
Clamp WPL-M0102303
...
17
Screw, Mach WPL-M0206313
...
18
Manual, Use & Care WPL-312426
...
19
Tunnel, Heat Ex. WPL-C8971902
...
20
Tunnel Wire WPL-10187501
...
21
Tunnel Wire WPL-10187601

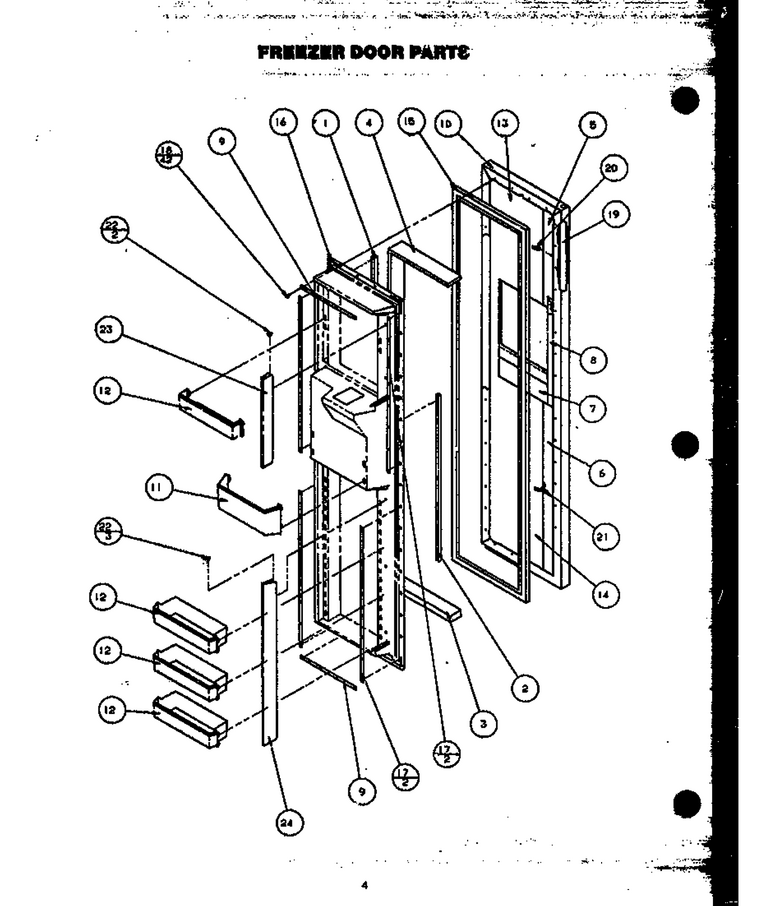

04 - Fz Door Parts

...
...
1
Usec8987101 WPL-0312491
...
2
Seal, Door Dike WPL-0312492
...
3
Air Button WPL-312415
...
4
Insulation, Per Ft. WPL-0312416
...
5
Insulation WPL-0312420
...
6
Insulation WPL-0312421
...
7
Use B5629048 WPL-0312419
...
8
Use B5629051 WPL-0312422
...
9
Retainer, Door Liner WPL-C8982801
...
10
Door Frz W WPL-D7834038WQ
...
11
Shelf, Ref Door WPL-0312538
...
12
Shelf- Frz WPL-D7827316
...
13
Use D7800406 WPL-0312564
...
14
Foam Slab Door WPL-D7800407
...
15
Gasket W WPL-WP10359709Q
...
16
Use D7829405 WPL-0312584
...
17
Retainer, Door Liner WPL-D7828601
...
18
Screw WPL-WPM0219730
...
19
Tube, Protective WPL-0312465
...
20
Clip WPL-0312447
...
21
Clip WPL-0312446
...
22
Clip, Door Dike WPL-10063102
...
23
Rem Dike I & W Upper WPL-0312673
...
24
Removable Dike I & W WPL-0312674

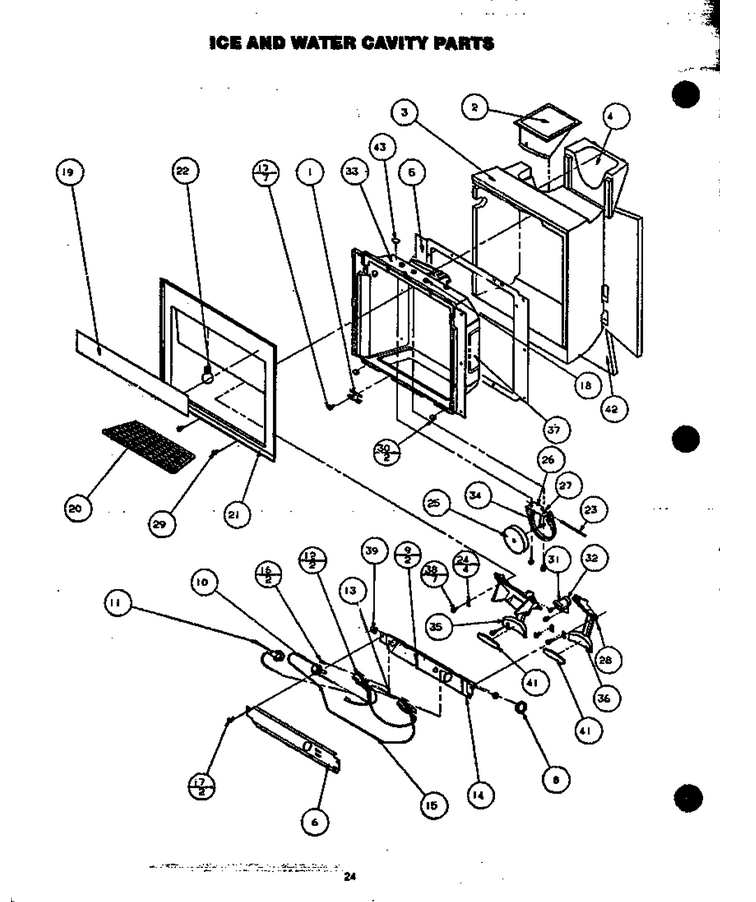

06 - Ice And Water Cavity Parts

...
...
NI
Chute-Drwr WPL-R0000447
...
1
Clip WPL-C8992901
...
2
Ice, Chute WPL-0312525
...
3
Use D7789601 WPL-0312551
...
4
Insul I & W Cavity WPL-0312558
...
5
Gasket Cavity WPL-0312559
...
6
Use D7795901 WPL-0312563
...
8
Use B8382701 WPL-0312432
...
9
Use B8386801 WPL-0312443
...
10
Switch, Light WPL-0312468
...
11
Socket, Light WPL-C8967603
...
12
Kit, Limit Switch WPL-Y0312475
...
13
Jumper Wire WPL-0312507
...
14
Bracket, Elect. Mtg WPL-D7750501
...
15
Jumper Wire WPL-0312508
...
16
Screw WPL-0089372
...
17
Sub 90278, Screw WPL-Y0312302
...
18
Retainer, Ring WPL-0312651
...
19
Thinplate WPL-C8986018
...
20
Grille, Sump (satin) WPL-D7750608
...
21
Use D7877528 WPL-0312626
...
22
Use M0360001 WPL-Y0056324
...
23
Pin, Chute Door WPL-Y0312402
...
24
Pin, Chute Door WPL-A1061501
...
25
Insulation, Chute Door WPL-B8380701
...
26
Chute-Drwr WPL-R0000447
...
27
Spring,chute Door WPL-B8380901
...
28
Spring, Return WPL-B8385402
...
29
Screw WPL-0088486
...
30
Clip, Facade WPL-Y312449
...
31
Retainer Door Delay WPL-C8972501
...
32
Delay, Door WPL-C8973602
...
33
Use 10198003 WPL-0312702
...
34
Chute-Drwr WPL-R0000447
...
35
Arm Ice Actuater WPL-0312522
...
36
Arm,water Actuater WPL-0312688
...
37
Use D7762701 WPL-0312530
...
38
Screw WPL-WP98165
...
39
Clip, Ground WPL-54344
...
41
Pad, Actuating WPL-B8390201
...
42
Use 10220201 WPL-0312703
...
43
Use M0311101 WPL-0312652

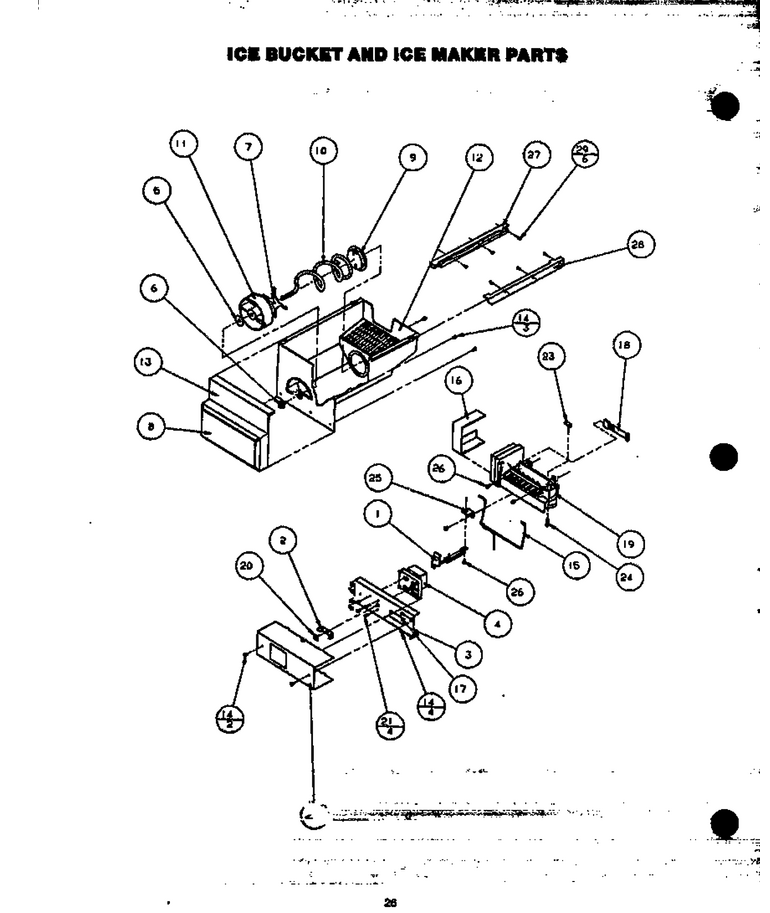

07 - Ice Bucket And Ice Maker Parts

...
...
1
I.m. Shut Off Assy WPL-0312485
...
2
Driver WPL-0312593
...
3
Support,auger Motor WPL-D7749207
...
4
Motor-Auger WPL-Y0312516
...
5
Washer WPL-A1061701
...
6
Nut-Helix WPL-B8385101
...
7
Bar, Breaker WPL-C8964101
...
8
Insert- Bu WPL-10269501
...
9
Cap- Helix WPL-WPD7749401
...
10
Helix WPL-Y0312518
...
11
Wheel Lift WPL-D7749601
...
12
Bucket, Ice V WPL-D7749707
...
13
Front, Bucket WPL-0312521
...
14
Screw (3) WPL-67006425
...
15
Arm,ice Maker Shut Off WPL-D7877001Q
...
16
Cover Im WPL-D7820401
...
17
Gasket WPL-A3030302
...
18
Harness WPL-Y0312577
...
19
Ice Maker Assy. WPL-D7824706Q
...
20
Nut WPL-M0120501
...
21
Screw WPL-WP489128
...
22
Cover Auger Motor WPL-0312549
...
23
Clip WPL-54343
...
25
Bracket, I/m WPL-B8391802
...
26
Screw (3) WPL-67006425
...
27
Use D7849903 WPL-Y0312594
...
28
Glide, Freezer Rh WPL-Y0312595
...
29
Screw, Handle WPL-67006529

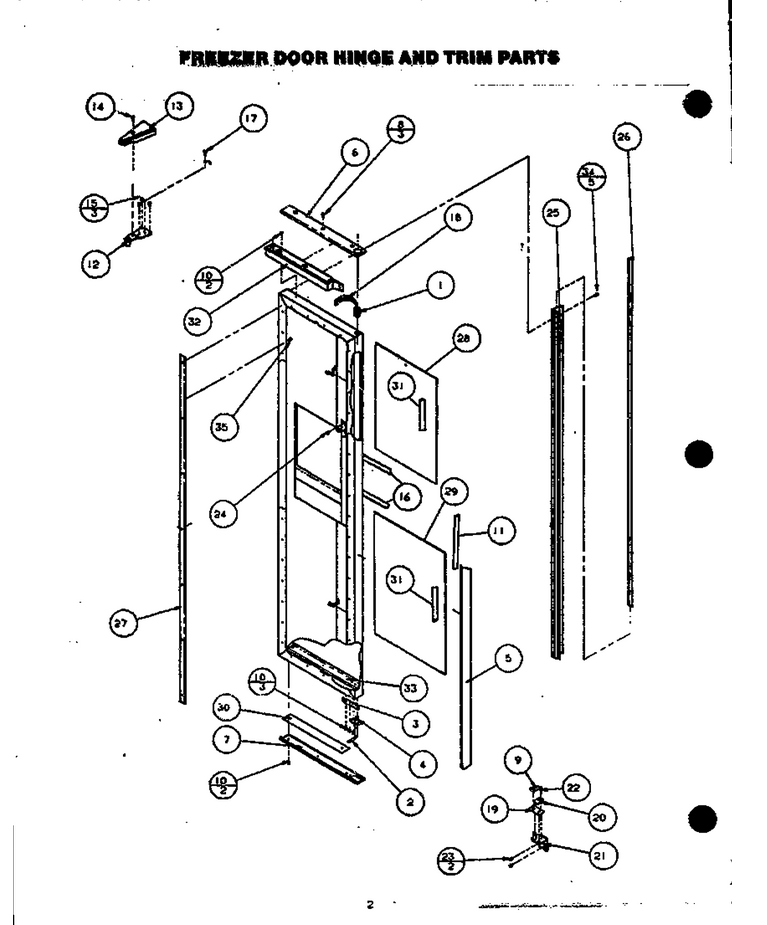

09 - Page 1

...
...
NI
Spacer, Panel WPL-10234602
...
1
Bushing WPL-Y0312466
...
2
Use B5705308 WPL-Y0054341
...
3
Stop, Door (blk) WPL-Y0312473
...
4
Kit,dr Closure WPL-R0181181
...
5
Trim WPL-0312586
...
6
Trim, Fz Door, Top WPL-0312716
...
7
Trim- Fz D WPL-10235201
...
8
Screw WPL-M0213815
...
9
Shim, Door Closure WPL-Y0312445
...
10
Crate,cap WPL-56268
...
11
Use R0195042 WPL-0312665
...
12
Top Hinge Assy WPL-0312598
...
13
Cover, Hinge WPL-0312615
...
14
Screw WPL-W11227370
...
15
Kit, Screw WPL-R9800670
...
16
Trim WPL-0312450
...
17
Screw WPL-WP3400882
...
18
Use 10222702 WPL-0312704
...
19
Kit-Btm Hi WPL-R0131015
...
20
Kit,dr Closure WPL-R0181181
...
21
Bottom Hinge, Frz WPL-0312686
...
22
Screw WPL-WP489128
...
23
Screw WPL-Y0056292
...
24
Screw WPL-WP489399
...
25
Handle Freezer Door WPL-Y0312744
...
26
Insert Handle WPL-0312709
...
27
Top Strip WPL-0312581
...
28
Panel, Black WPL-0312677
...
29
Panel, Black WPL-0312678
...
30
Spacer, Bottom Trim WPL-D7871202
...
31
Tape, Adhesive WPL-Y87788
...
32
Spacer Doo WPL-YD7866302
...
33
Strip, Trim Top WPL-0312580
...
34
Use M0211005 WPL-0312635
...
35
Use M0248718 WPL-0312650

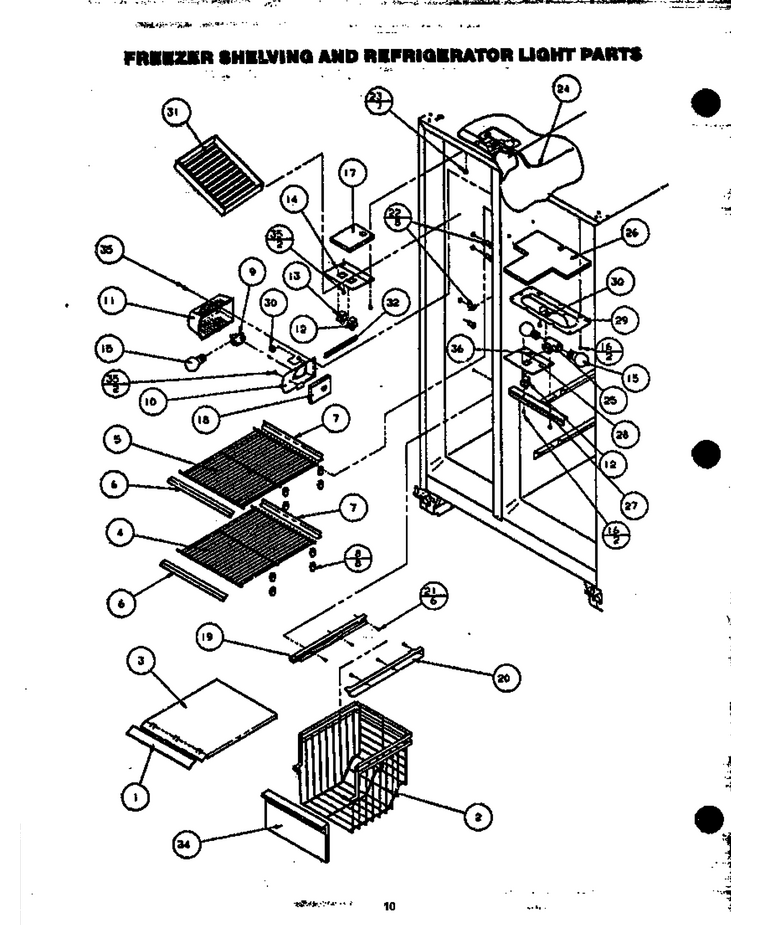

05 - Fz Shelving And Ref Light Parts

...
...
1
Trim Fz. S WPL-D7616676
...
2
Basket, Frz WPL-0312573
...
3
Freezer Shelf Pnt WPL-D7781506
...
4
Shelf, Frz WPL-0312546
...
5
Shelf, Freezer WPL-0312547
...
6
Use C8913549 WPL-0312458
...
7
Trim, Rear Frz Shelf WPL-0312462
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-D7714407
...
10
Plate-Light Socket WPL-D7753503
...
11
Shield, Light WPL-D7786603
...
12
Tool, Avsafe Screw WPL-Y0054143
...
13
Switch WPL-C3680309
...
14
Cover Light WPL-0312514
...
15
Strap,ground WPL-53950
...
16
Screw (3) WPL-67006425
...
17
Use C8976401 WPL-0312483
...
18
Use C8974501 WPL-0312480
...
19
Use 10282301 WPL-0312725
...
20
Use 10282302 WPL-0312726
...
21
Screw, Handle WPL-67006529
...
22
Plug, Frz Shelf Support WPL-C8973701
...
23
Grommet, Screw WPL-M0580007
...
25
Socket, Dual Lamp WPL-Y0312567
...
26
Use C8778301 WPL-0312454
...
27
Shield, Light WPL-10014716
...
28
Cover, Light Sw WPL-D7297604
...
29
Housing-Ref Light WPL-D7716409
...
30
Clip, Ground WPL-54344
...
31
Use 10175802 WPL-0312691
...
32
Cover Wiring WPL-0312719
...
34
Front, Frz Basket WPL-0312572
...
35
Screw (3) WPL-67006425
...
36
Jumper Wire WPL-B5781002

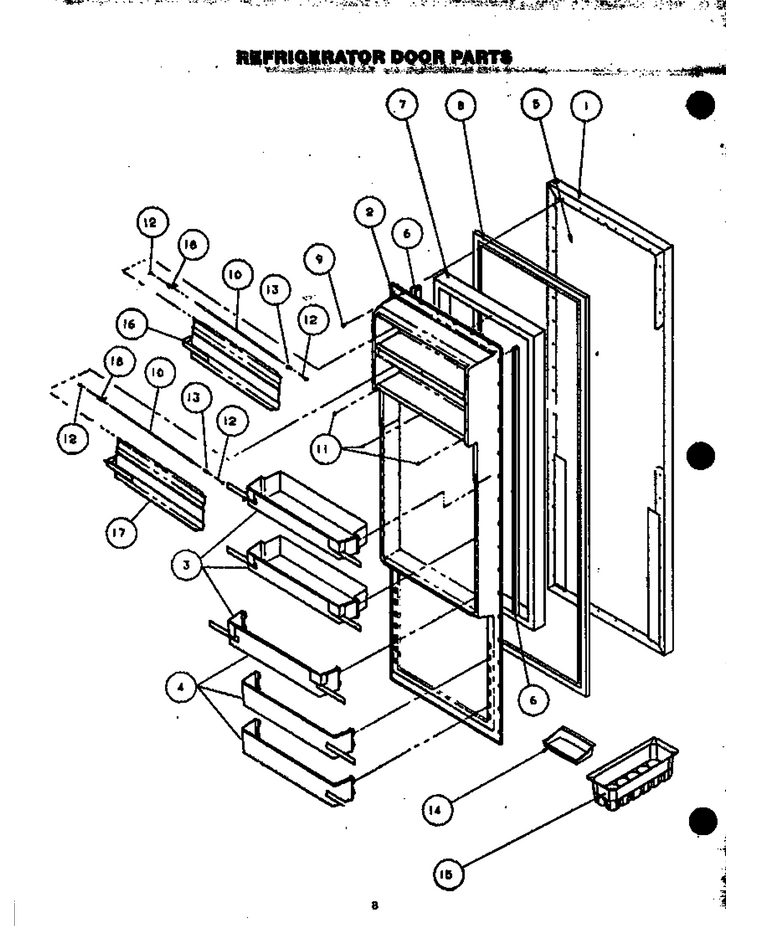

12 - Ref Door Parts

...
...
1
Use D7834034wq WPL-0312587
...
2
Inner Door Panel WPL-Y0312705
...
3
Bucket- Do WPL-67003696
...
4
Shelf, Ref Door WPL-0312537
...
5
Insulation WPL-0312417
...
6
Seal, Door Dike WPL-0312493
...
7
Air Button WPL-312415
...
8
Gasket-Dr WPL-WP10359708Q
...
9
Screw WPL-WPM0219730
...
10
Use A3056208 WPL-0312407
...
11
Bumper, Rubber WPL-Y312409
...
12
Spacer WPL-312408
...
13
Spring, Hinge WPL-Y312410
...
14
Manual, Operation WPL-55518
...
15
Ice Bin WPL-0312502
...
16
Door, Compartment WPL-Y312455
...
17
Door, Utility WPL-Y0312456
...
18
Use 10263401 WPL-0312720
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
