Amana GRH1221W

Model: GRH1221W

Save Part Not Listed?
product name

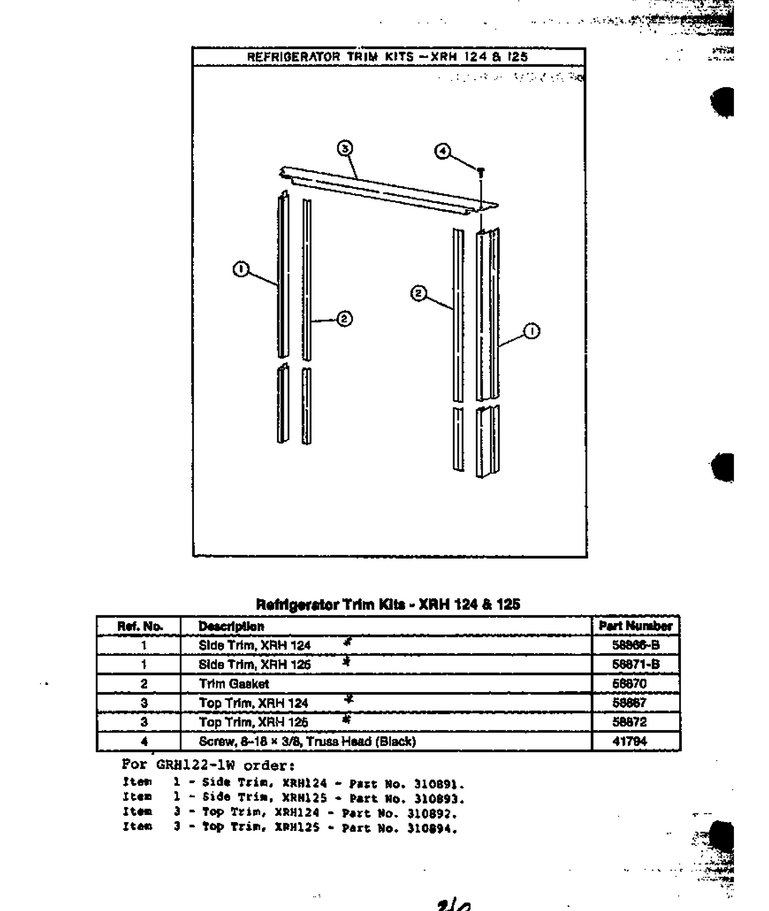

13 - Ref Trim Kits-Xrh 124 & 125

...
...
1
Side Trim, Xrh 125 WPL-58871-B
...
2
Trim Gasket WPL-Y0058870
...
3
Top Trim, 24`` Cab. WPL-Y0058867
...
4
Screw WPL-WPY706189

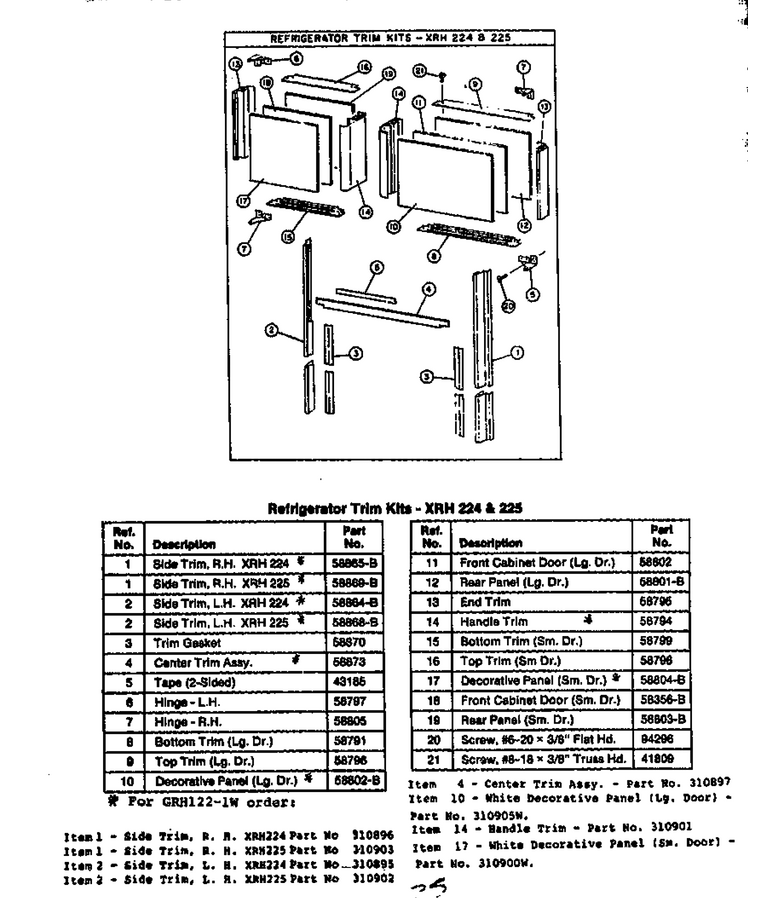

14 - Ref Trim Kits-Xrh 224 & 225

...
...
1
Side Trim, R.h. Xrh 225 WPL-58869-B
...
2
Side Trim, L.h. Xrh 224 WPL-58864-B
...
3
Trim Gasket WPL-Y0058870
...
4
Sub 58874b, Center Trim WPL-Y0058873
...
5
Tape, Foam, Double Coat (roll) WPL-Y0043185
...
6
Hinge - L.h. WPL-58797
...
7
Hinge, Rh WPL-Y0058805
...
8
Bottom, Door Trim, Cabinet WPL-Y0058791
...
9
Trim,door WPL-58796
...
10
Decorative Panel, White WPL-310905W
...
11
Decorative Panel WPL-Y0058802
...
12
Rear Panel WPL-58801-B
...
13
End Trim WPL-Y0058795
...
14
Trim, Handle WPL-0310901
...
15
Connector,2 Circuit WPL-58799
...
16
Top, Door Trim, Cabinet WPL-Y0058798
...
17
Decorative Panel WPL-310900W
...
18
Front Cabinet Door WPL-58356-B
...
19
Rear Panel WPL-58803-B
...
20
Screw 6x3/8 Phil Flt Hd WPL-Y0094296
...
21
Screw WPL-W11245710

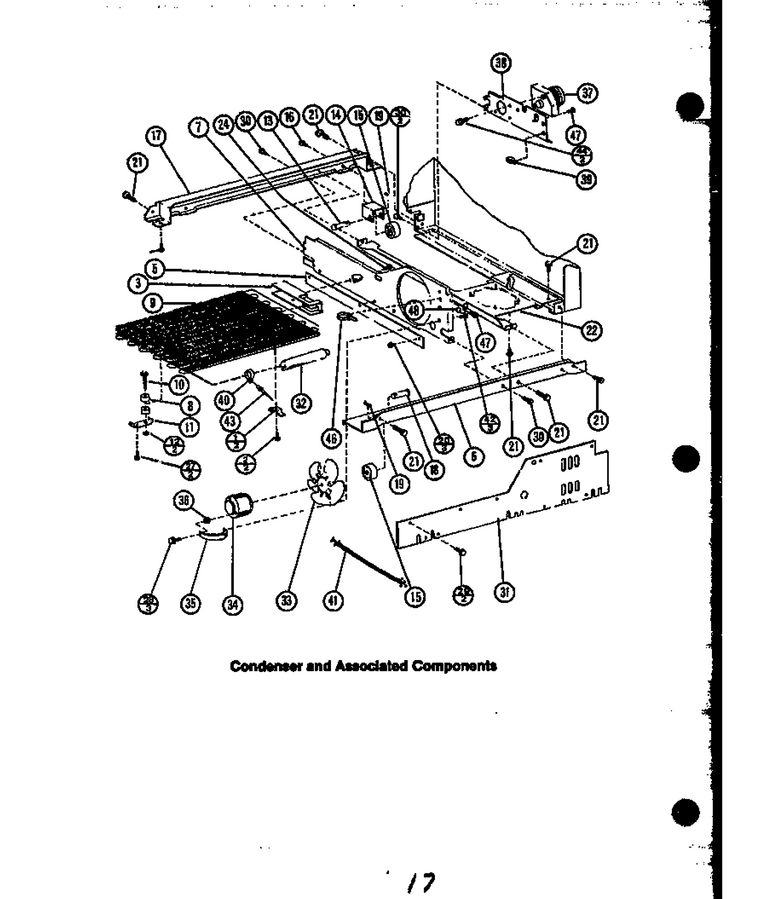

03 - Condenser And Associated Components

...
...
1
Clip WPL-54191
...
2
Kit, Screw WPL-R9800670
...
3
Spacer WPL-B0544103
...
5
Use B8314102 WPL-0055442
...
6
Use C3611308 WPL-0055463
...
7
Fan Shroud WPL-D7641702
...
8
Use B8346302 WPL-0055457
...
9
Condenser WPL-Y0055567
...
10
Use M0257023 WPL-0056300
...
11
Bracket, Support WPL-0055362
...
12
Manual, Operation WPL-Y56318
...
13
Rivet WPL-M1205302
...
14
Roller Kit WPL-0055495
...
15
Assy,conversion Kit WPL-56326
...
16
Use M0236230 WPL-0056294
...
17
Rail, Front WPL-Y0055524
...
18
Pivot Pin K WPL-0056337
...
19
Cotter Pin K WPL-0056383
...
20
Screw WPL-WP90767
...
21
Screw WPL-Y0056292
...
22
Weld Comp Supt Pnt WPL-C8820412
...
24
Use M0237032 WPL-0056295
...
27
Screw WPL-0056297
...
28
Screw WPL-WPM0223816
...
29
Screw WPL-Y0056296
...
30
Template-Eng Supplies WPL-56272
...
31
Back, Unit Compartment WPL-55467
...
32
Assy,heater Box Liner WPL-55426
...
33
Blade, Fan WPL-B5742603
...
34
Motor-Cond WPL-833697
...
35
Bracket, Cond Motor WPL-0055516
...
36
Grommet K WPL-M0500107
...
37
Timer-Def WPL-W10822278
...
38
Use C8927301 WPL-0055466
...
39
Use M0321401 WPL-0056322
...
40
Clamp-Drier WPL-Y0056262
...
41
Use D7655301 WPL-0055594
...
42
Screw Shoulder WPL-M0238833
...
43
Pop Rivet A WPL-Y0055389
...
44
Screw,tc WPL-M0230017
...
46
Timer WPL-56260
...
47
Assy,wire 1-Org WPL-Y56289
...
48
Lock, Purse WPL-74007369

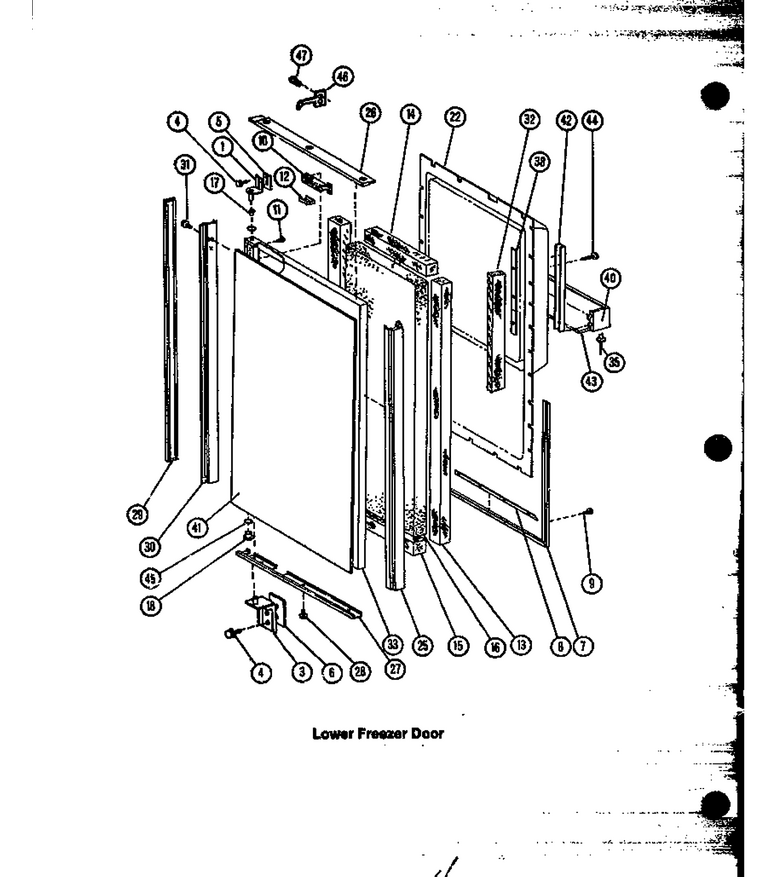

10 - Lower Fz Door

...
...
1
Use C3694101 WPL-0055470
...
3
Hinge WPL-D7250104
...
4
Screw WPL-WP67006715
...
5
Shim Kit WPL-0055385
...
6
Shim WPL-A3143603
...
7
Gasket,lower Fz WPL-0056358
...
8
Use D7025110 WPL-0056360
...
9
Thermostat WPL-56278
...
10
Manual, Operation WPL-Y55528
...
11
Manual,install/opera WPL-56338
...
12
Cover WPL-0055410
...
13
Sub 56051, Insulation, Batt WPL-0055413
...
14
Sub 56051, Insulation, Batt WPL-0055412
...
15
Sub 56051, Insulation, Batt WPL-0055411
...
16
Use B5612010 WPL-0056361
...
17
Bearing-Hinge WPL-C8852201
...
18
Shaft,idler Lever WPL-54411
...
22
Use D7677701 WPL-0055595
...
25
Door Handle WPL-Y0310907
...
26
Use D7204902 WPL-0055543
...
27
Use D7204904 WPL-0055544
...
28
Screw WPL-8169479
...
29
Manual,install/opera WPL-56363
...
30
Use C8886802 WPL-0055505
...
31
Screw A K WPL-M0211516
...
32
Insulation (1 = 1ft.) WPL-Y0055391
...
33
Door Lr Fr WPL-D7707308
...
35
Sticker WPL-56259
...
38
Tap Strip-Ladder WPL-A3212201
...
40
End Cap White A WPL-0055407
...
41
Panel Blac WPL-10096909
...
42
Manual, Operation WPL-55508
...
43
Use D7415737 WPL-0055560
...
44
Screw K WPL-M0213517
...
45
Washer WPL-M0274050
...
46
Use B8393301 WPL-0055461
...
47
Screw WPL-WP90767

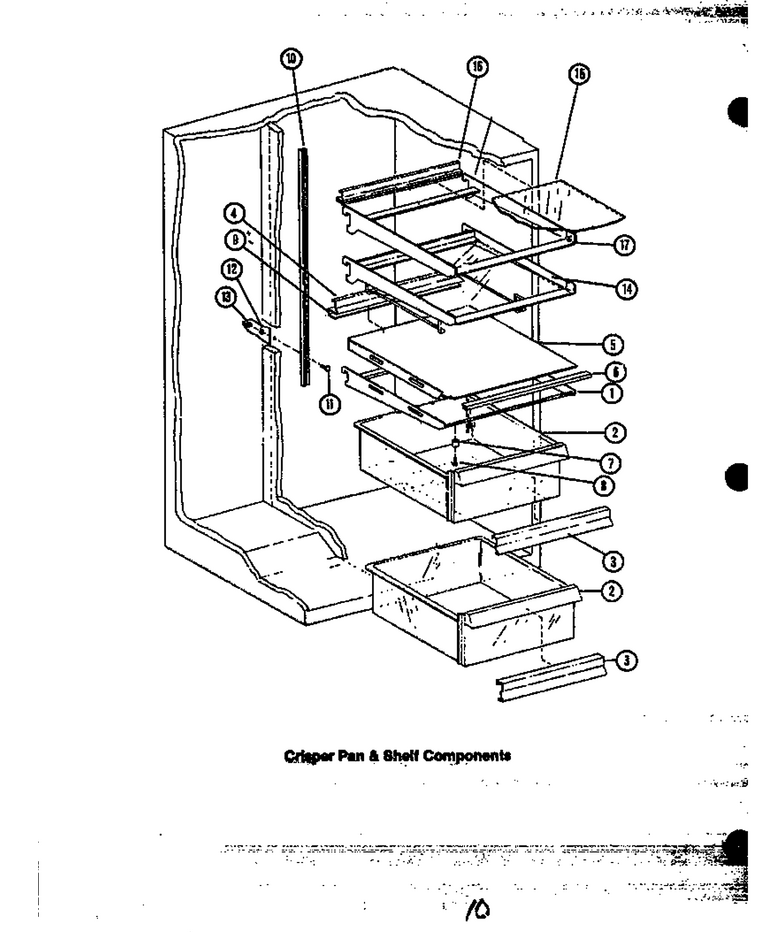

05 - Crisper Pan & Shelf Components

...
...
NI
Sticker WPL-55480
...
1
(+) Frame Fr,ph,gg WPL-0055588
...
2
Crisper Pan WPL-55550
...
3
Use C8831717 WPL-0055489
...
4
Trim, Crisper Top, Rear WPL-Y0055491
...
5
Manual, Operation WPL-55519
...
6
Trim, Crisper Top WPL-Y0055396
...
7
Use A3213402 WPL-0055381
...
8
Support WPL-56285P
...
9
Sub 89993,tape,double Sided,5` WPL-0056312
...
10
Ladder, Cantilever WPL-Y55535
...
11
Stud WPL-0056304
...
12
Washer WPL-M0270519
...
13
Use M0281003 WPL-0056316
...
14
Manual,operation WPL-Y56345
...
15
Use B8303604 WPL-0055440
...
16
Trim-Shelf WPL-C8831503
...
17
Trim, Shelf, Front WPL-Y0055551

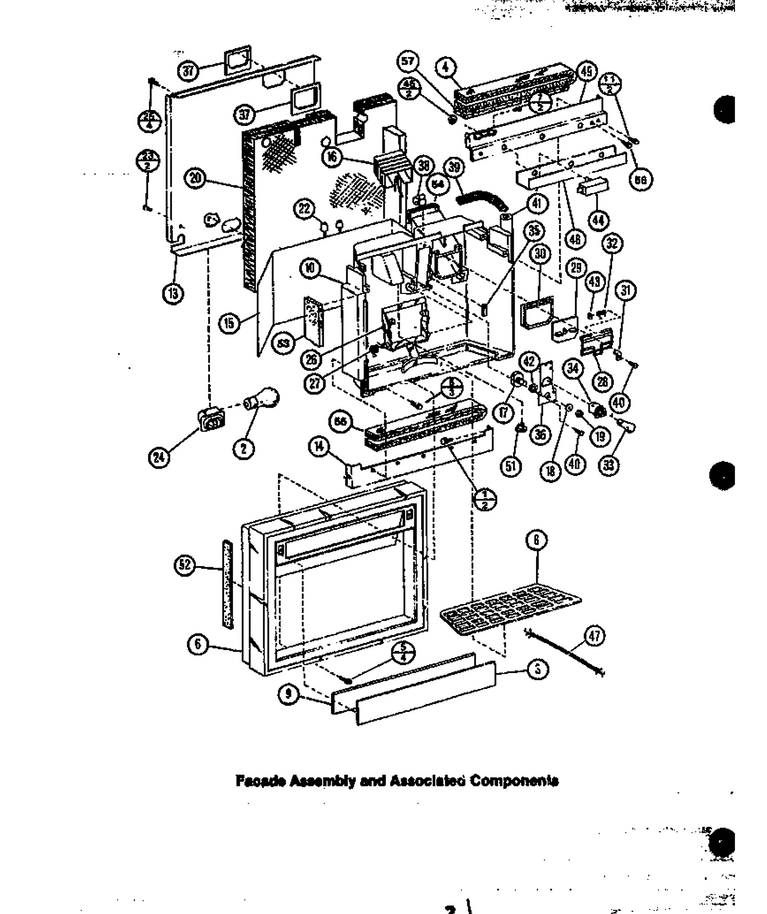

07 - Facade Assy And Associated Components

...
...
1
Screw WPL-M0216531
...
2
Strap,ground WPL-53950
...
3
Rivet,plastic WPL-56258
...
4
Use B0523581 WPL-0055392
...
5
Use M0234466 WPL-0056293
...
6
Use R0156702 WPL-0056339
...
7
Use M0232908 WPL-0056288
...
8
Grille Sump WPL-0055581
...
9
Mtg Pad Nameplate K WPL-0055507
...
10
Use D7526706 WPL-0055580
...
11
Crate,cap WPL-56268
...
13
Use D7617501 WPL-0055582
...
14
Mullion, Lower, White WPL-0055503
...
15
Heater, Cavity WPL-0056252
...
16
Use D7725501 WPL-0056384
...
17
Light Switch WPL-54153
...
18
Use M0272511 WPL-0089989
...
19
Use M0281401 WPL-0056317
...
20
Use D7698502 WPL-0055597
...
22
Sleeve WPL-0055436
...
23
Screw - WPL-88487
...
24
Socket Light A WPL-0055430
...
25
Use M0254022 WPL-0056299
...
26
Arm Activate- A WPL-0055564
...
27
Spring Arm A WPL-0055422
...
28
Sub 56052, Gasket Assy. WPL-0055458
...
29
Door Chute A/ K WPL-B5695802
...
30
Sub 56052, Gasket Assy. WPL-0055418
...
31
Holder Pivot Wire K / A WPL-0055353
...
32
Spring Door Chute K A WPL-A3211001
...
33
Use M0360001 WPL-Y0056324
...
34
Manual, Installation WPL-56385
...
35
Holder-Arm A WPL-0055378
...
36
Mounting Plate Socket WPL-55382
...
37
Gasket A WPL-A3212304
...
38
Clip-Cable WPL-Y0088480
...
39
Use A3225902 WPL-0055387
...
40
Screw A K WPL-0056307
...
41
Insulation A WPL-0055350
...
42
Sealer, Gum (4 Feet) WPL-212643
...
43
Manual, Operation WPL-Y56319
...
44
Switch A WPL-0090381
...
46
Use M0281401 WPL-0056317
...
47
Harness, Cavity A WPL-0055598
...
48
Shield, Actuating Switch WPL-554-53
...
49
Upper Mullion, Pnt (white) WPL-0055506
...
51
Use M0580401 WPL-0056331
...
52
Facade Stiffener WPL-B8350301
...
53
Use C8947003 WPL-0055513
...
54
Gasket, Cavity A WPL-0055512
...
55
Use B0523582 WPL-0055393
...
56
Screw, 8-32 X 3/8 WPL-681390
...
57
Insulation Ft. K WPL-0054324

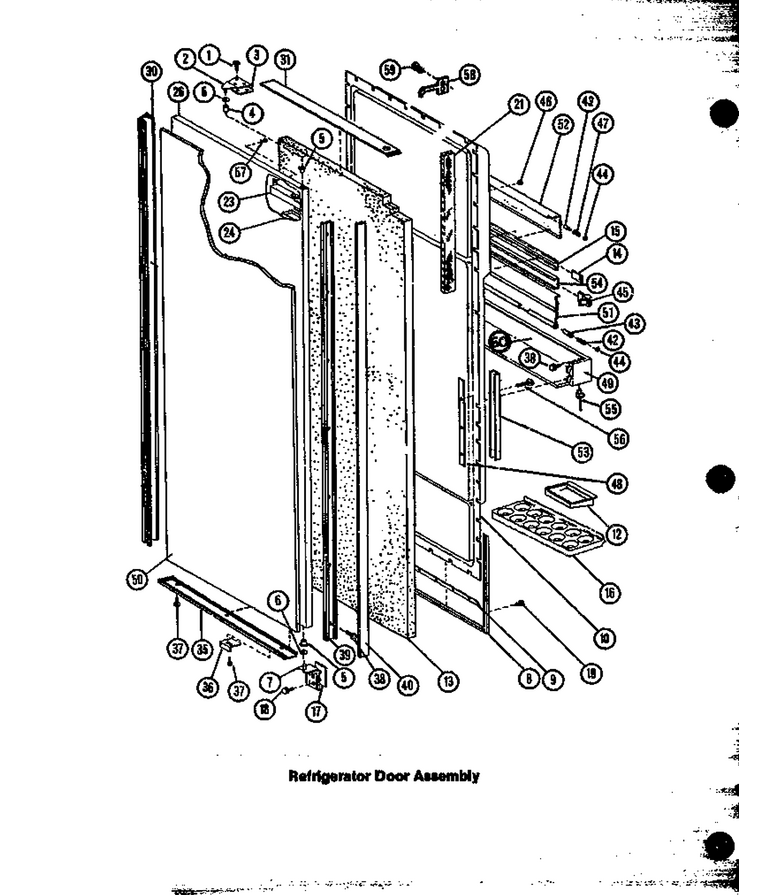

12 - Ref Door Assy

...
...
1
Kit, Screw WPL-R9800670
...
2
Hinge-Right WPL-C8816602
...
3
Use A3270303 WPL-0054316
...
4
Manual, Operation WPL-55368
...
5
Shaft,idler Lever WPL-54411
...
6
Timer,230/50 WPL-56305
...
7
Hinge WPL-0055547
...
8
Gasket WPL-0055534
...
9
Retainer WPL-0055529
...
10
Use D7181003 WPL-0055537
...
12
Manual, Operation WPL-55518
...
13
Use B5683518 WPL-0055414
...
14
Support K WPL-0055394
...
15
Retainer- WPL-B8302622
...
16
Egg Tray WPL-D7466607
...
17
Shim WPL-A3143603
...
18
Screw WPL-WP67006715
...
19
Thermostat WPL-56278
...
21
Insulation (1 = 1ft.) WPL-Y0055391
...
23
Manual, Operation WPL-Y55528
...
24
Cover WPL-0055410
...
26
Use D7707302 WPL-0056250
...
30
Use D7512104 WPL-0055577
...
31
Trim-Door WPL-D7204901
...
35
Use D7212301 WPL-0055545
...
36
Use C8894802 WPL-0056364
...
37
Screw WPL-8169479
...
38
Screw A K WPL-M0211516
...
39
Retainer WPL-C8886801
...
40
Use B0599001 WPL-0055400
...
42
Spring A/k WPL-0055354
...
43
Rod A WPL-A3056205
...
44
Use A3057003 WPL-0055358
...
45
Support White K WPL-Y0055408
...
46
Use A3059002 WPL-0055360
...
47
Spring K WPL-0055361
...
48
Tap Strip-Ladder WPL-A3133001
...
49
End Cap-Lh A WPL-B5615106
...
50
Panel Blac WPL-10096910
...
51
Door- Butt WPL-C8832807
...
52
Orifice,inner WPL-55493
...
53
Cant Ladde WPL-C8905902
...
54
Use D7415736 WPL-0055559
...
55
Sticker WPL-56259
...
56
Screw K WPL-M0213517
...
57
Manual,install/opera WPL-56338
...
58
Use B8393301 WPL-0055461
...
59
Screw WPL-WP90767
...
60
Use D7415739 WPL-0055562

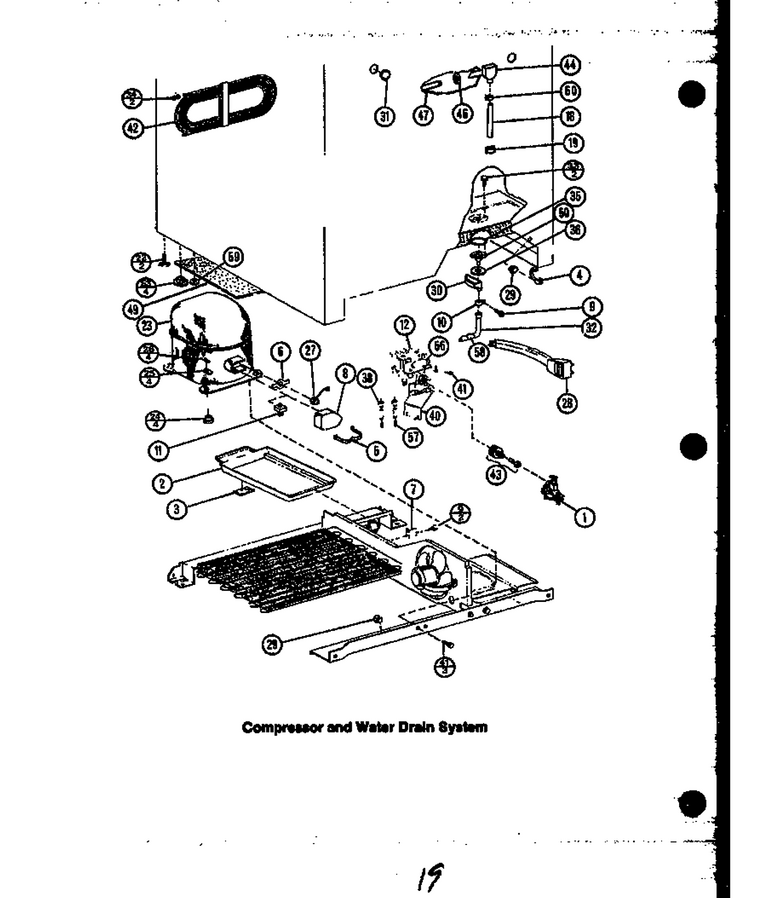

02 - Compressor And Water Drain System

...
...
1
Use A3034801 WPL-0054189
...
2
Thermostat WPL-55523
...
3
Pad, Drain Pan WPL-54340
...
4
Strain Relief WPL-Y90549
...
5
Strap WPL-54190
...
6
Spring, Overload WPL-54425
...
7
Stop,drain Pan WPL-0055366
...
8
Cover, Terminal WPL-54325
...
9
Screw WPL-WP90767
...
10
Timer WPL-56260
...
11
Relay WPL-C3553401
...
12
Valve-Inlt WPL-W10245172
...
18
Tube, Plastic (wvalve To I/m WPL-Y0055424
...
19
Clip WPL-WPM0104106
...
22
Bulb, Cylinder Light WPL-31001575
...
23
Compressor Ae1410a WPL-0056256
...
24
Grommet, Compressor Mounting WPL-54187
...
25
Washer, Nylon K WPL-0056333
...
26
Clip K WPL-0054305
...
27
Overload WPL-0055499
...
28
Power Cord WPL-0056340
...
29
Clip-Cable WPL-Y0088480
...
30
Drain Cup WPL-0055479
...
31
Plug Button WPL-54194
...
32
Drain Tube WPL-0055384
...
33
Screw - WPL-54600
...
34
Fitting WPL-WP4373559
...
35
Sealer, Gum (4 Feet) WPL-212643
...
36
Bracket,igniter WPL-55435
...
38
Nut, Sleeve WPL-Y0056334
...
40
Bracket WPL-WPD7701602
...
41
Screw, 8-32 X 3/8 WPL-681390
...
42
Tank- Coil WPL-D7787801Q
...
43
Coupling WPL-WP10244903
...
44
Fill Tube Assy WPL-R0000027
...
46
Grommet, Fill Tube WPL-Y55370
...
47
Manual, Operation WPL-55367
...
49
Insulation M.c. A-K WPL-0055579
...
50
Use D7384701 WPL-0055554
...
53
Plug Button WPL-54195
...
56
Clip, Water Valve WPL-54389
...
57
Spring K WPL-A1055102
...
58
Insul Tubing 1=12`` WPL-A0329806
...
59
Plug WPL-54192
...
60
Screw WPL-WP27001200

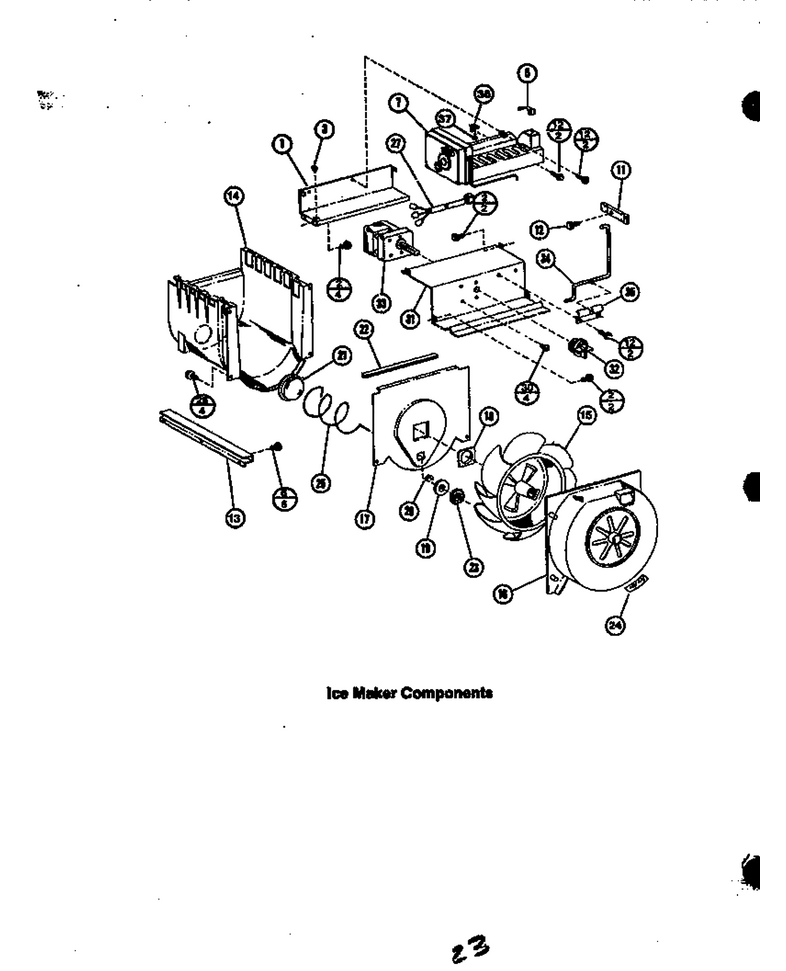

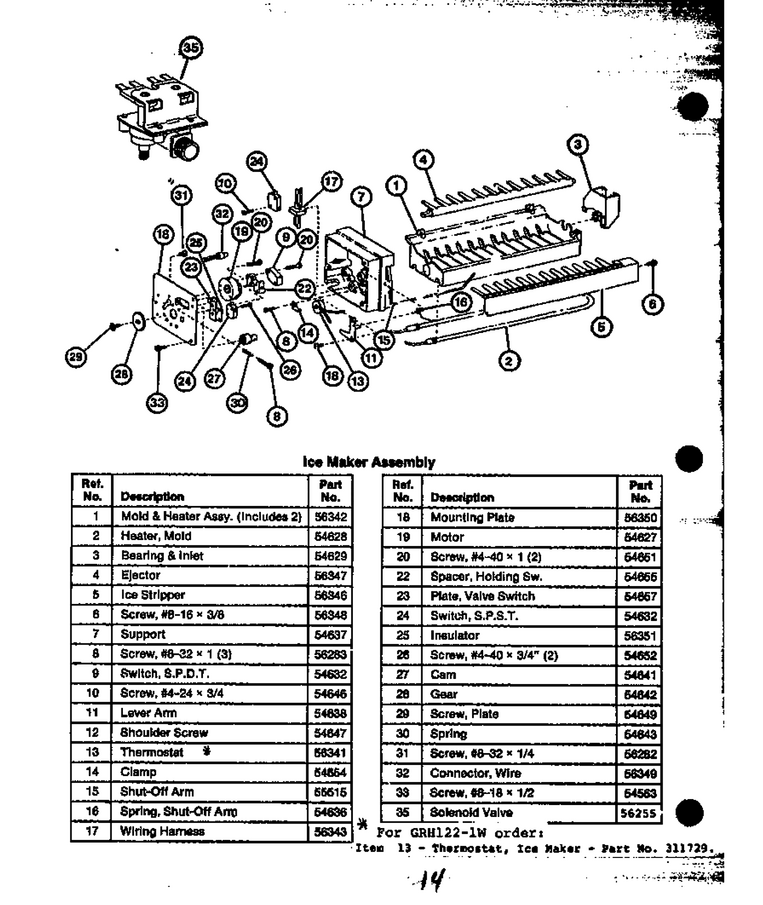

09 - Ice Maker Components

...
...
1
I M Bracket WPL-0055589
...
2
Screw (3) WPL-67006425
...
3
Grommet WPL-0056330
...
5
Sensor WPL-55428
...
6
Screw WPL-WP90767
...
7
Kit, Icemaker WPL-0056254
...
11
Arm-Detent WPL-0055484
...
12
Crate,cap WPL-56268
...
13
Use C8941002 WPL-0055510
...
14
Ice Bucket A WPL-D7550301
...
15
Wheel-Lift A WPL-D7192701
...
16
Use D7192602 WPL-0055539
...
17
Partition Panel A WPL-D7182001
...
18
Bushing A WPL-B5698401
...
19
Bushing A WPL-B5700502
...
20
Use M0274601 WPL-0056310
...
21
Use C3692901 WPL-0055468
...
22
Strip A WPL-0055383
...
23
Gear Pinion A WPL-B5700401
...
24
Assy,wiring Harness-Co WPL-56311
...
25
Screw, 8b-16x5/8 Tap WPL-500226
...
26
Crate,corner Post WPL-56269
...
27
Use C8951201 WPL-0055514
...
30
Screw WPL-WP489128
...
31
Use D7679502 WPL-0055596
...
32
Drive Link WPL-C8810601
...
33
Motor WPL-0055487
...
34
Shut Off Arm WPL-0055483
...
35
Holder-Shut Off Arm WPL-B5697602
...
36
Support WPL-Y55460
...
37
Screw - WPL-88487

11 - Page 1

...
...
1
Knob,timer WPL-56352
...
2
Screw WPL-0056353
...
3
Hinge, Center WPL-0056354
...
4
Use A3270303 WPL-0054316
...
5
Kit, Screw WPL-R9800670
...
6
Shim WPL-0055386
...
7
Gasket,upper Fz WPL-0055549
...
8
Use D7025108 WPL-0055532
...
9
Thermostat WPL-56278
...
10
Manual, Operation WPL-Y55528
...
11
Manual,install/opera WPL-56338
...
12
Cover WPL-0055410
...
13
Sub 56051, Insulation Batt WPL-0056355
...
14
Sub 56051, Insulation, Batt WPL-0055412
...
15
Sub 56051, Insulation, Batt WPL-0055411
...
16
Use B5612009 WPL-0055403
...
17
Bearing-Hinge WPL-C8852201
...
18
Shaft,idler Lever WPL-54411
...
21
Use D7204902 WPL-0055543
...
22
Use D7212301 WPL-0055545
...
23
Screw WPL-8169479
...
24
Trim WPL-B0599006
...
25
Use C8886802 WPL-0055505
...
26
Screw A K WPL-M0211516
...
27
Use A3139802 WPL-0055371
...
28
Use D7535801 WPL-0056356
...
30
Handle, Door WPL-0055578
...
31
Door- Uppe WPL-D7707314W
...
32
Insulation (1 = 1ft.) WPL-Y0055391
...
35
End Cap White A WPL-0055406
...
36
Sticker,caution WPL-55481
...
37
Use D7415737 WPL-0055560
...
38
Sticker WPL-56259
...
39
Use B8393301 WPL-0055461
...
40
Screw WPL-WP90767

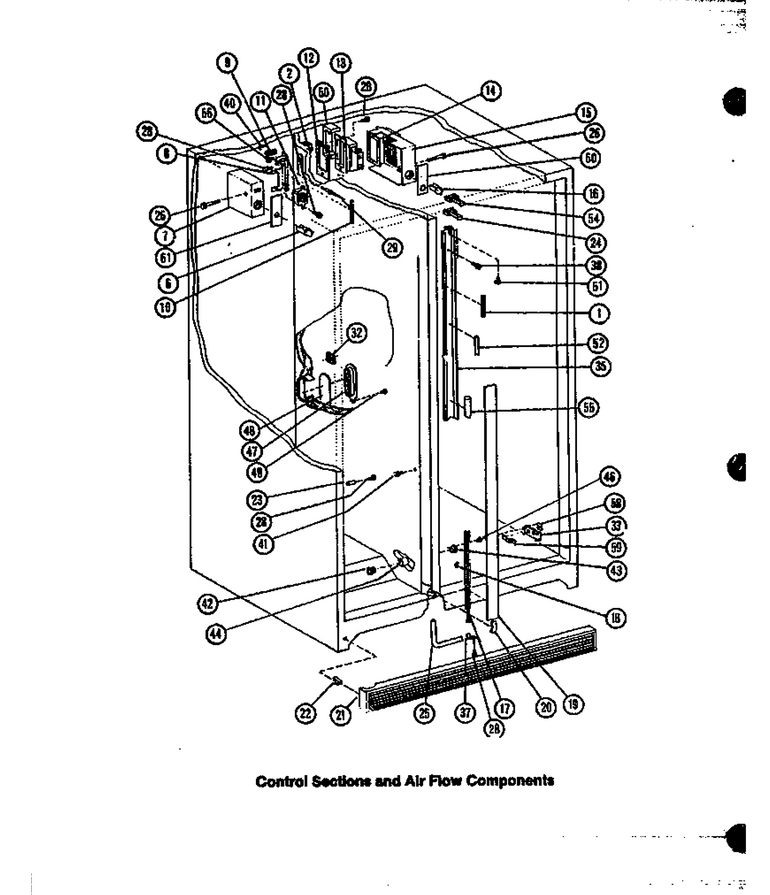

04 - Control Sections And Air Flow Components

...
...
NI
Use B8344901 WPL-0055455
...
1
Gasket WPL-88967
...
2
Grommet, Screw WPL-M0580007
...
6
Knob WPL-D7009801
...
7
+ Escut- WPL-D7204303
...
8
Bracket WPL-C8850502
...
9
Manual, Operation WPL-56323
...
10
Gasket-Per Ft WPL-Y0091839
...
11
Control, Temp. Fz WPL-55464
...
12
Gasket-Damper WPL-B8315901
...
13
Damper Control Kit WPL-0055465
...
14
Manual, Operation WPL-55363
...
15
Use D7126704 WPL-0055536
...
16
Manual, Operation WPL-55527
...
17
Use D7747001 WPL-0056257
...
18
Clip WPL-0056375
...
19
Mullion Vert.white) WPL-0055475
...
20
Key WPL-A3120801
...
21
Toe Grille WPL-0311726
...
22
Receptacle,2 Circuit WPL-56265
...
23
Spacer WPL-Y0055388
...
24
Use B0594201 WPL-0055397
...
25
Tube WPL-WPB5705307
...
26
Use M0230926 WPL-0056287
...
28
Template-Eng Supplies WPL-56272
...
29
Sticker WPL-56259
...
32
Manual, Operation WPL-55364
...
33
(+) Escut We, Fr, Ph WPL-C8770003
...
35
Use B5716202 WPL-0055427
...
37
Clamp WPL-M0102804
...
38
Screw WPL-M0211530
...
40
Diode WPL-M0305301
...
42
Use D7484901 WPL-0055572
...
43
Retainer WPL-A3187801
...
44
Use A3189501 WPL-0055376
...
46
Use M0113004 WPL-0056263
...
47
Use C3588305 WPL-0056379
...
48
Damper Assy WPL-0055454
...
49
Screw WPL-WP90767
...
50
Use C8860701 WPL-0055498
...
51
Screw WPL-0056291
...
52
Use M0275202 WPL-0056313
...
54
Support Mullion WPL-B5608001
...
55
Use A3030344 WPL-Y0055356
...
56
Assy,wire 1-Org WPL-Y56289
...
58
Thinplate, Meatkeeper Control WPL-55431
...
59
Use C8770101 WPL-0055472
...
60
Thinplate, Refrig. Escutcheon WPL-Y0055502
...
61
Manual, Operation WPL-55517

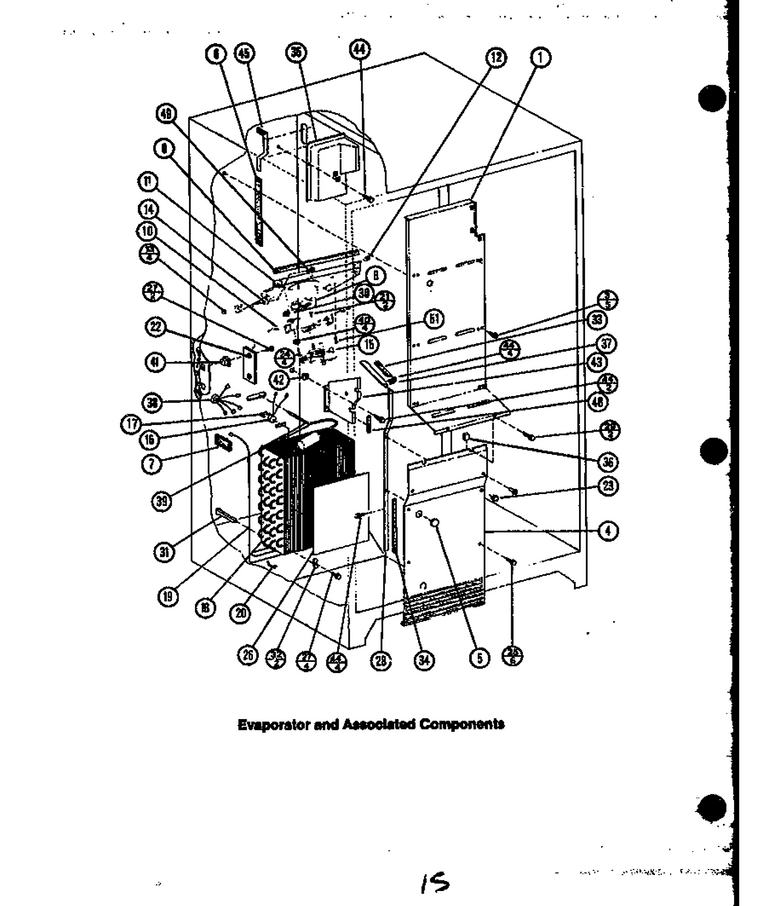

06 - Evap And Associated Components

...
...
1
Baffle- Fr WPL-D7482205
...
3
Screw-Sm WPL-M0238636
...
4
Cover, Evaporator WPL-55571
...
5
Plug WPL-54192
...
6
Plug WPL-55452
...
7
Air Block WPL-B8314701
...
8
Fan-Evap WPL-12033101
...
9
Use B5757702 WPL-0055432
...
10
Use C8829701 WPL-0055485
...
11
Plate, Fan Motor WPL-D7371506
...
12
Manual,installation WPL-Y56320
...
13
Clip, Waterline WPL-12454802
...
14
Sub 91867, Eyelet WPL-0056380
...
15
Motor WPL-D7241412
...
16
Thermostat WPL-WPC8972006
...
17
Clip Thermostat K WPL-B8325201
...
18
Manual, Operation WPL-Y56344
...
19
Heater-Evap WPL-D7479703
...
20
Clip-Heater WPL-0055447
...
21
Timer,120/60 WPL-56303
...
22
Term Board WPL-0055450
...
23
Plug Button WPL-0056321
...
24
Crate,top Support WPL-56270
...
25
Screw (3) WPL-67006425
...
26
Gasket, Evap. WPL-0055451
...
27
Crate,cap WPL-56268
...
28
Use C8927001 WPL-0055555
...
29
Nut,union WPL-56281
...
30
Grommet, Screw WPL-M0580007
...
31
Grommet WPL-C8830701
...
32
Assy,burner WPL-55437
...
33
Bracket WPL-55434
...
34
Gasket WPL-B5759608
...
35
Use A3187701 WPL-0055374
...
36
Bracket,igniter Xreplace WPL-55448
...
37
Igniter,80 Volt WPL-55438
...
38
Harness, Liner WPL-D7699601
...
39
Use D7646501 Ht Exchanger WPL-0055592
...
40
Grommet WPL-Y55390
...
41
Sticker WPL-56327
...
42
Use M0580009 WPL-0056329
...
43
Block, Air Coil WPL-55500
...
44
Screw WPL-WP90767
...
45
Gasket Air Tunnel WPL-B8320501
...
48
Use B5757703 WPL-0056382
...
49
Crate,corner Post WPL-56269
...
51
Use M0233104 WPL-0056290

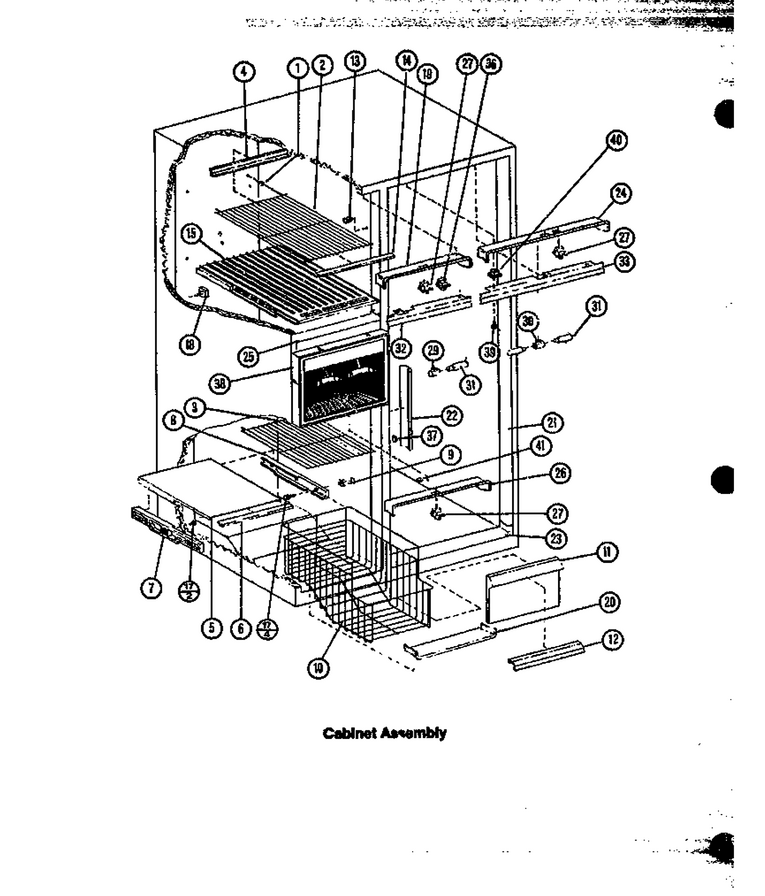

01 - Cabinet Assy

...
...
1
Plug WPL-0055352
...
2
Shelf WPL-0055583
...
3
Shelf WPL-0055584
...
4
+ Trim S WPL-D7415107
...
5
Tube, Burner WPL-55441
...
6
Use B0596611 WPL-0055399
...
7
Glide Basket-L K WPL-0055565
...
8
Use D7442902 WPL-0055566
...
9
Use M0580009 WPL-0056329
...
10
Use D7363601 WPL-0055552
...
11
Use D7419605 WPL-0055563
...
12
Orifice,inner No.40 WPL-55494
...
13
Label,dryer Door Xreplace WPL-55398
...
14
Trim Shelf K WPL-0055473
...
15
Shelf WPL-D7645901
...
17
Crate,cap WPL-56268
...
18
Support WPL-0055415
...
19
Use D3953104 WPL-0055522
...
20
Use D3952402 WPL-0055520
...
21
Use D7510802 WPL-0055573
...
22
Breaker Frame WPL-0055574
...
23
Use D3952603 WPL-0055521
...
24
Breaker Frame WPL-0056366
...
25
Breaker Frame WPL-0056367
...
26
Breaker Frame WPL-0056368
...
27
Light Switch WPL-54153
...
29
Socket WPL-Y0056369
...
30
Socket-Light WPL-12096901
...
31
Use A3079001 WPL-Y0056371
...
32
Light Shield WPL-D3954202
...
33
Light Shie WPL-D3954203
...
36
Switch WPL-C3680309
...
37
Clip WPL-0056375
...
38
Use D7700536 WPL-0056376
...
39
Screw WPL-WP90767
...
40
Use M0580009 WPL-0056329
...
41
Clip WPL-Y0056377

08 - Ice Maker Assy

...
...
1
Assy, Mold & Heater WPL-R0161032
...
2
Kit WPL-R0157335
...
3
Bearing And Inlet WPL-54629
...
4
Knob, Timer (used) WPL-56347
...
5
Manual, Operation WPL-Y56346
...
6
Skirt,timer Knob (used) WPL-56348
...
7
Support WPL-54637
...
8
Oil,exxon Terrestic No.68 WPL-56283
...
9
Switch, Spot WPL-Y0054632
...
10
Screw WPL-0054646
...
11
Lever Arm WPL-0054638
...
12
Screw WPL-54647
...
13
Thermostat WPL-R0161026
...
14
Manual, Operating WPL-54654
...
15
Use C8954101 WPL-0055515
...
16
Spring, Shut-Off WPL-Y0054636
...
17
Manual, Operation WPL-56343
...
18
Use R0194212 WPL-0056350
...
19
Motor WPL-R0154016
...
20
Manual, Operating WPL-54651
...
22
Spacer, Switch WPL-Y54655
...
23
Plate, Valve Switch WPL-54657
...
24
Switch, Spot WPL-Y0054632
...
25
Spring, Timer Knob (used) WPL-Y56351
...
26
Manual, Operating WPL-54652
...
27
Cam WPL-625913
...
28
Gear WPL-WP628210
...
29
Screw - WPL-54649
...
30
Spring WPL-54643
...
31
Nipple WPL-56282
...
32
Use R0189030 WPL-0056349
...
33
Rivet, Pop WPL-Y54563
...
35
Valve-Inlt WPL-W10245172
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
