Amana GFS228-1L00 (BOM: GFS22801L00)

Model: GFS228-1L00 (BOM: GFS22801L00)

Save Part Not Listed?
product name

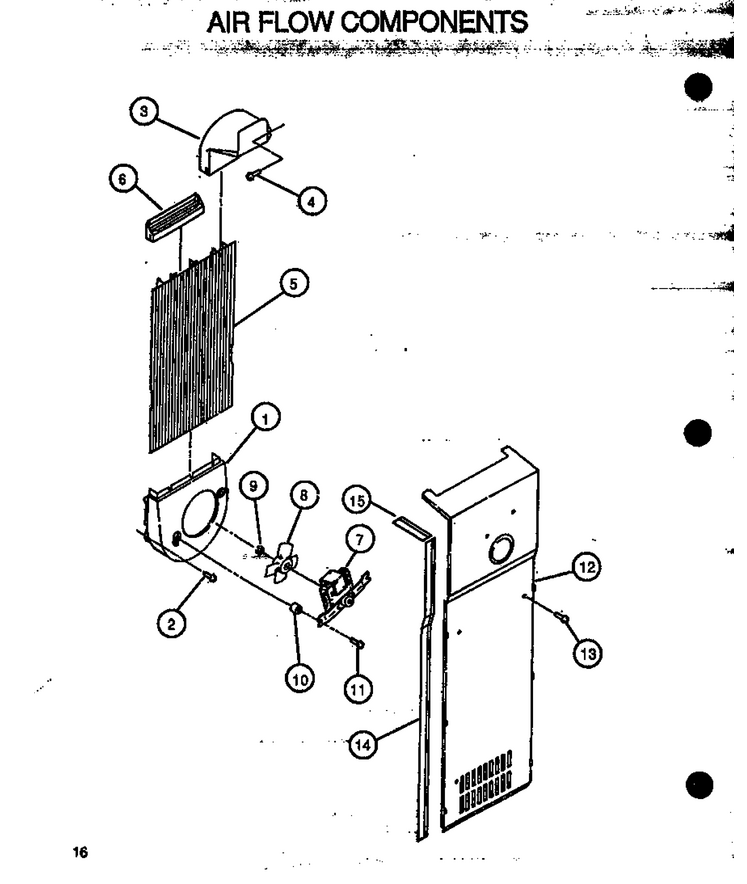

01 - Air Flow Components

...
...
1
Scroll Fan WPL-Y0312781
...
2
Screw WPL-Y0311151
...
3
Scoop, Air WPL-R0950205
...
4
Screw No.8-15 X 1/2 WPL-R0950141
...
5
Duct, Freezer Air WPL-R0950206
...
6
Diffuser, Air Duct WPL-R0950210
...
7
Motor-Cond WPL-833697
...
8
Blade-Fan WPL-WP992920
...
9
Ring, Compression WPL-R0950213
...
10
Grpmmet, Fan WPL-R0950207
...
11
Screw WPL-Y0056557
...
12
Cover, Evaporator WPL-R0950214
...
13
Screw No.8-15 X 1/2 WPL-R0950027
...
14
Gasket, Evaporator Cover WPL-R0950208
...
15
Gasket, Top Evaporator Cover WPL-R0950209

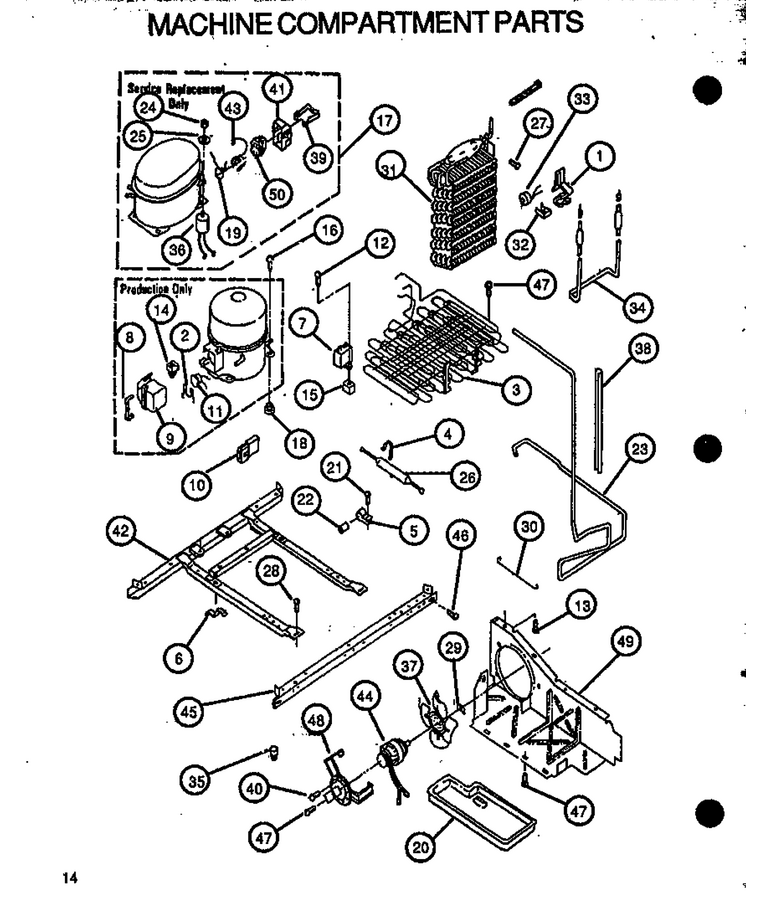

06 - Machine Compartment Parts

...
...
1
Clamp WPL-R0950201
...
2
Spring, Overload WPL-R0950171
...
3
Condenser Assembly WPL-1105640
...
4
Clamp, Drier WPL-Y0056228
...
5
Tube Clamp WPL-0056573
...
6
Clip WPL-Y0056589
...
7
Capacitor WPL-WPW10662129
...
8
Strap, Cover WPL-R0951077
...
9
Cover WPL-R0950181
...
10
Housing Plug WPL-Y0311167
...
11
Relay, Compressor WPL-R0950187
...
12
Screw WPL-Y0056529
...
13
Screw WPL-Y0057019
...
14
See Note Relay -- (order Item 11 To Obtain Relay) WPL-Y00000000
...
15
Grommet WPL-Y0056570
...
16
Screw, 1/4-28 X 1 WPL-R0950188
...
17
Compressor WPL-W10439652
...
18
Grommet WPL-R0950182
...
19
Spring, Overload WPL-R0950204
...
20
Tray, Evaporator WPL-R0950199
...
21
Screw WPL-Y0056525
...
22
Dampener WPL-Y0056574
...
23
Exchanger, Heat WPL-R0950183
...
24
Nut WPL-Y0056549
...
25
Washer WPL-Y0056550
...
26
Drier-Tube WPL-W10843121
...
27
Screw WPL-Y0311151
...
28
Screw WPL-Y0312207
...
29
Speednut WPL-Y0056506
...
30
Guard, Fan WPL-R0950184
...
31
Evaporator WPL-R0950185
...
32
Clamp WPL-R0950189
...
33
Bimetl-Def WPL-WP4387499
...
34
Heater, Defrost WPL-R0950191
...
35
Connector, Wire WPL-R0950192
...
36
Capacitor WPL-Y0056502
...
37
Blade, Fan WPL-R0950047
...
38
Sleeve WPL-R0950193
...
39
Strap, Terminal WPL-R0950203
...
40
Screw WPL-Y0056539
...
41
Cover, Terminal WPL-R0950197
...
42
Frame WPL-R0950194
...
43
Overload WPL-0056503
...
44
Motor-Cond WPL-833697
...
45
Unit Rail WPL-Y0312761
...
46
Screw 5/16-18 X .63 WPL-R0950043
...
47
Screw WPL-0056545
...
48
Bracket, Fan Motor WPL-Y0056588
...
49
Baffle WPL-R0950195
...
50
Relay WPL-R0950196

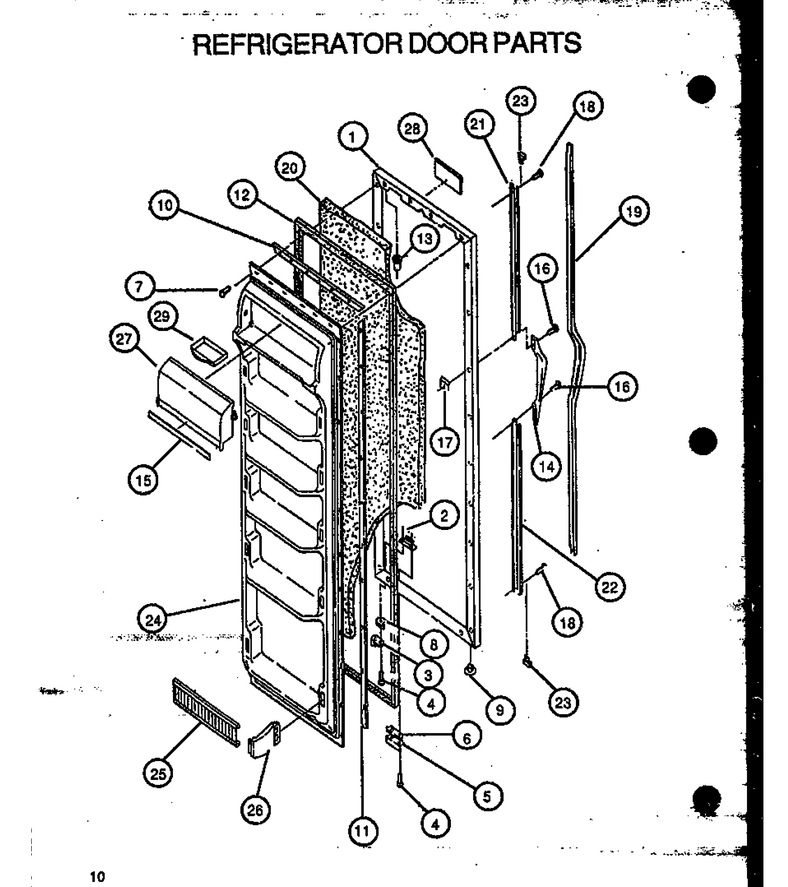

08 - Ref Door Parts

...
...
1
Door, Refrigerator (white) WPL-R0950132
...
2
Plate, Tap WPL-R0950148
...
3
Kit,dr Closure WPL-R0181181
...
4
Screw, 8 X 1/2`` WPL-R0950150
...
5
Bracket, Door Stop WPL-R0950151
...
6
Shim WPL-R0950152
...
7
Screw, 7 X 1/2`` WPL-R0950167
...
8
Shim, Door Closer WPL-R0950153
...
9
Plug, Hole WPL-R0950154
...
10
Gasket Retainer Top & Bottom WPL-Y0312780
...
11
Gasket Retainer Side WPL-Y0312778
...
12
Gasket Refrigerator Door WPL-0312786
...
13
Cap, Hinge Sleeve WPL-Y0056571
...
14
Handle WPL-R0950155
...
15
Trim, Door Compartment WPL-R0950166
...
16
Screw WPL-0056545
...
17
Screw, Anchor WPL-R0950156
...
18
Screw, No.10-32 X 5/8 WPL-R0950157
...
19
Insert, Handle WPL-R0950158
...
20
Foam Insulation WPL-Y0056239
...
21
Insert, Top Retainer WPL-R0950159
...
22
Insert Retainer WPL-R0950160
...
23
End Cap WPL-R0950161
...
24
Panel Door Inner WPL-0312785
...
25
Trim, Door Shelf WPL-R0950178
...
26
Retainer, Door Trim WPL-Y0057119
...
27
Door, Compartment WPL-R0950164
...
28
Nameplate WPL-R0950165
...
29
Tray, Butter WPL-Y0056577

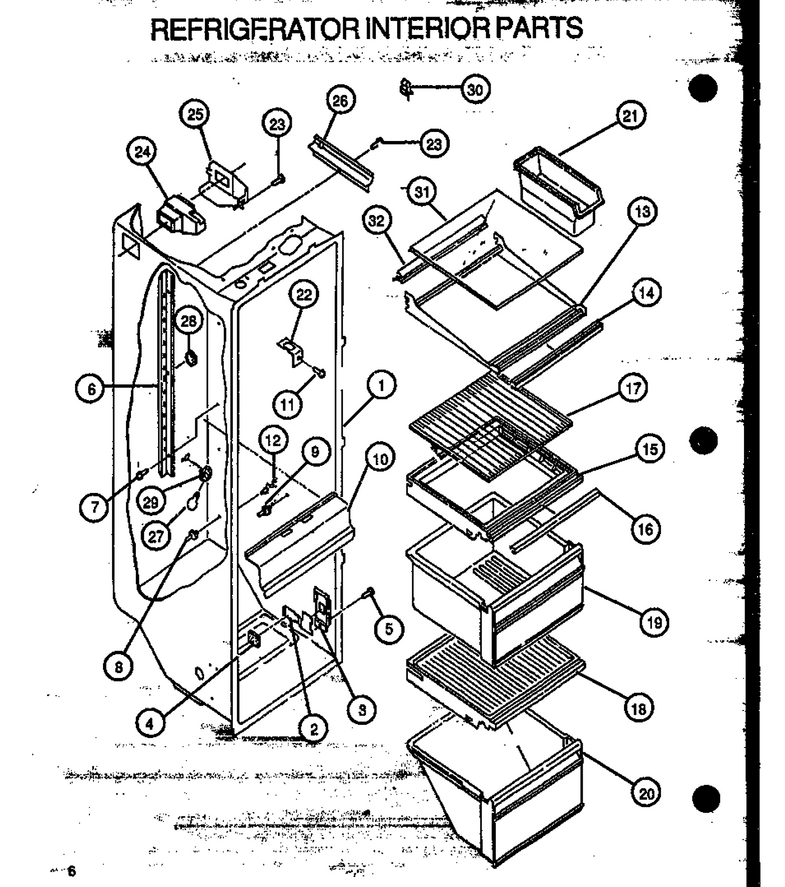

09 - Ref Interior Parts

...
...
2
Escutcheon WPL-1116612
...
3
Slide, Meat Pan Control WPL-984102
...
4
Pad, Foam WPL-992358
...
5
Screw, No.8-15 X 1/2 WPL-R0950202
...
6
Ladder, Shelf WPL-R0950101
...
7
Screw, 8 X 1/2 WPL-R0950102
...
8
Stud WPL-R0950103
...
9
Stud WPL-0312790
...
10
Lens, Light WPL-R0950125
...
11
Screw No.8 X 1/2 WPL-R0950104
...
12
Stud WPL-R0950105
...
13
Shelf, Cantilever WPL-R0950106
...
14
Trim, Shelf WPL-R0950107
...
15
Cover, Crisper WPL-R0950108
...
16
Trim, Cover WPL-R0950109
...
17
Shelf, Glass WPL-R0950110
...
18
Cover, Meat Pan WPL-Y0057167
...
19
Pan, Crisper WPL-R0950112
...
20
Pan, Meat WPL-R0950113
...
21
Container, Utility WPL-R0950114
...
22
Bracket Retainer WPL-Y0311173
...
23
Screw No.8-15 X 1/4 WPL-R0950115
...
24
Air Diffuser Assembly WPL-R0950116
...
25
Cover, Air Diffuser WPL-R0950117
...
26
Cover, Conduit WPL-R0950118
...
27
Light Bulb WPL-8009
...
28
Plug, Hole WPL-R0950119
...
29
Socket WPL-R0950120
...
30
Clip, Air Duct WPL-R0950121
...
31
Shelf, Glass WPL-R0950122
...
32
Reflector WPL-R0950123

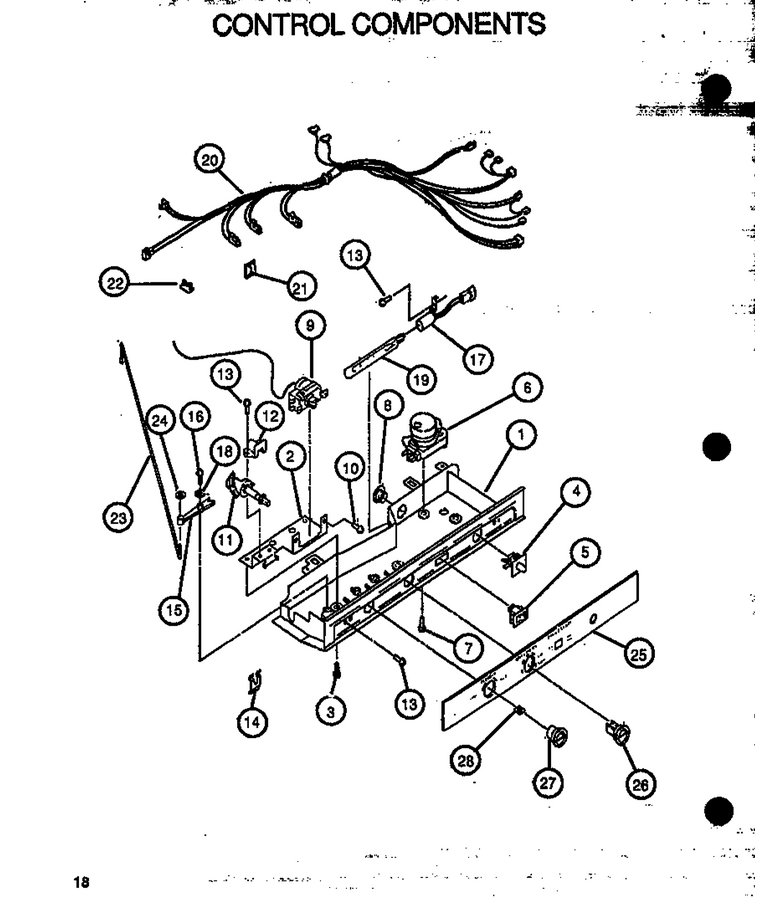

02 - Control Components

...
...
1
Box, Control WPL-R0950215
...
2
Bracket, Mounting WPL-R0950219
...
3
Screw, No.6 X 1/2 WPL-R0950230
...
4
Switch WPL-WP2149705
...
5
Switch, Lighted Power Miser WPL-R0950235
...
6
Timer-Def WPL-W10822278
...
7
Screw, No.6 X 1/2 WPL-R0950230
...
8
Plug, Hole WPL-R0950236
...
9
Thermostat WPL-Y0057139
...
10
Screw, 8 X 3/8`` WPL-R0950231
...
11
Ass`y, Cam WPL-R0950221
...
12
Bearing Body WPL-R0950222
...
13
Screw, 8 X 1/2`` WPL-R0950232
...
14
Retainer, Damper WPL-R0950237
...
15
Arm, Pivot WPL-R0950223
...
16
Screw, No.8-18 X .65 WPL-R0950238
...
17
Socket, Light WPL-R0950224
...
18
Washer, Spring WPL-R0950234
...
19
Light Bulb WPL-R0950137
...
20
Harness, Control Box WPL-R0950239
...
21
Clip, Wiring WPL-R0950225
...
22
Clip, Wiring WPL-R0950226
...
23
Rod, Connecting WPL-R0950218
...
24
Fastener, Push-On WPL-R0950233
...
25
Escutcheon, Control Box WPL-R0950240
...
26
Knob, Thermostat WPL-R0950227
...
27
Knob, Air Control WPL-R0950228
...
28
Retainer, Knob WPL-R0950241

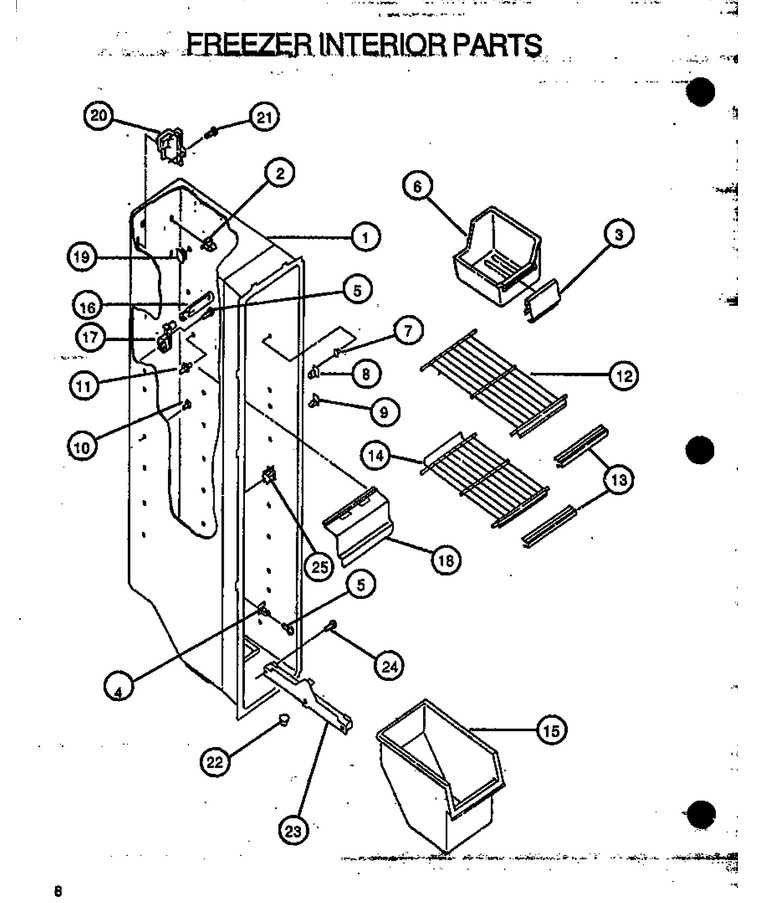

04 - Fz Interior Parts

...
...
2
Clip, Air Duct WPL-R0950121
...
3
Trim, Ice Cube Pan WPL-R0950126
...
4
Support, Evaporator WPL-R0950127
...
5
Screw WPL-0056545
...
6
Pan, Ice Cube WPL-R0950146
...
7
Stud, Support WPL-R0950128
...
8
Stud WPL-R0950129
...
9
Stud WPL-R0950130
...
10
Grommet WPL-R0950131
...
11
Stud WPL-R0950103
...
12
Shelf WPL-R0950133
...
13
Trim,shelf WPL-R0950134
...
14
Shelf WPL-R0950135
...
15
Bin, Freezer WPL-R0950136
...
16
Light Bulb WPL-R0950137
...
17
Ass`y, Socket WPL-R0950138
...
18
Lens WPL-R0950139
...
19
Plug, Hole WPL-R0950021
...
20
Cover, Wiring WPL-R0950140
...
21
Screw No.8-15 X 1/2 WPL-R0950141
...
22
Fitting, Drain WPL-R0950142
...
23
Slide, Freezer Bin WPL-R0950143
...
24
Screw No.8 X 1 WPL-R0950144
...
25
Switch, Rocker Arm WPL-R0950145

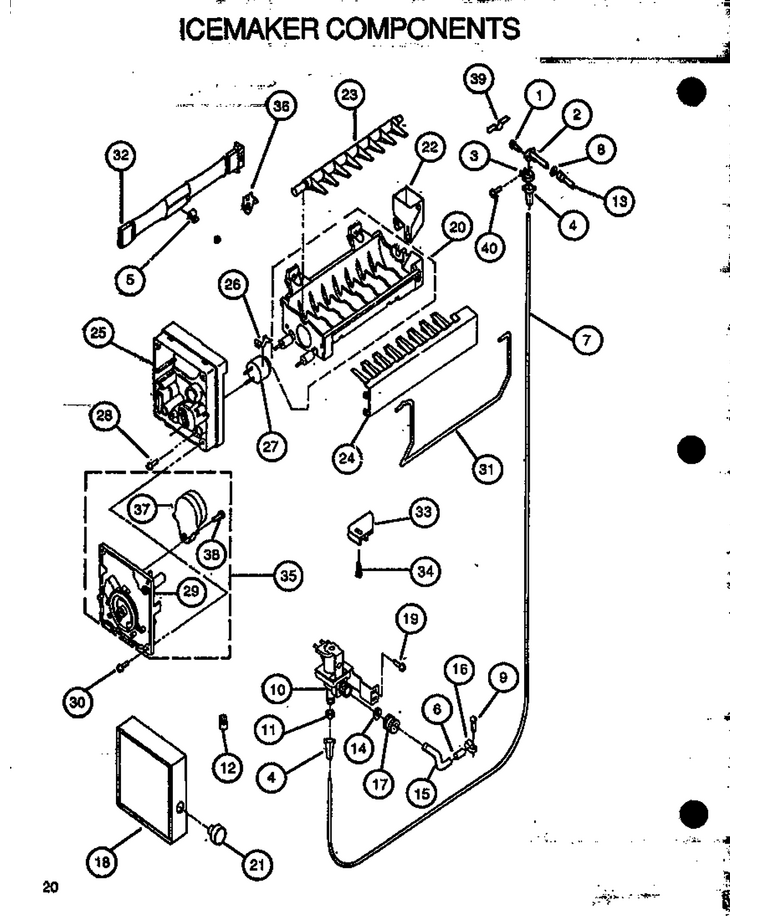

05 - Icemaker Components

...
...
1
Screw WPL-0056545
...
2
Fitting, Water Tube WPL-0056620
...
3
Tube Clamp WPL-0056533
...
4
Insert, Plastic Tube WPL-0056623
...
5
Clip WPL-WP628379
...
6
Dampener WPL-Y0056611
...
7
Tube WPL-WPB5705307
...
8
Seal, Water Tube Fitting WPL-0056814
...
9
Sub 56543, Screw WPL-0056524
...
10
Sub 57042, Valve, Solenoid WPL-0056602
...
11
Nut And Sleeve Assy. WPL-0056592
...
12
Connector, Wire WPL-Y0057006
...
13
Tube, Water Inlet WPL-0056647
...
14
Washer WPL-0056516
...
15
Tube Assy., Inlet Valve WPL-Y0056601
...
16
Tube Clamp WPL-0056573
...
17
Nut, Inlet Valve WPL-Y0056584
...
18
Cover, Front WPL-Y0056948
...
19
Screw WPL-Y0056525
...
20
Mold & Heater Assy WPL-Y0311694
...
21
Knob WPL-Y0056604
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Ejectr WPL-WP627843
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Bimetl-Def WPL-WP627985
...
28
Screw WPL-Y0311152
...
29
Ice Maker Assy. WPL-D7824706Q
...
30
Sub 56556, Screw WPL-0311153
...
31
Arm, Shut-Off WPL-Y0056597
...
32
Wiring Harness WPL-Y0311696
...
33
Bracket Icemaker WPL-Y0311695
...
34
Screw WPL-WP489128
...
35
Ice Maker Assy. WPL-D7824706Q
...
36
Clip, Support WPL-0311693
...
37
Ice Maker Assy. WPL-D7824706Q
...
38
Screw WPL-0056548
...
39
Clip WPL-0311125
...
40
Screw WPL-0312775

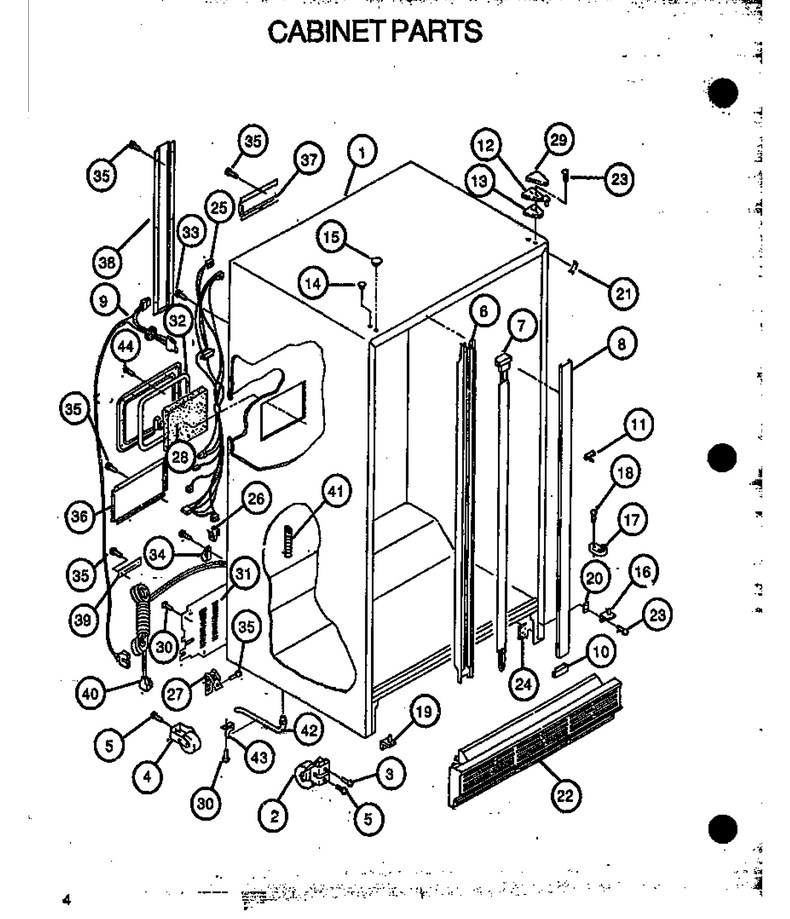

07 - Page 1

...
...
2
Roller, Front WPL-R0950002
...
3
Screw WPL-0056235
...
4
Roller, Rear WPL-0056722
...
5
Screw WPL-Y0056520
...
6
Rail, Mullion WPL-R0950065
...
7
Heater, Mullion WPL-R0950066
...
8
Filler Bottom Mullion, White WPL-311126W
...
9
Ass`y, Ice Maker Wiring WPL-R0950096
...
10
Filler, Bot Mullion (almond) WPL-R0950068
...
11
Clip, Ground WPL-R0950069
...
12
Hinge, Top WPL-0311169
...
13
Hinge Shim WPL-Y0311170
...
14
Plug, Hole (white) WPL-R0950070
...
15
Plug, Hole (white) WPL-R0950072
...
16
Hinge, Bottom R.h. WPL-R0950074
...
17
Kit,dr Closure WPL-R0181181
...
18
Screw No.8-32 X 5/16 WPL-R0950076
...
19
Hinge, Bottom L.h. WPL-R0950077
...
20
Spacer, Hinge WPL-R0950078
...
21
Filler, Wrapper (almond) WPL-R0950080
...
22
Base Grille WPL-Y0312204
...
23
Screw No.10-32 X 3/4 WPL-R0950005
...
24
Top Plate, Bottom Hinge WPL-Y0312755
...
25
Harness, Cabinet WPL-R0950081
...
26
Clip, Wire WPL-Y0056590
...
27
Clamp WPL-0056591
...
28
Insulation WPL-R0950095
...
29
Cover, Hinge (almond) WPL-R0950094
...
30
Screw WPL-0056234
...
31
Unit, Cover WPL-R0950092
...
32
Gasket, Sealing WPL-R0950091
...
33
Screw, Ground WPL-R0056541
...
34
Clamp WPL-R0950082
...
35
Screw WPL-Y0311151
...
36
Cover, Wiring WPL-R0950083
...
37
Sheild, Short Wiring WPL-R0950084
...
38
Sheild, Long Wiring WPL-R0950085
...
39
Tube Clamp WPL-R0590086
...
40
Service Cord WPL-Y0056645
...
41
Ferrule, Drain WPL-R0950087
...
42
Extension, Tube WPL-R0950088
...
43
Clip, Drain Tube WPL-R0590089
...
44
Cover, Plug WPL-R0950090

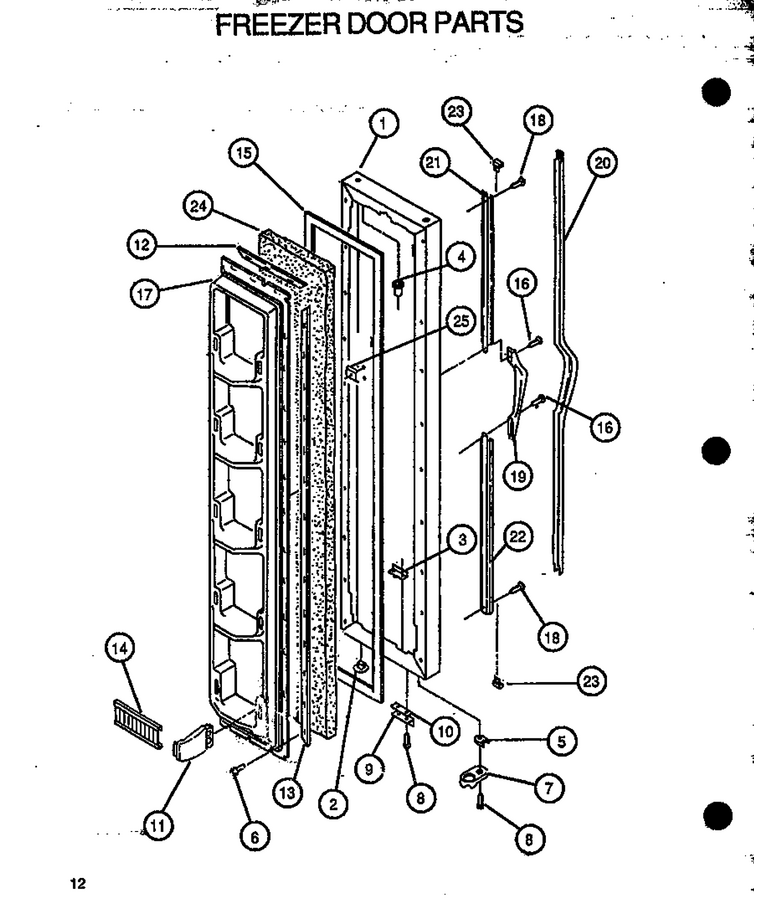

03 - Fz Door Parts

...
...
1
Door, Freezer (white) WPL-R0950168
...
2
Plug, Hole WPL-R0950154
...
3
Plate, Tap WPL-R0950148
...
4
Cap, Hinge Sleeve WPL-R0950172
...
5
Shim, Door Closer WPL-R0950153
...
6
Screw, 7 X 1/2`` WPL-R0950167
...
7
Kit,dr Closure WPL-R0181181
...
8
Screw, 8 X 1/2`` WPL-R0950150
...
9
Bracket, Door Stop WPL-R0950151
...
10
Shim WPL-R0950152
...
11
Support Trim End WPL-R0951079
...
12
Retainer, Top & Bottom Retaine WPL-R0950173
...
13
Retainer, Side Gasket WPL-R0950174
...
14
Trim, Door Shelf WPL-R0950178
...
15
Gasket, Magnetic Door WPL-R0950175
...
16
Screw, 8 X 1/2 WPL-R0950176
...
17
Panel Freezer Door Inner WPL-Y0312784
...
18
Screw, No.10-32 X 5/8 WPL-R0950157
...
19
Handle WPL-R0950155
...
20
Insert, Handle WPL-R0950158
...
21
Insert, Top Retainer WPL-R0950159
...
22
Insert Retainer WPL-R0950160
...
23
End Cap WPL-R0950161
...
24
Foam Insulation WPL-Y0056239
...
25
Screw, Anchor WPL-R0950156
