Amana GFS209-1L00 (BOM: GFS20901L00)

Model: GFS209-1L00 (BOM: GFS20901L00)

Save Part Not Listed?
product name

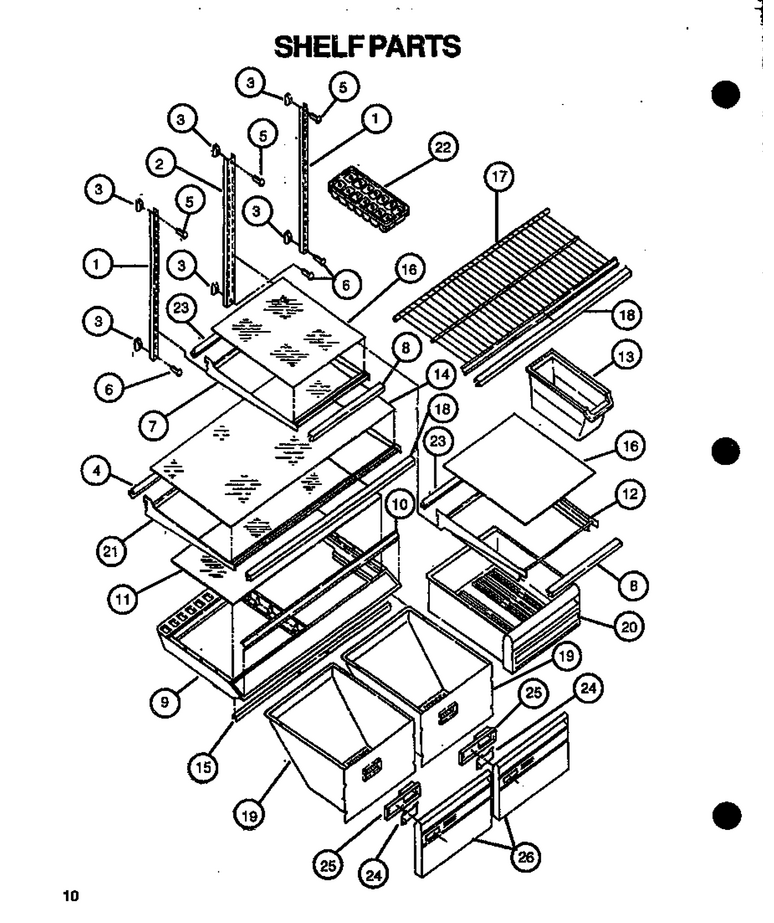

07 - Shelf Parts

...
...
1
Ladder, Shelf WPL-Y0056917
...
2
Ladder, Shelf, Center WPL-Y0056916
...
3
Screw WPL-Y0056579
...
4
Reflector, Shelf WPL-0056996
...
5
Screw No.8-32 X 1/4 WPL-R0950033
...
6
Screw WPL-Y0056513
...
7
Shelf WPL-Y0056879
...
8
Trim, Meat Pan Shelf WPL-Y0056993
...
9
Cover, Crisper WPL-0056991
...
10
Trim, Crisper Cover WPL-Y0056947
...
11
Glass, Crisper Cover WPL-0056803
...
12
Shelf, Meat Pan WPL-0056880
...
13
Container, Ice WPL-0056855
...
14
Glass, Shelf WPL-0056995
...
15
Support, Crisper WPL-Y0056817
...
16
Glass, Meat Pan Shelf WPL-Y0056878
...
17
Shelf, Freezer WPL-Y0056818
...
18
Trim, Shelf WPL-Y0056994
...
19
Pan, Crisper WPL-0056853
...
20
Pan, Meat WPL-0056997
...
21
Shelf WPL-Y0056925
...
22
Tray, Ice WPL-Y0056622
...
23
Reflector, Shelf WPL-Y0056820
...
24
Slide, Humidity Control WPL-Y0056926
...
25
Housing, Humidity Control WPL-Y0056927
...
26
Panel, Crisper Pan Front WPL-0056992

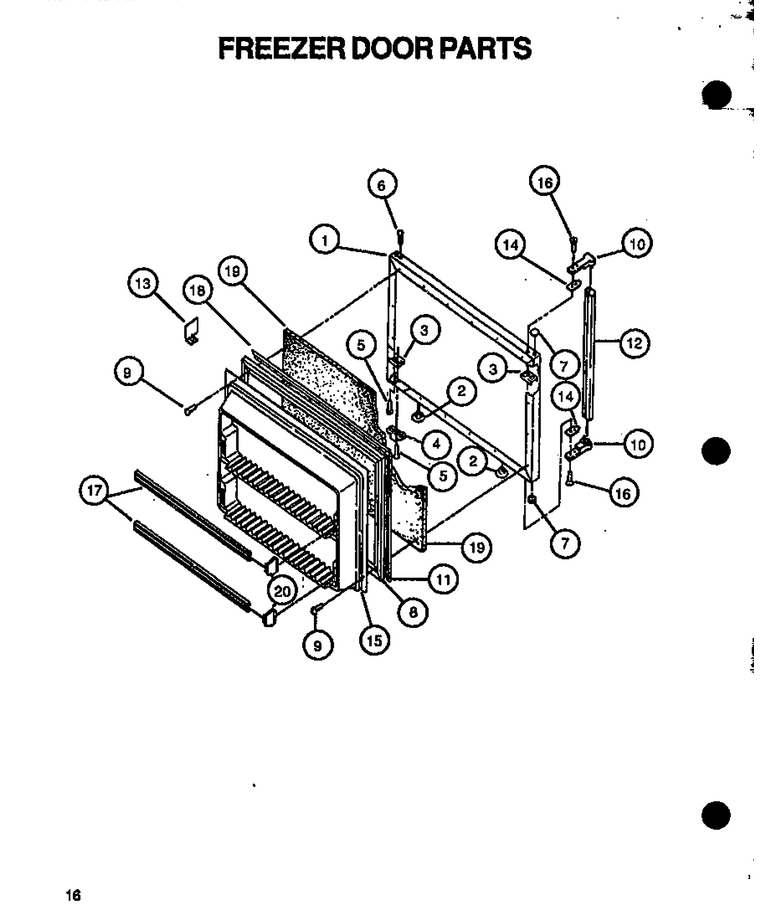

02 - Fz Door Parts

...
...
1
Panel, Freezer (almond) WPL-R0950059
...
2
Hole Plug, Almond WPL-Y056583L
...
3
Plate, Tap WPL-0056678
...
4
Bracket, Door Stop WPL-R0950060
...
5
Gasket, Air WPL-Y0311181
...
6
Screw WPL-Y0056218
...
7
Hole Plug, Almond WPL-Y056626L
...
8
Gasket-Dor WPL-2188460A
...
9
Sub 56543, Screw WPL-0057020
...
10
End Cap, Handle WPL-Y056696
...
11
Retainer, Gasket WPL-R0590062
...
12
Door Handle WPL-Y0056856
...
13
Divider, Shelf WPL-Y0056913
...
14
Spacer, Door Handle WPL-0056679
...
15
Panel, Interior Door WPL-R0950063
...
16
Screw, Handle WPL-67006529
...
17
Trim, Inner Door WPL-Y0056998
...
18
Retainer, Gasket WPL-R0950054
...
19
Foam Insulation WPL-Y0056239
...
20
Endcap, Door Trim WPL-Y0056807

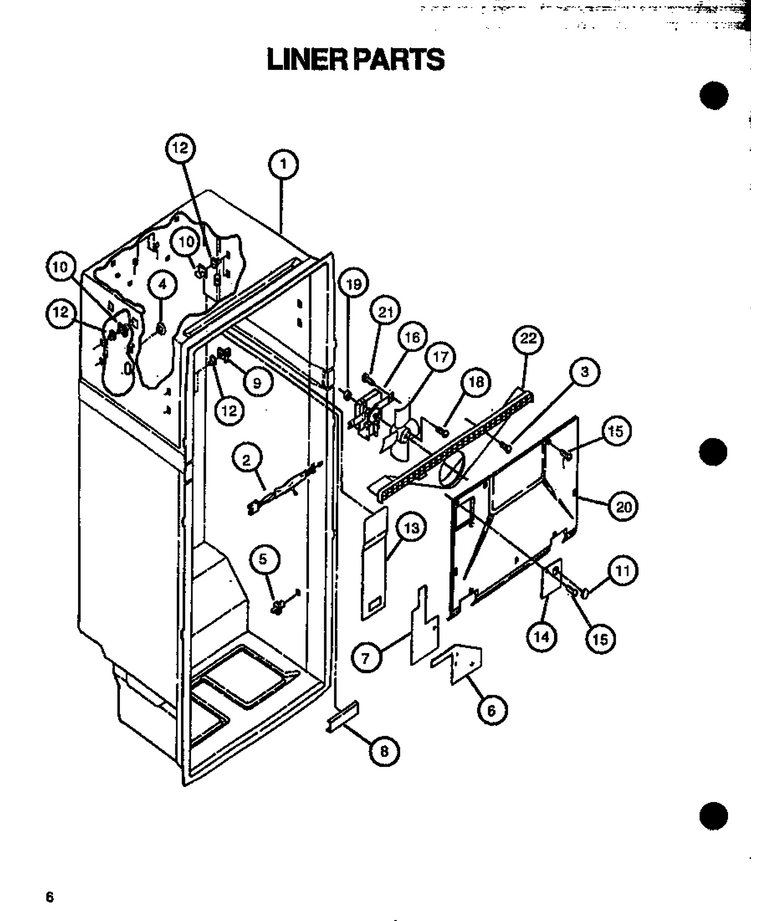

04 - Liner Parts

...
...
2
Wiring, Fan Motor WPL-Y0311638
...
3
Screw WPL-Y0311151
...
4
Plug, Hole WPL-R0950021
...
5
Stud-Shelf WPL-W10854959
...
6
Shield, Electrical WPL-R0950023
...
7
Shield, Electrical WPL-Y0056819
...
8
Shield, Electrical WPL-Y0056829
...
9
Stud 4pc Set WPL-Y0056717
...
10
Stud 4pc Set WPL-Y0056717
...
11
Hole Plug WPL-Y0056743
...
12
Support Stud WPL-0056716
...
13
Cover, Air Duct WPL-R0950024
...
14
Hole Cover, Evaporator WPL-Y0311649
...
15
Screw No.8-15 X 1/2 WPL-R0950027
...
16
Motor-Evap WPL-482731
...
17
Fan Blade WPL-0056740
...
18
Screw WPL-Y0056511
...
19
Grommet WPL-Y0056581
...
20
Cover, Evaporator (sub To 1118 WPL-R0950026
...
21
Screw WPL-Y0056557
...
22
Scroll, Fan WPL-Y0311182

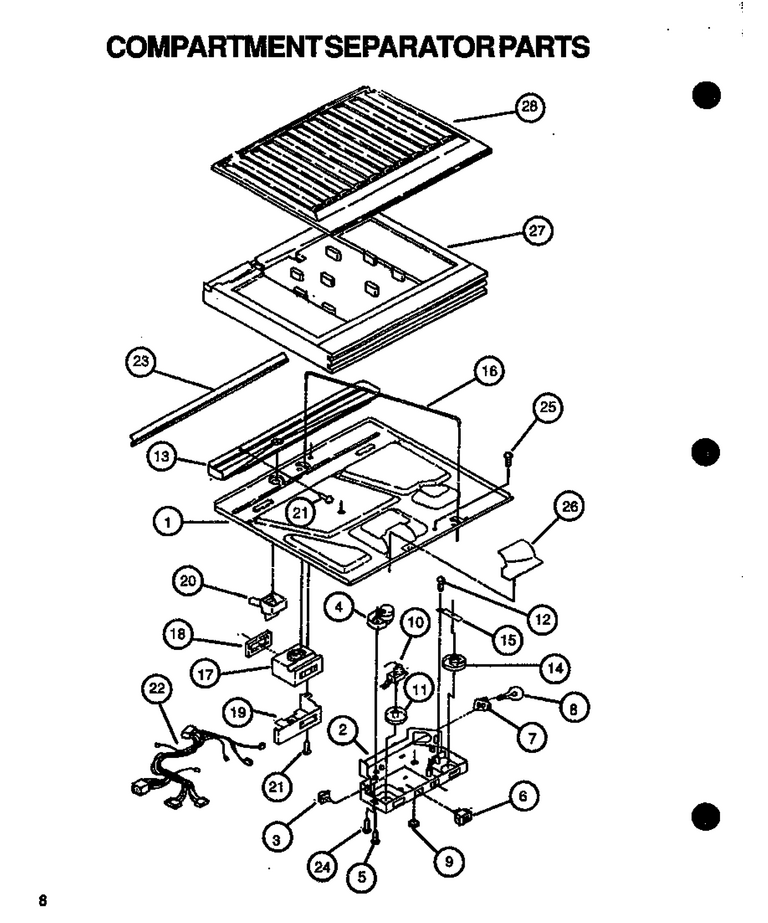

01 - Compartment Separator Parts

...
...
1
Separator, Bot. Compartment WPL-R0950028
...
2
Box, Control WPL-Y0056774
...
3
Switch WPL-WP2149705
...
4
Timer-Def WPL-W10822278
...
5
Screw, 6-20 X 1/2 WPL-Y0056530
...
6
Switch, Toggle WPL-Y0056766
...
7
Socket Assy. WPL-0056628
...
8
Light Bulb WPL-8009
...
9
Hole Plug WPL-Y0056653
...
10
Assy, Thermostat WPL-R0950030
...
11
Knob, Thermostat WPL-0056923
...
12
Screw, 8 X 3/8 WPL-Y0056510
...
13
Pan, Drain WPL-Y0056788
...
14
Knob, Air Control WPL-Y0056924
...
15
Bracket, Control Knob WPL-Y0056775
...
16
Rod, Connecting WPL-Y0056776
...
17
Assembly, Air Diffuser WPL-R0950031
...
18
Gasket, Air Diffuser WPL-Y0056910
...
19
Cover, Air Diffuser WPL-Y0056847
...
20
Cup, Drain WPL-Y0056640
...
21
Screw WPL-Y0311151
...
22
Assy, Control Box Wiring WPL-R0950032
...
23
Gasket, Separator WPL-Y0056684
...
24
Screw WPL-WP250830
...
25
Screw WPL-Y0056513
...
26
Insulation, Filler WPL-Y0056662
...
27
Insulation, Separator WPL-Y0056778
...
28
Separator, Top WPL-Y0056779

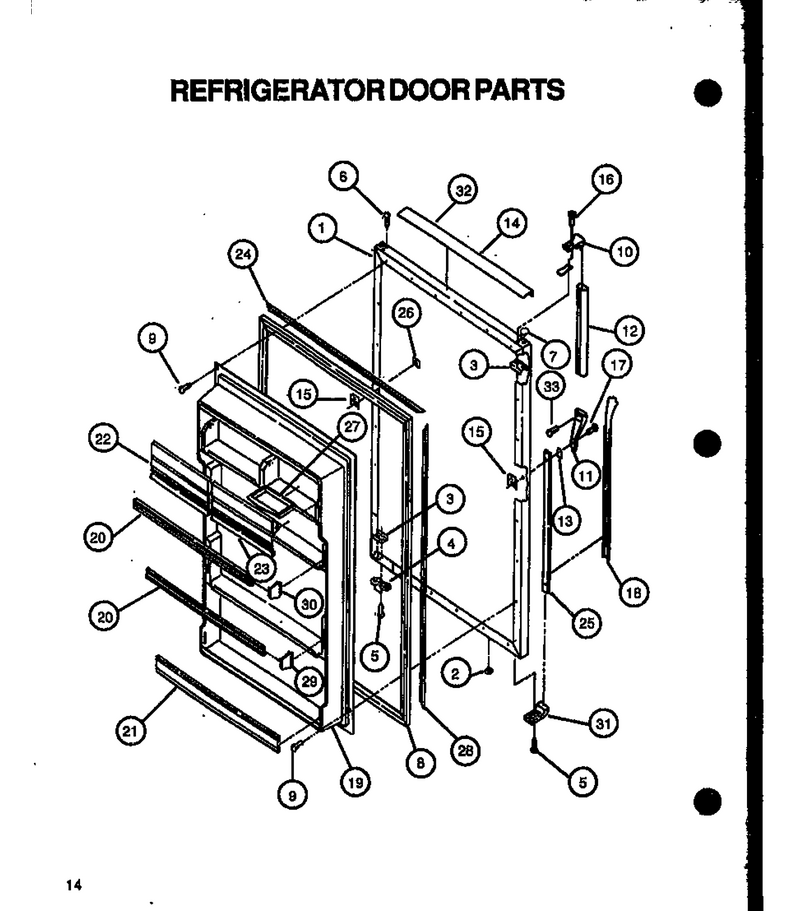

06 - Ref Door Parts

...
...
1
Panel, Refrigerator Dr (almond WPL-R0950049
...
2
Hole Plug, Almond WPL-Y056583L
...
3
Plate, Tap WPL-0056678
...
4
Bracket, Door Stop WPL-0056922
...
5
Screw WPL-Y0311131
...
6
Screw WPL-Y0056218
...
7
Hole Plug, Almond WPL-Y056626L
...
8
Gasket-Dor WPL-2188450A
...
9
Sub 56543, Screw WPL-0057020
...
10
Handle End WPL-0056696
...
11
End Cap, Center WPL-0056860
...
12
Door Handle WPL-Y0056856
...
13
Shim, Handle WPL-Y0056633
...
14
Spacer, Door Handle WPL-0056679
...
15
Screw, Anchor WPL-R0950051
...
16
Screw, Handle WPL-67006529
...
17
Screw WPL-0056545
...
18
Insert, Door Handle WPL-0057002
...
19
Panel, Interior Door WPL-R0950053
...
20
Trim, Inner Door WPL-Y0056998
...
21
Trim, Inner Door WPL-0056999
...
22
Door, Utility WPL-0057001
...
23
Door, Butter WPL-0057000
...
24
Retainer, Gasket WPL-R0950054
...
25
Retainer, Handle Insert WPL-0056638
...
26
Medallion WPL-R0950055
...
27
Tray, Butter WPL-R0590056
...
28
Retainer, Gasket WPL-R0950057
...
29
End Cap, Door Trim WPL-Y0056827
...
30
Endcap, Door Trim WPL-Y0056807
...
31
End Cap, Insert Retainer WPL-0056809
...
32
Trim, Refrig. Door WPL-Y0057003
...
33
Screw WPL-Y0310830

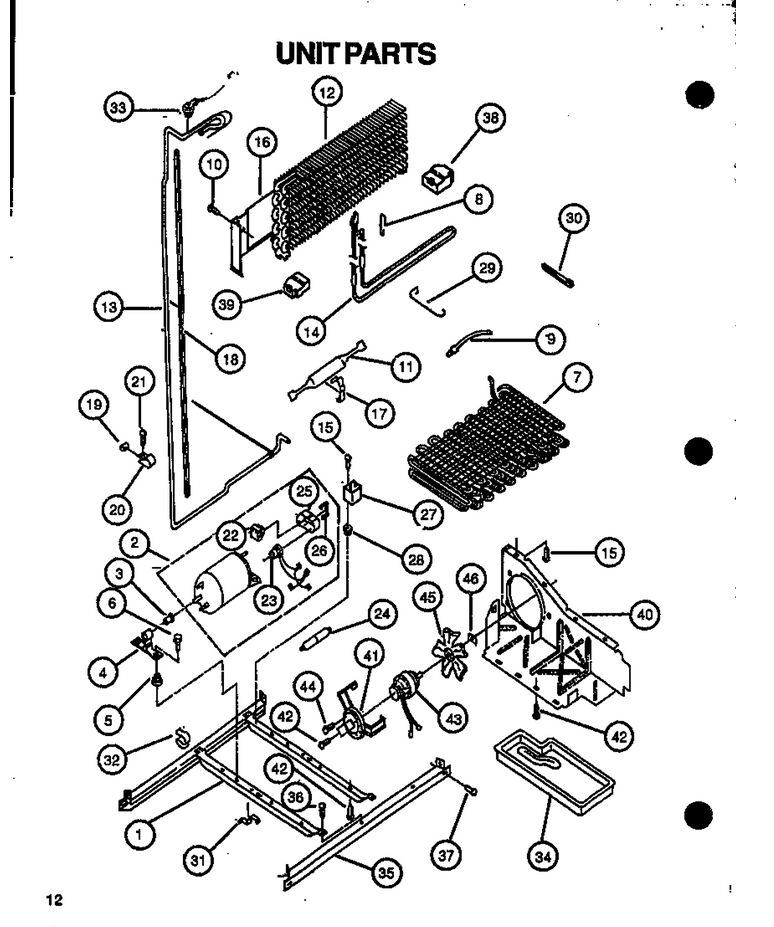

08 - Unit Parts

...
...
1
Unit, Frame WPL-Y0312758
...
2
Compressor WPL-R0950034
...
3
Grommet, Compressor Bracket WPL-0312210
...
4
Bracket, Compressor Mounting WPL-Y0312211
...
5
Grommet, Compressor WPL-R0950035
...
6
Screw WPL-Y0312206
...
7
Condenser Assembly WPL-Y0312759
...
8
Support, Heater WPL-R0950036
...
9
Clip, Strap WPL-Y0311635
...
10
Screw, 8 X 3/8 WPL-Y0056510
...
11
Drier-Tube WPL-W10843121
...
12
Evaporator WPL-0056931
...
13
Heat Exchanger WPL-0312760
...
14
Heater, Defrost WPL-R0950037
...
15
Screw WPL-Y0311151
...
16
Heat Shield, Evaporator WPL-Y0056796
...
17
Clamp, Drier WPL-Y0056228
...
18
Sleeve WPL-Y0056854
...
19
Damper WPL-R0950038
...
20
Tube Clamp WPL-0056573
...
21
Screw WPL-Y0056525
...
22
Relay, Service Compressor WPL-0312214
...
23
Overload WPL-819098
...
24
Muffler WPL-1118921
...
25
Terminal Cover WPL-Y0312212
...
26
Strap, Cover WPL-Y0312213
...
27
Capacitor WPL-0056908
...
28
Grommet WPL-Y0056570
...
29
Guard, Fan WPL-Y0056802
...
30
Strap WPL-Y0056629
...
31
Clip WPL-Y0056589
...
32
Clip, Wire WPL-Y0056590
...
33
Bimetl-Def WPL-WP4387503
...
34
Tray, Evaporator WPL-Y0057068
...
35
Unit Rail WPL-Y0312761
...
36
Screw WPL-Y0312207
...
37
Screw 5/16-18 X .63 WPL-R0950043
...
38
Support, Rs WPL-R0950044
...
39
Support, Ls WPL-R0950045
...
40
Air Baffle WPL-Y0312752
...
41
Bracket, Fan Motor WPL-Y0056588
...
42
Screw WPL-0056545
...
43
Motor-Cond WPL-833697
...
44
Screw WPL-Y0056539
...
45
Blade, Fan WPL-R0950047
...
46
Speednut WPL-Y0056506

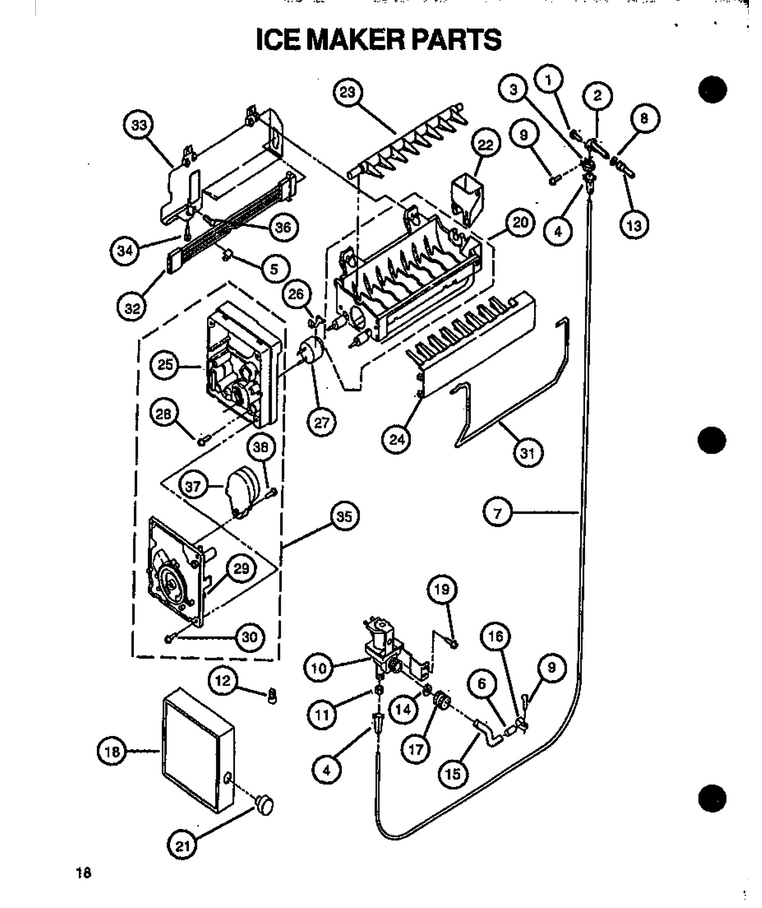

03 - Ice Maker Parts

...
...
NI
Clip WPL-0311125
...
1
Screw WPL-0056545
...
2
Fitting, Water Tube WPL-0056620
...
3
Tube Clamp WPL-0056533
...
4
Insert, Plastic Tube WPL-0056623
...
5
Clip WPL-WP628379
...
6
Dampener WPL-Y0056611
...
7
Tube WPL-WPB5705307
...
8
Seal, Water Tube Fitting WPL-0056814
...
9
Sub 56543, Screw WPL-0056524
...
10
Sub 57042, Valve, Solenoid WPL-0056602
...
11
Nut And Sleeve Assy. WPL-0056592
...
12
Connector, Wire WPL-Y0057006
...
13
Tube, Water Inlet WPL-0056647
...
14
Washer WPL-0056516
...
15
Tube Assy., Inlet Valve WPL-Y0056601
...
16
Tube Clamp WPL-0056573
...
17
Nut, Inlet Valve WPL-Y0056584
...
18
Cover, Front WPL-Y0056948
...
19
Screw WPL-Y0056525
...
20
Mold & Heater Assy WPL-Y0311694
...
21
Knob WPL-Y0056604
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Ejectr WPL-WP627843
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Bimetl-Def WPL-WP627985
...
28
Screw WPL-Y0311152
...
29
Ice Maker Assy. WPL-D7824706Q
...
30
Sub 56556, Screw WPL-0311153
...
31
Arm, Shut-Off WPL-Y0056597
...
32
Wiring Harness WPL-Y0311696
...
33
Shield, Heat WPL-Y0056593
...
34
Screw WPL-WP489128
...
35
Ice Maker Assy. WPL-D7824706Q
...
36
Screw WPL-Y0057009
...
37
Ice Maker Assy. WPL-D7824706Q
...
38
Screw WPL-0056548

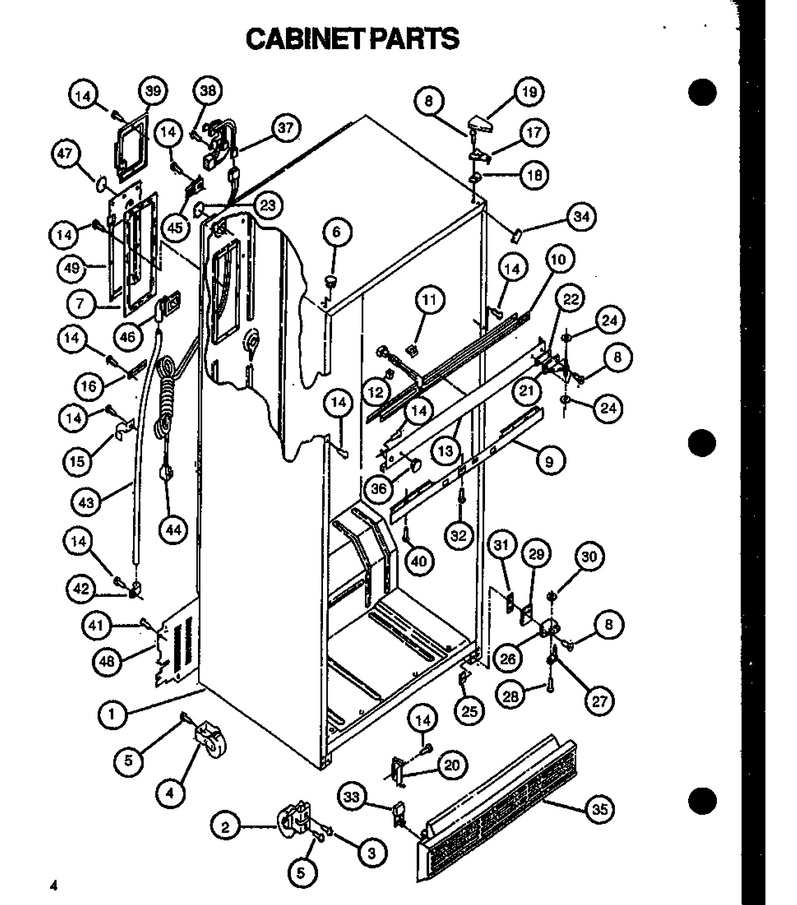

05 - Page 1

...
...
2
Roller, Front WPL-R0950002
...
3
Screw WPL-0056235
...
4
Roller, Rear WPL-0056722
...
5
Screw WPL-Y0312207
...
6
Plug, Hole (almond) WPL-R0950004
...
7
Sub 57143, Gasket, Cover WPL-0056919
...
8
Screw No.10-32 X 3/4 WPL-R0950005
...
9
Cover, Front Control WPL-R0950006
...
10
Heater, Mullion WPL-0056771
...
11
Clip Center Rail WPL-Y0311137
...
12
Spacer WPL-Y0312223
...
13
Rail, Center (almond) WPL-R0950008
...
14
Screw WPL-0056234
...
15
Clamp WPL-Y0056872
...
16
Clamp, Tube WPL-Y0056800
...
17
Hinge, Top WPL-R0590009
...
18
Shim Hinge Top WPL-Y0311141
...
19
Cover, Hinge, Almond WPL-Y056624L
...
20
Clip, Grill WPL-Y0312215
...
21
Hinge-Door WPL-W10851192
...
22
Shim, Center Hinge WPL-0056614
...
23
Seal, Hole WPL-R0950011
...
24
Washer WPL-0056509
...
25
Top Plate, Bottom Hinge WPL-Y0312755
...
26
Butt Hinge, Bottom WPL-R0950012
...
27
Hinge Pin WPL-0056610
...
28
Screw WPL-0310628
...
29
Shim WPL-4388138
...
30
Washer, 7/32 WPL-Y0056563
...
31
Spacer WPL-R0950014
...
32
Screw WPL-Y0056560
...
33
Corner Filler, Grill WPL-Y0312216
...
34
Filler Wrap, Corner, Almond WPL-R0590016
...
35
Base Grille WPL-Y0312204
...
36
Hole Plug, Almond WPL-Y056727L
...
37
Assy, Cabinet Wiring WPL-R0950017
...
38
Screw WPL-WP250830
...
39
Cover, Wiring WPL-Y0056799
...
40
Screw WPL-Y0056513
...
41
Screw WPL-0056545
...
42
Clamp WPL-Y0056612
...
43
Tube, Drain WPL-R0950019
...
44
Service Cord WPL-Y0056645
...
45
Clamp WPL-Y0056644
...
46
Fitting, Drain WPL-0056639
...
47
Hole, Seal WPL-Y0056952
...
48
Cover, Rear WPL-0056794
...
49
Cover, Plug WPL-R0950018
