Amana GFS185MN01 (BOM: GFS185MN0 1)

Model: GFS185MN01 (BOM: GFS185MN0 1)

Save Part Not Listed?
product name

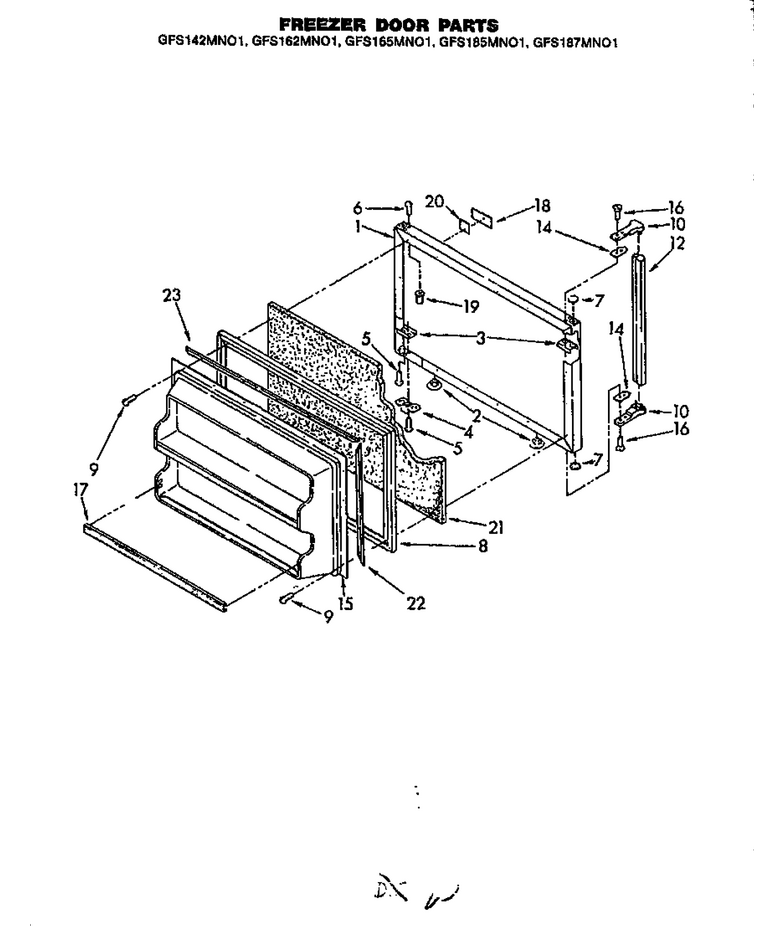

02 - Fz Door Parts

...
...
1
Panel, Outer Door - W WPL-56753L
...
2
Hole Plug - Almond WPL-56583L
...
3
Plate, Tap WPL-56678
...
4
Instructions,drying Rack WPL-56694
...
5
Screw WPL-0056564
...
6
Screw WPL-0056564
...
7
Hole Plug - Almond WPL-56626L
...
8
Door Gasket WPL-0310828
...
9
Screw WPL-0056545
...
10
Handle End WPL-0056696
...
12
Door Handle WPL-Y0056856
...
14
Spacer, Door Handle WPL-0056679
...
15
Panel-Interior WPL-Y0310827
...
16
Screw WPL-0056567
...
17
Sub 56979, Trim, Freezer Door WPL-0056985
...
18
Nameplate WPL-56961
...
19
Cap, Hinge Sleeve WPL-Y0056571
...
20
Tape Strip, Nameplate WPL-Y0056731
...
21
Manual, Operation WPL-56630
...
22
Gasket, Retainer Side WPL-Y0310644
...
23
Gasket Retainer, Top & Bottom WPL-Y0310826

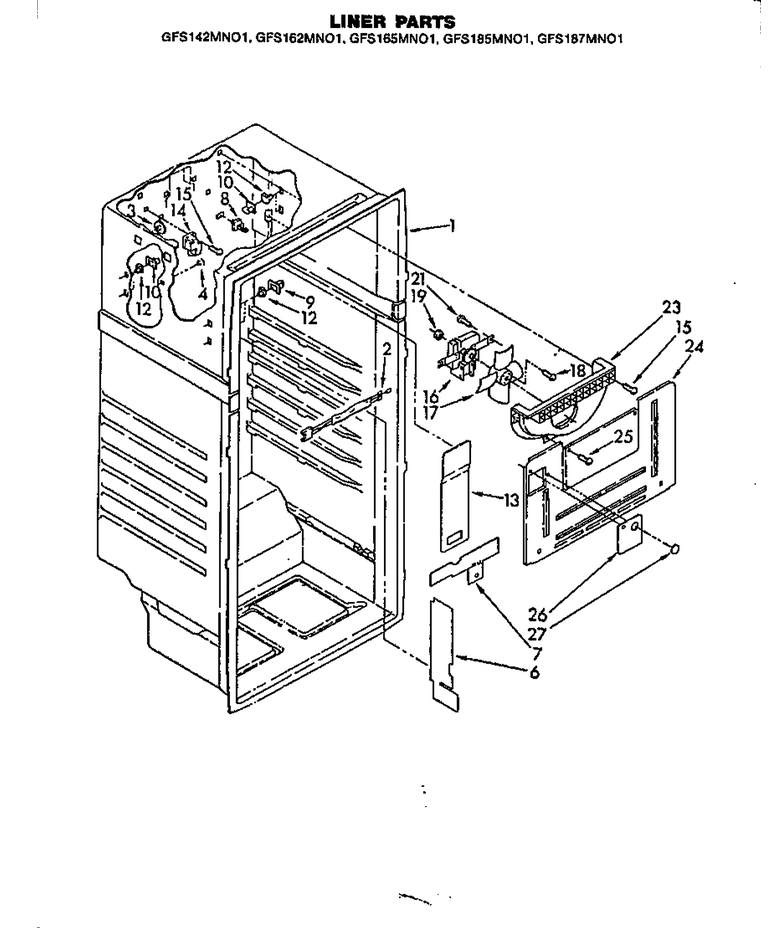

03 - Liner Parts

...
...
2
Screw WPL-WP8281196
...
3
Hole Plug WPL-Y0056704
...
4
Hole Plug WPL-Y0056655
...
6
Shield, Electric Side WPL-Y0056658
...
7
Bracket,coin Door WPL-56715
...
8
Stud, Evaporator WPL-Y0056657
...
9
Stud 4pc Set WPL-Y0056717
...
10
Stud 4pc Set WPL-Y0056717
...
12
Bracket WPL-56716
...
13
Cover, Air Duct WPL-Y0056942
...
14
Terminal Block WPL-0056665
...
15
Screw WPL-Y0056568
...
16
Motor-Evap WPL-482731
...
17
Plate,face-Coin Door-L WPL-56740
...
18
Screw WPL-Y0056511
...
19
Assy,wiring Harness WPL-56911
...
21
Assy,heater Kit 240/4. WPL-61929
...
23
Scroll Fan WPL-0310639
...
24
Cover, Evaporator WPL-Y0056686
...
25
Sub 56545, Screw WPL-0056566
...
26
Hole Cover, Evaporator WPL-Y0056960
...
27
Hole Plug WPL-Y0056743

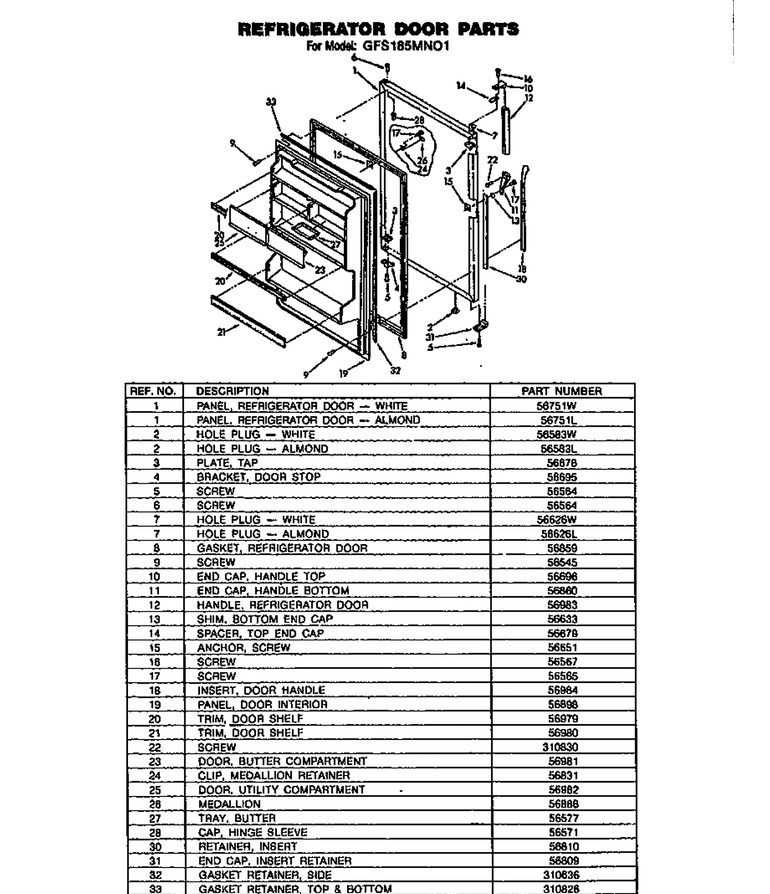

06 - Ref Door Parts

...
...
1
Panel, Door - W WPL-56751W
...
2
Hole Plug - White WPL-56583W
...
3
Plate, Tap WPL-56678
...
4
Bracket, Door Stop WPL-0056695
...
5
Screw WPL-0056564
...
6
Screw WPL-0056564
...
7
Hole Plug - White WPL-56626W
...
8
Gasket, Refrig. Door WPL-Y0056859
...
9
Screw WPL-0056545
...
10
Handle End WPL-0056696
...
11
End Cap, Center WPL-0056860
...
12
Door Handle WPL-Y0056856
...
13
Shim, Handle WPL-Y0056633
...
14
Spacer, Door Handle WPL-0056679
...
15
Anchor, Screw WPL-0056651
...
16
Screw WPL-0056567
...
17
Rivet,pop WPL-56565
...
18
Use 0057002 WPL-0056984
...
19
Panel, Door Interior WPL-56898
...
20
Sticker WPL-56979
...
21
Sticker WPL-56980
...
22
Screw WPL-Y0310830
...
23
Sticker WPL-56981
...
24
Clip, Medallion WPL-Y0056831
...
25
Door, Utility Compartment WPL-56982
...
26
Manual, Operation WPL-56888
...
27
Tray, Butter WPL-Y0056577
...
28
Cap, Hinge Sleeve WPL-Y0056571
...
30
Retainer, Insert WPL-Y0056810
...
31
End Cap, Insert Retainer WPL-0056809
...
32
Gasket, Retainer, Side WPL-Y310636
...
33
Gasket Retainer, Top & Bottom WPL-Y0310826

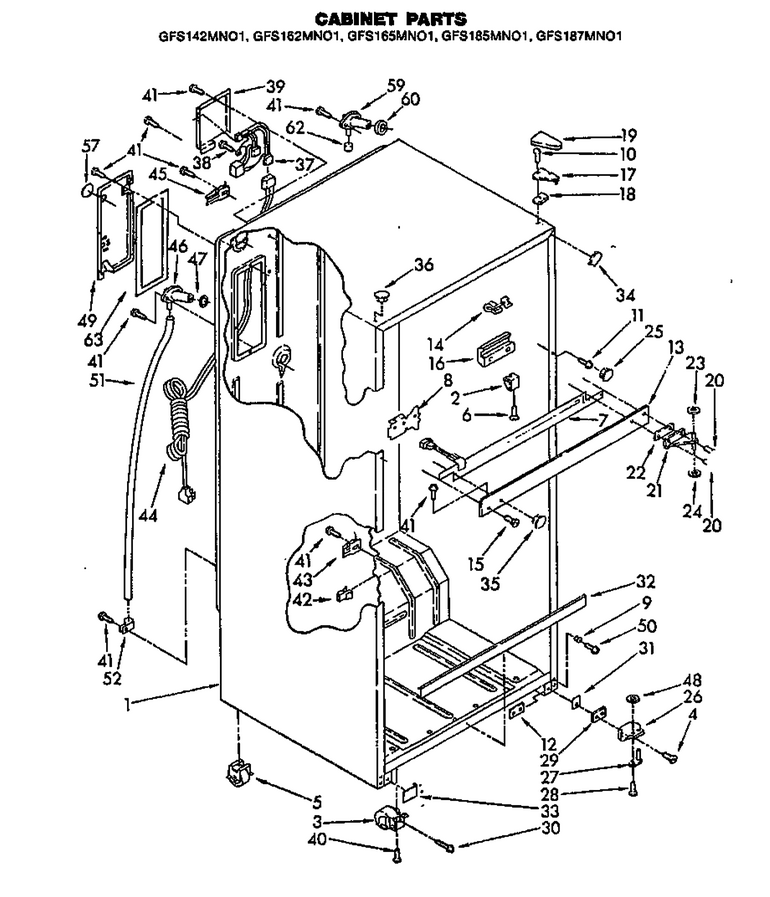

05 - Page 6

...
...
2
Spacer WPL-Y0056654
...
3
Roller, Front WPL-56659
...
4
Screw WPL-0056535
...
5
Roller WPL-Y0056642
...
6
Sub 56560, Screw WPL-Y0056558
...
7
Assy, Wiring Harness WPL-56837
...
8
Manual,install/opera WPL-56866
...
9
Ferrule, Center Rail WPL-Y0056656
...
10
Screw WPL-0056544
...
11
Screw WPL-Y0310629
...
12
Tap Plate WPL-56706
...
13
Center Rail-White WPL-56886W
...
14
Trim Clip WPL-Y0056582
...
15
Screw WPL-Y0056562
...
16
Shim, Center Rail WPL-Y0056648
...
17
Assy,lock-Complete WPL-56736
...
18
Shim, Top Hinge WPL-Y0056735
...
19
Cover, Hinge - Almond WPL-56624L
...
20
Screw WPL-0056535
...
21
Use 0056613 WPL-0056702
...
22
Shim, Center Hinge WPL-0056614
...
23
Washer WPL-0056509
...
24
Sub 56509, Washer WPL-0056517
...
25
Hole Plug, White WPL-310643W
...
26
Hinge, Door WPL-0310642
...
27
Manual, Operation WPL-56610
...
28
Washer WPL-310628
...
29
Shim, Bottom Hinge WPL-56660
...
30
Screw,5/16-24x1 1/2 WPL-0056527
...
31
Cover, Glider Rail-Almond WPL-56663L
...
32
Cover, Deck Rail - White WPL-56863W
...
33
Cover, Glider Rail-White WPL-56682W
...
34
Filler, Corner-Almond WPL-56874L
...
35
Hole Plug-White WPL-56950W
...
36
Hole Plug-Almond WPL-56625L
...
37
Wiring Assy., Cabinet WPL-Y0056666
...
38
Screw WPL-WP250830
...
39
Cover, Wiring WPL-Y0056667
...
40
Screw, 10-32 X 1/2 WPL-Y0056519
...
41
Screw WPL-Y0056568
...
42
Clip, Wire Retaining WPL-Y0056649
...
43
Thermostat,low Limit WPL-56591
...
44
Cord, Power WPL-Y0310630
...
45
Clamp WPL-Y0056644
...
46
Fitting, Drain WPL-56661
...
47
Gasket, Drain Fitting WPL-Y0056813
...
48
Washer, 7/64 WPL-0310627
...
49
Plug Assy. WPL-Y0056816
...
50
Screw WPL-Y0310626
...
51
Drain Tube WPL-0056569
...
52
Switch,temperature Sel WPL-56576
...
57
Hole Seal WPL-56952
...
59
Manual,install/opera WPL-Y56620
...
60
Seal, Water Tube Fitting WPL-0056814
...
62
Cap, Water Tube WPL-0056512
...
63
Gasket, Cover WPL-Y0056815

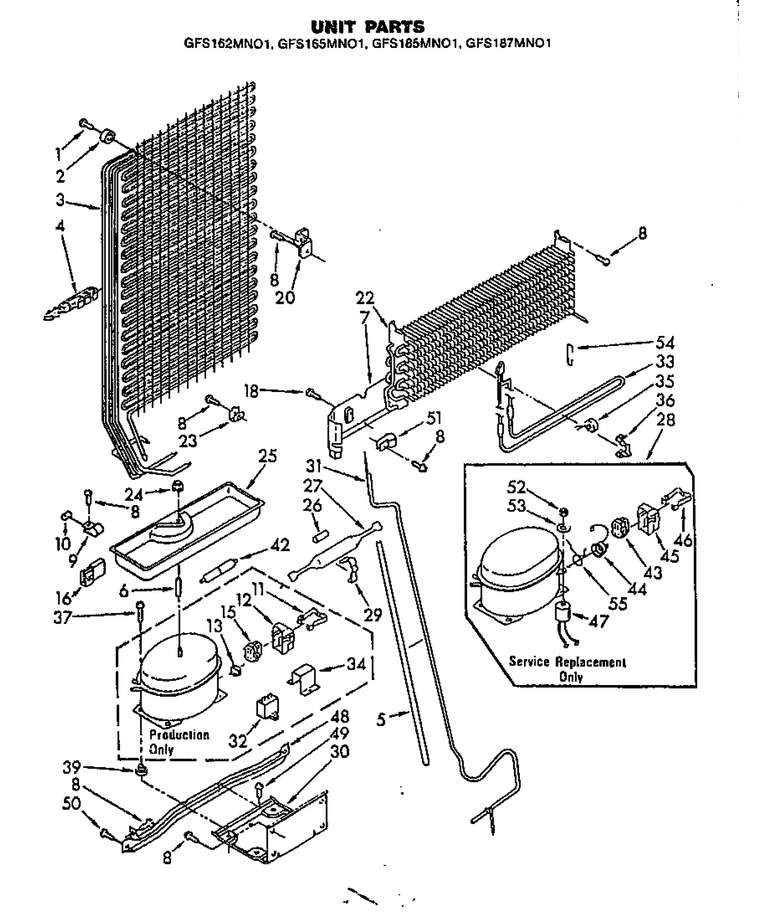

07 - Unit Parts

...
...
NI
Kit, Evaporator Repair WPL-Y0057043
...
2
Bumper WPL-Y0056742
...
3
Condenser & Precooler WPL-Y0056920
...
4
Transformer WPL-56937
...
5
Sleeve WPL-Y0056854
...
6
Lock & Key WPL-56758
...
7
Heat Shield, Evaporator WPL-Y0056852
...
8
Screw WPL-Y0056568
...
9
Tube Clamp WPL-0056573
...
10
Dampener WPL-0056710
...
11
Spring, Case Retaining WPL-56681
...
12
Case, Relay WPL-Y0056756
...
13
Overload WPL-0056930
...
14
Spring, Overload WPL-Y0056680
...
15
Relay WPL-2154436
...
16
Housing Plug WPL-0056632
...
18
Screw, 8 X 3/8 WPL-Y0056510
...
19
Barrel,support WPL-56534
...
20
Clip,grounding WPL-56737
...
21
Panel,control WPL-56738
...
22
Manual,install/opera WPL-56688
...
23
Mtg. Clip, Condenser WPL-Y0056671
...
24
Nut WPL-Y0056554
...
25
Tray, Evaporator WPL-56677
...
26
Sleeve, Restrictor WPL-Y0056572
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10439652
...
29
Clamp, Drier WPL-Y0056586
...
30
Unit Mounting Plate WPL-Y0310822
...
31
Heat Exchanger WPL-Y0056761
...
32
Capacitor WPL-0056908
...
33
Heater, Defrost WPL-Y0056764
...
34
Cover, Capacitor WPL-Y0056929
...
35
Bi-Metal, Defrost WPL-Y310631
...
36
Clamp WPL-Y0056676
...
37
Screw WPL-Y0056546
...
39
Plate,face-Coin Door-R WPL-56739
...
40
Tray, Evaporator WPL-0056741
...
42
Muffler WPL-Y0056762
...
43
Sub 56503,overload WPL-0056839
...
44
Timer WPL-56503
...
45
Sub 56840, Cover, Relay WPL-Y0056755
...
46
Strap, Relay Cover WPL-Y0056646
...
47
Spacer,timer WPL-56502
...
48
Unit Mounting Rail WPL-Y0310824
...
49
Sub 56510, Screw WPL-Y0056507
...
50
Screw, 1/4-28 X 1 WPL-Y0056536
...
51
Clamp WPL-Y0056553
...
52
Plate,terminal Bracket WPL-56549
...
53
Washer WPL-Y0056550
...
54
Support, Heater WPL-Y0056845
...
55
Spring, Overload WPL-Y0056904

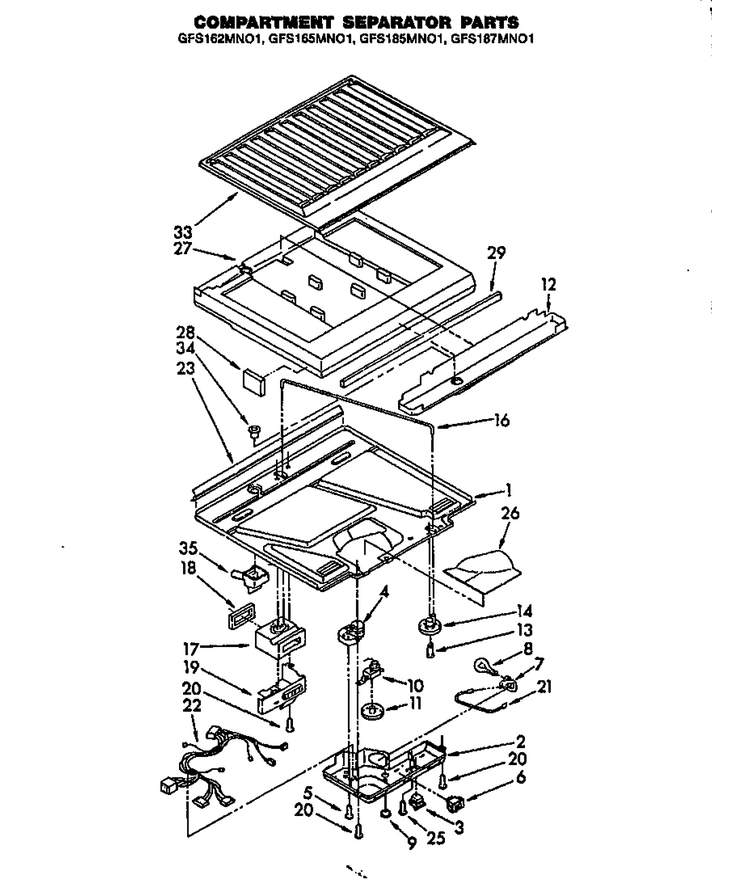

01 - Compartment Separator Parts

...
...
1
Separator, Bottom WPL-Y0056893
...
2
Box, Control WPL-56949
...
3
Switch, Rocker WPL-0056836
...
4
Sub 57052, Defrost Timer WPL-Y0056907
...
5
Screw, 6-20 X 1/2 WPL-Y0056530
...
6
Switch, Toggle WPL-Y0056765
...
7
Manual, Operation WPL-56628
...
8
Light Bulb WPL-8009
...
9
Hole Plug WPL-Y0056653
...
10
Thermostat WPL-1123394
...
11
Screw,no.6-20x.44/.41 In WPL-56693
...
12
Manual,install/opera WPL-56851
...
13
Retainer, Knob WPL-Y0056891
...
14
Manual, Operation WPL-56889
...
16
Rod, Connecting WPL-Y0056883
...
17
Air Diffuser WPL-Y0056941
...
18
Assy,wiring Harness WPL-56910
...
19
Cover, Air Diffuser WPL-Y0056847
...
20
Screw WPL-Y0056568
...
21
Wiring Assy. WPL-Y0056641
...
22
Wiring, Assembly Control Box WPL-Y0310833
...
23
Gasket, Bottom Separator WPL-0310832
...
25
Assy,wiring Harness WPL-56526
...
26
Insulation, Filler WPL-0056849
...
27
Insulation WPL-Y0056229
...
28
Pad WPL-Y56720
...
29
Insulation, Center Rail WPL-0056885
...
33
Separator, Top WPL-Y0056946
...
34
Drain Insert WPL-Y0056670
...
35
Drain Cup WPL-Y0056652

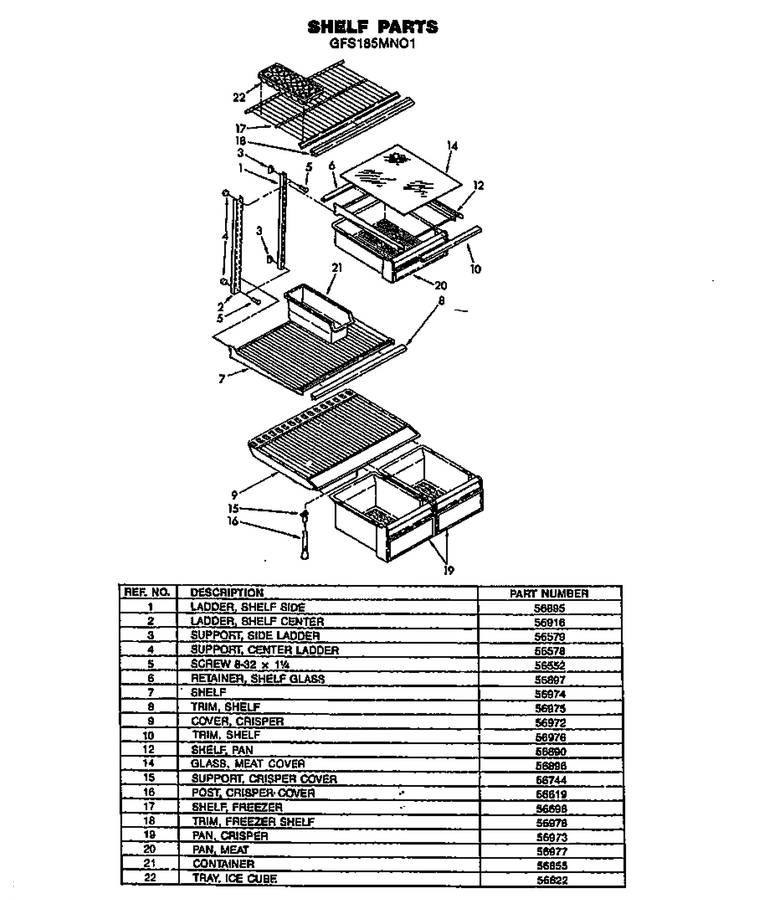

04 - Page 4

...
...
1
Ladder, Shelf WPL-Y0056895
...
2
Ladder, Shelf, Center WPL-Y0056916
...
3
Screw WPL-Y0056579
...
4
Screw WPL-Y0056578
...
5
Lockwasher WPL-56552
...
6
Retainer, Glass Shelf WPL-Y0056897
...
7
Shelf WPL-0056974
...
8
Assy,conversion Kit WPL-56975
...
9
Cover, Crisper WPL-56972
...
10
Assy,conversion Kit WPL-56976
...
12
Assy,valve-Gas-Single WPL-56890
...
14
Glass, Meat Cover WPL-0056896
...
15
Support, Crisper WPL-0056744
...
16
Post, Crisper WPL-0056619
...
17
Shelf, Freezer WPL-Y0056698
...
18
Orifice,outer WPL-56978
...
19
Pan, Crisper WPL-0056973
...
20
Orifice,inner WPL-56977
...
21
Receptacle,12 Circuit WPL-56855
...
22
Tray, Ice WPL-Y0056622
