Amana GFD190-1W2 (BOM: GFD19001W 2)

Model: GFD190-1W2 (BOM: GFD19001W 2)

Save Part Not Listed?
product name

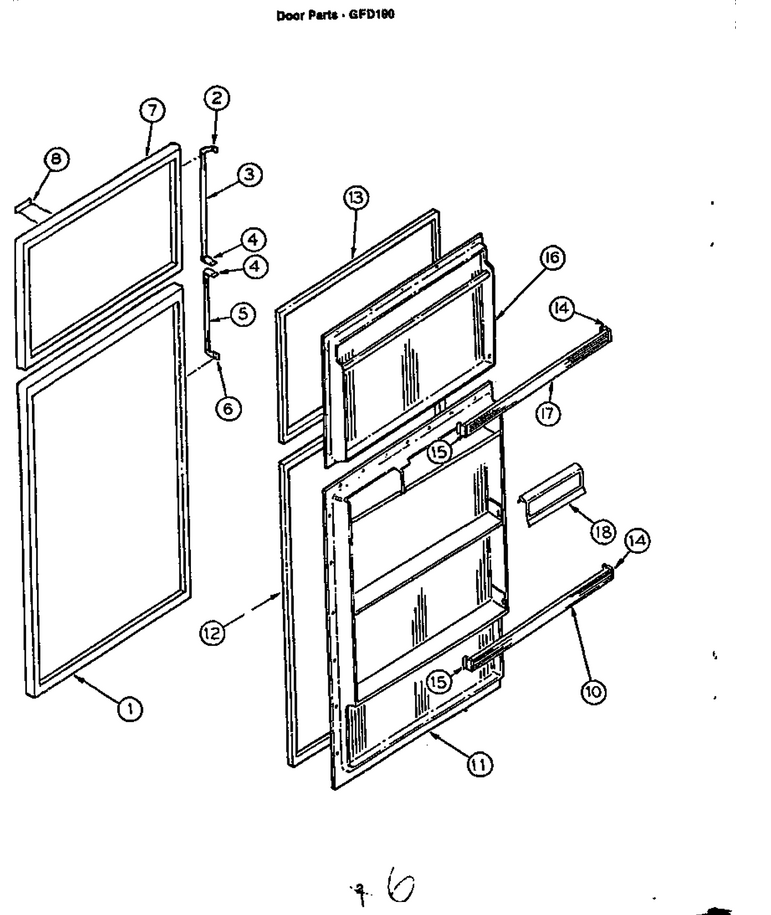

03 - Page 1

...
...
NI
Button-Plug-L.h.-Upper Hinge B WPL-53309L
...
1
Ring Seal WPL-Y0086464
...
2
Handle, End WPL-0086577
...
3
Grip - Handle Fz WPL-86575
...
4
End, Handle WPL-Y0053705
...
5
Screw, Handle WPL-Y0053333
...
6
End, Handle Bottom WPL-0086578
...
7
Ring Seal WPL-Y0086464
...
8
Label, Nameplate WPL-Y0086616
...
10
Window Assy WPL-0052632
...
11
Screw WPL-Y0086488
...
12
Gasket, Refrig. Door WPL-Y0053900
...
13
Gasket, Freezer Door WPL-Y0053899
...
14
Support, Rack, Rh WPL-0053331
...
15
Support - Rack L.h. WPL-53332
...
16
Screw WPL-Y0086488
...
17
Rack, Freezer Door WPL-Y0053631
...
18
Door, Butter WPL-Y0053840

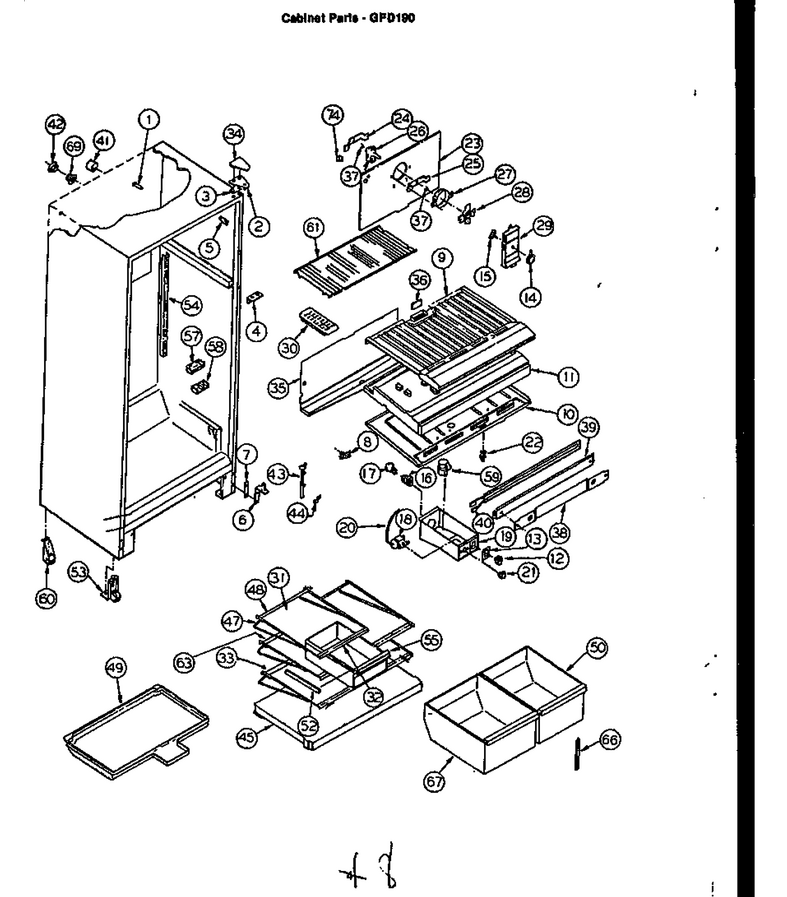

01 - Cabinet Parts

...
...
NI
See Note Button - Plug - Hinge -- (2) WPL-Y00000000
...
1
Support, Coil Cover WPL-Y0086525
...
2
See Note Plug - L.h. Hinge Hole -- (2) WPL-Y00000000
...
3
Shim, Upper Hinge WPL-Y0053325
...
4
Washer Nylon WPL-Y0086454
...
5
Trim-Cabinet Corners WPL-86603L
...
6
Manual,install/oper WPL-Y53623
...
7
Shim, Lower Hinge WPL-0086515
...
8
Spout, Drain Tube WPL-Y0086484
...
9
Bottom, Freezer WPL-Y0053893
...
10
Screw - WPL-86496
...
11
Divider- Component WPL-53812
...
12
Switch, Slide WPL-Y0086591
...
13
Label - Control Box WPL-Y86595
...
14
Knob, Damper Control WPL-Y0086501
...
15
Damper, Fan Cover WPL-0086490
...
16
Socket, Light WPL-Y0086556
...
17
Light Bulb WPL-8009
...
18
Screw WPL-Y0086456
...
19
Box, Control WPL-Y0053311
...
20
Tube,sensor Sleeve-Clear Plast WPL-R0130817
...
21
Knob - Control WPL-86571
...
22
Use C3680304 WPL-Y0086495
...
23
Cover, Coil WPL-Y0053820
...
24
Bracket, Rear Motor Mounting WPL-Y0086481
...
25
Screw WPL-Y0086488
...
26
Sub 53626, Motor, Blower WPL-0086563
...
27
Ring - Fan Orifice WPL-86552
...
28
Fan Blade,evap(red) WPL-R0130439
...
29
Cover, Fan WPL-0086514
...
30
Tray WPL-WP841180A
...
31
Glass, Cantilever Shelves WPL-Y0053723
...
32
Trim, Snap-On WPL-Y0053724
...
33
Frame, Cantilever Shelves WPL-Y0053721
...
34
Cover-Top Hinge Almond WPL-53870L
...
35
Trough - Drain WPL-53821
...
36
Pad, Foam WPL-Y0086557
...
37
Bushing Motor Mounting WPL-Y0086469
...
38
Strap - Mullion Mounting WPL-53916
...
39
Washer, Mullion Mounting WPL-Y0086548
...
40
Heater Mullion WPL-Y0053819
...
41
Tube In Ferrule WPL-Y0086452
...
42
Ferrule, Outer WPL-Y0086568
...
43
Tube - Defrost Drain WPL-53327
...
44
Clamp Tube WPL-Y0086453
...
45
Cover, Crisper WPL-0053915
...
47
Frame, Meat Shelf WPL-Y0053808
...
48
Trim, Meat Shelf WPL-Y0053726
...
49
Pan - Defrost WPL-53875
...
50
Pan, Crisper WPL-Y0053811
...
52
Screw WPL-Y0086543
...
53
Roller Assy., Front WPL-Y0053814
...
54
Screw, Channel To Liner WPL-Y0053676
...
55
Pan, Meat WPL-Y0053813
...
57
Cover, Air Deflector WPL-0086483
...
58
Deflector, Air WPL-Y0086497
...
59
Screw, Hinge WPL-Y0053322
...
60
Roller Assy., Rear WPL-Y0053869
...
61
Shelf - Fz WPL-53815
...
63
Trim, Rear WPL-Y0053727
...
66
Support, Crisper Cover WPL-Y0053674
...
67
Pan, Crisper WPL-Y0053913
...
69
Ferrule, Inner WPL-Y0086567
...
74
Bracket, Connector WPL-Y0053657

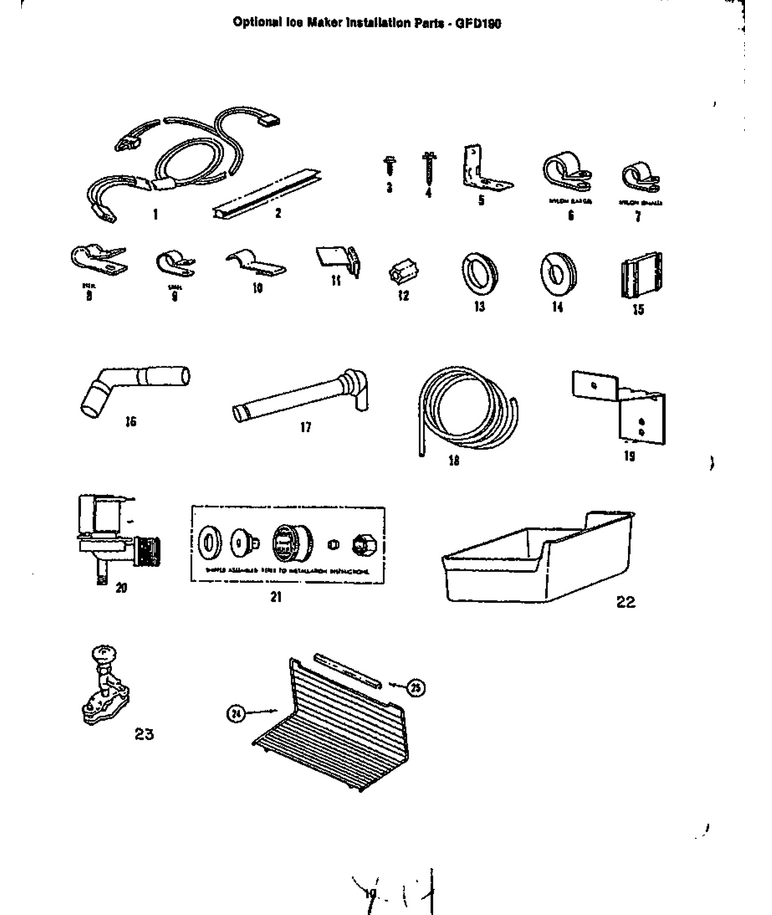

02 - Optional Ice Maker Installation Parts

...
...
1
Wiring Harness WPL-Y0053882
...
2
Strip, Sealing WPL-Y0053651
...
3
Screw Clamp WPL-Y0086471
...
4
Screw, Channel To Liner WPL-Y0053676
...
5
Clamp Cover WPL-Y0086450
...
6
Clamp, Wiring Harness WPL-Y0053602
...
7
Clamp Tube WPL-Y0086478
...
8
Clamp, Steel, Tube WPL-Y0053600
...
9
Clamp WPL-0053606
...
10
Clip, Harness Location WPL-Y0053652
...
11
Clip, Filler Tube WPL-Y0053620
...
12
Nut, Sleeve WPL-Y0053611
...
13
Bushing - Coil Cover WPL-53709
...
14
Plug, Rear Panel & Coil Cover WPL-Y0053710
...
15
Adapter Plug, Rear WPL-Y0053630
...
16
Tube, Water Fill (plastic) WPL-Y0053671
...
17
Inlet Elbow WPL-Y0086686
...
18
Inlet Tube WPL-Y0086685
...
19
Bracket - Valve To Rear Panel WPL-53648
...
20
Valve WPL-Y0053627
...
21
Panel Support Plate WPL-53628
...
22
Container, Ice WPL-Y0086677
...
23
Ice Maker Household Hook Up WPL-Y0053604
...
24
Support - Shelf WPL-53645
...
25
Hanger - Shelf WPL-53650

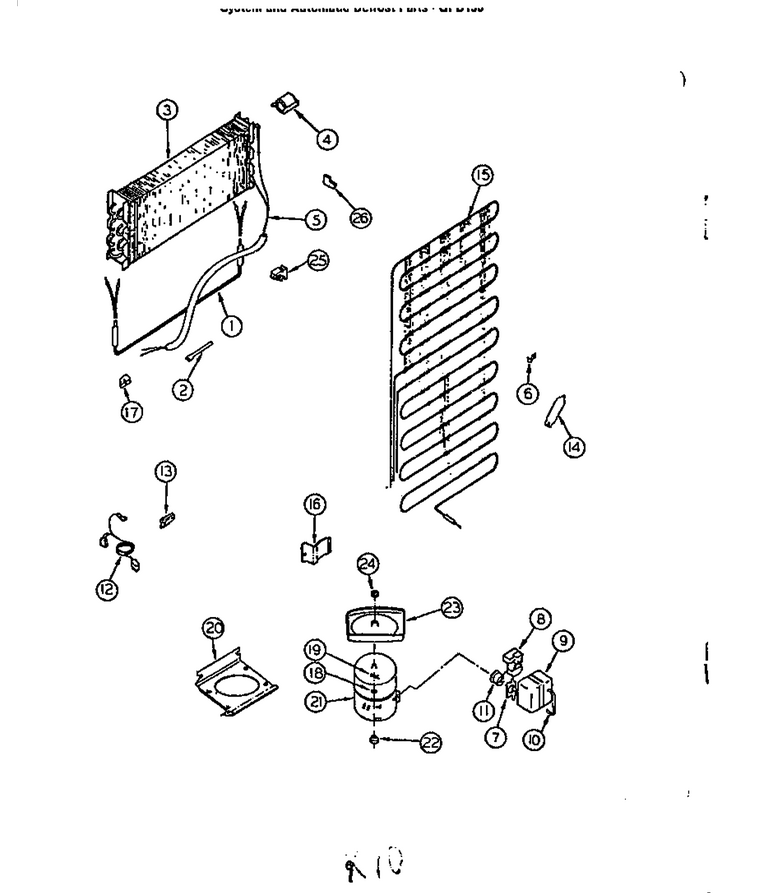

04 - Page 3

...
...
NI
Hot Tube Repair Kit WPL-Y0053844
...
1
Heater, Defrost WPL-Y0053839
...
2
Clamp, Heater WPL-Y0086538
...
3
Evaporator WPL-Y0053658
...
4
Thermostat, Defrost WPL-0086498
...
5
Suction And Cap Tube WPL-Y0086589
...
6
Screw Clamp WPL-Y0086471
...
7
Clip, Overload WPL-Y0086539
...
8
Relay WPL-0086463
...
9
Cover, Terminal WPL-Y0086558
...
10
Clamp, Cover WPL-Y0086540
...
11
Overload WPL-0086580
...
12
Service Cord WPL-Y0086487
...
13
Clamp Cover WPL-Y0086450
...
14
Drier WPL-WPB2150504
...
15
Condenser WPL-Y0053637
...
16
Bracket WPL-53697
...
17
Block, Evaporator Lh WPL-Y0086502
...
18
Washer, Compressor Mounting WPL-Y0086532
...
19
Clip, Compressor Mtg WPL-Y0086516
...
20
Plate - Compressor Mounting WPL-53320
...
21
Kit, Compressor & Retainer WPL-Y0086684
...
22
Grommet Compressor Mounting WPL-0086590
...
23
Defrost Pan WPL-0053326
...
24
Nut - Lock WPL-86537
...
25
Block - Evaporator R.h. WPL-53328
...
26
Plug, Evaporator Block, Rh WPL-0053884

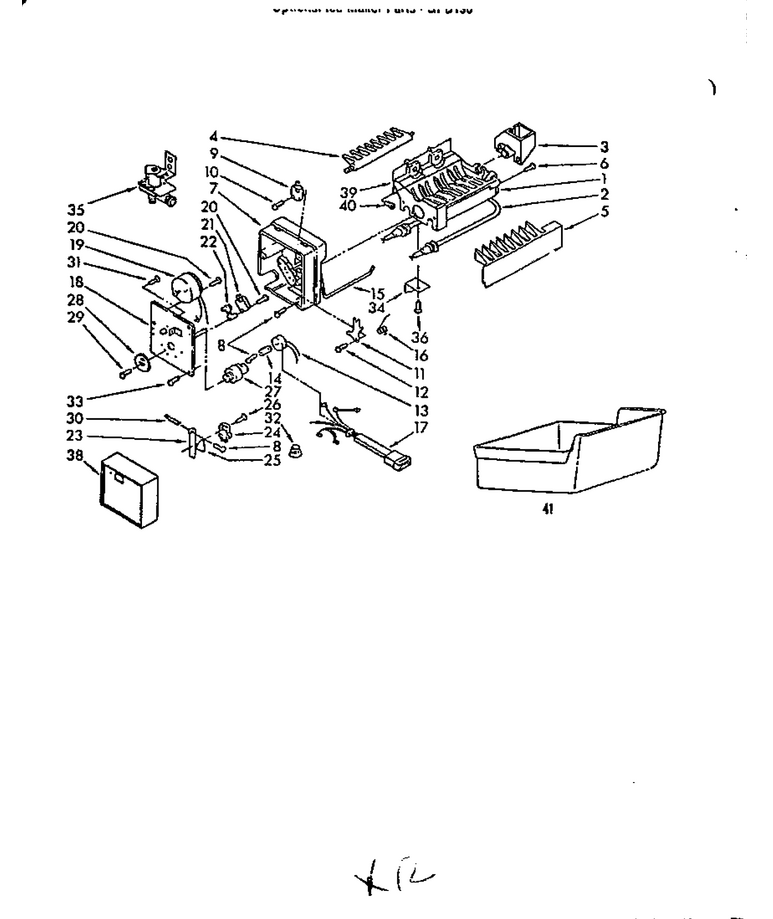

05 - Page 4

...
...
1
Mold And Heater Assembly WPL-Y0086669
...
2
Heater, Mold WPL-Y0086655
...
3
Bearing And Inlet WPL-Y0086656
...
4
Ejector WPL-Y0086668
...
5
Stripper, Ice WPL-Y0086667
...
6
Screw WPL-Y0086658
...
7
Support WPL-Y0086652
...
8
Screw WPL-Y0086649
...
9
Switch WPL-Y0086646
...
10
Screw WPL-Y0086651
...
11
Arm Lever WPL-Y0086653
...
12
Screw, Shoulder WPL-Y0086670
...
13
Thermostat WPL-86664
...
14
Clamp WPL-Y0086648
...
15
Arm, Shut-Off WPL-Y0086674
...
16
Spring, Shut-Off Arm WPL-Y0086654
...
17
Harness, Wiring WPL-Y0053890
...
18
Plate, Mounting WPL-Y0086661
...
19
Motor WPL-Y0086642
...
20
Screw WPL-Y0086647
...
21
Switch - S.p.d.t. WPL-53857
...
22
Spacer, Switch WPL-Y0086643
...
23
Plate, Valve Switch WPL-Y0086662
...
24
Switch WPL-0053607
...
25
Insulator WPL-Y0086645
...
26
Screw WPL-Y0071911
...
27
Cam WPL-Y0086644
...
28
Gear WPL-Y86641
...
29
Screw WPL-Y0086659
...
30
Spring WPL-Y0086666
...
31
Screw, Ground WPL-Y0086657
...
32
Connect, Wire WPL-Y0053608
...
33
Screw WPL-0086676
...
34
Bracket WPL-86663
...
35
Valve WPL-Y0053627
...
36
Screw WPL-Y0086658
...
38
Cover WPL-Y0086665
...
39
Shield WPL-Y0086675
...
40
Eyelet WPL-Y0086673
...
41
Container, Ice WPL-Y0086677
