Amana GBE26FCOD

Model: GBE26FCOD

Save Part Not Listed?
product name

Popular Parts

Popular Parts

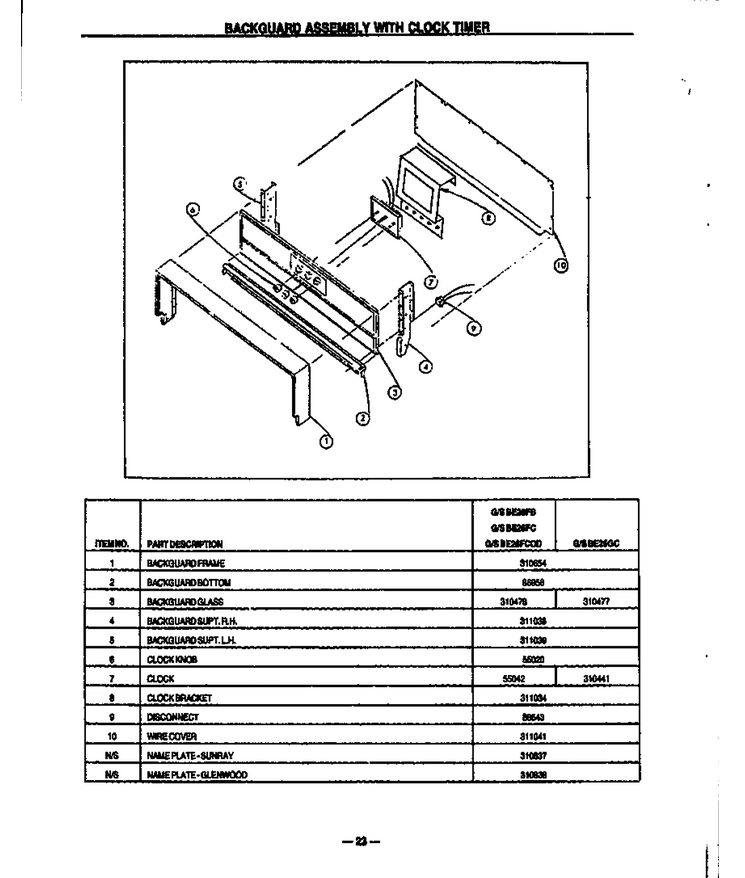

01 - Backguard Assy With Clock Timer

...
...
NI
Sunray Label WPL-0310837
...
1
Backguard Frame 8`` X 30`` Fb WPL-Y0310654
...
2
Base-Bkgd, 30`` W/holes WPL-Y02331026B
...
3
Glass, Backguard WPL-0310478
...
4
Backguard Support-Rh WPL-Y0311038
...
5
Backguard Support-L.h. WPL-Y0311039
...
6
Knob, Clock WPL-Y0055020
...
7
Timer WPL-Y0055042
...
8
Clock Bracket WPL-Y0311034
...
9
Connector WPL-M0335314
...
10
Panel-Right With Knockout Sect WPL-311041

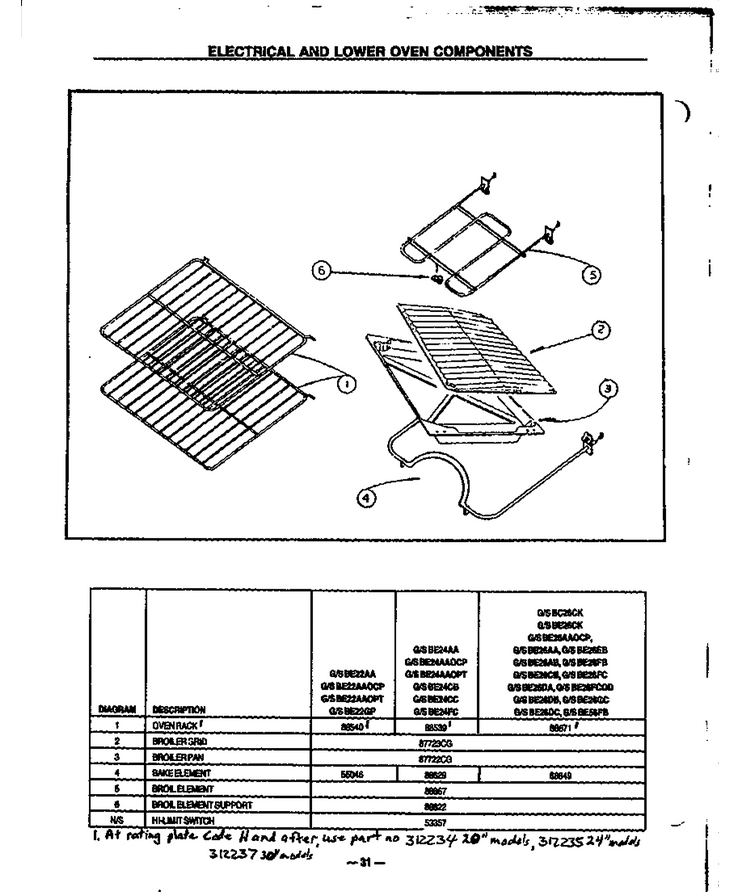

04 - Electrical And Lower Oven Components

...
...
1
Oven Rack WPL-Y0088671
...
4
Element- B WPL-WPY07409600

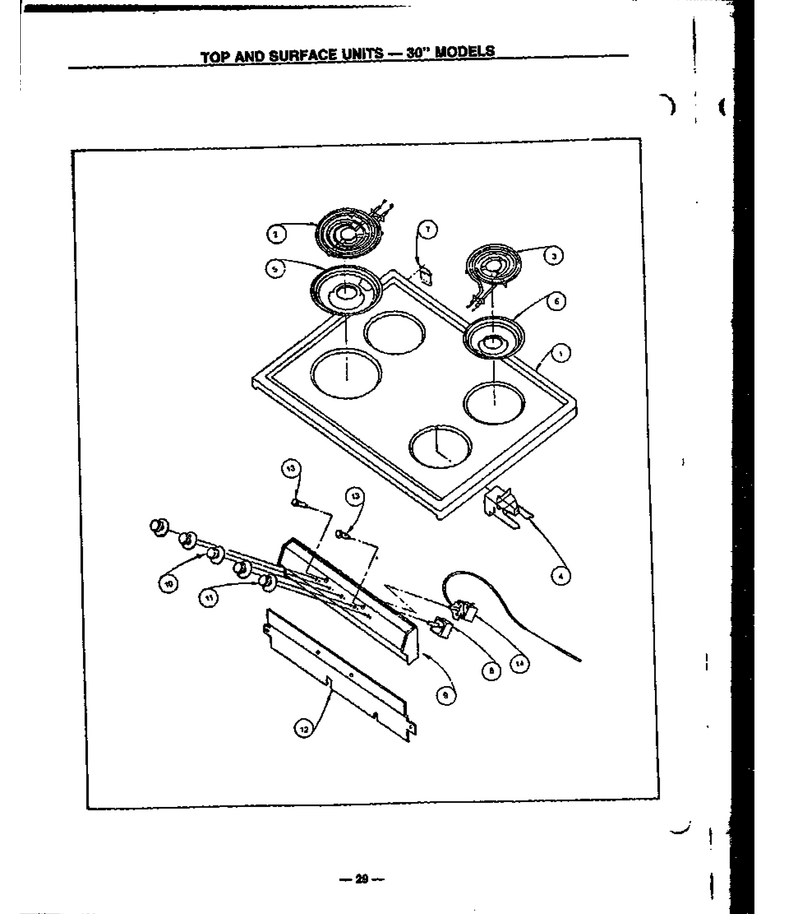

06 - Top An Surface Units-30`` Models

...
...
NI
Switch- Ov WPL-Y07625800
...
9
Use 07621903f WPL-0310664

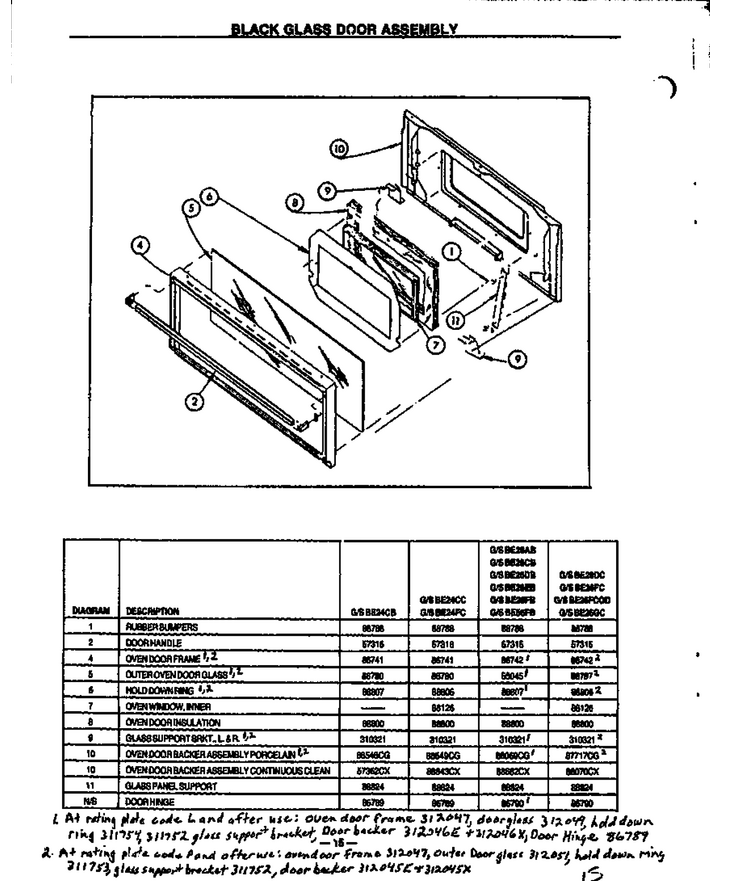

02 - Black Glass Door Assy

...
...
NI
Hinge, Oven Door WPL-Y07489700
...
1
Bumper-Rubber 1/4`` WPL-Y02068200
...
2
Handle, Door (J) WPL-Y0057315
...
4
Oven Door Frame WPL-86742
...
5
Glass,oven Dr 29``x 14 13/16`` WPL-Y0088797
...
6
Hold Down Ring Start At Code P WPL-88806
...
7
Sub 88647,window Assy Door WPL-Y0088126
...
8
Insulation, Wrapper WPL-31975801
...
9
Support, Full Glass Dr {j} WPL-0310321
...
10
Oven Dr Backer, Cont Cln Strt WPL-88070CX
...
11
Support, Glass Panel{j} WPL-0088824

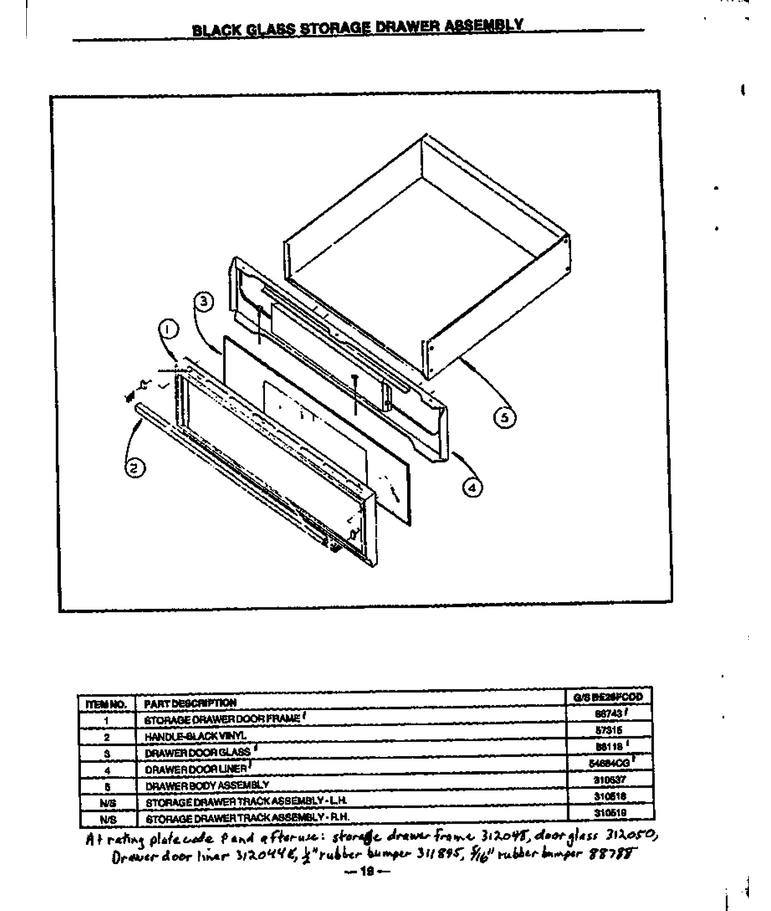

03 - Black Glass Storage Drawer Assy

...
...
NI
Track, Upper R.h. (Elec) WPL-0310519
...
1
Frame, Broiler Door WPL-0086743
...
2
Handle, Door (J) WPL-Y0057315
...
3
Glass, Broiler Door WPL-0088118
...
4
Liner,broiler Door WPL-54684CG
...
5
Storage Drawer WPL-Y0310537

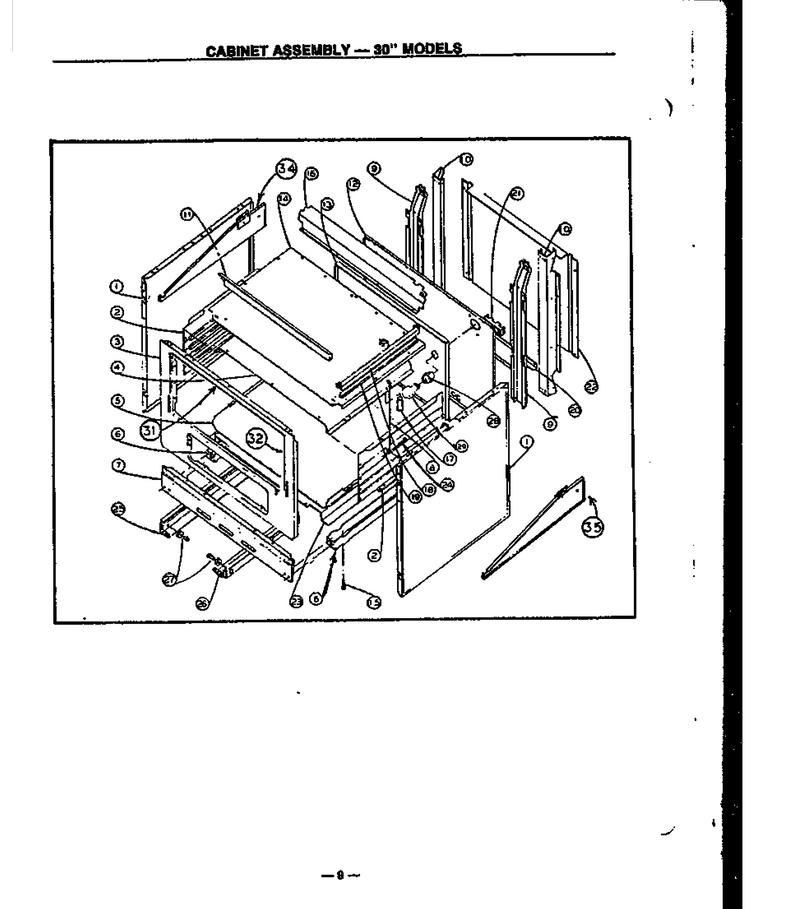

05 - Page 4

...
...
NI
Cage, Oven Light WPL-Y0088635
...
1
Body Side Avocado WPL-311003V
...
2
Oven Side Liner WPL-88813CX
...
3
Main Front 30`` WPL-88751CG
...
4
Oven Top Liner Continuous Clea WPL-310031X
...
5
Oven Bottom Liner Continous Cl WPL-88818CX
...
6
Rail, Base WPL-0088654
...
7
Toe Panel (J) WPL-0052744
...
8
Support Rod WPL-0087023
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Shield, Switch Cover WPL-86935CG
...
12
Main Back WPL-Y0088752
...
13
Oven Backliner WPL-311031X
...
14
Burner Box WPL-56011CG
...
15
Leg, Leveling WPL-Y0062362
...
16
Cover, Rear Burner Box WPL-311014E
...
17
Tube, Oven Vent WPL-Y0056015
...
18
Wire Channel WPL-311011E
...
19
Wire Channel Support WPL-Y0088817
...
20
Bottom Wire Cover Support WPL-Y0088832
...
21
Block-Term WPL-WP8203546
...
22
Cover Wire WPL-Y0088833
...
23
Support, Oven Bottom Insul. WPL-Y0088820
...
24
Shoulder Screw WPL-0088779
...
25
Track, Lower L.h. WPL-0310522
...
26
Track, Lower R.h. WPL-Y0310523
...
27
See Note Roller WPL-Y00000000
...
28
Socket, Oven Light WPL-Y0316385
...
29
Light Bulb WPL-8009
...
31
Top Door Seal WPL-56069
...
32
Strap, Seal WPL-56090P
