Amana GBE24AA0EPT (BOM: P1142415N W)

Model: GBE24AA0EPT (BOM: P1142415N W)

Save Part Not Listed?
product name

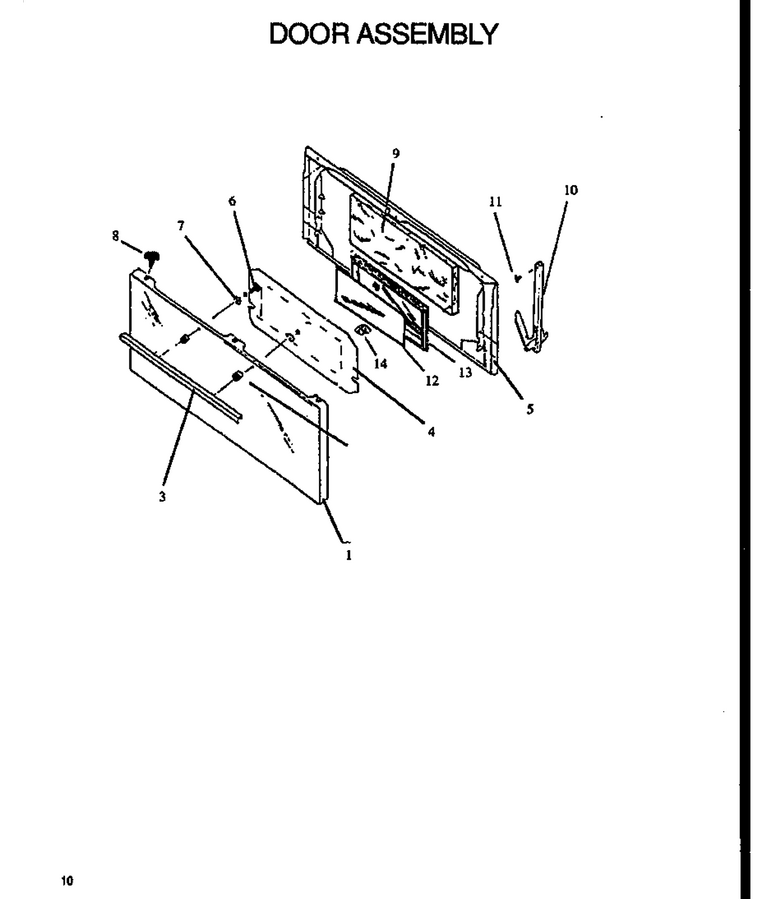

03 - Door Assy

...
...
1
Door Panel Oven (White) WPL-312188W
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
4
Baffle Door Backer WPL-0312824
...
5
Backer Oven Door WPL-312821E
...
6
Screw, Door Handle WPL-Y0311884
...
8
Screw WPL-WP7101P126-60
...
9
Insulation, Wrapper WPL-31975801
...
10
Hinge WPL-Y0052778
...
11
Screw WPL-WP4159193

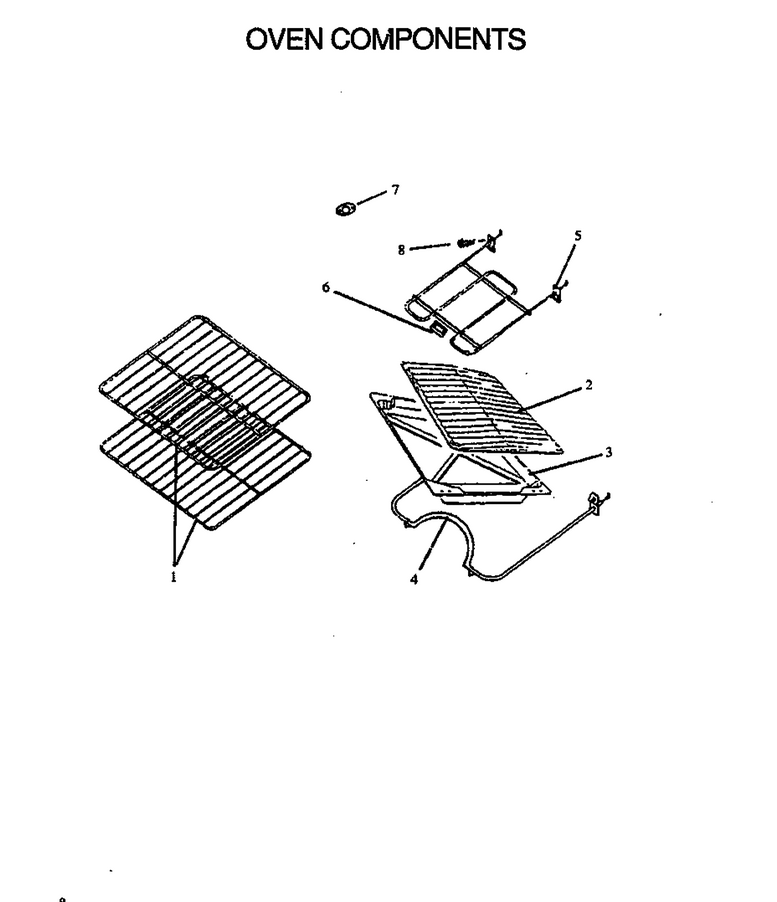

06 - Oven Components

...
...
1
Oven Rack, 24`` WPL-Y0312235
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Bake Eleme WPL-WPY07409802
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357
...
8
Screw WPL-0087709

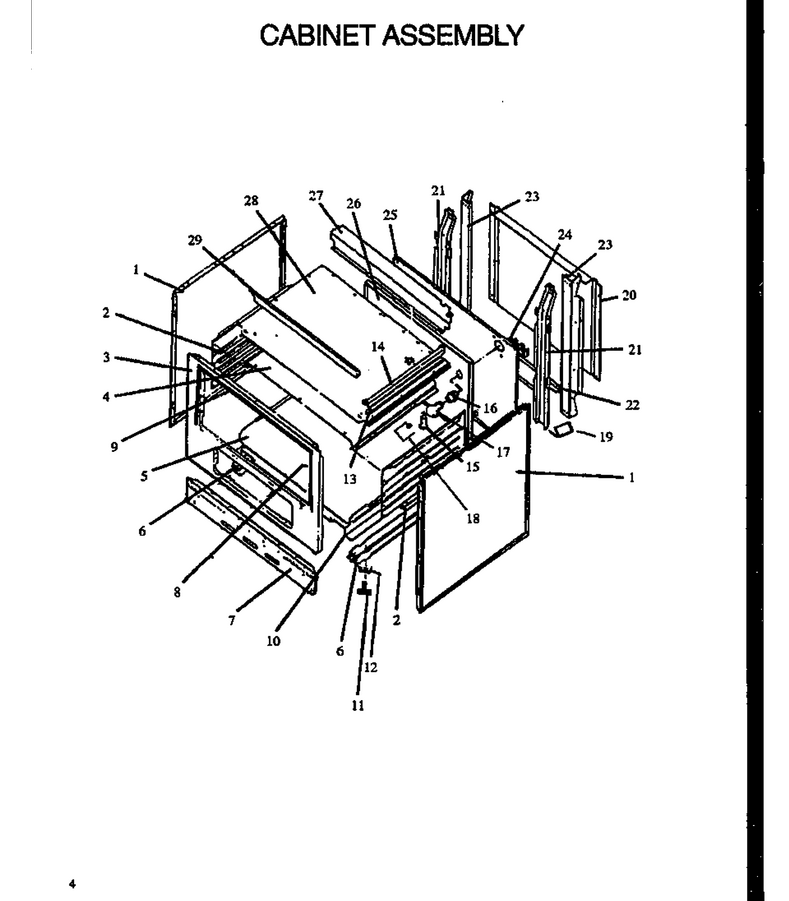

02 - Cabinet Assy

...
...
NI
Insulation, Wrapper WPL-31975801
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
4
Oven Top Liner, Electric WPL-0088894
...
5
Oven Bottom (24``) (Enam) WPL-310689E
...
6
Rail, Base WPL-0312165
...
7
Panel, Base Toe 24`` WPL-Y0054693
...
8
Seal, Oven-Sides WPL-Y0056090
...
9
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
10
Support WPL-Y0057214
...
11
Leg, Leveling WPL-Y0062362
...
12
Snap-In Tee Nut WPL-Y0088571
...
13
Wire Channel Support WPL-Y0088817
...
14
Wire Channel WPL-311010E
...
15
Oven Vent WPL-0088761
...
16
Socket, Oven Light WPL-Y0316385
...
17
Light Bulb WPL-8009
...
18
Cage, Oven Light WPL-Y0088635
...
19
Kit, Anti-Tip WPL-07687600
...
20
Support, Bottom Wire Cover WPL-Y0086753
...
21
Vertical Sup. (J) WPL-0052742
...
22
Wire Cover, Main Back WPL-Y0086751
...
23
Support, Rear, Vertical {j} WPL-0056477
...
24
Block-Term WPL-WP8203546
...
25
Back, Main Electric 24`` WPL-Y06478201
...
26
Liner, Oven Rack WPL-Y06469500E
...
27
Cover, Rear B.b. (24``) WPL-Y06409834
...
29
Cover Switch WPL-0086934

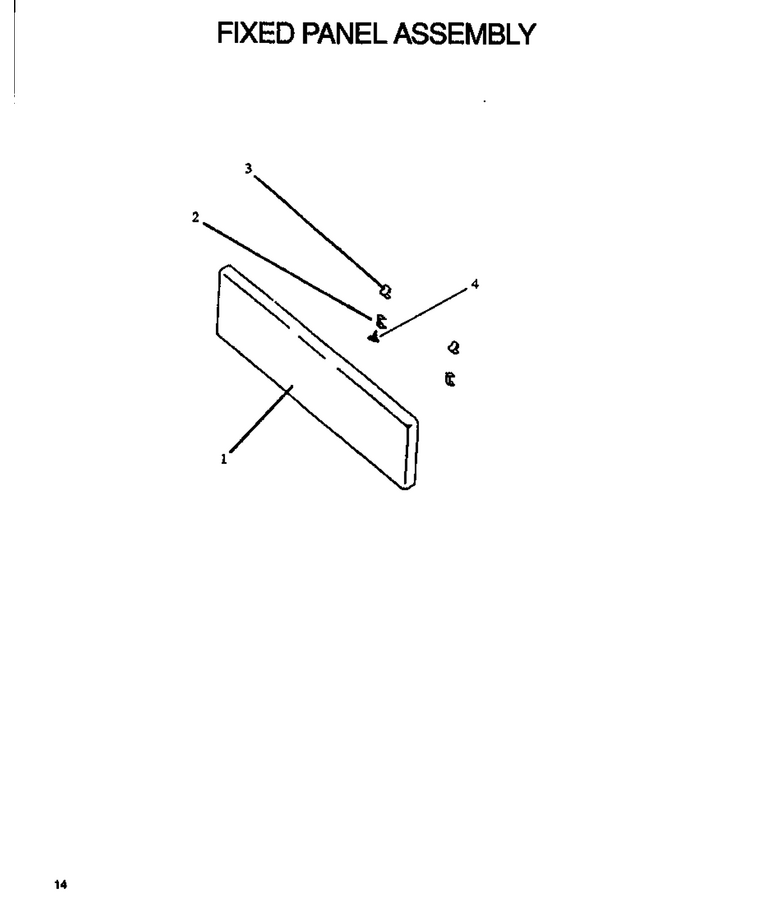

04 - Fixed Panel Assy

...
...
1
Panel, Fixed (White) WPL-06538900W
...
2
Clip, Bracket WPL-Y06538700
...
3
Spring Clip WPL-Y0088664
...
4
Screw WPL-WP7101P126-60

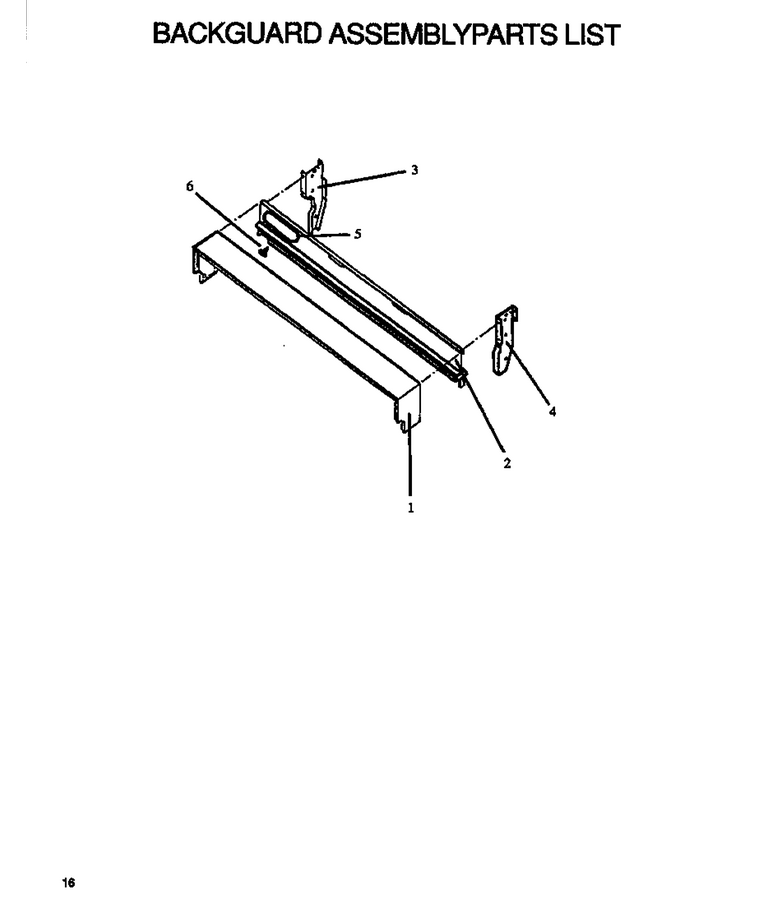

01 - Backguard Assy

...
...
1
Backguard Frame (J) WPL-Y0057318
...
2
Kit, Panel 24`` Glenwood WPL-R0708235
...
3
Support, Bkgd. (Low, Lh) {j} WPL-0310811
...
4
Support, Bkgd. (Low, Rh) {j} WPL-0310812
...
5
Nameplate, Glenwood WPL-0310838
...
6
Screw WPL-0310240

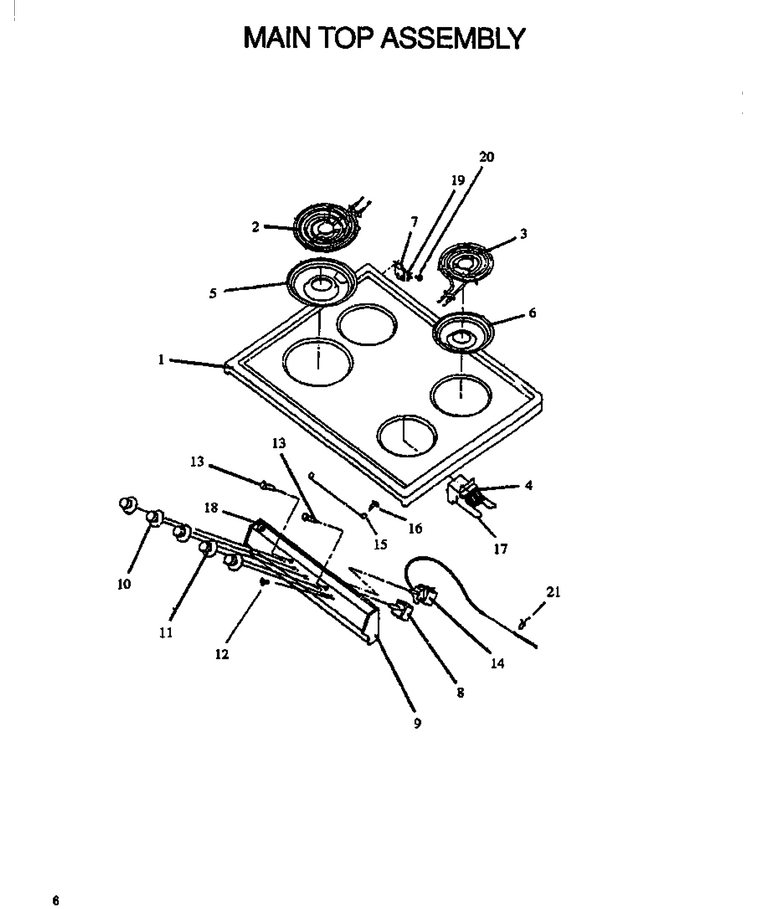

05 - Main Top Assy

...
...
1
Top, 24`` Main Electric (White) WPL-Y06461009W
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Panel, Manifold (24``) WPL-Y07621925F
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
12
Screw, Infinite, Switch Mtg. WPL-0311874
...
13
Light, Indicator WPL-Y0088777
...
14
Thermo-Elect. WPL-0088758
...
15
Support Rod WPL-0087023
...
16
Shoulder Screw WPL-0088779
...
17
Bracket WPL-W10116809
...
18
Switch- Ov WPL-Y07625800
...
19
Nut, Speed, Flat WPL-Y0310032
...
20
Screw No.10x1/2 Blunt WPL-Y0310363
...
21
Clip, Capillary WPL-0088050
