Amana GBE22AAOPT (BOM: GBE22AAOP T)

Model: GBE22AAOPT (BOM: GBE22AAOP T)

Save Part Not Listed?
product name

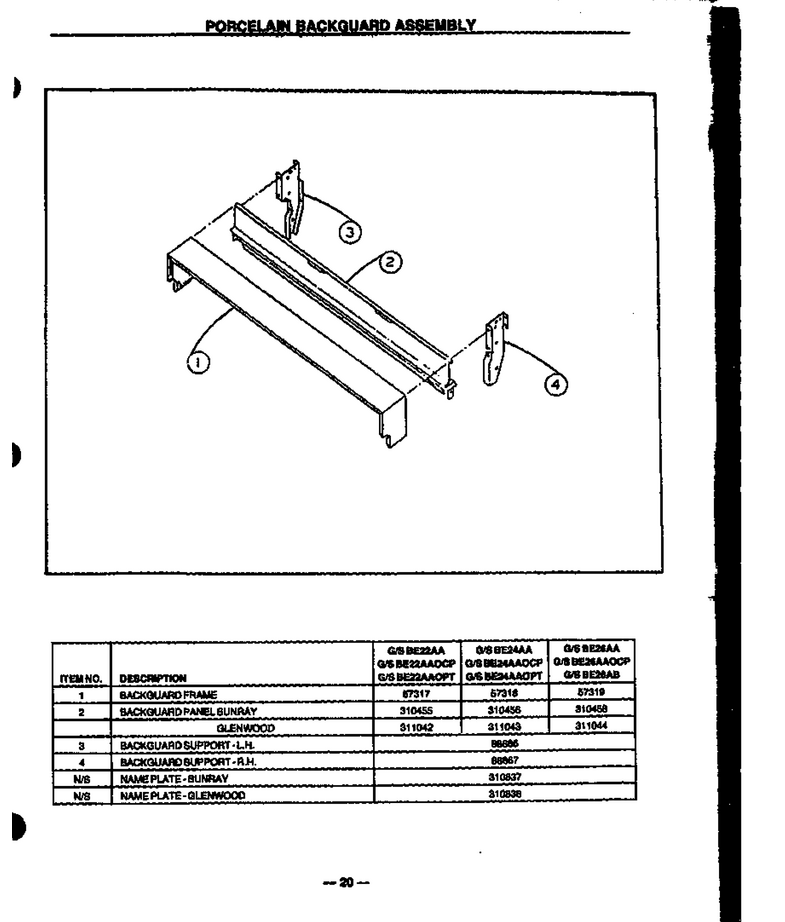

03 - Page 14

...
...
NI
Sunray Label WPL-0310837
...
1
Backguard Frame WPL-0057317
...
2
Use R0708230 WPL-0310455
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667

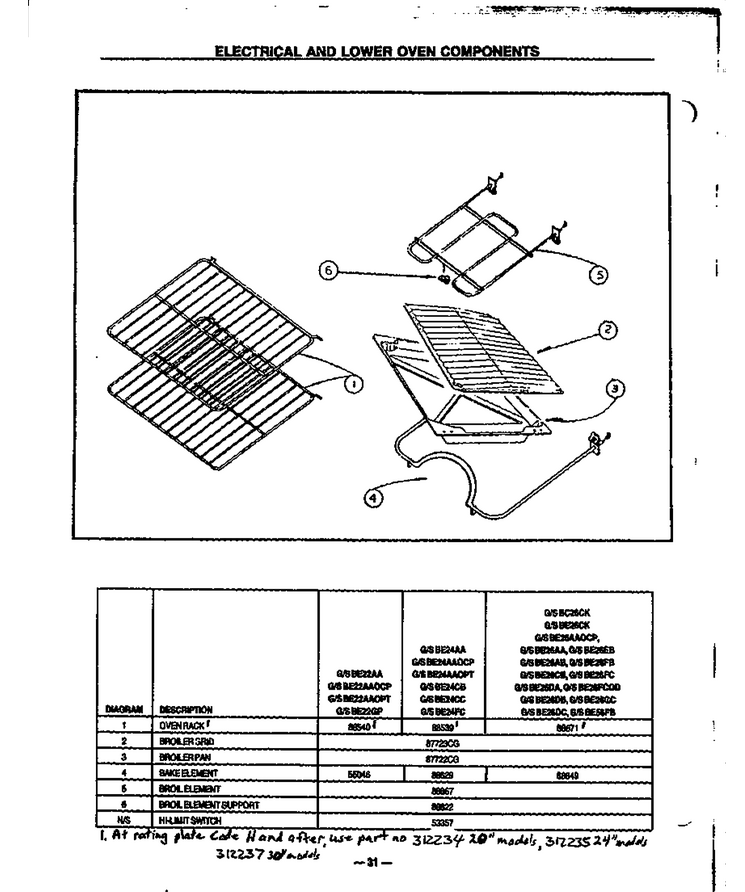

01 - Electrical And Lower Oven Components

...
...
1
Oven Rack WPL-Y0088540
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Element-Ba WPL-WPY07565600

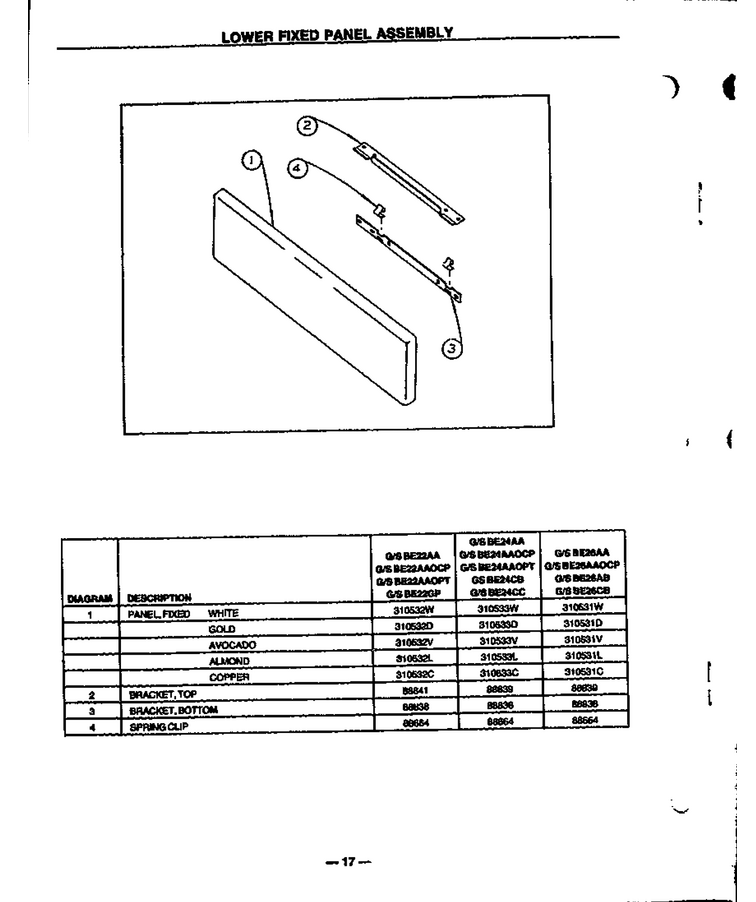

02 - Lower Fixed Panel Assy

...
...
1
Panel, Fixed, Gold WPL-310532D
...
2
Bracket, Top WPL-88841
...
3
Bracket, Bottom WPL-88838
...
4
Spring Clip WPL-Y0088664

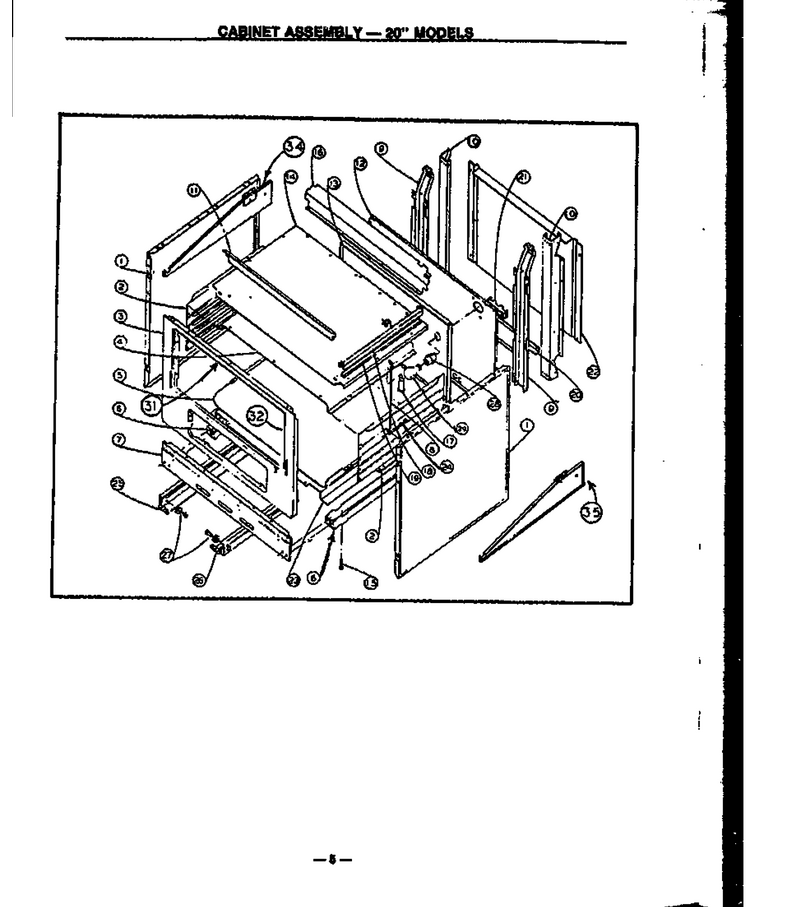

04 - Page 2

...
...
NI
Cover, Receptacle WPL-0311035
...
8
Support Rod WPL-0087023
...
16
Burner Box Rear Cover WPL-Y0311032
...
24
Shoulder Screw WPL-0088779
...
28
Socket, Oven Light WPL-Y0316385
...
29
Light Bulb WPL-8009

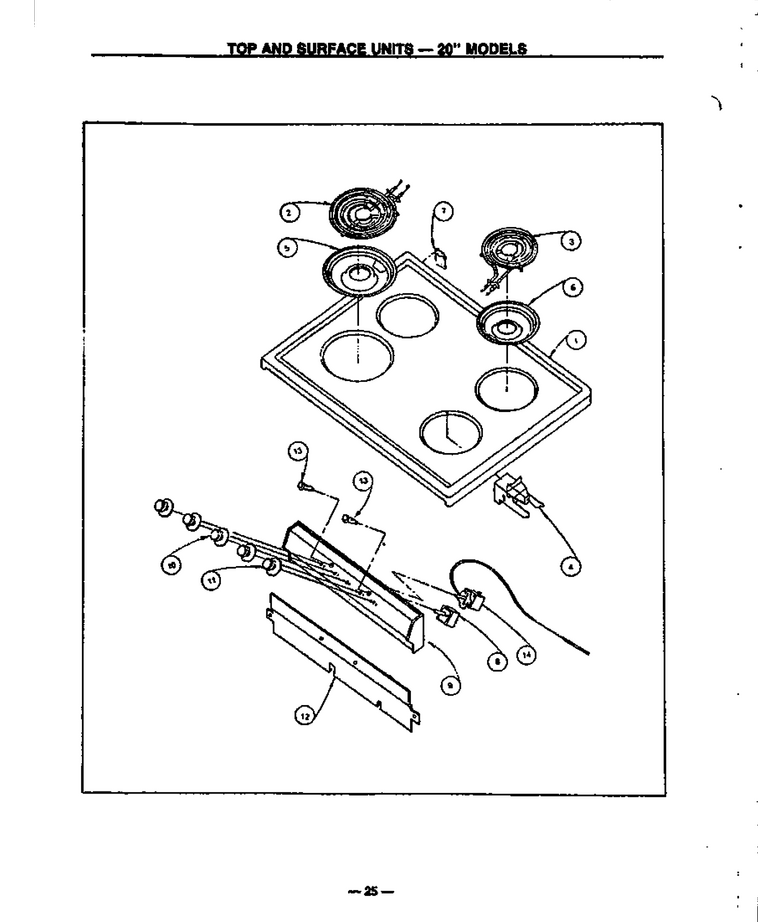

06 - Top And Surface Units-20`` Models

...
...
NI
Switch- Ov WPL-Y07625800
...
9
Manifold Panel 20`` WPL-Y0310482
...
13
Light, Indicator WPL-Y0088777

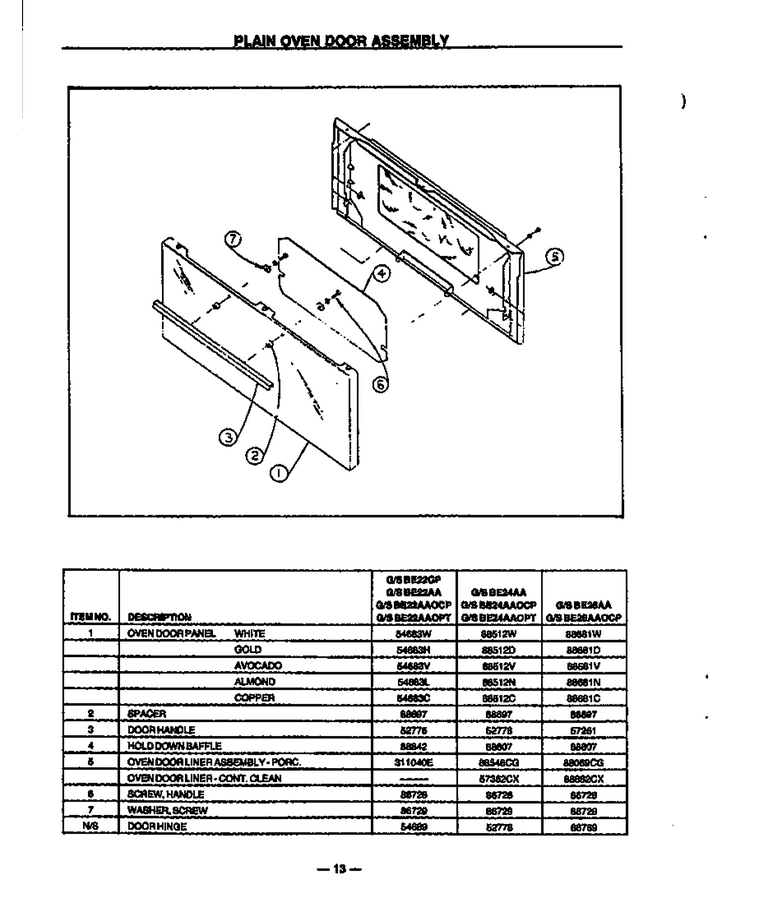

05 - Plain Door Assy

...
...
NI
Door Hinge WPL-Y54689
...
1
Oven Door Panel Avocado WPL-54683V
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
4
Baffle, Hold Down WPL-0088842
...
5
Backer, Oven Door WPL-311040E
...
6
Screw WPL-707407
...
7
Washer, Steel (1/4 X 9/16) WPL-Y0086729
