Amana GBE22AA5CEM (BOM: P1137956N L)

Model: GBE22AA5CEM (BOM: P1137956N L)

Save Part Not Listed?
product name

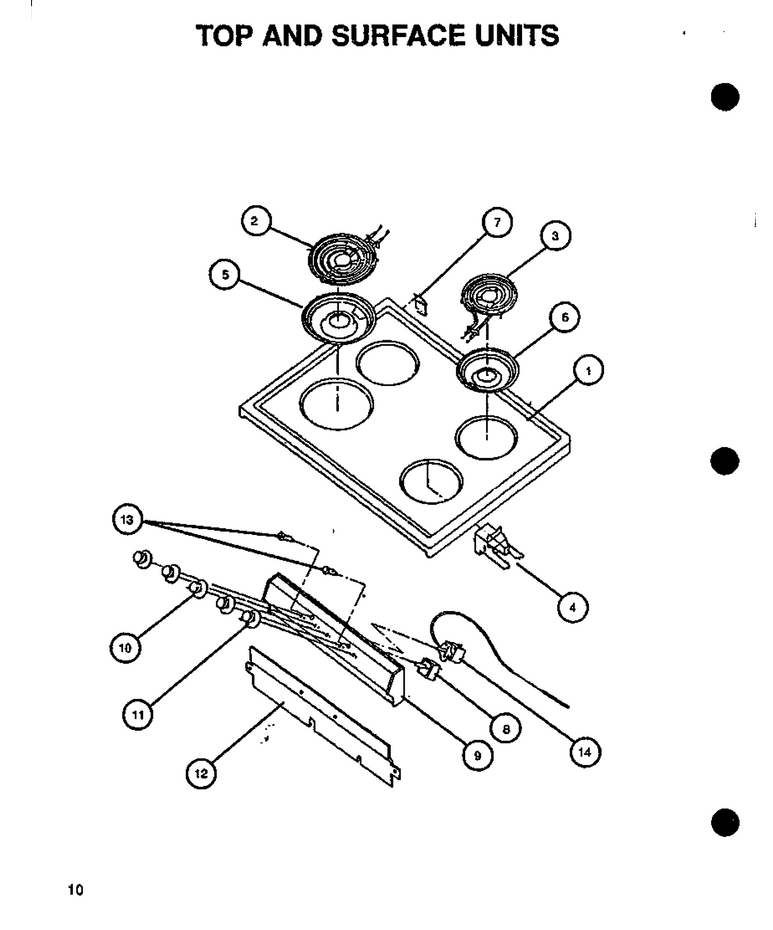

05 - Top And Surface Units

...
...
1
Top, 20`` Main Electric (Almond WPL-310079L
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Manifold Panel, 20`` WPL-Y0310479
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
12
Switch Cover WPL-86933CG
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758

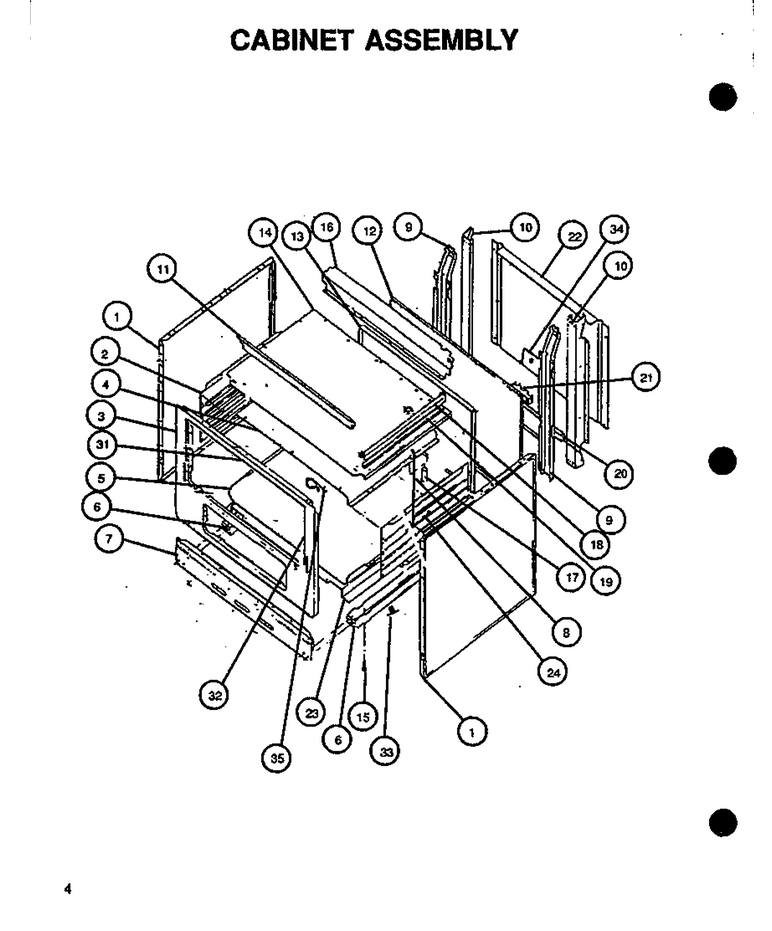

01 - Cabinet Assy

...
...
NI
Kit, Anti-Tip WPL-0312838
...
1
Panel,body Side (Al) WPL-311003L
...
6
Rail, Base WPL-0310806
...
7
Panel Base Toe WPL-Y0054694
...
8
Support Rod WPL-0087023
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Switch Cover WPL-0086933
...
12
Shield, Main Back WPL-0311067
...
14
Burner Box Bottom WPL-311001E
...
15
Leg, Leveling WPL-Y0062362
...
16
Wire Cover WPL-Y0088087
...
17
Oven Vent WPL-0088761
...
18
Wire Channel WPL-311010E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire Cover WPL-Y0086754
...
21
Block-Term WPL-WP8203546
...
22
Support, Bottom Wire Cover WPL-Y0086754
...
23
Support WPL-Y0057213
...
24
Shoulder Screw WPL-0088779
...
31
Seal, Oven Door-Top WPL-Y0056494
...
32
Seal, Oven-Sides WPL-Y0056090
...
33
Snap-In Tee Nut WPL-Y0088571
...
34
Cover, Receptacle WPL-0311035
...
35
Clip, Capillary WPL-0310802

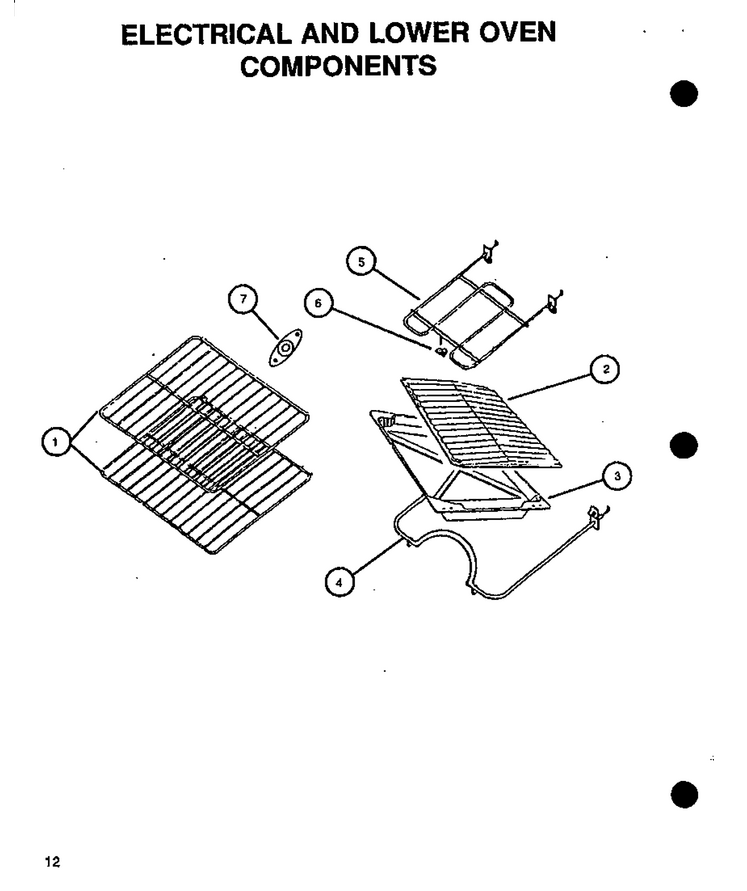

02 - Electrical And Lower Oven Components

...
...
NI
Cord-Power WPL-WPPT520
...
1
Rack, Oven, 20`` WPL-Y07671000
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Element-Ba WPL-WPY07565600
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357

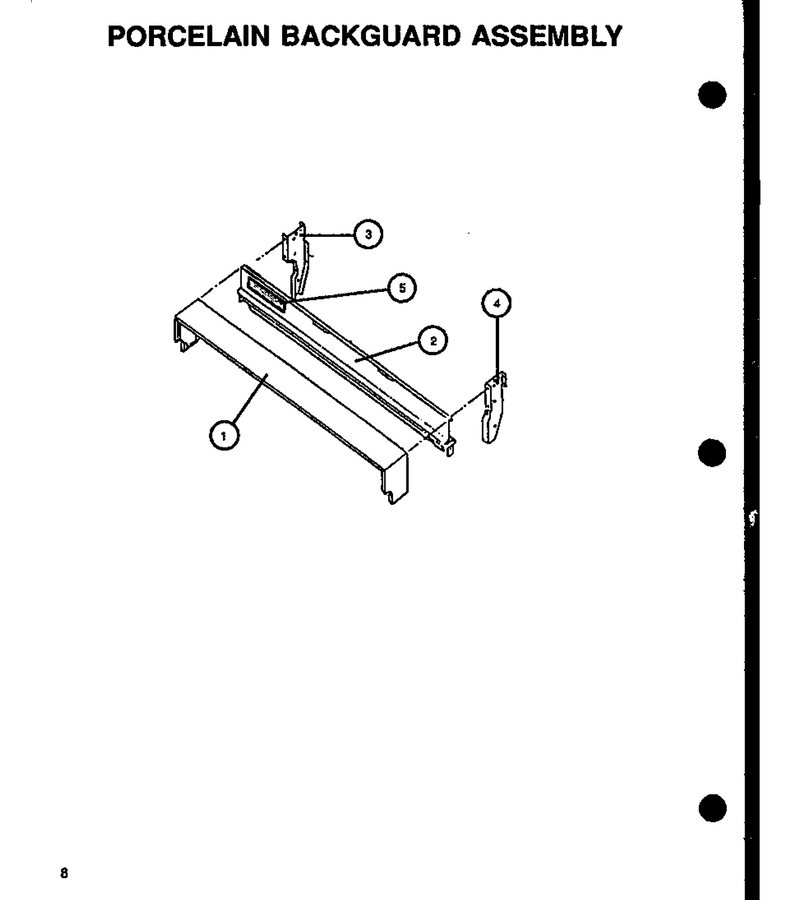

04 - Porcelain Backguard Assy

...
...
1
Backguard Frame WPL-0057317
...
2
20`` Almond Backguard Filler WPL-310276L
...
3
Support, Bkgd. (Low, Lh) {j} WPL-0310811
...
4
Support, Bkgd. (Low, Rh) {j} WPL-0310812
...
5
Nameplate, Glenwood WPL-0310838

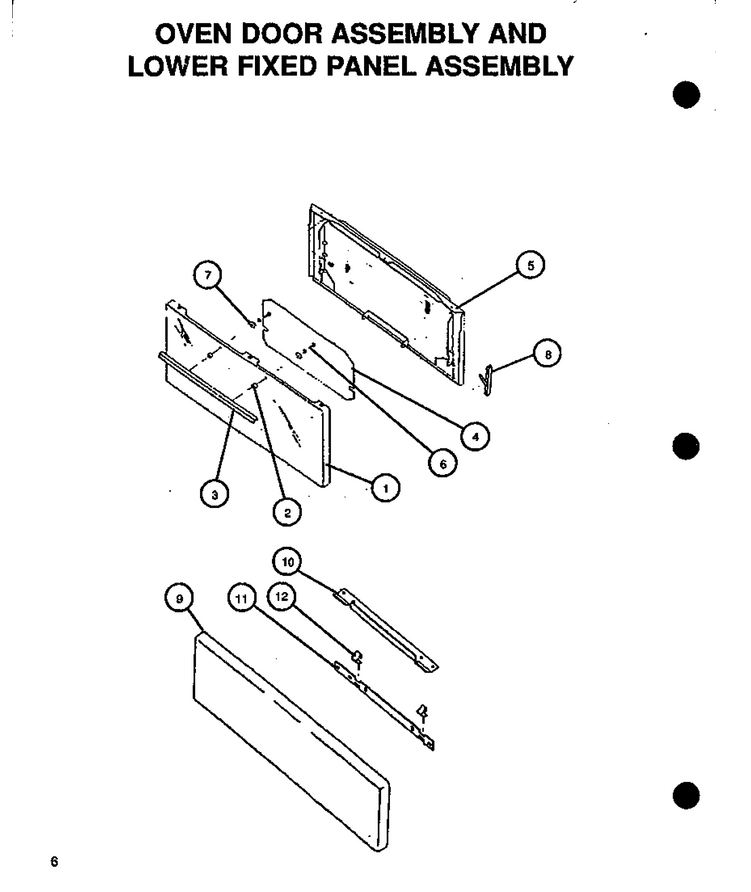

03 - Oven Door Assy & Lower Fixed Panel Assy

...
...
1
Panel, Oven Door (White) WPL-313754W
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
4
Baffle, Hold Down WPL-0088842
...
5
Backer, Oven Door WPL-54680CG
...
6
Screw, Door Handle WPL-Y0311884
...
7
Washer, Steel (1/4 X 9/16) WPL-Y0086729
...
8
Hinge- Doo WPL-Y07580401
...
9
Panel, Fixed, Almond WPL-310532L
...
10
Flanged Bracket, Top WPL-0088841
...
11
Clip, Bracket, Bottom WPL-0088838
...
12
Spring Clip WPL-Y0088664
