Amana GAX95DW (BOM: MN03)

Model: GAX95DW (BOM: MN03)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

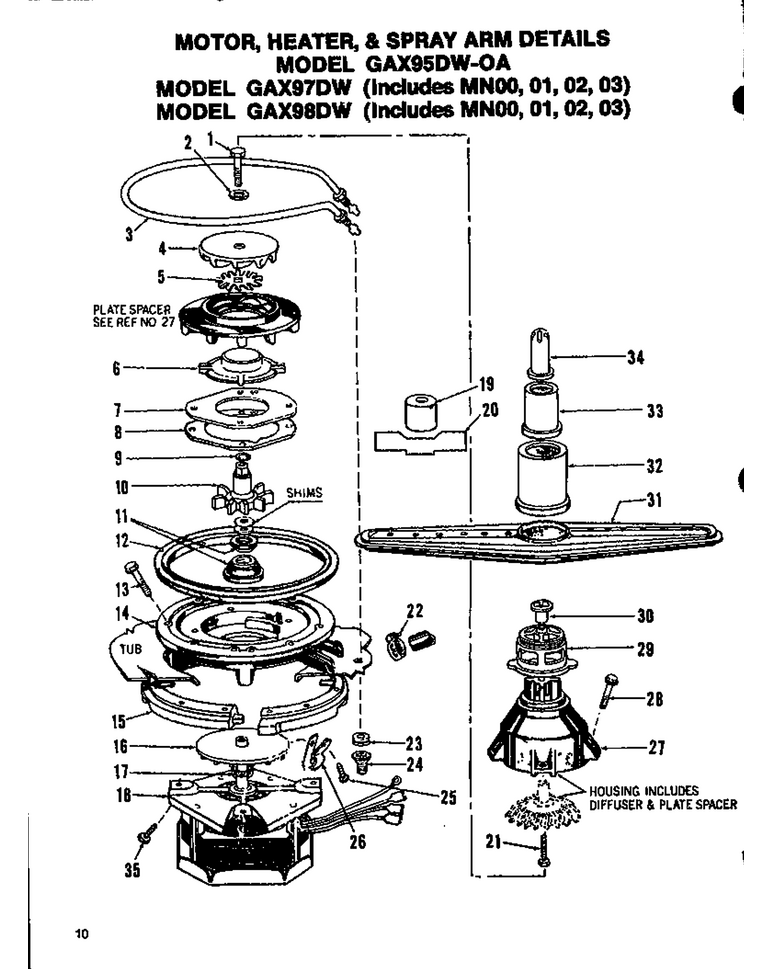

05 - Motor

...
...
NI
Gax98dw/mn03 (Includes Mn00, 01, 02, 03) WPL-NOTE:
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
2
No.8 Type A Set Sst Washer WPL-0803367
...
3
Heater WPL-Y0809060
...
4
Upper Impeller WPL-809005
...
5
Blade, Macerator WPL-0808075
...
6
Shroud WPL-806267
...
7
Pump Plate WPL-0807884
...
8
Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Pump Seal Kit WPL-Y0809116
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw WPL-807268
...
14
Pump Housing WPL-Y0809059
...
15
Clamp Ring WPL-807712
...
17
Tolerance Ring WPL-0808898
...
18
Motor Assy WPL-Y0809100
...
19
Seal Installation Tool WPL-Y0803923
...
20
Shim Gauge WPL-0807077
...
21
Screw WPL-WP67006908
...
22
Clamp WPL-WP285655
...
23
Grommet WPL-Y0806833
...
24
Nut WPL-0806834
...
25
Screw WPL-0807270
...
26
Clamp WPL-Y0808442
...
27
Impeller Housing Kit (Includes Key Nos. 6 & 7) WPL-809119
...
28
Screw, Pump Housing WPL-0807359
...
29
Bearing WPL-Y0809046
...
30
Spray Arm Bolt WPL-809018
...
31
Spray Arm WPL-0808177
...
32
Tower Base WPL-Y0808178
...
33
Tower Section WPL-Y0808179
...
34
Tower Tip WPL-Y0808180
...
35
Screw WPL-807268

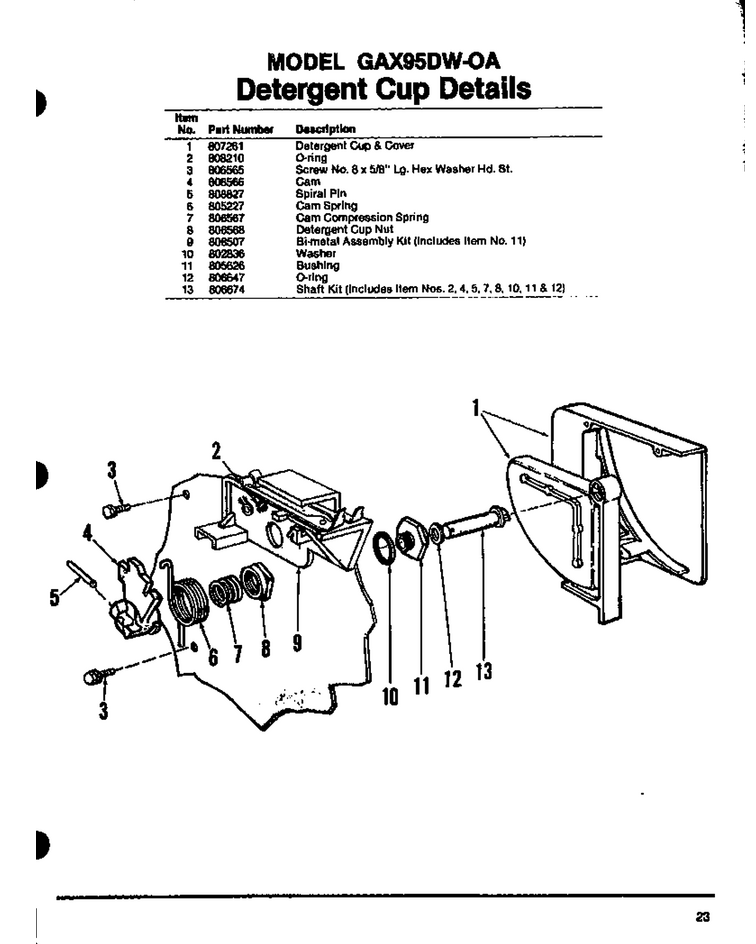

02 - Detergent Cup Details

...
...
1
Kit, Detergent Cup WPL-0807261
...
2
``o`` Ring WPL-Y0808210
...
3
Screw WPL-0806565
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring WPL-805227
...
7
Spring, Cam Compression WPL-0806567
...
8
Nut WPL-Y0806568
...
9
Trigger Assembly WPL-808507
...
10
Washer WPL-0802836
...
11
Bushing WPL-0805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674

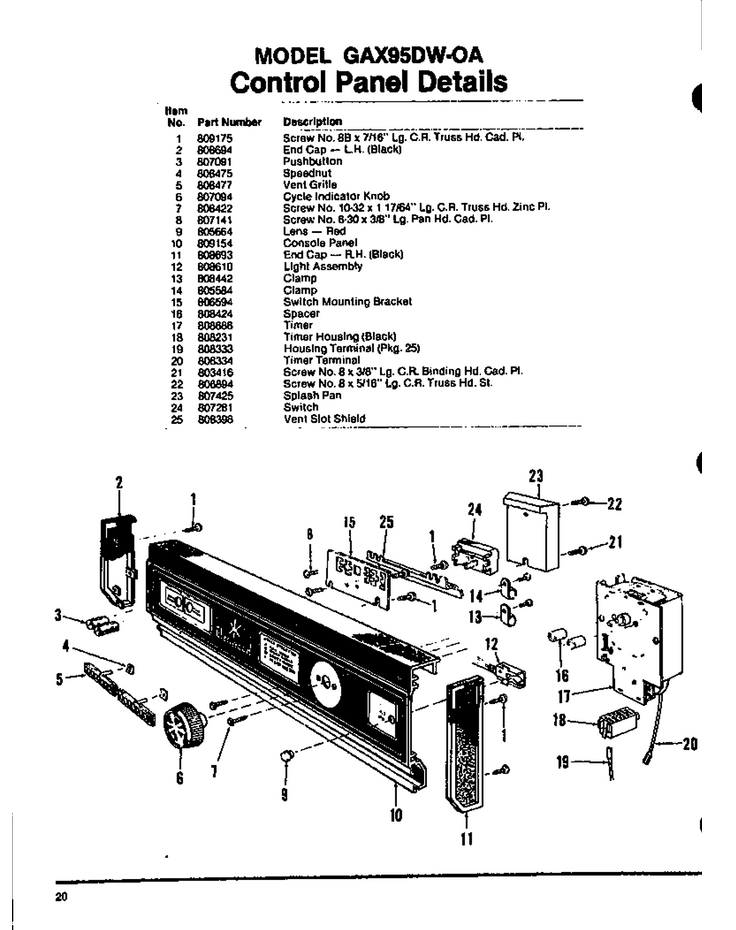

01 - Control Panel Details

...
...
1
Screw WPL-0809175
...
2
End Cap, Lh WPL-0808694
...
3
Push Button WPL-807091
...
4
Speed Nut WPL-Y0808475
...
5
Vent Grille WPL-Y0808477
...
6
Timer Knob WPL-Y0808482
...
7
Screw, No.10-32 X 1 7/64 WPL-0808422
...
8
Screw WPL-0807141
...
9
Lens WPL-0805664
...
10
Console Panel WPL-809154
...
11
End Cap, Rh WPL-0808693
...
12
Light Assy WPL-0808610
...
13
Clamp WPL-Y0808442
...
14
Clamp WPL-W10833902
...
15
Bracket, Switch Mounting WPL-0806594
...
16
Spacer WPL-0808424
...
17
Timer WPL-808686
...
18
Housing, Timer B WPL-Y0808231
...
19
Terminal, (Pack Of 25) WPL-0808333
...
20
Terminal End WPL-0808334
...
21
Screw WPL-M0217225
...
22
Screw WPL-0806894
...
23
Splash Pan WPL-0807425
...
24
Switch WPL-807281
...
25
Shield, Vent Plate WPL-Y0808398

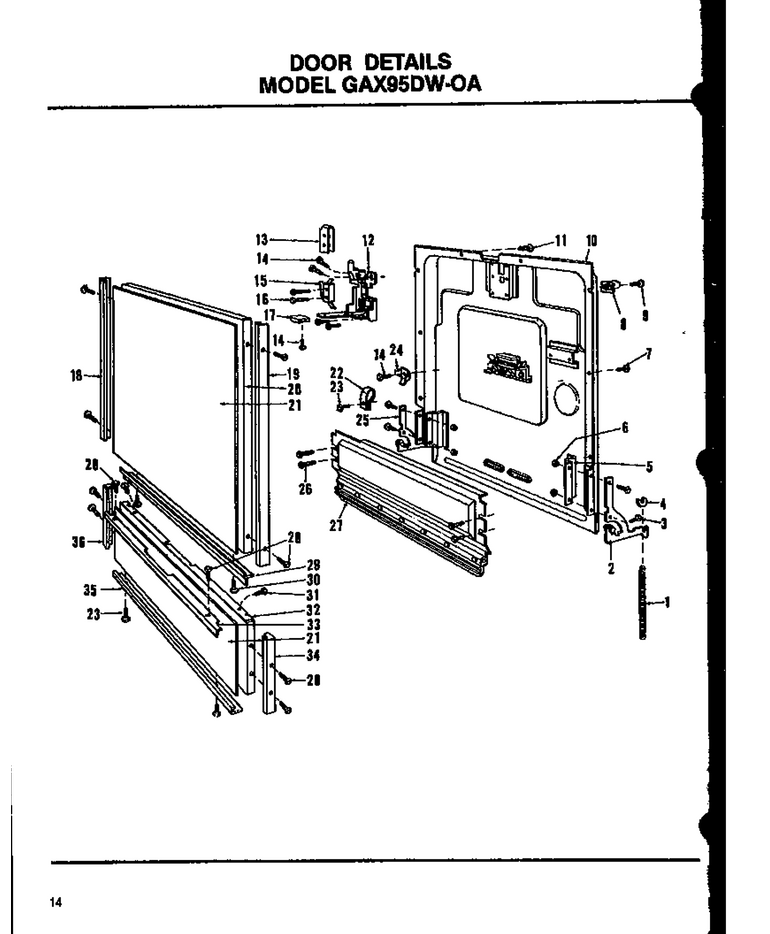

03 - Door Details

...
...
NI
Door Kit, Black Acrylic WPL-0808926
...
1
Spring- Co WPL-Y0808971
...
2
Rh Arm WPL-805681
...
3
Screw WPL-0803311
...
4
Spring Pad WPL-0805884
...
5
Arm Bracket WPL-Y0806717
...
6
Nut WPL-M0282009
...
7
Screw WPL-0806967
...
8
Door Guide WPL-0807449
...
9
Screw WPL-Y0808749
...
10
Sub 809288, Inner Door Panel WPL-0807191
...
11
Screw WPL-0806894
...
12
Latch Asm WPL-807016
...
13
Switch Cover WPL-0807450
...
14
Screw WPL-0806830
...
15
Switch, Door Latch WPL-Y0807043
...
16
Screw WPL-0808618
...
17
Sub 806893 Latch Knob WPL-0806398
...
18
Door Pnl Trim, Lh WPL-0808977
...
19
Door Pnl Trim, Rh WPL-0808976
...
20
Door Panel, White WPL-0807262
...
21
Door & Access Panel Insert,alm WPL-0808908
...
22
Clamp WPL-Y0808442
...
23
Screw WPL-M0217225
...
24
Terminal, Grounding WPL-0807213
...
25
Arm Assy Lh Counterbalance WPL-0805682
...
26
Use 0806976 WPL-0806810
...
27
Vent Baffl WPL-809412
...
28
Screw WPL-WP74004005
...
29
Door Trim, Bottom WPL-Y0807347
...
30
Screw WPL-W11233072
...
31
Screw WPL-WP90767
...
32
Access Panel, White WPL-0809108
...
33
Trim, Top, Access Panel WPL-0808346
...
34
Trim, R.h. WPL-0808028
...
35
Sub 808027 Trim, Access WPL-Y0809994
...
36
Screw WPL-W11233072

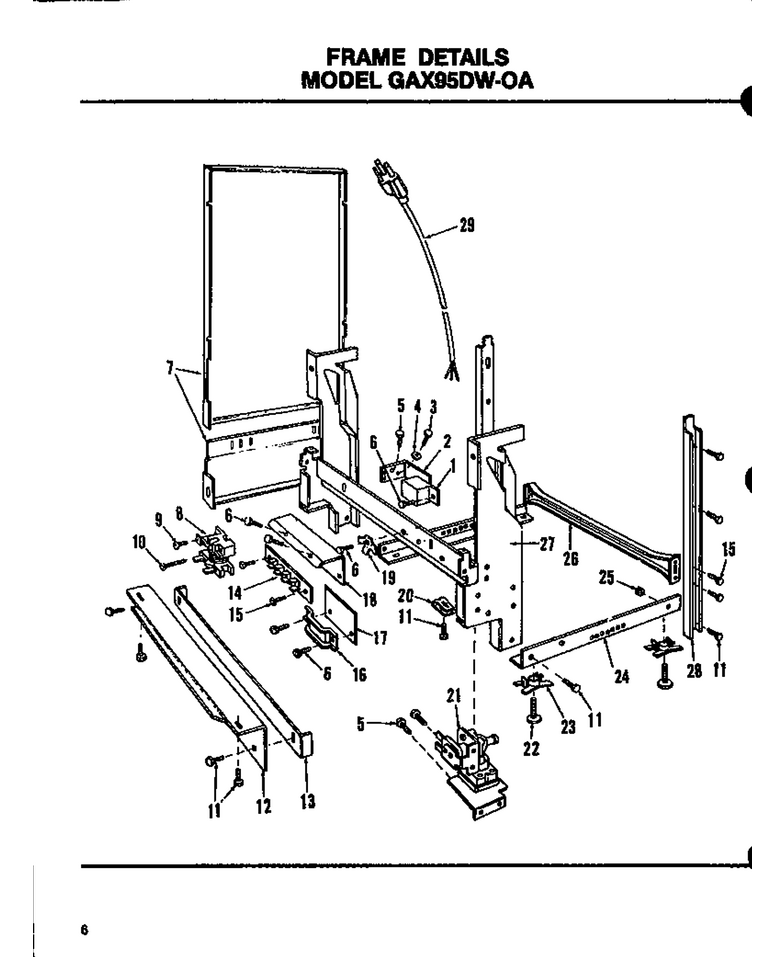

04 - Frame Details

...
...
NI
Gax98dw/mn01 (Includes Mn00, 01, 02, 03) WPL-NOTE:
...
1
Junction Box Cover WPL-0800222
...
2
Cover Bracket WPL-0807019
...
3
Screw WPL-0807951
...
4
Washer WPL-0807373
...
5
Screw WPL-Y0807950
...
6
Screw WPL-WP90767
...
7
Side Panel Kit, Almond WPL-0808884
...
8
Relay WPL-0805255
...
9
Screw WPL-WP488234
...
10
Screw WPL-0804672
...
11
Screw WPL-0807001
...
12
Toe Plate WPL-0807850
...
13
Toe Plate, Adjustable WPL-0806295
...
14
Terminal Block WPL-0807486
...
15
Screw WPL-W11233072
...
16
Wiring Clamp WPL-0806723
...
17
Wire Shield WPL-0809144
...
18
Bracket, Terminal Board WPL-0807849
...
19
Terminal, Grounding WPL-0807213
...
20
Speed Nut WPL-0808170
...
21
Valve Assy WPL-Y0809240
...
22
Leveling Legs WPL-0807672
...
23
Tee Nut - Snap In WPL-0807671
...
24
``u`` Frame Assembly WPL-Y0807851
...
25
Nut K WPL-M0282005
...
26
Rear Brace WPL-80752
...
27
Weld Assembly, Hinge WPL-0807848
...
28
Support Channel WPL-0808670
...
29
Power Cord WPL-Y0808395

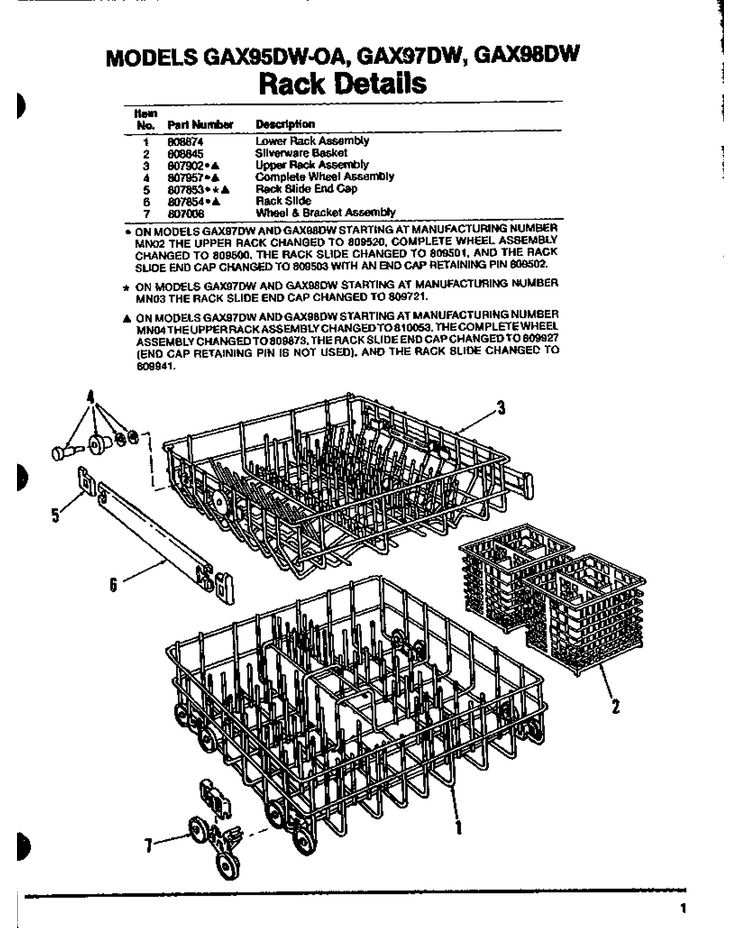

06 - Rack Details

...
...
NI
Gax97dw/mn01 (Includes Mn00, 01, 02, 03) WPL-NOTE:
...
1
Lower Rack Assy WPL-Y0808874
...
2
Silverware Basket WPL-Y0808845
...
7
Wheel Assy WPL-Y0807008

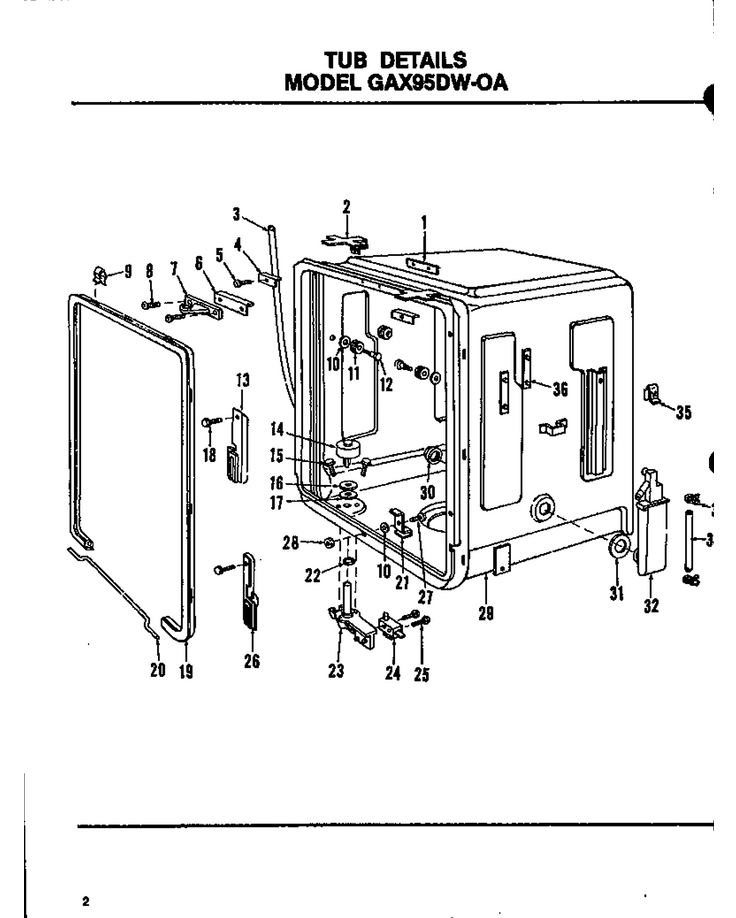

07 - Tub Details

...
...
NI
Gax97dw/mn02 (Includes Mn00, 01, 02, 03) WPL-NOTE:
...
1
Latch Tapping Plate WPL-0808868
...
2
Clip WPL-0808289
...
3
Drain Hose WPL-809112
...
4
Shim WPL-Y0808366
...
5
Screw WPL-0806976
...
6
Shim Strike WPL-0807073
...
7
Strike WPL-807015
...
8
Screw WPL-WP22001496
...
9
Clip Kit (Tub Gasket) WPL-805763
...
10
Washer, Sealing WPL-0809044
...
11
Roller WPL-0807180
...
12
Kit, Screw & Washer WPL-0808564
...
13
Guide, Counterbalance, L.h. WPL-Y0807470
...
14
Float WPL-Y0804630
...
15
Screw WPL-807268
...
16
Ring WPL-Y0808064
...
17
Gasket WPL-808063
...
18
Screw, No.10-24 X 5/8 WPL-0806539
...
19
White Gask WPL-808959
...
20
Junction, Wire Gasket WPL-0808344
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Float Assy WPL-Y0809859
...
24
Float Switch WPL-Y0807680
...
25
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
26
Rh Guide WPL-807471
...
27
Screw WPL-WP250830
...
28
Use M0281003 WPL-0803346
...
29
Tub & Gasket Assy WPL-0809263
...
30
Nut Plastic WPL-0805669
...
31
Washer WPL-803573
...
32
Water Inlet Assy WPL-Y0806470
...
33
Tube, Inlet WPL-0807891
...
34
Clamp WPL-Y0807813
...
35
Nut, Cage WPL-0806291
...
36
Twin Nut Assem. WPL-0807038
