Amana GAX100L (BOM: P1139727N L)

Model: GAX100L (BOM: P1139727N L)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

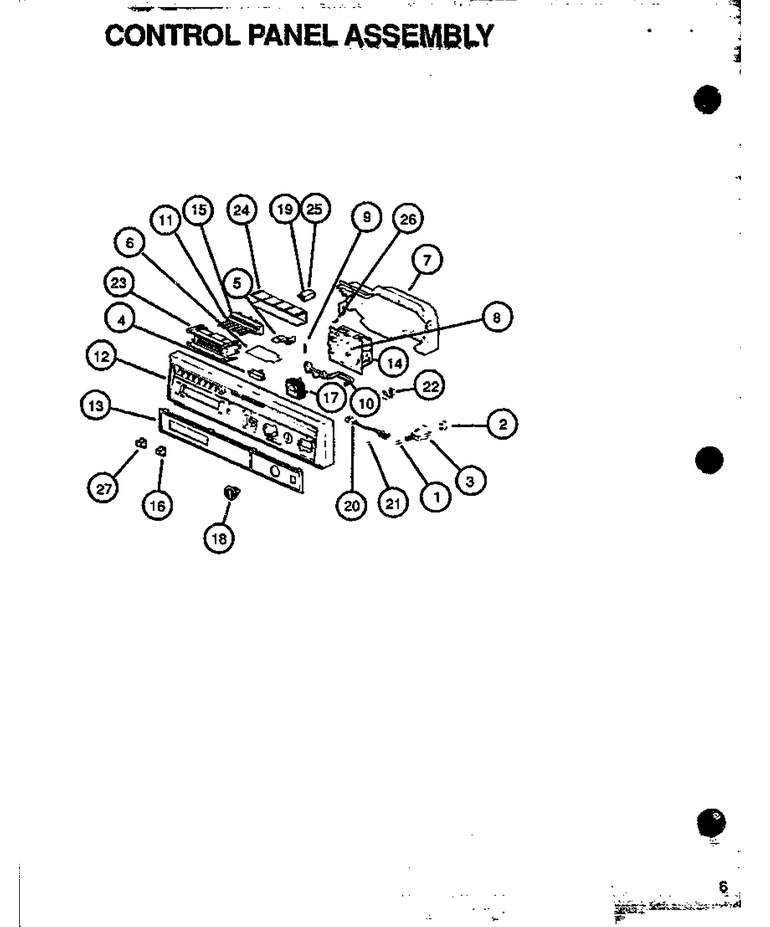

01 - Control Panel Assy

...
...
NI
Manual, Use & Care WPL-R0913042
...
4
Switch, Interlock WPL-R0902506
...
5
Switch Leaf WPL-R0905533
...
6
Shield, Switch WPL-R0905534
...
7
Cover Electric WPL-R0905641
...
8
Cam-Timer WPL-R0904007
...
9
Spring, Timer Lever WPL-R0905541
...
10
Lever, Timer WPL-R0905545
...
12
Escutcheon WPL-Y03000071
...
13
Insert Escutcheon WPL-R0905664
...
14
Timer WPL-Y03000075
...
18
Knob Timer Assy WPL-R0903539
...
19
Housing Terminal WPL-R0910049
...
22
Switch- Ro WPL-WP31986601B
...
25
Terminal WPL-Y03000076
...
26
Screw WPL-R0900009

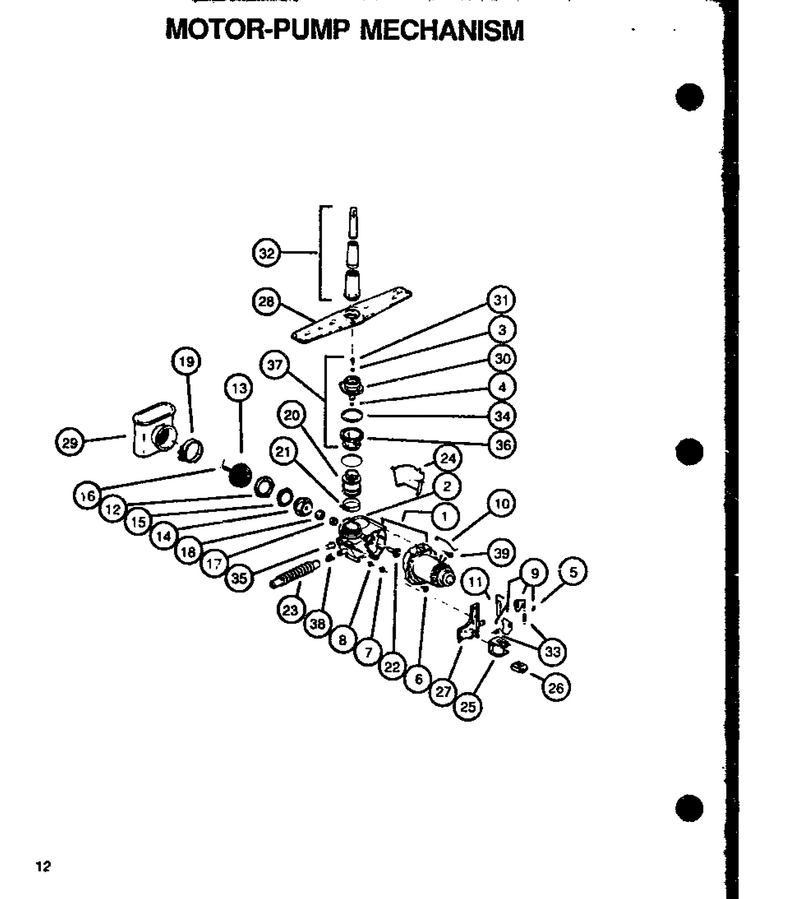

03 - Motor-Pump Mechanism

...
...
NI
Clamp WPL-R0901510
...
1
Motor/pump Assy Dishwa WPL-R0907001
...
2
Motor/pump Assy Dishwa WPL-R0910001
...
3
Thrust Washer WPL-R0900508
...
4
No.8 Type A Set Sst Washer WPL-R0900503
...
5
Retainer WPL-R0901503
...
6
Screw WPL-W10856125
...
7
Nut WPL-R0906510
...
8
Seal, Shaft WPL-R0906504
...
9
Gate Valve Arm Kit WPL-Y03000032
...
10
Hanger Mech. WPL-R0905516
...
11
Armature & Link Assy WPL-R0905517
...
12
Wear Ring Base WPL-R0905518
...
13
Nut WPL-R0905563
...
14
Pump Impeller WPL-R0905519
...
15
Wear Ring WPL-R0905520
...
16
Spring, Cutter WPL-R0905521
...
17
Seal WPL-R0903502
...
18
Shaft Seal WPL-R0903503
...
19
Clamp WPL-WP696392
...
20
Connector, Pump WPL-R0903520
...
21
Clamp WPL-WP696392
...
22
Shaft Guard/slinger WPL-R0905564
...
23
Tube Assy, Drain WPL-Y03000184
...
24
Guard WPL-R0905522
...
25
Solenoid WPL-Y03000185
...
26
Insulator WPL-R0903506
...
27
Bracket-Solenoid WPL-R0905639
...
28
Assy Spray Arm Shield WPL-R0910055
...
29
Inlet, Sump WPL-R0905604
...
30
Spray Arm Hub WPL-R0910056
...
31
Screw, Hub WPL-R0900026
...
32
Assembly-Center Spray WPL-R0910057
...
33
Spring, Gate Arm WPL-R0905529
...
34
Kit Spray Assy WPL-R0903535
...
35
Cap, Power Shower WPL-R0903508
...
36
Check Valve WPL-R0910037
...
37
Hub & Suppt. WPL-R0903515
...
38
Clamp WPL-R0901510
...
39
Screw WPL-R0900007

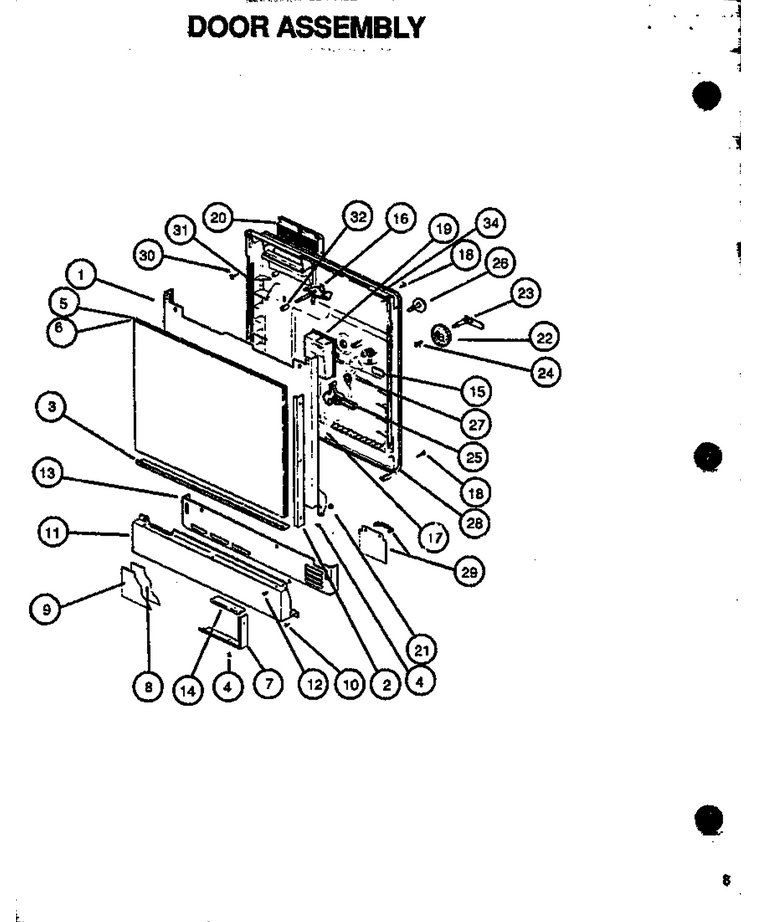

02 - Door Assy

...
...
NI
Screw WPL-W10856125
...
1
Door & Hinge Assy, Outer WPL-R0905637
...
2
Trim Door Side WPL-R0905644
...
3
Trim-Door Bottom WPL-R0905645
...
4
Screw WPL-M0211530
...
5
Insulator WPL-R0906002
...
6
Door Panel Insert WPL-R0905559
...
10
Screw, Handle WPL-61002031
...
11
Panel, Access WPL-Y03000189
...
12
Screw WPL-R0900017
...
13
Toe Kick Assy WPL-R0903022
...
15
Deflecter WPL-R0905523
...
16
Latch, Assembly WPL-Y03000191
...
17
Door, Inner WPL-R0903001
...
18
Screw WPL-R0900006
...
19
Injector, Rinse WPL-Y03000002
...
20
Door Vent WPL-R0905536
...
21
Hinge Arm Bearing WPL-R0905537
...
22
Detergent Cup Cover WPL-R0910010
...
23
Shaft Hand D Cup WPL-R0905538
...
24
Screw WPL-R0900007
...
25
Latch Detergent Cup WPL-R0905539
...
26
Cap Fill WPL-R0905646
...
27
Trip Spring WPL-R0905542
...
28
Door Gasket WPL-R0904501
...
29
Drip Shield WPL-R0910011
...
30
Screw WPL-R0900009
...
31
Knob, Latch WPL-R0903532
...
32
Screw WPL-WP74004005
...
34
Door Bar WPL-R0905532

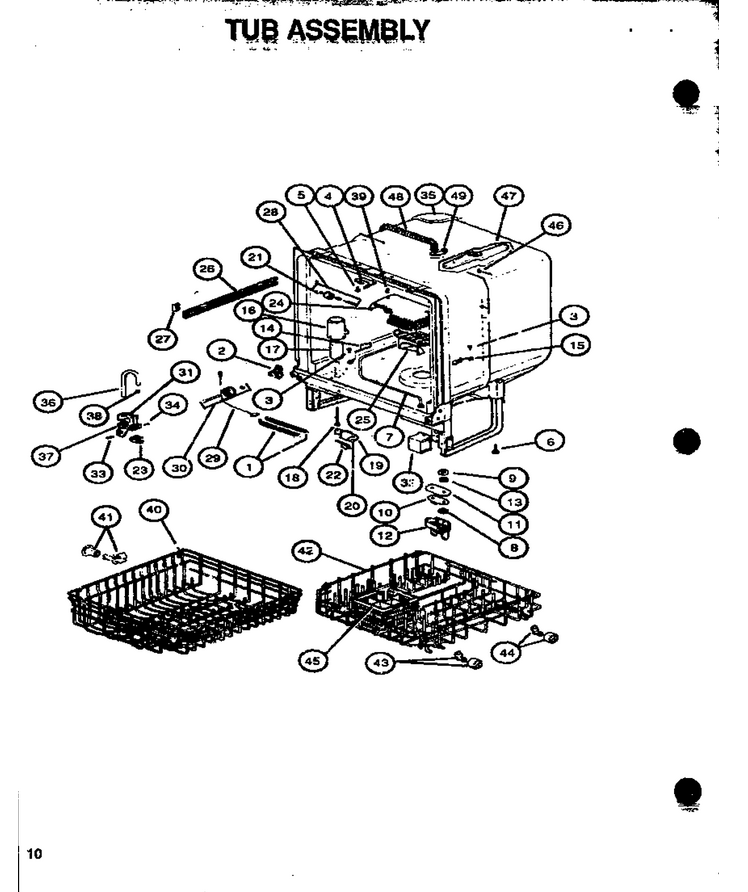

04 - Tub Assy

...
...
NI
Kit, Door Spring WPL-R0905711
...
1
Door Spring Yellow WPL-R0905504
...
2
Baffle Tub Corner Lh WPL-R0905597
...
3
Screw WPL-WPW10348409
...
4
Latch Keeper WPL-R0905505
...
5
Screw WPL-R0900025
...
6
Leg, Leveling WPL-R0905506
...
7
Heater WPL-R0906001
...
8
Nut WPL-R0901001
...
9
Washer WPL-R0900501
...
10
Barrier Brkt WPL-R0905507
...
11
Insulation WPL-R0906501
...
12
Barrier WPL-R0905508
...
13
Grommet WPL-R0906502
...
14
Support, Heater Front WPL-R0905632
...
15
Support Heater Rear WPL-R0905633
...
16
Float, Dome WPL-R0913227
...
17
Flood Float WPL-R0903501
...
18
Float Stem WPL-R0905512
...
19
Brkt, Flood Switch WPL-R0905513
...
20
Cover Switch Brkt WPL-R0905514
...
21
No.8 Type A Set Sst Washer WPL-R0900503
...
22
Switch Flood WPL-R0902501
...
23
Insulator WPL-R0903507
...
24
Cover Inlet Sump WPL-R0905527
...
25
Cap, Sump WPL-Y03000213
...
26
Rack Slide WPL-R0905567
...
27
Endcap WPL-WPW10326683
...
28
Tub Roller & Stud Kit WPL-R0910004
...
29
Cable And Eyelet WPL-R0905640
...
30
Roller & Stud Kit WPL-R0910013
...
31
Valve, Water Inlet (W/solenoid WPL-R0910033
...
32
Cover, Jct. Box WPL-R0905553
...
33
Scr 10-24x3/8 Tt Hex WPL-R0900012
...
34
Screw WPL-R0900011
...
35
Insulation WPL-R0904502
...
36
Hose, Water Inlet WPL-R0903514
...
37
Solenoid Assembly, Water Valve WPL-R0909002
...
38
Clamp WPL-R0901510
...
39
Screw WPL-R0900008
...
40
Assembly-Upper Rack WPL-R0910058
...
41
Wheel WPL-W10542232
...
42
Assembly-Lower Rack & Roller WPL-R0910059
...
43
Lower Roller Assy WPL-R0910007
...
44
Roller WPL-W10882367
...
45
Basket, Silverware WPL-R0910009
