Amana GAP39AA (BOM: GAP39AA/)

Model: GAP39AA (BOM: GAP39AA/)

Save Part Not Listed?
product name

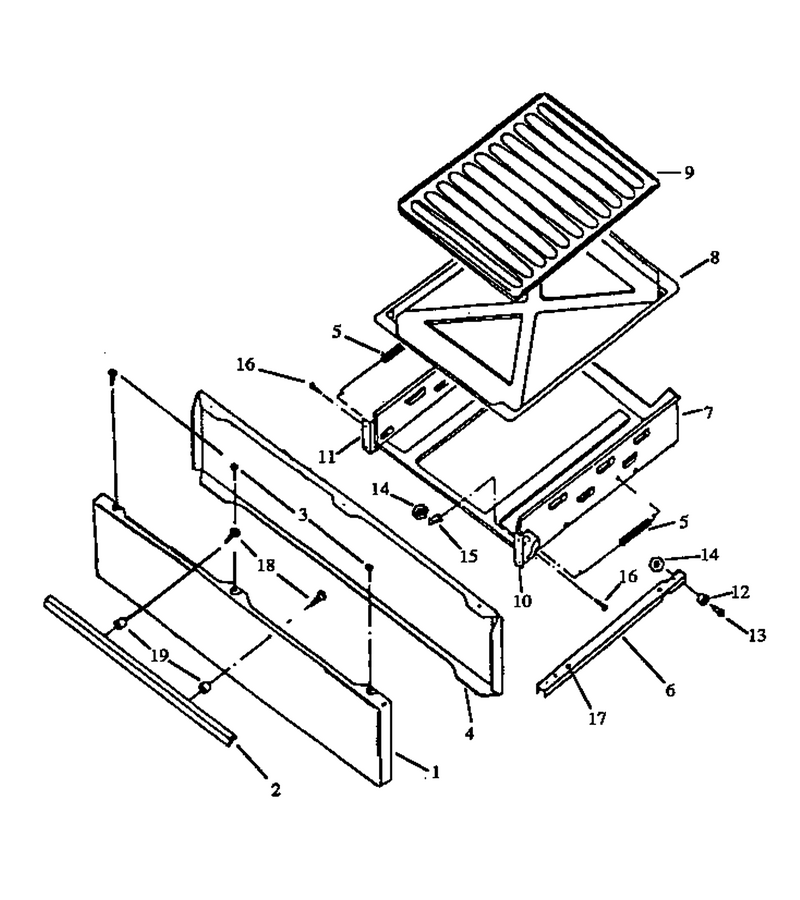

10 - Page 9

...
...
1
Panel, Br. Drwr. WPL-Y054689H
...
2
Oven Door Handle, 18`` WPL-Y0088812
...
4
Liner, Broiler Drawer WPL-0310660
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Track, Upper WPL-Y0086911
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Hinge, Broiler Door Rh (J) WPL-0086907
...
11
Hinge, Broiler Door Lh (J) WPL-Y0086909
...
15
Plate, Broiler Hinge {j} WPL-Y0086774
...
18
Screw WPL-707407
...
19
Handle Spacer, Plastic (J) WPL-Y0310818

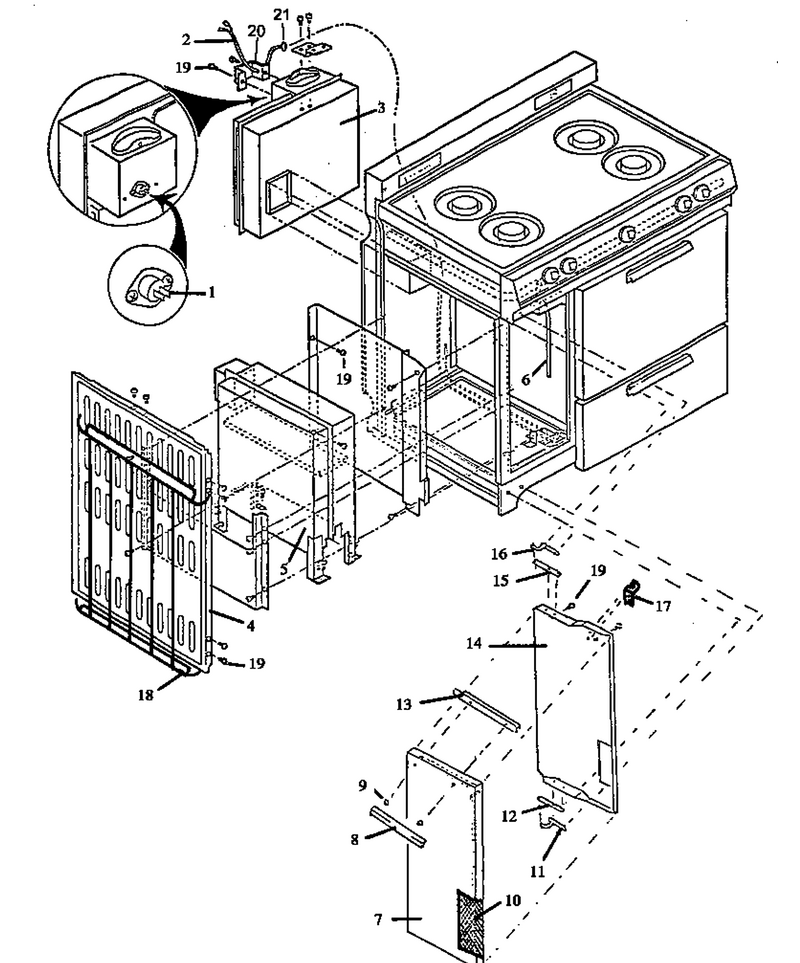

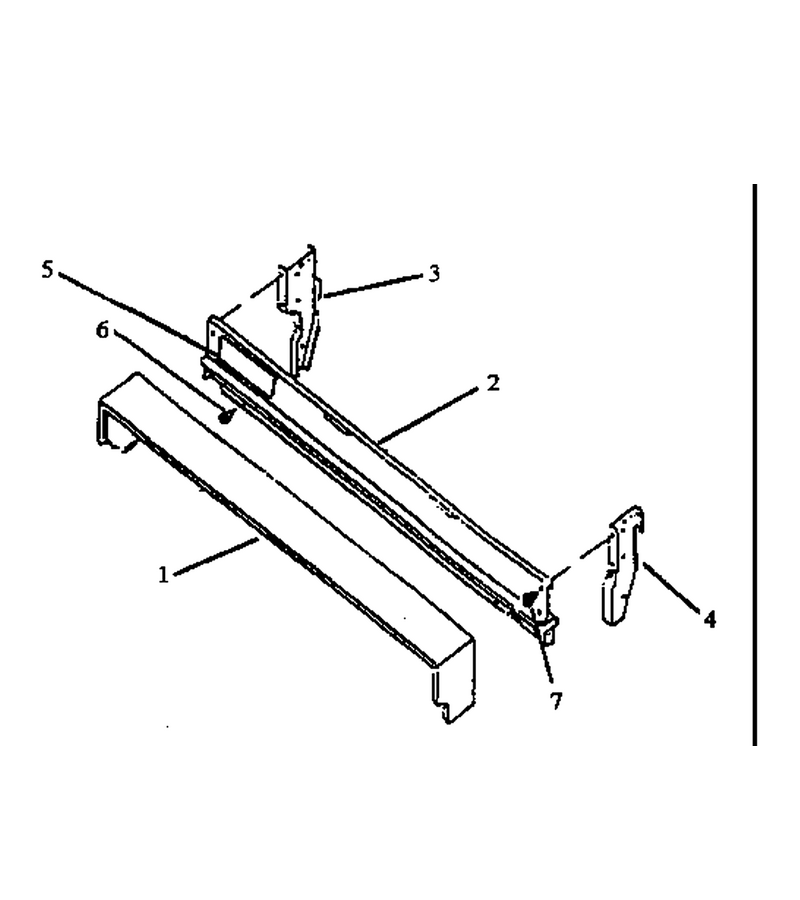

04 - Page 2

...
...
1
Switch, Heater WPL-Y0056019
...
2
Wire Harness WPL-0310646
...
3
Flue Box Assembly, Heater WPL-0311555
...
4
Side Panel, Heater, White WPL-Y056030W
...
5
Heat Exchanger Assembly WPL-0311554
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
7
Panel, Cabinet, White WPL-056048W
...
8
Handle, Oven Door (J) WPL-Y0052776
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
10
Air Intake, Heater WPL-Y0056036
...
11
Hinge Arm, Bottom WPL-0088077
...
12
Hinge, Bottom WPL-0088074
...
13
Bracket, Handle WPL-0088073
...
15
Hinge Arm, Top WPL-0088078
...
16
Hinge, Top WPL-0088075
...
17
Door Catch WPL-0088057
...
20
Bracket, Safety Switch Cover WPL-6451401
...
21
Bushing, Strain Relief WPL-7536401

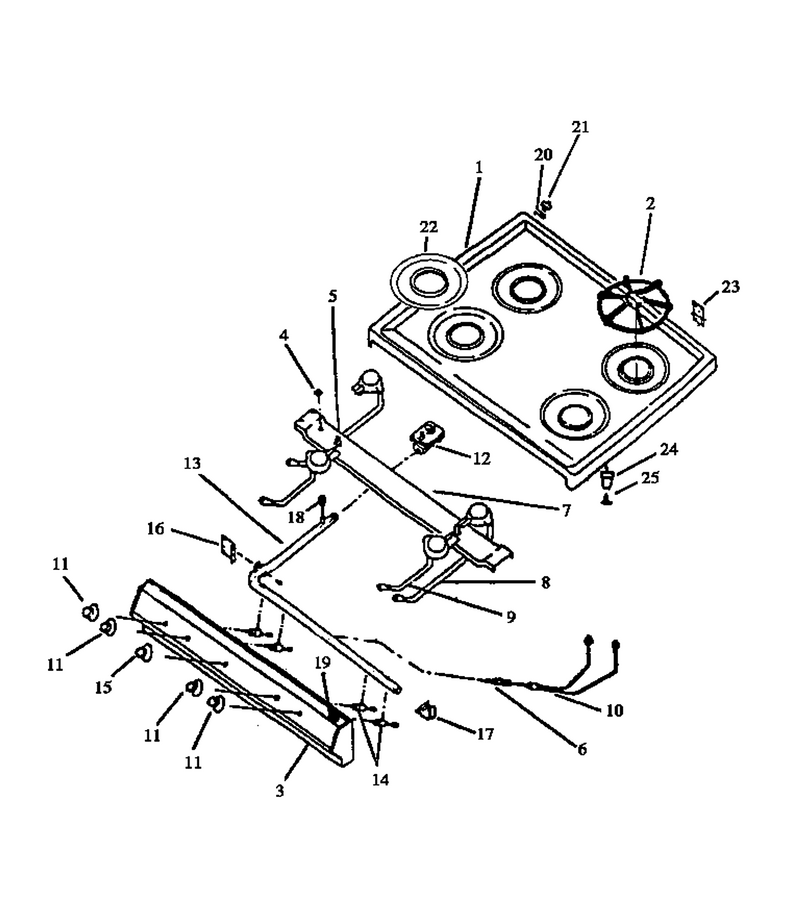

05 - Page 3

...
...
1
Main Top White WPL-06460905W
...
2
Grate, 7`` Round Burner WPL-Y07540300
...
3
Manifold Panel WPL-7622024
...
4
Square Nut {j} WPL-0088650
...
5
Pilot Tip (J) WPL-0057313
...
6
Filter WPL-0088789
...
7
Support, Top Burner (36``) WPL-311025E
...
8
Rear Burner Assembly WPL-7698900
...
9
Front Burner Assembly WPL-7698800
...
10
Pilot Harness WPL-0088083
...
11
Knob, Top Burner WPL-Y0311080
...
12
Pressure Regulator, Nat WPL-Y0056046
...
13
Manifold Pipe, Heater WPL-0056049
...
14
Valve, Top Burner WPL-0311537
...
15
Knob, T-Stat (Gasr WPL-Y0310525
...
16
Support, Manifold, L.h. {j} WPL-0086725
...
17
Bracket, Manifold Support WPL-0052754
...
18
Spacer, Manifold WPL-0310219
...
20
Nut, Speed, Flat WPL-Y0310032
...
21
Screw, Stud WPL-31750709
...
23
Hinge, Main Top WPL-0088782
...
24
Stud, Locating - Nylon WPL-0311086
...
25
Screw WPL-Y0312844

03 - Page 12

...
...
1
Backguard Frame WPL-0057320
...
2
Panel, Backguard WPL-6554304
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667
...
5
Label, Caloric WPL-7704200

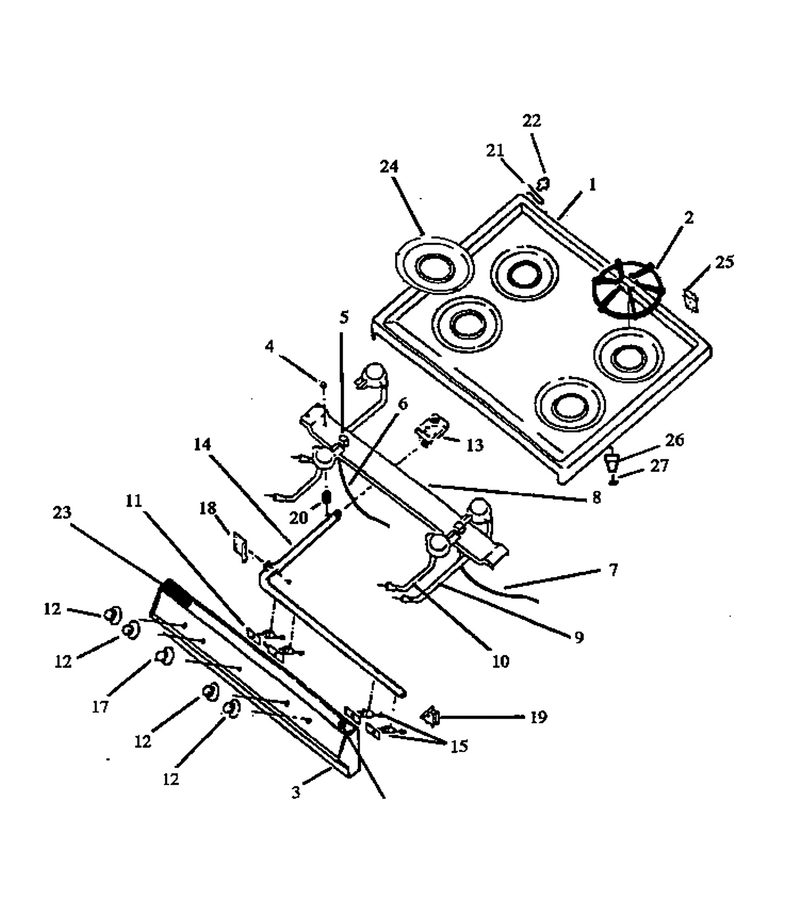

06 - Page 4

...
...
1
Main Top, Harvest WPL-057243H
...
2
Grate, 7`` Round Burner WPL-Y07540300
...
3
Manifold Panel WPL-7622024
...
4
Square Nut {j} WPL-0088650
...
5
Ignitor, Ground Strap WPL-Y0312158
...
6
Ignitor- G WPL-Y07491203
...
7
Ignitor- G WPL-Y07491203
...
8
Support, Top Burner (36``) WPL-311025E
...
9
Burner - Top Rear (Glwd) WPL-Y0057358
...
10
Burner - Top Frt (Glwd) WPL-Y07698800
...
11
Swtch-Ignr WPL-WP4157180
...
12
Knob, Top Burner WPL-Y0086994
...
13
Pressure Regulator, Nat WPL-Y0056046
...
14
Manifold Pipe, Heater WPL-0056049
...
15
Top Burner Valve WPL-Y0311525
...
17
Knob- Ther WPL-WPY07506601
...
18
Support, Manifold, L.h. {j} WPL-0086725
...
19
Bracket, Manifold Support WPL-0052754
...
20
Spacer, Manifold WPL-0310219
...
21
Nut, Speed, Flat WPL-Y0310032
...
22
Screw, Stud WPL-31750709
...
23
Label WPL-0311567
...
24
Bowl-Drip WPL-Y07514500
...
26
Stud, Locating - Nylon WPL-0311086
...
27
Screw WPL-Y0312844
...
28
Switch- Ov WPL-Y07625800

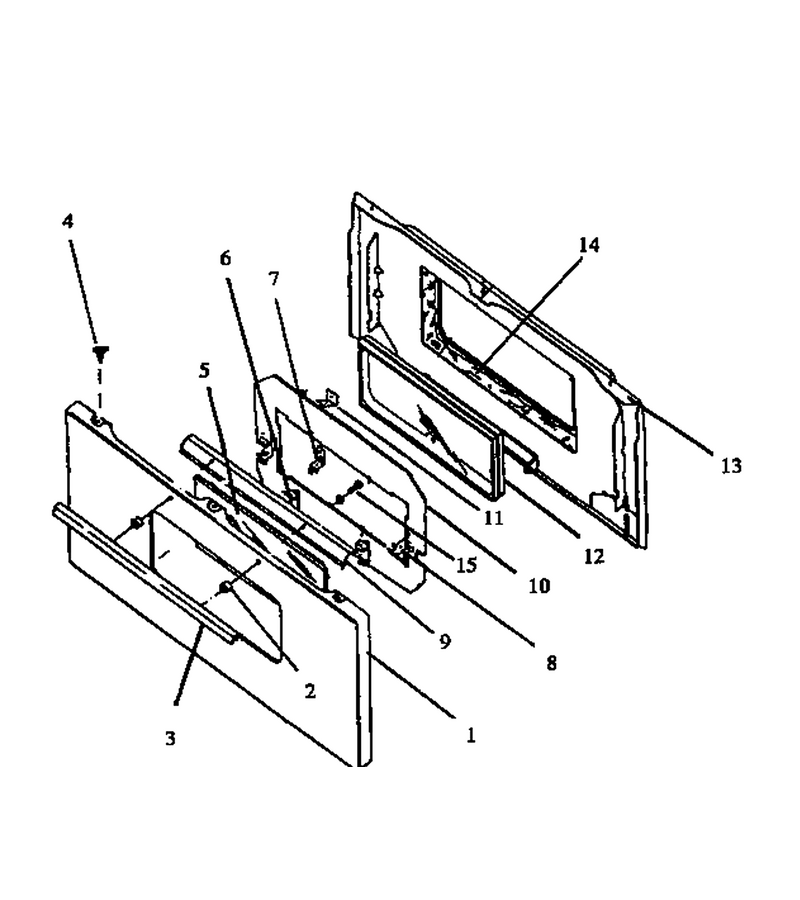

02 - Page 11

...
...
1
Pnl-Ov Dr,24,sol,enm WPL-312188L
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
10
Baffle Door Backer WPL-0312825
...
13
Backer Oven Door WPL-312821E

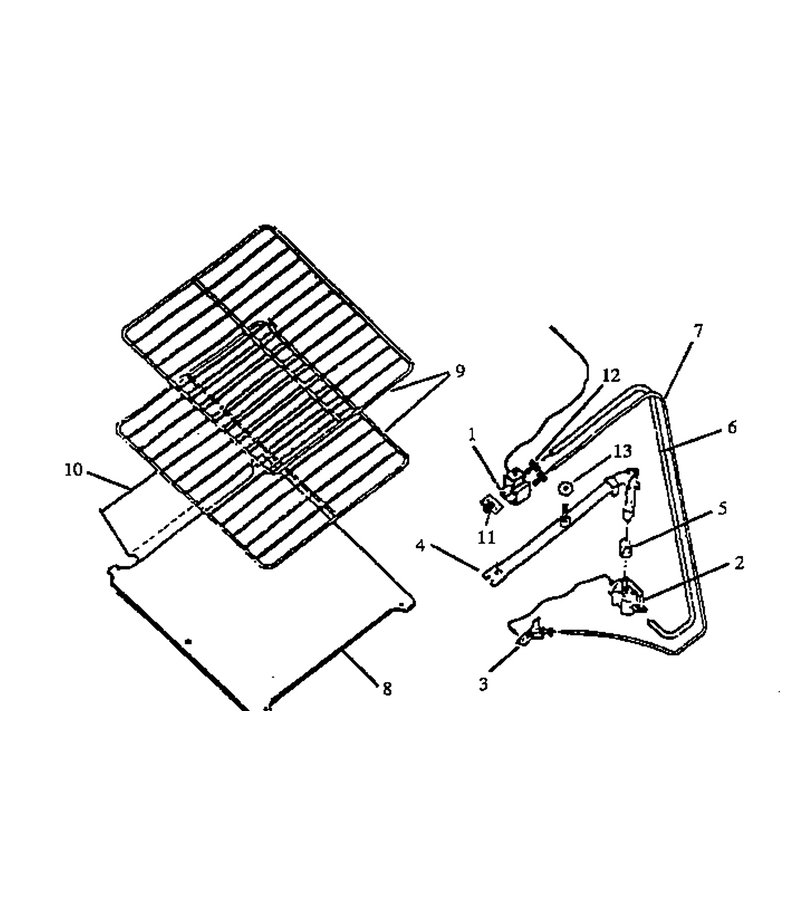

07 - Page 6

...
...
1
Thermostat, Oven WPL-Y0089060
...
2
Safety Valve, Lp WPL-Y0311558
...
3
Pilot, Oven Burner (Standing) WPL-Y07697200
...
4
Oven Burner WPL-0311865
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Bottom, Oven (Enamel) WPL-0311867
...
9
Oven Rack, 24`` WPL-Y0312235
...
10
Spreader, Flame W/o Notch WPL-0311821
...
11
Flange Fitting WPL-Y0056147
...
12
Bolt WPL-R0701572
...
13
Nut WPL-M0282009

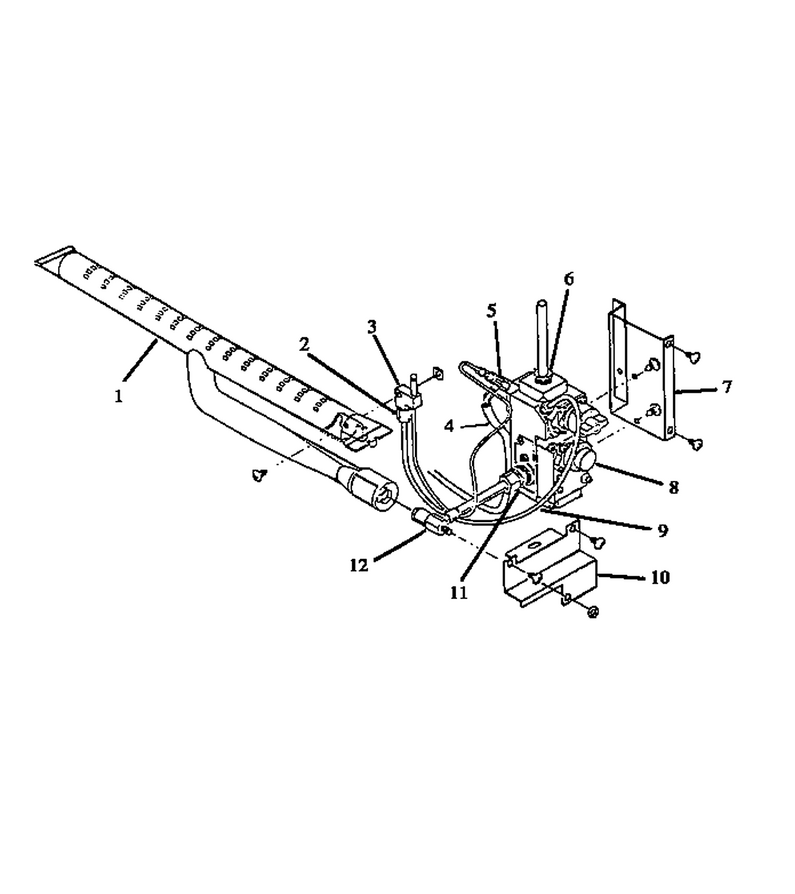

09 - Page 8

...
...
1
Burner, Heater WPL-0056041
...
3
Pilot-W/sensor, Htr Mini WPL-Y0056023
...
4
Wire Harness WPL-0310646
...
5
Slotted, Thermocouple Adapter WPL-Y0310433
...
7
Bracket WPL-0310657
...
8
Thermostat, Heater W/pilot WPL-Y0056045
...
10
Burner Support, Heater WPL-Y0056027
...
11
Fitting, Compression WPL-0311559
...
12
Feed Tube, Nat WPL-0056043

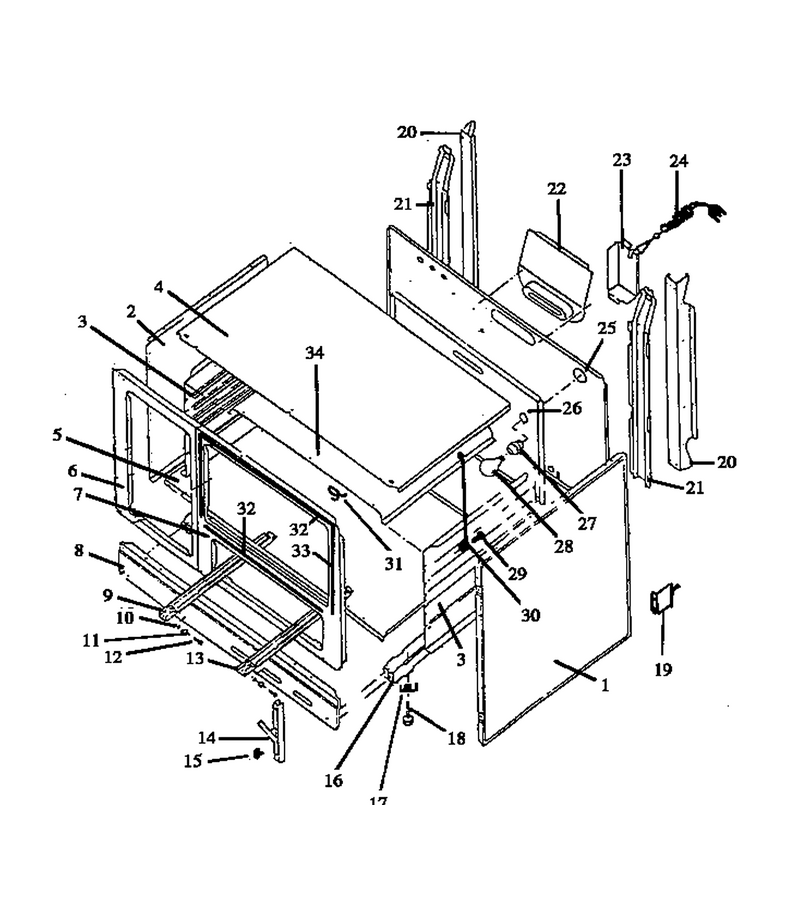

01 - Page 1

...
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Shield, Short Side Assy. WPL-0057201
...
3
Liner, Oven Side WPL-Y00311807
...
4
Burner Box, Bottom, Heater WPL-311019E
...
5
Bottom Baffle, Heater WPL-0311556
...
6
Extension, Main Front WPL-88020CG
...
7
Frame, Main Front 24`` WPL-Y06473101E
...
8
Panel, Toe 36`` (Black) WPL-Y0057228
...
9
Track, Lower L.h. WPL-Y0313760
...
13
Track, Lower R.h. WPL-Y0313761
...
14
Hinge WPL-Y0052778
...
15
Screw (J) WPL-0310233
...
16
Rail, Base WPL-6554900
...
17
Snap-In Tee Nut WPL-Y0088571
...
18
Leg, Leveling WPL-Y0062362
...
19
Kit, Anit Tip WPL-7687600
...
20
Support, Rear, Vertical {j} WPL-0056477
...
21
Vertical Sup. (J) WPL-0052742
...
22
Flue Box WPL-0088718
...
25
Main Back WPL-0311553
...
26
Back, Oven 24`` ( Cg) WPL-88550CG
...
31
Clip, Capillary WPL-0310802
...
32
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
33
Seal, Oven-Sides WPL-Y0056090
...
34
Liner, Oven Top WPL-88546CG

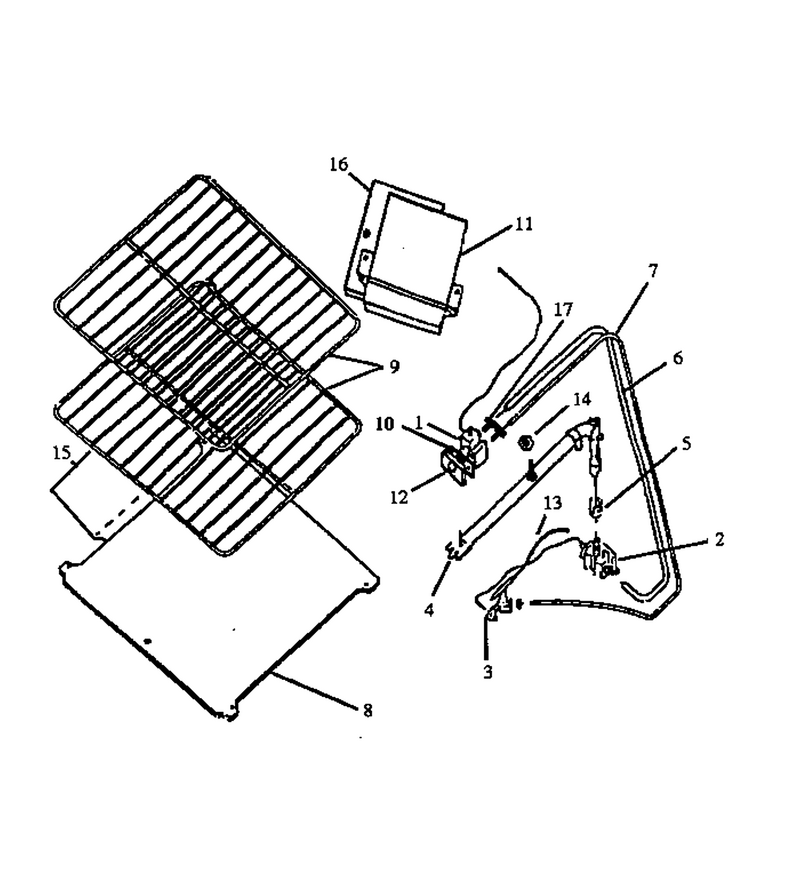

08 - Page 7

...
...
1
Thermostat, Oven WPL-Y0089061
...
2
Valve, Safety WPL-Y0056020
...
3
Pilot, Oven Burner (Spark) WPL-Y07697300
...
4
Oven Burner WPL-0056137
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Bottom, Oven (Enamel) WPL-0311867
...
9
Oven Rack, 24`` WPL-Y0312235
...
10
Flange Fitting WPL-Y0056147
...
11
Module, 3+1 Spark WPL-Y0087713
...
12
Swtch-Ignr WPL-WP878009
...
13
Igniter-Spark Oven WPL-Y0086776
...
14
Nut WPL-M0282009
...
15
Spreader, Flame W/o Notch WPL-0311821
...
16
Plate, Spark Module WPL-Y0087725
...
17
Bolt WPL-R0701572
