product name

Amana FSP-10.C

Model: FSP-10.C

Save Part Not Listed?
product name

Popular Parts

Popular Parts

01 - Page 1

...
...
NI
Use & Care Manual WPL-45699P01
...
1
Cavity Asy Gray Kit WPL-M77D177
...
2
Kit, Shelf WPL-R0156904
...
3
Lamp Lens WPL-2570000202
...
4
Lamp Socket Kit WPL-M5D400
...
5
M9d107 Lamp WPL-2031415101
...
6
Sensor, Cavity WPL-R0163326
...
7
Cover Light (Gray) WPL-M7X11
...
8
Speed-Clinch WPL-M2D574
...
9
Nut, Push WPL-Y04100035
...
10
Washer WPL-M1D565
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Screw (25) WPL-M1D638
...
14
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
15
Back Space Panel WPL-M82D211
...
16
Strain Relief WPL-8536977
...
17
Cord, Power (300v) WPL-1732500101
...
18
Screw WPL-WPW10001160
...
19
Housing, Blower WPL-45559P01
...
20
Wheel, Blower M35d39 WPL-36300P01
...
21
High Voltage Transformer WPL-M60D53
...
22
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
23
Protector-X WPL-M4D77
...
24
Screw WPL-WP90767
...
25
Deflector-Air M65d344 WPL-46762P01
...
26
Screw WPL-WP90767
...
27
Hv Rect 12kv 750max WPL-1330000301
...
28
Pop Rivet WPL-A4539625
...
29
Fuse WPL-M4D88
...
30
Screw WPL-WP90767
...
31
M65d346 Divider Air WPL-45402P01
...
32
Transition-Cav Exh Fs-10 WPL-45753P01
...
33
Shim-Hinge WPL-45540P01
...
34
Assy, Hinge WPL-4180032601Q
...
35
Not Available WPL-M7D137
...
36
Door Filler Kit WPL-M55D18
...
37
Outer Window Kit WPL-M70D129
...
38
Inner Door Kit WPL-M70D83
...
39
Window, Inner Door WPL-10785001
...
40
Door Latch Kit WPL-R0163256
...
41
Inlay, Handle WPL-M7X56
...
42
Nylon Flat Washer WPL-40370P01
...
43
Control Panel Frame WPL-M7D853
...
44
Display Window WPL-M2D742
...
45
Membrane, Switch Assy WPL-4100010316
...
46
Pow Btn Cvr Alum/black WPL-46508P04
...
47
Backer Plt Asy WPL-4180001602
...
48
Control,vp WPL-M31R44
...
49
Rail Assy WPL-M52D236
...
50
Filter Air WPL-45412P01
...
51
Screw WPL-WP90767
...
52
Screw WPL-WP90767
...
53
Relay WPL-36752P01
...
54
Relay WPL-38806P01
...
55
Triac - Comm/jetwave Lst Iv WPL-4070001301
...
56
Nut WPL-WP488130
...
57
U-Clip WPL-M2D575
...
58
Wire Harness Kit WPL-M27D495
...
59
Wshr-Rubber WPL-32383P01
...
60
Bleeder Resistor WPL-M3D42
...
61
Screw WPL-WP90767

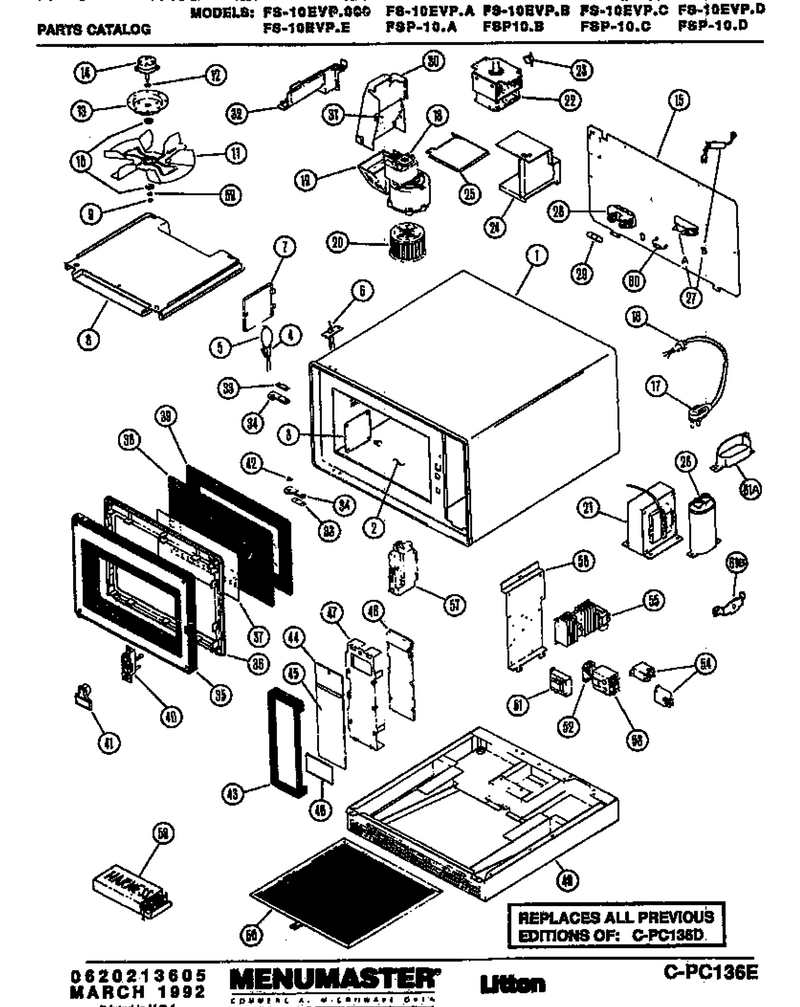

Schematic Image Zoomed
