Amana FS-7EVP.000

Model: FS-7EVP.000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

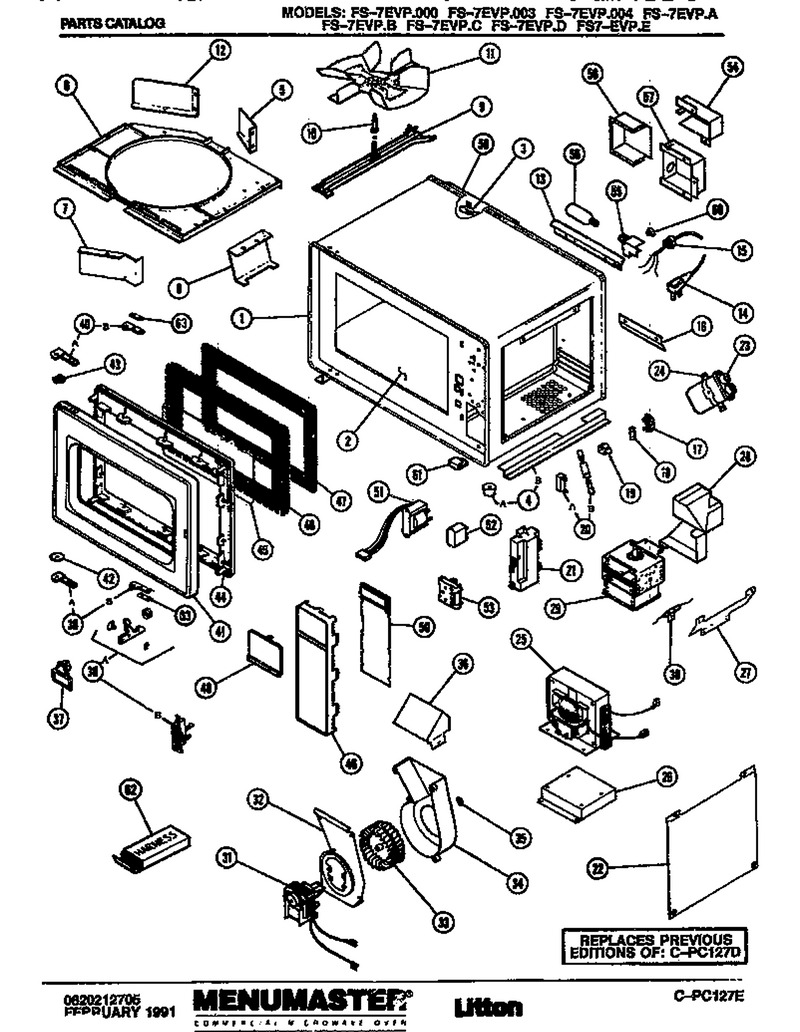

01 - Page 1

...
...
Use .b Replacement Door Parts For Fs-7evp.c Serial Numbers 553078 Thru 553189. WPL-NOTE:
...
NI
Torx Driver, T-20 (M95d23) WPL-M95D23
...
1
Bushing WPL-M2D578
...
2
Shelf W/sealant Kit WPL-M50D39
...
3
Sensor, Cavity Kit WPL-M4D131
...
4
Molded Foot(4per Pkg.) WPL-M2D547
...
5
Deflector WPL-M65D265
...
6
Stirrer Cover WPL-44103P01
...
7
Speed-Clinch WPL-M2D574
...
8
Speed-Clinch WPL-M2D574
...
9
Plastic Fastener WPL-5524122001
...
10
Insert Stirrer Kit WPL-M2D571
...
11
Blade, Stirrer WPL-10826002Q
...
12
Speed-Clinch WPL-M2D574
...
13
Screw WPL-WP90767
...
14
No.8 Spring Lockwasher (25) WPL-M1D57
...
15
Bush, Strain Relf (10) WPL-M1D600
...
16
Screw WPL-WP90767
...
17
Ia Screw WPL-M1D329
...
18
Fuse 20 A WPL-WPM0805101
...
19
Cable Clip WPL-M2D580
...
20
Kit, Diode WPL-M3D71
...
21
Interlock Switch Module WPL-M14D305
...
22
No.8 Ab X 1/2`` Screw WPL-M1D886
...
23
Capacitor- WPL-WP59001168
...
24
Bracket WPL-10825501
...
25
Bolt Xfmer (10) WPL-M1D889
...
26
No.10 T X 3/8`` Screw WPL-M1D479
...
27
No.6 Thread Forming Screw WPL-M1D627
...
28
Duct Cavity WPL-M65D301
...
29
Barrier- Foil Tape WPL-92011P01
...
30
Sensor Magnetron Kit WPL-M4D101
...
31
Kit, Blower Motor WPL-M12D84
...
32
Screw WPL-WP90767
...
33
Wheel Blower M35d37 WPL-45146P01
...
34
Blwr Hsg M65d293 WPL-42553P01
...
35
Retainer WPL-M1D892
...
36
Blower Hsg Duct WPL-M65D264
...
37
Handle Kit WPL-M11D64
...
38
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
39
Bracket, Hinge Upper WPL-M8D249
...
40
Assy, Hinge WPL-4180032601Q
...
41
Clip, Inlay Mtg. WPL-M2D659
...
42
Ia Nylon Flat Washer WPL-40370P02
...
43
No.10 Wave Washer WPL-M2D583
...
44
Door Filler Kit WPL-M55D18
...
45
Outer Window Kit WPL-M70D246
...
46
Inner Door Kit WPL-M70D83
...
47
Window, Inner Door WPL-10785001
...
48
Touch Panel Assy M7d649 WPL-94331P01
...
49
Display Window Kit WPL-M2D632
...
50
Controller WPL-M31R42
...
51
Screw WPL-WP90767
...
52
Nut WPL-WP488130
...
53
Triac WPL-M16D93
...
54
Cover-Rear Vent WPL-10830201
...
55
Screw WPL-WP90767
...
56
Bulb-Light WPL-40407P01
...
57
Cover, Component WPL-M8D278
...
58
Screw WPL-WP90767
...
59
Kit, Exhaust Baffle WPL-R0163287
...
60
Cavity Plug (10) WPL-M1D755
...
61
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
62
H.v. Lead Kit WPL-M5D350
...
63
Shim-Hinge WPL-45540P01
