Amana FS-14EVP.A (BOM: FS-14EVP. A)

Model: FS-14EVP.A (BOM: FS-14EVP. A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

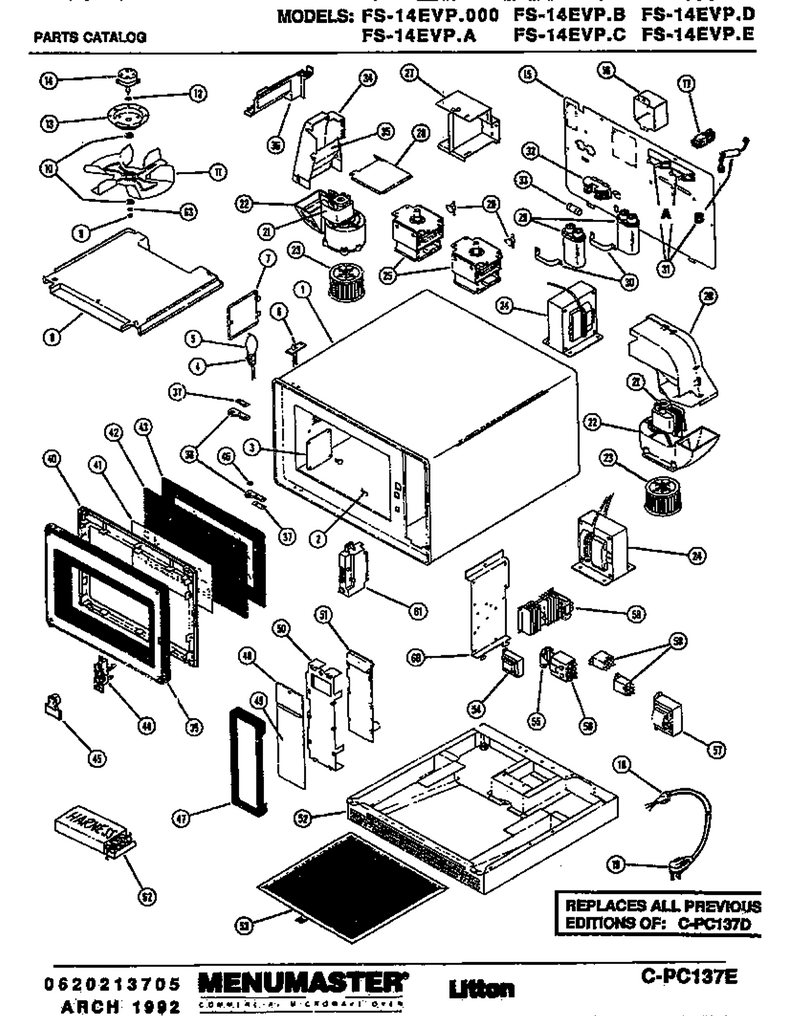

01 - Page 7

...
...
NI
No.6 Pan Hd Machine Screw WPL-M1D321
...
1
Rivet, Pop WPL-A4539629
...
2
Kit, Shelf WPL-R0156904
...
3
Lamp Lens WPL-2570000202
...
4
Socket, Lamp WPL-M5D380
...
5
M9d107 Lamp WPL-2031415101
...
6
Sensor, Cavity WPL-R0163326
...
7
Gasket WPL-A3030302
...
8
Speed-Clinch WPL-M2D574
...
9
Nut, Push WPL-Y04100035
...
10
Washer WPL-M1D565
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Screw (25) WPL-M1D638
...
14
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
15
Back Panel WPL-M82D208
...
16
Screw WPL-WP90767
...
17
Connector WPL-M5D362
...
18
Strain Relief WPL-8536977
...
19
Cord Asy Fs-14evp.000 M26d43 WPL-M26D43
...
20
Screw WPL-WP90767
...
21
Screw WPL-WPW10001160
...
22
Housing, Blower WPL-45559P01
...
23
Wheel, Blower M35d39 WPL-36300P01
...
24
High Voltage Transformer WPL-M60D119
...
25
Gasket WPL-A3030302
...
26
Protector-X WPL-M4D77
...
27
Screw WPL-WP90767
...
28
Deflector-Air M65d344 WPL-46762P01
...
29
Hv Cap .91+6%-3%mfd 2kvacx WPL-43912P03
...
30
Screw WPL-WP90767
...
31
Nut WPL-WP488130
...
32
Pop Rivet WPL-A4539625
...
33
Fuse, M4d87 WPL-36108P01
...
34
Screw WPL-WP90767
...
35
M65d346 Divider Air WPL-45402P01
...
36
Transition-Cav Exh Fs-10 WPL-45753P01
...
37
Shim-Hinge WPL-45540P01
...
38
Assy, Hinge WPL-4180032601Q
...
39
Outer Door Asy Kit WPL-M70D239
...
40
Door Filler Kit WPL-M55D18
...
41
Outer Window Kit WPL-M70D246
...
42
Inner Door Kit WPL-M70D83
...
43
Window, Inner Door WPL-10785001
...
44
Spring, Door WPL-41205P01
...
45
Handle Kit WPL-M11D64
...
46
Nylon Flat Washer WPL-40370P01
...
47
Frame, Cont Pnl WPL-45398P04
...
48
Display Window WPL-M2D742
...
49
Assy Memb Switch WPL-4100010317
...
50
Backer Plt Asy WPL-4180001602
...
51
Controller WPL-M31R55
...
52
.187 Dia Pop Rivet Steel WPL-M1D349
...
53
Filter Air WPL-45412P01
...
54
Lv Xfmr Fs10 117v60hz 8`` WPL-M60D145
...
55
Screw WPL-WP90767
...
56
Relay WPL-36752P01
...
57
Screw WPL-WP90767
...
58
Relay WPL-38806P01
...
59
Triac - Comm/jetwave Lst Iv WPL-4070001301
...
60
Panel, Component WPL-10791901
...
61
U-Clip WPL-M2D575
...
62
Wiring Harness WPL-M27D501
...
63
Wshr-Rubber WPL-32383P01
