Amana FS-10EVP.C (BOM: FS-10EVP. C)

Model: FS-10EVP.C (BOM: FS-10EVP. C)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

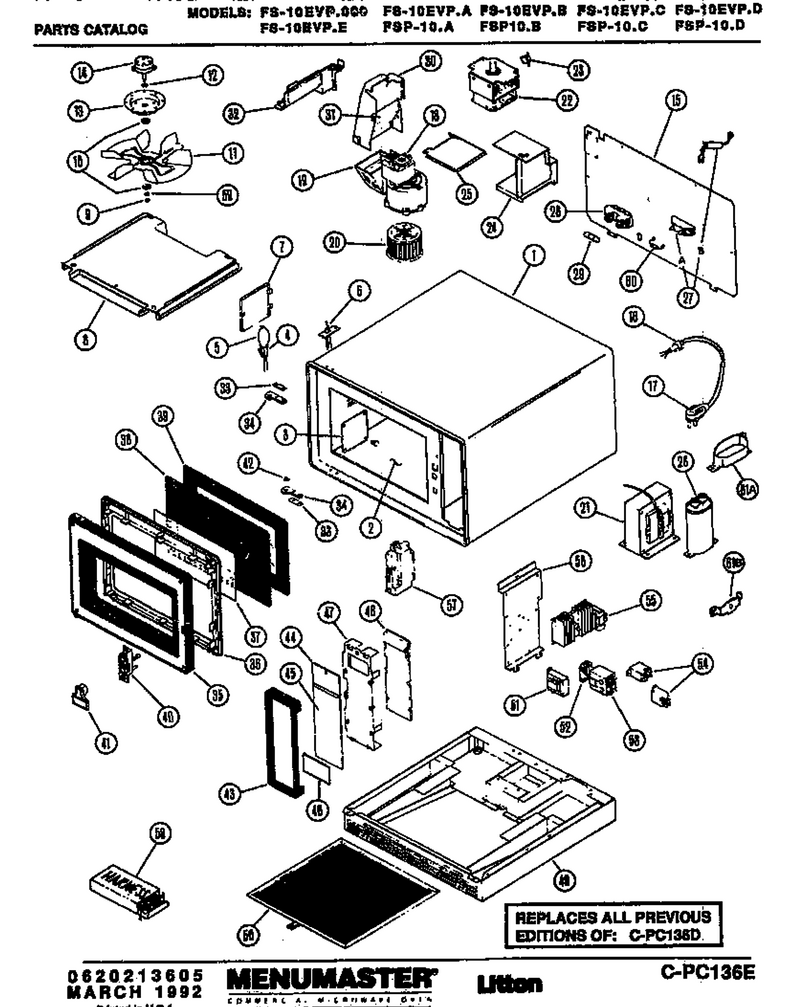

01 - Page 1

...
...
NI
M95d11-Centigrade Thermo WPL-M95D11
...
1
Cavity Asy M77d148 Fs10 WPL-M77D148
...
2
Kit, Shelf WPL-R0156904
...
3
Lamp Lens WPL-2570000202
...
4
Screw WPL-WP90767
...
5
M9d107 Lamp WPL-2031415101
...
6
Screw WPL-WP90767
...
7
Clip WPL-M1D884
...
8
Stirrer Cover WPL-45422P01
...
9
Nut, Push WPL-Y04100035
...
10
Washer WPL-M1D565
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Screw WPL-WPW10001160
...
14
Kit, Stirrer Motor WPL-M12D103
...
15
Back Space Panel WPL-M82D211
...
16
Strain Relief WPL-8536977
...
17
M26d42 Power Cord Asy. WPL-M26D42
...
18
Screw WPL-WPW10001160
...
19
Ia No.8 T X 1`` Screw WPL-M1D943
...
20
Wheel, Blower M35d39 WPL-36300P01
...
21
High Voltage Transformer WPL-M60D53
...
22
Net Use 39143p02 WPL-39143P01
...
23
Protector WPL-1751800025
...
24
Screw WPL-WP90767
...
25
Deflector-Air M65d344 WPL-46762P01
...
26
Hvcap1.05mfd 2500v80deg C WPL-1241524333
...
27
Rectifier WPL-WP13091701
...
28
Pop Rivet WPL-A4539625
...
29
Fuse WPL-M4D88
...
30
M65d345 Duct, Air WPL-45407P01
...
31
M65d346 Divider Air WPL-45402P01
...
32
Transition-Cav Exh Fs-10 WPL-45753P01
...
33
Shim-Hinge WPL-45540P01
...
34
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
35
Insert, Door WPL-12409001
...
36
Door Filler Kit WPL-M55D18
...
37
Outer Window Kit WPL-M70D129
...
38
Inner Door Kit WPL-M70D83
...
39
Window, Inner Door WPL-10785001
...
40
Door Latch Kit WPL-R0163256
...
41
Screw WPL-WP8533976
...
42
Nylon Flat Washer WPL-40370P01
...
43
Control Panel Frame WPL-M7D853
...
44
Display Window WPL-M2D742
...
45
Touch Panel Fs14evp.a WPL-M7D905
...
46
Pow Btn Cvr Alum/black WPL-46508P04
...
47
Backer Plt Asy WPL-4180001602
...
48
No.6 Pan Hd Machine Screw WPL-M1D321
...
49
Rail Assy WPL-M52D236
...
50
Filter Air WPL-45412P01
...
51
Screw WPL-WP90767
...
52
Screw WPL-WP90767
...
53
Relay WPL-36752P01
...
54
Relay WPL-38806P01
...
55
Triac - Comm/jetwave Lst Iv WPL-4070001301
...
56
Nut WPL-WP488130
...
57
Svc Interlock Switch Asy WPL-4002006801
...
58
H.v. Lead Kit WPL-M5D350
...
59
Wshr-Rubber WPL-32383P01
...
60
Bleeder Resistor WPL-M3D42
...
61
Spacer (10) WPL-M1D520
