Amana FS-10EVP.B (BOM: FS-10EVP. B)

Model: FS-10EVP.B (BOM: FS-10EVP. B)

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Use & Care Manual WPL-45699P01
...
1
Cavity Asy M77d148 Fs10 WPL-M77D148
...
2
Adhesive WPL-W10841140
...
3
Lamp Lens WPL-2570000202
...
4
Lamp Socket Kit WPL-M5D400
...
5
M9d107 Lamp WPL-2031415101
...
6
Sensor Asy WPL-M4D135
...
7
Clip WPL-M1D884
...
8
Speed-Clinch WPL-M2D574
...
9
Nut, Push WPL-Y04100035
...
10
Washer WPL-M1D565
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Screw WPL-WPW10001160
...
14
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
15
Back Space Panel WPL-M82D211
...
16
Strain Relief WPL-8536977
...
17
Cord, Power (300v) WPL-1732500101
...
18
Screw WPL-WPW10001160
...
19
Ia No.8 T X 1`` Screw WPL-M1D943
...
20
E-Ring .219 Shaft WPL-M1D853
...
21
Hv Xfmr 1000w 120v60hzx WPL-1615120011
...
22
Foam Tape 3 Ft/pk WPL-M2D703
...
23
Protector-X WPL-M4D77
...
24
Screw WPL-WP90767
...
25
Deflector-Air M65d344 WPL-46762P01
...
26
Hvcap1.05mfd 2500v80deg C WPL-1241524333
...
27
Rectifier WPL-WP13091701
...
28
Fuse Holder WPL-10091101
...
29
Fuse WPL-M4D88
...
30
Screw WPL-WP90767
...
31
M65d346 Divider Air WPL-45402P01
...
32
Transition-Cav Exh Fs-10 WPL-45753P01
...
33
Shim-Hinge WPL-45540P01
...
34
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
35
Insert, Door WPL-12409001
...
36
Door Filler Kit WPL-M55D18
...
37
Outer Window Kit WPL-M70D129
...
38
Inner Door Kit WPL-M70D83
...
39
Window, Inner Door WPL-10785001
...
40
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
41
Screw WPL-WP8533976
...
42
Nylon Flat Washer WPL-40370P01
...
43
No.8-32 Captive Nut(25) WPL-M1D758
...
44
Display Window WPL-M2D742
...
45
Mem Switch WPL-M7D823
...
46
Pow Btn Cvr Alum/black WPL-46508P04
...
47
Backer Plt Asy WPL-4180001602
...
48
Control,vp WPL-M31R44
...
49
Tape 8-Ft/pkg Kit WPL-M2D451
...
50
Filter Air WPL-45412P01
...
51
Screw WPL-WP90767
...
52
Screw WPL-WP90767
...
53
Relay WPL-36752P01
...
54
Screw (25) WPL-M1D609
...
55
Screw WPL-WPW10348409
...
56
Nut WPL-WP488130
...
57
U-Clip WPL-M2D575
...
58
Wire Harness Kit WPL-M27D495
...
59
Wshr-Rubber WPL-32383P01
...
60
Bleeder Resistor WPL-M3D42
...
61
Screw WPL-WP90767

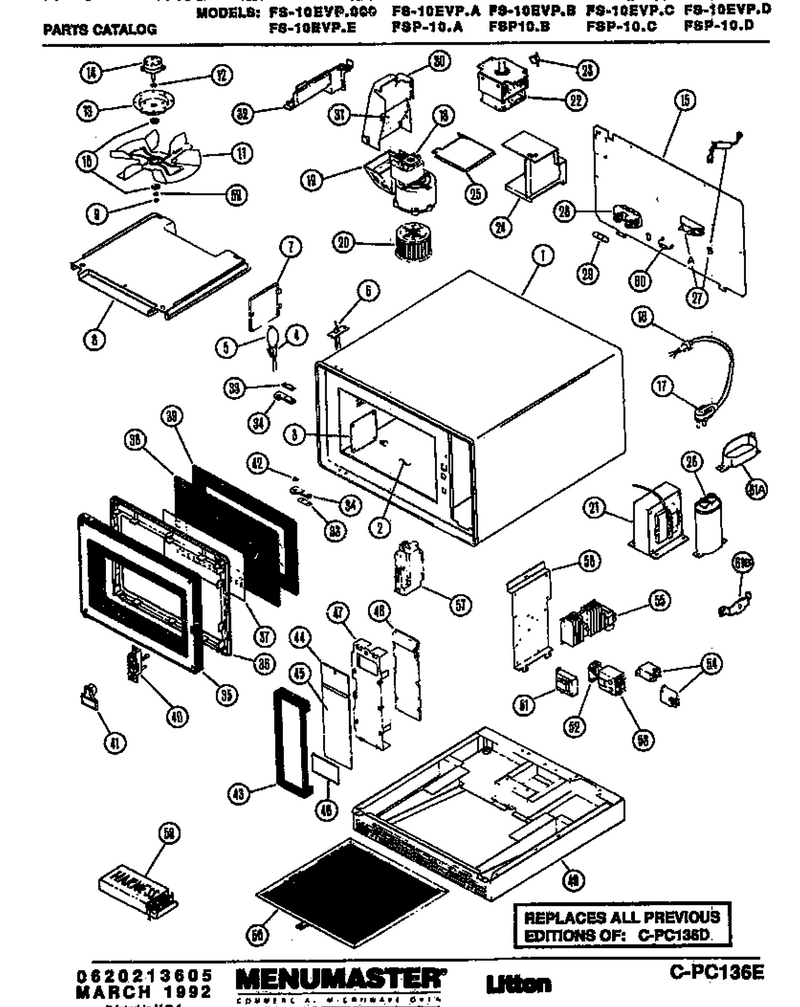

Schematic Image Zoomed
