Amana FR1065.000 (BOM: FR1065.00 0)

Model: FR1065.000 (BOM: FR1065.00 0)

Save Part Not Listed?
product name

01 - Page 1

...
...
1
Not Available WPL-M80D86
...
2
Screw (25) WPL-M1D827
...
3
Wire Package WPL-M27D256
...
4
Lamp WPL-M9D85
...
5
Screw (25) WPL-M1D827
...
6
Air Baffle, Stirrer Kit WPL-M65D203
...
7
Blade, Fan WPL-M35D25
...
8
Insert, Stirrer WPL-M2D332
...
9
Stir-Supt-Bar Kit WPL-M20D149
...
10
Screw (25) WPL-M1D847
...
11
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
12
Not Available WPL-M77D91
...
13
Gasket WPL-M25D59
...
14
Choke Filler WPL-M55D15
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
Support Rack WPL-B8371001
...
17
Not Available WPL-M2D442
...
18
Temperature Probe WPL-M90D20
...
19
Bumper Rack WPL-M2D425
...
20
Not Available WPL-M25D58
...
21
Termnl Block WPL-M4D86
...
22
Screw WPL-WPW10001160
...
23
Intrusion Baffle WPL-M15D207
...
24
Fuse WPL-M4D70
...
25
Fuse Holder WPL-M4D71
...
26
Screw (25) WPL-M1D827
...
27
Screw, Foot Mtg. WPL-M1D828
...
28
Strain Relief (10) WPL-M1D749
...
29
Pwr Cord WPL-M26D26
...
30
H.v. Transformer WPL-M60D87
...
31
Base Right WPL-M79D74
...
32
Insulator WPL-M5D279
...
33
Nut K WPL-M0282005
...
34
Triac Kit WPL-M16D70
...
35
Screw WPL-WPW10001160
...
36
Screw (25) WPL-M1D827
...
37
Edge Guard A WPL-M2D374
...
38
Blower Wheel WPL-M35D28
...
39
Blower Housing WPL-M65D199
...
40
Gasket WPL-A3030302
...
41
End Cap-Lft WPL-M7D402
...
42
Screw (25) WPL-M1D540
...
43
Bezel, Right WPL-M7D404
...
44
Screw (25) WPL-M1D540
...
45
Membrane Tc Pnl. WPL-M7D466
...
46
Spacer WPL-M2D44O
...
47
Release Bar WPL-M11D53
...
48
Switch,on/off WPL-M14D228
...
49
Brkt, Switch Mtg WPL-M8D187
...
50
Screw. Circuit Board Mtg. WPL-M10830
...
51
Cnt Pnl Back WPL-M7D415
...
52
Poly Button (10) WPL-M1D844
...
53
Not Available WPL-M8D185
...
54
Actuator WPL-36020P01
...
55
Clip WPL-M2D445
...
56
Pivot Pin WPL-M2D446
...
57
Spring WPL-M2D447
...
58
M2d479 Bearing WPL-M2D479
...
59
Plastic Washer WPL-M2D480
...
60
Ground Lead WPL-M5D266
...
61
Ia Screw No.10-32 WPL-M1D370
...
62
Logicswitch WPL-M14D209
...
63
Switch, Monitor WPL-35370P01
...
64
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
65
No.3/8-32 Hex Nut (25) WPL-M1D615
...
66
Insulator WPL-M2D465
...
67
Bracket WPL-10825501
...
68
Diode WPL-M3D57
...
69
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
70
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
71
Duct, Exh Lwr WPL-M65D208
...
72
Screw (25) WPL-M1D827
...
73
Plug WPL-M2D466
...
74
H V Lead 35 WPL-M5D264
...
75
Gasket-Rf WPL-M2D296
...
76
Teflon Sleeve (1) WPL-M1D834
...
77
Rivet (25) WPL-M1D623
...
78
Thermal Fuse WPL-M4D85

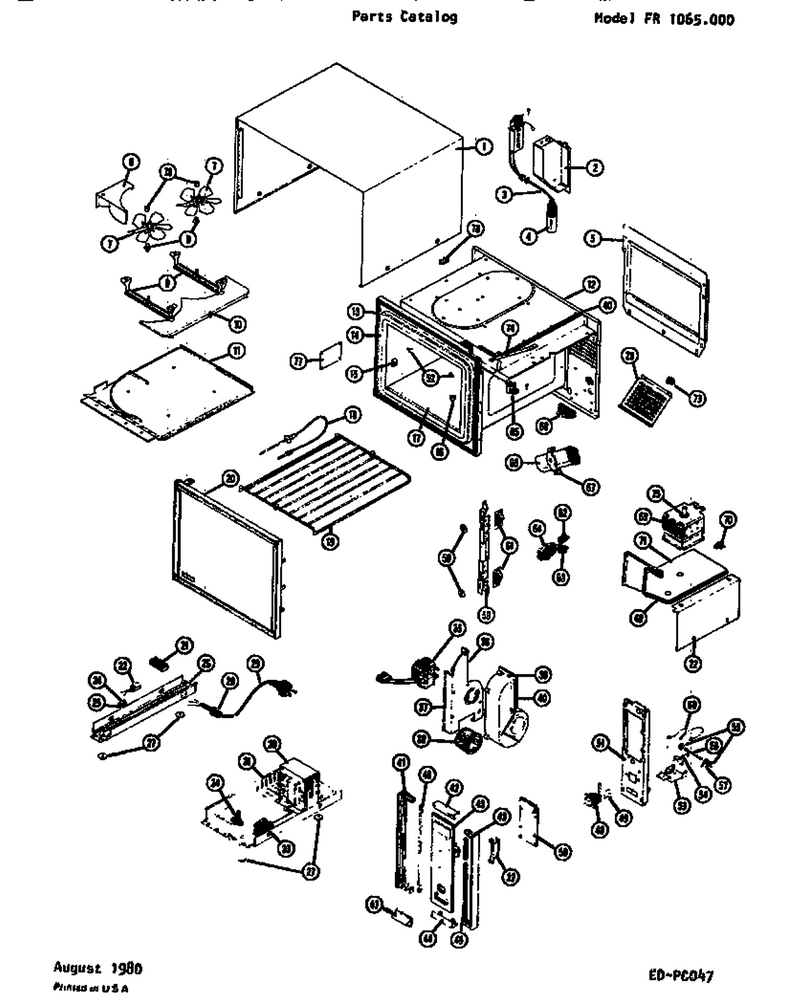

Schematic Image Zoomed
