Amana FET-130-2D (BOM: FET-130-2 D)

Model: FET-130-2D (BOM: FET-130-2 D)

Save Part Not Listed?
product name

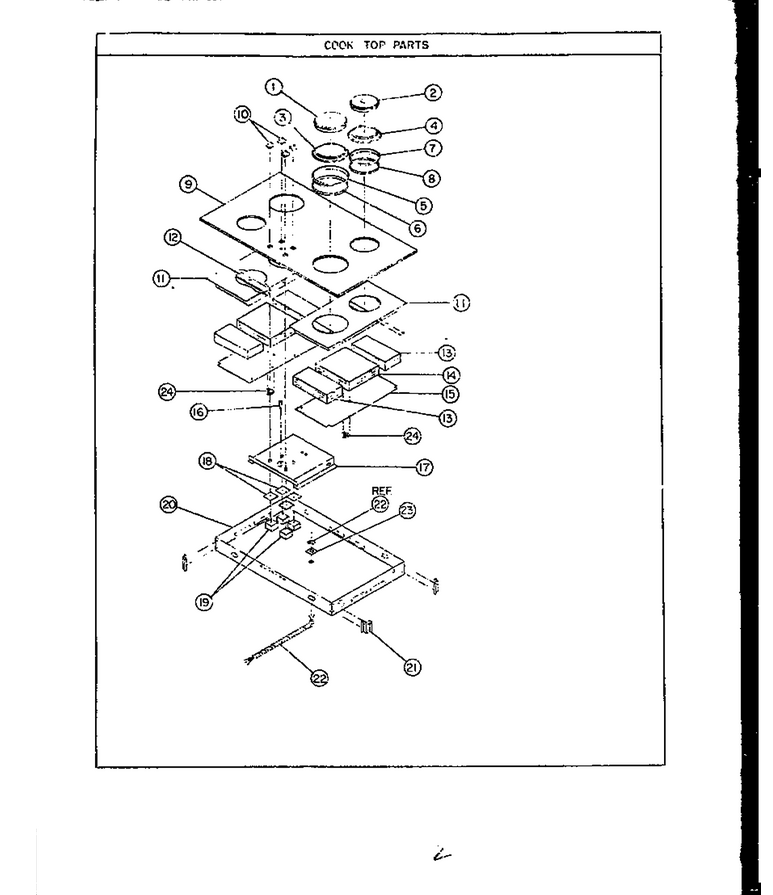

01 - Page 1

...
...
NI
Nut WPL-0061486
...
1
Element, Large WPL-0061610
...
2
Elmnt-Surf WPL-WP3147131
...
5
Gasket, Ring WPL-0061608
...
6
Gasket 25.250`` WPL-Y0053543
...
7
Gasket, Ring WPL-0061609
...
8
Sub 53543, Gasket WPL-0053542
...
11
Burner Box WPL-Y0053503
...
12
Bracket Element Mtg WPL-Y0053506
...
13
Insulation, Wrapper WPL-31975801
...
14
Insulation, Wrapper WPL-31975801
...
15
Bottom Burner Box WPL-0053505
...
16
Indicator Light WPL-Y0053544
...
17
Switch Mounting Bracket WPL-W10125031
...
18
Switch Gas WPL-31953701
...
19
Pkg 100 Inf. Sw. WPL-X042060
...
20
Bottom Cover WPL-Y0053509
...
21
Spacer Bracket WPL-Y0054008
...
22
See Note Nut, Conduit Part Of Ref. No. 22 WPL-Y00000000
...
23
Fuse Box Reinforcement Brkts WPL-Y0040881
...
24
Limit Switch WPL-0054939
